BlochEnergy  |
|
| | ||||
Details and Options
Examples
(1)
Basic Examples
(1)

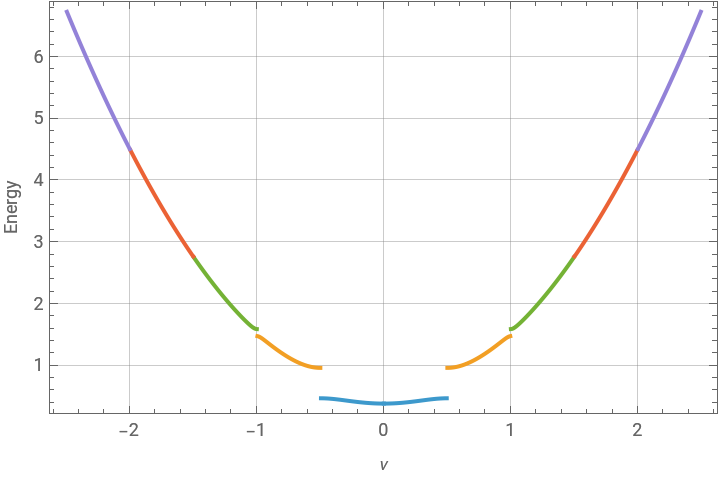

Here is an example of the dispersion relation in the charging limit. The dispersion relation resembles a quadratic curve.
In[1]:=
α=2.;d=0.005;fig1a=ListPlotTablen+nu,
[n+nu,α],{n,0,2,1/2},{nu,0,0.5-d,d},JoinedTrue;fig1b=ListPlotTablen+nu,
[n+nu,α],{n,0,-2,-1/2},{nu,0,-0.5+d,-d},JoinedTrue;fig1=Show[{fig1a,fig1b},FrameLabel{"ν","Energy"},PlotRangeAll]
 | BlochEnergy |
| BlochEnergy |
Out[1]=

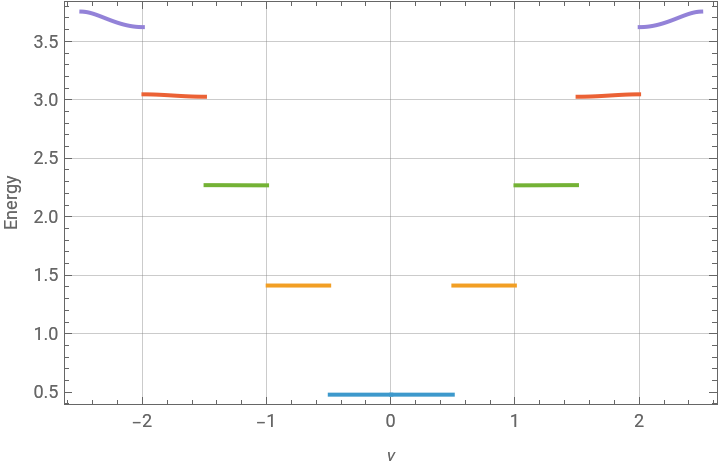

Here is an example of the dispersion relation in the Josephson limit. The allowed values of energy are almost discrete and are similar to those of simple harmonic oscillator.
In[2]:=
α=0.5;d=0.005;fig2a=ListPlotTablen+nu,
[n+nu,α],{n,0,2,1/2},{nu,0,0.5-d,d},JoinedTrue;fig2b=ListPlotTablen+nu,
[n+nu,α],{n,0,-2,-1/2},{nu,0,-0.5+d,-d},JoinedTrue;fig2=Show[{fig2a,fig2b},FrameLabel{"ν","Energy"},PlotRangeAll]
| BlochEnergy |
| BlochEnergy |
Out[2]=
 |
|
 |
|
""
