Compute the relative probability of finding a point at a given distance from another point

Contributed by:
Nicholas E. Brunk, Wolfram|Alpha Math Team

ResourceFunction["RadialDistributionFunctionList"][{ returns the radial distribution function resulting from each pair of points | |

ResourceFunction["RadialDistributionFunctionList"][{ returns the radial distribution function using separation bin width |

The radial distribution function is also known as the pair correlation function.

The default value for the bin width (*w* = 0.005), is a common choice in reduced units quantified relative to the particle diameter.

ResourceFunction["RadialDistributionFunctionList"] will work in up to three dimensions, applying periodicity uniformly in each.

ResourceFunction["RadialDistributionFunctionList"] normalizes the *y* axis to generate a density relative to that of an ideal gas at the same density in the same space (determined by box size *L* and the number and dimension of the specified coordinates).

ResourceFunction["RadialDistributionFunctionList"] takes the option "ReferenceCoordinates" → {*p*_{j1},*p*_{j2},…} to compute the RDF g_{ij}=g_{ji} between two pairs of coordinates {*p*_{i1},*p*_{i2},…} and {*p*_{j1},*p*_{j2},…}.

ResourceFunction["RadialDistributionFunctionList"] utilizes Compile for performance enhancement, and takes the same options.

Compute the radial distribution function from two points:

In[1]:= |

Out[1]= |

Compute the radial distribution function of a set of coordinates enclosed in a periodic 1D "box" of size (L = 4):

In[2]:= |

Display the coordinates in number line format along the axis for which the positions differ:

In[3]:= |

Out[3]= |

The radial distribution function has non-zero peaks at positions near those of the exact distances apart:

In[4]:= |

Out[4]= |

Plot the radial distribution function characteristic of this system:

In[5]:= |

Out[5]= |

Cross-correlations can be computed using the option "ReferenceCoordinates":

In[6]:= |

Out[7]= |

Radial distribution function takes the same options as Compile, and benefits from automated compilation to C:

In[8]:= |

Out[8]= |

In[9]:= |

Out[9]= |

Compute the radial distribution function characteristic of a cube with unit length, enclosed in a sufficiently larger periodic box:

In[10]:= |

Out[11]= |

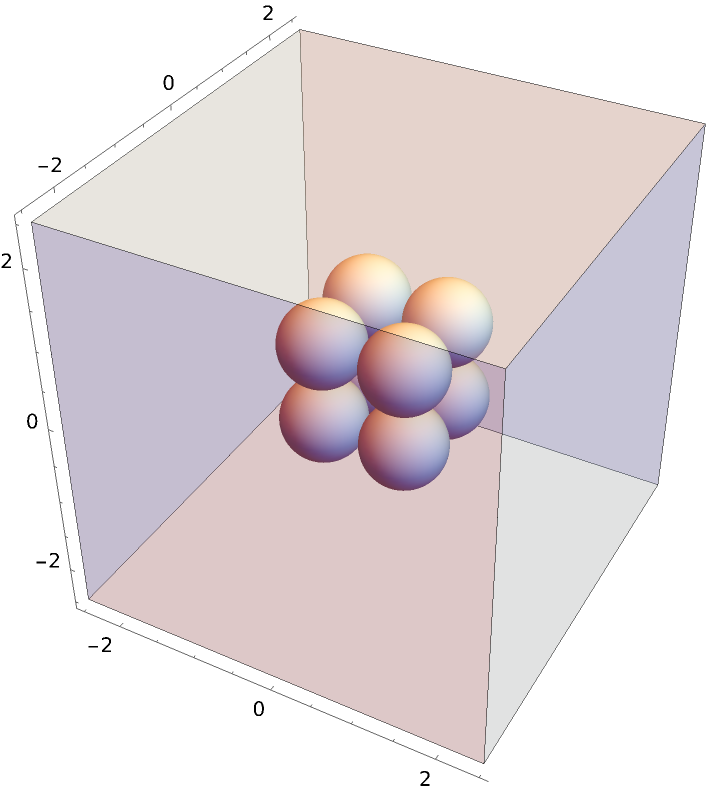

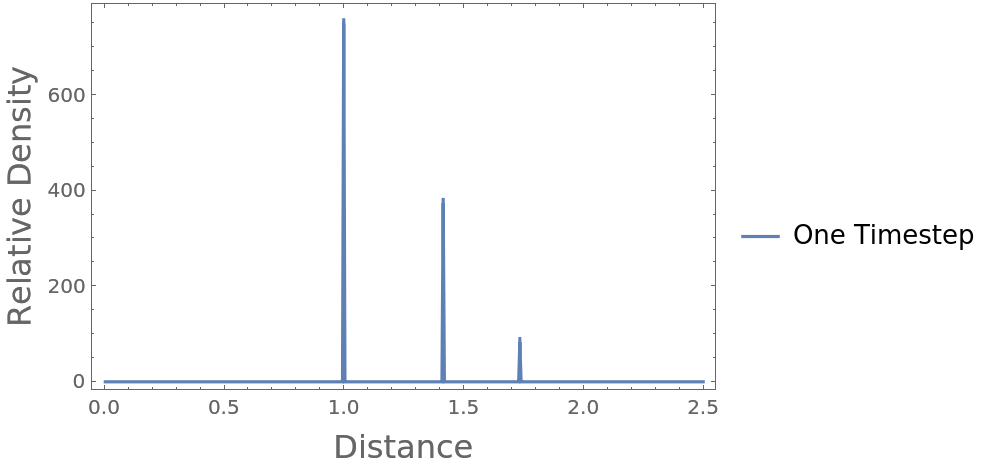

Plot the resulting radial distribution function, where you can see nearest neighbor, polygonal face hypotenuse, and internal hypotenuse distances:

In[12]:= |

Out[12]= |

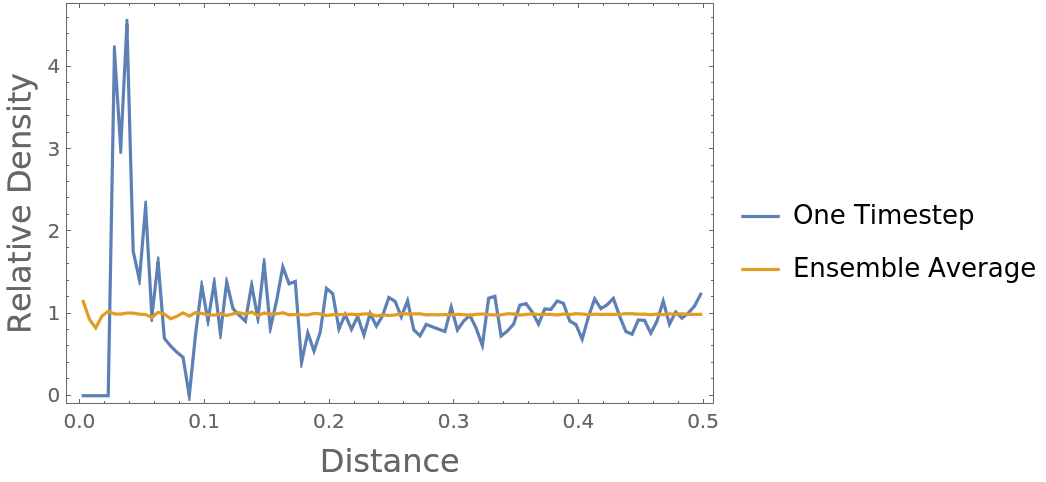

By definition, the RDF of an ideal gas converges to 1 at all distances when provided sufficient data (here, 1000 time steps on 100 positions of 100 particles):

In[13]:= |

Compute both the radial distribution function of just the first time step, and then that of the ensemble average over all time steps:

In[14]:= |

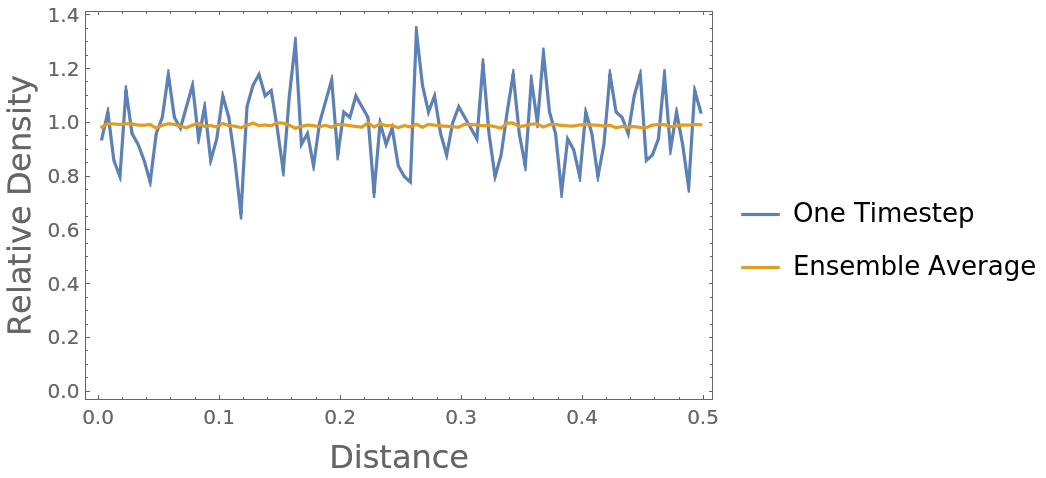

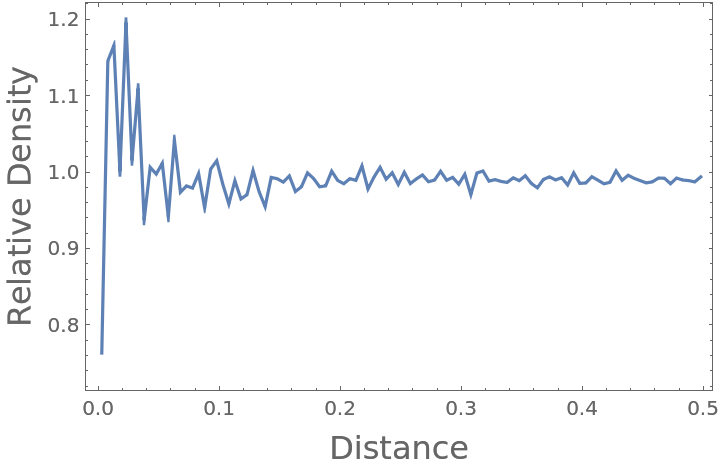

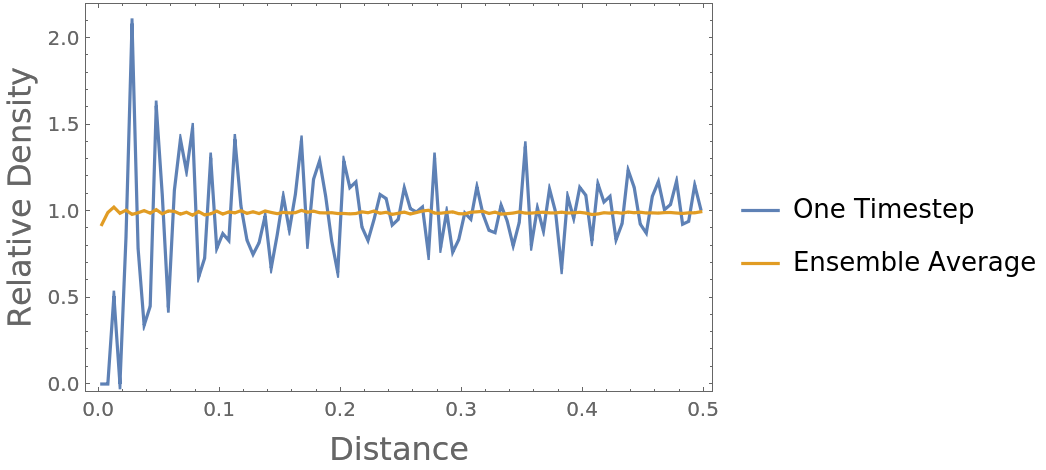

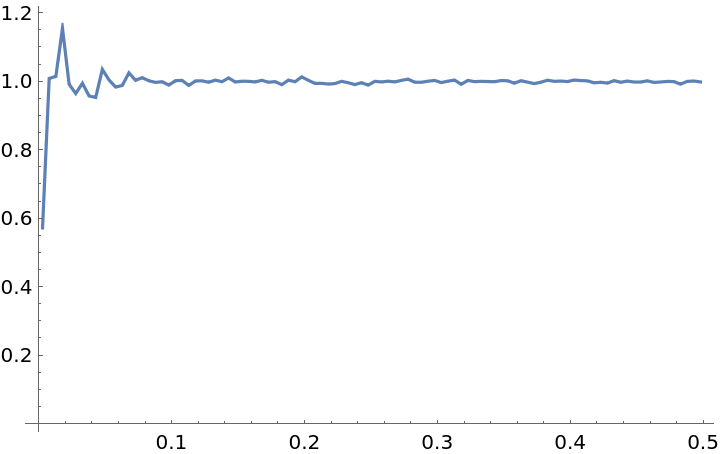

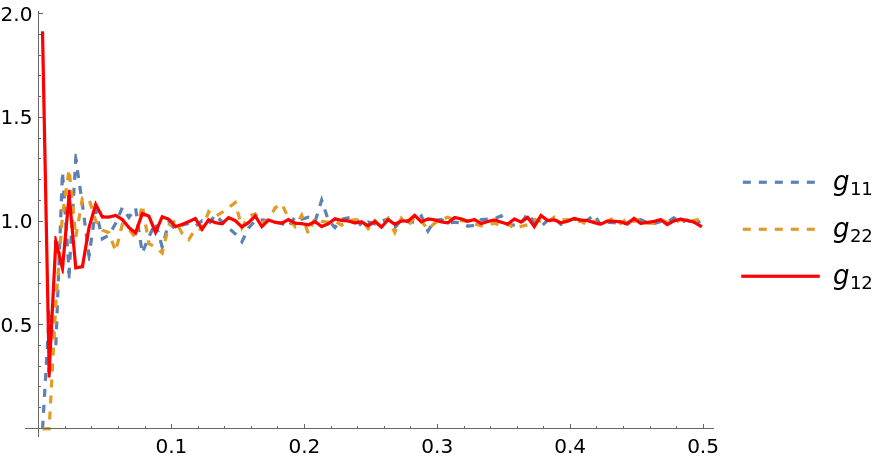

As expected, the radial distribution function converges to nearly 1 as sufficient data is introduced:

In[15]:= |

Out[15]= |

Normalization by the expected number of particles in that vicinity works in 2D cases as well:

In[16]:= |

In[17]:= |

Out[17]= |

The same is true for 1D cases:

In[18]:= |

In[19]:= |

Out[19]= |

Ensemble average cross-correlations between two distinct populations (lists of coordinates) can also be computed:

In[20]:= |

Out[21]= |

Cross-correlations are symmetric, that is, the computation is the same for swapped populations g_{{XMLElement[i, {}, {XMLElement[span, {class -> stylebox}, {ij}]}]}}(r)=g_{{XMLElement[i, {}, {XMLElement[span, {class -> stylebox}, {ji}]}]}}(r):

In[22]:= |

Out[8]= |

In[23]:= |

Out[23]= |

For finite-sized systems, the radial distribution function is accurate out to and is thus truncated at this point, beyond which it would artificially decay:

In[24]:= |

Out[3]= |

If the box is sufficiently larger than the domain of the particle coordinates, the calculation is as expected (using real particle positions, rather than the minimum image convention under periodicity):

In[25]:= |

Out[26]= |

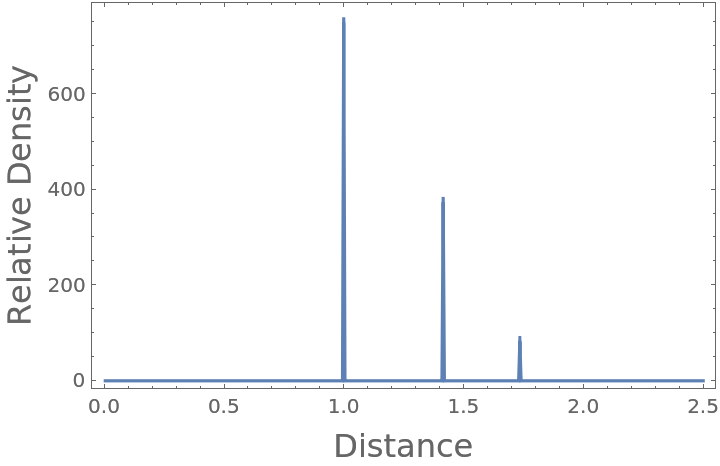

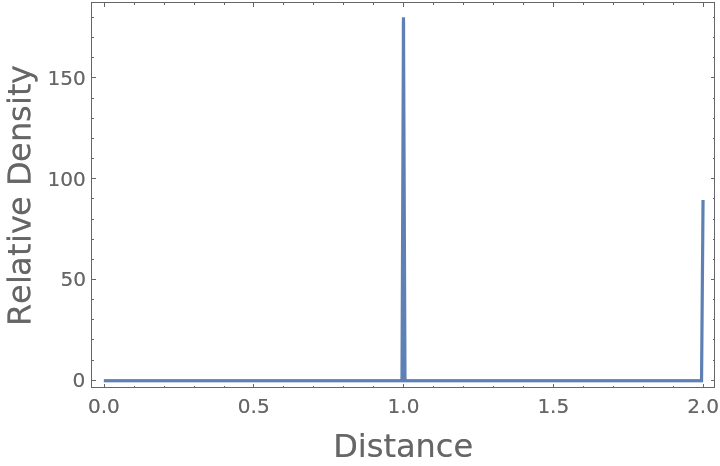

The peaks are at the expected unit distance for the touching particles, at the polygonal face hypotenuse distance, and the interior hypotenuse:

In[27]:= |

Out[27]= |

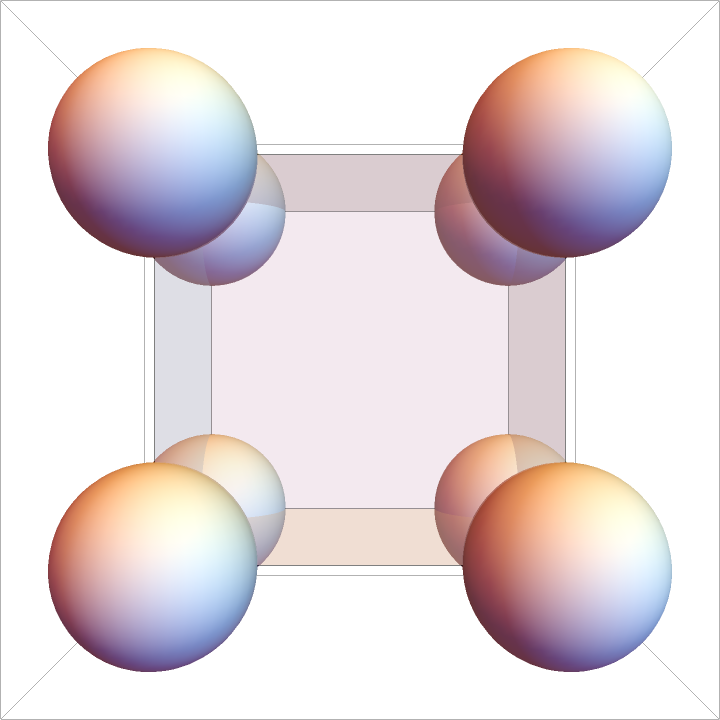

If the box size (L) is too small, the minimum image convention is employed, applying periodicity in each dimension:

In[28]:= |

Out[31]= |

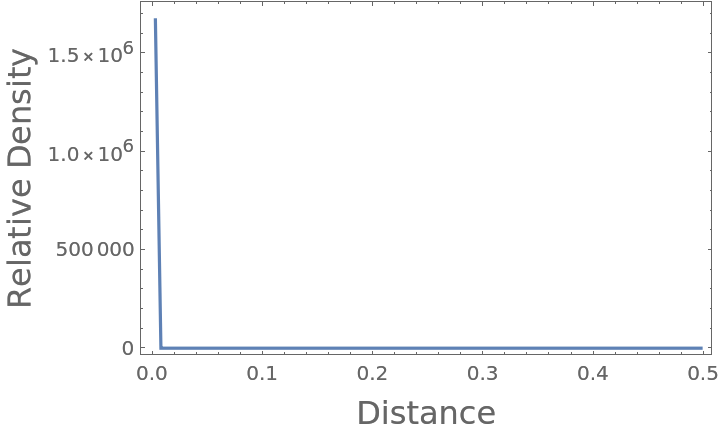

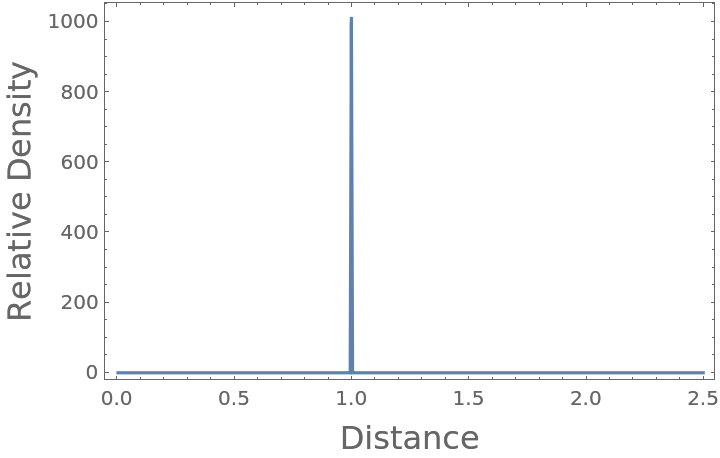

In this case, particles are perfectly overlapping and the separation distance between all pairs is r_{{XMLElement[i, {}, {XMLElement[span, {class -> stylebox}, {ij}]}]}}=0, however the convention is to put them in the first non-zero bin:

In[32]:= |

Out[32]= |

Modifying the concentric shell bin width can affect normalization and positional accuracy, similar to the behavior in Riemann sums with too few discretizing rectangles:

In[33]:= |

Out[35]= |

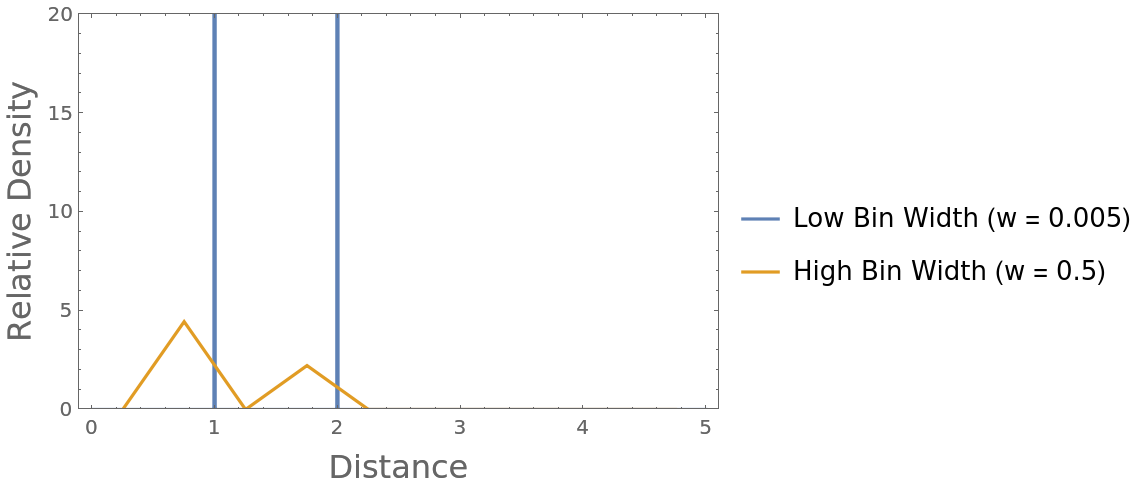

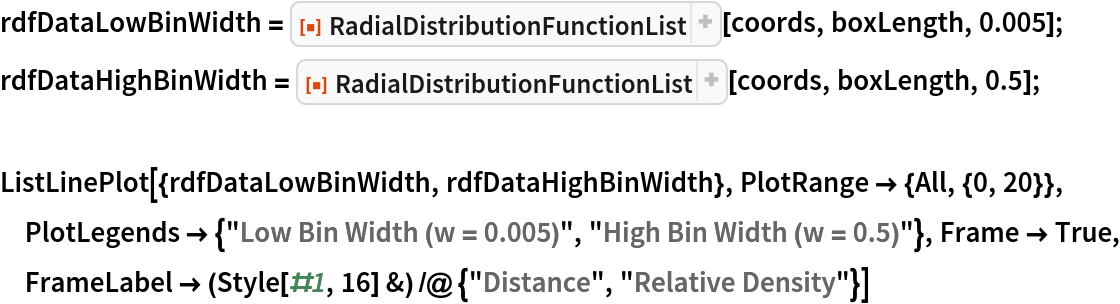

Compare the difference when using two different bin widths:

In[36]:= |

Out[38]= |

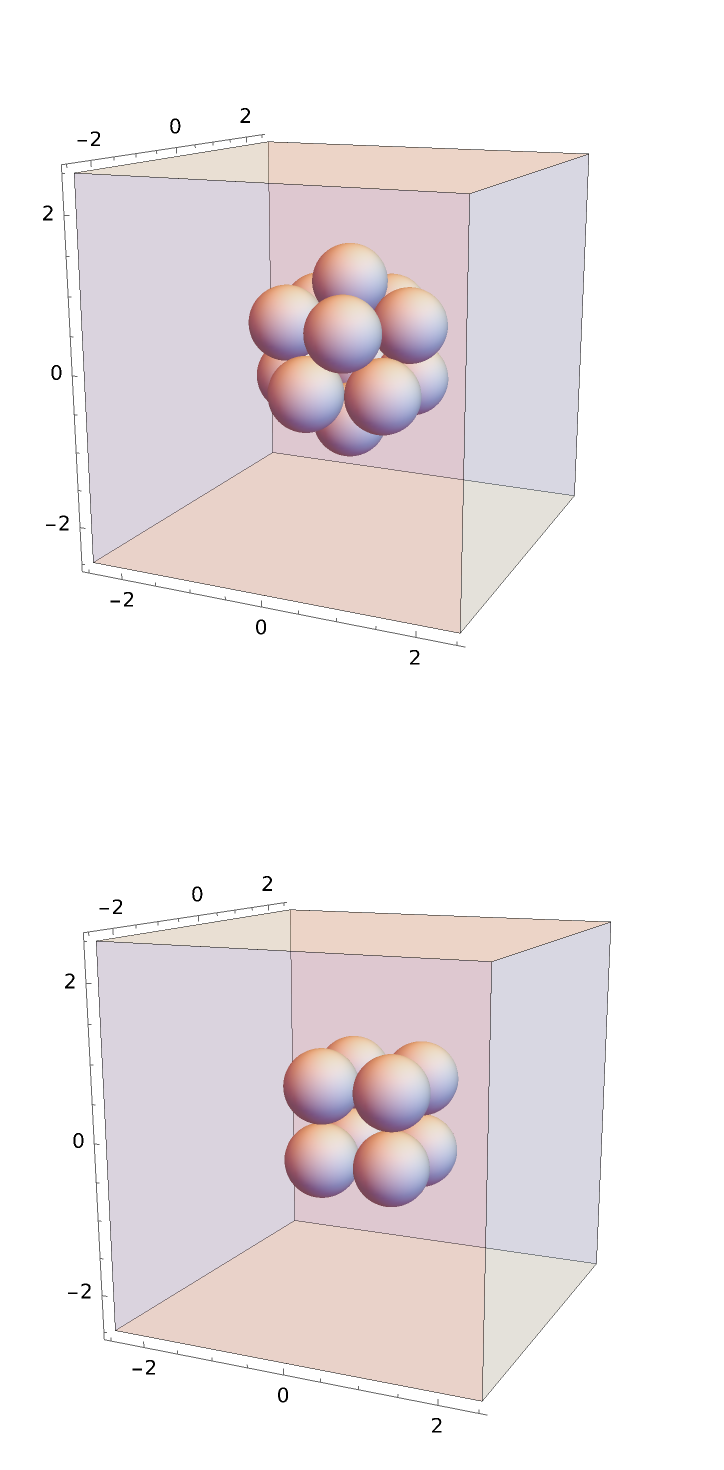

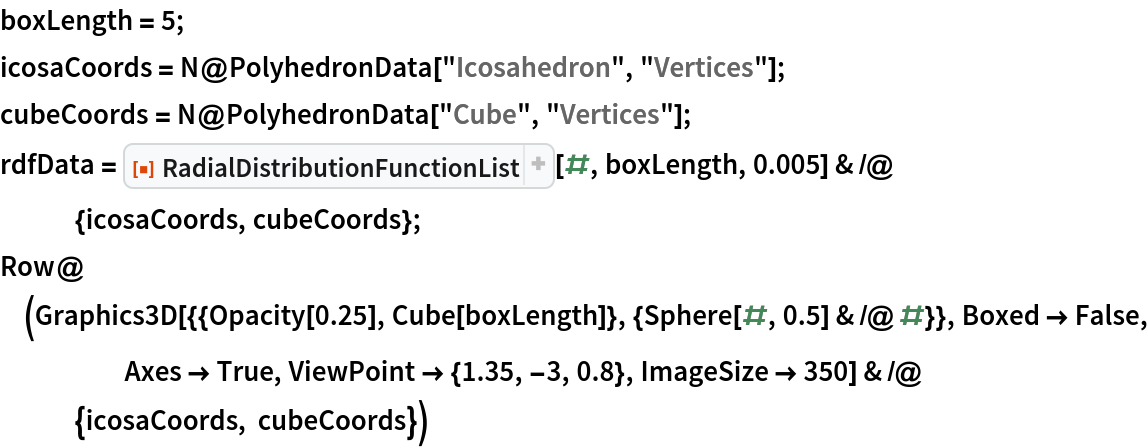

Compute the radial distribution function characteristic of an icosahedral distribution of particles and compare it with that of a cube, each with a minimum separation distance of 1:

In[39]:= |

Out[43]= |

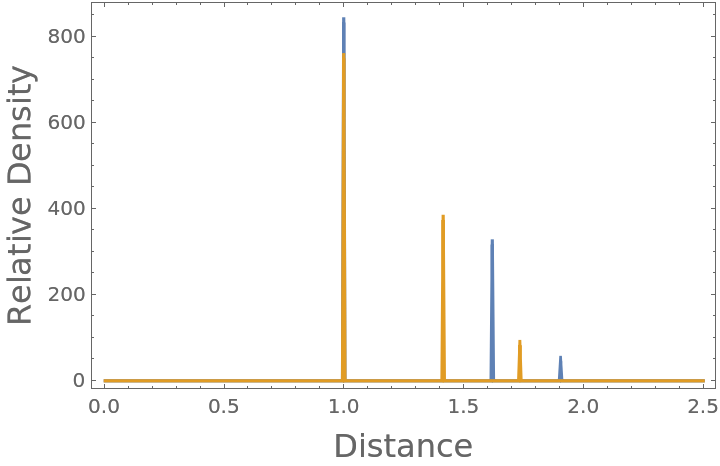

Plot the resulting radial distribution functions to compare:

In[44]:= |

Out[44]= |

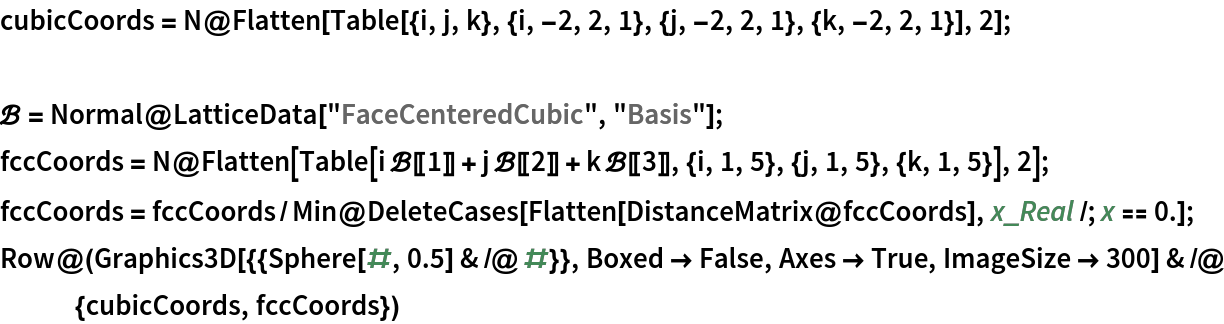

Compare the radial distribution function of both a simple cubic and face-centered cubic (FCC) crystalline lattice (neglecting periodicity, each with nearest neighbors touching at unit lengths):

In[45]:= |

Out[49]= |

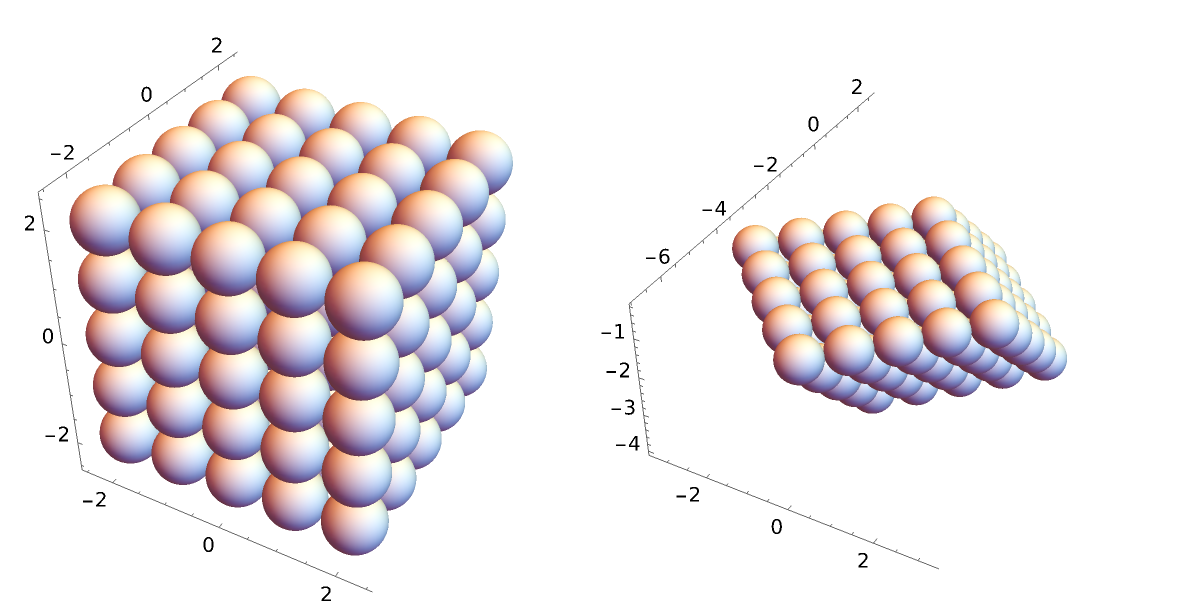

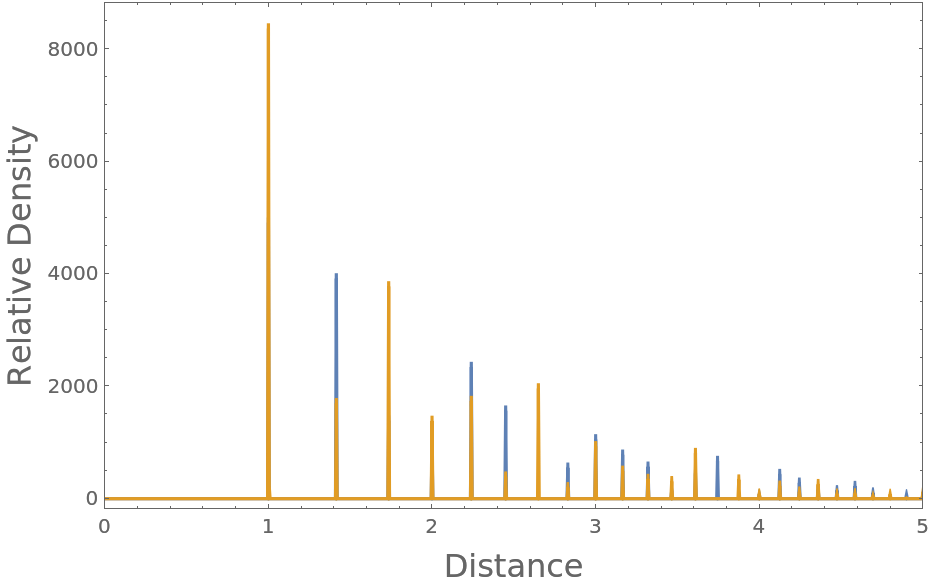

Compute and plot the radial distribution functions to compare:

In[50]:= |

Out[51]= |

Compute the Potential of Mean Force that has given rise to the interactions, in this example showing that the 3D ideal gas has no potential of interaction:

In[52]:= |

In[53]:= |

Out[53]= |

Compute the corresponding Potential of Mean Force (in units where k_{B}T=1):

In[54]:= |

In[55]:= |

Out[55]= |

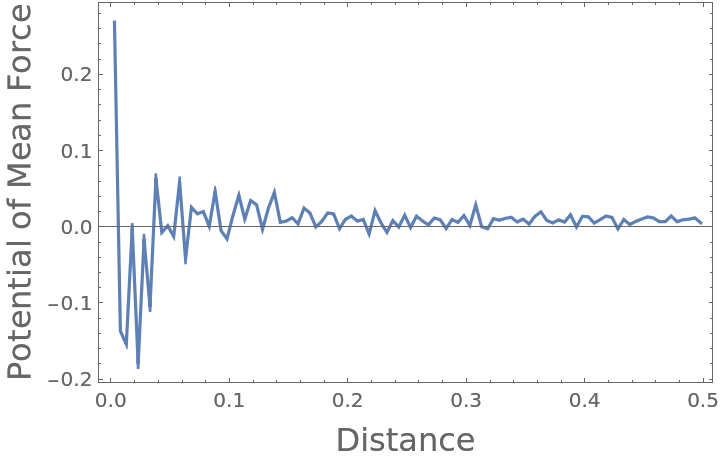

It can be seen that despite the noise associated finite data, the Potential of Mean Force is fairly close to zero when averaged over the entire domain:

In[56]:= |

Out[56]= |
