Basic Examples (2)

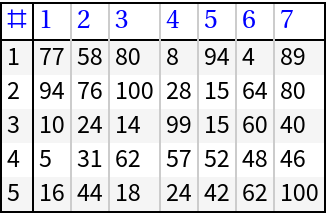

Here is a grid table form of a full integer array:

In[1]:=

Out[2]=

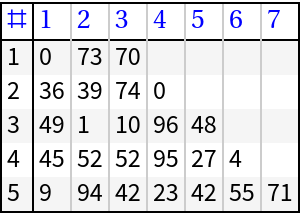

Here is a grid table form of a nested list of integers that is not a full array:

In[3]:=

Out[3]=

Scope (4)

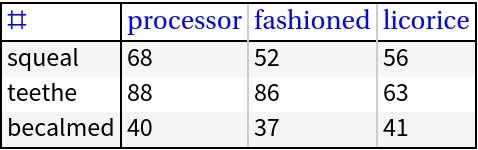

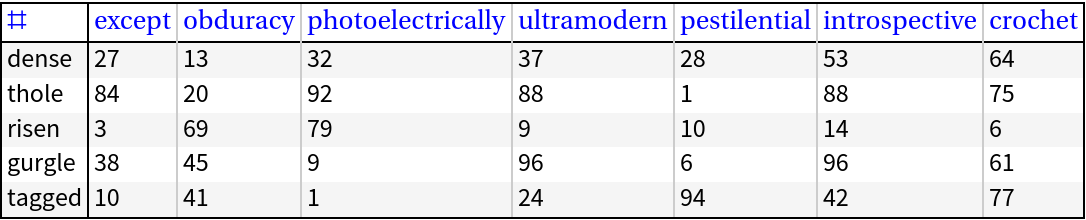

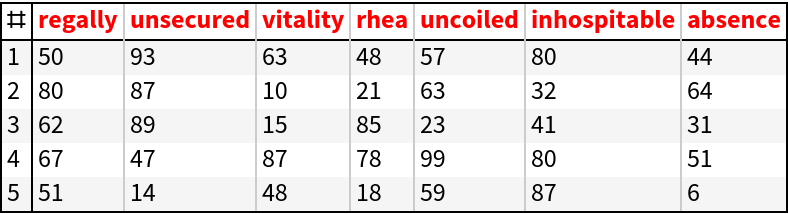

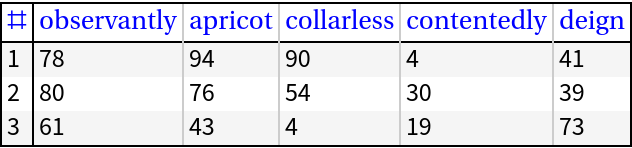

Table headings can be specified:

In[4]:=

Out[4]=

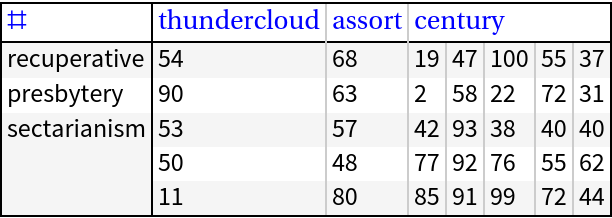

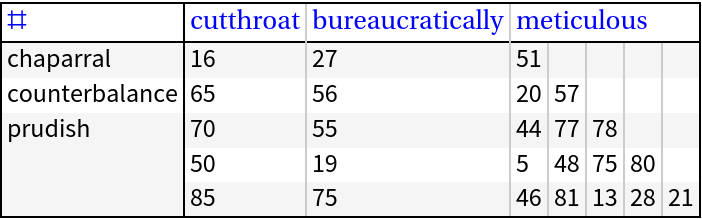

If needed, various completions of the data and table headings are made in order to produce the final tabular form:

In[5]:=

Out[5]=

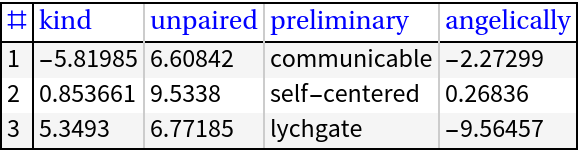

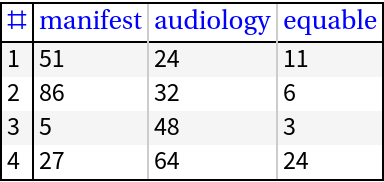

GridTableForm can be invoked over Dataset objects; if the dataset has column names, then they are used as table headings:

In[6]:=

In[7]:=

Out[7]=

Excess table headings are ignored:

In[8]:=

Out[8]=

Options (4)

RowBackground (1)

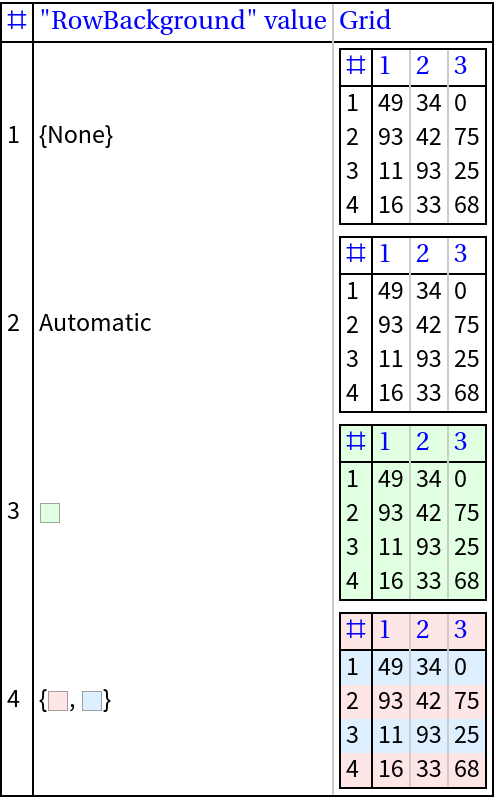

The following table demonstrates the effect of different row background specifications:

In[9]:=

Out[10]=

TableHeadings (2)

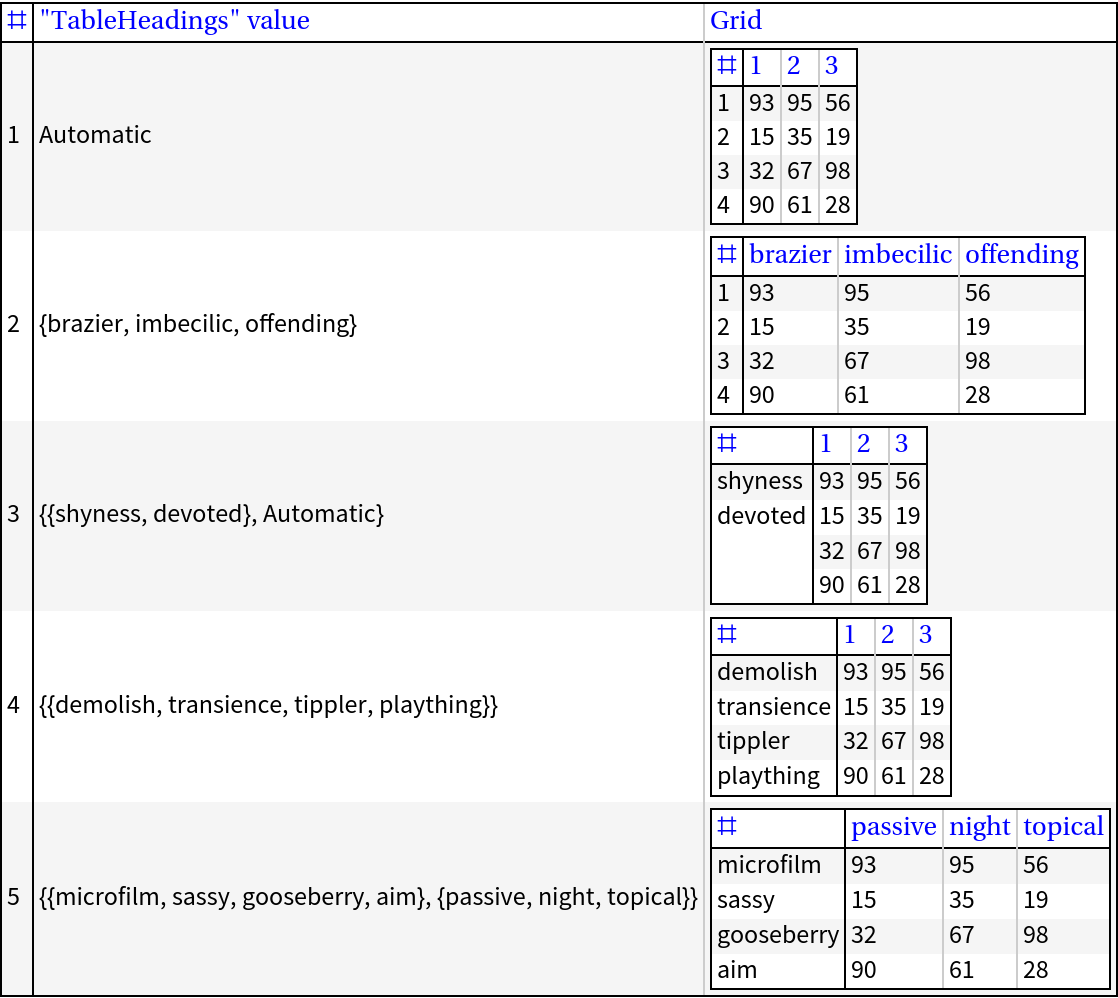

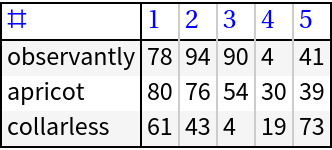

The following table demonstrates the effect of different table headings specifications:

In[11]:=

Out[12]=

---

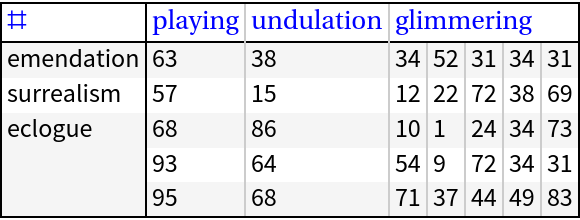

If the row headings or column headings are too short, they are completed with SpanFromAbove and SpanFromLeft, respectively:

In[13]:=

Out[13]=

Grid options (1)

GridTableForm takes all options of Grid:

In[14]:=

Out[7]=

Applications (3)

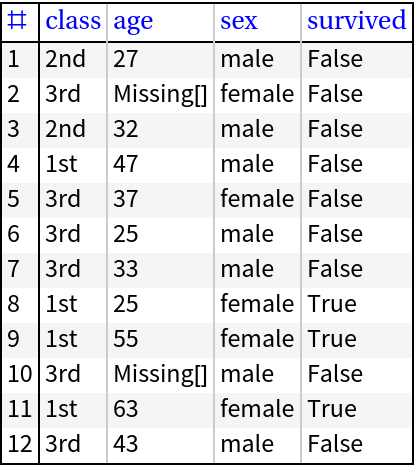

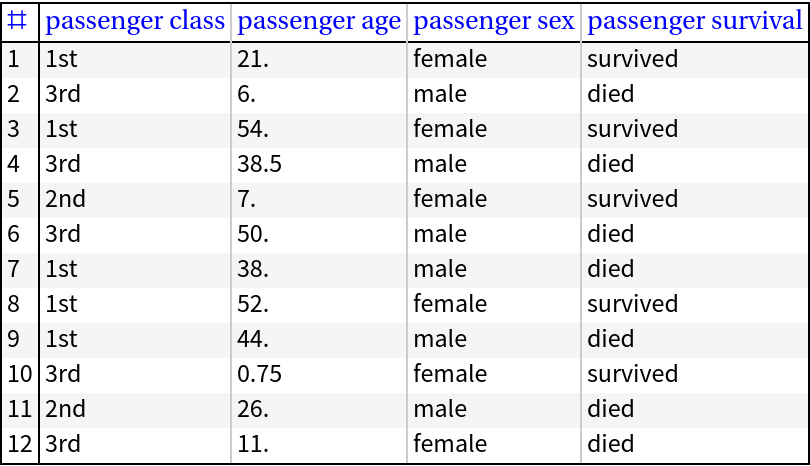

Show a sample of machine learning data with corresponding variable names:

In[15]:=

Out[16]=

When studying data arrays, the use of the ResourceFunction RecordsSummary can be completed with GridTableForm:

In[17]:=

In[18]:=

Out[18]=

In[19]:=

Out[19]=

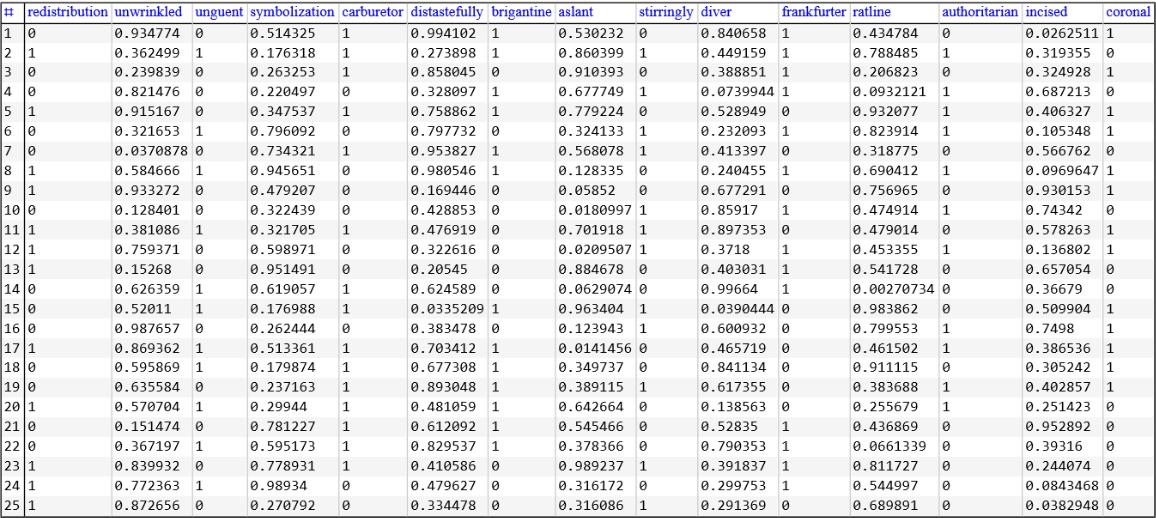

Show all rows and columns of a dataset:

In[20]:=

Out[22]=

Properties and Relations (2)

GridTableForm is related to both TableForm and Grid. The relation with TableForm can be seen in this example:

In[23]:=

In[24]:=

Out[24]=

In[25]:=

Out[25]=

In order to produce a similar result using Grid, several data "augmentations" and option specifications have to be made:

In[26]:=

Out[26]=

Possible Issues (3)

If the specified table headings are styled, the specification given to the option "TableHeadingsStyle" has no effect:

In[27]:=

Out[27]=

The background is extended for the extended row names:

In[28]:=

Out[28]=

If the specified table headings value is a list with one element, that element is treated as a row names specification. Compare the following examples:

In[29]:=

Out[18]=

In[30]:=

Out[30]=

Neat Examples (1)

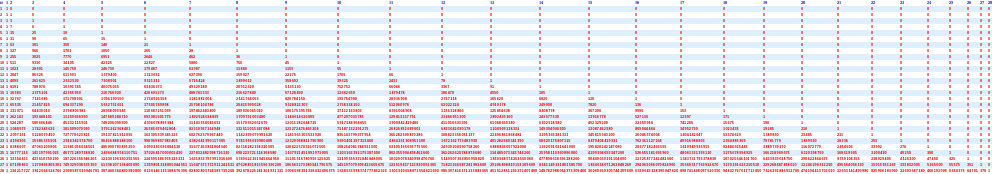

This example is similar to the "neat example" in the function page of TableForm:

In[31]:=

Out[31]=
