MalcolmWoodruff`TerraPercolatio`
FlowNet  |
| | |||||
▪
The phreatic surface and unsaturated zone are drawn automatically when sol comes from .
▪
The following options can be given:
"PotentialDrops" | 10 | Number of equal head drops Nd used for the equipotential contours. | |
"FlowChannels" | Number of flow channels Nf between streamline contours; Automatic chooses Nf so the net is square (equal aspect) in "SquareNetLayer". | ||
"SquareNetLayer" | 1 | ||
"ShowVelocity" | Accepted but currently has no effect on the plot; reserved for a future velocity-vector overlay. | ||
"WaterLevels" | {} | {{level, {x1, x2}}, ...}: draws free-water surfaces, including standing water above ground, as a line with a water-table marker. | |
"EquipotentialStyle" | Line style used for the equipotential (constant-head) contours. | ||
"StreamlineStyle" | Line style used for the flow-line (constant-ψ) contours. | ||
"LayerColors" |
Examples
(9)
Basic Examples
(1)

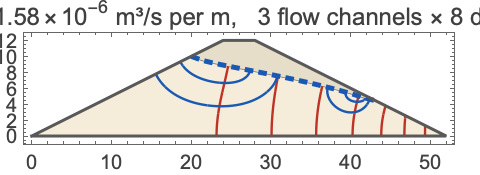

Draw the flow net for an unconfined dam solution:
In[1]:=
damSpec=Association["Profile"{{0.`,0.`},{52.`,0.`},{28.`,12.`},{24.`,12.`}},"UpstreamLevel"10.`,"DownstreamLevel"0.`,"kx"1.`*^-6,"ky"1.`*^-6];damSol=
[damSpec,"Points"16];
[damSol,"PotentialDrops"8,"FlowChannels"3]
 | SeepageUnconfined |
 | FlowNet |
Out[1]=
Options
(8)
""
