Compute the curvature of a curve

Contributed by: Wolfram Staff (original content by Alfred Gray)

ResourceFunction["Curvature"][c,t]

computes the curvature of curve c parametrized by t.

Details and Options

The curvature κ is also called the "first curvature".

The curvature of a curve is defined as κ=(x'y''-y'x'')/(x'²+y'²)^3/2.

Examples

Basic Examples (4)

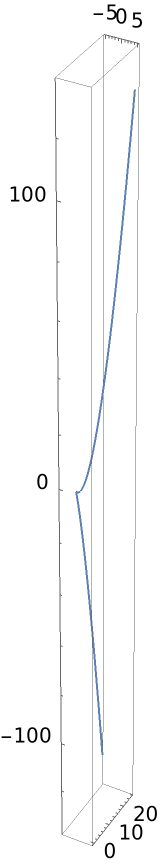

Plot the twisted cubic curve:

In[1]:=

$ParametricPlot3D[{t, t^2, t^3}, {t, -5, 5}]$

Out[1]=

Compute the curvature of the twisted cubic curve:

In[2]:=

$ResourceFunction["Curvature"][{t, t^2, t^3}, t]$

Out[2]=

Compute the torsion with the resource function CurveTorsion:

In[3]:=

$ResourceFunction["CurveTorsion"][{t, t^2, t^3}, t]$

Out[3]=

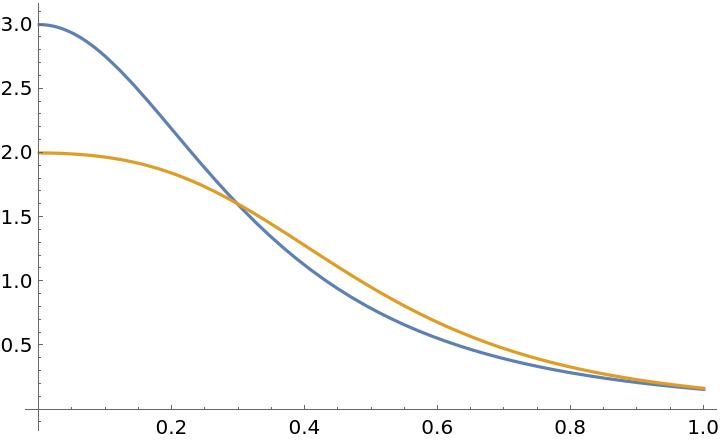

Plot them:

In[4]:=

Out[4]=

Scope (4)

For a plane curve, the curvature and torsion are the same:

In[5]:=

$ResourceFunction["Curvature"][{3 t - t^3, 3 t^2, 3 t + t^3}, t] // Simplify$

Out[5]=

In[6]:=

$Simplify[ ResourceFunction["CurveTorsion"][{3 t - t^3, 3 t^2, 3 t + t^3}, t], t > 0]$

Out[6]=

Make a plot:

In[7]:=

Out[7]=

A curve that is qualitatively similar to a torus knot:

In[8]:=

$torusknot[a_, b_, c_][p_, q_][ t_] := {(a + b Cos[q t]) Cos[p t], (a + b Cos[q t]) Sin[p t], c Sin[q t]}$

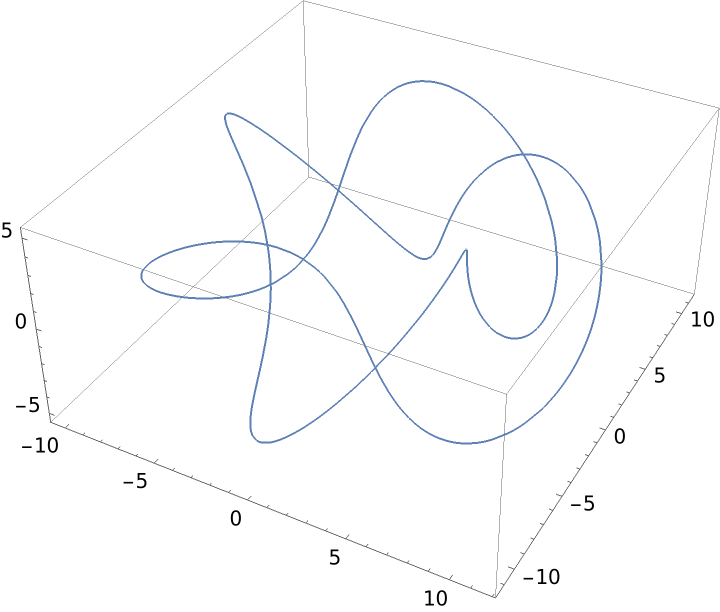

Plot the knot:

In[9]:=

$ParametricPlot3D[torusknot[8, 3, 5][2, 5][t], {t, 0, 2 \[Pi]}]$

Out[9]=

Find the curvature:

In[10]:=

Out[10]=

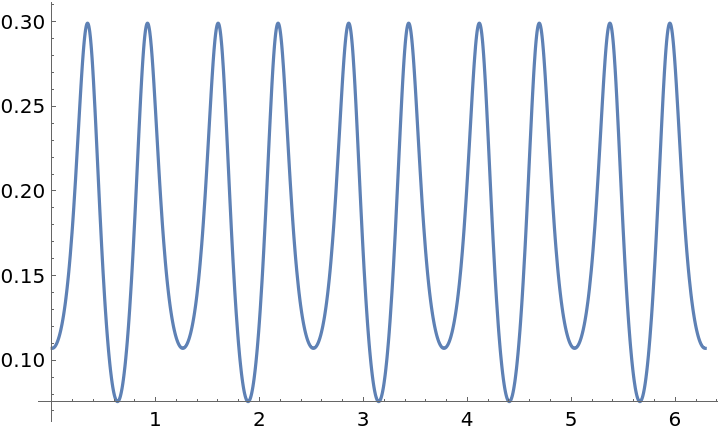

Plot it:

In[11]:=

$Plot[%, {t, 0, 2 \[Pi]}]$

Out[11]=

Find the torsion with the resource function CurveTorsion:

In[12]:=

Out[12]=

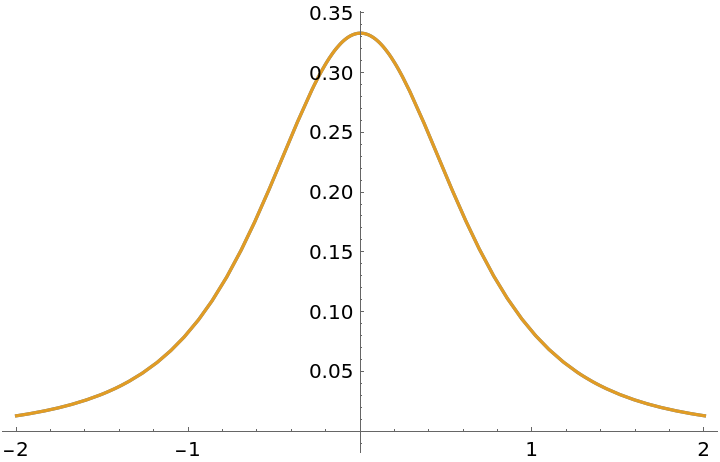

Plot the torsion:

In[13]:=

$Plot[%, {t, 0, 2 \[Pi]}]$

Out[13]=

Define a loxodrome:

In[14]:=

$loxodromes[a_, b_] := {2 a E^(b u) Cos[u], 2 a E^(b u) Sin[u], a^2 E^(2 b u) - 1}/(1 + a^2 E^(2 b u))$

In[15]:=

Out[15]=

Compute its curvature:

In[16]:=

Out[16]=

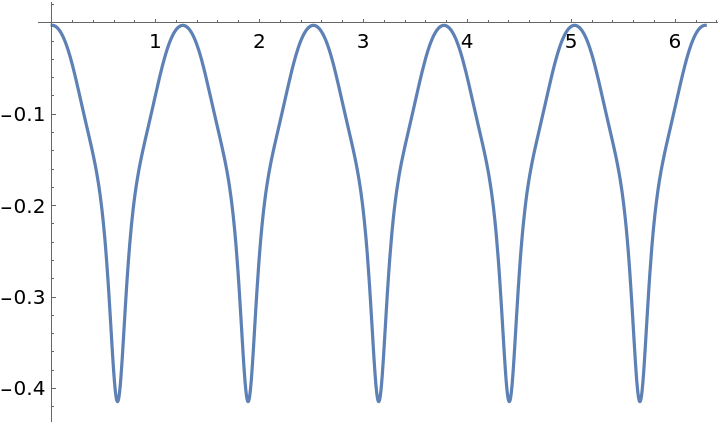

Plot the curvature:

In[17]:=

$gr = Plot[cur, {u, -4 \[Pi], 4 \[Pi]}, PlotRange -> All]$

Out[17]=

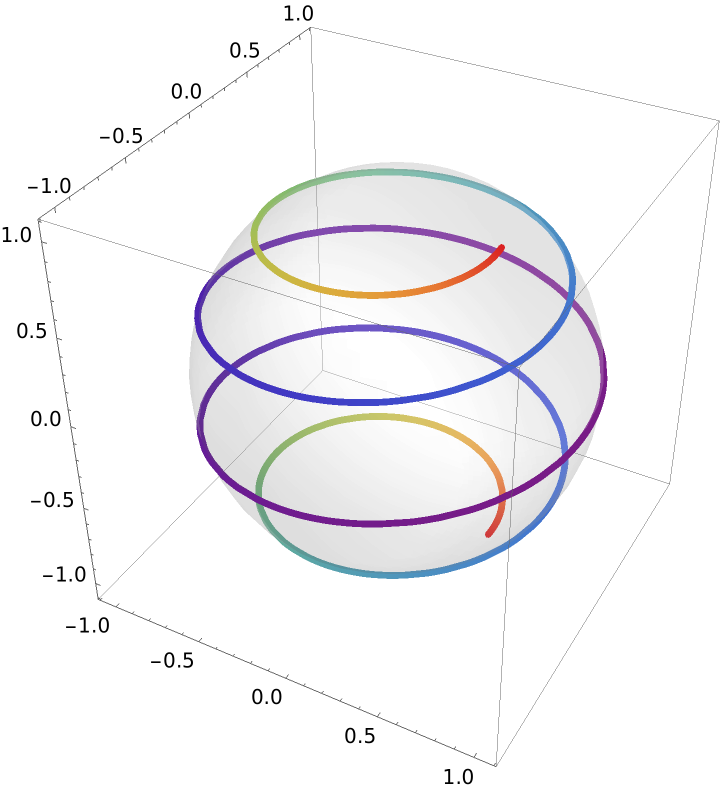

A curve colored according to its curvature value:

In[18]:=

range = Last[PlotRange /. AbsoluteOptions[gr, PlotRange]];

Show[ParametricPlot3D[loxodromes[1, 0.1], {u, -4 Pi, 4 Pi}, ColorFunction -> Function[{x, y, z, u, v}, ColorData["Rainbow"][Rescale[cur, range]]], ColorFunctionScaling -> False, PlotStyle -> Thickness[0.01]], Graphics3D[{Opacity[0.2], Sphere[]}]]

Out[18]=

A plane curve in polar coordinates:

In[19]:=

In[20]:=

Out[20]=

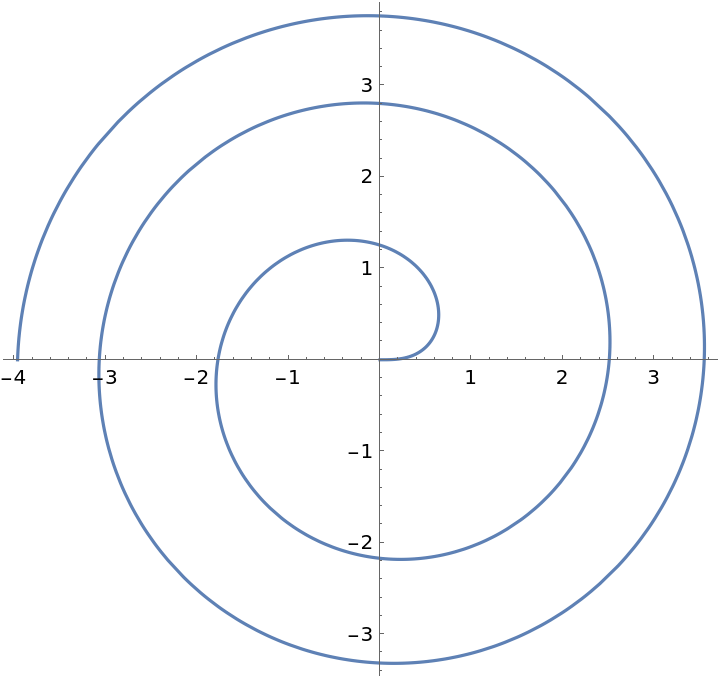

Plot it:

In[21]:=

$PolarPlot[archimedesspiralpolar[2, 1][t], {t, 0, 5 \[Pi]}]$

Out[21]=

The curvature:

In[22]:=

Out[22]=

Properties and Relations (4)

The curvature of a circle:

In[23]:=

Out[23]=

The curvature of the Cornu spiral:

In[24]:=

Out[24]=

Define a conical spiral:

In[25]:=

Out[25]=

Compute the curvature:

In[26]:=

$\[Kappa] = ResourceFunction["Curvature"][cs, t] // FullSimplify$

Out[26]=

Definition of a unit speed helix:

In[27]:=

$uhelix = {a Cos[t/Sqrt[a^2 + b^2]], a Sin[t/Sqrt[a^2 + b^2]], (b t)/ Sqrt[a^2 + b^2]};$

The curvature:

In[28]:=

$\[Kappa] = Simplify[ResourceFunction["Curvature"][uhelix, t], a > 0 && b > 0 && t > 0]$

Out[28]=

The tangent vector, via the resource function TangentVector:

In[29]:=

Out[29]=

Derivative of the tangent vector:

In[30]:=

Out[30]=

The normal vector, via the resource function NormalVector:

In[31]:=

Out[31]=

The curvature times the normal vector is equal to the derivative of the tangent vector:

In[32]:=

$\[Kappa] n$

Out[32]=

The torsion, via the resource function CurveTorsion:

In[33]:=

$\[Tau] = Simplify[ResourceFunction["CurveTorsion"][uhelix, t], a > 0 && b > 0 && t > 0]$

Out[33]=

In the Frenet–Serret system, the curvature and the torsion are the first two quantities:

In[34]:=

Out[34]=
