Function Repository Resource:

SpeechBubble

Source Notebook

Decorate an expression with a speech bubble frame

Contributed by: Richard Hennigan (Wolfram Research)

ResourceFunction["SpeechBubble"][expr]

displays expr wrapped in a speech bubble frame.

ResourceFunction["SpeechBubble"][speaker,expr]

uses speaker as the source of the speech bubble.

ResourceFunction["SpeechBubble"][speaker,expr,offset]

specifies that the speech bubble should be shifted by the given amount.

ResourceFunction["SpeechBubble"][]

gives a nine-patch image that can be used to decorate other boxes as a speech bubble.

Details and Options

In ResourceFunction["SpeechBubble"][speaker,expr,offset], the value for offset can be:

{x,y}

a distance from the top right of expr

Scaled[{x,y}]

coordinates scaled from 0 to 1 with respect to the size of expr

Center etc.

{Center,Center} etc.

Automatic

an offset automatically determined by the rendered edge of expr

x-coordinates can be numbers, Automatic, or Left, Center or Right.

y-coordinates can be numbers, Automatic, or Top, Center or Bottom.

ResourceFunction["SpeechBubble"][speaker,expr] is equivalent to ResourceFunction["SpeechBubble"][speaker,expr,Automatic].

The nine-patch image returned by ResourceFunction["SpeechBubble"][] is suitable for use as an Appearance setting for some types of boxes, such as Panel and Button.

Examples

Basic Examples (3)

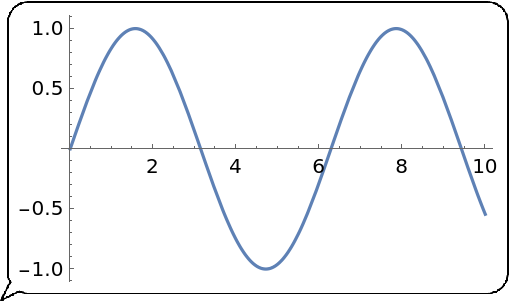

Display an expression styled as a speech bubble:

In[1]:=

Out[1]=

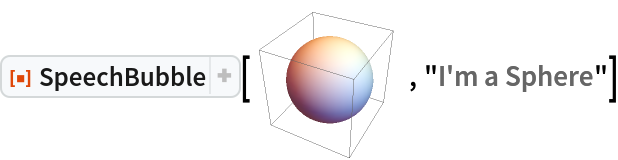

Include a speaker:

In[2]:=

$ResourceFunction["SpeechBubble"][\!$\* Graphics3DBox[SphereBox[{0, 0, 0}], ImageSize->{70., 70.}, SphericalRegion->True, ViewAngle->0.5011114127587017, ViewPoint->{1.3, -2.4, 2.}, ViewVertical->{0., 0., 1.}]$, "I'm a Sphere"]$

Out[2]=

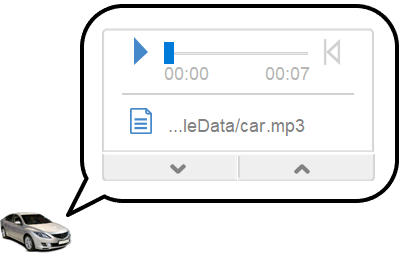

The speech can be any expression:

In[3]:=

$ResourceFunction["SpeechBubble"][\!\(\* NamespaceBox["LinguisticAssistant", DynamicModuleBox[{Typeset`query$$ = "picture of a car", Typeset`boxes$$ = RowBox[{ TemplateBox[{"\"car\"", RowBox[{"Entity", "[", RowBox[{"\"Word\"", ",", "\"car\""}], "]"}], "\"Entity[\\\"Word\\\", \\\"car\\\"]\"", "\"word\""}, "Entity"], "[", TemplateBox[{"\"image\"", RowBox[{"EntityProperty", "[", RowBox[{"\"Word\"", ",", "\"Image\""}], "]"}], "\"EntityProperty[\\\"Word\\\", \\\"Image\\\"]\""}, "EntityProperty"], "]"}], Typeset`allassumptions$$ = {{"type" -> "MultiClash", "word" -> "", "template" -> "Assuming ${word1} is referring to ${desc1}. Use \"${word2}\" as ${desc2}.", "count" -> "2", "Values" -> {{"name" -> "WordData", "word" -> "the input", "desc" -> " referring to English words", "input" -> "*MC.%7E-_*WordData-"}, {"name" -> "Species", "word" -> "car", "desc" -> "a species specification", "input" -> "*MC.%7E-_*Species-"}}}}, Typeset`assumptions$$ = {}, Typeset`open$$ = {1}, Typeset`querystate$$ = {"Online" -> True, "Allowed" -> True, "mparse.jsp" -> 1.5259314, "Messages" -> {}}}, DynamicBox[ToBoxes[ AlphaIntegration`LinguisticAssistantBoxes["", 4, Automatic, Dynamic[Typeset`query$$], Dynamic[Typeset`boxes$$], Dynamic[Typeset`allassumptions$$], Dynamic[Typeset`assumptions$$], Dynamic[Typeset`open$$], Dynamic[Typeset`querystate$$]], StandardForm], ImageSizeCache->{119.8, {9., 15.8}}, TrackedSymbols:>{Typeset`query$$, Typeset`boxes$$, Typeset`allassumptions$$, Typeset`assumptions$$, Typeset`open$$, Typeset`querystate$$}], DynamicModuleValues:>{}, UndoTrackedVariables:>{Typeset`open$$}], BaseStyle->{"Deploy"}, DeleteWithContents->True, Editable->False, SelectWithContents->True]\), Audio["ExampleData/car.mp3"]]$

Out[3]=

Scope (4)

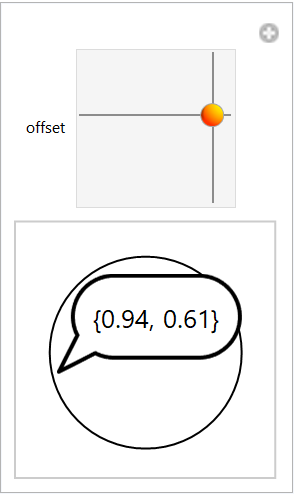

Specify an offset for the speech frame:

In[4]:=

Out[4]=

In[5]:=

Out[5]=

In[6]:=

Out[6]=

In[7]:=

Out[7]=

Use an automatic offset that pulls the speech frame towards the edge of visible content:

In[8]:=

Out[8]=

In[9]:=

Out[9]=

Don't use any offset:

In[10]:=

Out[10]=

Get a nine-patch image for the speech bubble:

In[11]:=

Out[11]=

Use it as an Appearance for a Panel:

In[12]:=

Out[12]=

Applications (3)

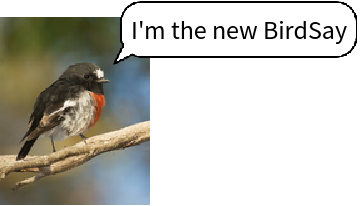

Create a custom BirdSay:

In[13]:=

$ResourceFunction["SpeechBubble"][Show[\!\(\* NamespaceBox["LinguisticAssistant", DynamicModuleBox[{Typeset`query$$ = "picture of a bird", Typeset`boxes$$ = RowBox[{ TemplateBox[{"\"birds\"", RowBox[{"Entity", "[", RowBox[{"\"Species\"", ",", "\"Class:Aves\""}], "]"}], "\"Entity[\\\"Species\\\", \\\"Class:Aves\\\"]\"", "\"species specification\""}, "Entity"], "[", TemplateBox[{"\"image\"", RowBox[{"EntityProperty", "[", RowBox[{"\"Species\"", ",", "\"Image\""}], "]"}], "\"EntityProperty[\\\"Species\\\", \\\"Image\\\"]\""}, "EntityProperty"], "]"}], Typeset`allassumptions$$ = {{"type" -> "MultiClash", "word" -> "", "template" -> "Assuming ${word1} is referring to ${desc1}. Use \"${word2}\" as ${desc2}. Use \"${word3}\" as ${desc3}.", "count" -> "3", "Values" -> {{"name" -> "Species", "word" -> "bird", "desc" -> "a species specification", "input" -> "*MC.%7E-_*Species-"}, {"name" -> "Person", "word" -> "a bird", "desc" -> "a person", "input" -> "*MC.%7E-_*Person-"}, {"name" -> "WordData", "word" -> "", "desc" -> " referring to English words", "input" -> "*MC.%7E-_*WordData-"}}}}, Typeset`assumptions$$ = {}, Typeset`open$$ = {1}, Typeset`querystate$$ = {"Online" -> True, "Allowed" -> True, "mparse.jsp" -> 3.4309153, "Messages" -> {}}}, DynamicBox[ToBoxes[ AlphaIntegration`LinguisticAssistantBoxes["", 4, Automatic, Dynamic[Typeset`query$$], Dynamic[Typeset`boxes$$], Dynamic[Typeset`allassumptions$$], Dynamic[Typeset`assumptions$$], Dynamic[Typeset`open$$], Dynamic[Typeset`querystate$$]], StandardForm], ImageSizeCache->{124.8, {9., 15.8}}, TrackedSymbols:>{Typeset`query$$, Typeset`boxes$$, Typeset`allassumptions$$, Typeset`assumptions$$, Typeset`open$$, Typeset`querystate$$}], DynamicModuleValues:>{}, UndoTrackedVariables:>{Typeset`open$$}], BaseStyle->{"Deploy"}, DeleteWithContents->True, Editable->False, SelectWithContents->True]\), ImageSize -> 75], "I'm the new BirdSay", Scaled[.25]]$

Out[13]=

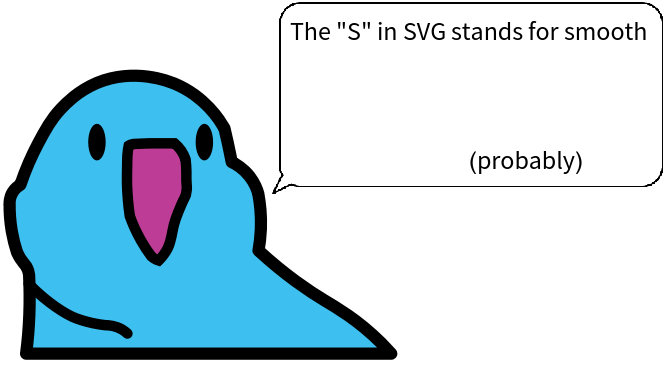

Create an even better BirdSay:

In[14]:=

$bird = Show[ ResourceFunction["SVGImport"][ "https://cultofthepartyparrot.com/assets/parrot.svg"], ImageSize -> 200]; ResourceFunction["SpeechBubble"][bird, Tooltip[ "The \"S\" in SVG stands for smooth \n\n\n\t\t (probably)", "It does not."]]$

Out[12]=

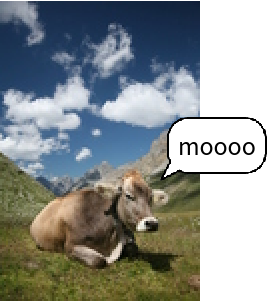

Create a modernized version of cowsay, the original inspiration for BirdSay:

In[15]:=

$cowsay[expr_] := ResourceFunction["SpeechBubble"][\!\(\* NamespaceBox["LinguisticAssistant", DynamicModuleBox[{Typeset`query$$ = "picture of a cow", Typeset`boxes$$ = RowBox[{ TemplateBox[{"\"cow\"", RowBox[{"Entity", "[", RowBox[{"\"Species\"", ",", "\"Species:BosTaurus\""}], "]"}], "\"Entity[\\\"Species\\\", \\\"Species:BosTaurus\\\"]\"", "\"species specification\""}, "Entity"], "[", TemplateBox[{"\"image\"", RowBox[{"EntityProperty", "[", RowBox[{"\"Species\"", ",", "\"Image\""}], "]"}], "\"EntityProperty[\\\"Species\\\", \\\"Image\\\"]\""}, "EntityProperty"], "]"}], Typeset`allassumptions$$ = {{"type" -> "MultiClash", "word" -> "", "template" -> "Assuming ${word1} is referring to ${desc1}. Use \"${word2}\" as ${desc2}. Use \"${word3}\" as ${desc3}.", "count" -> "3", "Values" -> {{"name" -> "Species", "word" -> "cow", "desc" -> "a species specification", "input" -> "*MC.%7E-_*Species-"}, {"name" -> "Movie", "word" -> "cow", "desc" -> "a movie", "input" -> "*MC.%7E-_*Movie-"}, {"name" -> "WordData", "word" -> "", "desc" -> " referring to English words", "input" -> "*MC.%7E-_*WordData-"}}}, {"type" -> "SubCategory", "word" -> "cow", "template" -> "Assuming ${desc1}. Use ${desc2} instead", "count" -> "2", "Values" -> {{"name" -> "Species:BosTaurus", "desc" -> "cow", "input" -> "*DPClash.SpeciesE.cow-_*Species%3ABosTaurus-"}, {"name" -> "Genus:Bos", "desc" -> "oxen, cattle", "input" -> "*DPClash.SpeciesE.cow-_*Genus%3ABos-"}}}}, Typeset`assumptions$$ = {}, Typeset`open$$ = {1}, Typeset`querystate$$ = {"Online" -> True, "Allowed" -> True, "mparse.jsp" -> 1.6659631, "Messages" -> {}}}, DynamicBox[ToBoxes[ AlphaIntegration`LinguisticAssistantBoxes["", 4, Automatic, Dynamic[Typeset`query$$], Dynamic[Typeset`boxes$$], Dynamic[Typeset`allassumptions$$], Dynamic[Typeset`assumptions$$], Dynamic[Typeset`open$$], Dynamic[Typeset`querystate$$]], StandardForm], ImageSizeCache->{125.8, {9., 15.8}}, TrackedSymbols:>{Typeset`query$$, Typeset`boxes$$, Typeset`allassumptions$$, Typeset`assumptions$$, Typeset`open$$, Typeset`querystate$$}], DynamicModuleValues:>{}, UndoTrackedVariables:>{Typeset`open$$}], BaseStyle->{"Deploy"}, DeleteWithContents->True, Editable->False, SelectWithContents->True]\), expr, {Scaled[.2], Scaled[.6]}];$

In[16]:=

Out[16]=

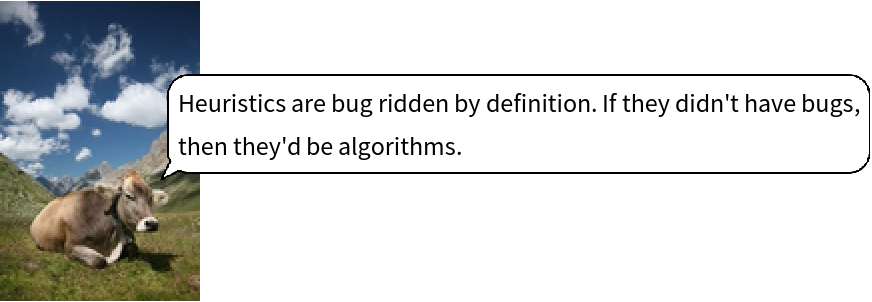

Recreate the Unix command fortune | cowsay:

In[17]:=

Out[17]=

Properties and Relations (2)

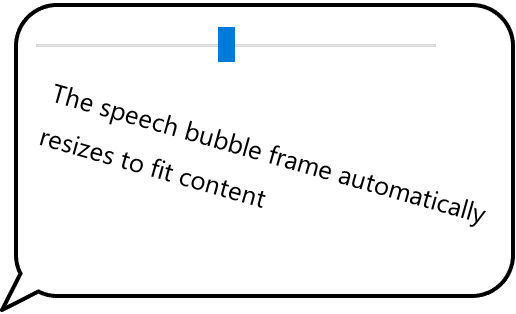

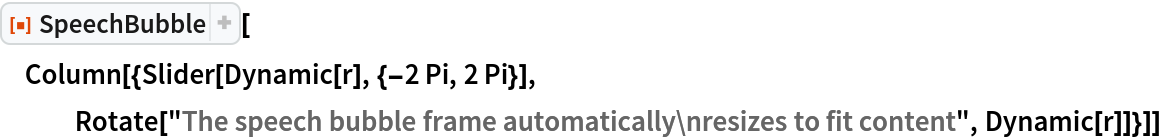

The speech bubble frame automatically resizes to fit content:

In[18]:=

$ResourceFunction["SpeechBubble"][ Column[{Slider[Dynamic[r], {-2 Pi, 2 Pi}], Rotate["The speech bubble frame automatically\nresizes to fit content", Dynamic[r]]}]]$
