Compute the shape operator on a surface

Contributed by: Wolfram Staff (original content by Alfred Gray)

ResourceFunction["ShapeOperator"][s,{u,v}]

computes the shape operator of surface s with respect to variables u and v.

Details and Options

The negative derivative

of the unit normal of a surface is called the shape operator and measures how the surface bends in different directions (here, v is a tangent vector). Weingarten is the matrix of the shape operator of the local surface given in terms of the components of the fundamental forms with respect to variables u and v.

Examples

Basic Examples (2)

Shape operator on the sphere:

In[1]:=

$sphere[a_][u_, v_] := a {Cos[v] Cos[u], Cos[v] Sin[u], Sin[v]}$

In[2]:=

Out[2]=

The monkey saddle:

In[3]:=

$monkeysaddle[u_, v_] := {u, v, u^3 - 3 u v^2}$

In[4]:=

Out[4]=

The shape operator:

In[5]:=

Out[5]=

Properties and Relations (2)

A paraboloid:

In[6]:=

$paraboloid[a_, b_][u_, v_] := {u, v, a u^2 + b v^2}$

In[7]:=

The shape operator:

In[8]:=

Out[8]=

Alternatively, the resource function UnitNormal can be used to compute the shape operator:

In[9]:=

$-{{\!$ \*SubscriptBox[\(\[PartialD]$, $u, u$]hp\), \!$ \*SubscriptBox[\(\[PartialD]$, $u, v$]hp\)}, {\!$ \*SubscriptBox[\(\[PartialD]$, $u, v$]hp\), \!$ \*SubscriptBox[\(\[PartialD]$, $v, v$]hp\)}}.ResourceFunction[ "UnitNormal"][hp, {u, v}]$

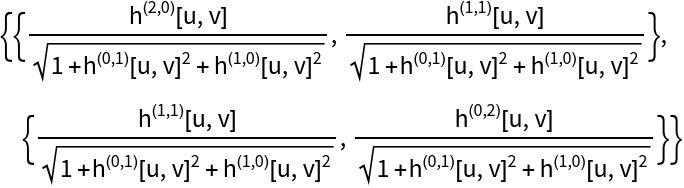

Out[9]=

The Weingarten matrix can be computed using the shape operator with the metric:

In[10]:=

$metric = Module[{du = \!$ \*SubscriptBox[\(\[PartialD]$, $u$]hp\), dv = \!$ \*SubscriptBox[\(\[PartialD]$, $v$]hp\)}, {{du.du, du.dv}, {du.dv, dv.dv}}]$
