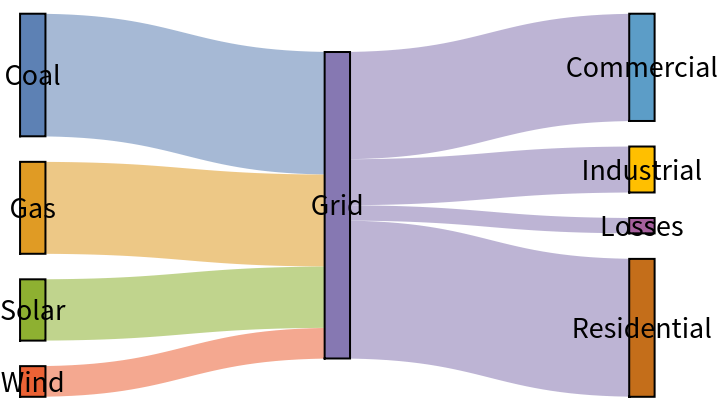

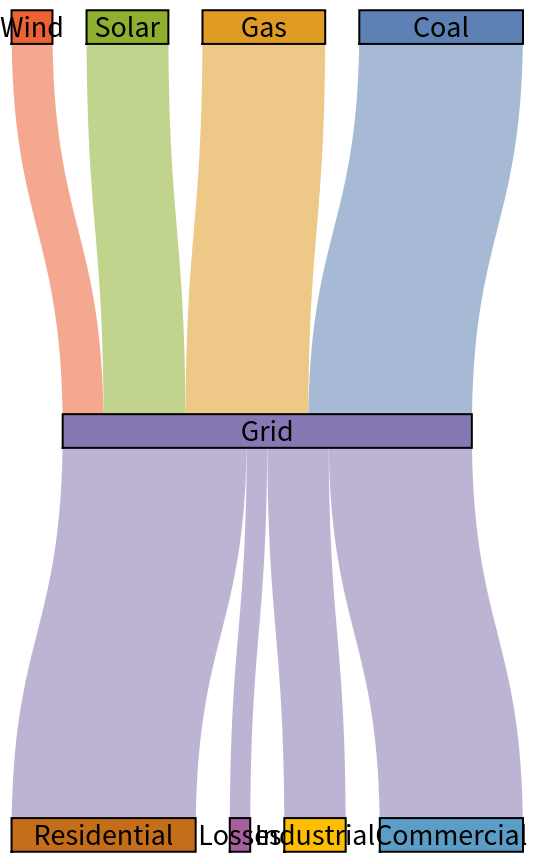

EdgeOrigin (1)

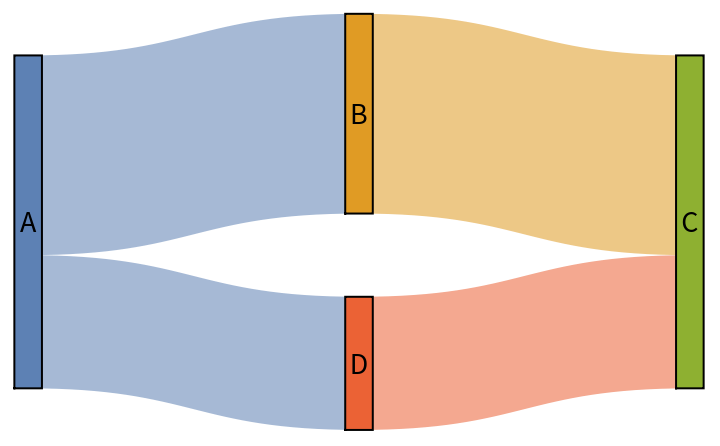

Controls which side sources are drawn on -- Left, Right, Top, or Bottom -- and hence which direction flow travels across the page:

In[12]:=

Out[12]=

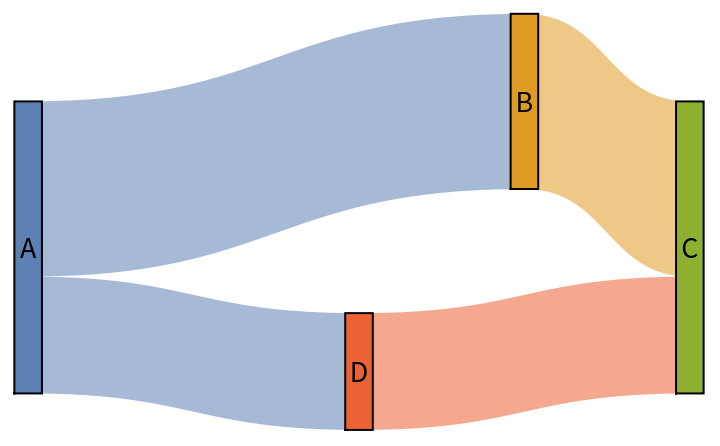

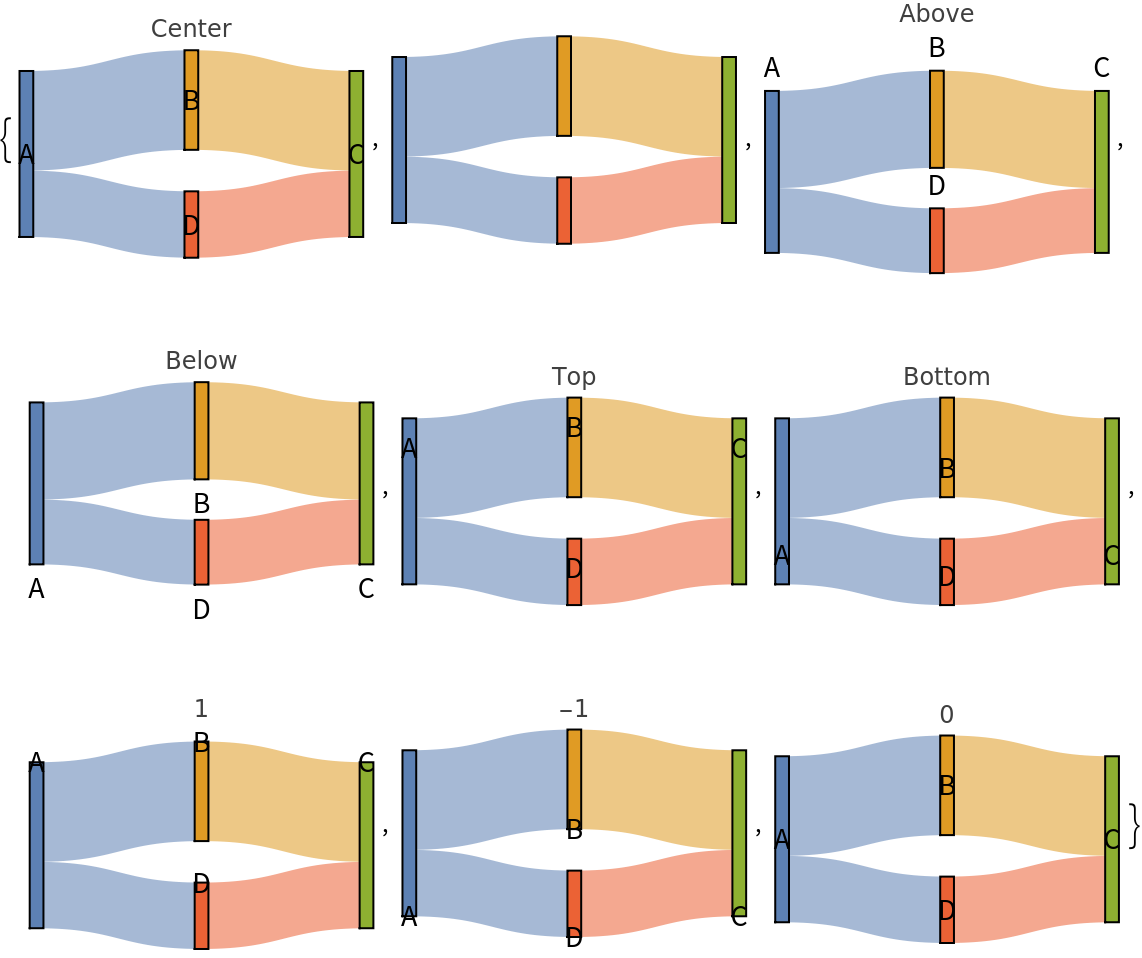

"VertexLabelPosition"  (2)

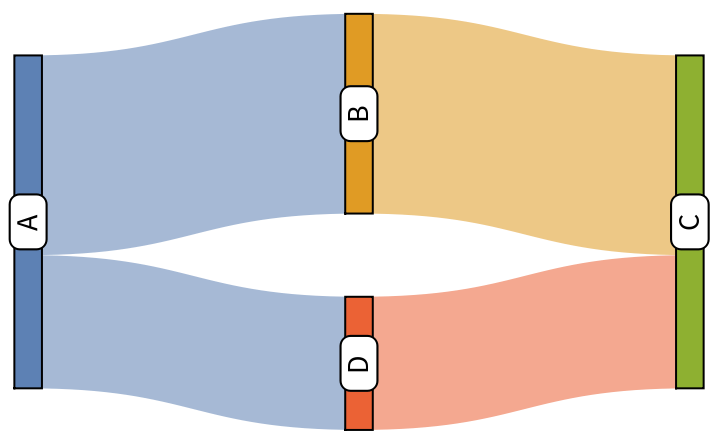

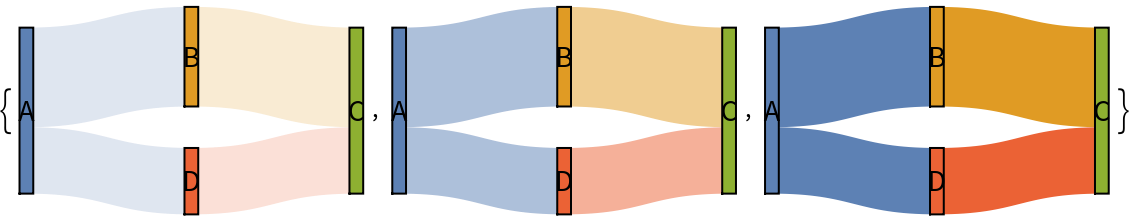

By default only the vertex name is shown (centered) but "VertexLabelPosition" can take values None, Above, Below, Top, Bottom or a number:

In[13]:=

Out[14]=

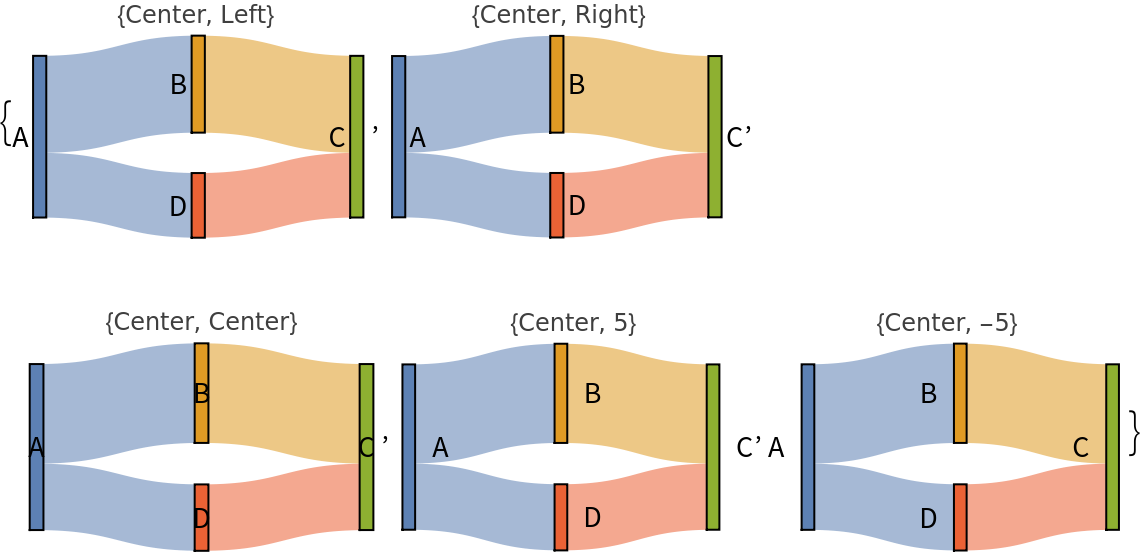

"VertexLabelPositon" can also take a second value for the alternate dimension:

In[15]:=

Out[15]=

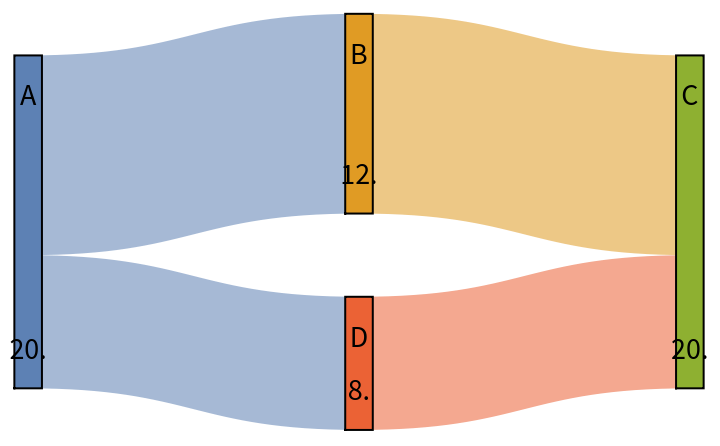

VertexValuePosition (1)

The value of the vertex flow can be placed with the same settings as VertexLabelPosition:

In[16]:=

Out[17]=

EdgeValuePosition (1)

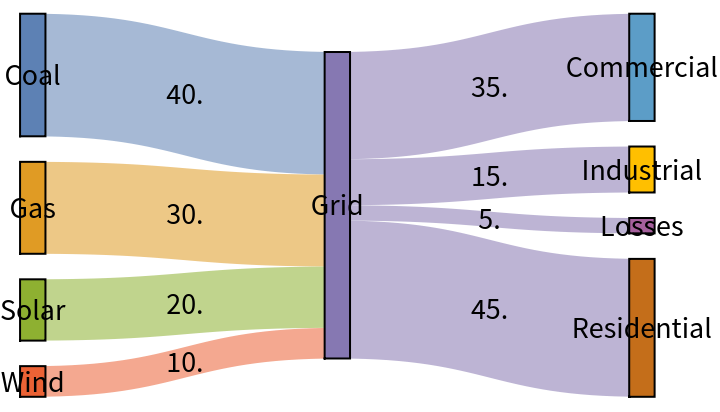

Label edges with the value of the flow through it. The values Above, Below, Top, Bottom, Center, None and numerical values are supported, as well as {val1,val2} pairs:

In[18]:=

Out[19]=

VertexSpacing (1)

The fraction of each column's rendered height taken up by gaps between its vertices:

In[20]:=

Out[21]=

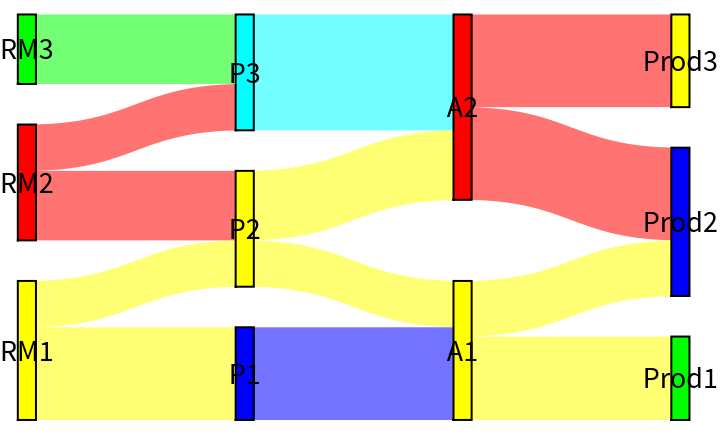

VertexColors (3)

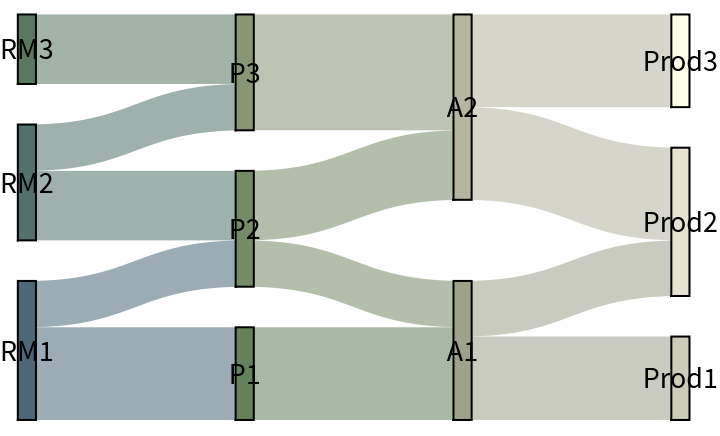

The color of vertices and the corresponding outflows are controlled by "VertexColors". A list of colors can be provided:

In[22]:=

Out[23]=

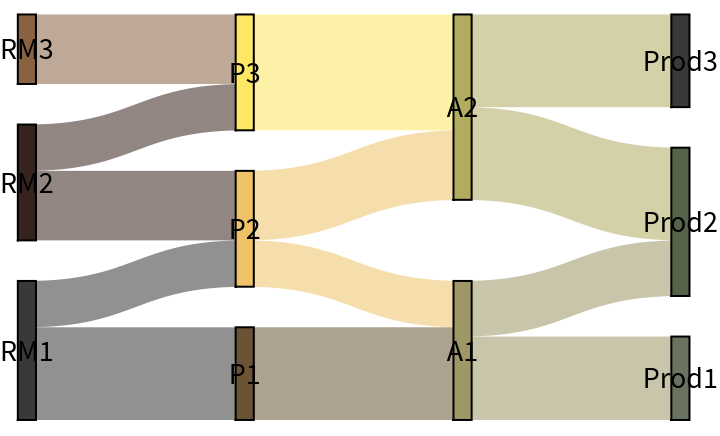

A named color theme from ColorData can be used:

In[24]:=

Out[24]=

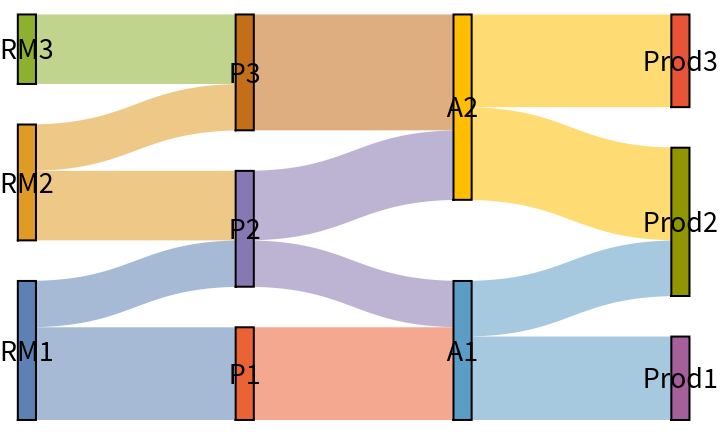

A numbered "Indexed" color theme can be used from ColorData:

In[25]:=

Out[25]=

VertexRenderingFunction (1)

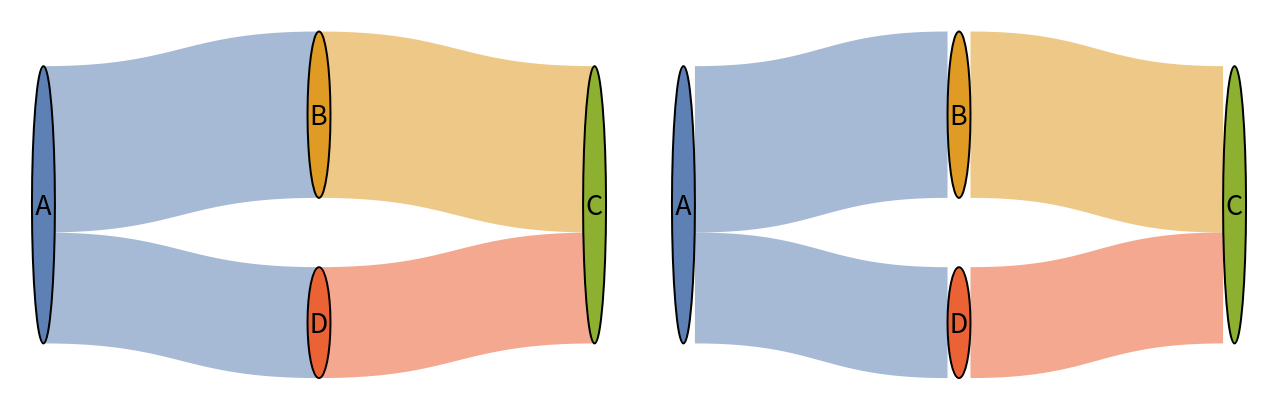

A custom Function[{centerX, centerY, width, height}, …] can draw each vertex as something other than a rectangle; the color set by "VertexColors" is prepended automatically:

In[26]:=

Out[26]=

EdgeOffset (1)

The edge flows meet behind the vertex but you can choose to space them around the vertex:

In[27]:=

Out[28]=

VertexLabels (2)

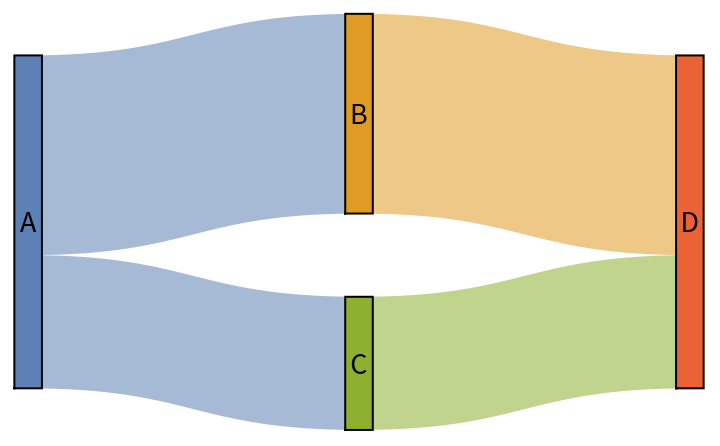

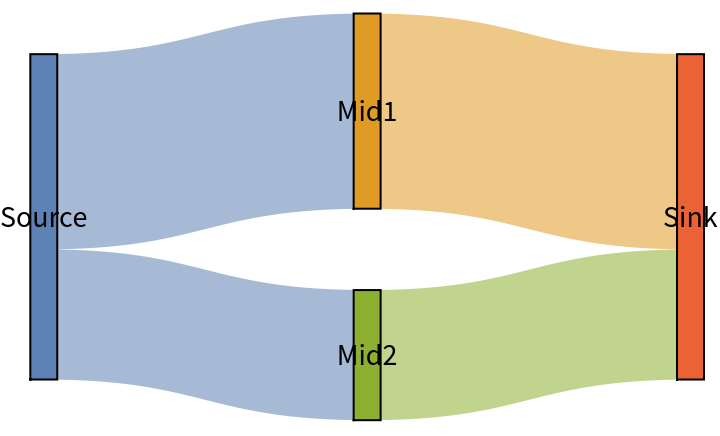

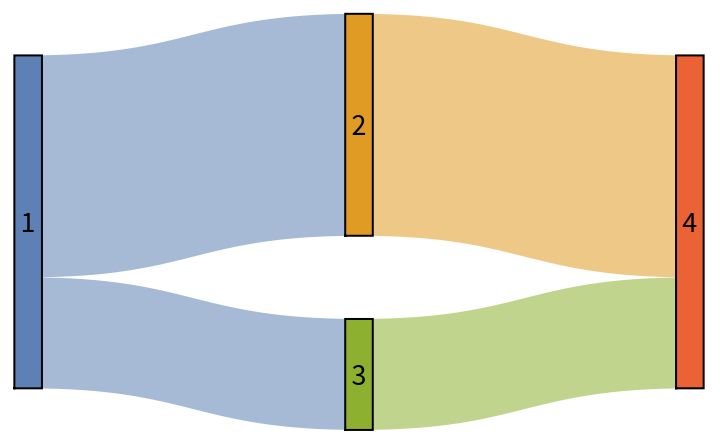

When the input is a matrix, vertices are labelled by the index number. You can override those with "VertexLabels":

In[29]:=

Out[30]=

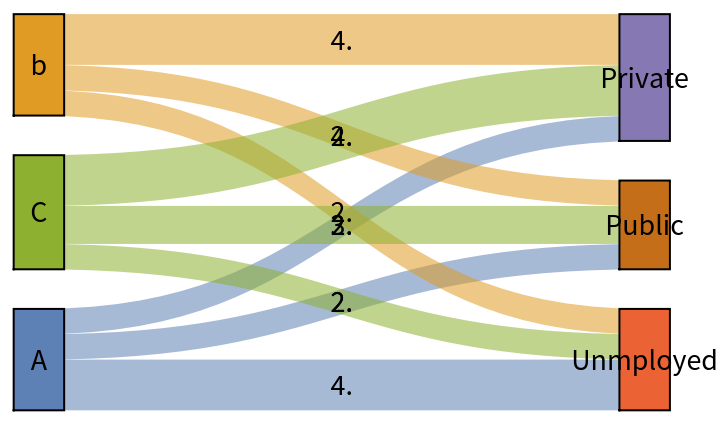

"VertexLabels" can be used to specify more complex labels that can be specified by "LabelStyle":

In[31]:=

Out[32]=

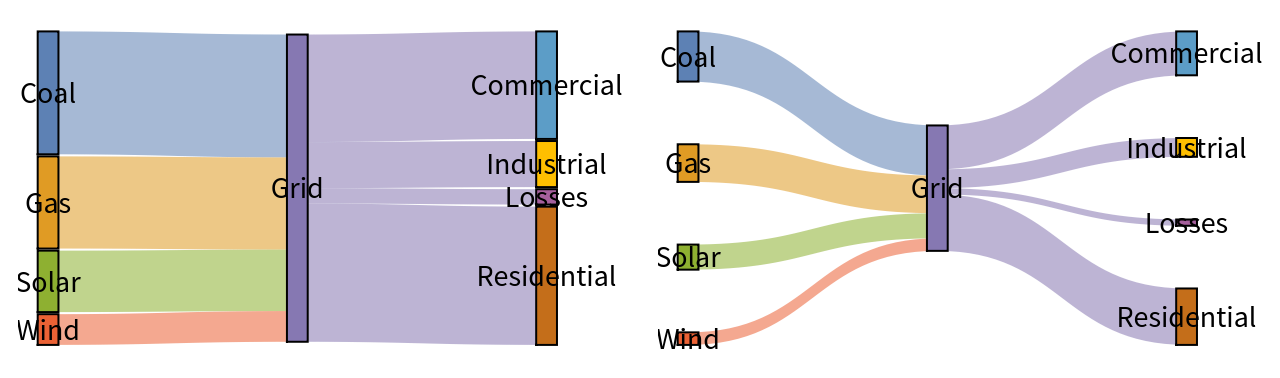

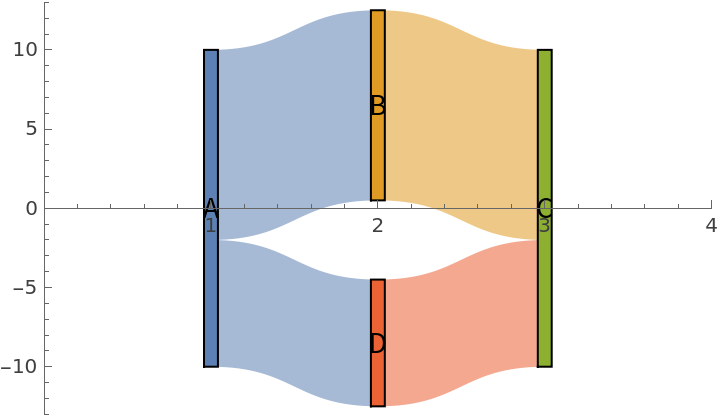

LayerSpacing (2)

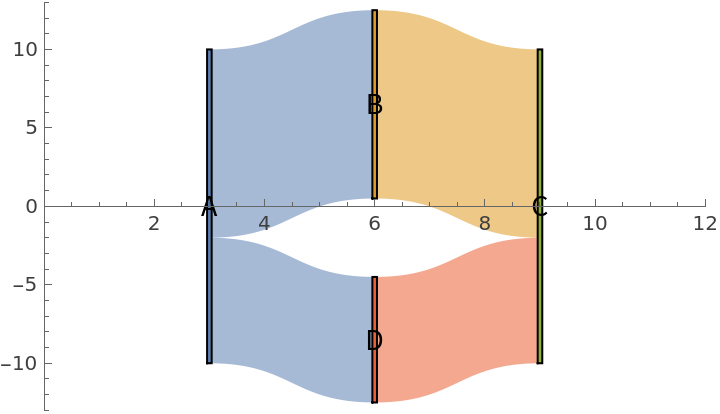

The coordinate system places vertices at integer x-positions with y-values that correspond to the flow values:

In[33]:=

Out[34]=

Space the vertices differently with "LayerSpacing":

In[35]:=

Out[36]=

VertexWidth (1)

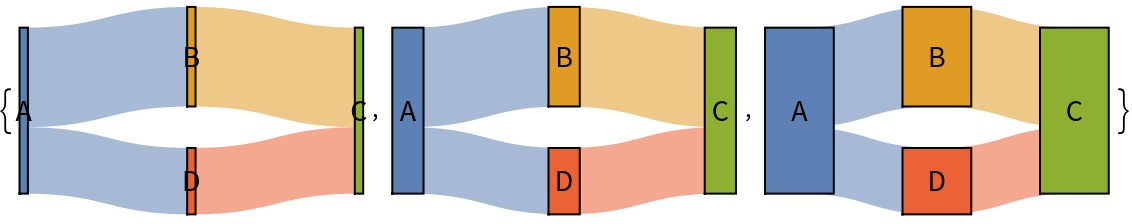

Control the width of vertices:

In[37]:=

Out[38]=

OrderIterations

SankeyChart attempts to minimize the times that flows cross over each other. In complex graphs this can take time. "OrderIterations" limits the computation. The default is 8 iterations but any integer value can be used.

EdgeOpacity (1)

Outflow edges are colored the same as their source vertex but are distinguished by Opacity:

In[39]:=

Out[40]=

LabelStyle (1)

Control the appearance of text labels:

In[41]:=

Out[42]=

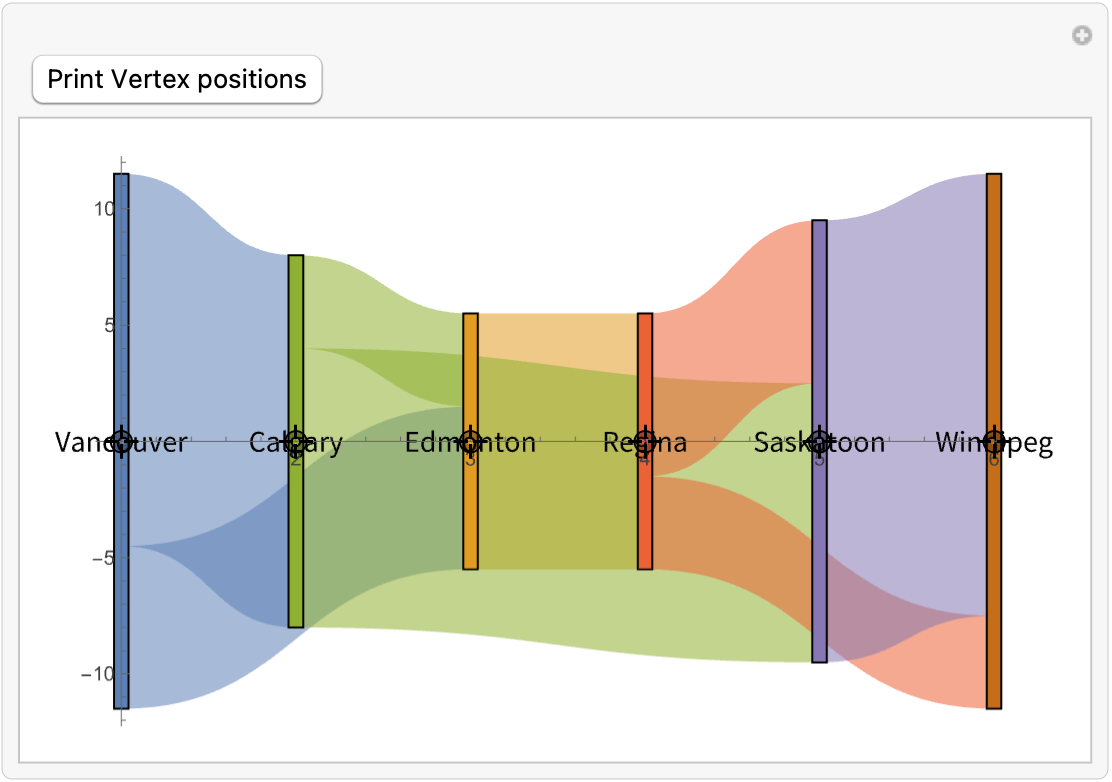

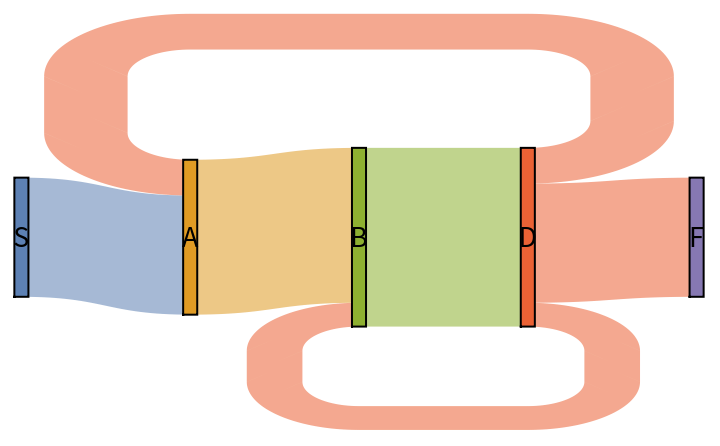

VertexPositions (2)

Vertices are placed automatically:

In[43]:=

Out[44]=

But one or more can be placed manually:

In[45]:=

Out[46]=
