Function Repository Resource:

 QuaternionToRotationMatrix

Source Notebook

Convert a unit quaternion to an equivalent rotation matrix

Contributed by: Jan Mangaldan

ResourceFunction["QuaternionToRotationMatrix"][w]

converts the unit quaternion w into an equivalent 3×3 rotation matrix.

Details

The argument w should be a numeric Quaternion object, or a scalar that can be converted into one.
If the argument w is not a unit quaternion, ResourceFunction["QuaternionToRotationMatrix"] begins by normalizing it.

Examples

Basic Examples (3)

Define a quaternion:

In[1]:=
w = ResourceFunction["Quaternion"][5/6, 1/6, 1/2, 1/6]
Out[1]=

Generate a rotation matrix from a unit quaternion:

In[2]:=
ResourceFunction["QuaternionToRotationMatrix"][w] // MatrixForm
Out[2]=

Verify that the result is a rotation matrix:

In[3]:=
OrthogonalMatrixQ[%] && Det[%] == 1
Out[3]=

Scope (4)

An exact quaternion:

In[4]:=
ResourceFunction["QuaternionToRotationMatrix"][ ResourceFunction["Quaternion"][2/7, 5/7, 4/7, 2/7]] // MatrixForm
Out[4]=

An approximate MachinePrecision quaternion:

In[5]:=
ResourceFunction["QuaternionToRotationMatrix"][ N[ResourceFunction["Quaternion"][2/7, 5/7, 4/7, 2/7]]] // MatrixForm
Out[5]=

An approximate arbitrary precision quaternion:

In[6]:=
ResourceFunction["QuaternionToRotationMatrix"][ N[ResourceFunction["Quaternion"][2/7, 5/7, 4/7, 2/7], 25]] // MatrixForm
Out[6]=

QuaternionToRotationMatrix threads over lists:

In[7]:=
ResourceFunction[ "QuaternionToRotationMatrix"][{ResourceFunction["Quaternion"][0, 0, 1, 0], ResourceFunction["Quaternion"][0, 0, 0, 1]}]
Out[7]=

Applications (2)

Create a unit quaternion:

In[8]:=
uq = N[ResourceFunction["Quaternion"][(1 + Sqrt[3])/4, (1 - Sqrt[3])/ 4, (1 + Sqrt[3])/4, (1 - Sqrt[3])/4]]
Out[8]=

Also define a vector to be rotated:

In[9]:=
vec = RandomVariate[NormalDistribution[], 3]
Out[9]=

Transform the vector using the quaternion representation of a rotation:

In[10]:=
Rest[Apply[ List, (uq ** Apply[ResourceFunction["Quaternion"], Prepend[vec, 0]]) ** Power[uq, -1]]]
Out[10]=

Transform the vector using the rotation matrix representation to get the same result:

In[11]:=
ResourceFunction["QuaternionToRotationMatrix"][uq] . vec
Out[11]=

Get the axis-angle representation of a quaternion:

In[12]:=
ResourceFunction["AxisAngle"][ ResourceFunction["QuaternionToRotationMatrix"][ ResourceFunction["Quaternion"][2/9, 5/9, 2/3, 4/9]]]
Out[12]=

Recover the original quaternion:

In[13]:=
Apply[ResourceFunction["Quaternion"], Prepend[Sin[First[%]/2] Last[%], Cos[First[%]/2]]] // FullSimplify
Out[13]=

Neat Examples (3)

Create the icosians, a set of quaternions equivalent to the vertices of the 4D 600-cell:

In[14]:=
quads = {{2, 0, 0, 0}, {1, 1, 1, 1}, {0, 1, 1/\[Phi], \[Phi]}}/ 2 /. \[Phi] -> (1 + Sqrt[5])/2; cell120 = Flatten[ResourceFunction["SignedPermutations"][#, "Even"] & /@ quads, 1]; icosians = SortBy[ResourceFunction["Quaternion"] @@ # & /@ cell120, Sort[{#, Conjugate[#]}] &];

Use the icosians to generate the 120 rotation matrices in the icosahedral group:

In[15]:=
all = RootReduce[ Table[If[OddQ[k], -1, 1]* ResourceFunction["QuaternionToRotationMatrix"][ icosians[[k]]], {k, 1, 120}]];

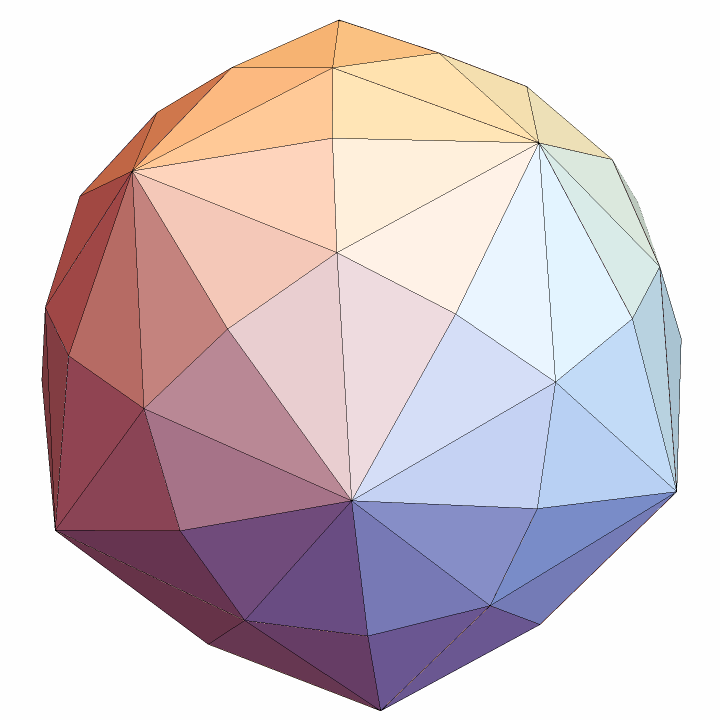

Use the 120 rotation matrices and one triangle of the disdyakis triacontahedron to build the full figure:

In[16]:=
tri = {{1/2 (-1 + Sqrt[5]), 0, 1/2 (1 + Sqrt[5])}, {0, 1, 1/2 (1 + Sqrt[5])}, {0, 0, 1/22 (5 + 15 Sqrt[5])}}; Graphics3D[{Polygon[tri . #] & /@ all}, SphericalRegion -> True, Boxed -> False]
Out[16]=

Version History

  • 1.1.0 – 05 August 2025
  • 1.0.0 – 23 December 2020

Source Metadata

  • Citation:
    Hanson A.J., Visualizing Quaternions, Morgan Kaufmann, San Francisco, 2006.
