Function Repository Resource:

EdgeColoring

Assign colors to edges of a graph so that no two adjacent edges have the same color

Contributed by: Wolfram Staff (original content by Sriram V. Pemmaraju and Steven S. Skiena)

ResourceFunction["EdgeColoring"][g]

gives an edge coloring of graph g.

Details and Options

ResourceFunction["EdgeColoring"][g] separates edges of g into sublists such that no group contains adjacent edges—that is, edges that share a common vertex.

ResourceFunction["EdgeColoring"][g] uses the resource function VertexColoring to find a vertex coloring of the line graph of g.

ResourceFunction["EdgeColoring"] takes the Method option with the same possible values as in VertexColoring.

For simple graphs, the result of ResourceFunction["EdgeColoring"] can be used directly in HighlightGraph.

As in the resource function VertexColoring, ResourceFunction["EdgeColoring"] uses Brelaz's heuristic, which gives a good—but not necessarily minimal—coloring.

With Method→"Optimum", ResourceFunction["EdgeColoring"] attempts to find a k-coloring with the smallest possible value of k (called the edge chromatic number, or chromatic index, of the graph).

ResourceFunction["EdgeColoring"] works with undirected graphs, directed graphs, multigraphs and mixed graphs, treating directed edges as undirected ones.

Examples

Basic Examples (4)

Get a sample graph:

In[1]:=

Out[1]=

Group edges of a graph so that no group contains adjacent edges:

In[2]:=

Out[2]=

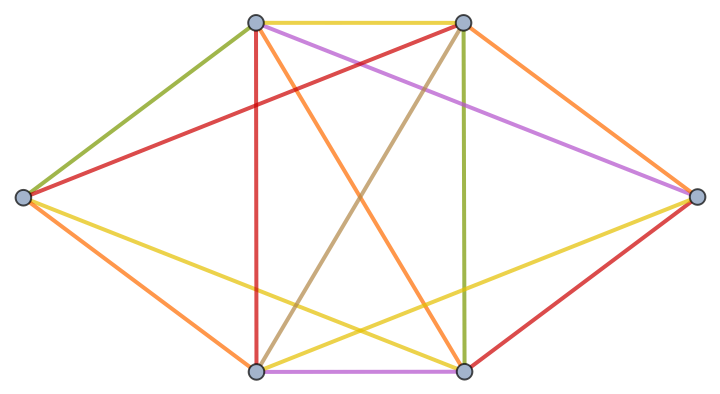

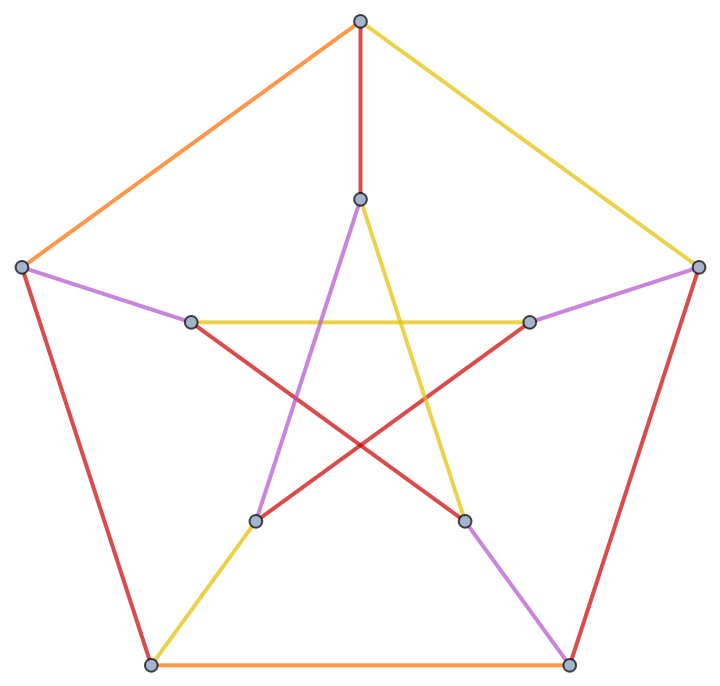

Highlight edges in the groups:

In[3]:=

Out[3]=

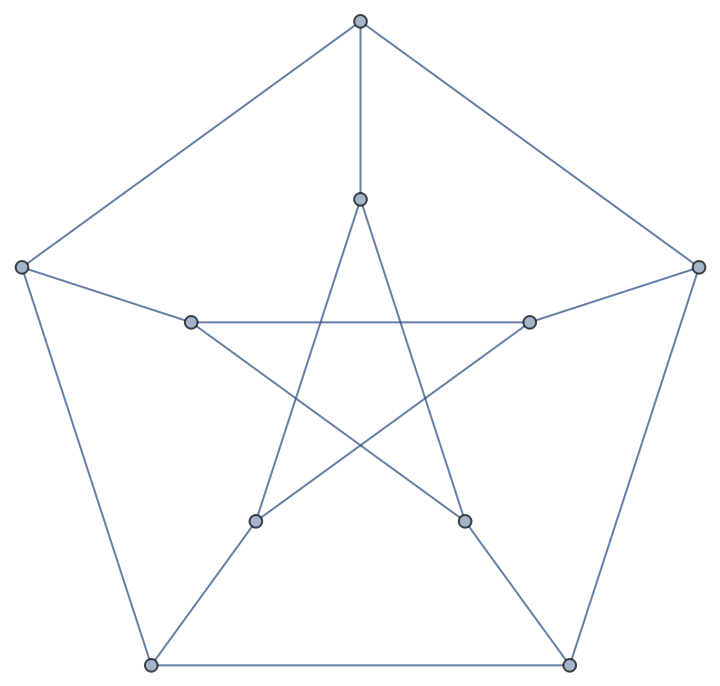

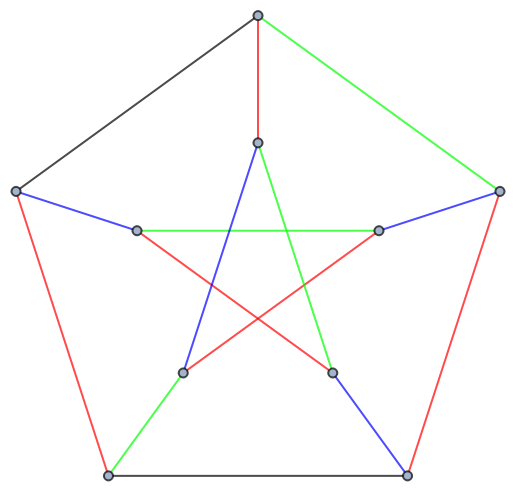

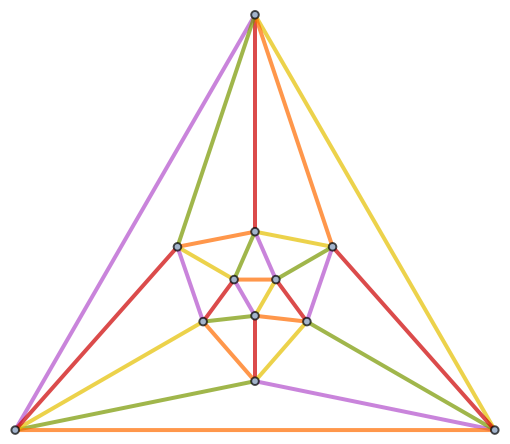

Use the specified set of colors:

In[4]:=

Out[4]=

In[5]:=

Out[5]=

Scope (4)

EdgeColoring works with undirected graphs:

In[6]:=

$ResourceFunction["EdgeColoring"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 6, 4, 5}, {Null, {{1, 2}, {1, 3}, {3, 4}, {5, 4}, {6, 1}, {6, 5}, { 4, 1}}}, {EdgeStyle -> { Arrowheads[0.05]}, VertexShapeFunction -> {"Name"}}]], Typeset`boxes, Typeset`boxes$s2d = GraphicsGroupBox[{{ Directive[ Hue[0.6, 0.2, 0.8], EdgeForm[ Directive[ GrayLevel[0], Opacity[0.7]]]], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["1", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {0.9105692615187663, 0.8360540621313554}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$1"], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["2", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {0., 1.1532590624791177`}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$2"], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["3", Alignment -> Center, ImageMargins -> 2], TraditionalForm] ], {0.9901787089965595, 0.}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$3"], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["6", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {1.6310911016266327`, 0.3899112848656986}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$4"], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["4", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {2.2927686727030645`, 0.9445770975677718}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$5"], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["5", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {1.6608421533285063`, 1.4124733715227413`}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$6"]}, { Directive[ Opacity[0.7], Hue[0.6, 0.7, 0.5]], StyleBox[ LineBox[{ DynamicLocation["VertexID$1", Automatic, Center], DynamicLocation["VertexID$2", Automatic, Center]}], Arrowheads[0.05], StripOnInput -> False], StyleBox[ LineBox[{ DynamicLocation["VertexID$1", Automatic, Center], DynamicLocation["VertexID$3", Automatic, Center]}], Arrowheads[0.05], StripOnInput -> False], StyleBox[ LineBox[{ DynamicLocation["VertexID$1", Automatic, Center], DynamicLocation["VertexID$6", Automatic, Center]}], Arrowheads[0.05], StripOnInput -> False], StyleBox[ LineBox[{ DynamicLocation["VertexID$1", Automatic, Center], DynamicLocation["VertexID$4", Automatic, Center]}], Arrowheads[0.05], StripOnInput -> False], StyleBox[ LineBox[{ DynamicLocation["VertexID$3", Automatic, Center], DynamicLocation["VertexID$4", Automatic, Center]}], Arrowheads[0.05], StripOnInput -> False], StyleBox[ LineBox[{ DynamicLocation["VertexID$4", Automatic, Center], DynamicLocation["VertexID$5", Automatic, Center]}], Arrowheads[0.05], StripOnInput -> False], StyleBox[ LineBox[{ DynamicLocation["VertexID$5", Automatic, Center], DynamicLocation["VertexID$6", Automatic, Center]}], Arrowheads[0.05], StripOnInput -> False]}}], Typeset`data}, TagBox[ DynamicBox[GraphComputation`NetworkGraphicsBox[ 2, Typeset`graph, Typeset`boxes], {CachedValue :> Typeset`boxes, SingleEvaluation -> True, SynchronousUpdating -> False, TrackedSymbols :> {}}, ImageSizeCache->{{8.881784197001252*^-16, 90.}, {-36.284461649853334`, 32.00000000000001}}], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False, UnsavedVariables:>{Typeset`data}]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FrameTicks->None]\)]$

Out[6]=

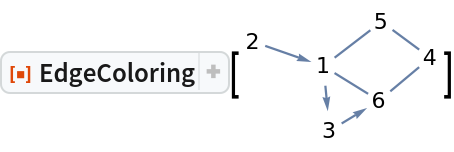

Directed graphs:

In[7]:=

$ResourceFunction["EdgeColoring"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 3, 2, 6, 4, 5}, {{{1, 2}, {3, 1}, {2, 4}, {5, 4}, {1, 6}, {6, 5}, {4, 1}}, Null}, {EdgeStyle -> { Arrowheads[0.08]}, PerformanceGoal -> "Quality", VertexShapeFunction -> {"Name"}}]], Typeset`boxes, Typeset`boxes$s2d = GraphicsGroupBox[{{ Arrowheads[0.03036417203345085], Directive[ Opacity[0.7], Hue[0.6, 0.7, 0.5]], Arrowheads[0.08], ArrowBox[{{ DynamicLocation["VertexID$1", Automatic, Center], DynamicLocation["VertexID$2", Automatic, Center]}, { DynamicLocation[ "VertexID$1", Automatic, Center], DynamicLocation["VertexID$6", Automatic, Center]}, { DynamicLocation[ "VertexID$2", Automatic, Center], DynamicLocation["VertexID$4", Automatic, Center]}, { DynamicLocation[ "VertexID$3", Automatic, Center], DynamicLocation["VertexID$1", Automatic, Center]}, { DynamicLocation[ "VertexID$4", Automatic, Center], DynamicLocation["VertexID$1", Automatic, Center]}, { DynamicLocation[ "VertexID$5", Automatic, Center], DynamicLocation["VertexID$4", Automatic, Center]}, { DynamicLocation[ "VertexID$6", Automatic, Center], DynamicLocation["VertexID$5", Automatic, Center]}}]}, { Directive[ Hue[0.6, 0.2, 0.8], EdgeForm[ Directive[ GrayLevel[0], Opacity[0.7]]]], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["1", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {1.0582418052620635`, 0.9723829770648784}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$1"], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["3", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {1.1509423444907019`, 0.}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$2"], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["2", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {0., 1.3421036772670925`}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$3"], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["6", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {1.8963933008738443`, 0.45375950808317184`}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$4"], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["4", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {2.666069013196534, 1.099186522746214}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$5"], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["5", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {1.9309095855504228`, 1.6429177863358628`}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$6"]}}], $CellContext`flag}, TagBox[ DynamicBox[GraphComputation`NetworkGraphicsBox[ 3, Typeset`graph, Typeset`boxes, $CellContext`flag], {CachedValue :> Typeset`boxes, SingleEvaluation -> True, SynchronousUpdating -> False, TrackedSymbols :> {$CellContext`flag}}, ImageSizeCache->{{0., 90.}, {-36.29858239089034, 32.00000000000001}}], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False, UnsavedVariables:>{$CellContext`flag}]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FrameTicks->None, GridLinesStyle->Directive[ GrayLevel[0.5, 0.4]]]\)]$

Out[7]=

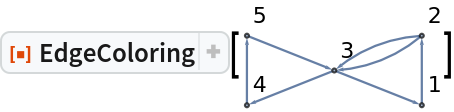

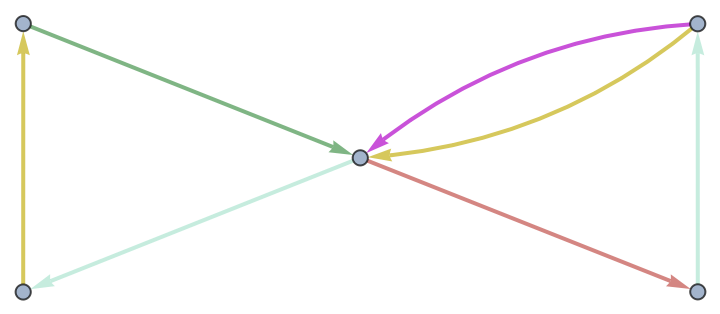

Multigraphs:

In[8]:=

$ResourceFunction["EdgeColoring"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5}, {{{1, 2}, {2, 3}, {2, 3}, {3, 1}, {3, 4}, {4, 5}, {5, 3}}, Null}, {EdgeStyle -> { Arrowheads[Automatic]}, FormatType -> TraditionalForm, GraphLayout -> {"Dimension" -> 2}, GridLinesStyle -> Directive[ GrayLevel[0.5, 0.4]], VertexLabels -> {"Name"}}]]}, TagBox[GraphicsGroupBox[{ {Hue[0.6, 0.7, 0.5], Opacity[0.7], Arrowheads[Automatic], ArrowBox[{{2.017540424146274, 0.00044208442469451104`}, { 2.017313638325164, 0.8021720910704471}}, 0.022753627728707843`], ArrowBox[BezierCurveBox[{{2.017313638325164, 0.8021720910704471}, {1.5786497609293124`, 0.4357165494909167}, {1.008104154360962, 0.40117133112610454`}}], 0.022753627728707843`], ArrowBox[BezierCurveBox[{{2.017313638325164, 0.8021720910704471}, {1.4467680317568175`, 0.7676268727056339}, {1.008104154360962, 0.40117133112610454`}}], 0.022753627728707843`], ArrowBox[{{1.008104154360962, 0.40117133112610454`}, { 2.017540424146274, 0.00044208442469451104`}}, 0.022753627728707843`], ArrowBox[{{1.008104154360962, 0.40117133112610454`}, {0., 0.}}, 0.022753627728707843`], ArrowBox[{{0., 0.}, {0.00022442750785334198`, 0.8026134080747779}}, 0.022753627728707843`], ArrowBox[{{0.00022442750785334198`, 0.8026134080747779}, { 1.008104154360962, 0.40117133112610454`}}, 0.022753627728707843`]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[ 0.7]}], { DiskBox[{2.017540424146274, 0.00044208442469451104}, 0.022753627728707843], InsetBox["1", Offset[{2, 2}, {2.040294051874982, 0.023195712153402354}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, { DiskBox[{2.017313638325164, 0.8021720910704471}, 0.022753627728707843], InsetBox["2", Offset[{2, 2}, {2.040067266053872, 0.8249257187991549}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, { DiskBox[{1.008104154360962, 0.40117133112610454}, 0.022753627728707843], InsetBox["3", Offset[{2, 2}, {1.0308577820896698, 0.4239249588548124}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 0.}, 0.022753627728707843], InsetBox["4", Offset[{2, 2}, {0.022753627728707843, 0.022753627728707843}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, { DiskBox[{0.00022442750785334198, 0.8026134080747779}, 0.022753627728707843], InsetBox["5", Offset[{2, 2}, {0.022978055236561185, 0.8253670358034857}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}}}], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None, GridLinesStyle->Directive[ GrayLevel[0.5, 0.4]]]\)]$

Out[8]=

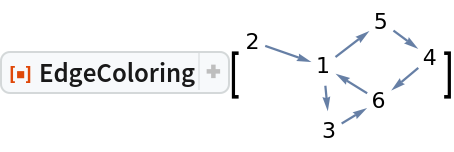

Mixed graphs:

In[9]:=

$ResourceFunction["EdgeColoring"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 3, 2, 6, 4, 5}, {{{1, 2}, {3, 1}, {2, 4}}, {{5, 4}, {1, 6}, {6, 5}, {4, 1}}}, {EdgeStyle -> { Arrowheads[0.08]}, PerformanceGoal -> "Quality", VertexShapeFunction -> {"Name"}}]], Typeset`boxes, Typeset`boxes$s2d = GraphicsGroupBox[{{ Arrowheads[0.03036225639824664], Directive[ Opacity[0.7], Hue[0.6, 0.7, 0.5]], Arrowheads[0.08], LineBox[{ DynamicLocation["VertexID$1", Automatic, Center], DynamicLocation["VertexID$4", Automatic, Center]}], LineBox[{ DynamicLocation["VertexID$1", Automatic, Center], DynamicLocation["VertexID$6", Automatic, Center]}], ArrowBox[{ DynamicLocation["VertexID$1", Automatic, Center], DynamicLocation["VertexID$2", Automatic, Center]}], ArrowBox[{ DynamicLocation["VertexID$2", Automatic, Center], DynamicLocation["VertexID$4", Automatic, Center]}], ArrowBox[{ DynamicLocation["VertexID$3", Automatic, Center], DynamicLocation["VertexID$1", Automatic, Center]}], LineBox[{ DynamicLocation["VertexID$4", Automatic, Center], DynamicLocation["VertexID$5", Automatic, Center]}], LineBox[{ DynamicLocation["VertexID$5", Automatic, Center], DynamicLocation["VertexID$6", Automatic, Center]}]}, { Directive[ Hue[0.6, 0.2, 0.8], EdgeForm[ Directive[ GrayLevel[0], Opacity[0.7]]]], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["1", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {1.0584185461609268`, 0.9722706650009502}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$1"], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["3", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {1.1511230006050828`, 0.}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$2"], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["2", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {0., 1.3418307911430136`}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$3"], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["6", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {1.8966497904439512`, 0.4537055162293067}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$4"], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["4", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {2.6664901555059592`, 1.098927115783615}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$5"], TagBox[ InsetBox[ BoxData[ FormBox[ PaneBox["5", Alignment -> Center, ImageMargins -> 2], TraditionalForm]], {1.931325145715449, 1.6424972585468378`}, BaseStyle -> "Graphics"], "DynamicName", BoxID -> "VertexID$6"]}}], $CellContext`flag}, TagBox[ DynamicBox[GraphComputation`NetworkGraphicsBox[ 3, Typeset`graph, Typeset`boxes, $CellContext`flag], {CachedValue :> Typeset`boxes, SingleEvaluation -> True, SynchronousUpdating -> False, TrackedSymbols :> {$CellContext`flag}}, ImageSizeCache->{{0., 90.00000000000001}, {-36.278179562157156`, 32.00000000000001}}], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False, UnsavedVariables:>{$CellContext`flag}]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FrameTicks->None, GridLinesStyle->Directive[ GrayLevel[0.5, 0.4]]]\)]$
