Function Repository Resource:
Represent the result of evolution of a Wolfram model
ResourceFunction["WolframModelEvolutionObject"][…][t] gives the state of a Wolfram model evolution after t generations.
ResourceFunction["WolframModelEvolutionObject"][…][prop] gives the specified property of a Wolfram Model evolution object.
ResourceFunction["WolframModelEvolutionObject"][…][prop,opts] uses the specified options for the result.
t  the state at generation t
t  the state t generations from the end
"StatesList"  the list of states for each complete generation
"StatesPlotsList"  list of plots of states
"FinalState"  the final state only
"FinalStatePlot"  plot of final state
"AllEventsStatesList"  the list of all states after all updating events
"AllEventsList"  the list of all updating events during the evolution
"AllEventsRuleIndices"  list of indices of transformation rules used during the evolution
"EventsStatesList"  the list of successive events and states during the evolution
"EventsStatesPlotsList"  list of plots of successive states with each event highlighted
"AllEventsEdgesList"  the list of all edges in the order they are generated by events
"EdgeCreatorEventIndices"  the indices of the updating event that creates each edge
"EdgeDestroyerEventIndices"  the indices of the updating event that destroys each edge
"VertexCountList"  the list of vertex counts for each complete generation
"EdgeCountList"  the list of edge counts for each complete generation
"GenerationsCount"  the number of complete and partial generations
"GenerationEventsCountList"  the number of events between successive generations
"GenerationEventsList"  the list of events between successive generations
"EdgeGenerationsList"  which generation each edge is associated with
"EventGenerationsList"  which generation each event is associated with
"AllEventsCount"  the total number of events in the evolution
"CausalGraph"  the causal graph for the evolution
"LayeredCausalGraph"  the causal graph rendered in layered form
"Rules"  the underlying rules for the Wolfram model system
"TerminationReason"  why the evolution was stopped
"MaxEvents"  maximum number of events reached
"MaxGenerations"  maximum number of generations reached
"MaxVertices"  maximum number of hypergraph vertices reached
"MaxEdges"  maximum number of hypergraph edges reached
"MaxVertexDegree"  maximum degree of any vertex reached
"FixedPoint"  rule does not have any more matches
"TimeConstraint"  specified execution time reached
"Aborted"  externally aborted
IncludePartialGenerations  True  whether to include data on incomplete generations
IncludeBoundaryEvents  None  whether to include boundary events in properties like "CausalGraph"
Create an evolution object:
In[1]:=

Out[1]=

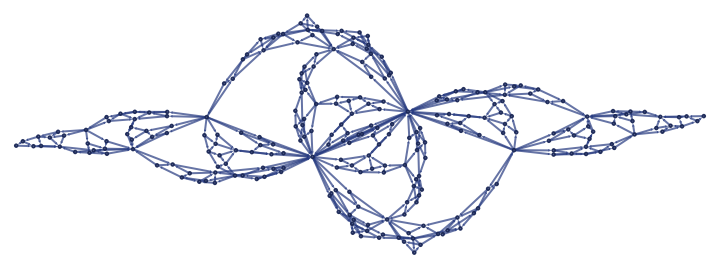

Get the plot of the final state:
In[2]:=

Out[2]=

Make a causal graph for the same evolution:
In[3]:=

Out[3]=

"StatesList" yields the list of states at each generation:
In[4]:=

Out[4]=

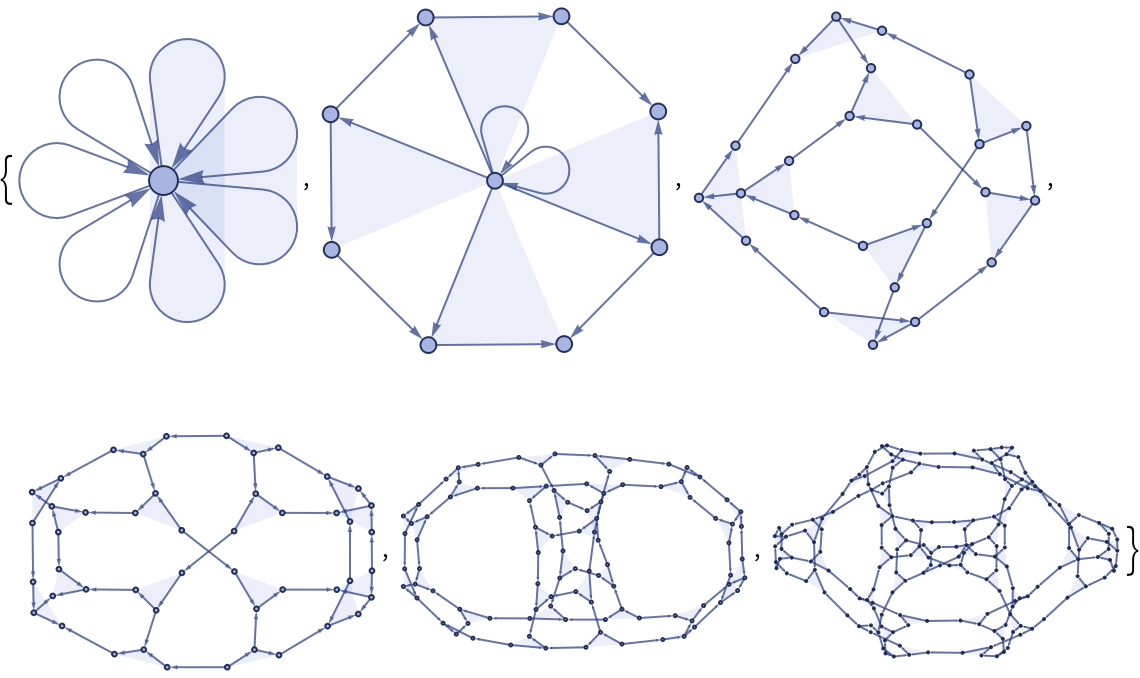

Make the list of plots of all states:
In[5]:=

Out[5]=

"FinalState" yields the state obtained after all replacements of the evolution have been made:
In[6]:=

Out[6]=

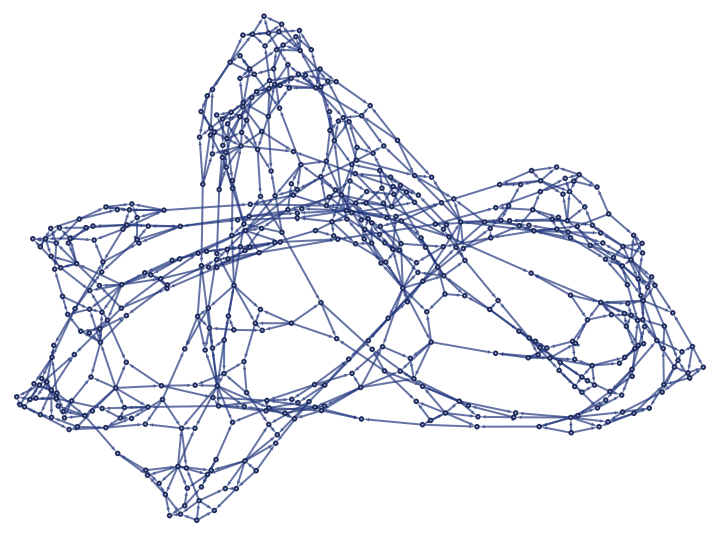

Make the plot of the final state:
In[7]:=

Out[7]=

"StatesList" shows a compressed version of the evolution. To see how state changes with each applied replacement, use "AllEventsStatesList":
In[8]:=

Out[8]=

"AllEventsList" returns all replacement events throughout the evolution:
In[9]:=

Out[9]=

"AllEventsRuleIndices" returns which rule was used for each event:
In[10]:=

Out[10]=

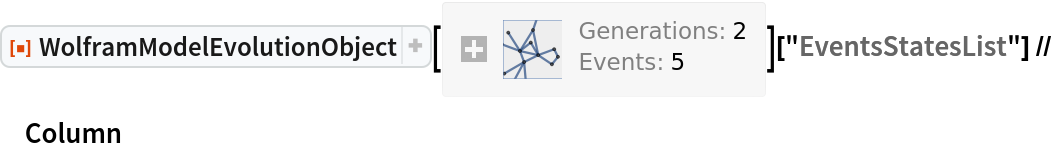

"EventsStatesList" just produces a list of {event,state} pairs, where state is the complete state right after this event is applied:
In[11]:=

Out[11]=

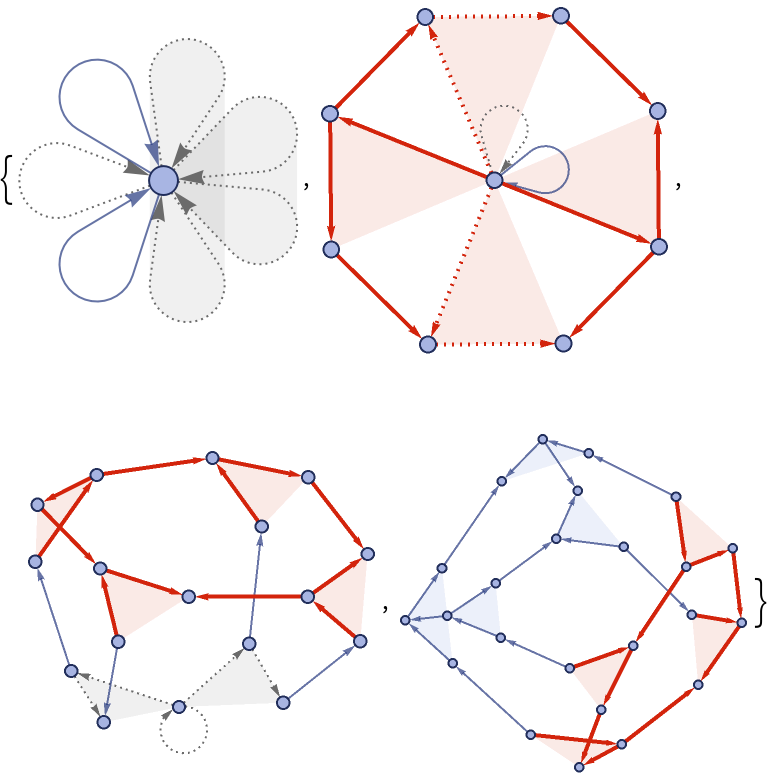

"EventsStatesPlotsList" plots not only the states, but also the events that produced them:
In[12]:=

Out[12]=

"AllEventsEdgesList" returns the list of edges throughout evolution:
In[13]:=

Out[13]=

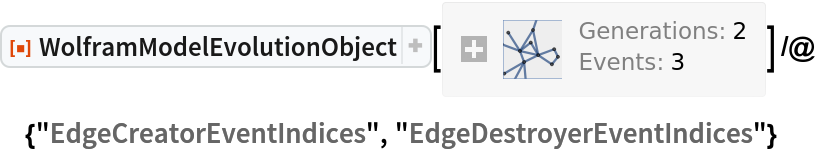

Get creator and destroyer events for each edge throughout the evolution:
In[14]:=

Out[14]=

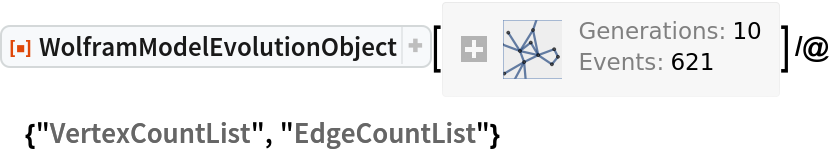

"VertexCountList" and "EdgeCountList" return counts of vertices and edges respectively in each state of "StatesList":
In[15]:=

Out[15]=

"GenerationsCount" returns both complete and partial generations count:
In[16]:=

Out[16]=

"GenerationEventsCountList" gives the number of events per each generation:
In[17]:=

Out[17]=

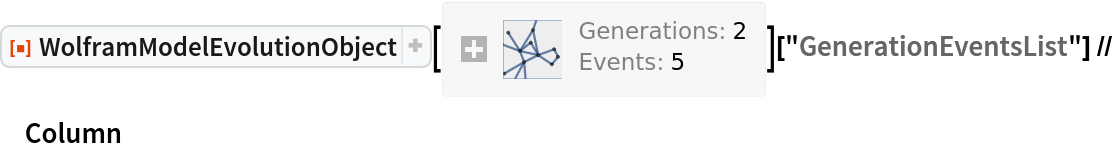

"GenerationEventsList" returns the same list of events, but splits them into sublists for each generation:
In[18]:=

Out[18]=

"EdgeGenerationsList" yields the list of generation numbers for each edge in "AllEventsEdgesList":
In[19]:=

Out[19]=

"EventsGenerationsList" gives the same for events:
In[20]:=

Out[20]=

"AllEventsCount" returns the overall number of events throughout the evolution:
In[21]:=

Out[21]=

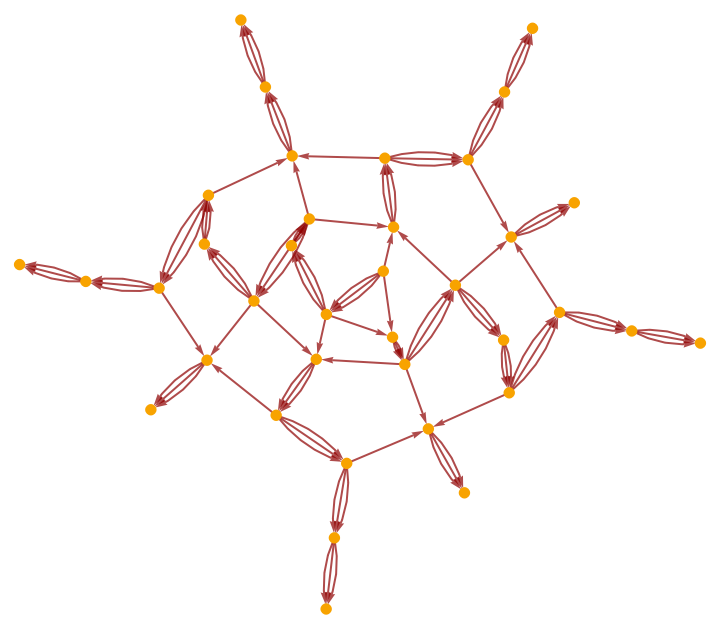

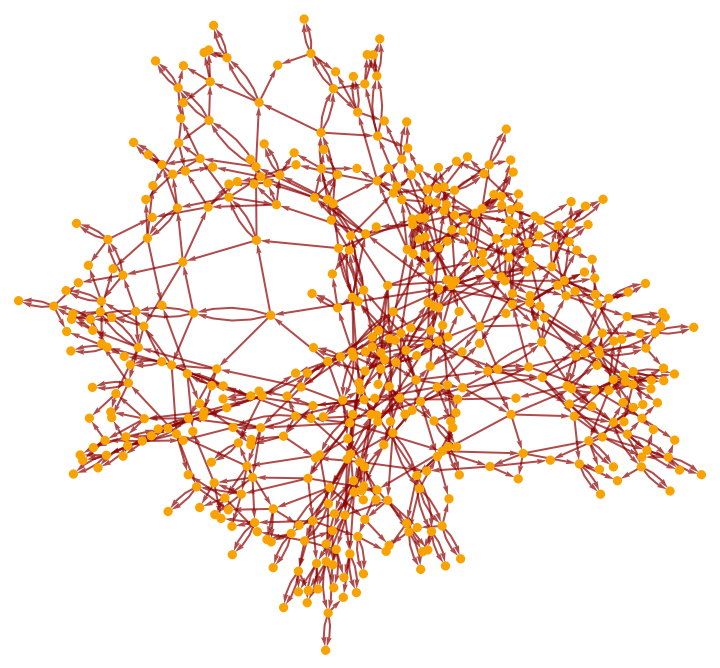

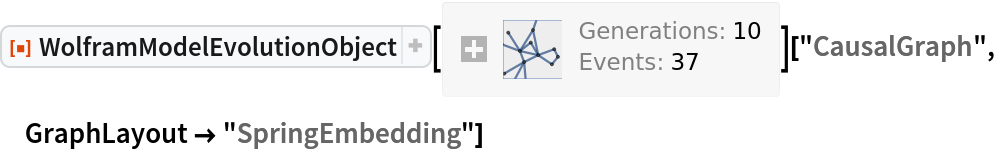

Get a causal graph for an evolution:
In[22]:=

Out[22]=

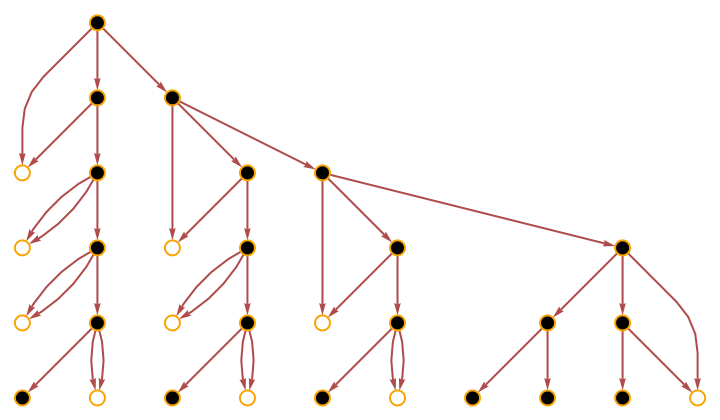

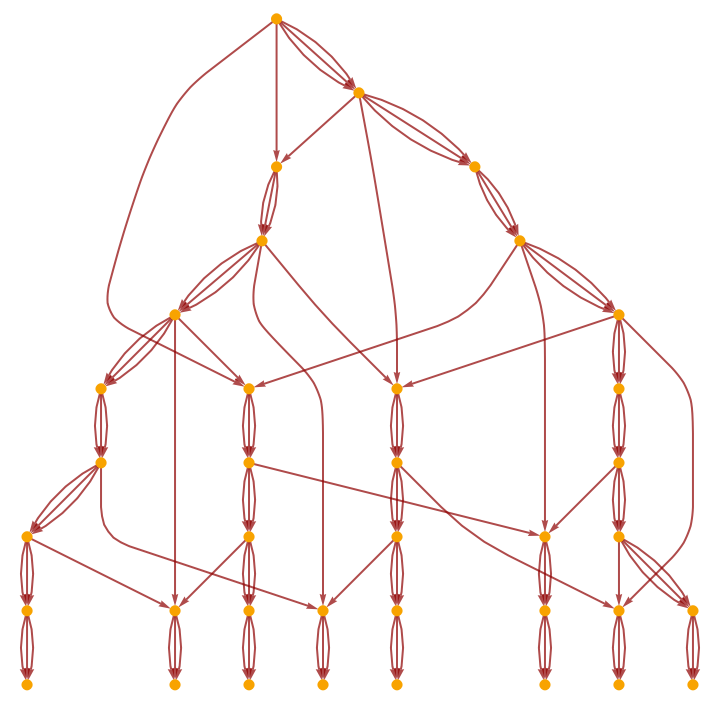

The causal graph can be layered putting events from each generation on a different level:
In[23]:=

Out[23]=

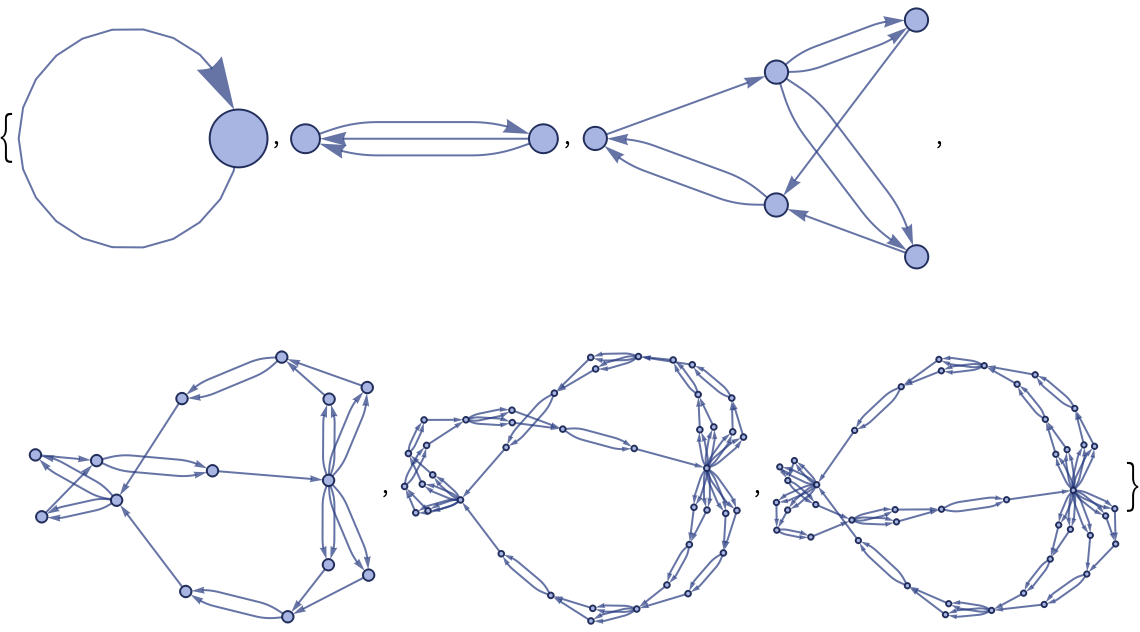

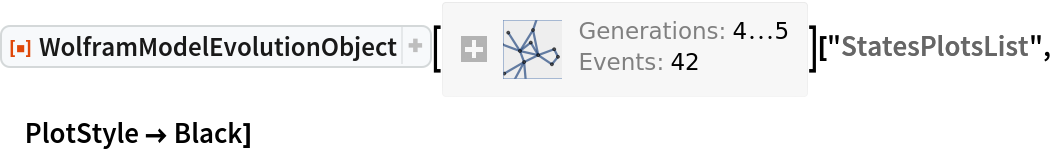

Drop partial generations from the evolution:
In[24]:=

Out[24]=

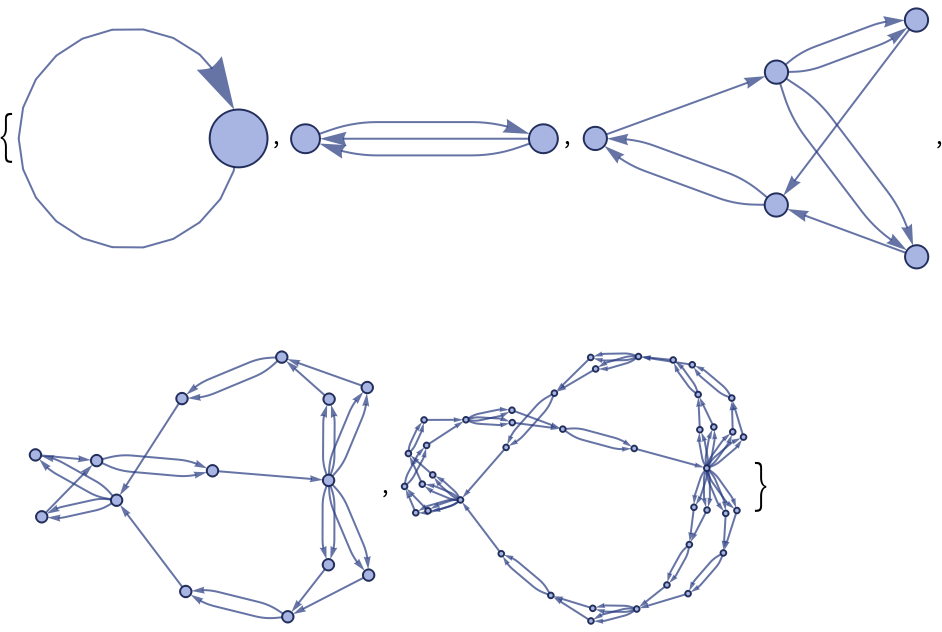

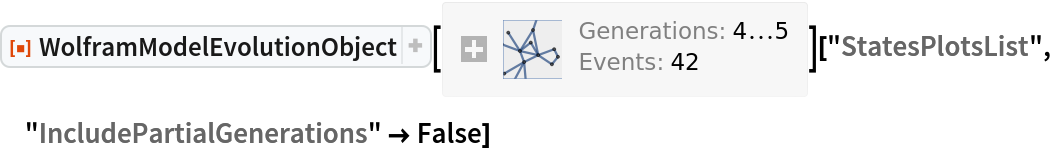

If partial generations were not dropped, there would be one more element in the plots list:
In[25]:=

Out[25]=

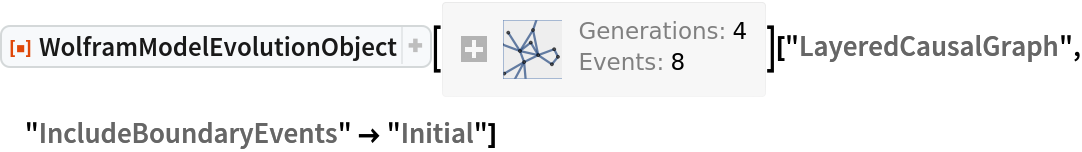

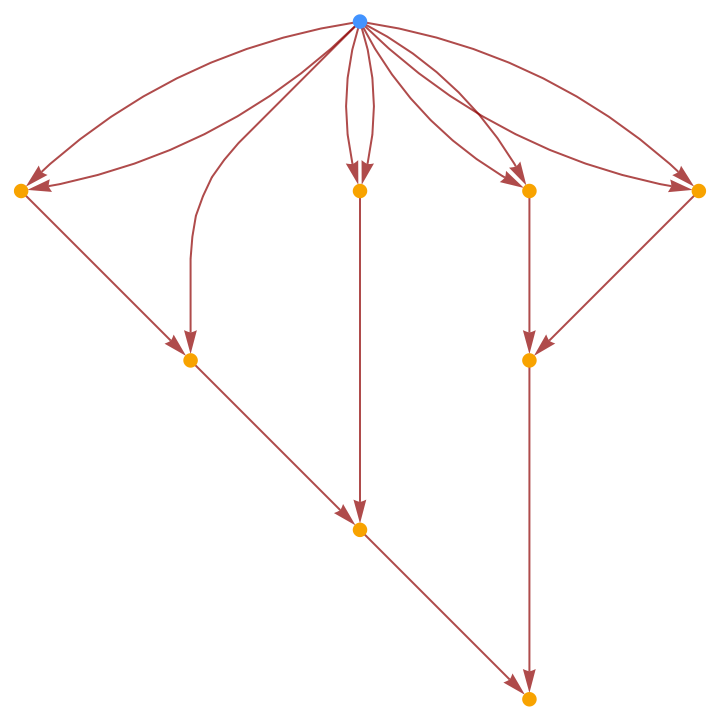

Include the initial event in a causal graph:
In[26]:=

Out[26]=

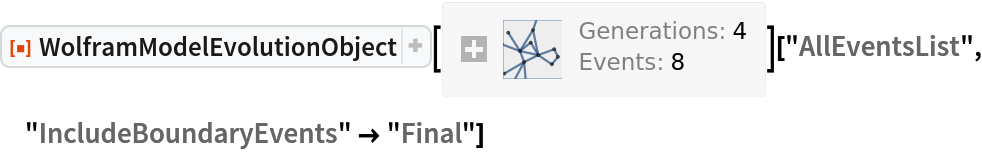

Include both the final event in the list of events:
In[27]:=

Out[27]=

Include both the initial and the final events in "EventsStatesList":
In[28]:=

Out[28]=

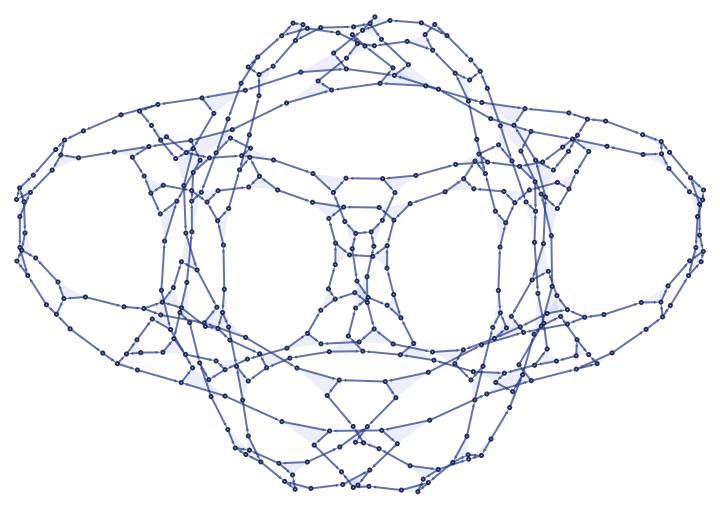

For state plots, WolframModelPlot options can be given:
In[29]:=

Out[29]=

Evolution objects are created by WolframModel without a property argument:
In[31]:=

Out[32]=

WolframModelPlot is used internally generate graphics:
In[33]:=

Out[33]=

In[34]:=

Out[34]=

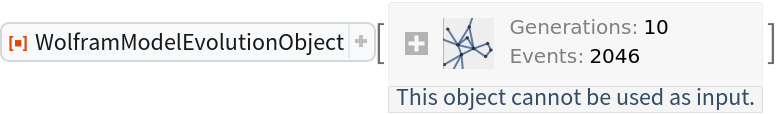

The content of very large evolutions will not be saved in the notebook by default:
In[35]:=

Out[35]=

Click "Store now" to save for you in other Kernel sessions:
Show which rule is used for each event on a causal graph:
In[36]:=

Out[36]=

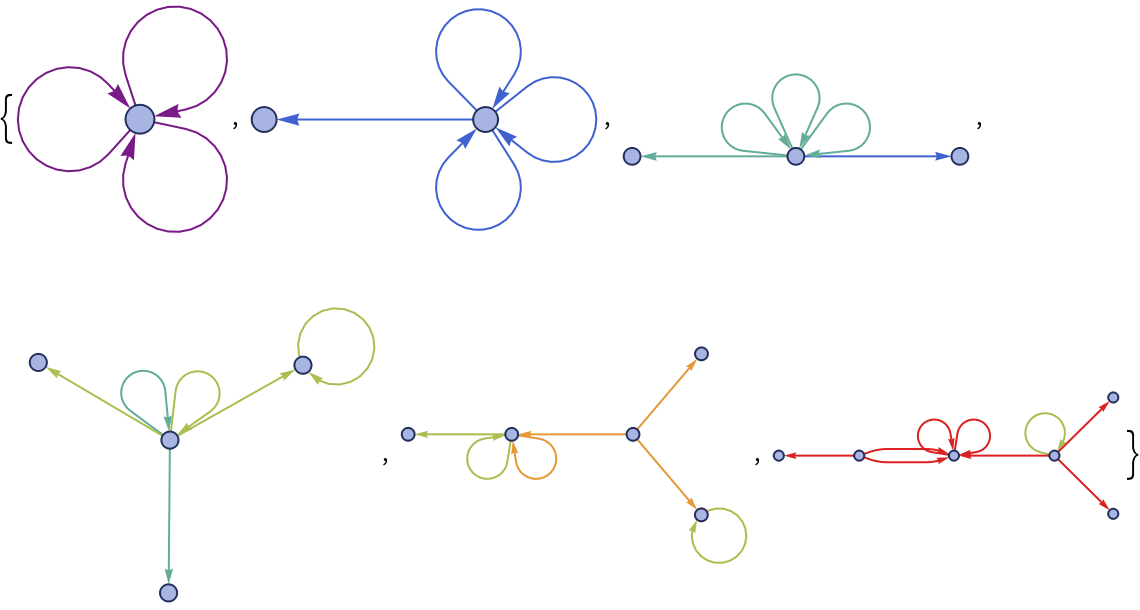

Color edges of different generations differently in a "StatesPlotsList":
In[37]:=

Out[37]=
