Function Repository Resource:

 TurtleArt

Source Notebook

Make art with code

Contributed by: Brian Silverman and Daniel Sanchez

ResourceFunction["TurtleArt"]["field"]

returns the specified ResourceFunction["TurtleArt"] field.

ResourceFunction["TurtleArt"]["command"][]

executes the specified ResourceFunction["TurtleArt"] command.

ResourceFunction["TurtleArt"]["command"][params]

executes the command with the parameters params.

Details

A turtle follows a sequence of commands: draw lines and arcs, rotate, draw in different colors, go to a specific place on the screen, etc.
ResourceFunction["TurtleArt"] was inspired by the LOGO programming language and was designed to be easy enough for children and yet powerful enough for people of all ages.
The following fields are supported:
TurtleArt["Background"]the screen color
TurtleArt["Color"]the color of the turtle's pen
TurtleArt["Heading"]the heading of the turtle
TurtleArt["PenQ"]True if the pen is down; False otherwise
TurtleArt["Pensize"]the width of the turtle's pen
TurtleArt["Shade"]the shade of the turtle's pen
TurtleArt["X"]the x (horizontal) coordinate of the turtle
TurtleArt["Y"]the y (vertical) coordinate of the turtle
For appropriate fields, ResourceFunction["TurtleArt"]["field"]=val can be used to set the value of a field.
The following commands are supported:
TurtleArt[“Arc”][a,r]move the turtle in an arc with an angle a and a distance of r units
TurtleArt[“Back”][n]move the turtle backward n units
TurtleArt[“Clean”][]clear the screen and reposition the turtle to the center
TurtleArt["Draw"][]draw to the screen
TurtleArt[“FillScreen”][c,s]fill the screen with a color c and a shade s
TurtleArt["Forward"][n]move the turtle forward n units
TurtleArt["HideTurtle"][]hide the turtle icon
TurtleArt["Left"][n]turn the turtle left n units
ResourceFunction["TurtleArt"]["PenDown"][]lower the turtle's pen so that it will draw
ResourceFunction["TurtleArt"]["PenUp"][]raise the turtle's pen so that it will not draw
TurtleArt["Right"][n]turn the turtle right n units
TurtleArt["SetColor"][c]set the color of the turtle's pen to c
TurtleArt["SetHeading"][h]set the heading of the turtle to h
TurtleArt["SetPensize"][w]set the width of the turtle's pen to w
TurtleArt["SetShade"][s]set the shade of the turtle's pen to s
TurtleArt["SetXY"][x,y]set the position of the turtle to {x,y}
TurtleArt["ShowTurtle"][]show the turtle icon

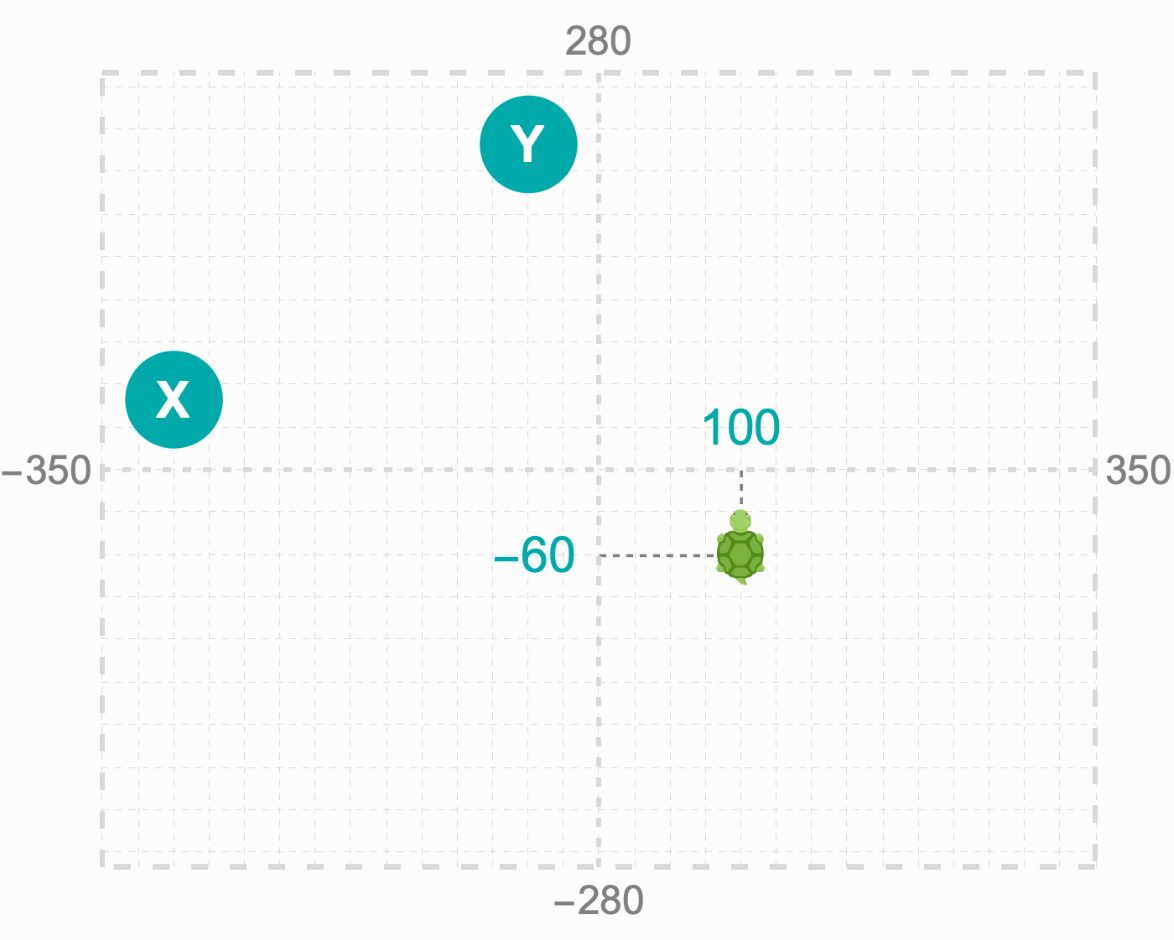

ResourceFunction["TurtleArt"] works with a coordinate system. The turtle's default position is {0,0}, which is the middle of the screen:
The heading of the turtle is given in degrees, where 0 degrees means the turtle is directed upwards.

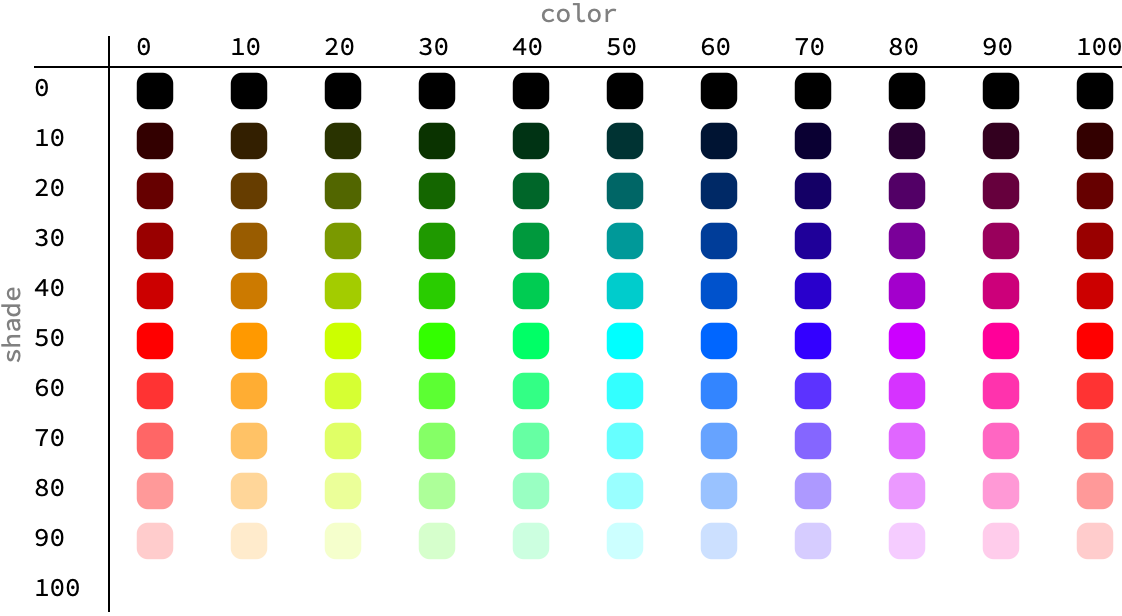

In ResourceFunction["TurtleArt"], the color and shade numbers are between 0 and 100. The default color is 0 and the default shade is 50:

Examples

Basic Examples (9)

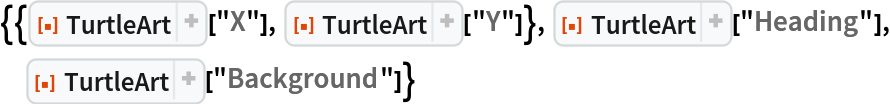

Obtain the turtle's initial position, heading and background:

In[1]:=
{{ResourceFunction["TurtleArt"]["X"], ResourceFunction["TurtleArt"]["Y"]}, ResourceFunction["TurtleArt"]["Heading"], ResourceFunction["TurtleArt"]["Background"]}
Out[1]=

Set the screen color:

In[2]:=
ResourceFunction["TurtleArt"]["FillScreen"][70, 98]

Show the turtle icon:

In[3]:=
ResourceFunction["TurtleArt"]["ShowTurtle"][]

Move forward the turtle a distance of 100 units:

In[4]:=
ResourceFunction["TurtleArt"]["Forward"][100]

Rotate the turtle 35° to the right:

In[5]:=
ResourceFunction["TurtleArt"]["Right"][35]

Move forward again 100 units:

In[6]:=
ResourceFunction["TurtleArt"]["Forward"][100]

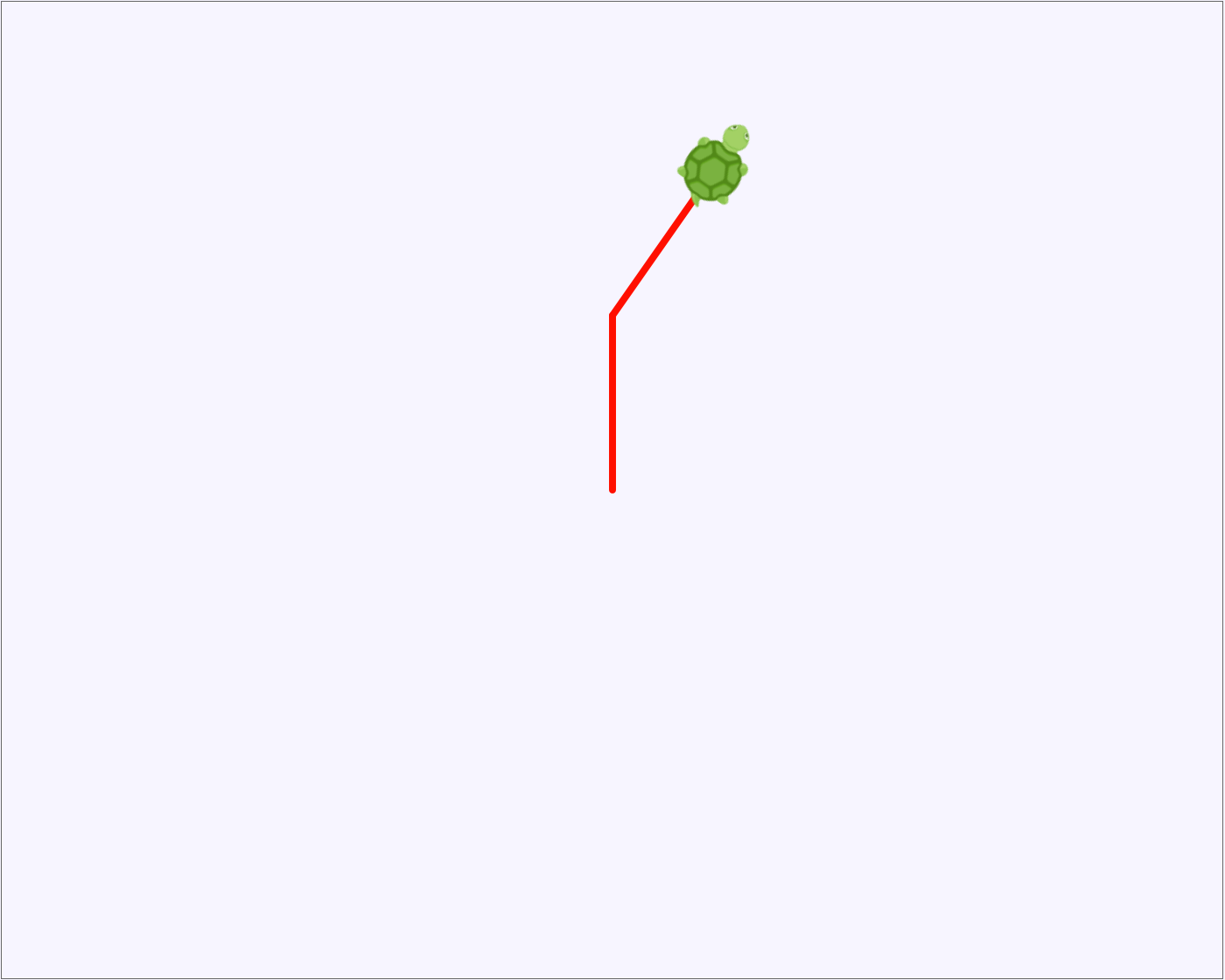

Draw the turtle's art:

In[7]:=
ResourceFunction["TurtleArt"]["Draw"][]
Out[7]=

Obtain the new values of position, heading and background:

In[8]:=
{{ResourceFunction["TurtleArt"]["X"], ResourceFunction["TurtleArt"]["Y"]}, ResourceFunction["TurtleArt"]["Heading"], ResourceFunction["TurtleArt"]["Background"]}
Out[8]=

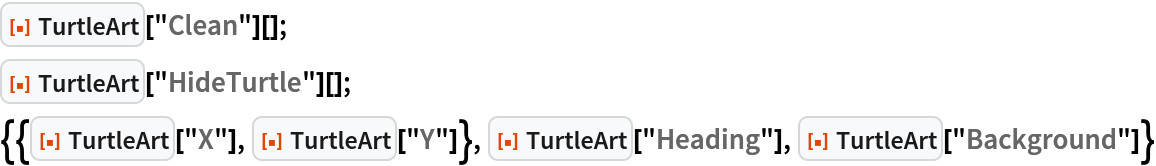

Clean and hide the turtle:

In[9]:=
ResourceFunction["TurtleArt"]["Clean"][]; ResourceFunction["TurtleArt"]["HideTurtle"][]; {{ResourceFunction["TurtleArt"]["X"], ResourceFunction["TurtleArt"]["Y"]}, ResourceFunction["TurtleArt"]["Heading"], ResourceFunction["TurtleArt"]["Background"]}
Out[11]=

Possible Issues (3)

Invalid fields return unevaluated code:

In[12]:=
ResourceFunction["TurtleArt"]["Z"]
Out[12]=

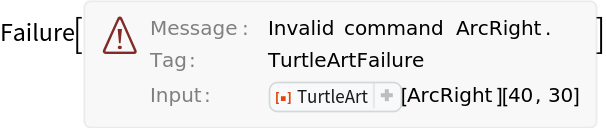

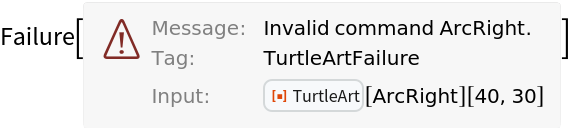

Invalid commands return a Failure object:

In[13]:=
ResourceFunction["TurtleArt"]["ArcRight"][40, 30]
Out[13]=

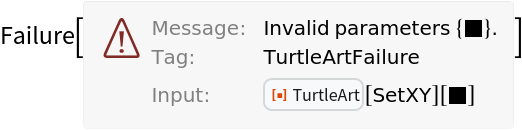

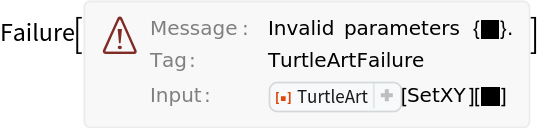

Invalid command parameters return a Failure object:

In[14]:=
ResourceFunction["TurtleArt"]["SetXY"][ RGBColor[0, 0, 0]]
Out[14]=

Neat Examples (15)

Dandelion (1)

Draw dandelion:

In[15]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/d6518c34-cb96-43eb-8e38-a3328855fb52"]
Out[15]=

Neonsqi (1)

Draw neonsqi:

In[16]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/843f969b-288a-4ea8-9e5b-228d6082037d"]
Out[16]=

Beginning (1)

Draw beginning:

In[17]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/fce87d51-72cb-4186-b0eb-10ac17ecfd76"]
Out[17]=

Curls (1)

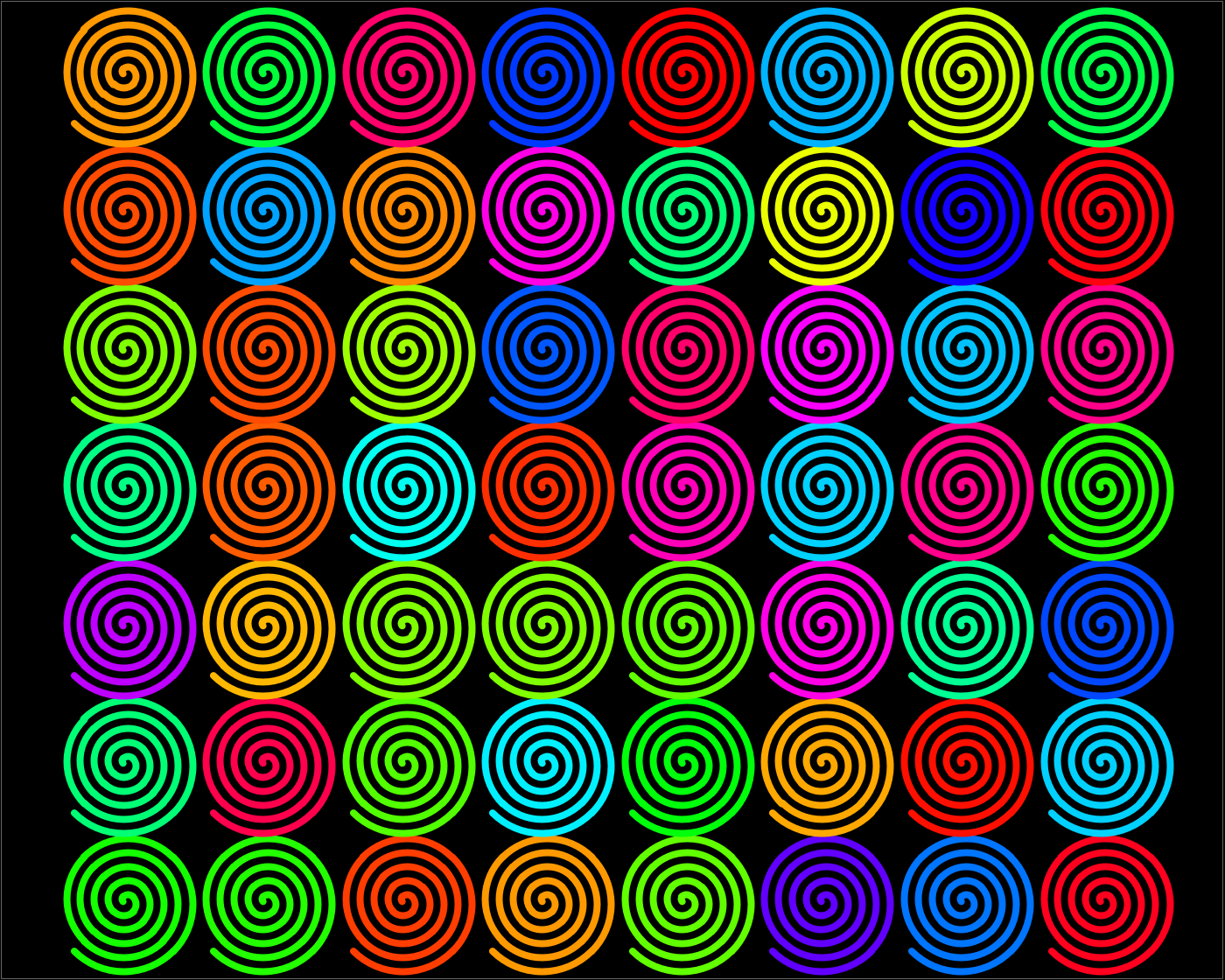

Draw curls:

In[18]:=
Module[{curl, box1, box2}, curl[] := Module[{box3 = 0}, ResourceFunction["TurtleArt"]["SetHeading"][-45]; Do[ box3 += 2; ResourceFunction["TurtleArt"]["Arc"][90, box3] , 20 ] ]; ResourceFunction["TurtleArt"]["Clean"][]; ResourceFunction["TurtleArt"]["FillScreen"][0, 0]; box1 = -280; ResourceFunction["TurtleArt"]["SetXY"][-280, -236]; Do[ box2 = -236; Do[ ResourceFunction["TurtleArt"]["SetXY"][box1, box2]; ResourceFunction["TurtleArt"]["SetColor"][ RandomInteger[{0, 100}]]; curl[]; box2 += 79 , 7 ]; box1 += 80 , 8 ]; ResourceFunction["TurtleArt"]["Draw"][] ]
Out[18]=

Waves (1)

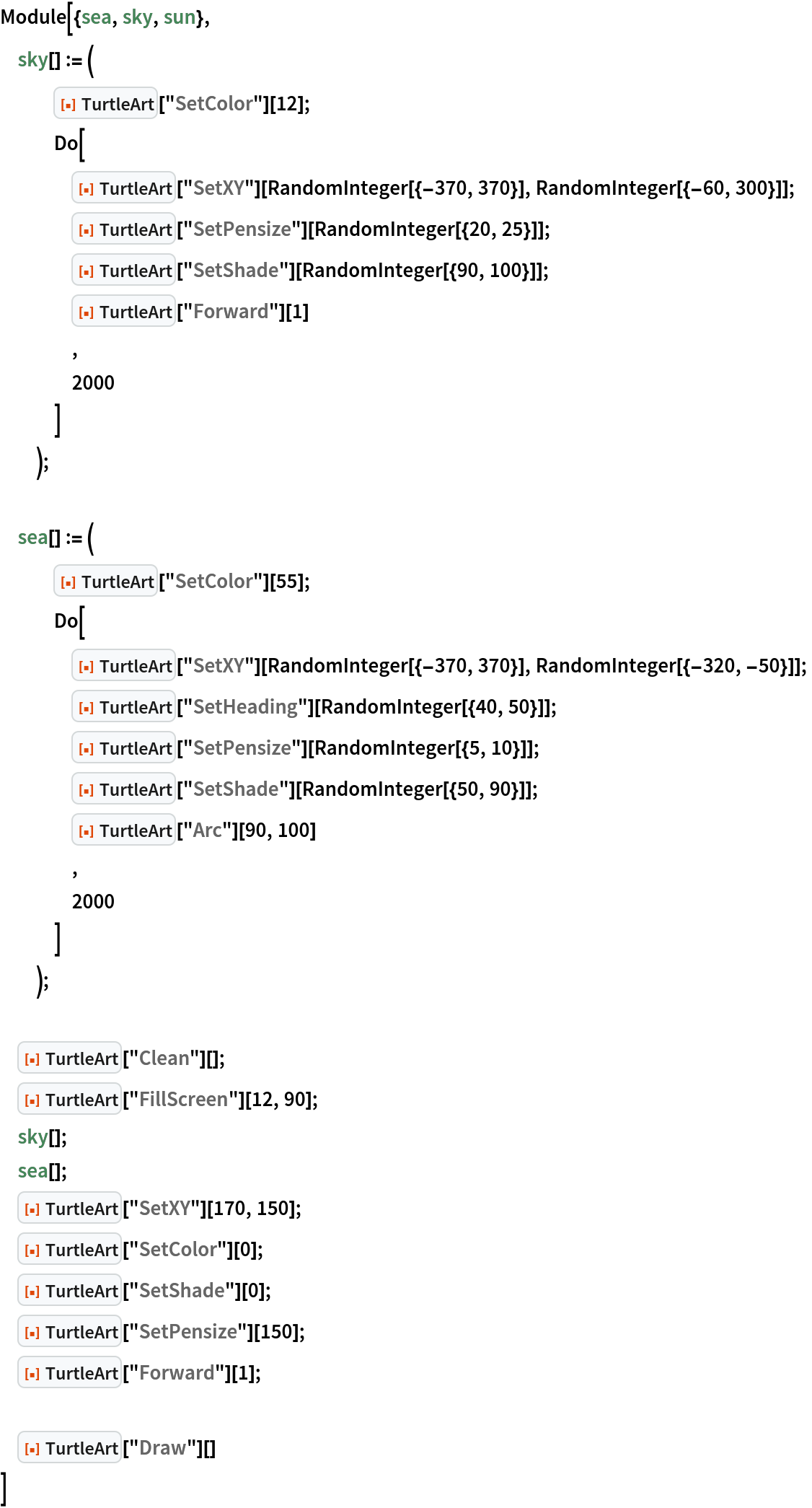

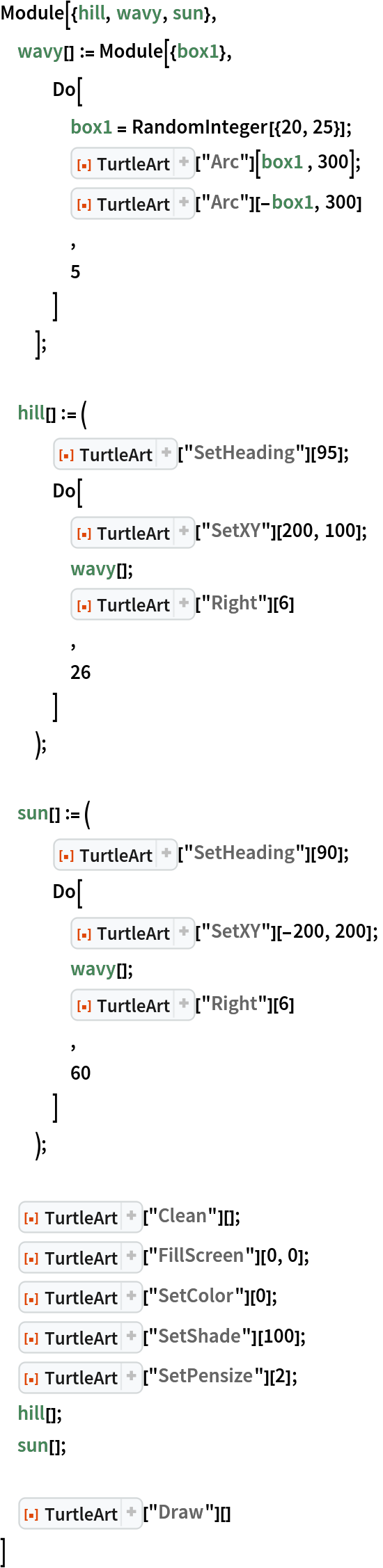

Draw waves:

In[19]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/e9c4f3c8-5d5c-4243-84c2-954747993811"]
Out[19]=

Old Sol (1)

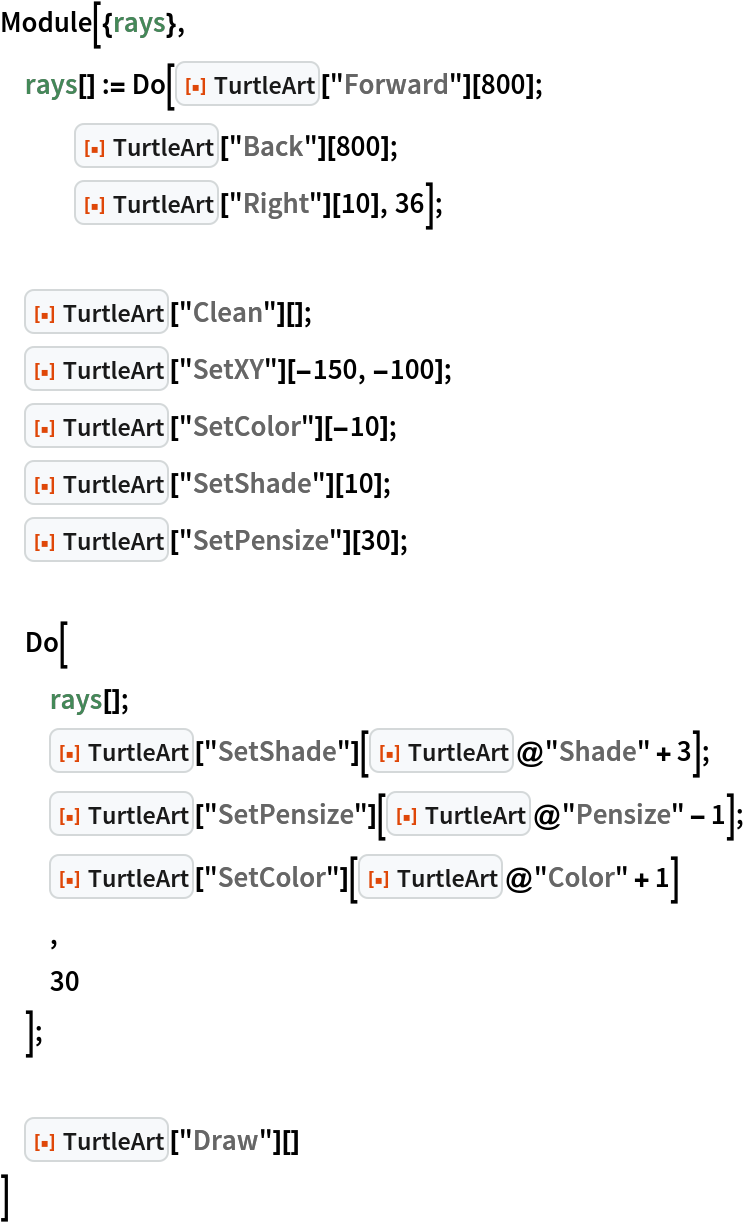

Draw old sol:

In[20]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/3babacc8-28f9-4cf0-8385-a854734d5004"]
Out[20]=

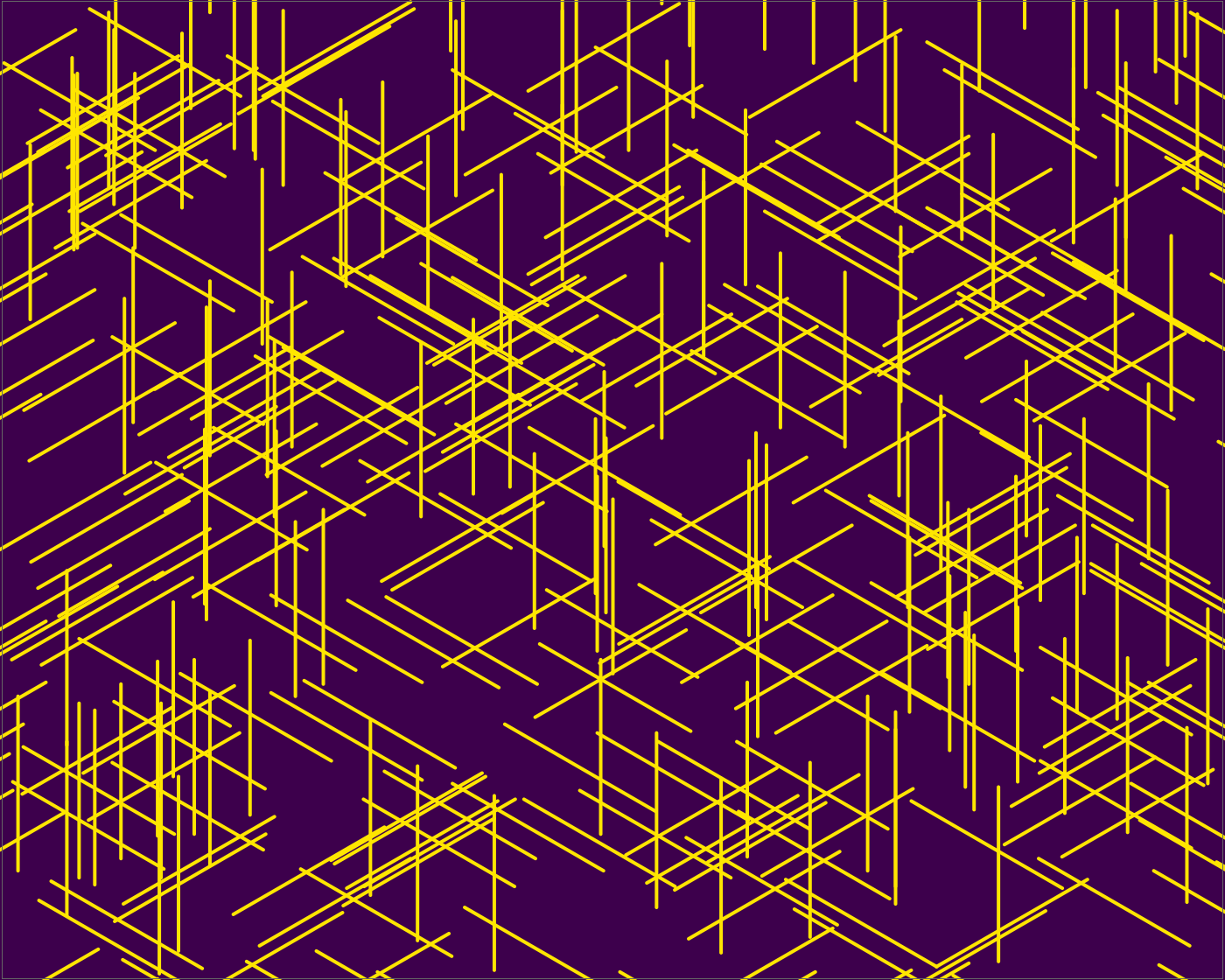

Spaceframe (1)

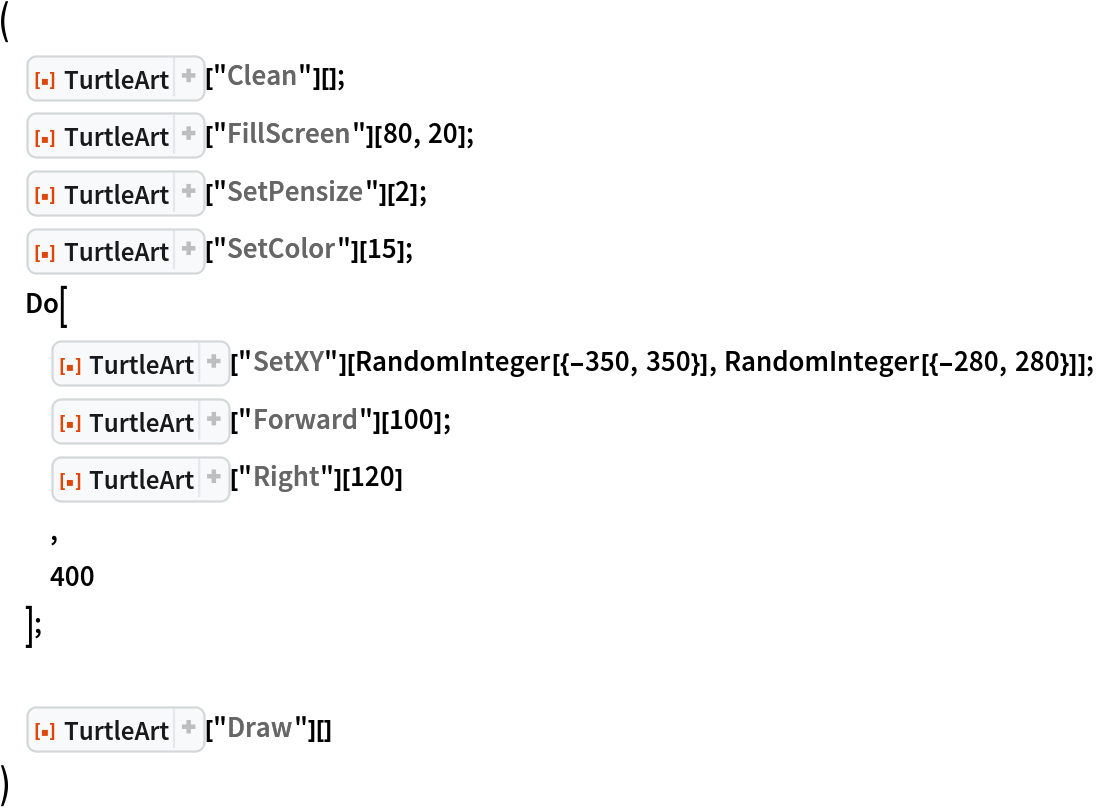

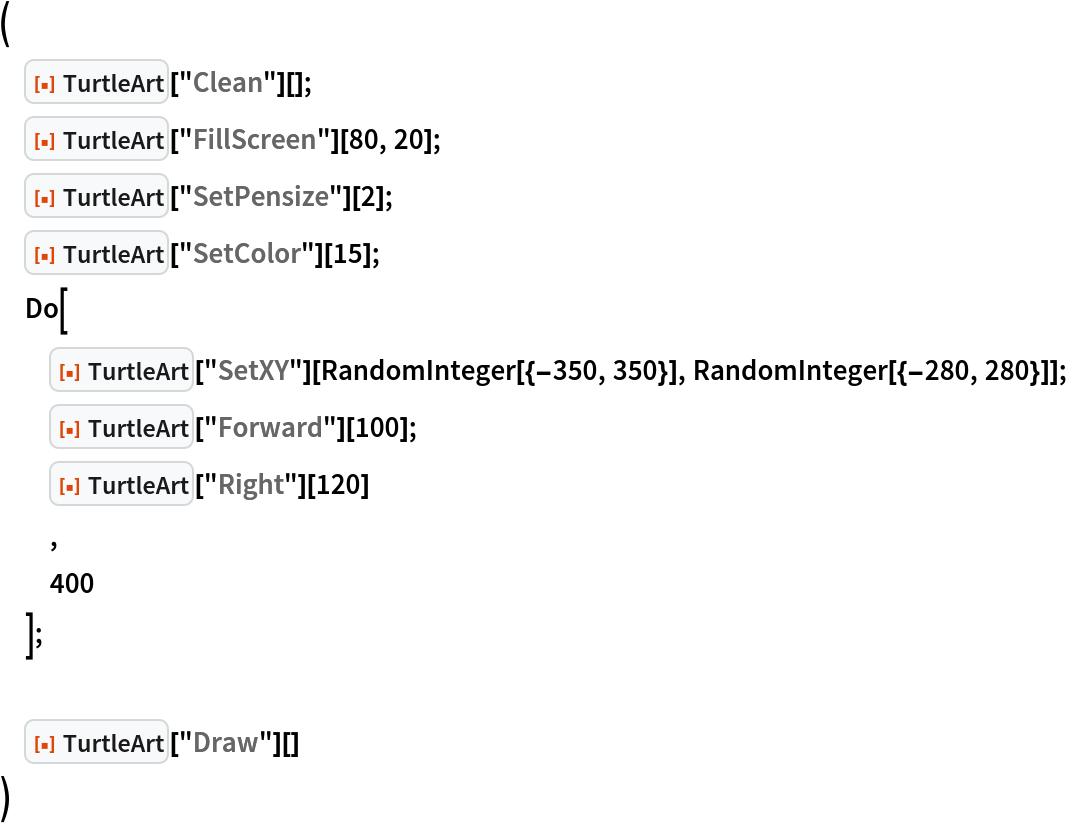

Draw spaceframe:

In[21]:=
( ResourceFunction["TurtleArt"]["Clean"][]; ResourceFunction["TurtleArt"]["FillScreen"][80, 20]; ResourceFunction["TurtleArt"]["SetPensize"][2]; ResourceFunction["TurtleArt"]["SetColor"][15]; Do[ ResourceFunction["TurtleArt"]["SetXY"][RandomInteger[{-350, 350}], RandomInteger[{-280, 280}]]; ResourceFunction["TurtleArt"]["Forward"][100]; ResourceFunction["TurtleArt"]["Right"][120] , 400 ]; ResourceFunction["TurtleArt"]["Draw"][] )
Out[21]=

Brushes (1)

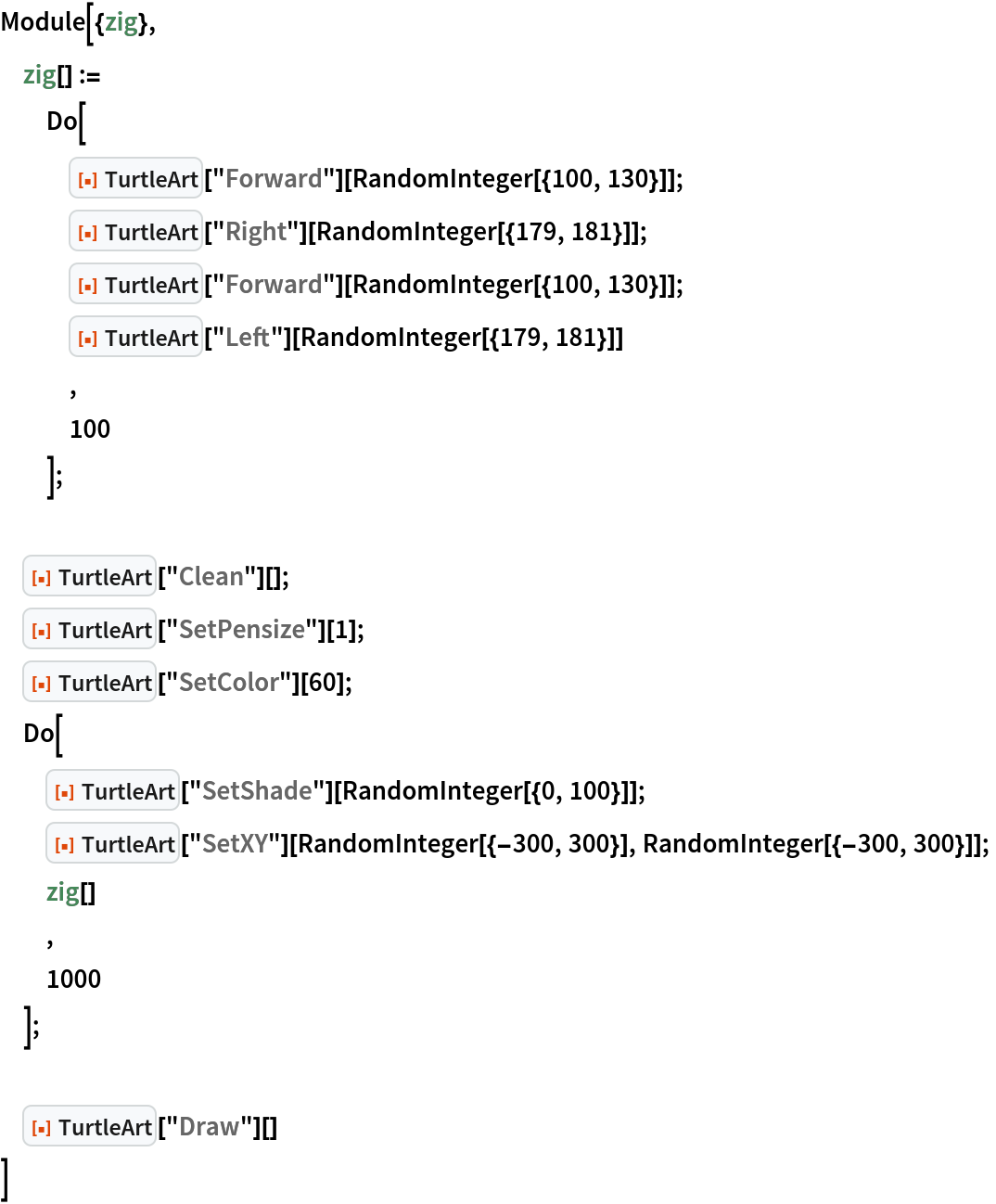

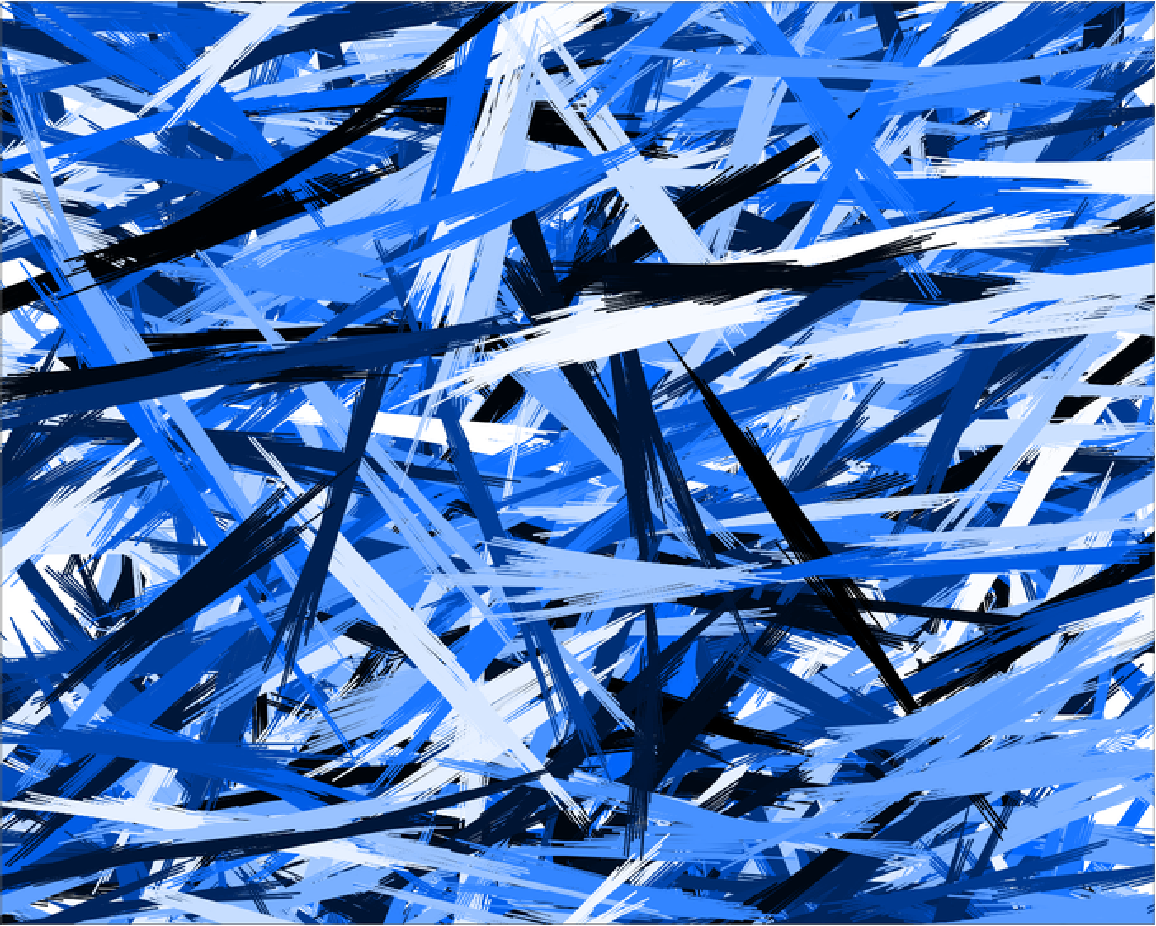

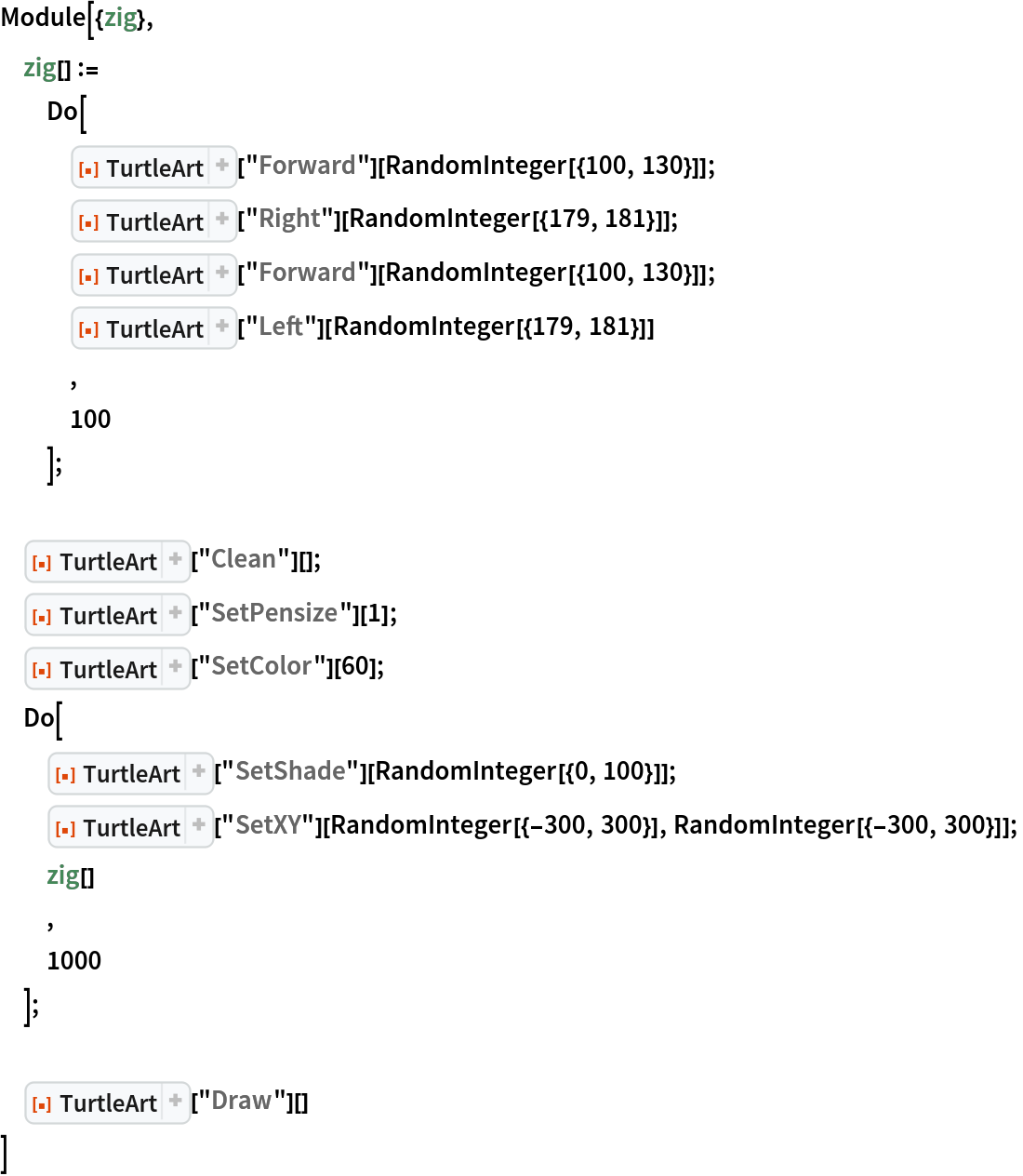

Draw brushes:

In[22]:=
Module[{zig}, zig[] := Do[ ResourceFunction["TurtleArt"]["Forward"][RandomInteger[{100, 130}]]; ResourceFunction["TurtleArt"]["Right"][RandomInteger[{179, 181}]]; ResourceFunction["TurtleArt"]["Forward"][RandomInteger[{100, 130}]]; ResourceFunction["TurtleArt"]["Left"][RandomInteger[{179, 181}]] , 100 ]; ResourceFunction["TurtleArt"]["Clean"][]; ResourceFunction["TurtleArt"]["SetPensize"][1]; ResourceFunction["TurtleArt"]["SetColor"][60]; Do[ ResourceFunction["TurtleArt"]["SetShade"][RandomInteger[{0, 100}]]; ResourceFunction["TurtleArt"]["SetXY"][RandomInteger[{-300, 300}], RandomInteger[{-300, 300}]]; zig[] , 1000 ]; ResourceFunction["TurtleArt"]["Draw"][] ]
Out[22]=

Fireworks (1)

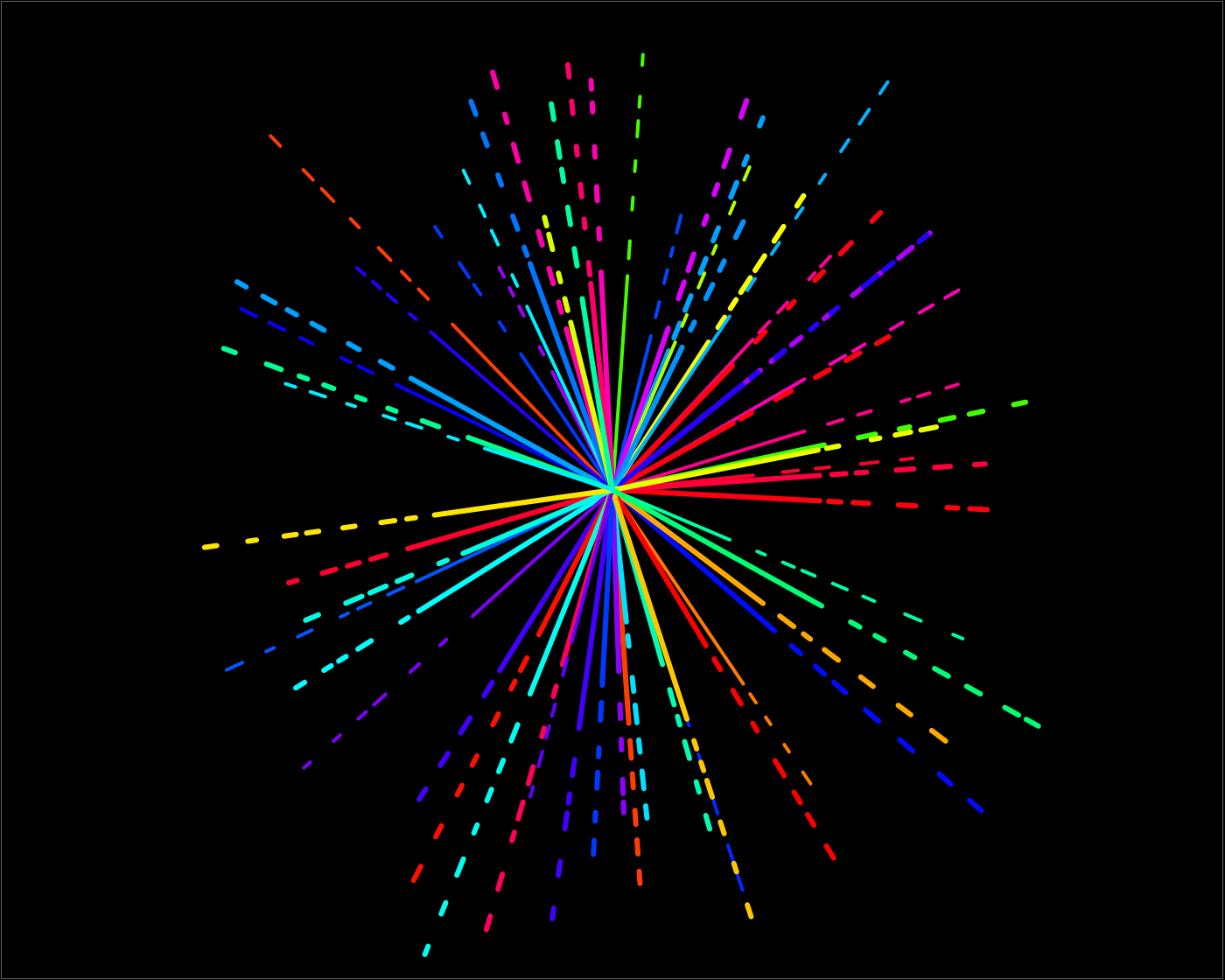

Draw fireworks:

In[23]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/d5d26aad-6718-4037-92dd-f0d72808c477"]
Out[23]=

Dark Sun (1)

Draw dark sun:

In[24]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/74242091-c9ad-4863-802d-17fff6b36b7d"]
Out[24]=

Whole Flower (1)

Draw whole flower:

In[25]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/5bea58c2-b086-40a6-8025-e482fb447f7d"]
Out[25]=

Pinwheel (1)

Draw pinwheel:

In[26]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/1dc8e67d-ba60-421a-8a23-a6f45ae254cc"]
Out[26]=

Springy (1)

Draw springy:

In[27]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/b3d057f4-8524-4895-ac80-7eb60fac7952"]
Out[27]=

Yellow Jacket (1)

Draw yellow jacket:

In[28]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/206a02e6-5d56-4550-9f2c-5016c6e15617"]
Out[28]=

Three Spirals (1)

Draw three spirals:

In[29]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/62ed5dd1-2adc-4b65-937d-f8bd49023d7b"]
Out[29]=

Interactive Examples (2)

UFO (2)

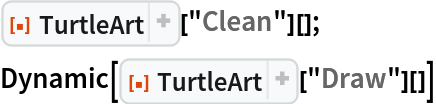

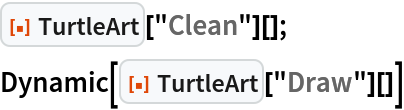

Setup a dynamic screen:

In[30]:=
ResourceFunction["TurtleArt"]["Clean"][]; Dynamic[ResourceFunction["TurtleArt"]["Draw"][]]
Out[31]=

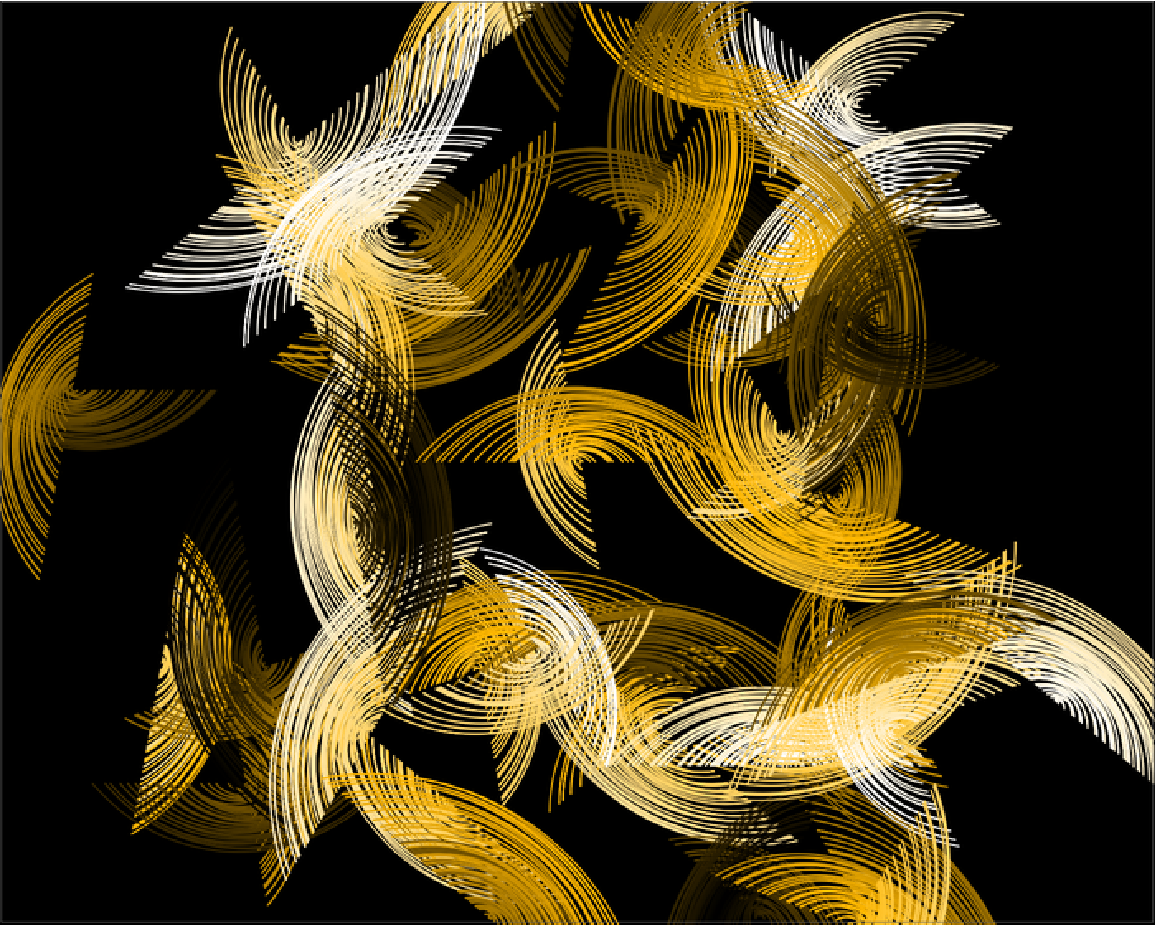

Execute the following code and visualize the artwork:

In[32]:=
Module[{feather}, feather[] := Module[{box1, box2}, box1 = 100; box2 = 1; Do[ ResourceFunction["TurtleArt"]["Arc"][100, box1*box2]; box1 -= RandomInteger[{0, 5}]; ResourceFunction["TurtleArt"]["SetShade"][ ResourceFunction["TurtleArt"]@"Shade" + .3]; box2 *= -1 , 100 ] ]; ResourceFunction["TurtleArt"]["Clean"][]; ResourceFunction["TurtleArt"]["FillScreen"][0, 0]; ResourceFunction["TurtleArt"]["SetColor"][12]; ResourceFunction["TurtleArt"]["SetPensize"][1]; Do[ ResourceFunction["TurtleArt"]["SetXY"][RandomInteger[{-259, 259}], RandomInteger[{-259, 259}]]; feather[] , 40 ] ]

Publisher

Daniel Sanchez

Version History

  • 1.0.0 – 25 January 2022
