Display information on the fields of play for various popular sports

Contributed by: Jon McLoone

ResourceFunction["SportsFieldGraphics"]["sport"]

displays the standard markings of the pitch for "sport".

ResourceFunction["SportsFieldGraphics"]["sport",gr]

displays the standard markings of the pitch for "sport" together with Graphics gr.

Details and Options

ResourceFunction["SportsFieldGraphics"] currently supports the following sports: "AmericanFootball", "Badminton", "Baseball", "Basketball", "Cricket", "Croquet", "FieldHockey", "Football", "IceHockey", "Lacrosse", "RugbyLeague", "RugbyUnion", "Squash", "TableTennis", "Tennis" and "Volleyball".
In addition to standard Graphics options, the following options are supported:
"Units" "Meters" unit system used for coordinates
"Length" Automatic the length of the pitch for pitches that have variable sizes
"Width" Automatic the width of the pitch for pitches that have variable sizes
"PitchFontStyle" Automatic font information for text in pitch markings
Background Automatic background color or Texture for the pitch, usually dark green
"LineStyle" Automatic style for pitch markings, usually white
"PitchOrigin" { Center , Center } where {0, 0} lies on the pitch

Examples

Basic Examples (1)

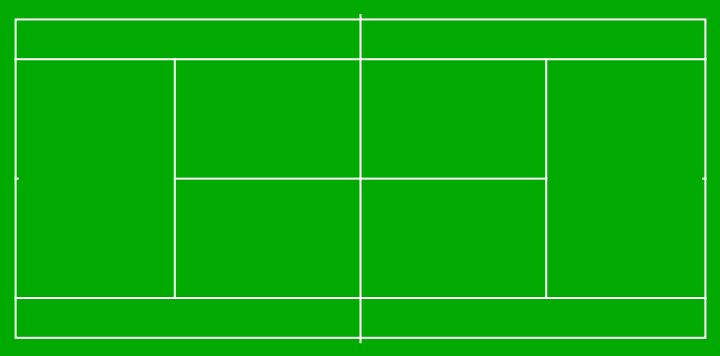

Create a blank sports pitch:

In[1]:=
ResourceFunction["SportsFieldGraphics"]["Tennis"]
Out[1]=

Scope (4)

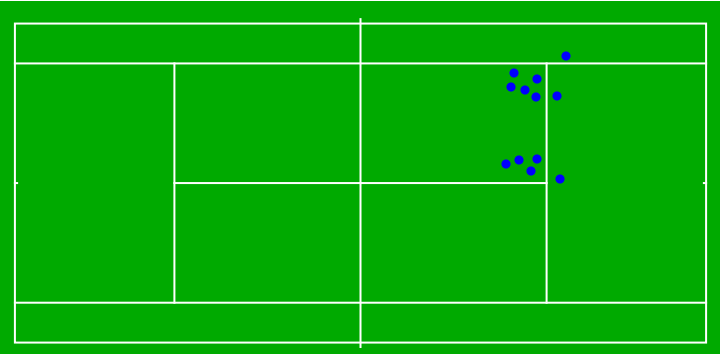

Combine the pitch with other graphics:

In[2]:=
ResourceFunction["SportsFieldGraphics"]["Tennis", ListPlot[{{5.885, 0.3901}, {6.078, 0.8065}, {5.476, 0.789}, {5.037, 0.6506}, {6.076, 3.568}, {5.313, 3.757}, {5.178, 3.289}, {5.663, 3.167}, {6.055, 2.958}, {7.086, 4.352}, {6.892, 0.1368}, {6.771, 2.968}}, PlotStyle -> Blue]]
Out[2]=

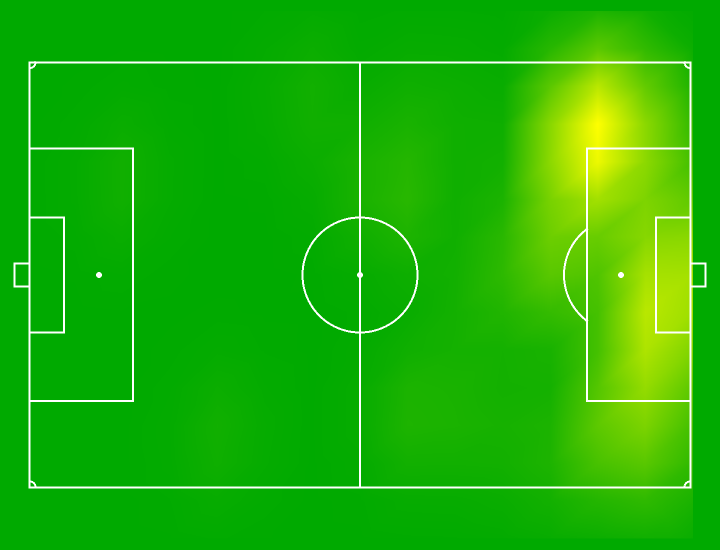

Any Graphics object can be combined with SportsFieldGraphics:

In[3]:=
ResourceFunction["SportsFieldGraphics"]["Football", SmoothDensityHistogram[CompressedData["
1:eJw1UwlIVFEUHaTc2kdtQmRScwsx0XEcHcf5Z+aPf/5MU6FZVESZWVRIRdm+
G1HRnqQtRLSaFbZaUVFPW2knBLNsMyrbaDGTsu2/pQvD5713595zzzk3qnBa
3gQ/nU7n0370+yH3rHHFrRwEHokYVZRlQsPe6dnBc2TAPOacp6sZL+aHVrvH
OeDt6pe4sncKLrcljN5QJ6Pg1f3oxz8GYEOddnFPxtcHgwp7jkiBVu197lkJ
+S/377gSmQpW/zAQVu3WSv2v50LksRmTNn20IpTef3MgmDW2g6Xd9eIqS7AI
PB6gtPn61vPhmEhD8SC/JKbi78Zg6Gg8VzG4df3QkpgQ3LmtRbEbEe+b08OJ
AXkUUC8Fcy7uCk9+kkZYvxIn5r2NSwk8kkb2aeUbxrvEXBmEfaM9qNTQH5th
JSYWLjykOBrS+bnVhJDl5ObuHAvJZsBT4a8Pla41GQirWxyFNJYYK+aD4C8R
/bUubTcc6EtpMibzvn4OWE/dmH1xl4XfLwYWSVSADP5eKuPb7/q5b+PsnM/E
HBRlPRuyrgLYk3O69Xe+ET2STuz8VJmAe+1DKfMS460hmfM10Uke3aUPSYj1
X7ZFXmPEaCacmc9T5sSZVtrARth9k4Lbu2lhG+ej2QXG014LP/spqL1JE8yE
4X2qwLWm+E1HVT/C5lvlxLDag/sGI4Sw9nFZ+DTKaW9p1P/Hg6WN2fNGHAzi
+hpUnHw3syasoxdRqUHiFfgOBCuxs/wJn9cN6+ZbS9RLQYTp+0FFwNitvrC1
ETw/YCBaOqq+PBgUQ5gfltqEv2z8rEsQfrUQ5ofjXqyvmKpfTkyE+9dMftG/
F2YShqfdgbI+nYZ3TzKBydRZRrlMBzRzPetlGBopoelczwSZ560QfjXYMXnT
x4WS2cL1c8ajndqrzcr9qlOEHzLFvjjR9GPxlAslVnF2CJ0ywOZ748YsBsjC
/e1zY5qeGjAVzH9PVNiZD2PI9m1ajFRF/SiuxyS3mCeS62VUUE/XNTOOfKe4
alR0YcDjCa8bTX5SOGU28HcrutFyjX8ktp/VNiwxBwS+bnkhcT8Af6g9Uz5L
CyhBP+3CD0Gcl/0qPldeG2gJAvdPqQ9Xig4V5Of14PwP8Yh90ot996LcUVO7
uqVSYu9HPeisodccLrF5VK+Yvx/+ATteFoE=
"], ColorFunction -> (Blend[{Darker@Green, Yellow}, #] &), PlotRange -> {{-53, 53}, {-42, 42}}]]
Out[3]=

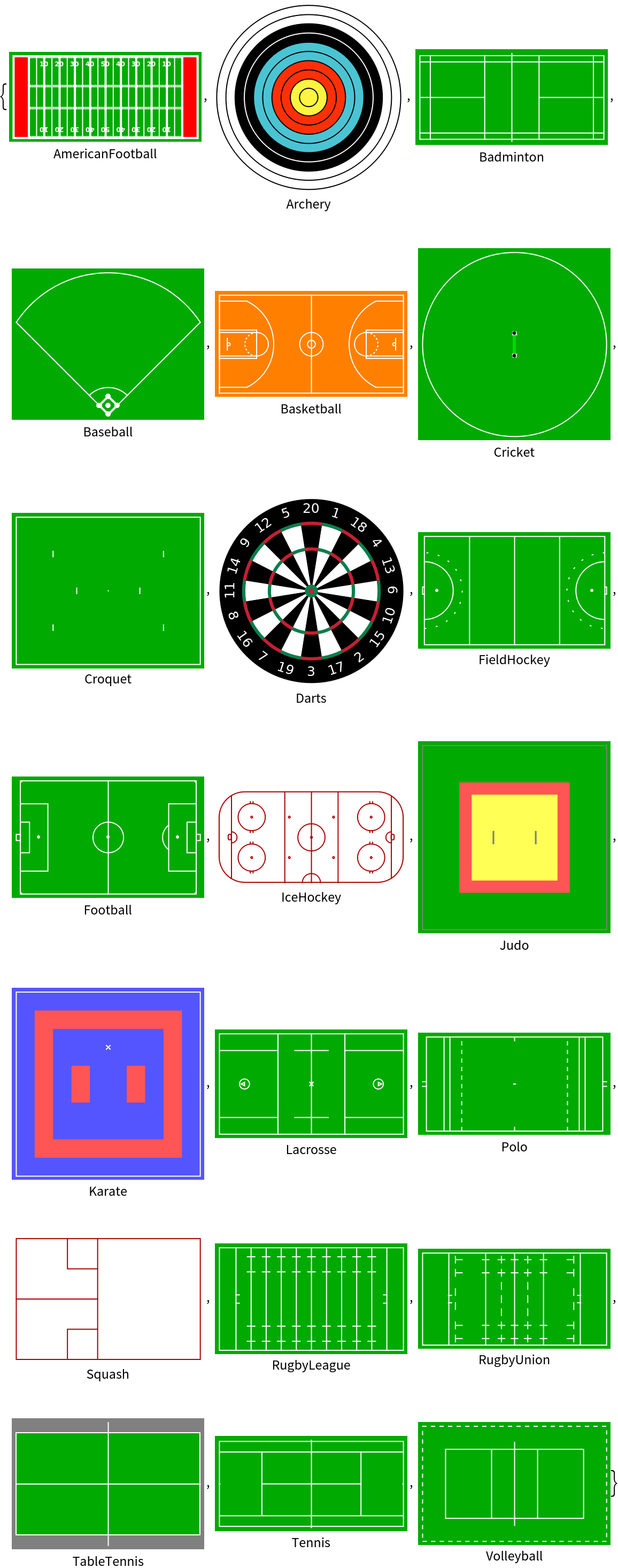

A range of sports is supported:

In[4]:=
Labeled[ResourceFunction["SportsFieldGraphics"][#], #] & /@ ResourceFunction["SportsFieldGraphics"][]
Out[4]=

You can specify the sport using a "Sport" Entity:

In[5]:=
ResourceFunction["SportsFieldGraphics"][
 Entity["Sport", "AmericanFootball"]]
Out[5]=

Options (9)

Background (2)

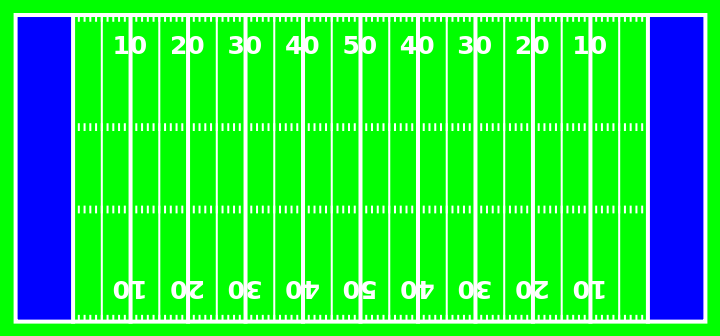

Where pitches have multiple background colors, you can provide Background as a list:

In[6]:=
ResourceFunction["SportsFieldGraphics"]["AmericanFootball", Background -> {Green, Blue}]
Out[6]=

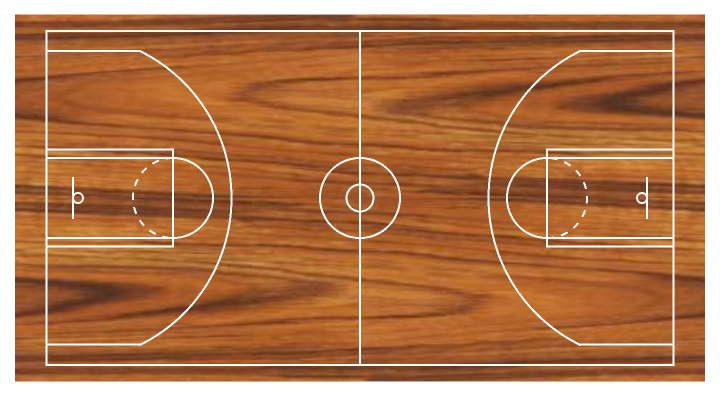

Background can also be set to a Texture which will fill the field of play plus 10%:

In[7]:=
ResourceFunction["SportsFieldGraphics"]["Basketball", Background -> Texture[ExampleData[{"ColorTexture", "GoldenOak"}]]]
Out[7]=

Length (1)

Some sports do not prescribe exact dimensions. You can use "Length" and "Width" to override the default values:

In[8]:=
ResourceFunction["SportsFieldGraphics"]["Cricket", "Length" -> Quantity[65, "Yards"], "Width" -> Quantity[90, "Yards"], Axes -> True, "Units" -> "Feet"]
Out[8]=
In[9]:=
ResourceFunction["SportsFieldGraphics"]["Cricket", "Length" -> Quantity[15, "Yards"], "Width" -> Quantity[90, "Yards"], Axes -> True, "Units" -> "Feet"]
Out[9]=

LineStyle (1)

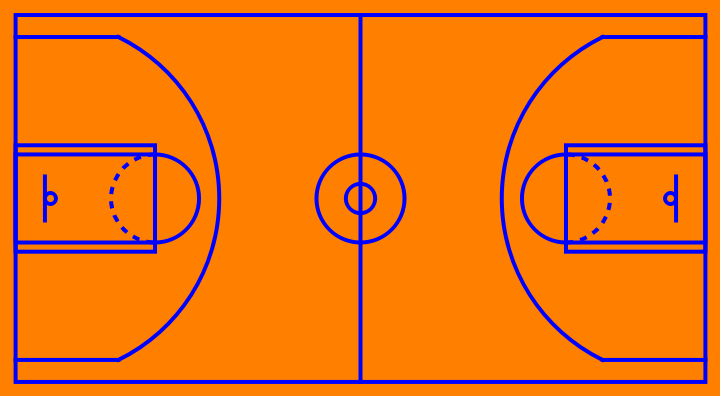

Pitch line styles can be specified:

In[10]:=
ResourceFunction["SportsFieldGraphics"]["Basketball", "LineStyle" -> Directive[Thick, Blue]]
Out[10]=

PitchFontStyle (1)

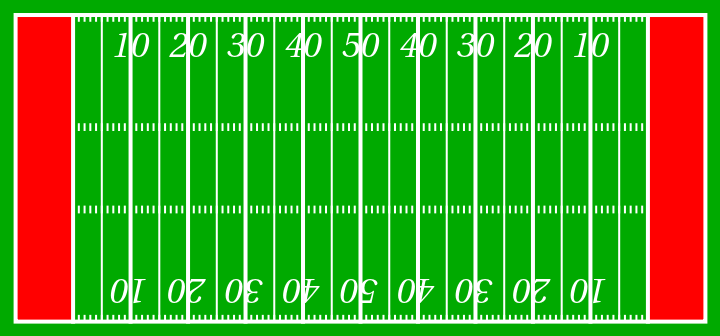

Use "PitchFontStyle" to change the style of any text in a pitch:

In[11]:=
ResourceFunction["SportsFieldGraphics"]["AmericanFootball", "PitchFontStyle" -> {FontFamily -> "Times", FontSlant -> Italic, FontSize -> Scaled[0.05]}]
Out[11]=

PitchOrigin (1)

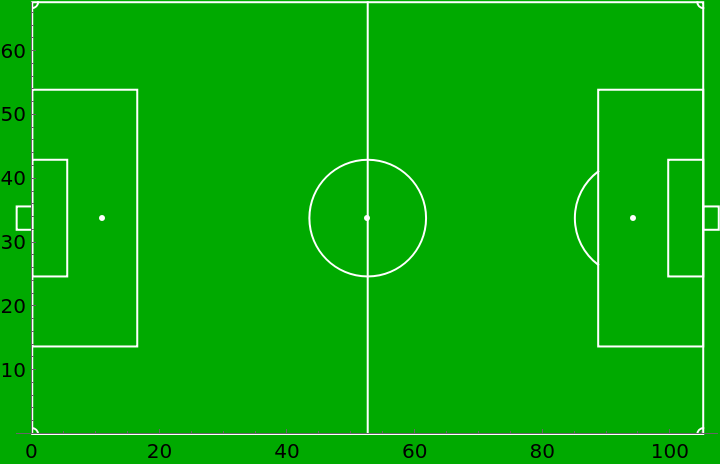

The default origin is in the center of the pitch, but you can change this with "PitchOrigin":

In[12]:=
ResourceFunction["SportsFieldGraphics"]["Football", Graphics[], Axes -> True, "PitchOrigin" -> {Left, Bottom}]
Out[12]=

Units (2)

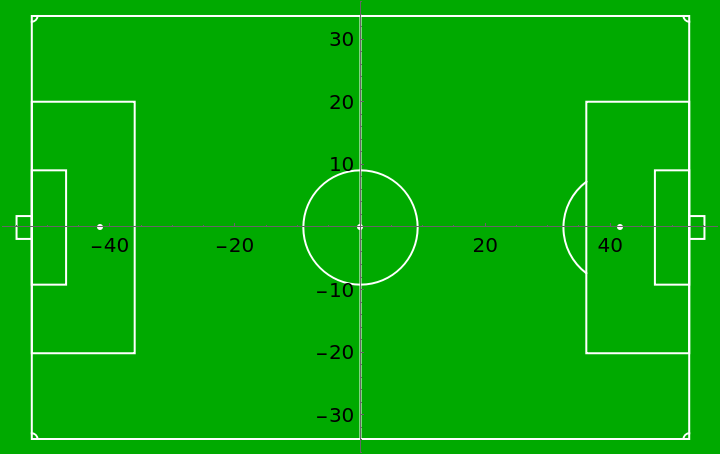

The default unit system for sports pitches is "Meters":

In[13]:=
ResourceFunction["SportsFieldGraphics"]["Football", Axes -> True]
Out[13]=

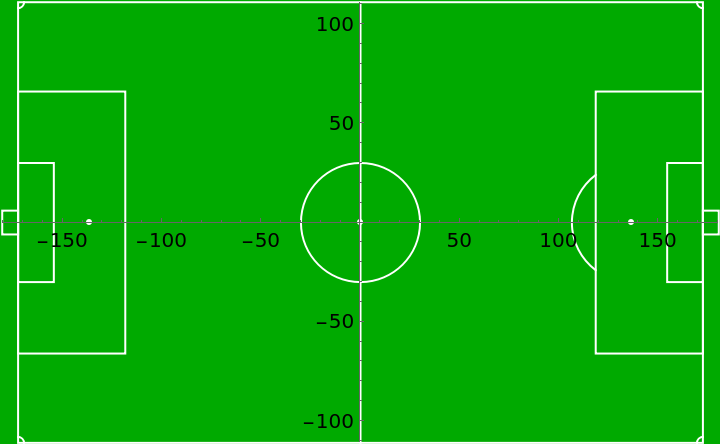

You can change this with the option "Units":

In[14]:=
ResourceFunction["SportsFieldGraphics"]["Football", Graphics[], Axes -> True, "Units" -> "Feet"]
Out[14]=

Width (1)

Some sports do not prescribe exact dimensions. You can use "Length" and "Width" to override the default values. If you exceed maximum or minimum sizes allowed for a sport, SportsFieldGraphic will use the closest allowed value:

In[15]:=
ResourceFunction["SportsFieldGraphics"]["Cricket", "Length" -> Quantity[90, "Yards"], "Width" -> Quantity[65, "Yards"], Axes -> True, "Units" -> "Feet"]
Out[15]=

Applications (1)

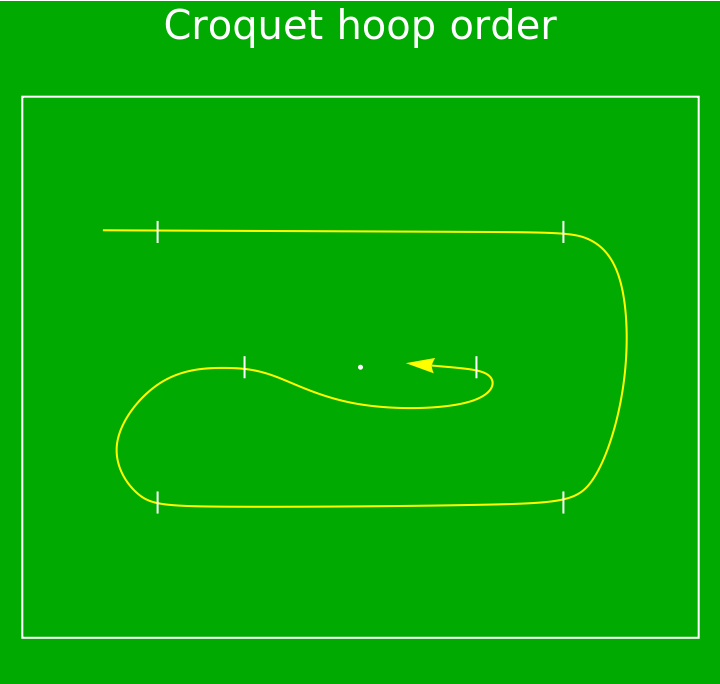

As well as visualizing sports analytics data in context, you can use graphics primitives to create sports-related diagrams:

In[16]:=
ResourceFunction["SportsFieldGraphics"]["Croquet", Graphics[{Yellow, Arrow[BSplineCurve@{{-12.19, 6.481}, {-7.729, 6.459}, {8.44, 6.397}, {10.89, 6.362}, {12.57, 4.569}, {12.75, -0.8702}, {11.05, -6.196}, {8.783, -6.53}, {-8.657, -6.658}, {-10.53, -6.434}, {-12.26, -3.666}, {-9.478, -0.1313}, {-6.191, 0.02759}, {-4.242, -0.1746}, {-0.6425, -2.082}, {6.171, -1.937}, {6.618, -0.03199}, {4.522, -0.04418}, {2.143, 0.1934}}]}],
 PlotLabel -> Style["Croquet hoop order", 20, White],
 PlotRange -> {{-17, 17}, {-15, 15}}]
Out[16]=

Possible Issues (2)

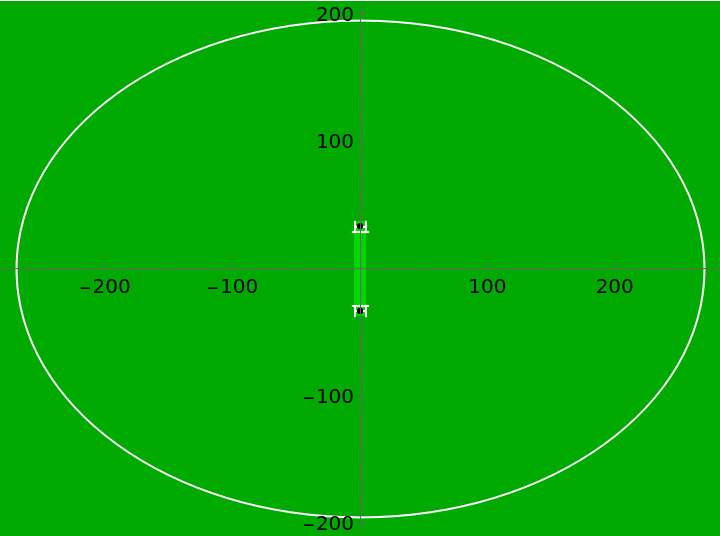

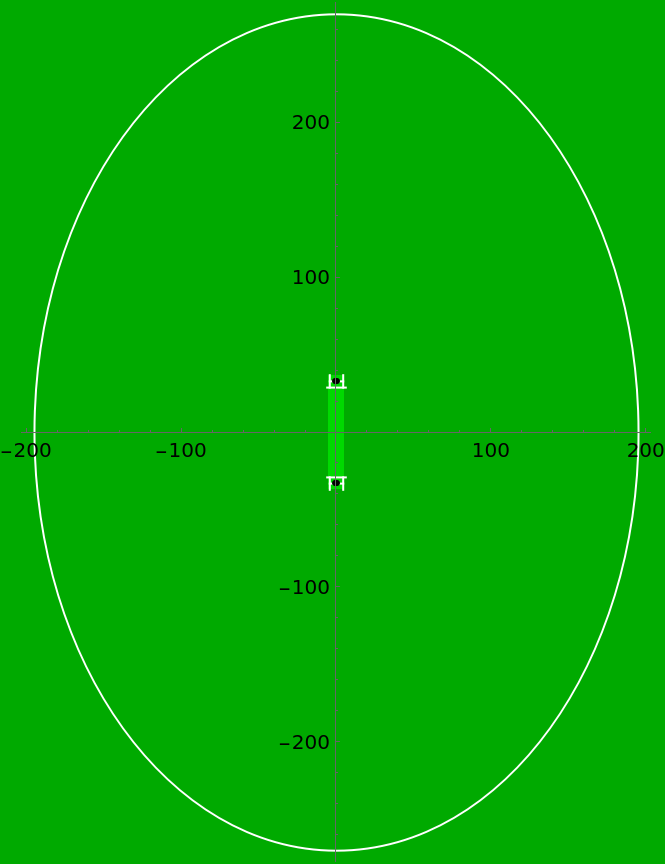

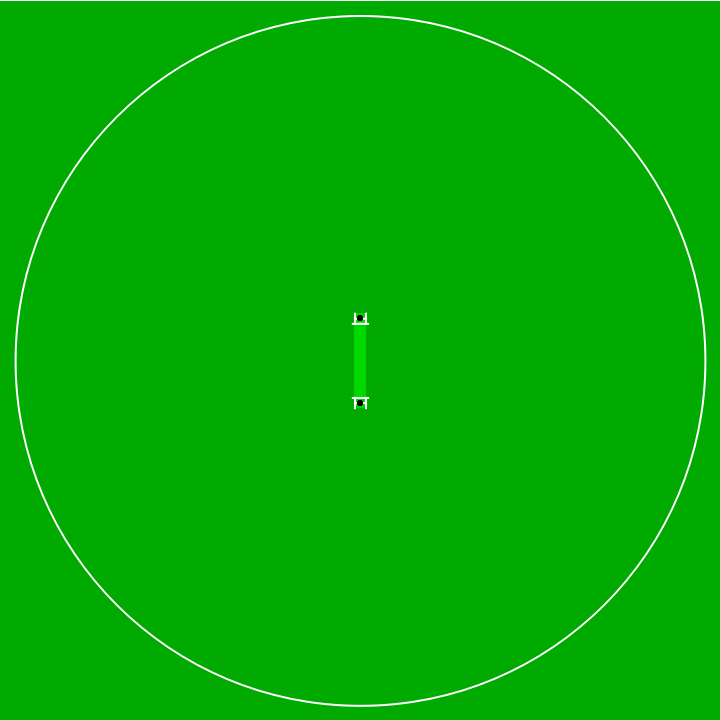

The full play area is used by default:

In[17]:=
ResourceFunction["SportsFieldGraphics"]["Cricket"]
Out[17]=

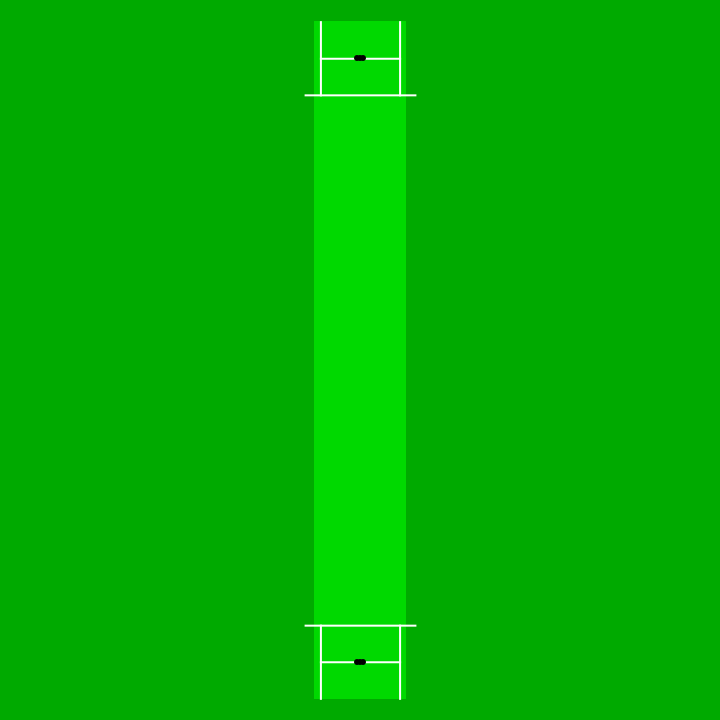

For cricket, you may wish to use PlotRange to show only the pitch:

In[18]:=
ResourceFunction["SportsFieldGraphics"]["Cricket", PlotRange -> 12]
Out[18]=

If you specify settings for "Length" or "Width" that exceed maximum or minimum sizes allowed for a sport, SportsFieldGraphics will use the closest allowed value:

In[19]:=
ResourceFunction["SportsFieldGraphics"]["Cricket", "Length" -> Quantity[10, "Yards"], "Width" -> Quantity[9000, "Yards"], Axes -> True, "Units" -> "Feet"]
Out[19]=
