Basic Examples (1)

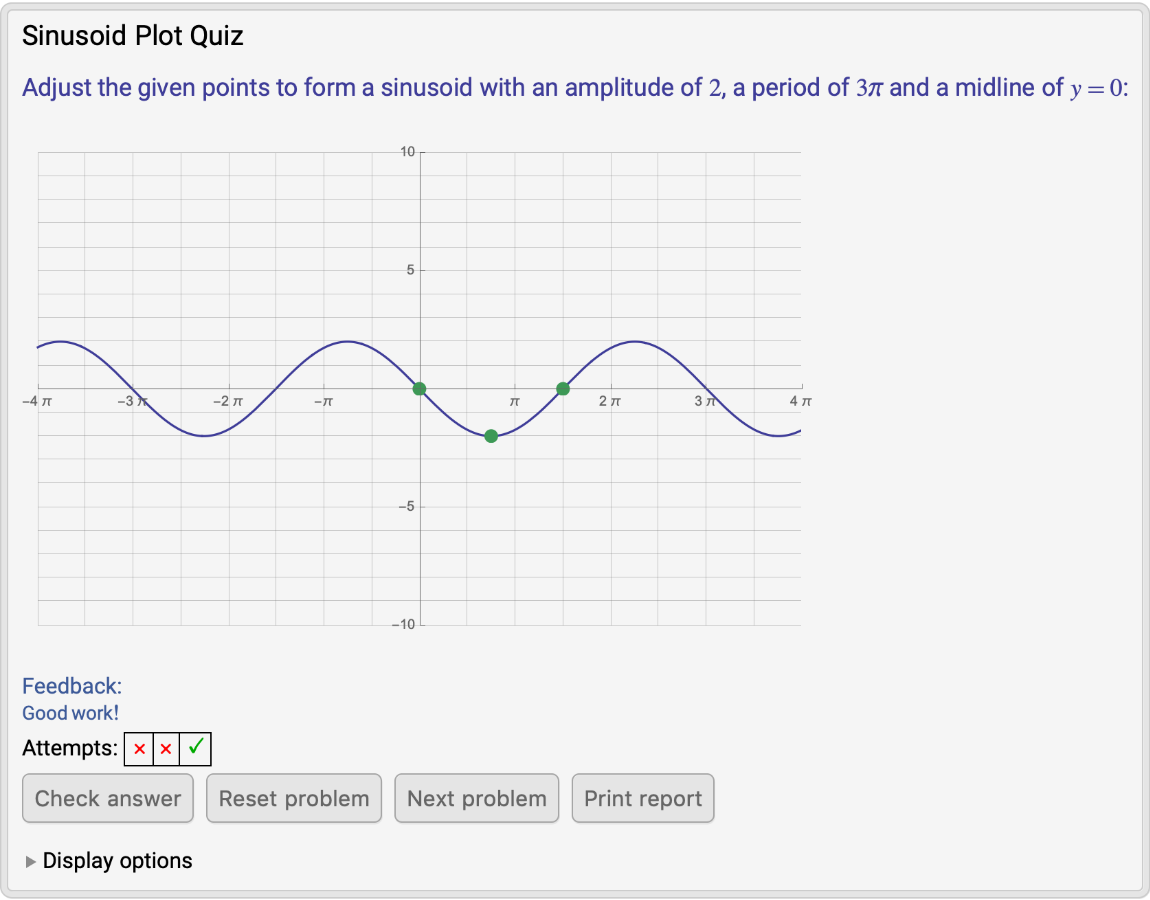

Generate an interface to quiz yourself on plotting a sinusoid based on a description of its attributes:

In[1]:=

Out[1]=

Scope (5)

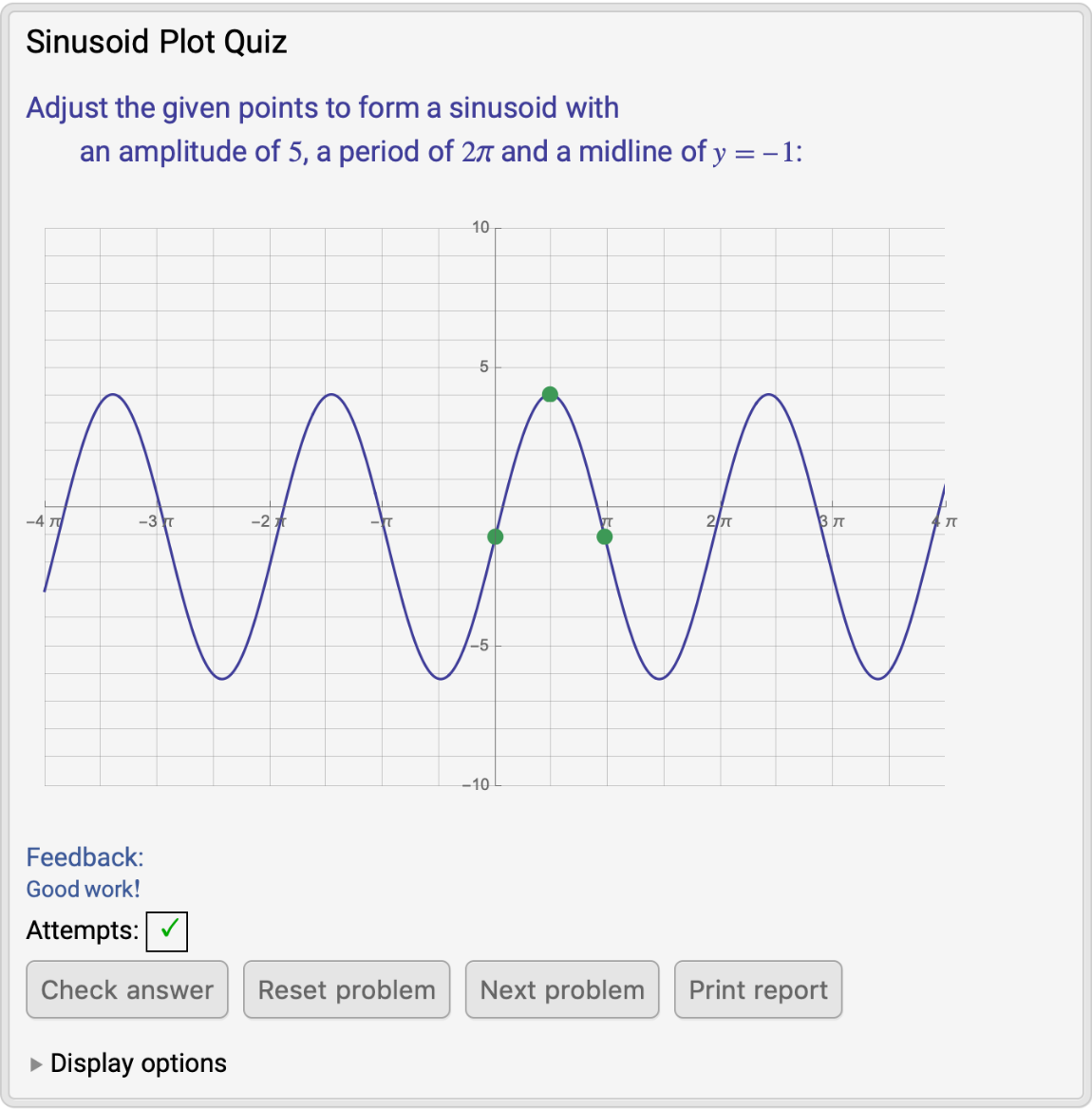

When the curve demonstrates the approximate amplitude, period and midline described in the prompt, clicking the Check answer button marks the attempt as correct with a green check mark:

In[2]:=

Out[2]=

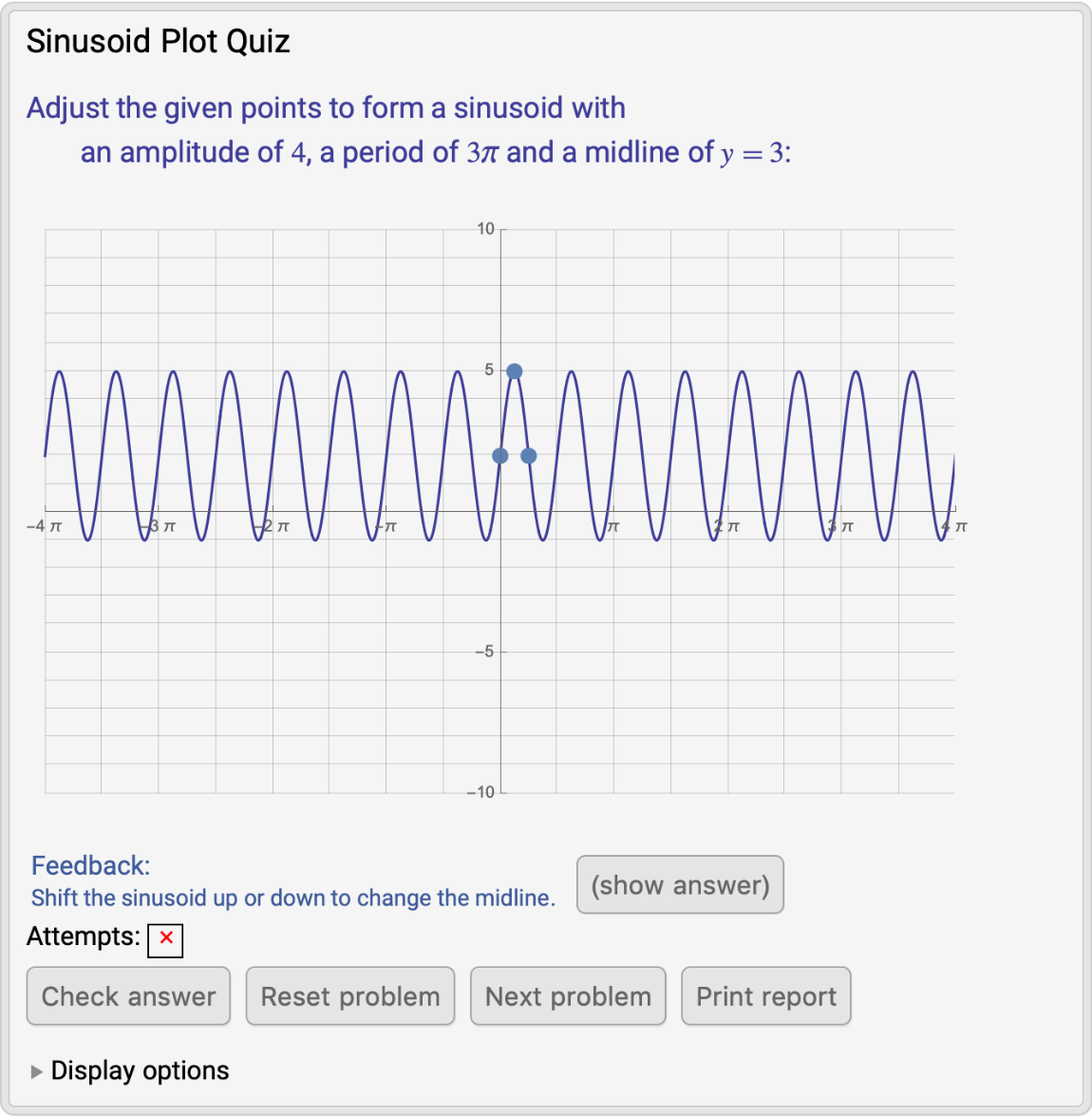

If an attempt does not approximately meet the specified criteria, the Check answer button marks the attempt with a red x and the student receives feedback to guide their next attempt:

In[3]:=

Out[3]=

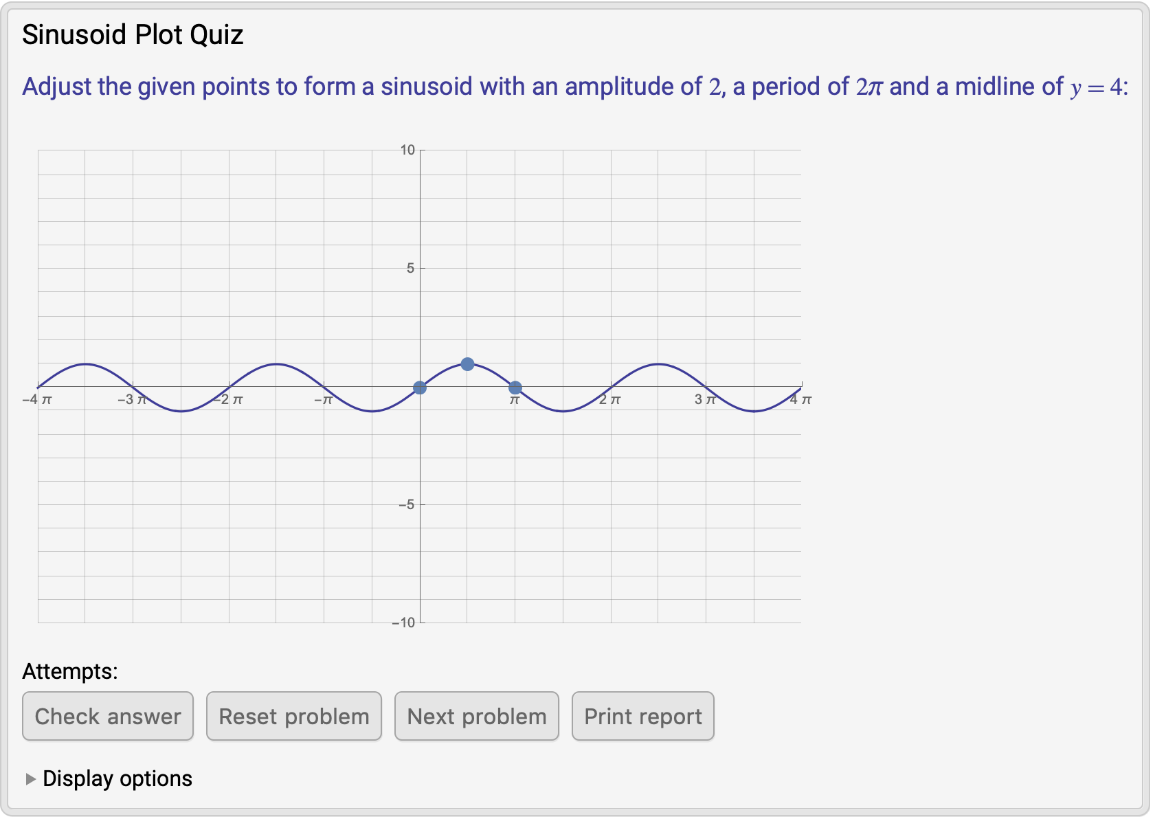

Clicking the (show answer) button prints a correct answer and prohibits students from submitting any further answers to the current problem:

In[4]:=

Out[4]=

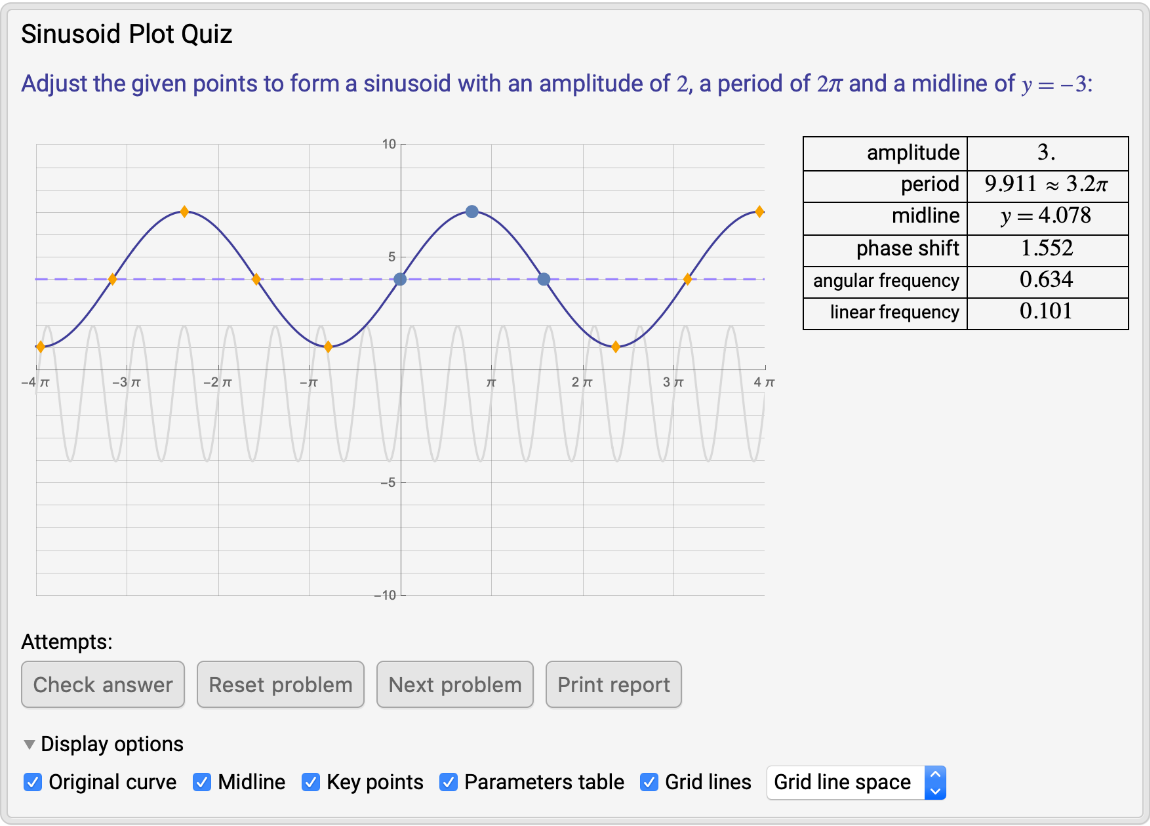

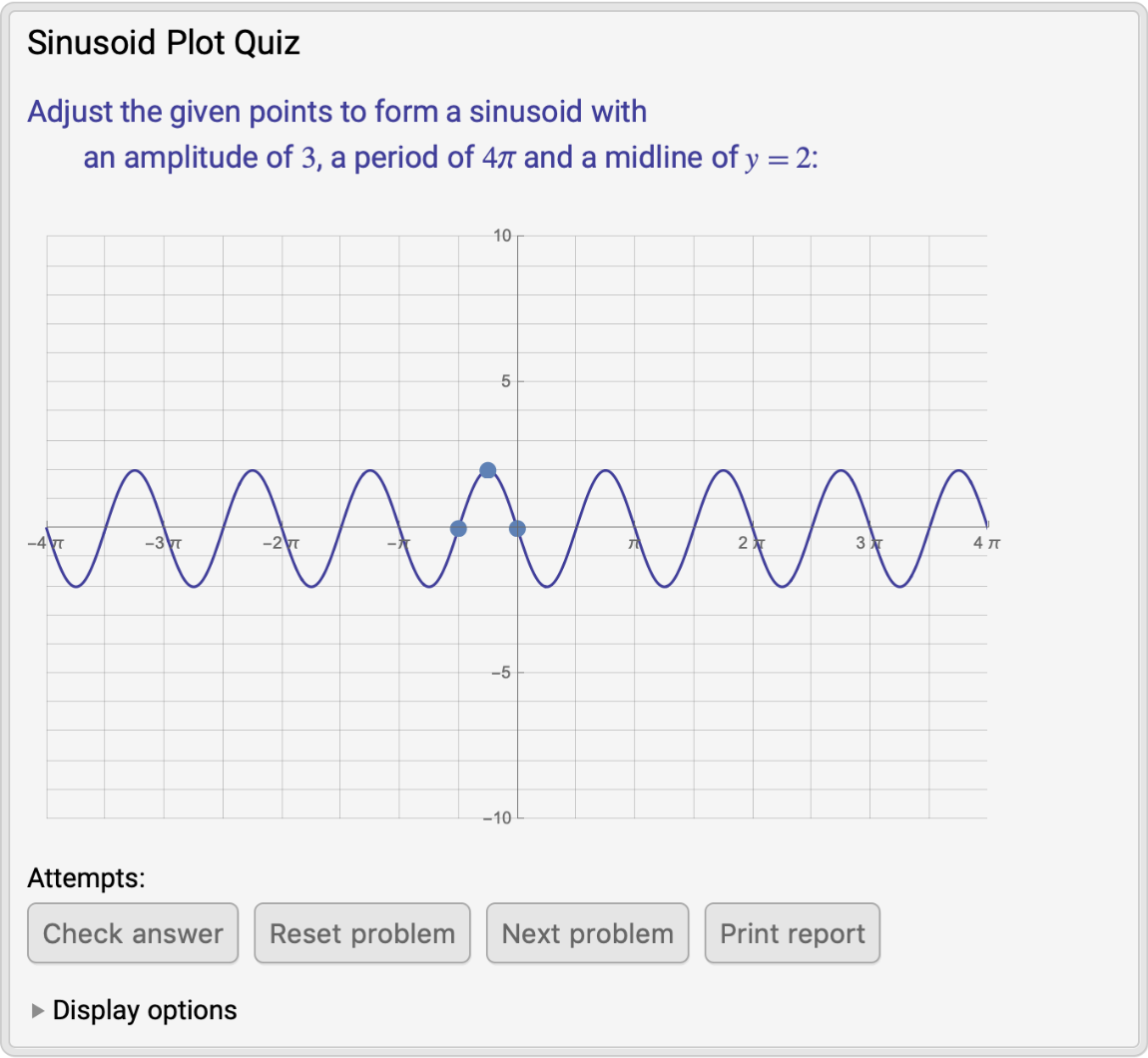

In the "Display options" menu, you can adjust grid lines, show the midline or key points of the sinusoid, retain the curve of the starting sinusoid or display a dynamically updating table showing the parameters of the sinusoid:

In[5]:=

Out[5]=

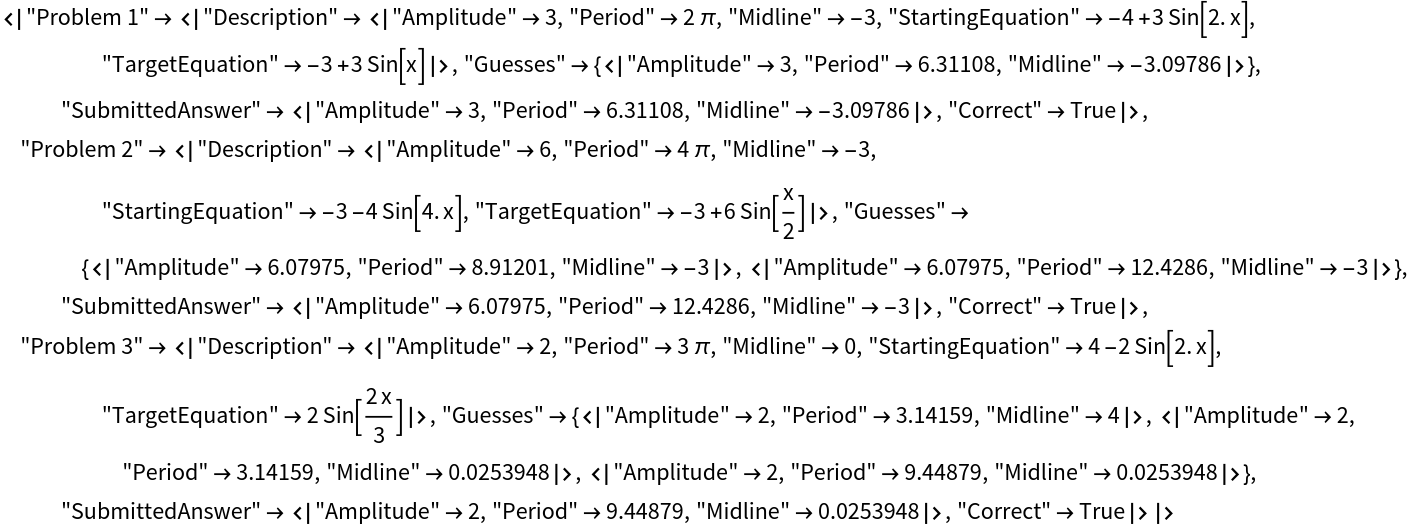

Clicking the Print report button returns a description of the problems that have been attempted so far, all guesses made and whether the last guess on each problem was correct:

In[6]:=

Out[6]=

Options (1)

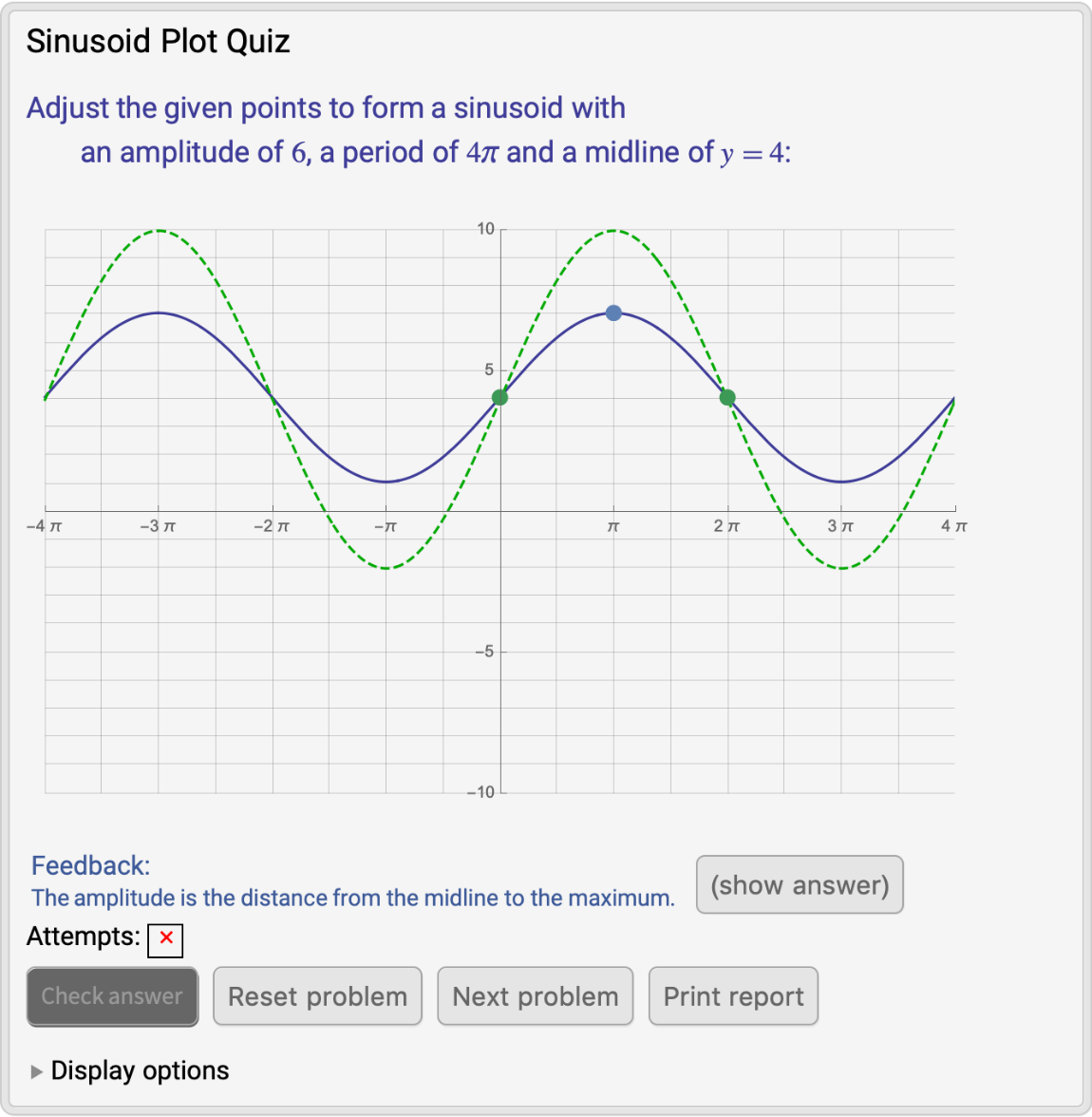

Start every problem with the graph of an untranslated parent trigonometric function, randomly chosen between Sin[x] and Cos[x]:

In[7]:=

Out[7]=
