Decompose a graphics 3D primitive into polygons when possible

Contributed by: Enrique Zeleny and Jan Mangaldan

ResourceFunction["PrimitiveToPolygons"][pr]

decomposes the graphics 3D primitive pr into polygons when possible.

Details

ResourceFunction["PrimitiveToPolygons"] works with Cuboid, Dodecahedron, Hexahedron, Icosahedron, Parallelepiped, Polyhedron, Prism, Pyramid, RegularPolygon, Simplex and Tetrahedron.

Examples

Basic Examples (7)

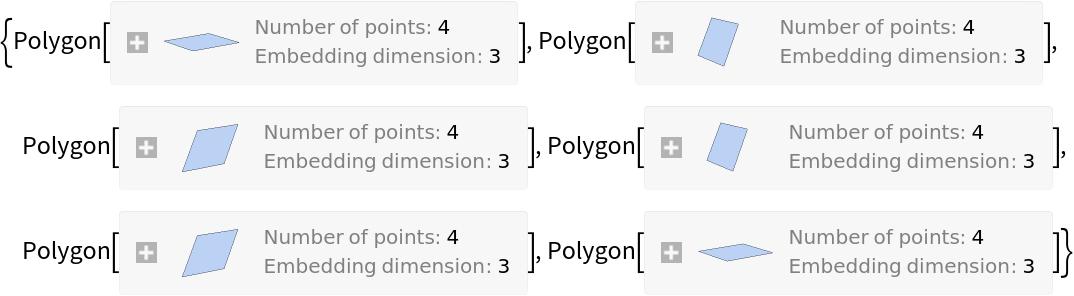

Convert a Parallelepiped primitive to polygons:

In[1]:=
ResourceFunction["PrimitiveToPolygons"][ Parallelepiped[{0, 0, 0}, {{1, 0, 0}, {1, 1, 0}, {0, 1, 1}}]]
Out[1]=

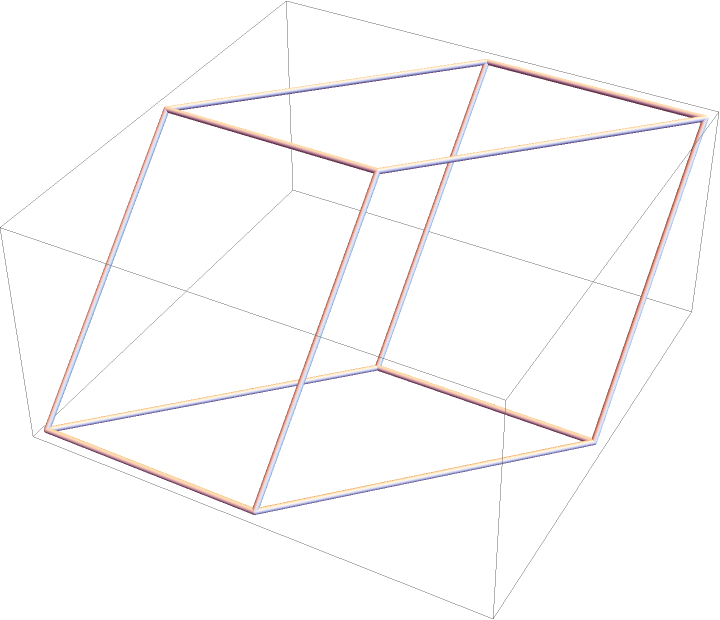

Display the polygons as tubes:

In[2]:=
Graphics3D@% /. Polygon[pts_] -> Tube[pts]
Out[2]=

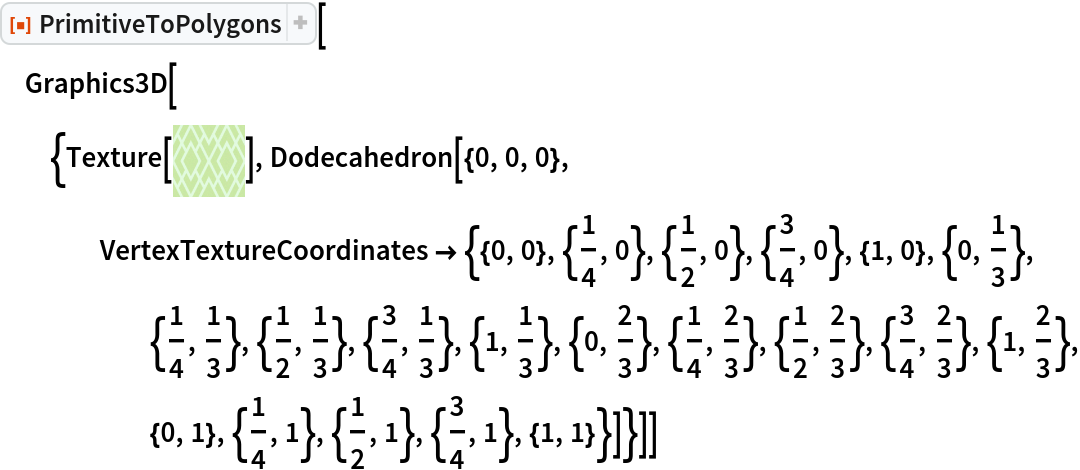

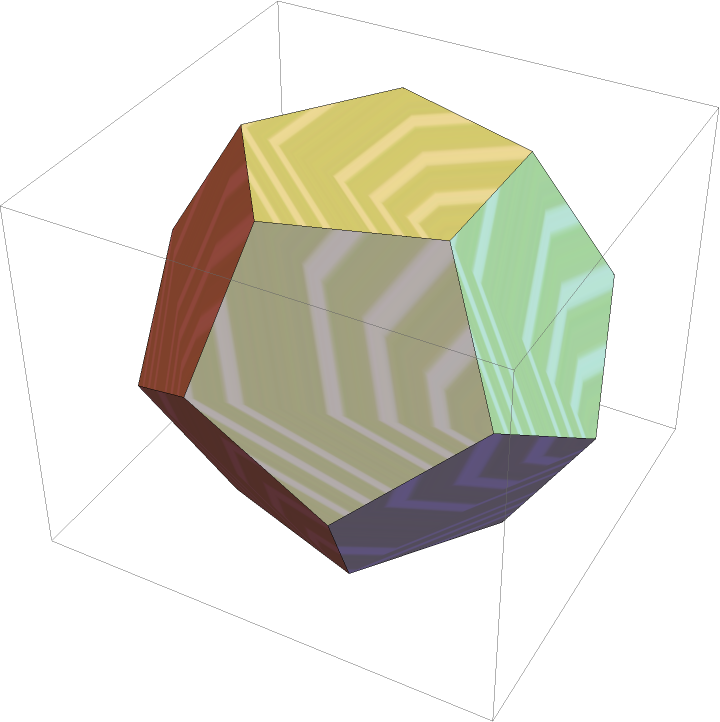

Using VertexTextureCoordinates:

In[3]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/45932917-3bac-41a3-980e-db54a2d0eef4"]
Out[3]=

Number of polygons:

In[4]:=
Count[%, _Polygon, \[Infinity]]
Out[4]=

A tetrahedron with edge length 2:

In[5]:=

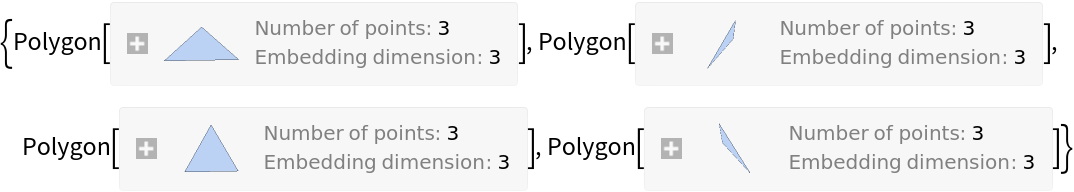

ResourceFunction["PrimitiveToPolygons"][Tetrahedron[2]]
Out[5]=

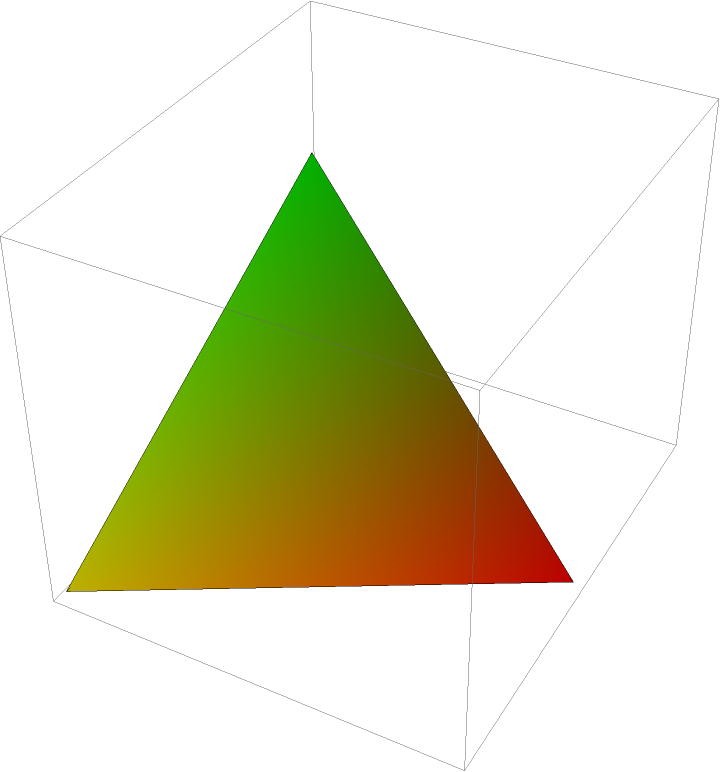

Using VertexColors:

In[6]:=
Graphics3D[Normal@%] /. Polygon[p_] -> Polygon[p, VertexColors -> {Red, Green, Yellow}]
Out[6]=

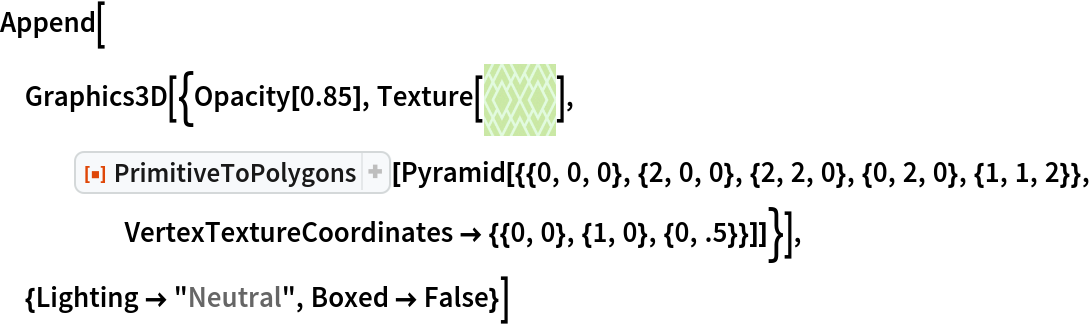

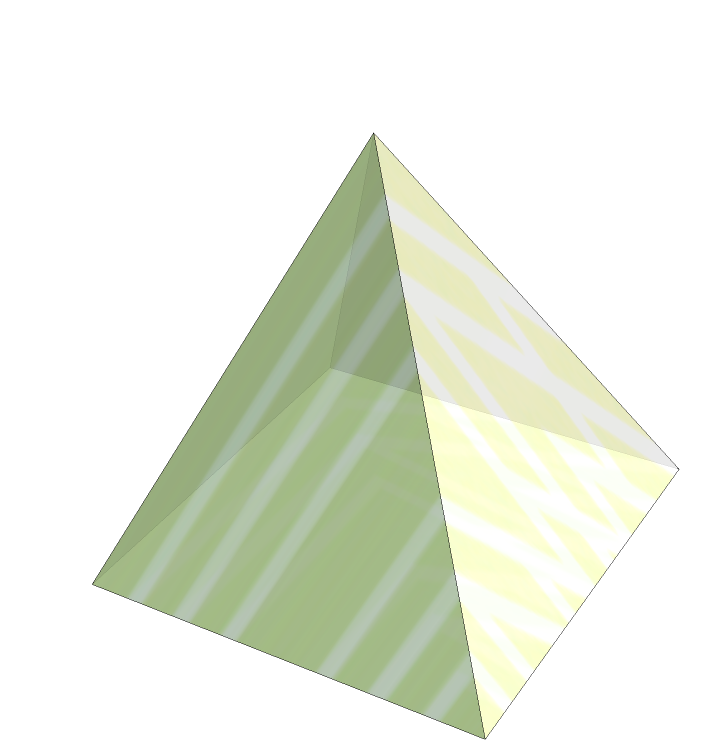

A pyramid:

In[7]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/9b389b51-d613-4254-82bc-ad0e754ed8e7"]
Out[7]=

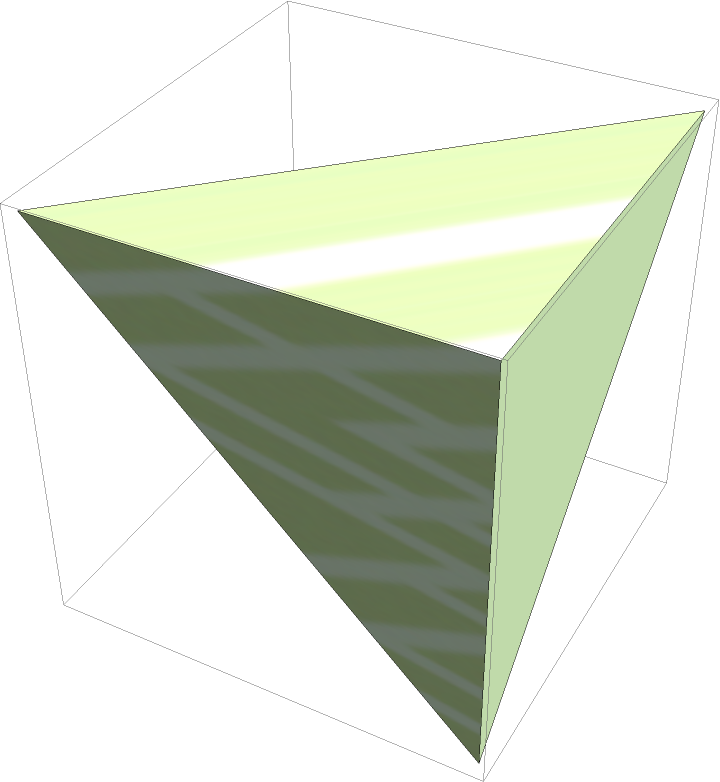

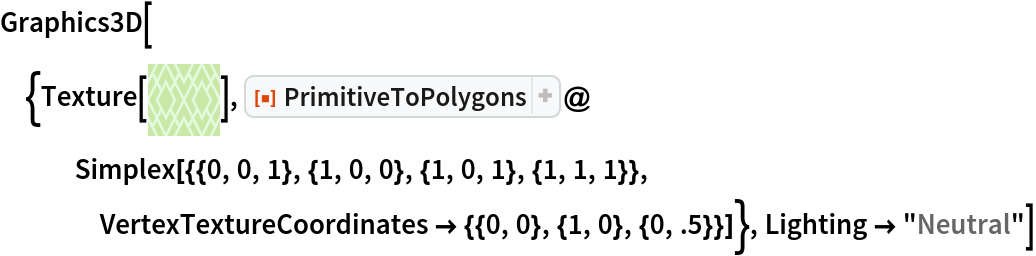

A simplex in dimension 3 with texture:

In[8]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/54e6ace8-9751-40c9-823f-36620dce8428"]
Out[8]=

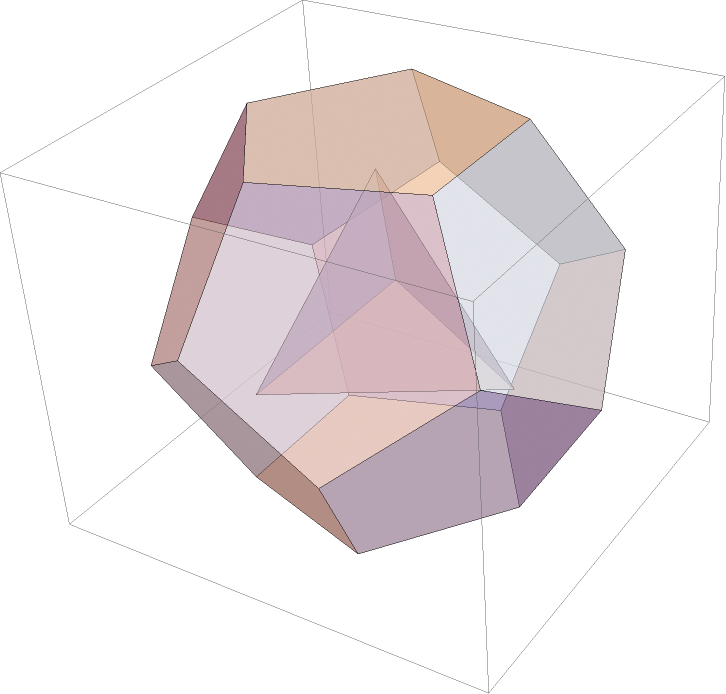

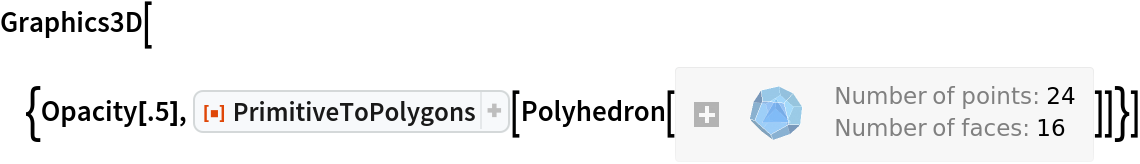

Using Polyhedron:

In[9]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/52ebbc3a-5f0e-4107-9408-dc53844551f0"]
Out[9]=

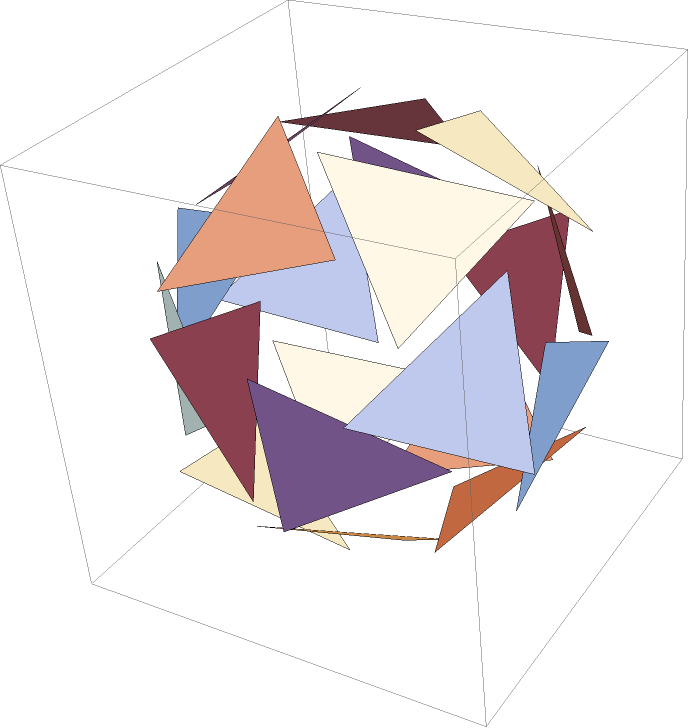

Scale and rotate polygons:

In[10]:=
Graphics3D[ ResourceFunction["PrimitiveToPolygons"][Icosahedron[1]]] /. Polygon[v_] :> Rotate[Scale[Polygon[v], .75], \[Pi]/6., Mean[v]]
Out[10]=

Properties and Relations (1)

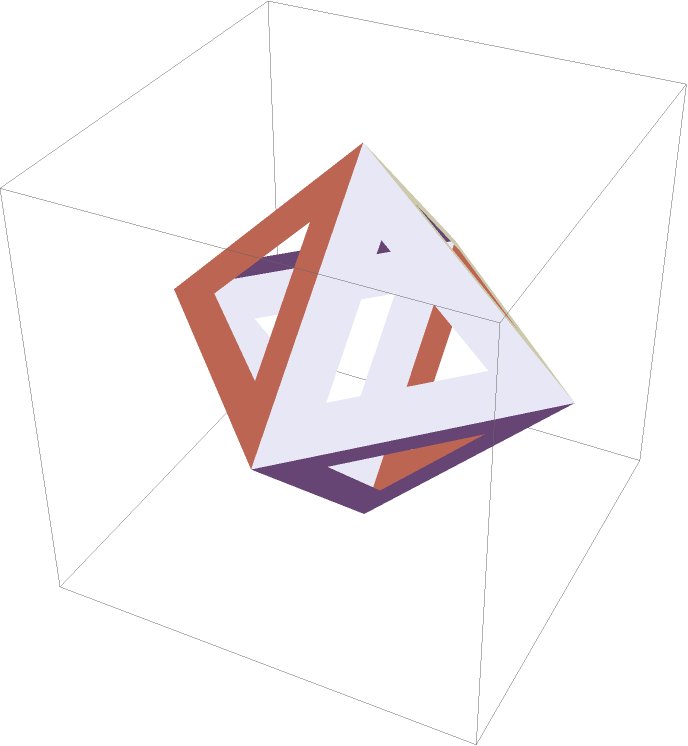

The resource functions PerforatePolygons and OutlinePolygons internally use PrimitiveToPolygons:

In[11]:=

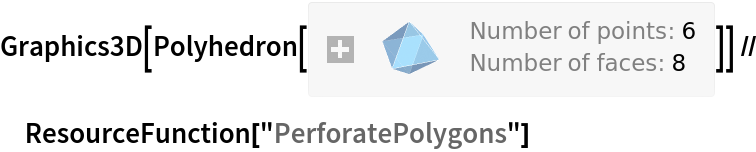

Graphics3D[ Polyhedron[{{0., 2^Rational[-1, 2], 0.}, { 2^Rational[-1, 2], 0., 0.}, { 0., -2^Rational[-1, 2], 0.}, {-2^Rational[-1, 2], 0., 0.}, { 0., 0., 2^Rational[-1, 2]}, {0., 0., -2^Rational[-1, 2]}}, {{5, 2, 1}, {5, 3, 2}, {5, 4, 3}, {4, 5, 1}, {2, 6, 1}, {2, 3, 6}, {4, 6, 3}, {1, 6, 4}}]] // ResourceFunction["PerforatePolygons"]
Out[11]=
In[12]:=

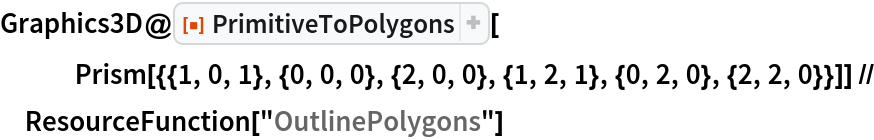

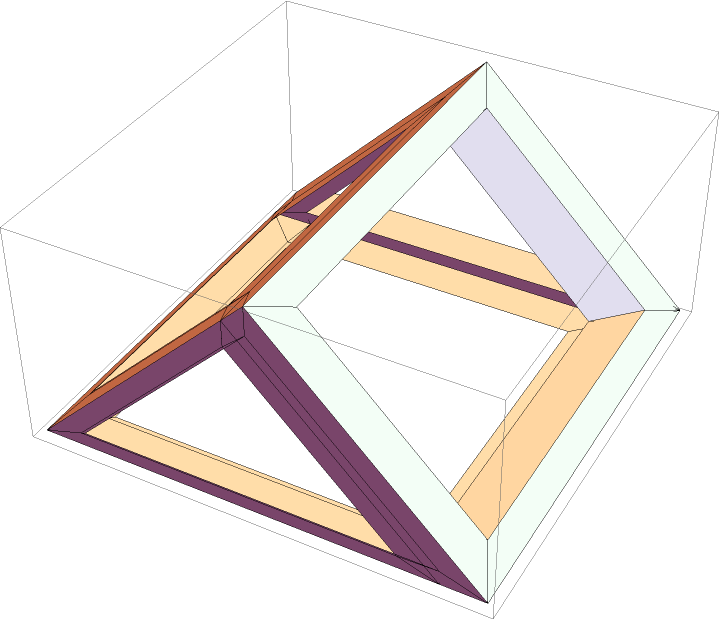

Graphics3D@ ResourceFunction["PrimitiveToPolygons"][ Prism[{{1, 0, 1}, {0, 0, 0}, {2, 0, 0}, {1, 2, 1}, {0, 2, 0}, {2, 2, 0}}]] // ResourceFunction["OutlinePolygons"]
Out[12]=
