Simulate an aggregation system (a 2D array of cells in which new cells are added at positions with certain neighborhood configurations) as a multiway system

Contributed by:
Jonathan Gorard

ResourceFunction["MultiwayAggregationSystem"][ generates the results of | |

ResourceFunction["MultiwayAggregationSystem"][ gives the property " | |

ResourceFunction["MultiwayAggregationSystem"][ uses the function |

Argument and option patterns for ResourceFunction["MultiwayAggregationSystem"] match those of the resource function MultiwaySystem.

Rule and state specifications for ResourceFunction["MultiwayAggregationSystem"] match those of the resource function AggregationSystem. Both AggregationSystem and ResourceFunction["MultiwayAggregationSystem"] use the generalized aggregation model presented in Chapter 7 of *A New Kind of Science*.

Neighborhood configurations are specified by means of an (outer) totalistic cellular automaton rule.

Currently, ResourceFunction["MultiwayAggregationSystem"] only supports aggregation systems in 2 dimensions. Consequently, when specifying the aggregation system rule, one must ensure that "Dimension" is always set to 2.

Possible explicit forms of rule include:

{n,{2,1},{1,1}} | 9-neighbor totalistic rule |

{n,{2,{{0,1,0},{1,1,1},{0,1,0}}},{1,1}} | 5-neighbor totalistic rule |

{n,{2,{{0,2,0},{2,1,2},{0,2,0}}},{1,1}} | 5-neighbor outer totalistic rule |

The following keys can be used to specify a rule given as an association:

"TotalisticCode" | n | totalistic code |

"OuterTotalisticCode" | n | outer totalistic code |

"Dimension" | d | overall dimension (must always be 2) |

"Neighborhood" | type | neighborhood type |

"Range" | r | range of rule |

"Colors" | k | number of colors |

"GrowthCases" | {g_{1},g_{2},…} | make a cell 1 when g_{i} of its neighbors are 1 |

"GrowthSurvivalCases" | {{g_{1},…},{s_{1},…}} | 1 for g_{i} neighbors; unchanged for s_{i} |

"GrowthDecayCases" | {{g_{1},…},{d_{1},…}} | 1 for g_{i} neighbors; 0 for d_{i} |

Possible settings for "Neighborhood" include:

5 or "VonNeumann" | CrossMatrix[1] |

9 or "Moore" | BoxMatrix[1] |

The number of possible aggregation system rules is as follows:

2D general rules | 2^{256} |

2D 9-neighbor totalistic rules | 2^{10} |

2D 5-neighbor totalistic rules | 2^{6} |

2D 5-neighbor outer totalistic rules | 2^{10} |

2D outer totalistic rules | 2^{17}+1 |

The initial condition specification should be of the form *aspec*, {*aspec*,*bspec*} or {{{*aspec*_{1},*off*_{1}},{*aspec*_{2},*off*_{2}},…,{*aspec*_{n},*off*_{n}}},*bspec*} (for *n*>0). Each *aspec* must be a non-empty array of rank 2 whose elements at level 2 are integers *i* in the range 0≤*i*≤*colors*-1 (where *colors*=2 by default).

The event selection function *sel* in ResourceFunction["MultiwayAggregationSystem"][*rule*→*sel*,…] can be any function; additionally, it can have the following special forms:

"Sequential" | applies the first possible replacement (sequential substitution system) |

"Random" | applies a random replacement |

{"Random",n} | applies n randomly chosen replacements |

ResourceFunction["MultiwayAggregationSystem"][*rule*,*init*] is interpreted as ResourceFunction["MultiwayAggregationSystem"][*rule*,{*init*}].

In ResourceFunction["MultiwayAggregationSystem"][*rule*,*init*,*n*,"*prop*"], the following properties can be requested:

"AllStatesList" | the list of all states generated at each successive step (default) |

"StatesCountsList" | the number of distinct states generated at each successive step |

"AllStatesListUnmerged" | the list of all states without any merging |

"PredecessorRulesList" | the list of states and their corresponding predecessor states at each successive step |

"EvolutionGraph" | graph formed by the evolution process, with no merging between different time steps |

"EvolutionGraphStructure" | evolution graph without labeling |

"EvolutionGraphFull" | graph formed by the evolution process, including equivalent events |

"EvolutionGraphFullStructure" | full evolution graph without labeling |

"EvolutionGraphUnmerged" | graph formed by the evolution process, with no merging of equivalent states |

"EvolutionGraphUnmergedStructure" | unmerged evolution graph without labeling |

"EvolutionGraphWeighted" | graph formed by the evolution process, with edges weighted by event multiplicity |

"EvolutionGraphWeightedStructure" | weighted evolution graph without labeling |

"StatesGraph" | graph of how each distinct state leads to other states |

"StatesGraphStructure" | states graph without labeling |

"AllEventsList" | the list of all events that occur at each successive step |

"EvolutionEventsGraph" | graph showing the evolution process with updating events explicitly included |

"EvolutionEventsGraphStructure" | evolution events graph without labeling |

"CausalGraph" | graph of all causal relations between updating events |

"CausalGraphStructure" | causal graph without labeling |

"EvolutionCausalGraph" | combined graph of evolution process and causal relationships between events |

"EvolutionCausalGraphStructure" | evolution causal graph without labeling |

"CausalGraphInstances" | list of distinct causal graphs for all possible choices of event sequences |

"CausalGraphStructureInstances" | causal graph instances without labeling |

"EvolutionCausalGraphInstances" | list of distinct evolution causal graphs for all possible choices of event sequences |

"EvolutionCausalGraphStructureInstances" | evolution causal graph instances without labeling |

"BranchPairsList" | list of all branch pairs (i.e. critical pairs) generated in the states graph |

"NewBranchPairsList" | list of all new branch pairs generated at each successive step |

"EvolutionBranchPairsList" | list of all branch pairs generated in the evolution graph |

"NewEvolutionBranchPairsList" | list of all new evolution branch pairs generated at each successive step |

"BranchPairEventsList" | list of all events yielding branch pairs |

"NewBranchPairEventsList" | list of all events yielding new branch pairs at each successive step |

"EvolutionBranchPairEventsList" | list of all events yielding evolution branch pairs |

"NewEvolutionBranchPairEventsList" | list of all events yielding new evolution branch pairs at each successive step |

"BranchialGraph" | graph of branch pair ancestry at a given step |

"BranchialGraphStructure" | branchial graph without labeling |

"AllStatesBranchialGraph" | graph of branch pair ancestry across all steps |

"AllStatesBranchialGraphStructure" | all states branchial graph without labeling |

"EvolutionBranchialGraph" | graph of evolution branch pair ancestry at a given step |

"EvolutionBranchialGraphStructure" | evolution branchial graph without labeling |

"AllStatesEvolutionBranchialGraph" | graph of evolution branch pair ancestry across all steps |

"AllStatesEvolutionBranchialGraphStructure" | all states evolution branchial graph without labeling |

"EventBranchialGraph" | graph of branch pair event ancestry at a given step |

"EventBranchialGraphStructure" | event branchial graph without labeling |

"AllEventsBranchialGraph" | graph of branch pair event ancestry across all steps |

"AllEventsBranchialGraphStructure" | all events branchial graph without labeling |

"EvolutionEventBranchialGraph" | graph of evolution branch pair event ancestry at a given step |

"EvolutionEventBranchialGraphStructure" | evolution event branchial graph without labeling |

"AllEventsEvolutionBranchialGraph" | graph of evolution branch pair event ancestry across all steps |

"AllEventsEvolutionBranchialGraphStructure" | all events evolution branchial graph without labeling |

"BranchPairResolutionsList" | association of all resolved and unresolved branch pairs up to a given step |

"EvolutionBranchPairResolutionsList" | association of all resolved and unresolved evolution branch pairs up to a given step |

"CausalInvariantQ" | whether the system is causal invariant (all branch pairs converge) |

"EvolutionCausalInvariantQ" | whether the system is evolution causal invariant (all evolution branch pairs converge) |

"KnuthBendixCompletion" | list of Knuth–Bendix completion rules required to force causal invariance |

"EvolutionKnuthBendixCompletion" | list of Knuth–Bendix completion rules required to force evolution causal invariance |

"StateWeights" | list of weights for all vertices in the states graph |

Except for "AllStatesListUnmerged", "EvolutionGraphUnmerged" and states containing state IDs, identical states are always merged at each step.

In "StatesGraph", all instances of a given state at any step are merged. Different updating events that connect the same states will only be shown as separate edges if "IncludeEventInstances" is set to True.

Events are represented in the form {*rule*,*input*,*rest*}, where *rule* is the rule used in the updating event, *input* is the part of the state to which the rule is applied and *rest* is the remainder of the state. For substitution systems, *rest* is given in the form {*prefix*,*suffix*}.

Options for ResourceFunction["MultiwayAggregationSystem"] include:

"IncludeStepNumber" | False | whether to label states and events with their respective step numbers |

"IncludeStateID" | False | whether to label states and events with unique IDs |

"IncludeInitializationEvents" | False | whether to include pseudoevents that set up initial conditions |

"IncludeEventInstances" | False | whether to show distinct updating events that connect the same states as separate edges |

"IncludeStateWeights" | False | whether to weight state vertices by their rate of occurrence at a particular time step |

"IncludeStatePathWeights" | False | whether to weight state vertices by the number of distinct evolution paths that lead to them |

"StateRenderingFunction" | Automatic | how to label states that appear in graphs |

"EventRenderingFunction" | Automatic | how to label events that appear in graphs |

MaxItems | Infinity | how many instances of a causal graph or evolution causal graph to return |

"GivePredecessors" | False | whether to label branch pairs with their predecessor state |

"GiveResolvents" | False | whether to label branch pairs with their resolvent state |

"IncludeSelfPairs" | False | whether to include trivial branch pairs |

"IncludeFullBranchialSpace" | False | whether to show all possible states in a given branchial graph |

"LineThickness" | 1 | absolute line thickness for graph edges |

Possible settings for "StateRenderingFunction" and "EventRenderingFunction" include:

Inherited | use the explicit vertex name as the label |

None | use no label for the vertex |

"string" | use a shape from the VertexShapeFunction collection |

func | apply the function func to the name of the vertex |

For "CausalGraphInstances" and "EvolutionCausalGraphInstances", the option MaxItems→*n* can be used to get only the first *n* possible instances of causal graphs.

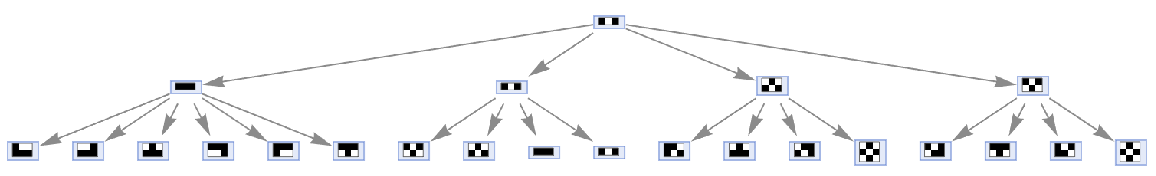

Show basic multiway aggregation system evolution (for outer totalistic code 4):

In[1]:= |

Out[1]= |

For totalistic code 18:

In[2]:= |

Out[2]= |

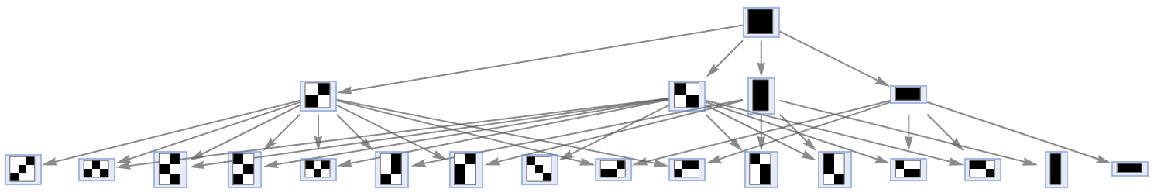

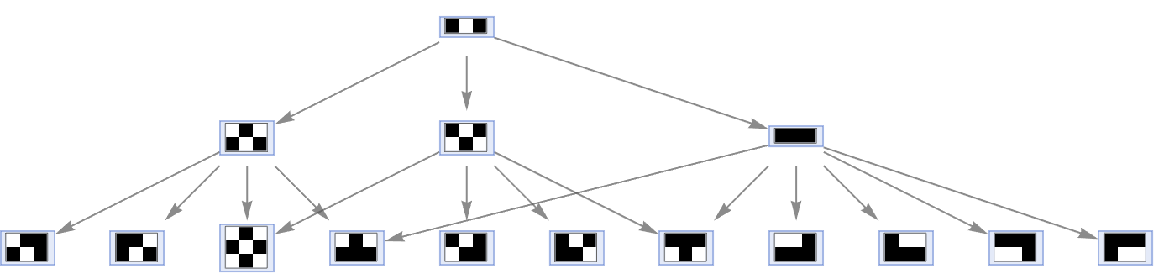

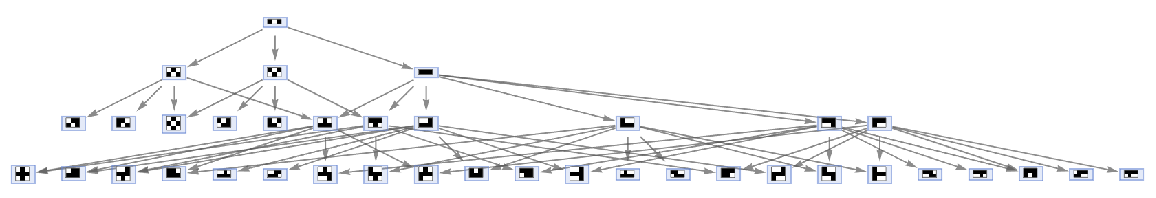

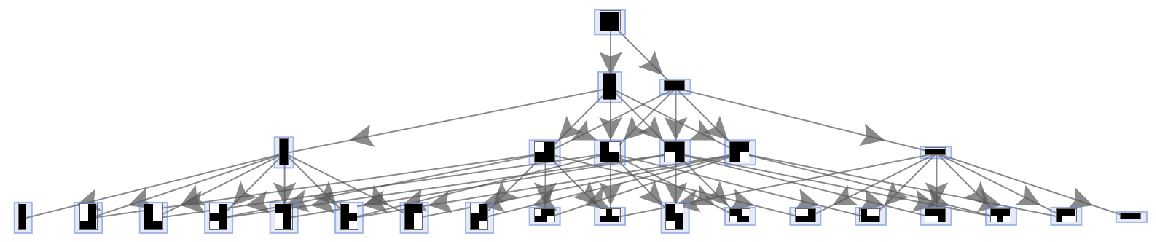

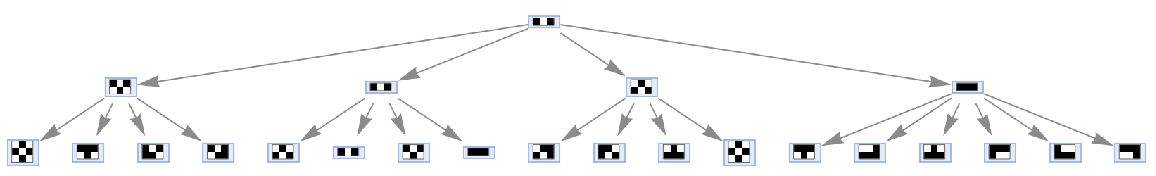

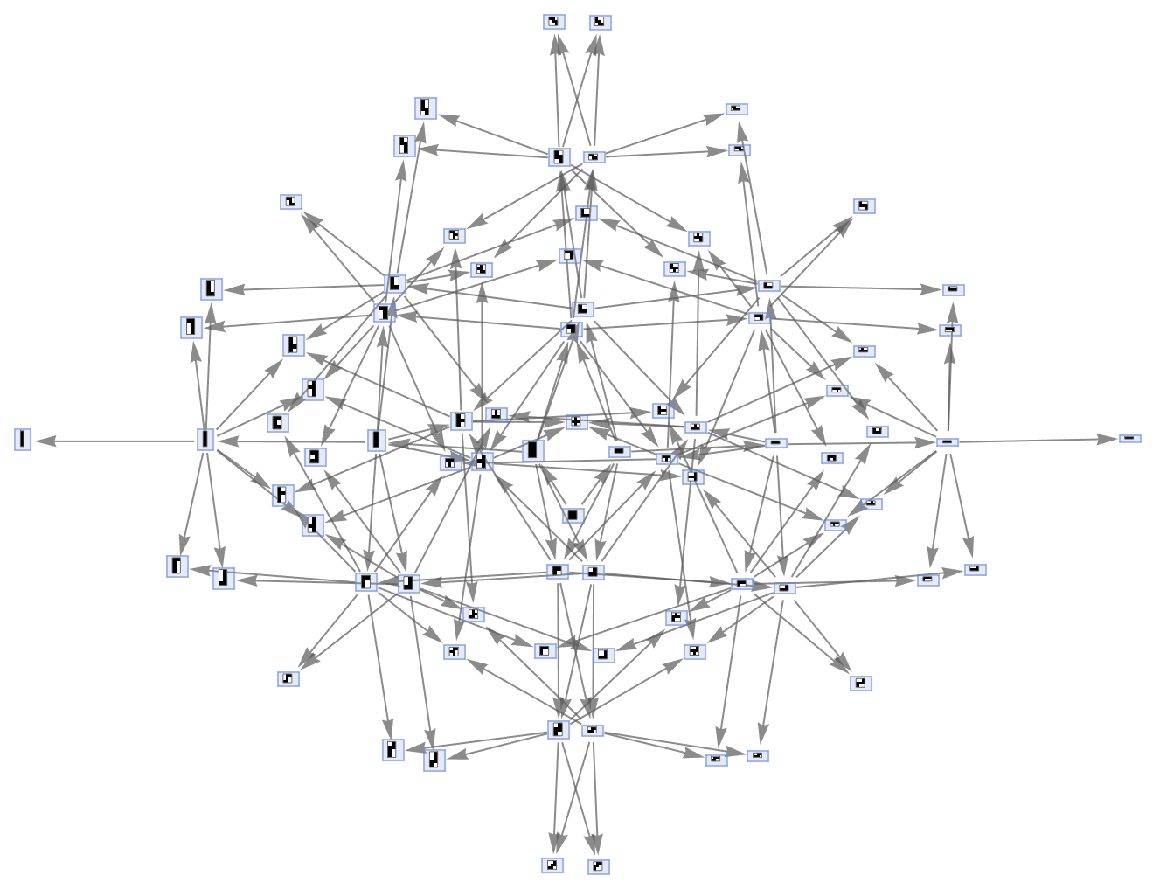

Generate a graph showing how each state is obtained from the others:

In[3]:= |

Out[3]= |

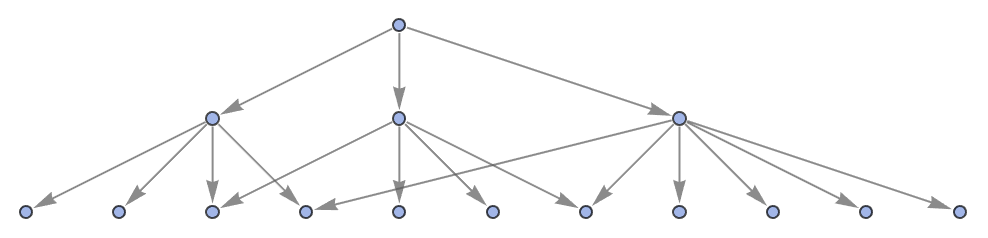

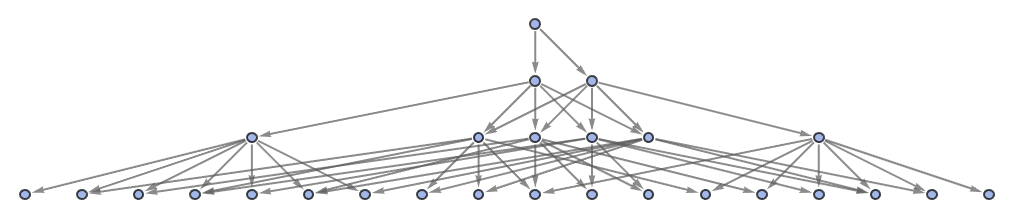

Show the structure of the graph, without labels:

In[4]:= |

Out[4]= |

Generate the list of all updating events applied at each step:

In[5]:= |

Out[5]= |

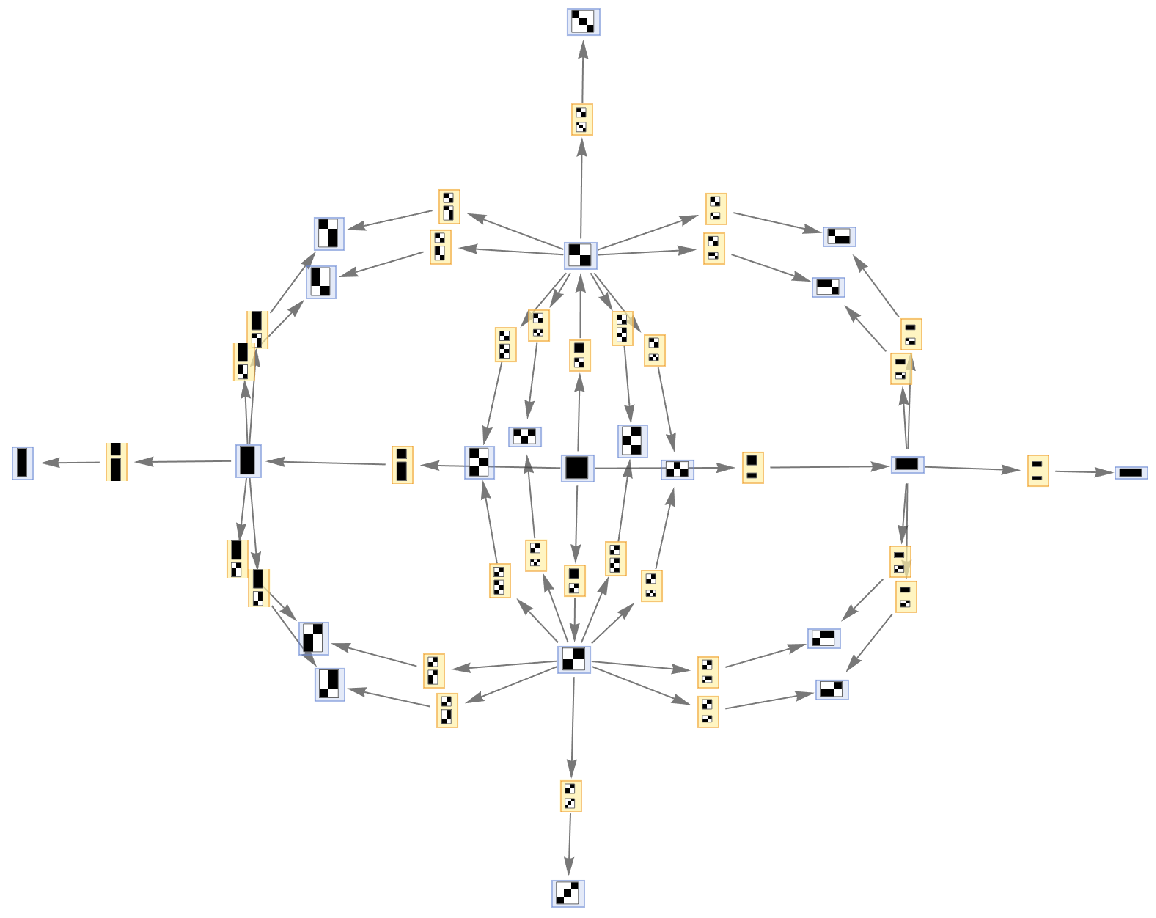

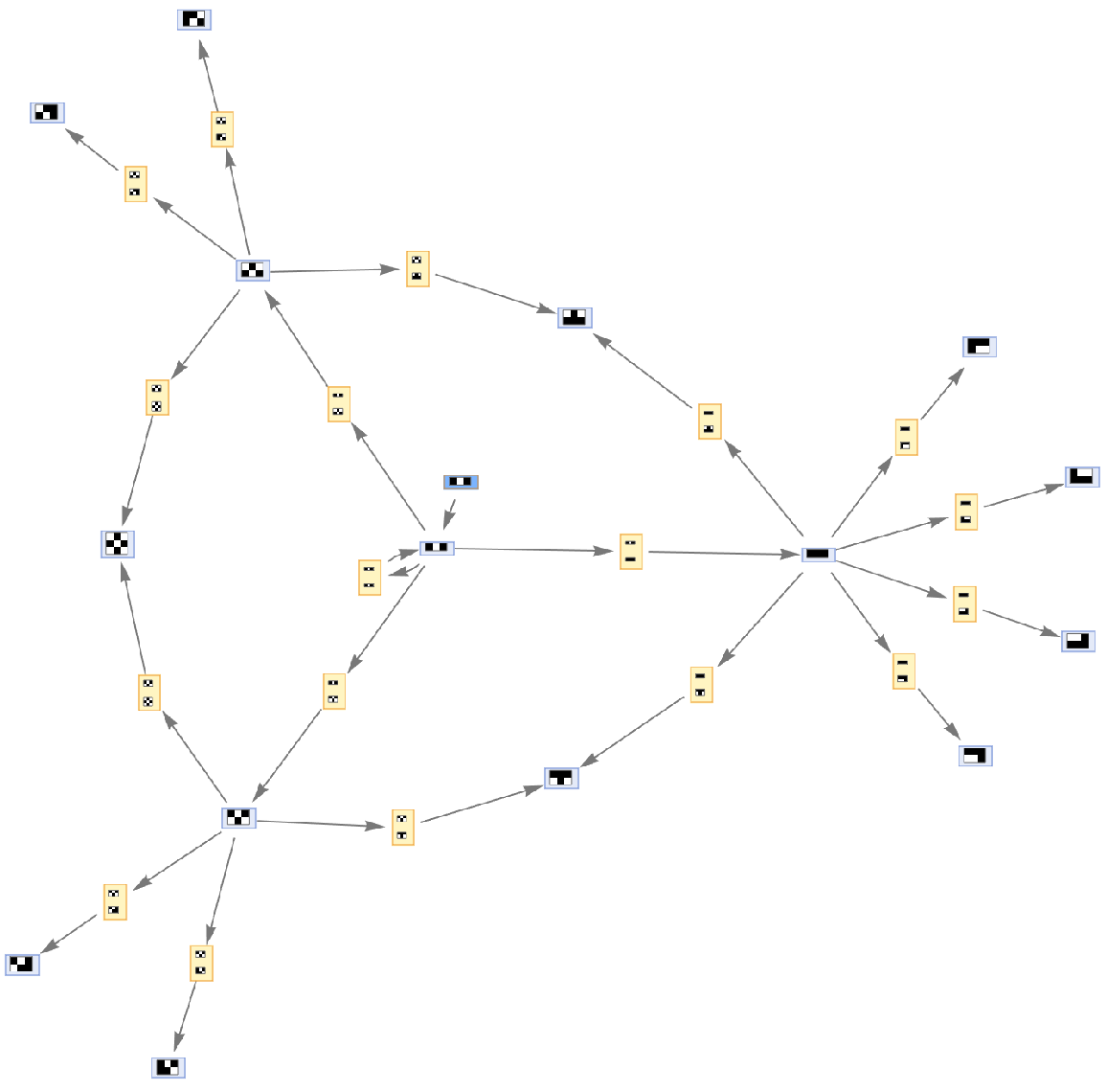

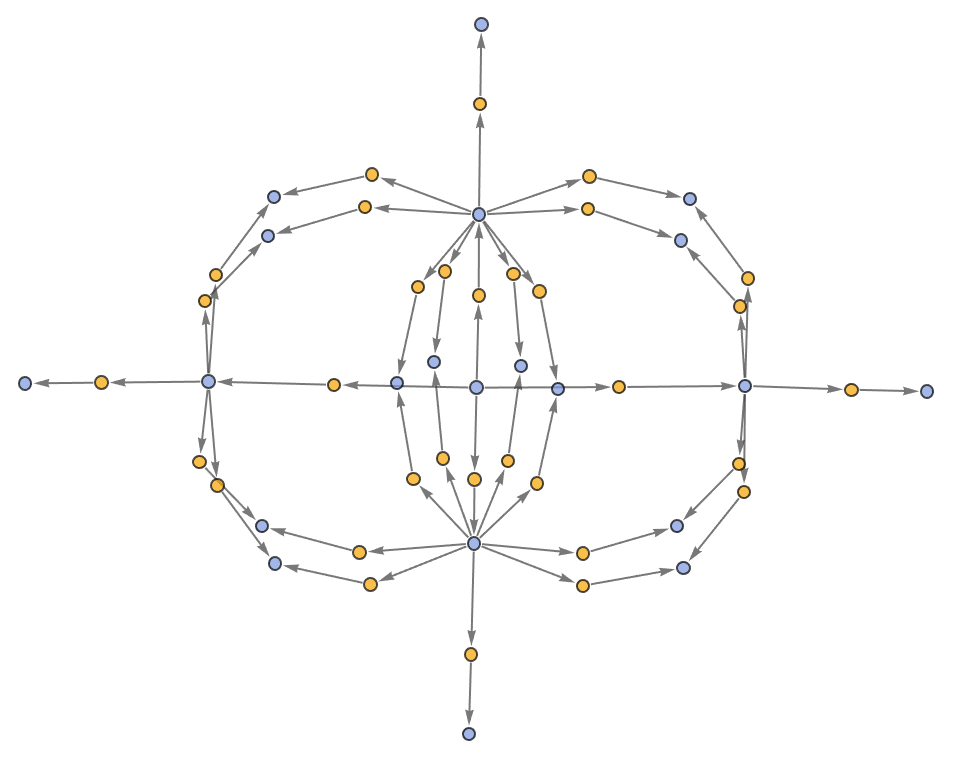

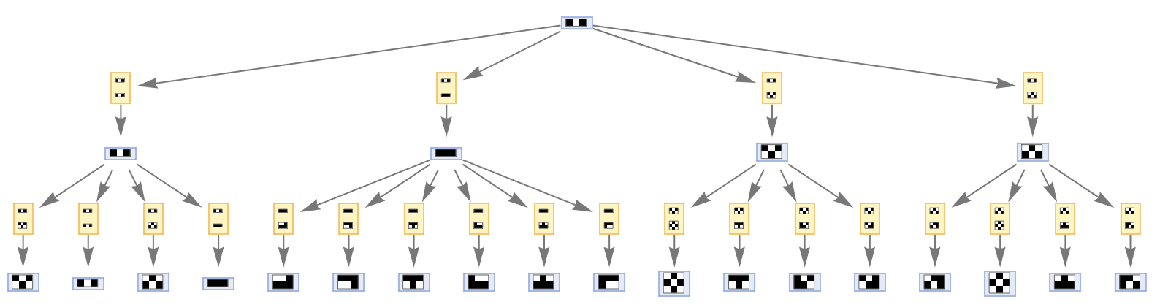

Generate a graph of the evolution history, with updating events included:

In[6]:= |

Out[6]= |

Show the structure of the graph, without labels:

In[7]:= |

Out[7]= |

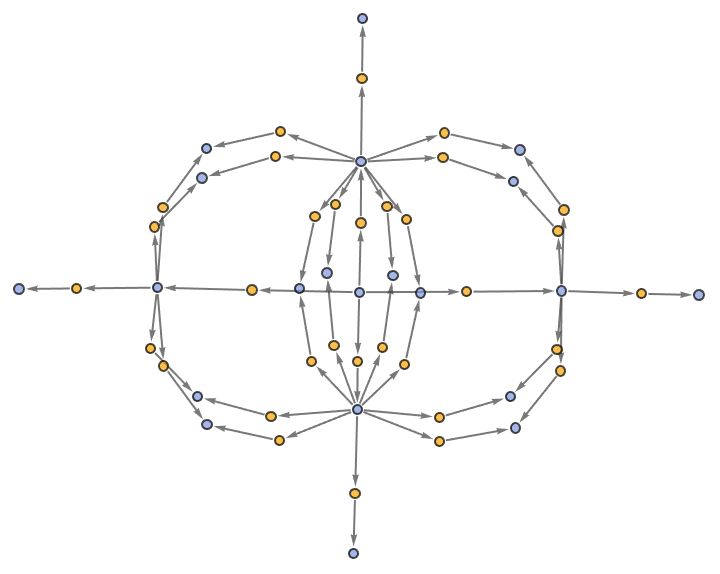

Generate the causal graph, showing dependencies between updating events:

In[8]:= |

Out[8]= |

Show the structure of the graph, without labels:

In[9]:= |

Out[9]= |

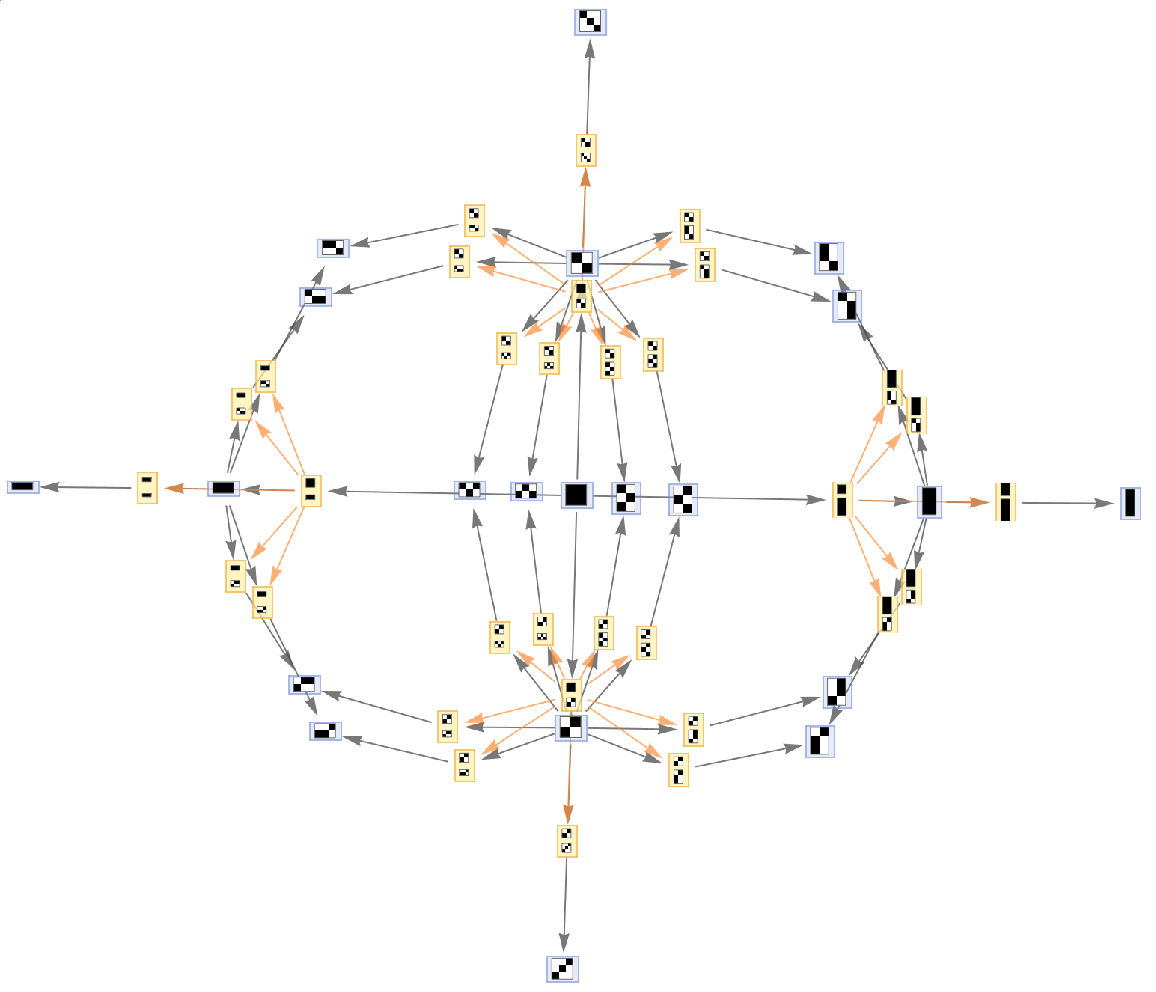

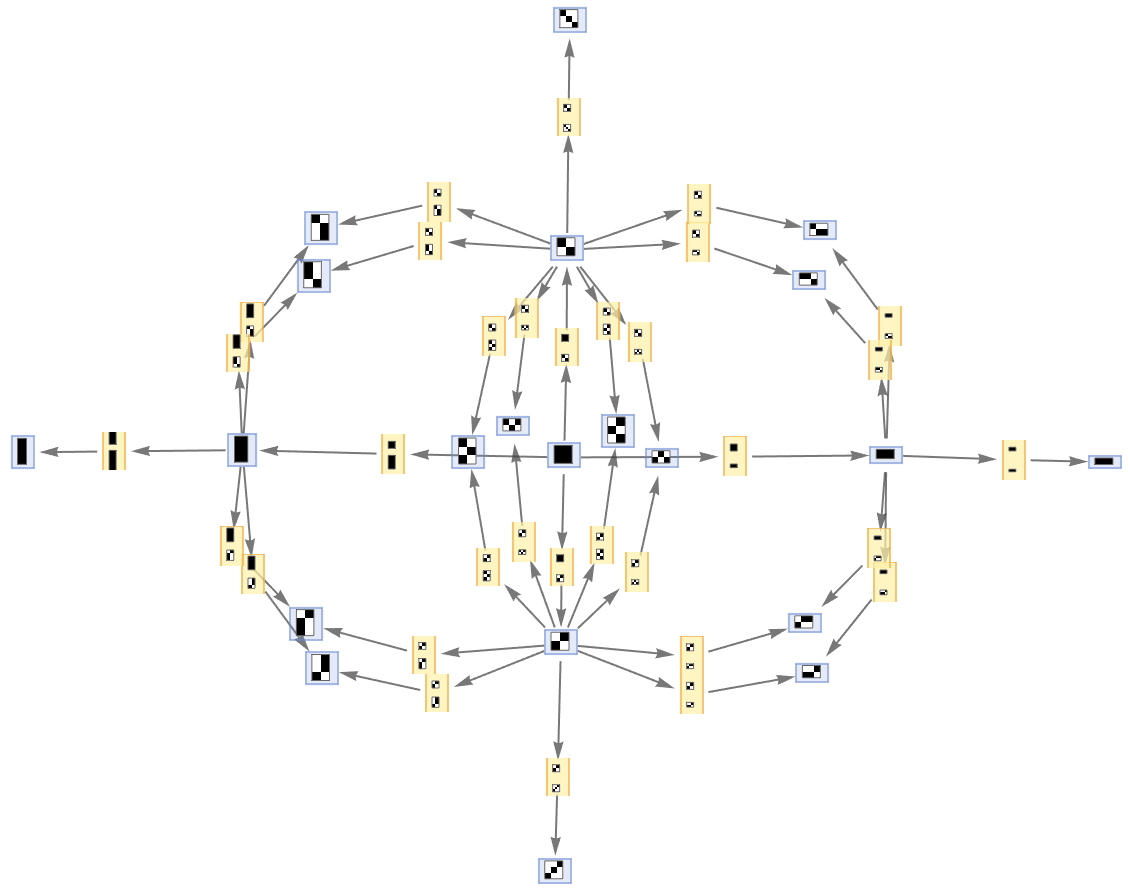

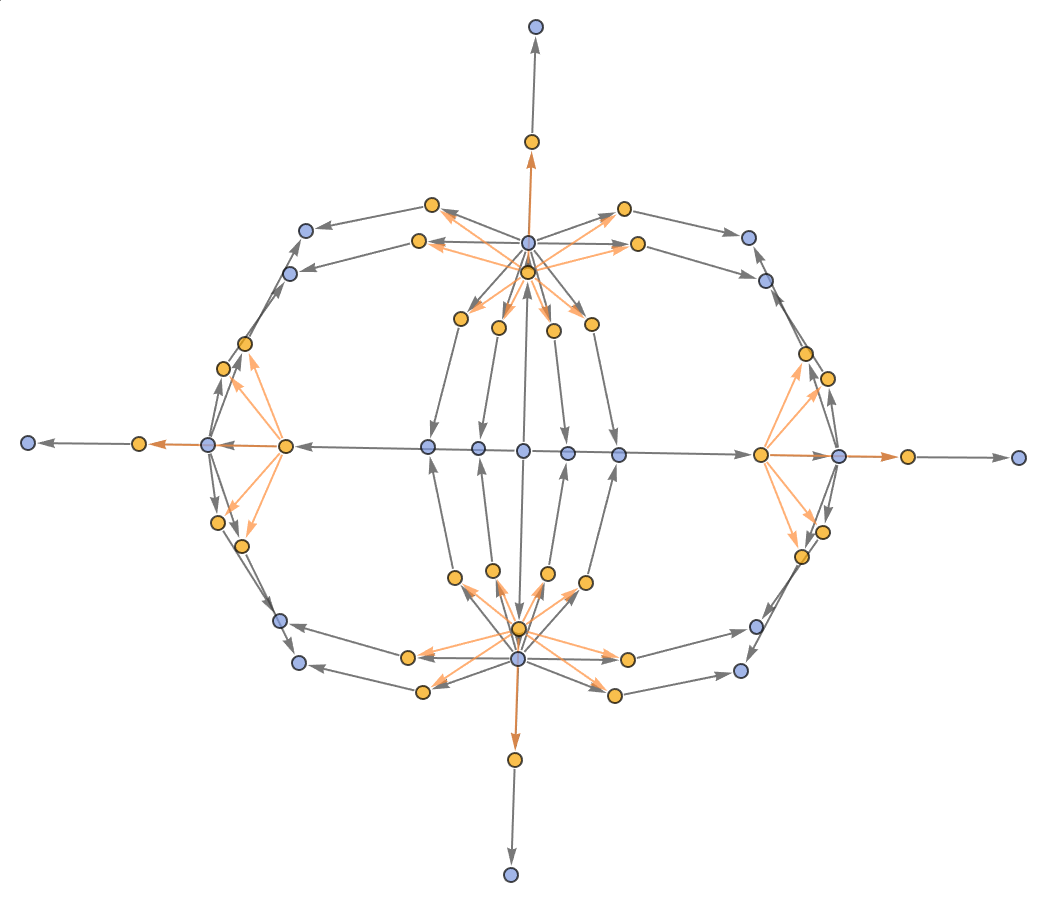

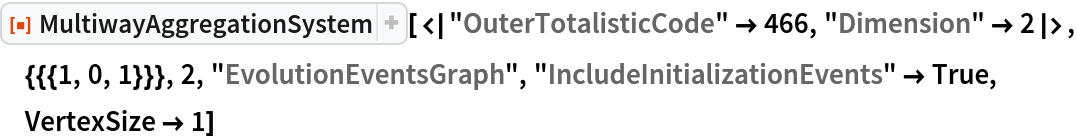

Generate the evolution events graph, with causal connections included:

In[10]:= |

Out[10]= |

Show the structure of the graph, without labels:

In[11]:= |

Out[11]= |

Specify an event selection function that picks a random event at each step:

In[12]:= |

Out[12]= |

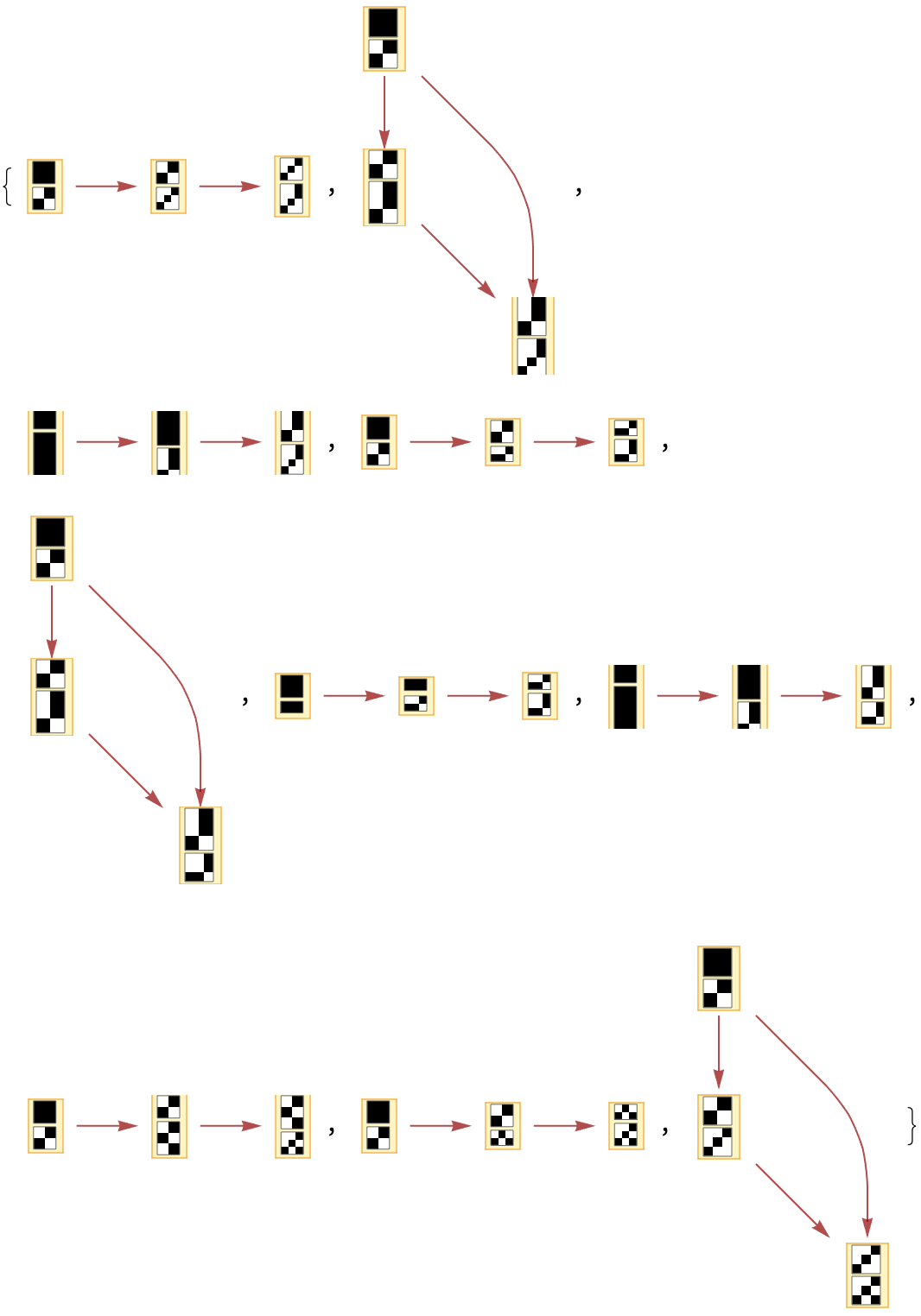

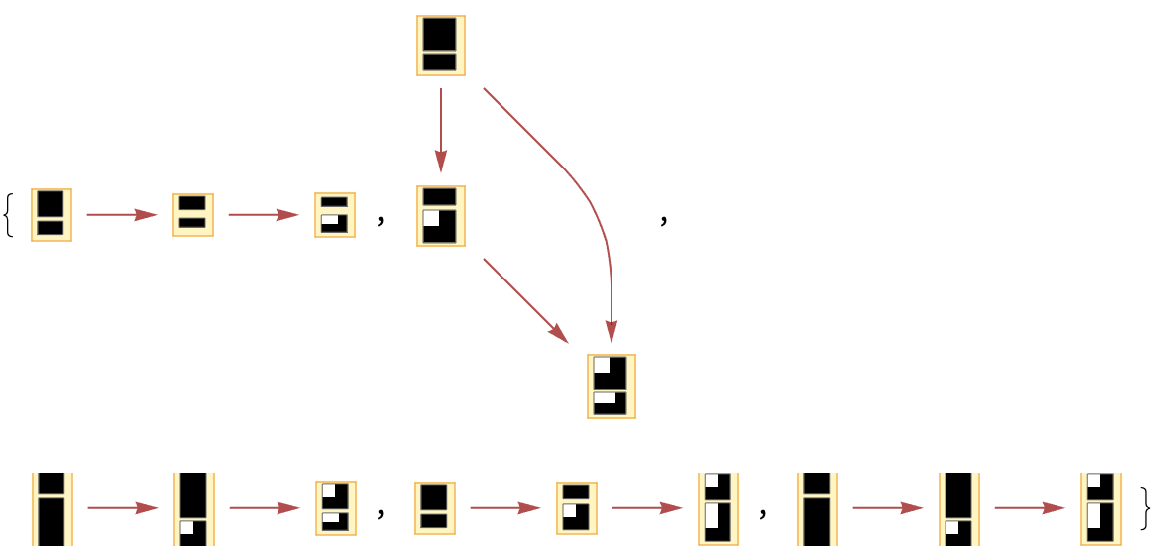

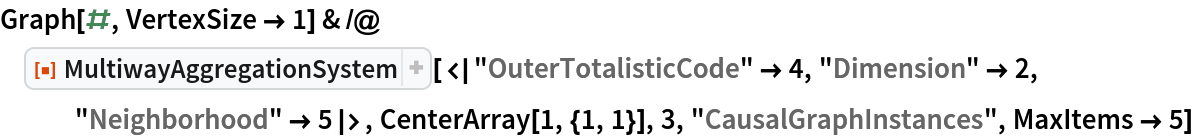

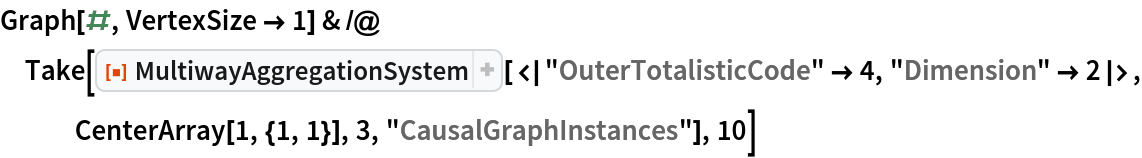

Generate causal graphs for all possible choices of event sequences:

In[13]:= |

Out[13]= |

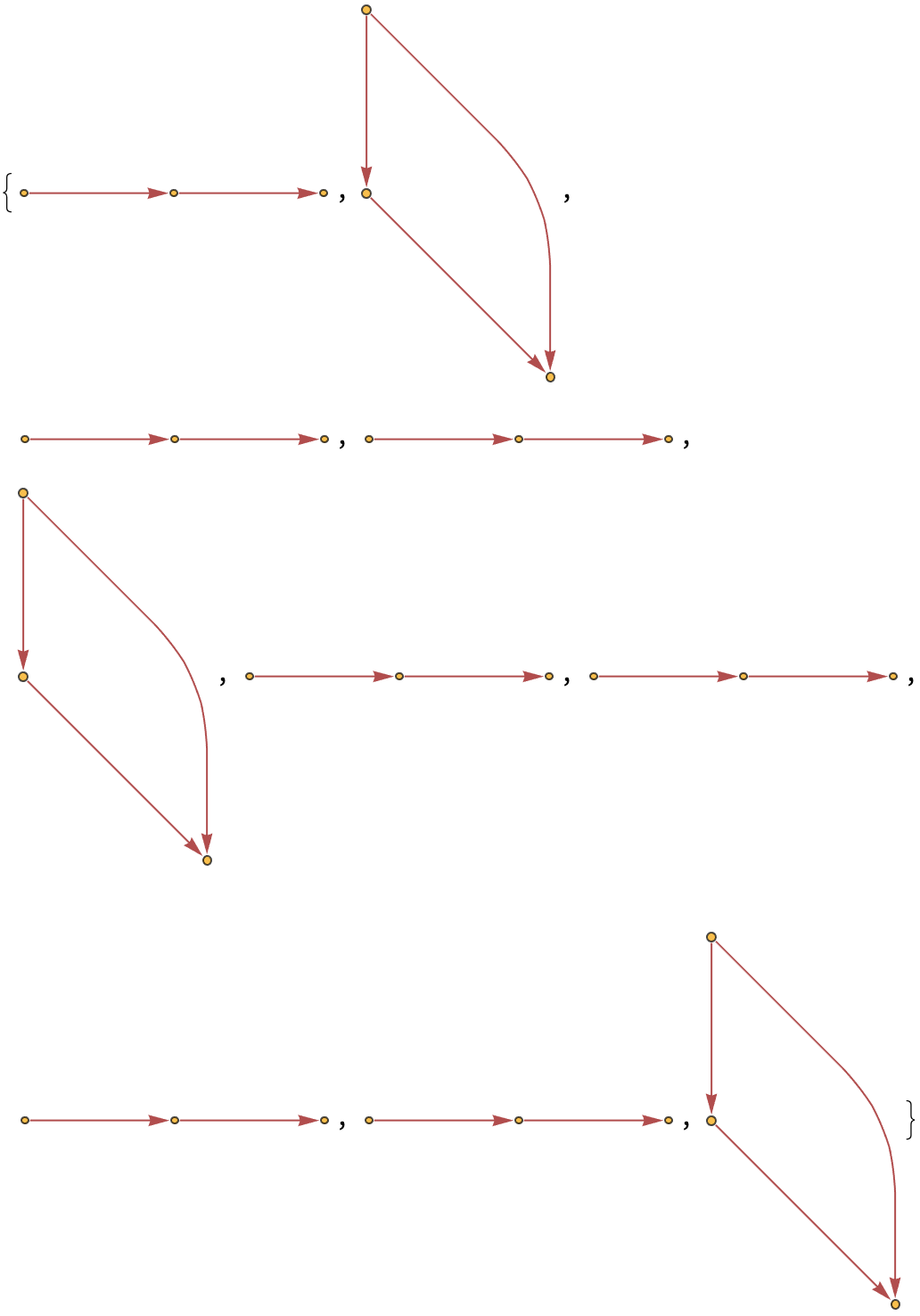

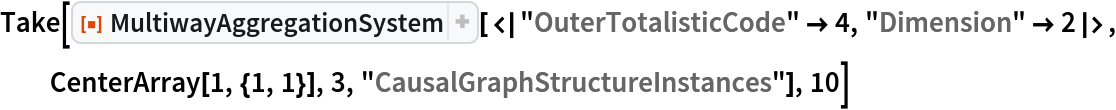

Show the structures of the graphs, without labels:

In[14]:= |

Out[14]= |

Generate the list of all branch pairs (i.e. critical pairs):

In[15]:= |

Out[15]= |

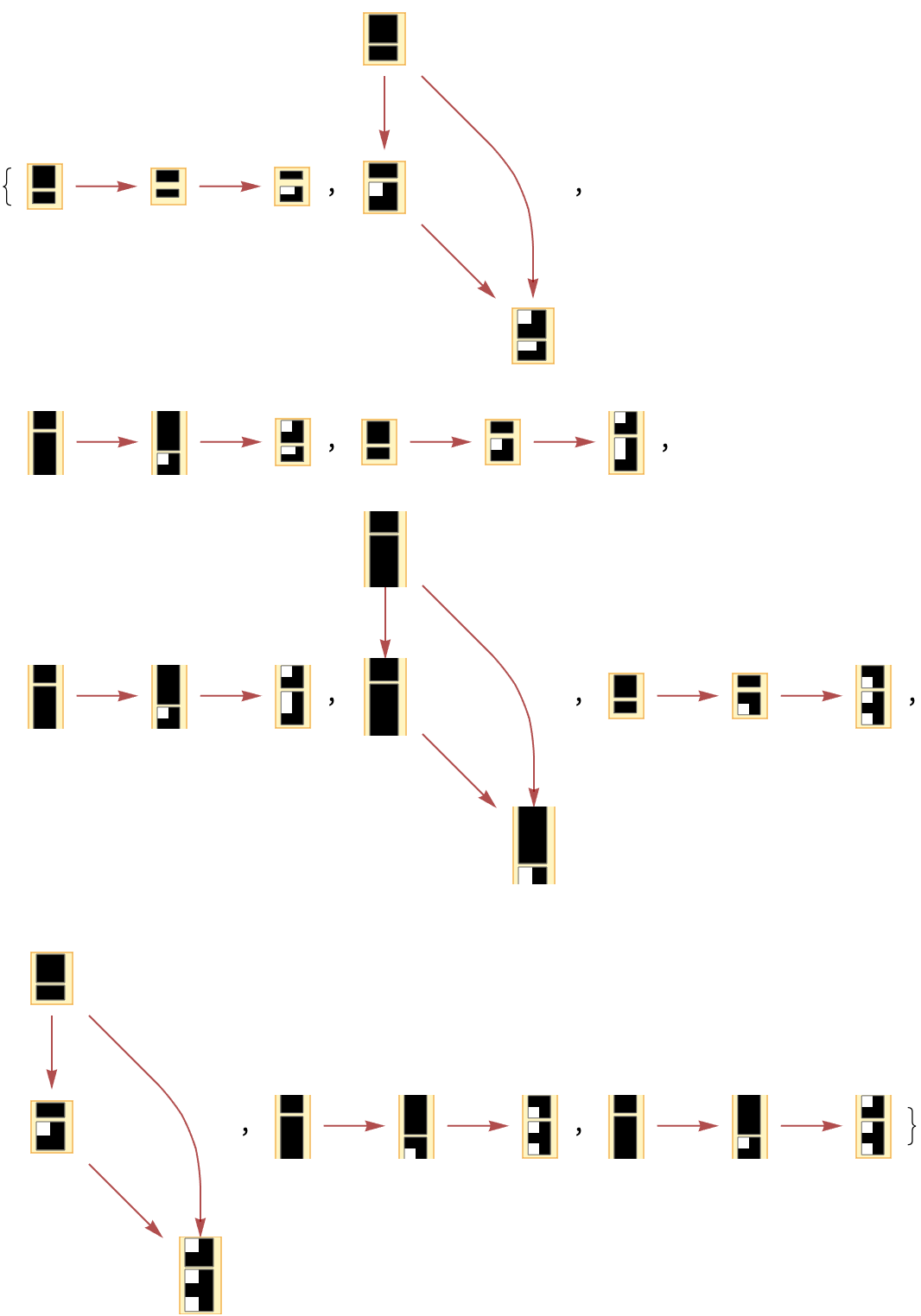

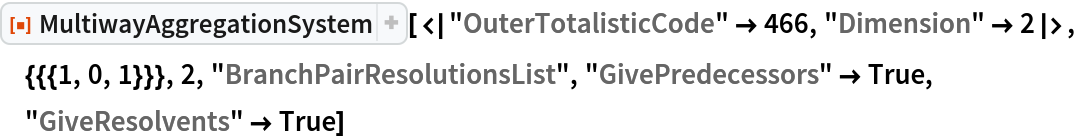

Generate the association showing which branch pairs converged and which did not:

In[16]:= |

Out[16]= |

Prove that the system is causal invariant:

In[17]:= |

Out[17]= |

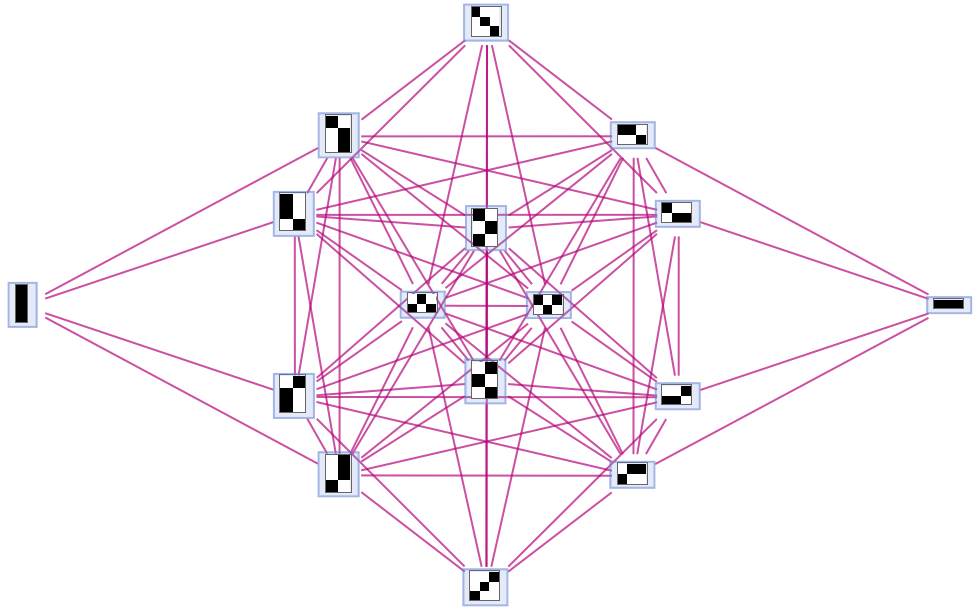

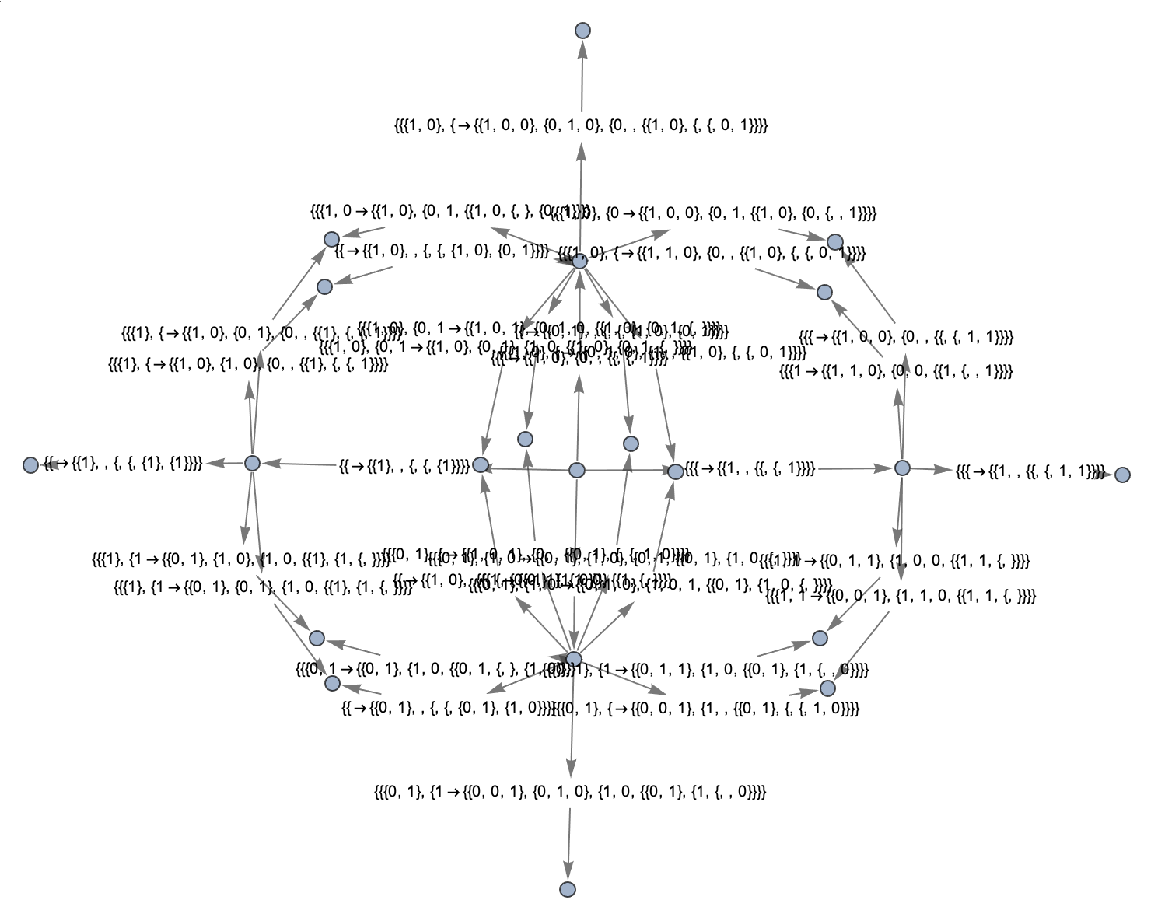

Generate a graph showing branch pair ancestry:

In[18]:= |

Out[18]= |

Show the structure of the graph, without labels:

In[19]:= |

Out[19]= |

Generate a graph showing branch pair event ancestry:

In[20]:= |

Out[20]= |

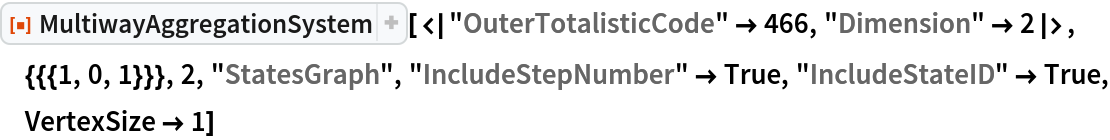

Prevent identical states from being merged by including step numbers and state IDs:

In[21]:= |

Out[21]= |

In[22]:= |

Out[22]= |

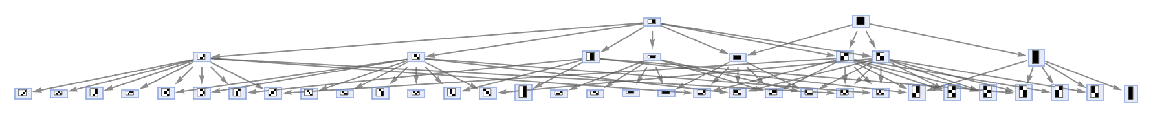

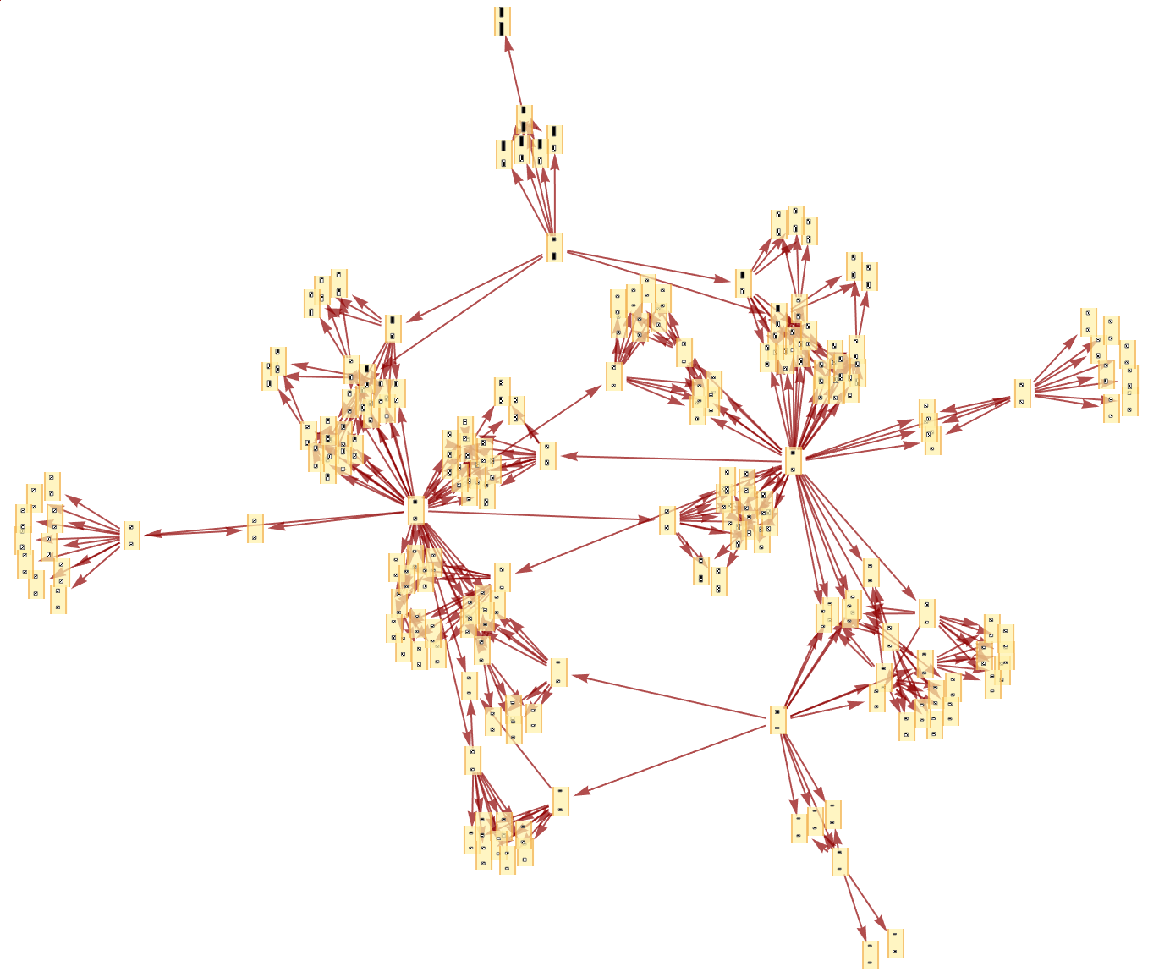

Generate a graph of full evolution history, with all events included:

In[23]:= |

Out[23]= |

Generate a graph of full evolution history, with no merging of equivalent states:

In[24]:= |

Out[24]= |

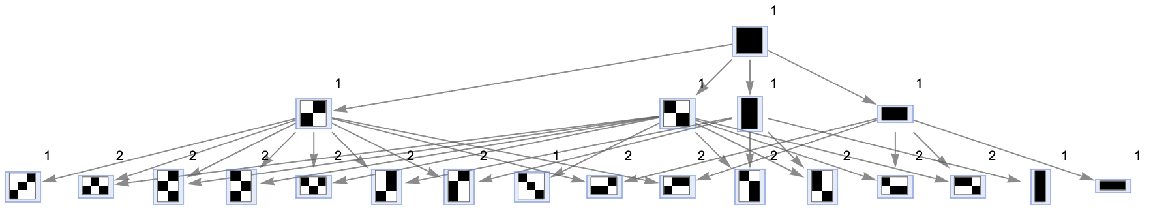

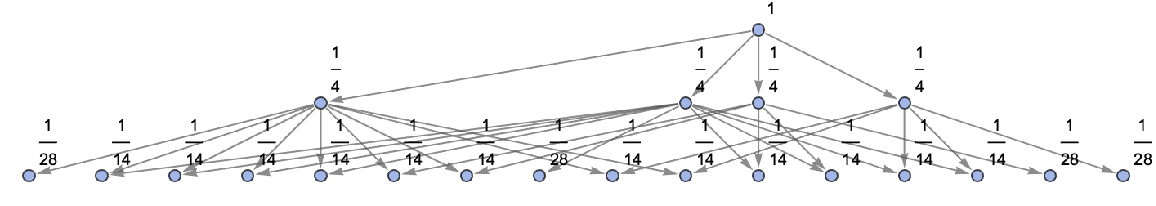

Generate a graph of evolution history, with edges weighted by event multiplicity:

In[25]:= |

Out[25]= |

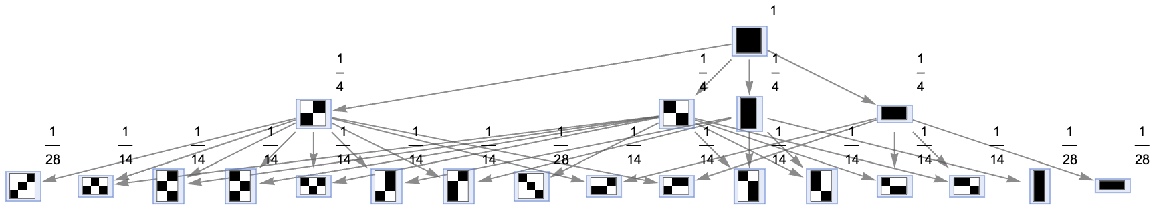

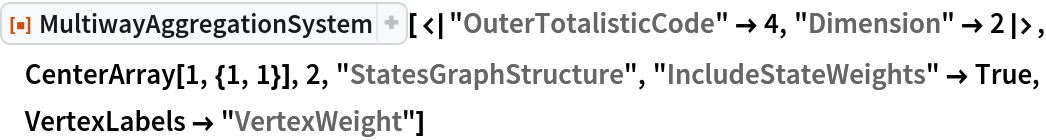

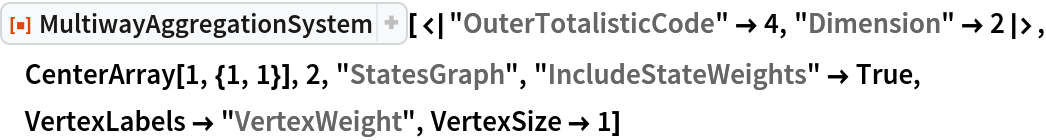

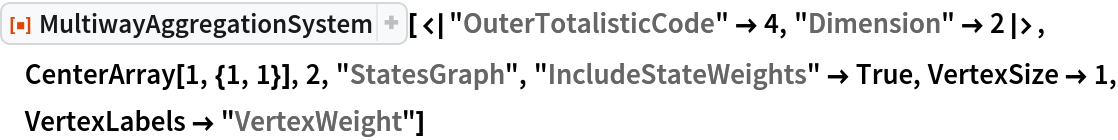

Generate a states graph with vertices weighted by their rate of occurrence on each time step:

In[26]:= |

Out[26]= |

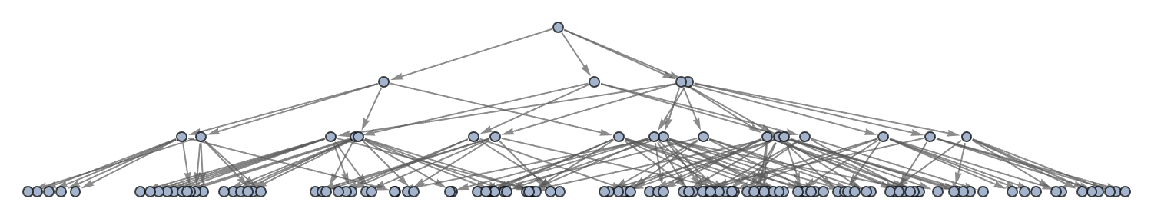

Show the structure of the graph, without labels:

In[27]:= |

Out[27]= |

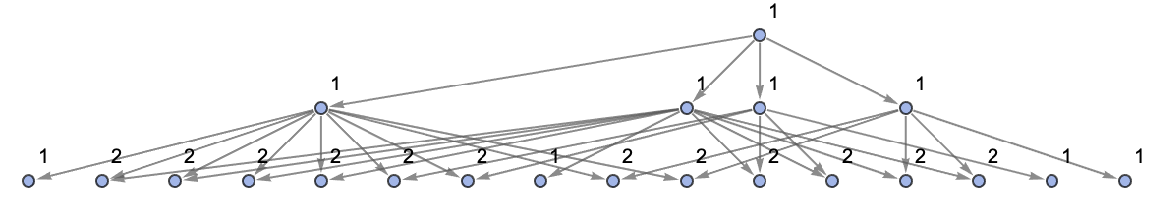

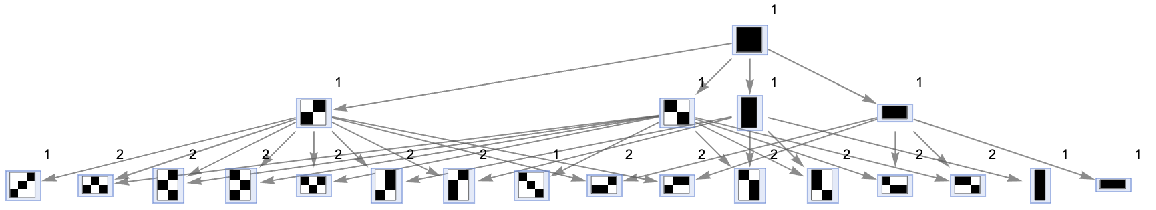

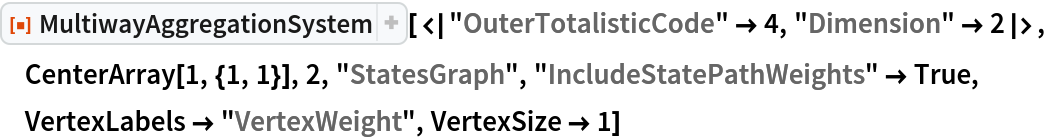

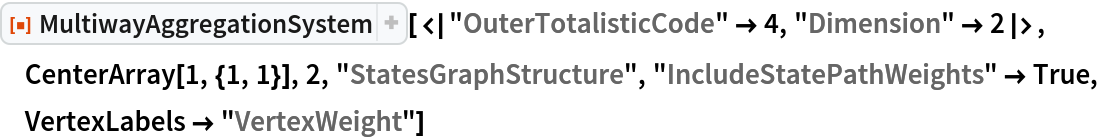

Generate a states graph with vertices weighted by the number of distinct evolution paths that lead to them:

In[28]:= |

Out[28]= |

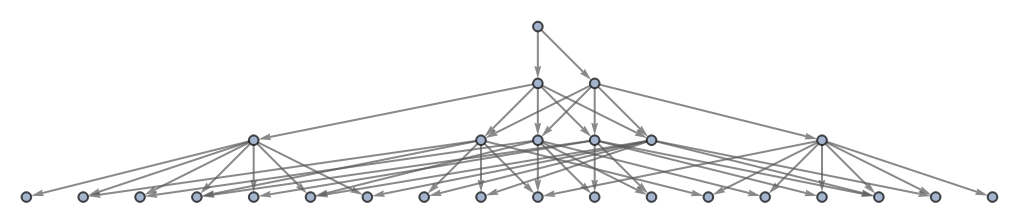

Show the structure of the graph, without labels:

In[29]:= |

Out[29]= |

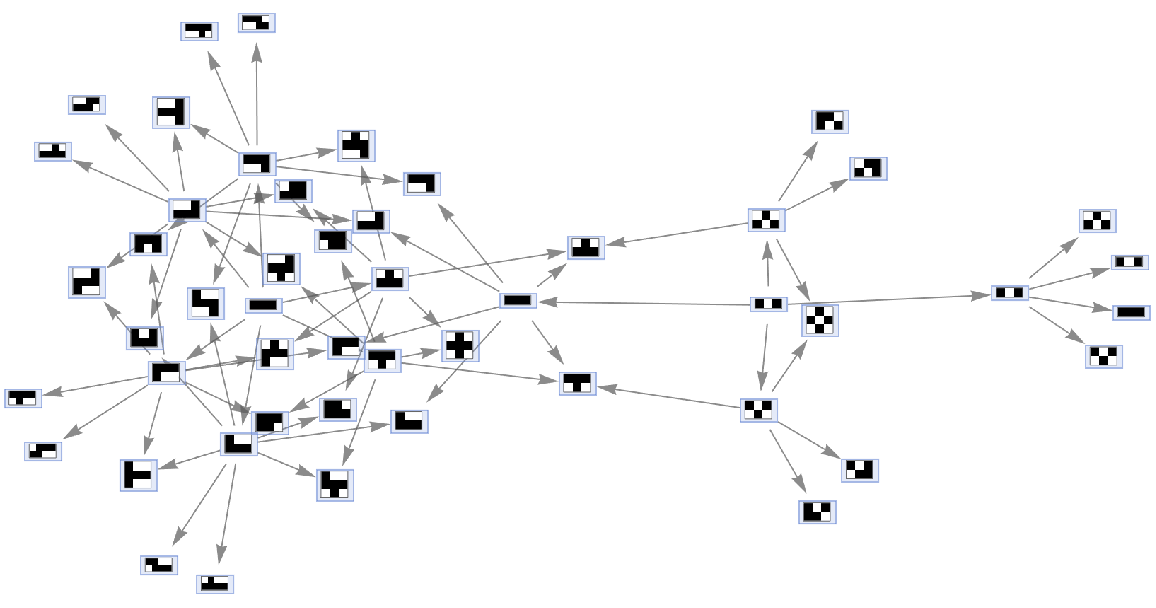

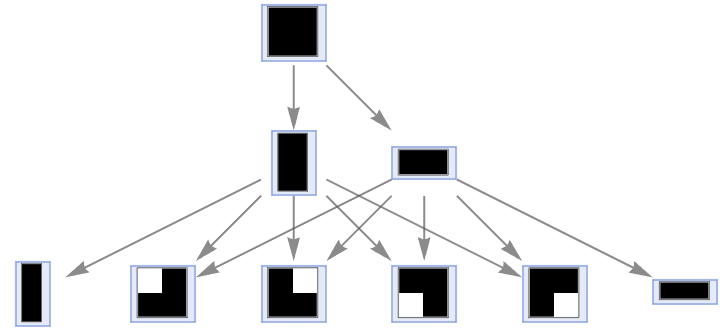

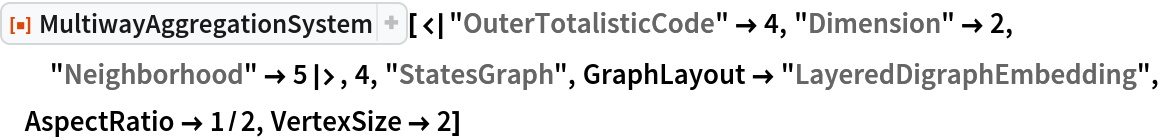

Run outer totalistic code 4 using the default (Moore) neighborhood:

In[30]:= |

Out[30]= |

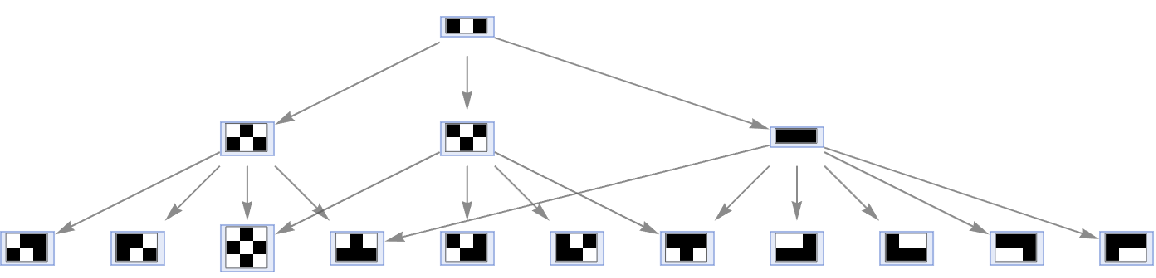

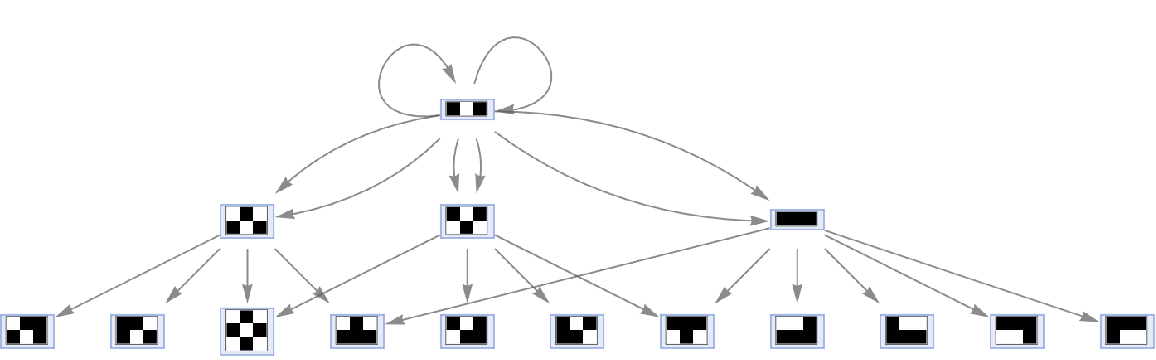

Run the same outer totalistic rule using the von Neumann neighborhood instead:

In[31]:= |

Out[31]= |

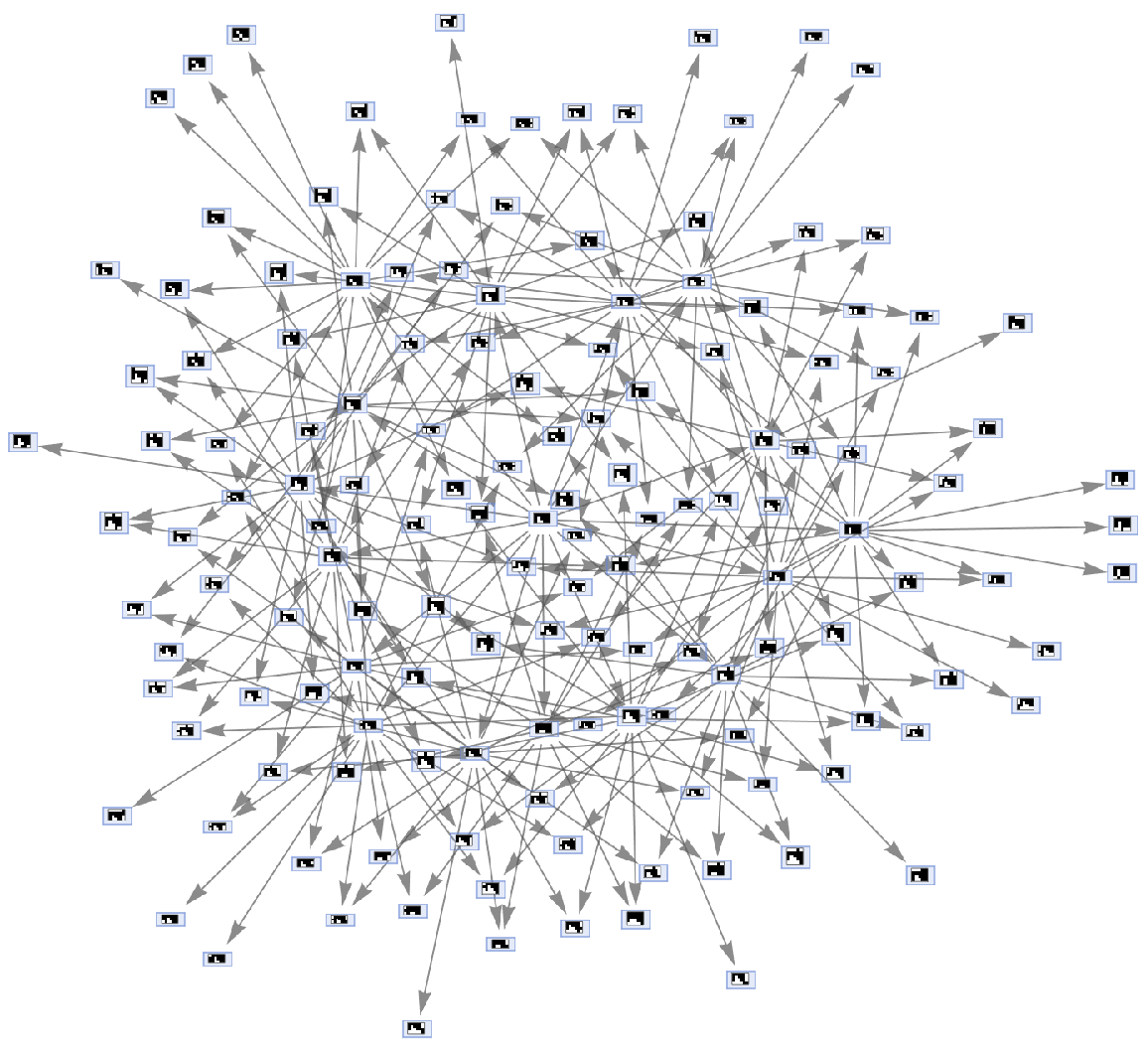

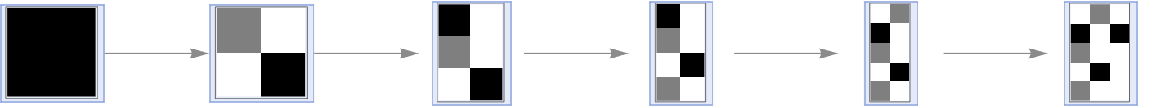

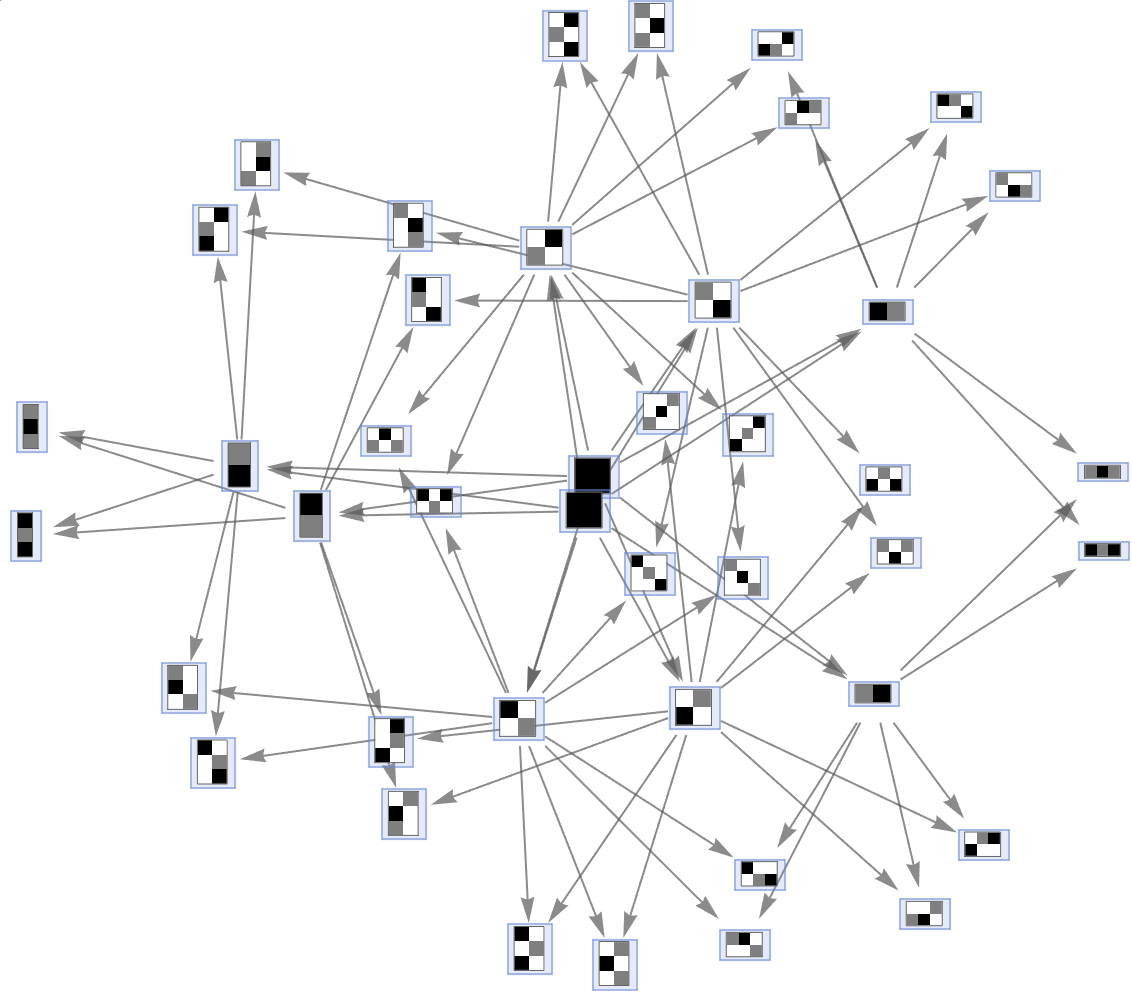

Simulate a multiway aggregation system with three colors:

In[32]:= |

Out[32]= |

Simulate a multiway aggregation system specified using growth cases:

In[33]:= |

Out[33]= |

MultiwayAggregationSystem accepts both individual initial conditions and lists of initial conditions:

In[34]:= |

Out[34]= |

In[35]:= |

Out[35]= |

Apply only the first possible event at each step:

In[36]:= |

Out[36]= |

Apply the first and last possible events at each step:

In[37]:= |

Out[37]= |

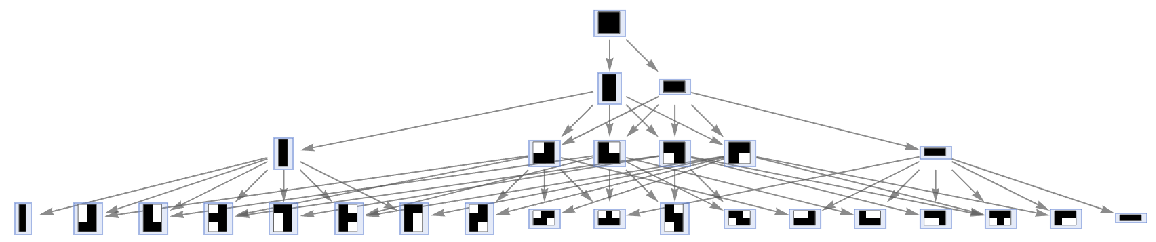

By default, states are labeled by their contents:

In[38]:= |

Out[38]= |

Use no labeling for states:

In[39]:= |

Out[39]= |

"StatesGraphStructure" yields the same result:

In[40]:= |

Out[40]= |

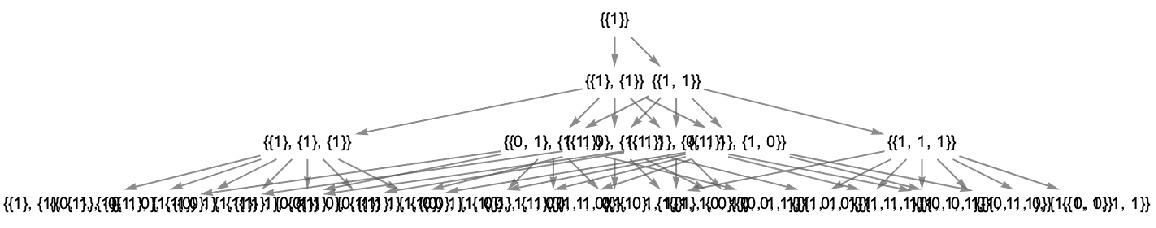

Use raw state names as node labels:

In[41]:= |

Out[41]= |

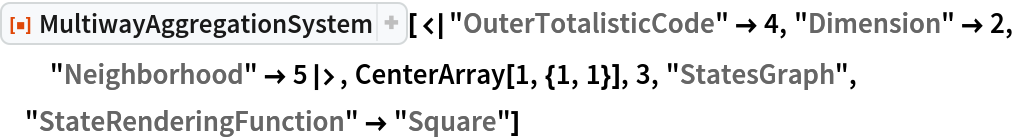

Use a named shape as each state label:

In[42]:= |

Out[42]= |

By default, both states and events are labeled by their contents:

In[43]:= |

Out[43]= |

Use no labels for states or events:

In[44]:= |

Out[44]= |

"EvolutionEventsGraphStructure" yields an equivalent result:

In[45]:= |

Out[45]= |

Use raw event expressions as their labels:

In[46]:= |

Out[46]= |

By default, "AllEventsList" does not include initialization events:

In[47]:= |

Out[47]= |

The option "IncludeInitializationEvents" allows one to override this default:

In[48]:= |

Out[48]= |

Initialization events have special default rendering:

In[49]:= |

Out[49]= |

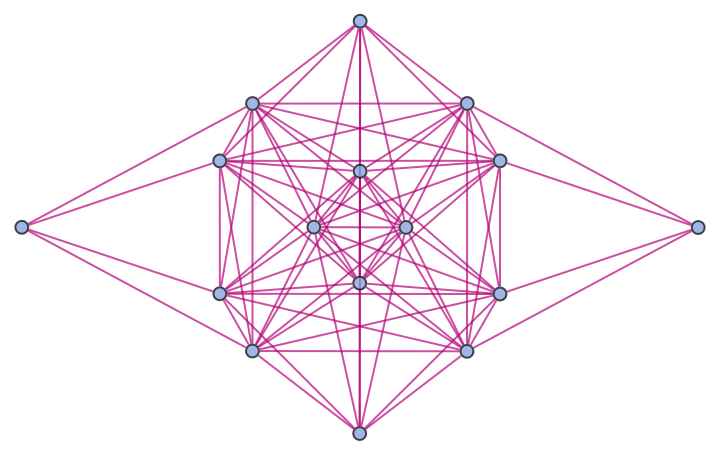

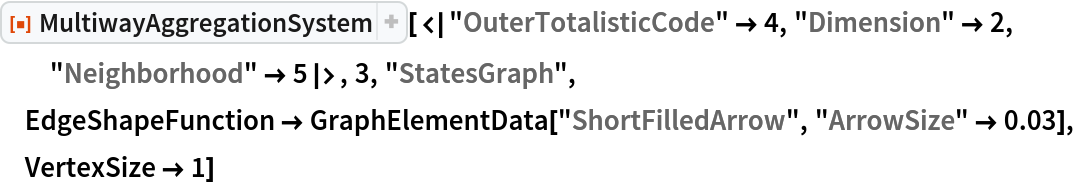

Place arrows in the middle of edges:

In[50]:= |

Out[50]= |

Generate an example of multiway aggregation system evolution:

In[51]:= |

Out[51]= |

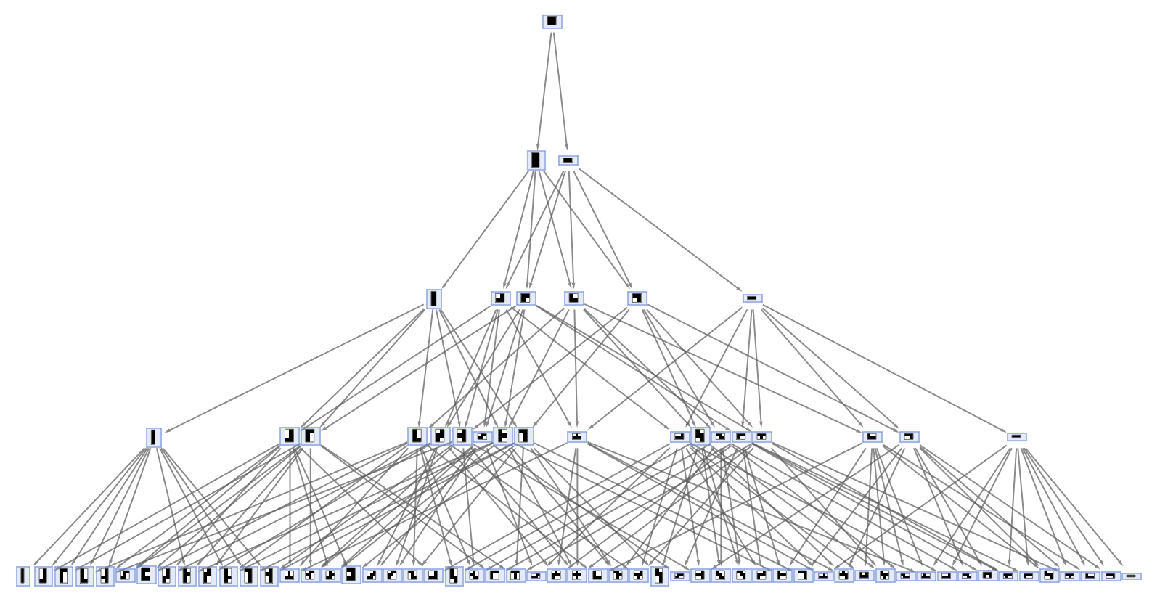

Force a layered digraph embedding:

In[52]:= |

Out[52]= |

By default, equivalent states are merged across all time steps:

In[53]:= |

Out[53]= |

In[54]:= |

Out[54]= |

Merging of equivalent states across different time steps can be prevented by including step numbers:

In[55]:= |

Out[55]= |

In[56]:= |

Out[56]= |

Merging of equivalent states at the same time step can be prevented by also including state IDs:

In[57]:= |

Out[57]= |

In[58]:= |

Out[58]= |

Step numbers and IDs also apply to events:

In[59]:= |

Out[59]= |

See the events:

In[60]:= |

Out[60]= |

By default, multiple instances of equivalent updating events are merged in the states graph:

In[61]:= |

Out[61]= |

Merging of equivalent events can be prevented by including event instances:

In[62]:= |

Out[62]= |

Vertices of a states graph can be weighted by their relative rate of occurrence at each time step:

In[63]:= |

Out[63]= |

Vertices can also be weighted by the number of distinct evolution paths that lead to them:

In[64]:= |

Out[64]= |

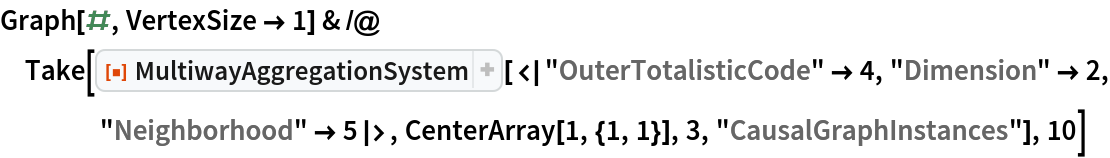

By default, "CausalGraphInstances" returns all possible causal graphs:

In[65]:= |

Out[65]= |

The number of causal graphs returned can be limited using MaxItems:

In[66]:= |

Out[66]= |

By default, "BranchPairsList" returns only a list of branch pairs:

In[67]:= |

Out[67]= |

Common predecessor states can be shown using "GivePredecessors":

In[68]:= |

Out[68]= |

Similarly, "BranchPairResolutionsList" by default lists only resolved and unresolved branch pairs:

In[69]:= |

Out[69]= |

Common resolvents of resolved branch pairs can be shown using "GiveResolvents":

In[70]:= |

Out[70]= |

Show both common predecessors and common resolvents, where appropriate:

In[71]:= |

Out[71]= |

- A New Kind of Science | Online–The Phenomenon of Continuity
- Wikipedia–Eden Growth Model
- The Wolfram Physics Project
- Stephen Wolfram's A New Kind of Science | Online
- Multiway System–Wolfram MathWorld

- 1.0.0 – 13 December 2021

This work is licensed under a Creative Commons Attribution 4.0 International License
