 MouseoverHighlightGraph

Source Notebook

Display a graph so that connected edges are highlighted when you mouse over a vertex

Contributed by: Jon McLoone

ResourceFunction["MouseoverHighlightGraph"][gr]

displays Graph gr so that connected edges are highlighted when you mouse over a vertex.

Details and Options

Clicking anywhere in the displayed Graph cancels the current vertex selection.
ResourceFunction["MouseoverHighlightGraph"] accepts the following options:
BaseStyleGraythe style applied to the graph before mouseover
"HighlightStyle"{Black,Thickness[0.01]}the style applied to highlighted edges

Examples

Basic Examples (2)

Display a graph with interactive mouseover effect:

In[1]:=
ResourceFunction["MouseoverHighlightGraph"][RandomGraph[{10, 20}]]

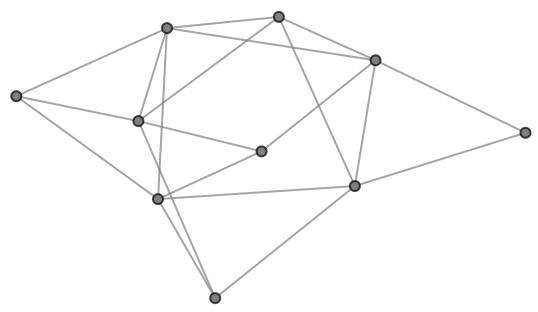

Out[1]=

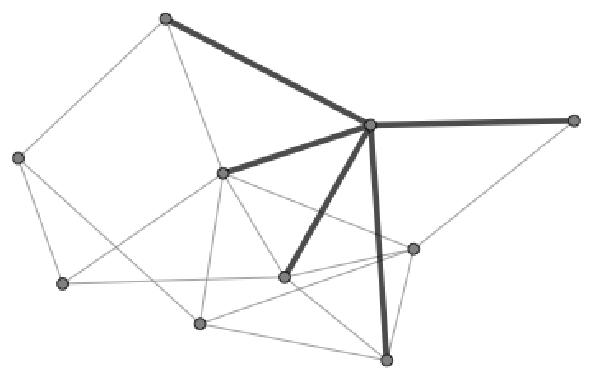

When the mouse is moved over a vertex, all connected edges are highlighted:

Options (1)

The style of the graph before and after highlighting is controlled with BaseStyle and "HighlightStyle":

In[2]:=
ResourceFunction["MouseoverHighlightGraph"][RandomGraph[{10, 20}], BaseStyle -> Darker[Yellow], "HighlightStyle" -> Darker[Blue]]

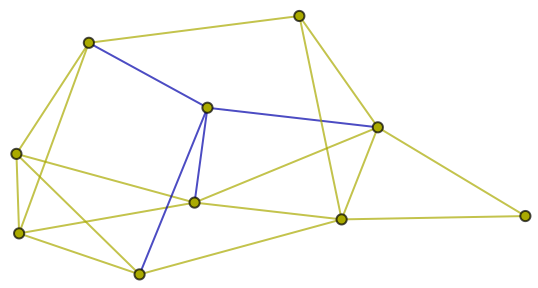

Out[2]=

Publisher

Jon McLoone
