Function Repository Resource:

ManipulateParametricPlot3D

Source Notebook

Create a dynamic interface for a three-dimensional curve being traced out by the tip of the vector

Contributed by: Dennis M Schneider

ResourceFunction["ManipulateParametricPlot3D"][{fx(t),fy(t),fz(t)},{t,tmin,tmax}]

produces a Manipulate of the curve (fx(t),fy(t),fz(t)) being traced out when t runs from tmin to tmax.

Details and Options

In addition to the options of ParametricPlot3D and the resource function PlotVector3D, the following options are supported:
"DrawVector"Falseshow the path followed by a particle as it moves along the curve
"PointStyle"{{PointSize[Large],Red}}specifies a style for the point
VectorStyleRedspecifies a style for the vector

Examples

Basic Examples

Make a Manipulate for a curve:

In[1]:=
ResourceFunction[
 "ManipulateParametricPlot3D"][{t Cos[2 \[Pi] t], t Sin[2 \[Pi] t], t}, {t, 0, 2}, VectorStyle -> Red]
Out[1]=

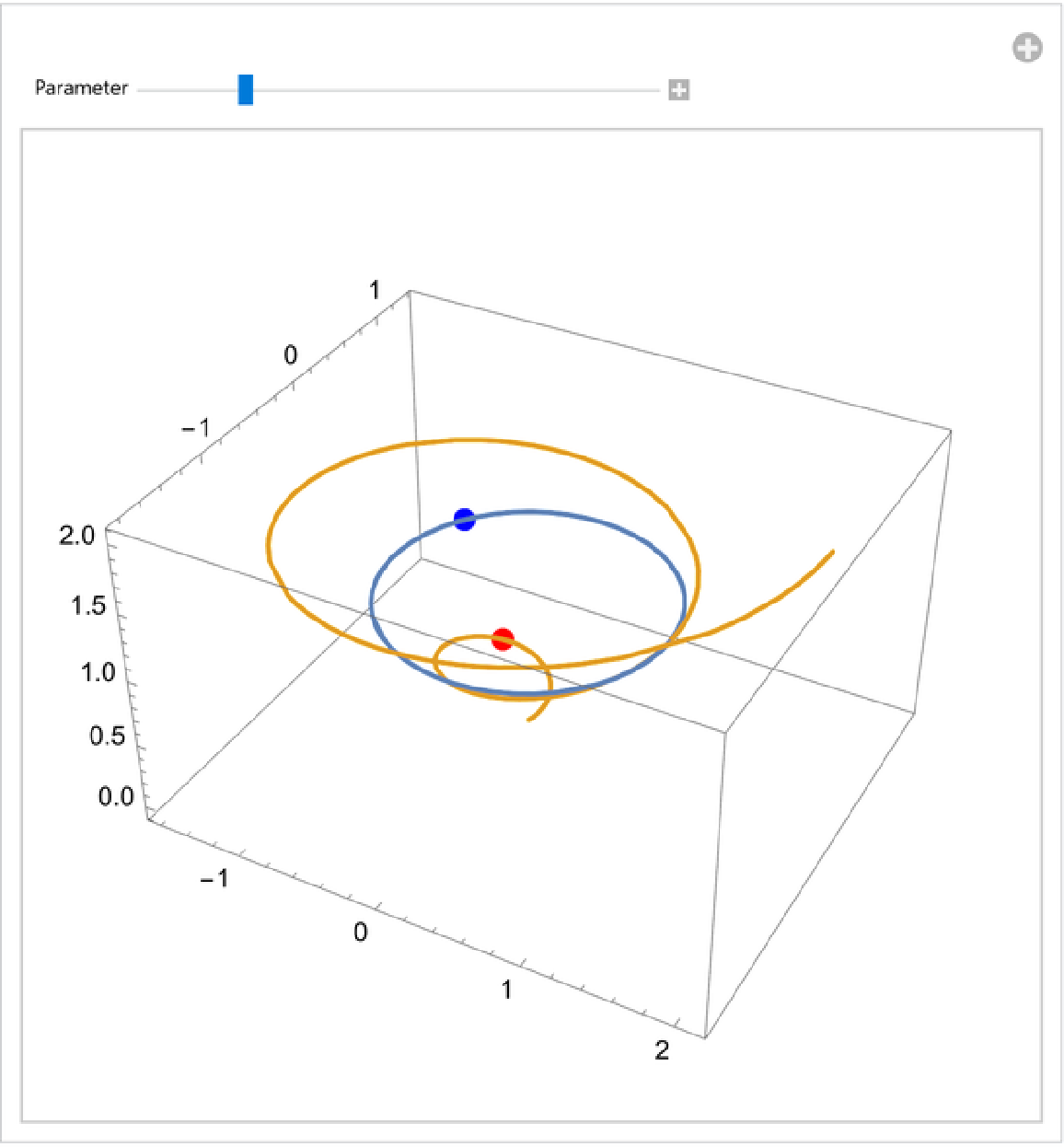

A particle moving along a helix collides with a particle moving around a circle when t=1:

In[2]:=
ResourceFunction[
 "ManipulateParametricPlot3D"][{{Cos[2 \[Pi] t], Sin[2 \[Pi] t], 1}, {t Cos[2 \[Pi] t], t Sin[2 \[Pi] t], t}}, {t, 0, 2}, "DrawVector" -> False, "PointStyle" -> {{PointSize[.025], Blue}, {PointSize[.025], Red}}, ImageSize -> Medium]
Out[2]=

Publisher

Dennis M Schneider

Version History

  • 1.0.0 – 22 July 2022
