 MakeChainmail

Source Notebook

Construct a 3D graphic of a chainmail design

Contributed by: Rakhi Jain & Joseph Brennan

ResourceFunction["MakeChainmail"][]

constructs a 3D graphical image of chainmail.

ResourceFunction["MakeChainmail"][type]

constructs an image of a specific type of chainmail.

ResourceFunction["MakeChainmail"][type,pos,rows,columns,spacing]

constructs an image starting at pos with spacing between the given number of rows and columns.

ResourceFunction["MakeChainmail"][type,pos,rows,columns,spacing,θ]

constructs an image rotated by θ about the x-axis.

Details

Examples of chainmail type include: "European4In1", "Square4In1", "Japanese6In1", "Octahedral".
The default link spacings are 1.6 for the octahedral chainmail, and 2.5 for all others.
ResourceFunction["MakeChainmail"] has the same options as Graphics3D.
Both 4-in-1 and 6-in-1 chainmail designs are quite well-known, the octahedral design was inspired by this paper.

Examples

Basic Examples (4)

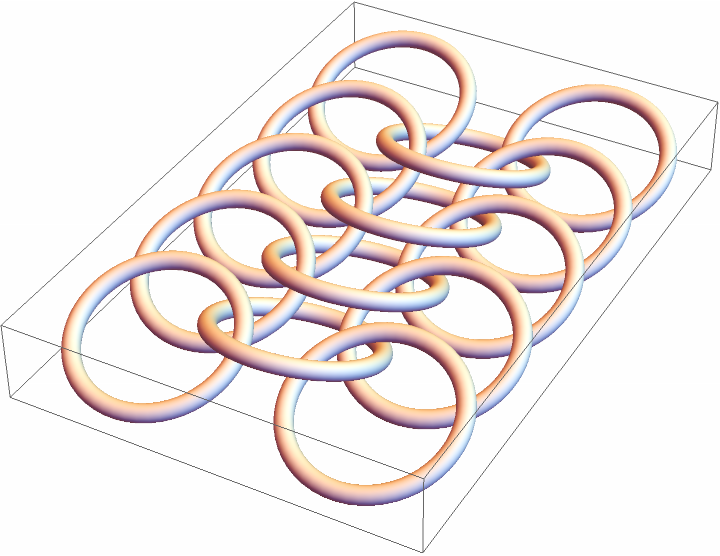

The default chainmail type is the European 4-in-1 with three rows and columns:

In[1]:=
ResourceFunction[ "MakeChainmail", ResourceSystemBase -> "https://www.wolframcloud.com/obj/resourcesystem/api/1.0"][]
Out[1]=
In[2]:=
ResourceFunction[ "MakeChainmail", ResourceSystemBase -> "https://www.wolframcloud.com/obj/resourcesystem/api/1.0"]["European4In1"]
Out[2]=

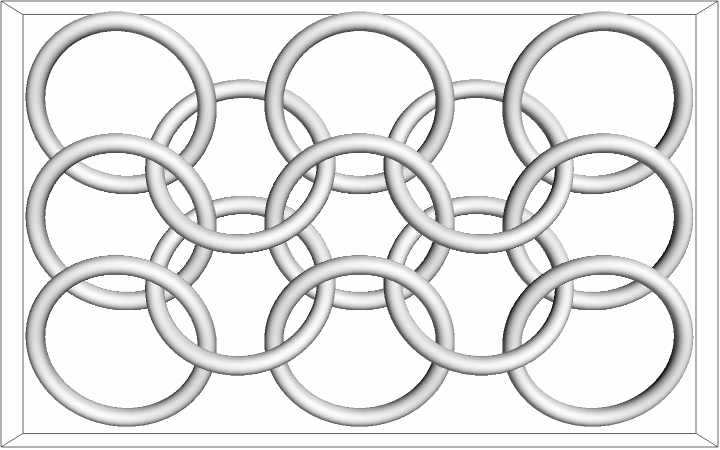

The function takes the same options as Graphics3D:

In[3]:=
ResourceFunction[ "MakeChainmail", ResourceSystemBase -> "https://www.wolframcloud.com/obj/resourcesystem/api/1.0"]["European4In1", Boxed -> False]
Out[3]=
In[4]:=
ResourceFunction[ "MakeChainmail", ResourceSystemBase -> "https://www.wolframcloud.com/obj/resourcesystem/api/1.0"]["European4In1", Lighting -> "ThreePoint", ViewPoint -> Above]
Out[4]=

Other chainmail types are also supported:

In[5]:=
ResourceFunction[ "MakeChainmail", ResourceSystemBase -> "https://www.wolframcloud.com/obj/resourcesystem/api/1.0"] /@ {"Square4In1", "Japanese6In1", "Octahedral"}
Out[5]=

Scope (4)

Specify a custom number of rows and columns:

In[6]:=
ResourceFunction[ "MakeChainmail", ResourceSystemBase -> "https://www.wolframcloud.com/obj/resourcesystem/api/1.0"][2, 5]
Out[6]=

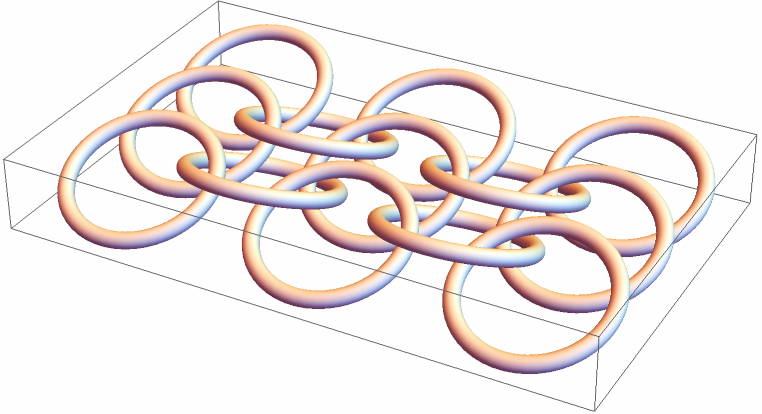

Define a custom separation of links:

In[7]:=
ResourceFunction[ "MakeChainmail", ResourceSystemBase -> "https://www.wolframcloud.com/obj/resourcesystem/api/1.0"][2, 2, 2.8]
Out[7]=

Define a custom starting position:

In[8]:=
ResourceFunction[ "MakeChainmail", ResourceSystemBase -> "https://www.wolframcloud.com/obj/resourcesystem/api/1.0"]["Japanese6In1", {10, 0, 0}, 4, 4, Axes -> True, AxesLabel -> {"X", "Y", "Z"}, ViewPoint -> Top]
Out[8]=

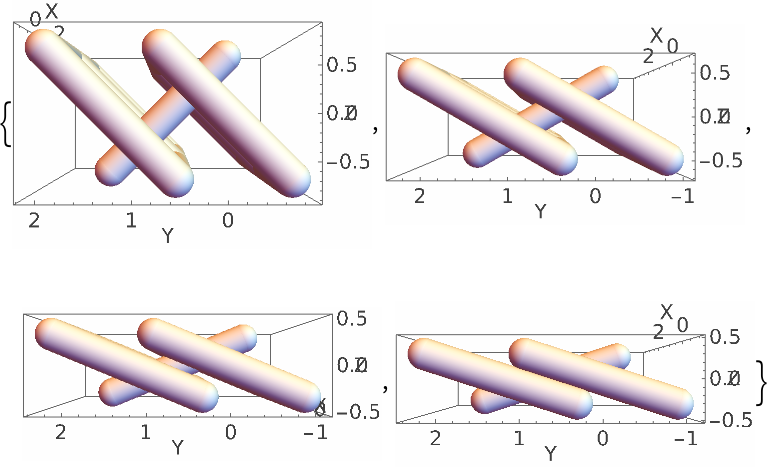

Rotate individual links about the x-axis by different angles:

In[9]:=
ResourceFunction[ "MakeChainmail", ResourceSystemBase -> "https://www.wolframcloud.com/obj/resourcesystem/api/1.0"]["Square4In1", 2, 2, 2.5, #, ViewPoint -> {-2, 0, 0}, Axes -> True, AxesLabel -> {"X", "Y", "Z"}] & /@ {\[Pi]/4, \[Pi]/6, \[Pi]/ 8, \[Pi]/10}
Out[9]=

Properties and Relations (1)

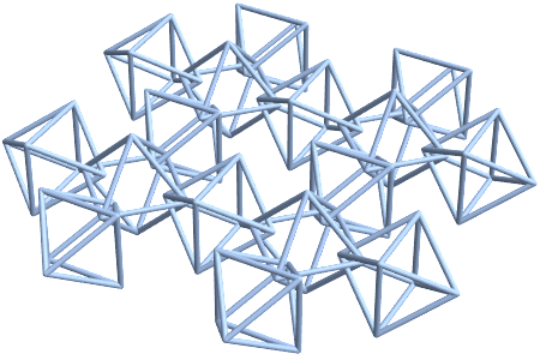

Create an octahedral chainmail mesh region:

In[10]:=
DiscretizeGraphics[ ResourceFunction[ "MakeChainmail", ResourceSystemBase -> "https://www.wolframcloud.com/obj/resourcesystem/api/1.0"]["Octahedral", 5, 5]]
Out[10]=

Neat Examples (2)

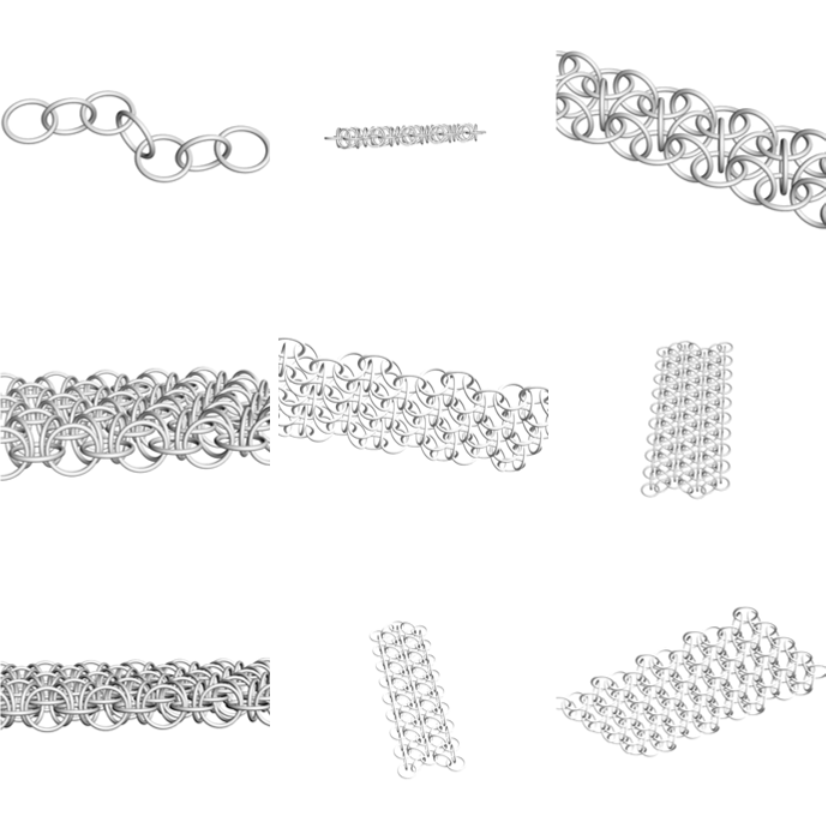

Generate graphics of the Japanese 6-in-1 chainmail with randomized viewing parameters:

In[11]:=
Grid[Partition[Table[ Rasterize[ ResourceFunction[ "MakeChainmail", ResourceSystemBase -> "https://www.wolframcloud.com/obj/resourcesystem/api/1.0"]["Japanese6In1", RandomInteger[{1, 10}], RandomInteger[{1, 10}], Boxed -> False, ViewPoint -> RandomReal[{-3, 3}, 3], ViewAngle -> RandomReal[{\[Pi]/16, \[Pi]/8}], Lighting -> RandomChoice[{"Standard", "Neutral", "Accent", "ThreePoint"}]]], 9], 3]]
Out[11]=

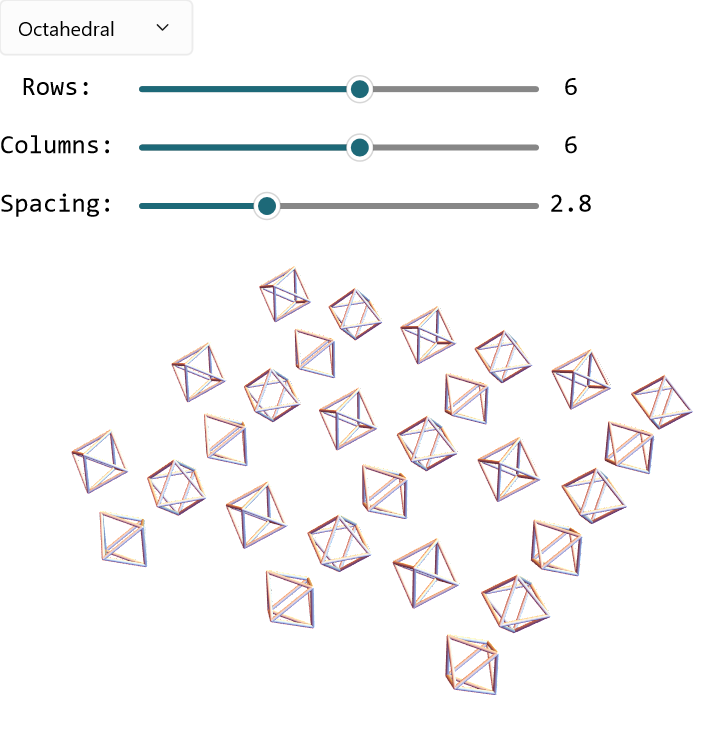

Dynamically adjust the spacing for each chainmail type:

In[12]:=
DynamicModule[ {type = "European4In1", rows, cols, spacing}, Column[{ PopupMenu[ Dynamic[type], {"European4In1", "Square4In1", "Japanese6In1", "Octahedral"}], Grid[{ {"Rows: ", Slider[Dynamic[rows], {1, 10, 1}], Dynamic[rows]}, {"Columns: ", Slider[Dynamic[cols], {1, 10, 1}], Dynamic[cols]}, {"Spacing: ", Slider[Dynamic[spacing], {0.5, 8, 0.1}], Dynamic[spacing]} }], Magnify[ Dynamic[ ResourceFunction[ "MakeChainmail", ResourceSystemBase -> "https://www.wolframcloud.com/obj/resourcesystem/api/1.0"][type, {0, 0, 0}, rows, cols, spacing, \[Pi]/ 8, Boxed -> False] ], 2 ] }] ]
Out[12]=
