HertzsprungRussellDiagram

Source Notebook

Plot the position of stars in a Hertzsprung–Russell diagram

Contributed by: Jeff Bryant

ResourceFunction["HertzsprungRussellDiagram"][]

plots the position of the Sun on a Hertzsprung–Russell diagram.

ResourceFunction["HertzsprungRussellDiagram"][entities]

plots the position of the specified entities on a Hertzsprung–Russell diagram.

Details and Options

Valid domains for entities or entity classes must be from the "Star" domain.

Examples

Basic Examples

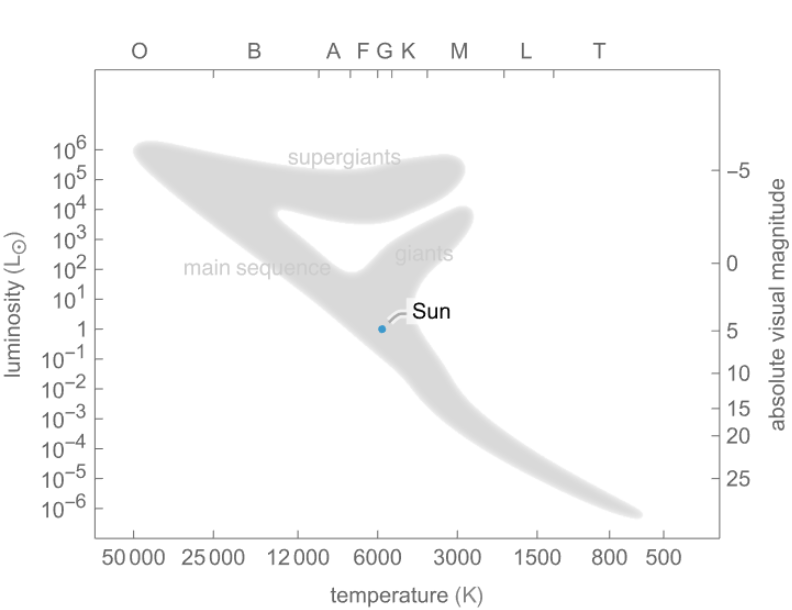

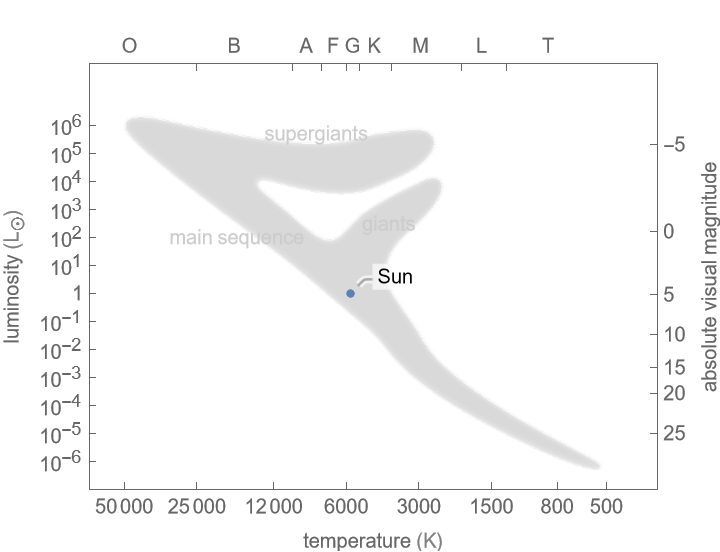

Plot the position of the Sun on the Hertzsprung–Russell diagram:

In[1]:=
ResourceFunction["HertzsprungRussellDiagram"][]
Out[1]=

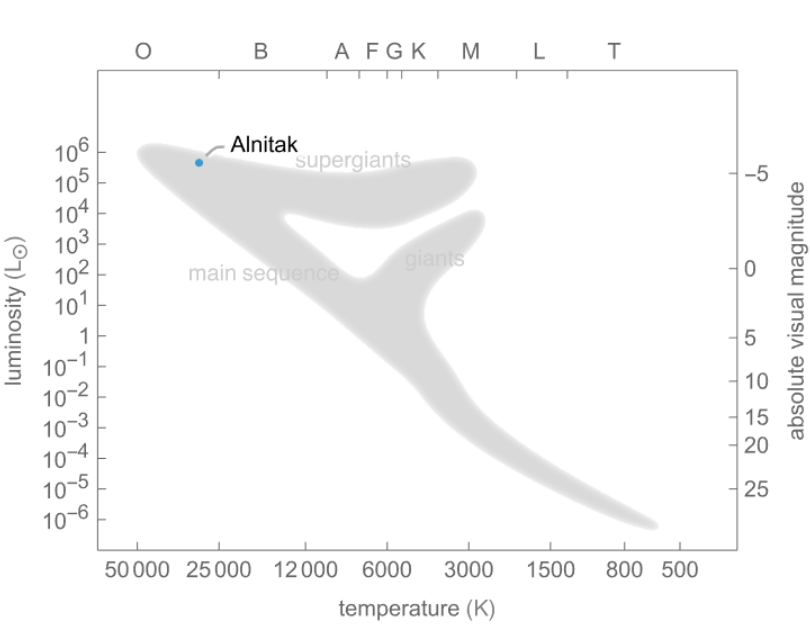

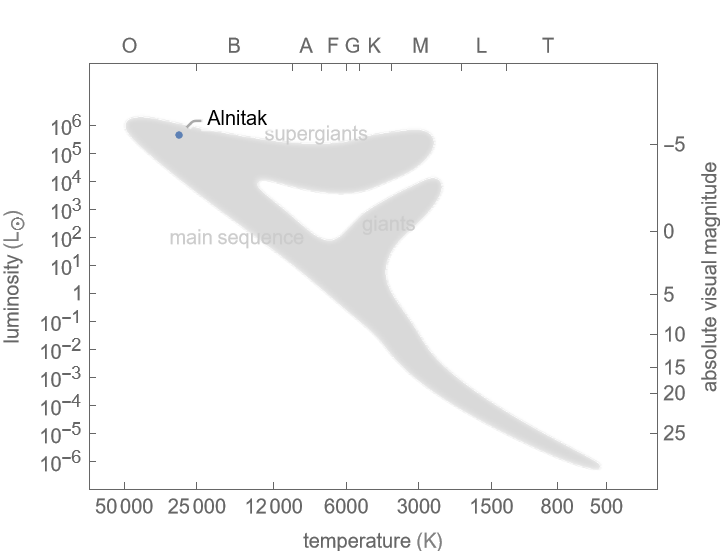

Plot the position of other stars on the Hertzsprung–Russell diagram:

In[2]:=
ResourceFunction["HertzsprungRussellDiagram"][
 Entity["Star", "Alnitak"]]
Out[2]=

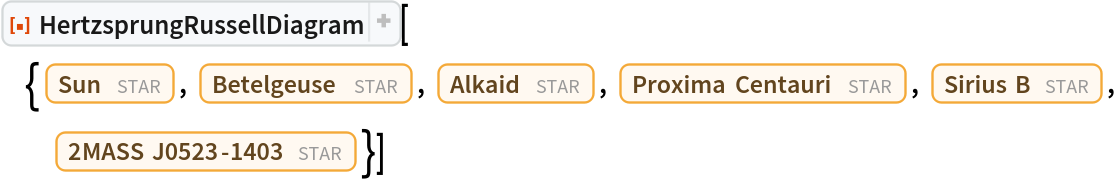

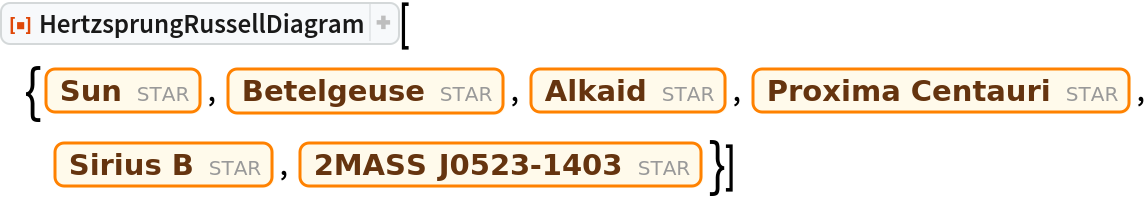

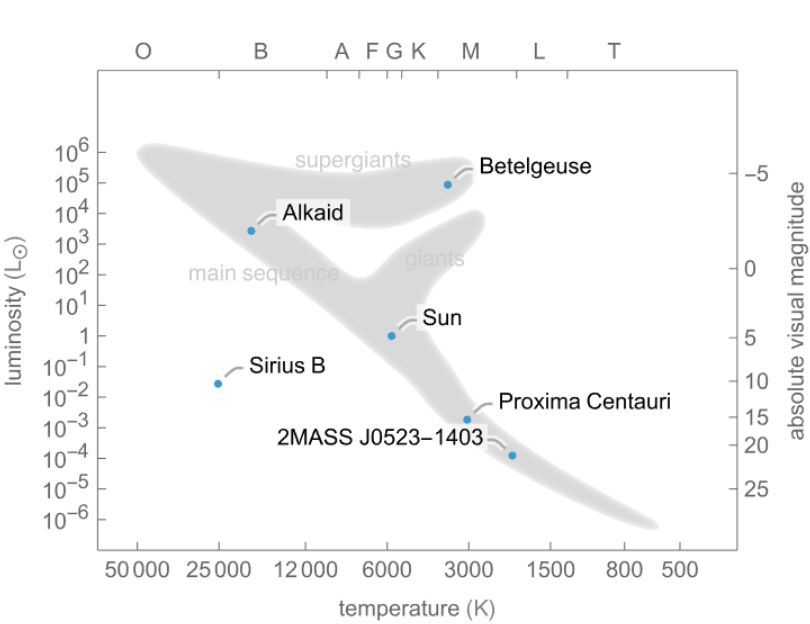

Plot multiple stars on the Hertzsprung–Russell diagram:

In[3]:=
ResourceFunction[
 "HertzsprungRussellDiagram"][{Entity["Star", "Sun"], Entity["Star", "Betelgeuse"], Entity["Star", "Alkaid"], Entity["Star", "ProximaCentauri"], Entity["Star", "SiriusB"], Entity["Star", "2MASSJ0523Minus1403"]}]
Out[3]=

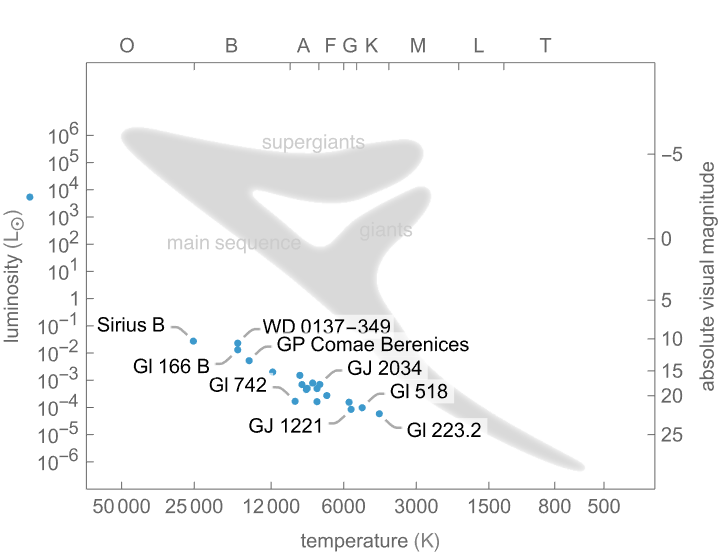

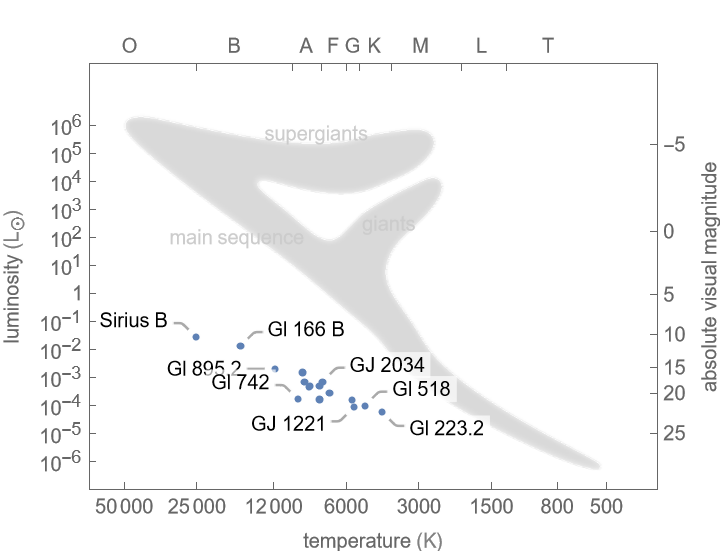

Plot entity classes of stars on the Hertzsprung–Russell diagram:

In[4]:=
ResourceFunction["HertzsprungRussellDiagram"][
 EntityClass["Star", "WhiteDwarfStar"]]
Out[4]=

Options

HertzsprungRussellDiagram takes the same options as ListPlot, but the following options are of particular interest:

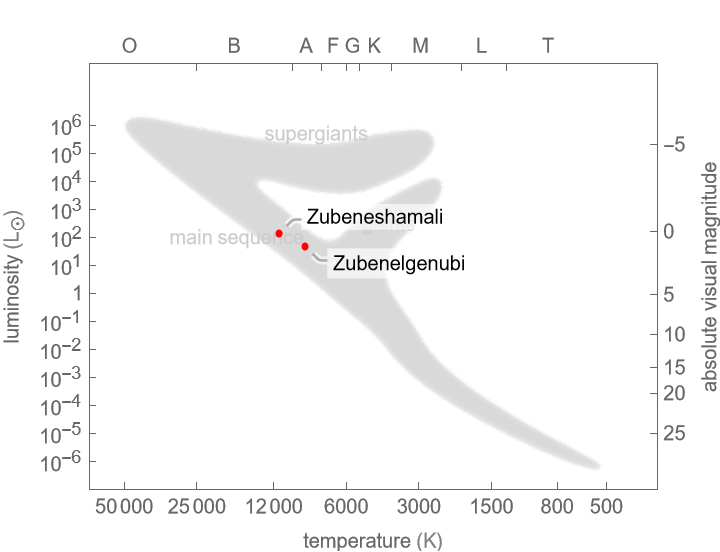

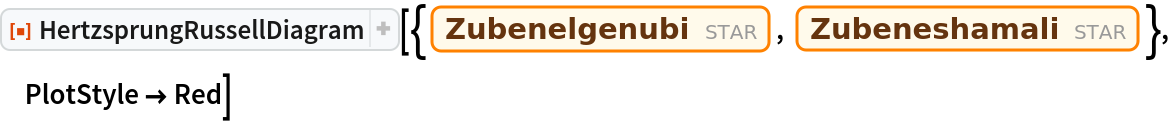

In[5]:=
ResourceFunction[
 "HertzsprungRussellDiagram"][{Entity["Star", "Zubenelgenubi"], Entity["Star", "Zubeneshamali"]}, PlotStyle -> Red]
Out[5]=

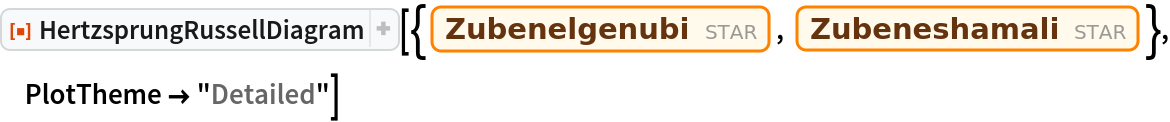

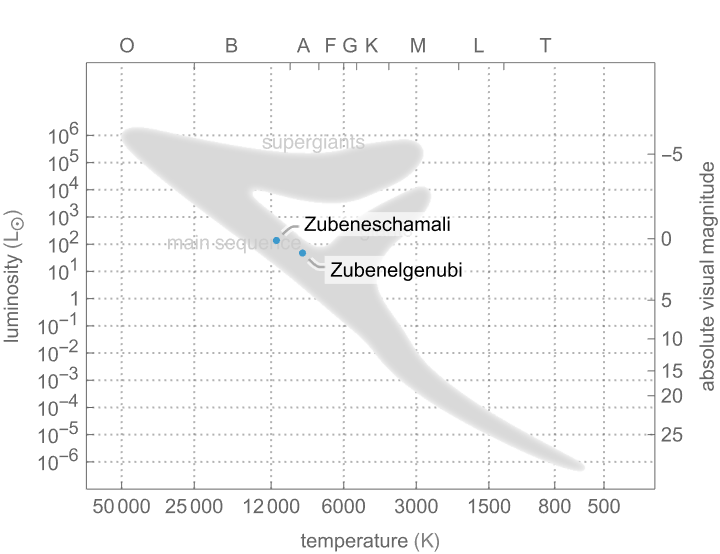

In[6]:=
ResourceFunction[
 "HertzsprungRussellDiagram"][{Entity["Star", "Zubenelgenubi"], Entity["Star", "Zubeneshamali"]}, PlotTheme -> "Detailed"]
Out[6]=
