Function Repository Resource:

GaussianQuadratureWeights

Get a numerically sorted list of abscissa-weight pairs for Gaussian quadrature

Contributed by: Paul Abbott (additional contributions by Wolfram Research staff)

ResourceFunction["GaussianQuadratureWeights"][n,{a,b}]

gives a list of the n pairs {x_i,w_i} of the elementary n-point Gaussian formula for quadrature on the interval a to b, where w_i is the weight of the abscissa x_i.

ResourceFunction["GaussianQuadratureWeights"][n,{a,b},prec]

uses the working precision prec.

Details and Options

Gaussian quadrature approximates the value of an integral as a linear combination of values of the integrand evaluated at optimal abscissas x_i:

The abscissas are optimal in the sense that the quadrature formula is exact for all polynomials up to degree 2n-1.

The precision argument acts similarly to the WorkingPrecision option used in many Wolfram Language numeric functions; it is not at all like the PrecisionGoal option. If the n argument is too small to allow for a high-precision result, extra precision in a result will not be meaningful.

Examples

Basic Examples (3)

The abscissas and weights for a 10-point quadrature on a given interval:

In[1]:=

Out[1]=

The exact abscissas and weights:

In[2]:=

Out[2]=

Use the specified precision:

In[3]:=

Out[3]=

Applications (3)

Use the Gaussian quadrature to approximate the area under a curve:

In[4]:=

Out[4]=

Plot the curve over a given interval:

In[5]:=

Out[5]=

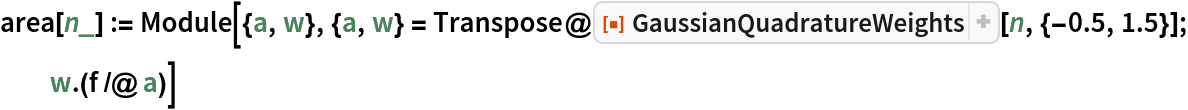

Approximate the area under the curve for a specific n:

In[6]:=

$area[n_] := Module[{a, w}, {a, w} = Transpose@ ResourceFunction["GaussianQuadratureWeights"][n, {-0.5, 1.5}]; w . (f /@ a)]$

In[7]:=

Out[7]=

Compare to the output of NIntegrate:

In[8]:=

Out[8]=

In[9]:=

Out[9]=

The difference in Gaussian quadratures of two different orders:

In[10]:=

Out[10]=

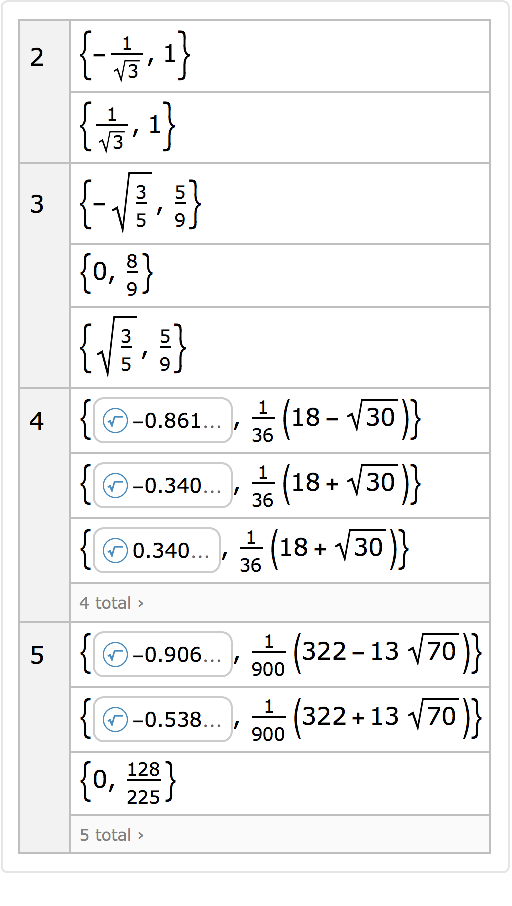

The abscissas and weights for an n-point quadrature on {-1,1} for n=2 … 5:

In[11]:=

Out[11]=

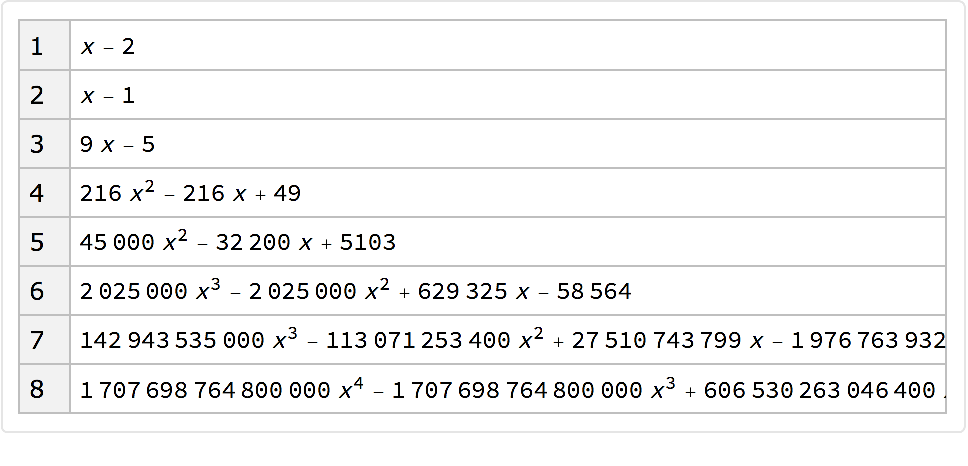

The triangle of polynomials whose roots determine the weights for n up to 8:

In[12]:=

Dataset@Table[
Association[
n -> TraditionalForm@
MinimalPolynomial[
ResourceFunction["GaussianQuadratureWeights"][n, {-1, 1}][[1, 2]], x]], {n, 8}]

Out[12]=

Properties and Relations (3)

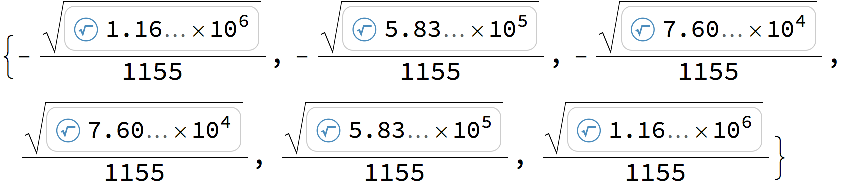

For the interval {-1,1}, abscissas for the n-point Gaussian quadrature are the roots of the Legendre polynomial P_n(x):

In[13]:=

In[14]:=

In[15]:=

Out[15]=

In[16]:=

Out[16]=

The weights at abscissas x_i are 2(1-x_i²)/((n+1)²P_n+1(x_i))²):

In[17]:=

Out[17]=

In[18]:=

$% === (Table[( 2 (1 - xx[[i]]^2))/((n + 1)^2 LegendreP[n + 1, xx[[i]]]^2), {i, n}] // Simplify)$

Out[18]=

The sum of the weights is exactly 2:

In[19]:=

Out[19]=

Resource function GaussianQuadratureError gives an upper bound of the error in the weights used for the approximation:

In[20]:=

Out[20]=

The abscissas and weights for the elementary n-point Gaussian quadrature are related to the eigensystem of the n⨯n symmetric tridiagonal Gaussian quadrature matrix:

In[21]:=
