Basic Examples (2)

Compute the three contact parabolas given affine contact locations on each side of the reference triangle opposite to the vertices:

In[1]:=

Out[2]=

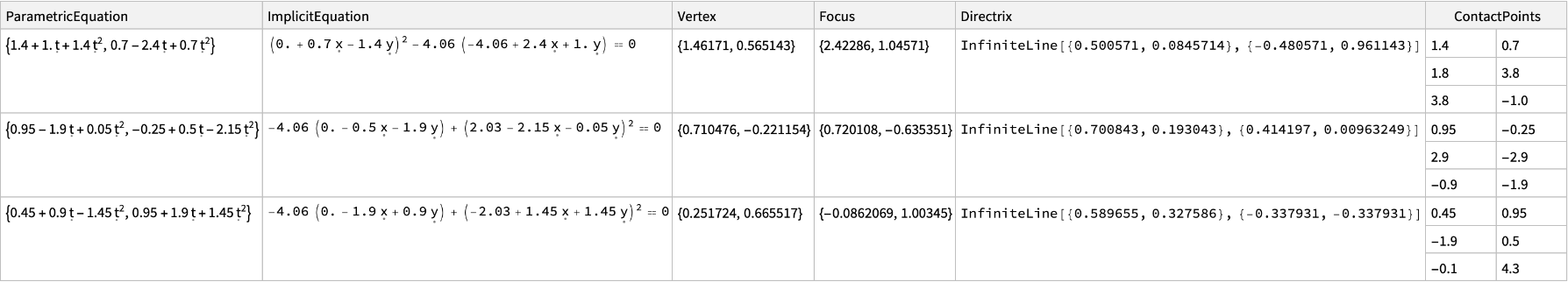

Tabulate the results above:

In[3]:=

Out[3]=

Scope (2)

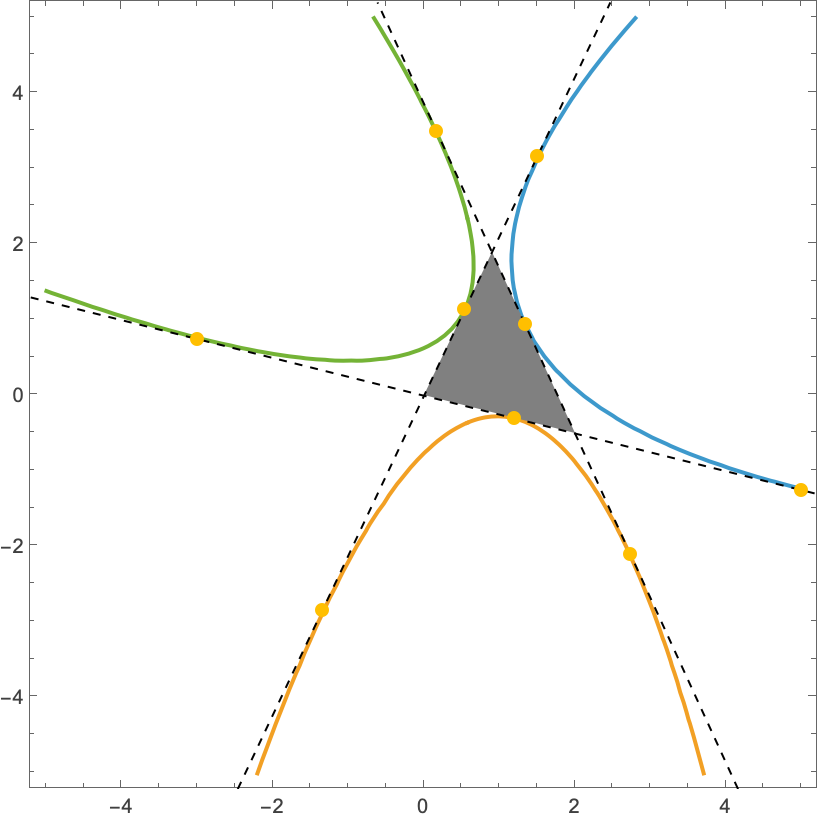

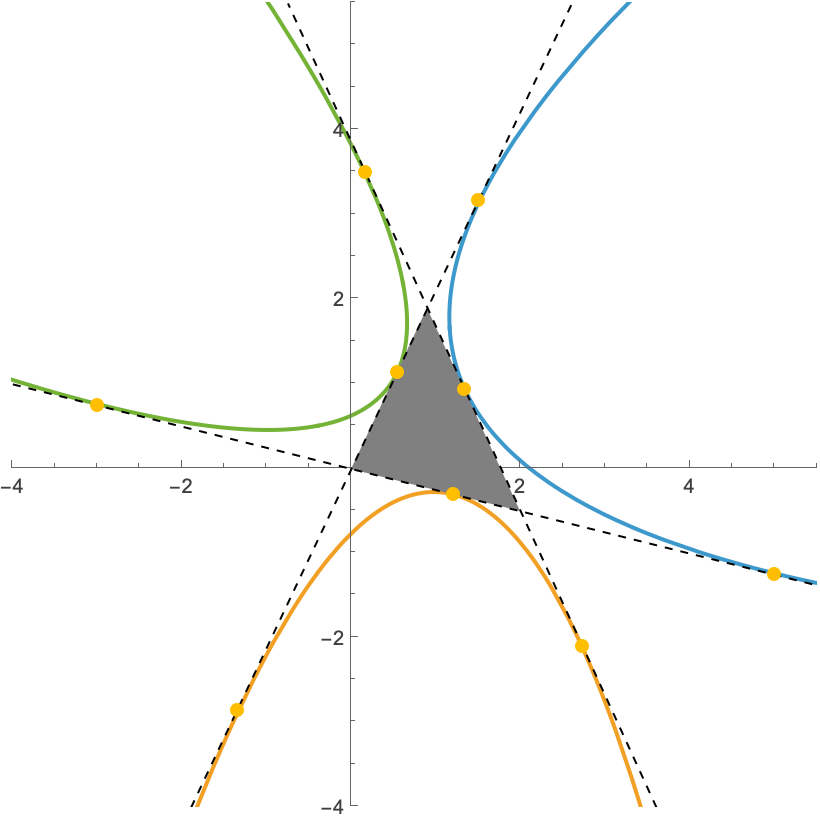

Visualize three external contact parabolas, the contact points and the reference triangle using ContourPlot:

In[4]:=

In[5]:=

Out[5]=

Visualize three external contact parabolas and the reference triangle using ParametricPlot with parametric expressions:

In[6]:=

Out[7]=

In[8]:=

Out[8]=

Properties and Relations (3)

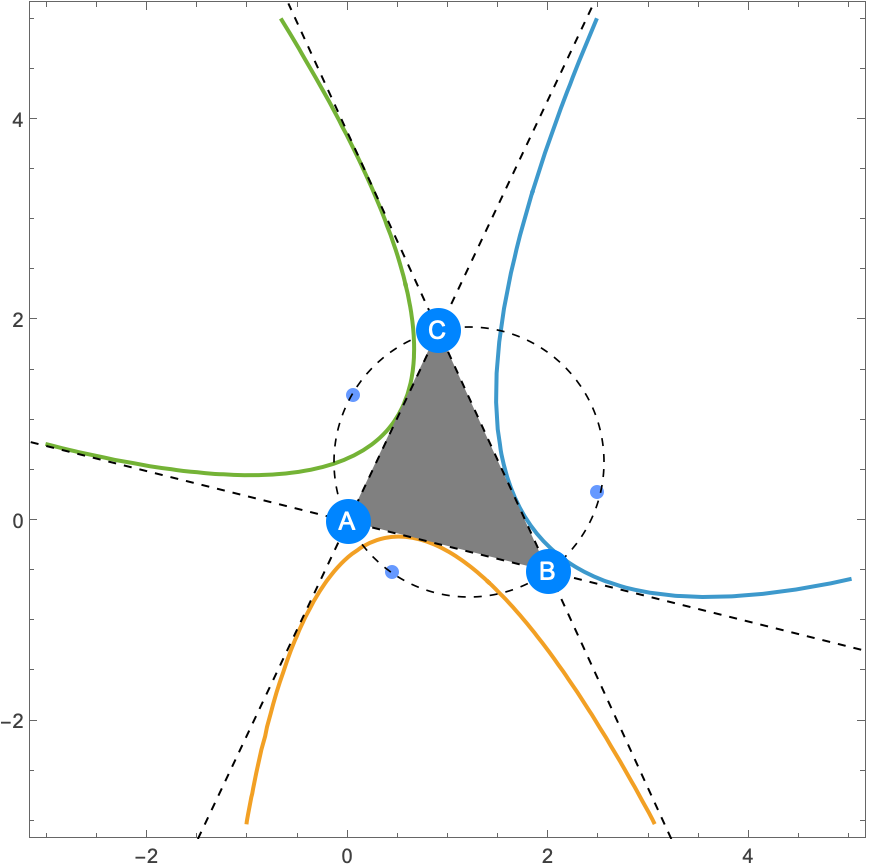

Visualize three external contact parabolas and their foci (blue). The foci are on the circumcircle of triangle ABC according to Lambert's theorem:

In[9]:=

In[10]:=

In[11]:=

Out[11]=

The lines (orange) that link contact points and opposite vertices are concurrent at the generalized Gergonne point:

In[12]:=

In[13]:=

Out[13]=

The area of the triangle formed by the contacts is always twice the area of the reference triangle:

In[14]:=

Out[14]=

The directrix (orange) of the external contact parabola passes through the orthocenter H of the reference triangle ABC:

In[15]:=

In[16]:=

Out[16]=

Possible Issues (2)

Exparabola does not evaluate for degenerate triangles:

In[17]:=

Out[18]=

Exparabola does not evaluate if the affine location of the contact point is not strictly within the side of the triangle:

In[19]:=

Out[20]=

Neat Examples (2)

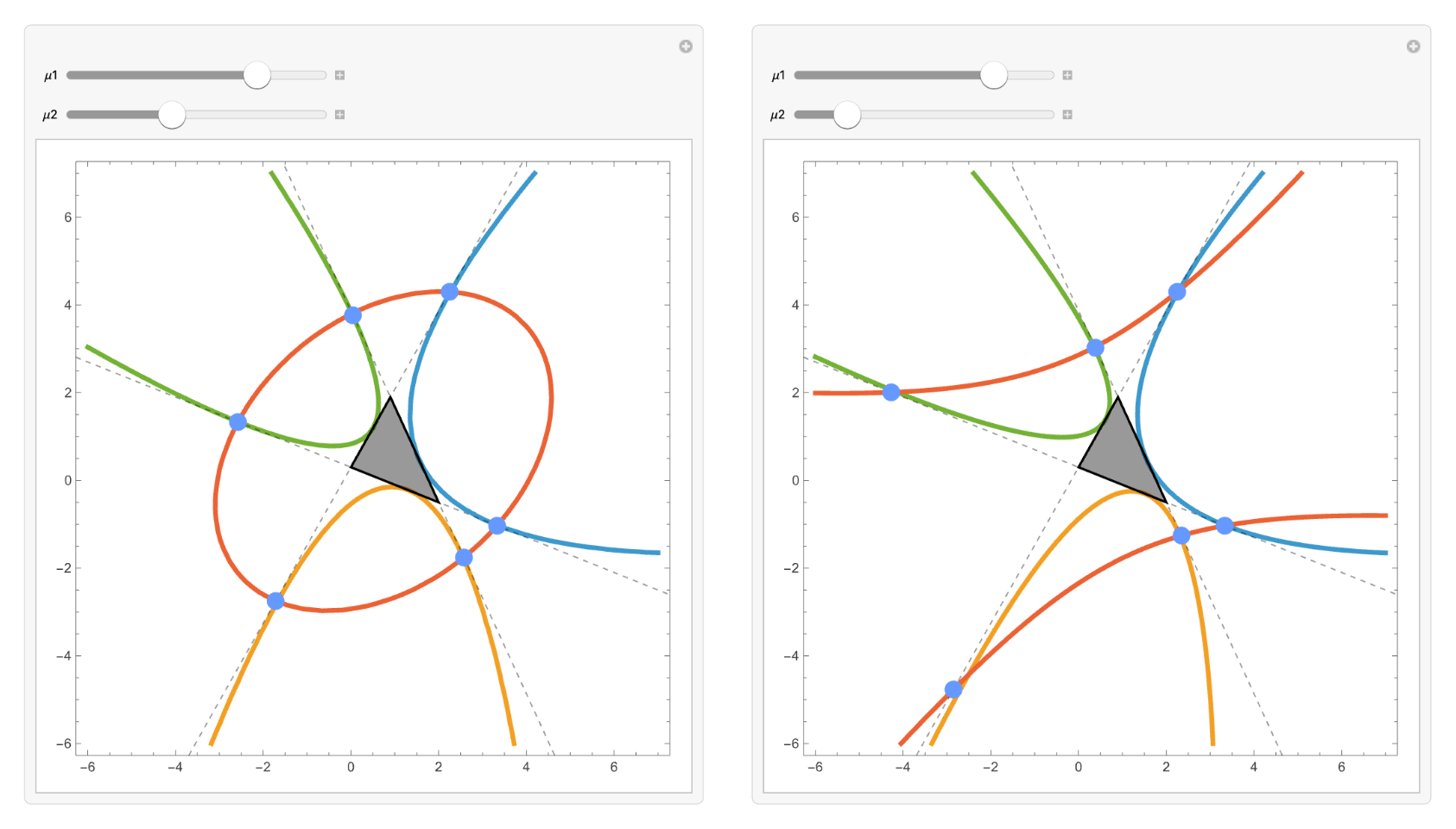

Plot the external contact parabolas by fixing the first affine parameter. According to Pascal's theorem, there are infinite number of set of {μ₁,μ₂} in the configuration below such that the six external contact points (on the extension line of each side) share the same conic section:

In[21]:=

In[22]:=

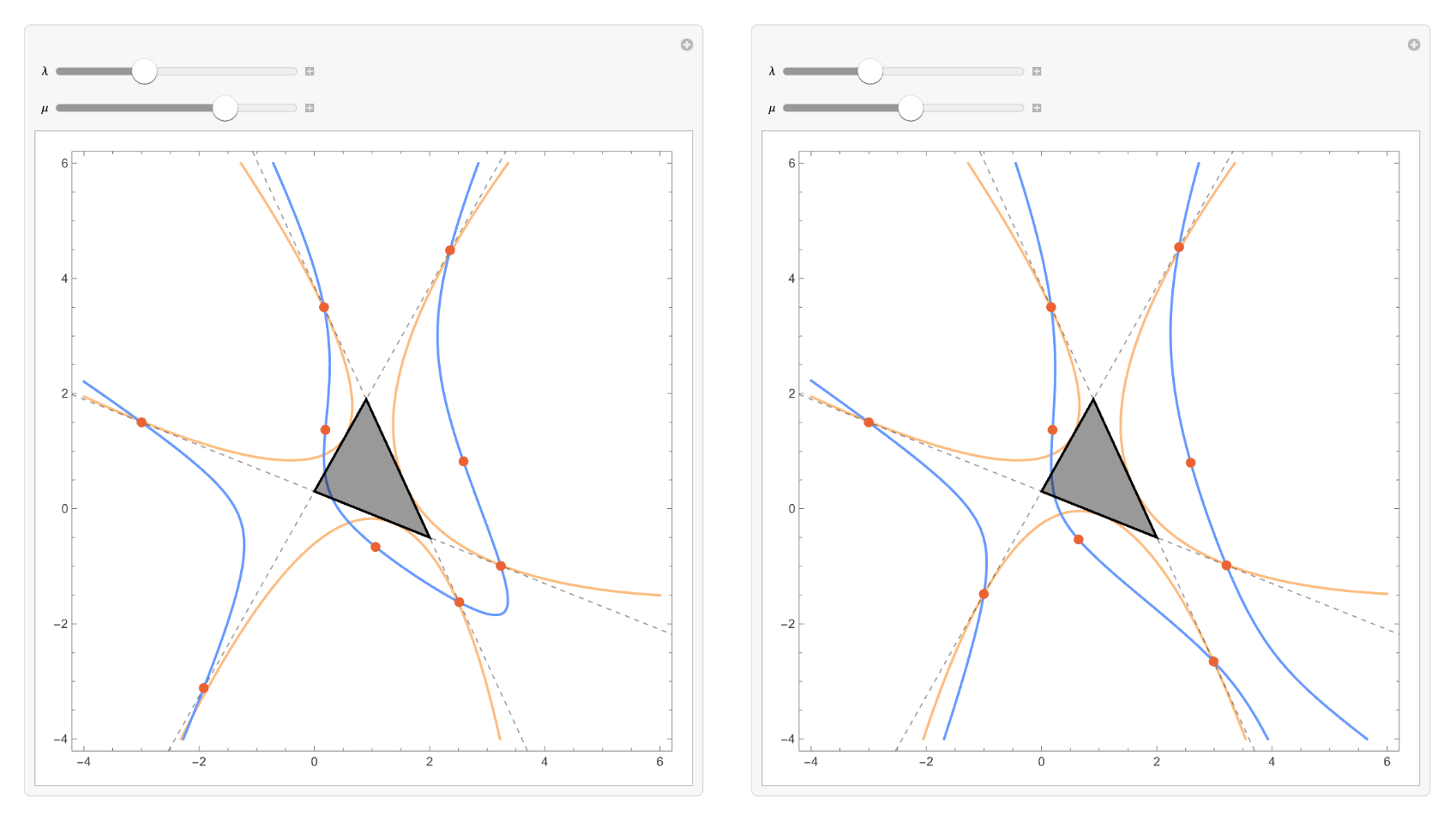

Nine point cubic curves pass though six external tangent point and three foci:

In[23]:=

In[24]:=
