 DragGraphVertices

Source Notebook

Dynamically drag around the vertices of a graph

Contributed by: Nikolay Murzin

ResourceFunction["DragGraphVertices"][g]

makes an interactive graphics of a graph g with draggable vertices.

ResourceFunction["DragGraphVertices"][Dynamic[g]]

creates a dynamic control that modifies graph g.

Details and Options

Without a Dynamic wrapper, the modified graph would be stored in the newly created global unique $DragGraphVerticesGraphXXXX variables, where XXXX is a unique integer.

Examples

Basic Examples (1)

Drag around graph vertices:

In[1]:=
ResourceFunction["DragGraphVertices"]@RandomGraph[{8, 16}]

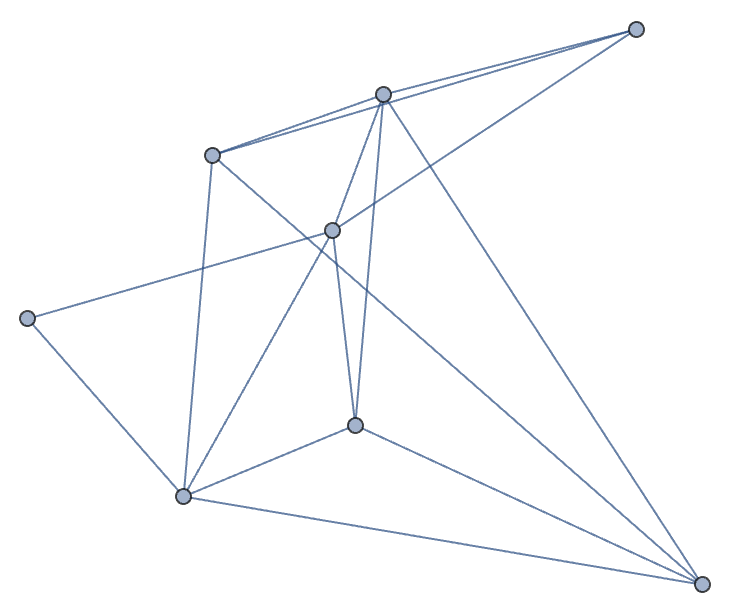

Out[1]=

Scope (1)

Modify an existing graph using Dynamic wrapper:

In[2]:=
graph = RandomGraph[{8, 16}]

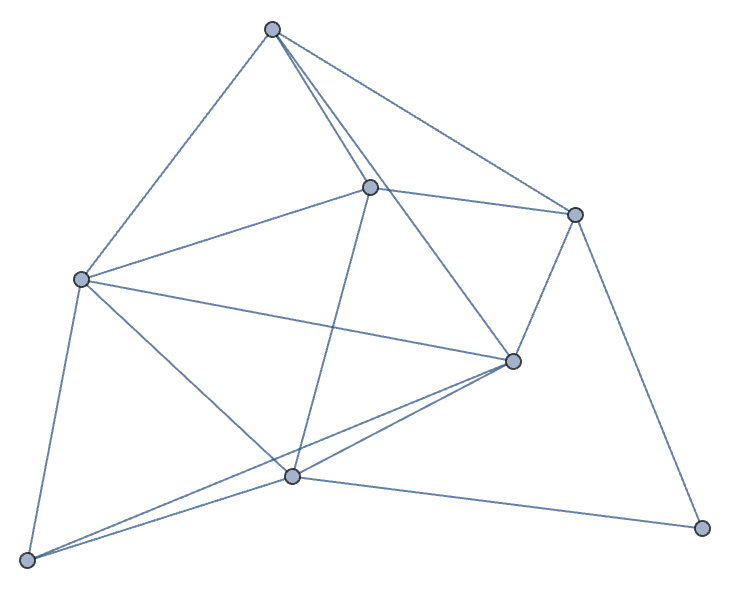

Out[2]=
In[3]:=
ResourceFunction["DragGraphVertices"][Dynamic[graph]]
Out[3]=
In[4]:=
{ResourceFunction["DragGraphVertices"][Dynamic[graph]], Dynamic[graph]}

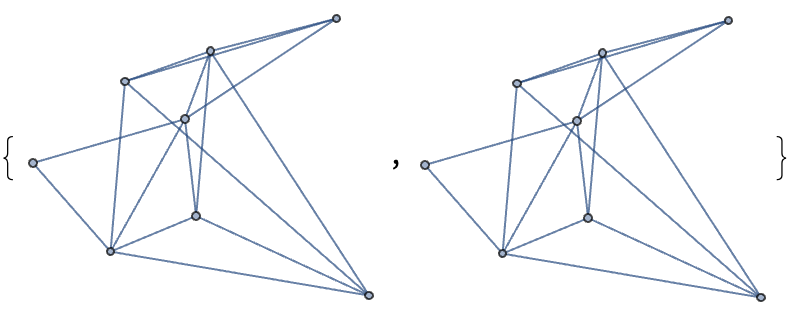

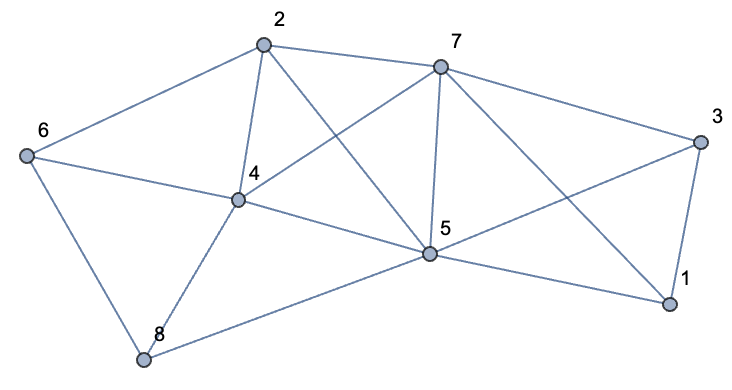

Out[4]=

Options (2)

DragGraphVertices accepts LocatorPane options:

In[5]:=
ResourceFunction["DragGraphVertices"][RandomGraph[{8, 16}], Appearance -> Automatic]
Out[5]=

DragGraphVertices accepts Graph options:

In[6]:=
ResourceFunction["DragGraphVertices"][RandomGraph[{8, 16}], VertexLabels -> Automatic]

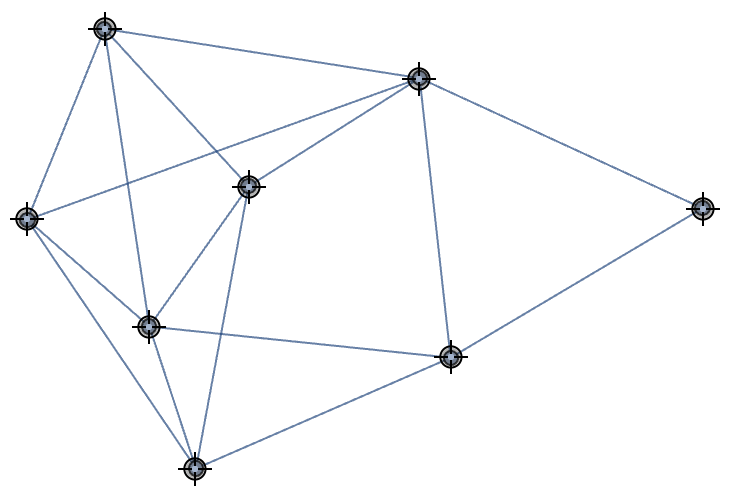

Out[6]=
