Function Repository Resource:

CycleAdd

Source Notebook

Add a cycle graph to an existing graph

Contributed by: Alejandra Ortiz Duran

ResourceFunction["CycleAdd"][g,v]

adds a cycle graph, generated from the specified vertices v, to the graph g.

Details and Options

A cycle will be constructed from the nodes v and added to the graph.

ResourceFunction["CycleAdd"] generates a Graph object.

ResourceFunction["CycleAdd"] takes the same options as Graph.

ResourceFunction["CycleAdd"] works with undirected graphs, directed graphs, multigraphs, and mixed graphs.

Examples

Basic Examples (1)

Add a cycle to a graph:

In[1]:=

$ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6, 7, 8}, {Null, SparseArray[ Automatic, {8, 8}, 0, {1, {{0, 2, 4, 6, 8, 10, 12, 14, 16}, {{2}, {8}, {1}, { 3}, {2}, {4}, {3}, {5}, {4}, {6}, {5}, {7}, {6}, {8}, { 1}, {7}}}, Pattern}]}, {GraphLayout -> "CircularEmbedding", ImageSize -> Tiny, PlotTheme -> "Detailed"}]]}, TagBox[GraphicsGroupBox[{ {Hue[0.6, 0.7, 0.5], Opacity[0.7], TagBox[ TooltipBox[ TagBox[LineBox[{DynamicLocation["VertexID$1", Automatic, Center], DynamicLocation["VertexID$2", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$1"], RowBox[{"1", "\[UndirectedEdge]", "2"}]], Annotation[#, UndirectedEdge[1, 2], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[LineBox[{DynamicLocation["VertexID$1", Automatic, Center], DynamicLocation["VertexID$8", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$2"], RowBox[{"1", "\[UndirectedEdge]", "8"}]], Annotation[#, UndirectedEdge[1, 8], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[LineBox[{DynamicLocation["VertexID$2", Automatic, Center], DynamicLocation["VertexID$3", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$3"], RowBox[{"2", "\[UndirectedEdge]", "3"}]], Annotation[#, UndirectedEdge[2, 3], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[LineBox[{DynamicLocation["VertexID$3", Automatic, Center], DynamicLocation["VertexID$4", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$4"], RowBox[{"3", "\[UndirectedEdge]", "4"}]], Annotation[#, UndirectedEdge[3, 4], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[LineBox[{DynamicLocation["VertexID$4", Automatic, Center], DynamicLocation["VertexID$5", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$5"], RowBox[{"4", "\[UndirectedEdge]", "5"}]], Annotation[#, UndirectedEdge[4, 5], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[LineBox[{DynamicLocation["VertexID$5", Automatic, Center], DynamicLocation["VertexID$6", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$6"], RowBox[{"5", "\[UndirectedEdge]", "6"}]], Annotation[#, UndirectedEdge[5, 6], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[LineBox[{DynamicLocation["VertexID$6", Automatic, Center], DynamicLocation["VertexID$7", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$7"], RowBox[{"6", "\[UndirectedEdge]", "7"}]], Annotation[#, UndirectedEdge[6, 7], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[LineBox[{DynamicLocation["VertexID$7", Automatic, Center], DynamicLocation["VertexID$8", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$8"], RowBox[{"7", "\[UndirectedEdge]", "8"}]], Annotation[#, UndirectedEdge[7, 8], "Tooltip"]& ]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], TagBox[{ TagBox[DiskBox[{-0.707106781186548, 0.7071067811865482}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$1"], InsetBox["1", Dynamic[ DynamicLocation[ "VertexID$1", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$1", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$1", Automatic, {Left, Bottom}]) (( 1 + {-0.9999999999999997, 1.})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$1", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$1", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$1", Automatic, {Left, Bottom}]) {-0.9999999999999997, 1.}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$1"], TagBox[{ TagBox[DiskBox[{-7.044813998280222*^-16, 1.}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$2"], InsetBox["2", Dynamic[ DynamicLocation[ "VertexID$2", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$2", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$2", Automatic, {Left, Bottom}]) (( 1 + {-7.044813998280222*^-16, 1.})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$2", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$2", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$2", Automatic, {Left, Bottom}]) {-7.044813998280222*^-16, 1.}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$2"], TagBox[{ TagBox[DiskBox[{0.707106781186547, 0.7071067811865467}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$3"], InsetBox["3", Dynamic[ DynamicLocation[ "VertexID$3", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$3", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$3", Automatic, {Left, Bottom}]) (( 1 + {1., 0.9999999999999996})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$3", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$3", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$3", Automatic, {Left, Bottom}]) {1., 0.9999999999999996}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$3"], TagBox[{ TagBox[DiskBox[{1., -1.133107779529596*^-15}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$4"], InsetBox["4", Dynamic[ DynamicLocation[ "VertexID$4", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$4", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$4", Automatic, {Left, Bottom}]) (( 1 + {1., -1.133107779529596*^-15})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$4", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$4", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$4", Automatic, {Left, Bottom}]) { 1., -1.133107779529596*^-15}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$4"], TagBox[{ TagBox[DiskBox[{0.7071067811865481, -0.7071067811865483}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$5"], InsetBox["5", Dynamic[ DynamicLocation[ "VertexID$5", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$5", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$5", Automatic, {Left, Bottom}]) (( 1 + {0.9999999999999997, -1.})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$5", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$5", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$5", Automatic, {Left, Bottom}]) { 0.9999999999999997, -1.}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$5"], TagBox[{ TagBox[DiskBox[{6.049014748177263*^-16, -1.}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$6"], InsetBox["6", Dynamic[ DynamicLocation[ "VertexID$6", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$6", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$6", Automatic, {Left, Bottom}]) (( 1 + {6.049014748177263*^-16, -1.})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$6", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$6", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$6", Automatic, {Left, Bottom}]) { 6.049014748177263*^-16, -1.}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$6"], TagBox[{ TagBox[DiskBox[{-0.707106781186547, -0.7071067811865468}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$7"], InsetBox["7", Dynamic[ DynamicLocation[ "VertexID$7", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$7", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$7", Automatic, {Left, Bottom}]) (( 1 + {-1., -0.9999999999999997})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$7", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$7", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$7", Automatic, {Left, Bottom}]) {-1., -0.9999999999999997}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$7"], TagBox[{ TagBox[DiskBox[{-1., 1.0106430996148606`*^-15}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$8"], InsetBox["8", Dynamic[ DynamicLocation[ "VertexID$8", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$8", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$8", Automatic, {Left, Bottom}]) (( 1 + {-1., 1.0106430996148606`*^-15})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$8", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$8", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$8", Automatic, {Left, Bottom}]) {-1., 1.0106430996148606`*^-15}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$8"]}}], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->"NetworkGraphics", FormatType->TraditionalForm, FrameTicks->None, ImageSize->{107.52734375, 107.3570204375}]\), {8, 9, 10, 11, 12, 13, 14}, PlotTheme -> "Detailed"]$

Out[1]=

Scope (7)

Works with undirected graphs:

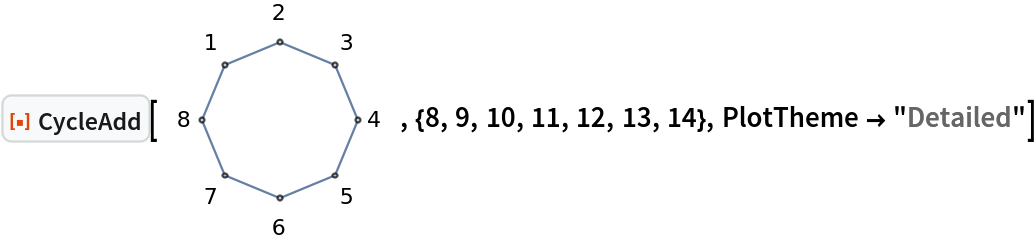

In[2]:=

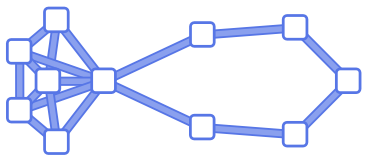

Out[2]=

Directed graphs:

In[3]:=

$ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6, 7, 8}, { SparseArray[ Automatic, {8, 8}, 0, {1, {{0, 1, 2, 3, 4, 5, 6, 7, 8}, {{2}, {3}, {4}, {5}, { 6}, {7}, {8}, {1}}}, Pattern}], Null}, {GraphLayout -> "CircularEmbedding", ImageSize -> Tiny, PlotTheme -> "Detailed"}]]}, TagBox[GraphicsGroupBox[{ {Hue[0.6, 0.7, 0.5], Opacity[0.7], Arrowheads[Medium], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$1", Automatic, Center], DynamicLocation["VertexID$2", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$1"], RowBox[{"1", "\[DirectedEdge]", "2"}]], Annotation[#, DirectedEdge[1, 2], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$2", Automatic, Center], DynamicLocation["VertexID$3", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$2"], RowBox[{"2", "\[DirectedEdge]", "3"}]], Annotation[#, DirectedEdge[2, 3], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$3", Automatic, Center], DynamicLocation["VertexID$4", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$3"], RowBox[{"3", "\[DirectedEdge]", "4"}]], Annotation[#, DirectedEdge[3, 4], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$4", Automatic, Center], DynamicLocation["VertexID$5", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$4"], RowBox[{"4", "\[DirectedEdge]", "5"}]], Annotation[#, DirectedEdge[4, 5], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$5", Automatic, Center], DynamicLocation["VertexID$6", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$5"], RowBox[{"5", "\[DirectedEdge]", "6"}]], Annotation[#, DirectedEdge[5, 6], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$6", Automatic, Center], DynamicLocation["VertexID$7", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$6"], RowBox[{"6", "\[DirectedEdge]", "7"}]], Annotation[#, DirectedEdge[6, 7], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$7", Automatic, Center], DynamicLocation["VertexID$8", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$7"], RowBox[{"7", "\[DirectedEdge]", "8"}]], Annotation[#, DirectedEdge[7, 8], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$8", Automatic, Center], DynamicLocation["VertexID$1", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$8"], RowBox[{"8", "\[DirectedEdge]", "1"}]], Annotation[#, DirectedEdge[8, 1], "Tooltip"]& ]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], TagBox[{ TagBox[DiskBox[{-0.707106781186548, 0.7071067811865482}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$1"], InsetBox["1", Dynamic[ DynamicLocation[ "VertexID$1", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$1", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$1", Automatic, {Left, Bottom}]) (( 1 + {-0.9999999999999997, 1.})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$1", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$1", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$1", Automatic, {Left, Bottom}]) {-0.9999999999999997, 1.}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$1"], TagBox[{ TagBox[DiskBox[{-1., 1.0106430996148606`*^-15}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$2"], InsetBox["2", Dynamic[ DynamicLocation[ "VertexID$2", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$2", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$2", Automatic, {Left, Bottom}]) (( 1 + {-1., 1.0106430996148606`*^-15})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$2", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$2", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$2", Automatic, {Left, Bottom}]) {-1., 1.0106430996148606`*^-15}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$2"], TagBox[{ TagBox[DiskBox[{-0.707106781186547, -0.7071067811865468}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$3"], InsetBox["3", Dynamic[ DynamicLocation[ "VertexID$3", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$3", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$3", Automatic, {Left, Bottom}]) (( 1 + {-1., -0.9999999999999997})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$3", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$3", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$3", Automatic, {Left, Bottom}]) {-1., -0.9999999999999997}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$3"], TagBox[{ TagBox[DiskBox[{6.049014748177263*^-16, -1.}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$4"], InsetBox["4", Dynamic[ DynamicLocation[ "VertexID$4", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$4", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$4", Automatic, {Left, Bottom}]) (( 1 + {6.049014748177263*^-16, -1.})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$4", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$4", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$4", Automatic, {Left, Bottom}]) { 6.049014748177263*^-16, -1.}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$4"], TagBox[{ TagBox[DiskBox[{0.7071067811865481, -0.7071067811865483}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$5"], InsetBox["5", Dynamic[ DynamicLocation[ "VertexID$5", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$5", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$5", Automatic, {Left, Bottom}]) (( 1 + {0.9999999999999997, -1.})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$5", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$5", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$5", Automatic, {Left, Bottom}]) { 0.9999999999999997, -1.}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$5"], TagBox[{ TagBox[DiskBox[{1., -1.133107779529596*^-15}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$6"], InsetBox["6", Dynamic[ DynamicLocation[ "VertexID$6", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$6", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$6", Automatic, {Left, Bottom}]) (( 1 + {1., -1.133107779529596*^-15})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$6", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$6", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$6", Automatic, {Left, Bottom}]) { 1., -1.133107779529596*^-15}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$6"], TagBox[{ TagBox[DiskBox[{0.707106781186547, 0.7071067811865467}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$7"], InsetBox["7", Dynamic[ DynamicLocation[ "VertexID$7", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$7", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$7", Automatic, {Left, Bottom}]) (( 1 + {1., 0.9999999999999996})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$7", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$7", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$7", Automatic, {Left, Bottom}]) {1., 0.9999999999999996}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$7"], TagBox[{ TagBox[DiskBox[{-7.044813998280222*^-16, 1.}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$8"], InsetBox["8", Dynamic[ DynamicLocation[ "VertexID$8", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$8", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$8", Automatic, {Left, Bottom}]) (( 1 + {-7.044813998280222*^-16, 1.})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$8", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$8", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$8", Automatic, {Left, Bottom}]) {-7.044813998280222*^-16, 1.}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$8"]}}], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->"NetworkGraphics", FormatType->TraditionalForm, FrameTicks->None, ImageSize->{116.47265625, 116.2881635625}]\), {8, 9, 10, 11, 12, 13, 14}, PlotTheme -> "Detailed", DirectedEdges -> True]$

Out[3]=

Multigraphs:

In[4]:=

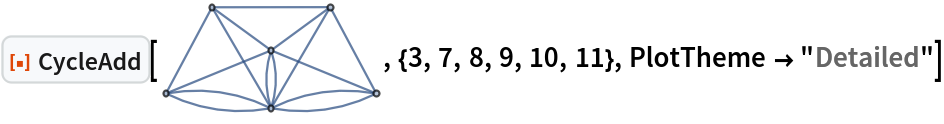

$ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6}, {Null, {{1, 2}, {1, 3}, {1, 4}, {2, 3}, {2, 4}, {2, 5}, { 3, 4}, {3, 5}, {3, 6}, {4, 5}, {4, 6}, {5, 6}, {3, 1}, {3, 6}, {3, 4}}}]]}, TagBox[GraphicsGroupBox[GraphicsComplexBox[CompressedData[" 1:eJw9k3s01Akfxqcwonq7uB6taxaVWolk2Xmm1q2OTsLGxiurGrcuWsu+eUsj irTruosiGbxviUZuNQb9EDNyp6salxAT4TdjvMQM7+w573m/53zP9zznec55 /vl+DAPOu59eTaFQGPL96ybfNGas5FLo0SZOmyeyG6HE//uwteQLIj0eeG+b n8Gy5saM77JJUP43JrnCdpu7JDbYhsblHBoG1StYW6LTj+M9tHj16Zn/5wRi dz2V8kaM12kq2qatYKjkm5TGn5/A4MJJeo3xCvJub7ExM6zE86JZ7+7KZQgH c7Y9My5D99mfU7kHlpGidWKxdLkEwy2bI+s6ZWButkyZOXUfSUGpFbo/yuAf Lghcji6E9Keb0wbDUhgEOvvtOMLCPqsDt9eHSFEfdWOhnH0HJwJ36P3eOAd/ itf9F/13iKOFne4PDs5ho/3Qrw4P84jX4pMF6JYg5Vf9DP0yFvH1McbsH8ck ICWdHh++sIipHmtXsWAWj7Yv5vjFs4iS3LDyuydnMVTlQXv/Yx5B/ebI0uiE GPTfDKPURnMID8ev8lXC5Tr5zDuN/EyiVWhfb8lYQRAnvcM8pRmaKyqBXtPL WOOdGHNmHw8XkoWlORHLWFB7/8G/nAcL362ah6QymJfFVTfIeFh4Iz5376oM nBHbwAAdPpzs5p5K18gQoNg5v3sNH+03EjekJUvBtKZZ2PF5eMrb6VCqKUUC 9Wh8oRcPH79otuw6PweX6WCGaXsdDNs7wrfMSxB0KyiCllKLpGY+W48pgYta Lum5wIXdaafP0aoScL4P9/VVqsbh+rHumIxZmDX4ml7iPIZn3GmVM8azoJyd WdyoVglp7ZxhTKUYbuVhU8WaZbAOO+Cn4CyGAb3abGtiMW4YlTrrOpIoO0vL jJlioyP6is5bCxJxXVYSSlAFKDKjQyx9Eof5fRrswCcQTbcqx24icXyVslZI eA22DDJKr1FJGNjFc7sSCCxon7x2QjaDDI6TEre3Ab8ce9i6VjIDu72ZI+Ej z7D+VGClhmgGDrTyUN+5ZqTvZTs5yH2/sV3U5pw+5P6z7M+H8r+uueJEVPzr HZTXRRpxKSSijF5tpLDfQ/vaQcfna0g0CM5Hr68SQO8Z/+yKGgnngSgXOrcf 22rTFn4wIvGPKv8WWe0Atn8ODGraQ6LPbGt7Se0gjNRNQ+kuJMa58QvHfYeg yOqZtxKTyB62eao9ysZSS8riI6oIxl93iC0CKiBdOB2iry1Ckfj1qin/J1AW W8xFmIhw5si5VSOhNfibRaluyW4Rrv5wexubSUCv6Cq9xlYEt7uryQudDTg2 r5+VSxOha1Q/XXXwGQS3WPCgi5CgdURJSDZDT6E5YWK/CBQPWW/i7T5MquRf Pi/3ld6oal0peIciM+e8ZjsR3mrsoQqK30P1dWrFzB4RfAqsdJQqBLDi7fQR m4nQUaYe68fphwnnlfZLHXk/xT/2cM0AvPdedLmjIsJ+2vO2fTWDyE47uMV7 joSN+3xIk88QkncXbHJMmAKFP22fezmTUF/fVvgp6zPoVhoX7z/OIa4/D+jt vTcJ/7fr/pyl5RHBbUveyVUTcn7+05UUxCKKdm8vYjd+AiXFnhPxhkXIDmSm 1HcJkedkXMi4ySIyngpGPfvHERZunJMUl0f4XfTZtTQ5BoOmSObm+DuE+aoQ 20XHF2AWpw1955qLrEjL2ARGD5ie3CbnPBYEKtImoWYXHmV7ZX3VW4ibjfl0 dmgbwgZ0LKur72Pi6Me03zv4YJpTOR2eDxFmlKpWTGvCW5cWqptbGThjqupG DfXwDo7mUA9XwvzQFyizuUjgu+/g5T5BlaKhA3doCkz7fxtlyXlw/UX3niV1 CmGXTOPWapXB76NdYLfJZ5A5/daNcp6u9DH4Wt9PgtmV719c/Rhel+ezk30m kBCZVWCtXI3YHR8W68M+QagVRSosccEWX5/YGyvEpRqX49PptTi1M3RDdPo4 hr6NaVrdUweb4BtLK3+8hH/bT+cmA3hoHbie5FreC+4G32bzFzwsvtpkE9HR jThFX/6wOh/7RW/WWnZ1QKAZ8NuYqVwnprqWKrTiQYZbr/k6Pl6mzjFY3/Ig NstQ4DXwkBHrqesU2YiAWxE7B1x48B4Zf/HoQh24beTHWlYz/gsAwTVQ "], { {Hue[0.6, 0.7, 0.5], Opacity[0.7], Arrowheads[0.], ArrowBox[{1, 2}, 0.023238294114515057`], ArrowBox[ BezierCurveBox[{1, { 1.5816749614414627`, -0.09828324319646761}, 3}], 0.023238294114515057`], ArrowBox[ BezierCurveBox[{1, {1.5338611410187128`, 0.24366637128910326`}, 3}], 0.023238294114515057`], ArrowBox[{1, 4}, 0.023238294114515057`], ArrowBox[{2, 3}, 0.023238294114515057`], ArrowBox[{2, 4}, 0.023238294114515057`], ArrowBox[{2, 5}, 0.023238294114515057`], ArrowBox[ BezierCurveBox[{3, {0.9443904327127498, 0.2859635975131389}, 4}], 0.023238294114515057`], ArrowBox[ BezierCurveBox[{3, {1.1323816721298898`, 0.28564423885786105`}, 4}], 0.023238294114515057`], ArrowBox[{3, 5}, 0.023238294114515057`], ArrowBox[ BezierCurveBox[{3, { 0.4949323428614221, -0.09764403070558117}, 6}], 0.023238294114515057`], ArrowBox[ BezierCurveBox[{3, {0.5429681871745602, 0.24370224661615855`}, 6}], 0.023238294114515057`], ArrowBox[{4, 5}, 0.023238294114515057`], ArrowBox[{4, 6}, 0.023238294114515057`], ArrowBox[{5, 6}, 0.023238294114515057`]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], DiskBox[1, 0.023238294114515057], DiskBox[2, 0.023238294114515057], DiskBox[3, 0.023238294114515057], DiskBox[4, 0.023238294114515057], DiskBox[5, 0.023238294114515057], DiskBox[6, 0.023238294114515057]}}]], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->"NetworkGraphics", FormatType->TraditionalForm, FrameTicks->None]\), {3, 7, 8, 9, 10, 11}, PlotTheme -> "Detailed"]$

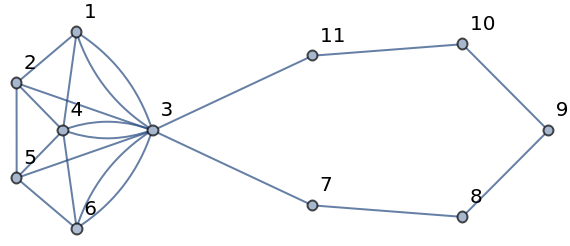

Out[4]=

Mixed graphs:

In[5]:=

$ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{2, 1, 3, 4, 5, 6}, {{{1, 2}, {4, 2}, {4, 1}, {1, 5}, {5, 4}, {4, 6}, {6, 5}}, {{3, 2}, {3, 1}, {3, 4}, {5, 3}, {6, 3}}}]]}, TagBox[GraphicsGroupBox[ GraphicsComplexBox[{{0.4551850578911978, 0.9981525468616489}, {0., 0.14598126079677531`}, { 1.0389677124195058`, 0.}, {1.039724112924609, 0.5701570146988366}, {1.6227200863036675`, 0.998361077743834}, {2.078219876386564, 0.1459015541744016}}, { {Hue[0.6, 0.7, 0.5], Opacity[0.7], Arrowheads[Medium], {Arrowheads[0.], ArrowBox[{1, 3}, 0.02324298839356595]}, ArrowBox[{1, 2}, 0.02324298839356595], ArrowBox[{1, 5}, 0.02324298839356595], {Arrowheads[0.], ArrowBox[{2, 3}, 0.02324298839356595]}, {Arrowheads[0.], ArrowBox[{3, 4}, 0.02324298839356595]}, {Arrowheads[0.], ArrowBox[{3, 5}, 0.02324298839356595]}, {Arrowheads[0.], ArrowBox[{3, 6}, 0.02324298839356595]}, ArrowBox[{4, 1}, 0.02324298839356595], ArrowBox[{4, 2}, 0.02324298839356595], ArrowBox[{4, 6}, 0.02324298839356595], ArrowBox[{5, 4}, 0.02324298839356595], ArrowBox[{6, 5}, 0.02324298839356595]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], DiskBox[1, 0.02324298839356595], DiskBox[2, 0.02324298839356595], DiskBox[3, 0.02324298839356595], DiskBox[4, 0.02324298839356595], DiskBox[5, 0.02324298839356595], DiskBox[6, 0.02324298839356595]}}]], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->"NetworkGraphics", FormatType->TraditionalForm, FrameTicks->None]\), {3, 7, 8, 9, 10}, PlotTheme -> "Detailed"]$

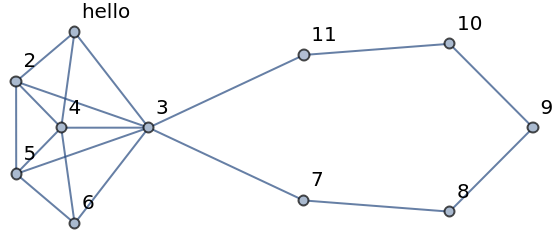

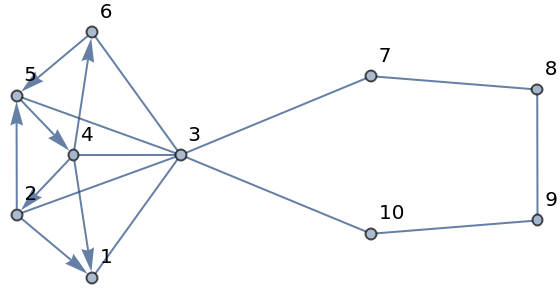

Out[5]=

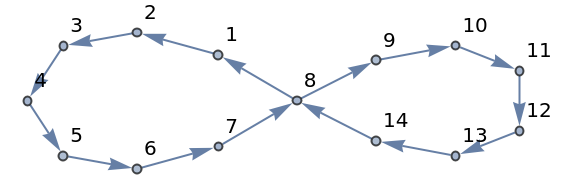

And rules to specify the graph:

In[6]:=

Out[6]=

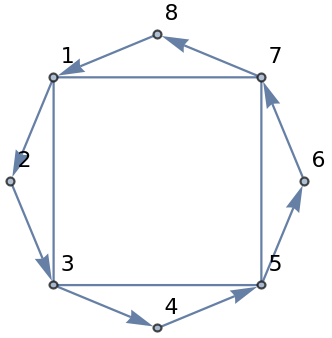

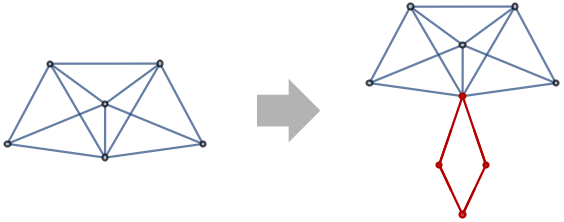

Use already existing vertices to form the cycle:

In[7]:=

$ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6, 7, 8}, { SparseArray[ Automatic, {8, 8}, 0, {1, {{0, 1, 2, 3, 4, 5, 6, 7, 8}, {{2}, {3}, {4}, {5}, { 6}, {7}, {8}, {1}}}, Pattern}], Null}, {GraphLayout -> "CircularEmbedding", ImageSize -> Tiny, PlotTheme -> "Detailed"}]]}, TagBox[GraphicsGroupBox[{ {Hue[0.6, 0.7, 0.5], Opacity[0.7], Arrowheads[Medium], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$1", Automatic, Center], DynamicLocation["VertexID$2", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$1"], RowBox[{"1", "\[DirectedEdge]", "2"}]], Annotation[#, DirectedEdge[1, 2], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$2", Automatic, Center], DynamicLocation["VertexID$3", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$2"], RowBox[{"2", "\[DirectedEdge]", "3"}]], Annotation[#, DirectedEdge[2, 3], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$3", Automatic, Center], DynamicLocation["VertexID$4", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$3"], RowBox[{"3", "\[DirectedEdge]", "4"}]], Annotation[#, DirectedEdge[3, 4], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$4", Automatic, Center], DynamicLocation["VertexID$5", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$4"], RowBox[{"4", "\[DirectedEdge]", "5"}]], Annotation[#, DirectedEdge[4, 5], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$5", Automatic, Center], DynamicLocation["VertexID$6", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$5"], RowBox[{"5", "\[DirectedEdge]", "6"}]], Annotation[#, DirectedEdge[5, 6], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$6", Automatic, Center], DynamicLocation["VertexID$7", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$6"], RowBox[{"6", "\[DirectedEdge]", "7"}]], Annotation[#, DirectedEdge[6, 7], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$7", Automatic, Center], DynamicLocation["VertexID$8", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$7"], RowBox[{"7", "\[DirectedEdge]", "8"}]], Annotation[#, DirectedEdge[7, 8], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$8", Automatic, Center], DynamicLocation["VertexID$1", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$8"], RowBox[{"8", "\[DirectedEdge]", "1"}]], Annotation[#, DirectedEdge[8, 1], "Tooltip"]& ]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], TagBox[{ TagBox[DiskBox[{-0.707106781186548, 0.7071067811865482}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$1"], InsetBox["1", Dynamic[ DynamicLocation[ "VertexID$1", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$1", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$1", Automatic, {Left, Bottom}]) (( 1 + {-0.9999999999999997, 1.})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$1", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$1", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$1", Automatic, {Left, Bottom}]) {-0.9999999999999997, 1.}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$1"], TagBox[{ TagBox[DiskBox[{-1., 1.0106430996148606`*^-15}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$2"], InsetBox["2", Dynamic[ DynamicLocation[ "VertexID$2", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$2", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$2", Automatic, {Left, Bottom}]) (( 1 + {-1., 1.0106430996148606`*^-15})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$2", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$2", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$2", Automatic, {Left, Bottom}]) {-1., 1.0106430996148606`*^-15}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$2"], TagBox[{ TagBox[DiskBox[{-0.707106781186547, -0.7071067811865468}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$3"], InsetBox["3", Dynamic[ DynamicLocation[ "VertexID$3", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$3", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$3", Automatic, {Left, Bottom}]) (( 1 + {-1., -0.9999999999999997})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$3", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$3", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$3", Automatic, {Left, Bottom}]) {-1., -0.9999999999999997}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$3"], TagBox[{ TagBox[DiskBox[{6.049014748177263*^-16, -1.}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$4"], InsetBox["4", Dynamic[ DynamicLocation[ "VertexID$4", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$4", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$4", Automatic, {Left, Bottom}]) (( 1 + {6.049014748177263*^-16, -1.})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$4", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$4", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$4", Automatic, {Left, Bottom}]) { 6.049014748177263*^-16, -1.}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$4"], TagBox[{ TagBox[DiskBox[{0.7071067811865481, -0.7071067811865483}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$5"], InsetBox["5", Dynamic[ DynamicLocation[ "VertexID$5", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$5", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$5", Automatic, {Left, Bottom}]) (( 1 + {0.9999999999999997, -1.})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$5", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$5", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$5", Automatic, {Left, Bottom}]) { 0.9999999999999997, -1.}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$5"], TagBox[{ TagBox[DiskBox[{1., -1.133107779529596*^-15}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$6"], InsetBox["6", Dynamic[ DynamicLocation[ "VertexID$6", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$6", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$6", Automatic, {Left, Bottom}]) (( 1 + {1., -1.133107779529596*^-15})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$6", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$6", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$6", Automatic, {Left, Bottom}]) { 1., -1.133107779529596*^-15}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$6"], TagBox[{ TagBox[DiskBox[{0.707106781186547, 0.7071067811865467}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$7"], InsetBox["7", Dynamic[ DynamicLocation[ "VertexID$7", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$7", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$7", Automatic, {Left, Bottom}]) (( 1 + {1., 0.9999999999999996})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$7", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$7", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$7", Automatic, {Left, Bottom}]) {1., 0.9999999999999996}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$7"], TagBox[{ TagBox[DiskBox[{-7.044813998280222*^-16, 1.}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$8"], InsetBox["8", Dynamic[ DynamicLocation[ "VertexID$8", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$8", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$8", Automatic, {Left, Bottom}]) (( 1 + {-7.044813998280222*^-16, 1.})/2)], (-2) Dynamic[ DynamicLocation[ "VertexID$8", Automatic, {Left, Bottom}] + ( DynamicLocation[ "VertexID$8", Automatic, {Right, Top}] - DynamicLocation[ "VertexID$8", Automatic, {Left, Bottom}]) {-7.044813998280222*^-16, 1.}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$8"]}}], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->"NetworkGraphics", FormatType->TraditionalForm, FrameTicks->None, ImageSize->{113.421875, 113.24221475}]\), {3, 5, 7, 1}, PlotTheme -> "Detailed"]$

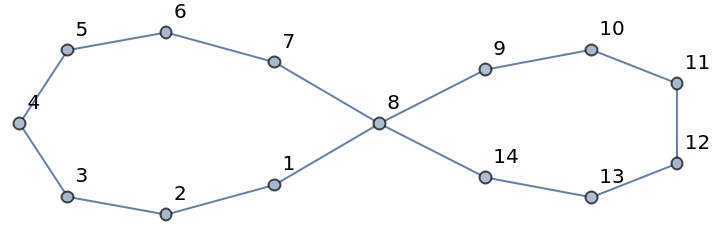

In[8]:=

$\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6, 7, 8}, {{{1, 2}, {2, 3}, {3, 4}, {4, 5}, {5, 6}, {6, 7}, {7, 8}, { 8, 1}}, {{3, 5}, {3, 1}, {5, 7}, {7, 1}}}, {PlotTheme -> "Detailed", VertexCoordinates -> {{-0.707106781186548, 0.7071067811865482}, {-1., 1.0106430996148606`*^-15}, {-0.707106781186547, -0.7071067811865468}, {6.049014748177263*^-16, -1.}, { 0.7071067811865481, -0.7071067811865483}, { 1., -1.133107779529596*^-15}, {0.707106781186547, 0.7071067811865467}, {-7.044813998280222*^-16, 1.}}}]]}, TagBox[GraphicsGroupBox[{ {Hue[0.6, 0.7, 0.5], Opacity[0.7], Arrowheads[Medium], TagBox[ TooltipBox[ TagBox[LineBox[{DynamicLocation["VertexID$1", Automatic, Center], DynamicLocation["VertexID$3", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$1"], RowBox[{"1", "\[UndirectedEdge]", "3"}]], Annotation[#, UndirectedEdge[1, 3], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[LineBox[{DynamicLocation["VertexID$1", Automatic, Center], DynamicLocation["VertexID$7", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$2"], RowBox[{"1", "\[UndirectedEdge]", "7"}]], Annotation[#, UndirectedEdge[1, 7], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$1", Automatic, Center], DynamicLocation["VertexID$2", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$3"], RowBox[{"1", "\[DirectedEdge]", "2"}]], Annotation[#, DirectedEdge[1, 2], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$2", Automatic, Center], DynamicLocation["VertexID$3", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$4"], RowBox[{"2", "\[DirectedEdge]", "3"}]], Annotation[#, DirectedEdge[2, 3], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[LineBox[{DynamicLocation["VertexID$3", Automatic, Center], DynamicLocation["VertexID$5", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$5"], RowBox[{"3", "\[UndirectedEdge]", "5"}]], Annotation[#, UndirectedEdge[3, 5], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$3", Automatic, Center], DynamicLocation["VertexID$4", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$6"], RowBox[{"3", "\[DirectedEdge]", "4"}]], Annotation[#, DirectedEdge[3, 4], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$4", Automatic, Center], DynamicLocation["VertexID$5", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$7"], RowBox[{"4", "\[DirectedEdge]", "5"}]], Annotation[#, DirectedEdge[4, 5], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[LineBox[{DynamicLocation["VertexID$5", Automatic, Center], DynamicLocation["VertexID$7", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$8"], RowBox[{"5", "\[UndirectedEdge]", "7"}]], Annotation[#, UndirectedEdge[5, 7], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$5", Automatic, Center], DynamicLocation["VertexID$6", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$9"], RowBox[{"5", "\[DirectedEdge]", "6"}]], Annotation[#, DirectedEdge[5, 6], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$6", Automatic, Center], DynamicLocation["VertexID$7", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$10"], RowBox[{"6", "\[DirectedEdge]", "7"}]], Annotation[#, DirectedEdge[6, 7], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$7", Automatic, Center], DynamicLocation["VertexID$8", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$11"], RowBox[{"7", "\[DirectedEdge]", "8"}]], Annotation[#, DirectedEdge[7, 8], "Tooltip"]& ], TagBox[ TooltipBox[ TagBox[ArrowBox[{DynamicLocation["VertexID$8", Automatic, Center], DynamicLocation["VertexID$1", Automatic, Center]}], "DynamicName", BoxID -> "EdgeLabelID$12"], RowBox[{"8", "\[DirectedEdge]", "1"}]], Annotation[#, DirectedEdge[8, 1], "Tooltip"]& ]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], TagBox[{ TagBox[DiskBox[{-0.707106781186548, 0.7071067811865482}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$1"], InsetBox["1", Offset[{2, 2}, DynamicLocation[ "VertexID$1", Automatic, {Right, Top}]], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$1"], TagBox[{ TagBox[DiskBox[{-1., 1.0106430996148606`*^-15}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$2"], InsetBox["2", Offset[{2, 2}, DynamicLocation[ "VertexID$2", Automatic, {Right, Top}]], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$2"], TagBox[{ TagBox[DiskBox[{-0.707106781186547, -0.7071067811865468}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$3"], InsetBox["3", Offset[{2, 2}, DynamicLocation[ "VertexID$3", Automatic, {Right, Top}]], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$3"], TagBox[{ TagBox[DiskBox[{6.049014748177263*^-16, -1.}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$4"], InsetBox["4", Offset[{2, 2}, DynamicLocation[ "VertexID$4", Automatic, {Right, Top}]], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$4"], TagBox[{ TagBox[DiskBox[{0.7071067811865481, -0.7071067811865483}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$5"], InsetBox["5", Offset[{2, 2}, DynamicLocation[ "VertexID$5", Automatic, {Right, Top}]], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$5"], TagBox[{ TagBox[DiskBox[{1., -1.133107779529596*^-15}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$6"], InsetBox["6", Offset[{2, 2}, DynamicLocation[ "VertexID$6", Automatic, {Right, Top}]], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$6"], TagBox[{ TagBox[DiskBox[{0.707106781186547, 0.7071067811865467}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$7"], InsetBox["7", Offset[{2, 2}, DynamicLocation[ "VertexID$7", Automatic, {Right, Top}]], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$7"], TagBox[{ TagBox[DiskBox[{-7.044813998280222*^-16, 1.}, 0.02261146496815286], "DynamicName", BoxID -> "VertexID$8"], InsetBox["8", Offset[{2, 2}, DynamicLocation[ "VertexID$8", Automatic, {Right, Top}]], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, "DynamicName", BoxID -> "VertexLabelID$8"]}}], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->"NetworkGraphics", FormatType->TraditionalForm, FrameTicks->None, ImageSize->{145.03125, Automatic}]\)$

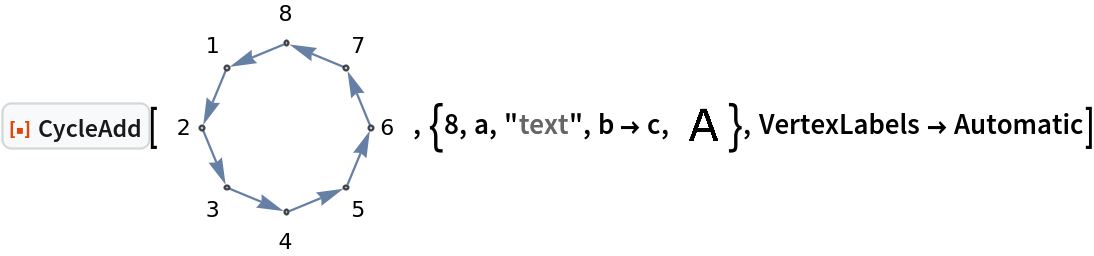

Use any kind of vertex to form the cycle:

In[9]:=

(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/cedd058c-abff-4ed2-8f9d-1acdf5a3728d"]

Out[9]=

Options (12)

AnnotationRules (2)

Specify an annotation for vertices:

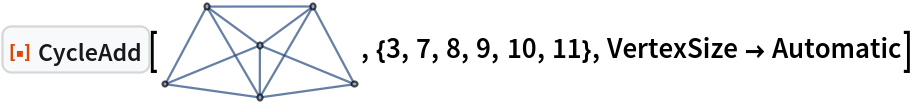

In[10]:=

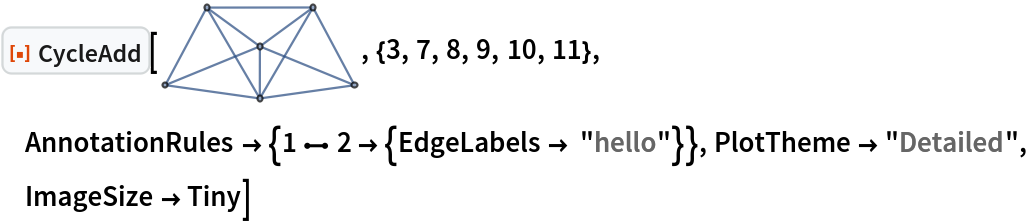

$ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6}, {Null, SparseArray[ Automatic, {6, 6}, 0, {1, {{0, 3, 7, 12, 17, 21, 24}, {{2}, {3}, {4}, {1}, { 3}, {4}, {5}, {1}, {2}, {4}, {5}, {6}, {1}, {2}, {3}, { 5}, {6}, {2}, {3}, {4}, {6}, {3}, {4}, {5}}}, Pattern}]}]]}, TagBox[GraphicsGroupBox[ GraphicsComplexBox[{{2.077635572424192, 0.14538312809263582`}, {1.622121700519018, 0.9989210826630444}, {1.0379005300359831`, 0.}, { 1.0388715748066573`, 0.5716078363709886}, {0.454770110930767, 0.9978125230323187}, {0., 0.14605821591057733`}}, { {Hue[0.6, 0.7, 0.5], Opacity[0.7], LineBox[{{1, 2}, {1, 3}, {1, 4}, {2, 3}, {2, 4}, {2, 5}, { 3, 4}, {3, 5}, {3, 6}, {4, 5}, {4, 6}, {5, 6}}]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], DiskBox[1, 0.023238294114515057], DiskBox[2, 0.023238294114515057], DiskBox[3, 0.023238294114515057], DiskBox[4, 0.023238294114515057], DiskBox[5, 0.023238294114515057], DiskBox[6, 0.023238294114515057]}}]], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), {3, 7, 8, 9, 10, 11}, AnnotationRules -> {1 -> {VertexLabels -> "hello"}}, PlotTheme -> "Detailed"]$

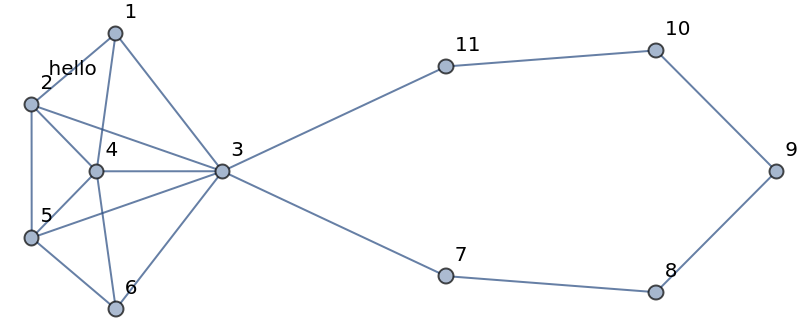

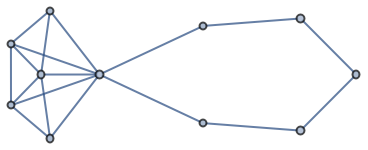

Out[10]=

Edges:

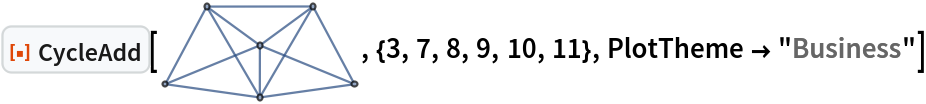

In[11]:=

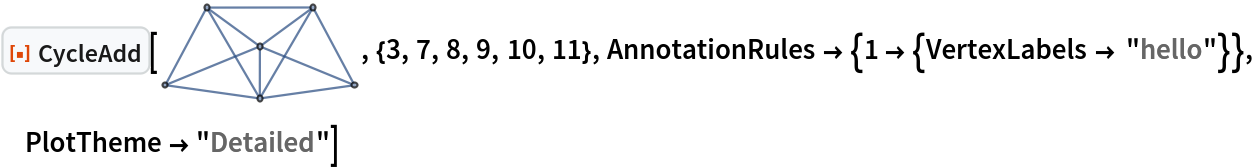

$ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6}, {Null, SparseArray[ Automatic, {6, 6}, 0, {1, {{0, 3, 7, 12, 17, 21, 24}, {{2}, {3}, {4}, {1}, { 3}, {4}, {5}, {1}, {2}, {4}, {5}, {6}, {1}, {2}, {3}, { 5}, {6}, {2}, {3}, {4}, {6}, {3}, {4}, {5}}}, Pattern}]}]]}, TagBox[GraphicsGroupBox[ GraphicsComplexBox[{{2.077635572424192, 0.14538312809263582`}, {1.622121700519018, 0.9989210826630444}, {1.0379005300359831`, 0.}, { 1.0388715748066573`, 0.5716078363709886}, {0.454770110930767, 0.9978125230323187}, {0., 0.14605821591057733`}}, { {Hue[0.6, 0.7, 0.5], Opacity[0.7], LineBox[{{1, 2}, {1, 3}, {1, 4}, {2, 3}, {2, 4}, {2, 5}, { 3, 4}, {3, 5}, {3, 6}, {4, 5}, {4, 6}, {5, 6}}]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], DiskBox[1, 0.023238294114515057], DiskBox[2, 0.023238294114515057], DiskBox[3, 0.023238294114515057], DiskBox[4, 0.023238294114515057], DiskBox[5, 0.023238294114515057], DiskBox[6, 0.023238294114515057]}}]], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), {3, 7, 8, 9, 10, 11}, AnnotationRules -> {1 \[UndirectedEdge] 2 -> {EdgeLabels -> "hello"}}, PlotTheme -> "Detailed", ImageSize -> Tiny]$

Out[11]=

GraphHighlight (3)

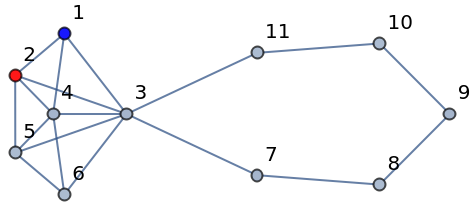

Highlight vertices:

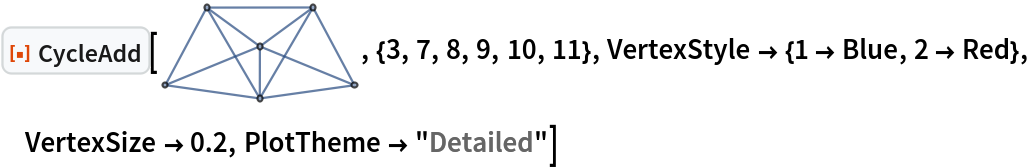

In[12]:=

$ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6}, {Null, SparseArray[ Automatic, {6, 6}, 0, {1, {{0, 3, 7, 12, 17, 21, 24}, {{2}, {3}, {4}, {1}, { 3}, {4}, {5}, {1}, {2}, {4}, {5}, {6}, {1}, {2}, {3}, { 5}, {6}, {2}, {3}, {4}, {6}, {3}, {4}, {5}}}, Pattern}]}]]}, TagBox[GraphicsGroupBox[ GraphicsComplexBox[{{2.077635572424192, 0.14538312809263582`}, {1.622121700519018, 0.9989210826630444}, {1.0379005300359831`, 0.}, { 1.0388715748066573`, 0.5716078363709886}, {0.454770110930767, 0.9978125230323187}, {0., 0.14605821591057733`}}, { {Hue[0.6, 0.7, 0.5], Opacity[0.7], LineBox[{{1, 2}, {1, 3}, {1, 4}, {2, 3}, {2, 4}, {2, 5}, { 3, 4}, {3, 5}, {3, 6}, {4, 5}, {4, 6}, {5, 6}}]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], DiskBox[1, 0.023238294114515057], DiskBox[2, 0.023238294114515057], DiskBox[3, 0.023238294114515057], DiskBox[4, 0.023238294114515057], DiskBox[5, 0.023238294114515057], DiskBox[6, 0.023238294114515057]}}]], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), {3, 7, 8, 9, 10, 11}, GraphHighlight -> {3, 7, 8, 9, 10, 11}, PlotTheme -> "Detailed"]$

Out[12]=

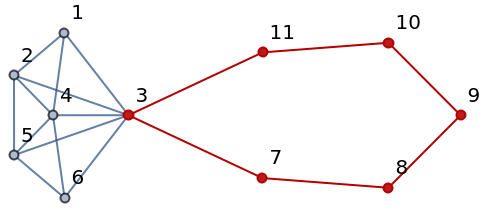

Highlight edges:

In[13]:=

$ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6}, {Null, SparseArray[ Automatic, {6, 6}, 0, {1, {{0, 3, 7, 12, 17, 21, 24}, {{2}, {3}, {4}, {1}, { 3}, {4}, {5}, {1}, {2}, {4}, {5}, {6}, {1}, {2}, {3}, { 5}, {6}, {2}, {3}, {4}, {6}, {3}, {4}, {5}}}, Pattern}]}]]}, TagBox[GraphicsGroupBox[ GraphicsComplexBox[{{2.077635572424192, 0.14538312809263582`}, {1.622121700519018, 0.9989210826630444}, {1.0379005300359831`, 0.}, { 1.0388715748066573`, 0.5716078363709886}, {0.454770110930767, 0.9978125230323187}, {0., 0.14605821591057733`}}, { {Hue[0.6, 0.7, 0.5], Opacity[0.7], LineBox[{{1, 2}, {1, 3}, {1, 4}, {2, 3}, {2, 4}, {2, 5}, { 3, 4}, {3, 5}, {3, 6}, {4, 5}, {4, 6}, {5, 6}}]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], DiskBox[1, 0.023238294114515057], DiskBox[2, 0.023238294114515057], DiskBox[3, 0.023238294114515057], DiskBox[4, 0.023238294114515057], DiskBox[5, 0.023238294114515057], DiskBox[6, 0.023238294114515057]}}]], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), {3, 7, 8, 9, 10, 11}, GraphHighlight -> {3 \[UndirectedEdge] 7, 7 \[UndirectedEdge] 8, 8 \[UndirectedEdge] 9, 9 \[UndirectedEdge] 10, 10 \[UndirectedEdge] 11, 11 \[UndirectedEdge] 3}, PlotTheme -> "Detailed"]$

Out[13]=

Highlight vertices and edges:

In[14]:=

$ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6}, {Null, SparseArray[ Automatic, {6, 6}, 0, {1, {{0, 3, 7, 12, 17, 21, 24}, {{2}, {3}, {4}, {1}, { 3}, {4}, {5}, {1}, {2}, {4}, {5}, {6}, {1}, {2}, {3}, { 5}, {6}, {2}, {3}, {4}, {6}, {3}, {4}, {5}}}, Pattern}]}]]}, TagBox[GraphicsGroupBox[ GraphicsComplexBox[{{2.077635572424192, 0.14538312809263582`}, {1.622121700519018, 0.9989210826630444}, {1.0379005300359831`, 0.}, { 1.0388715748066573`, 0.5716078363709886}, {0.454770110930767, 0.9978125230323187}, {0., 0.14605821591057733`}}, { {Hue[0.6, 0.7, 0.5], Opacity[0.7], LineBox[{{1, 2}, {1, 3}, {1, 4}, {2, 3}, {2, 4}, {2, 5}, { 3, 4}, {3, 5}, {3, 6}, {4, 5}, {4, 6}, {5, 6}}]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], DiskBox[1, 0.023238294114515057], DiskBox[2, 0.023238294114515057], DiskBox[3, 0.023238294114515057], DiskBox[4, 0.023238294114515057], DiskBox[5, 0.023238294114515057], DiskBox[6, 0.023238294114515057]}}]], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), {3, 7, 8, 9, 10, 11}, GraphHighlight -> {3, 3 \[UndirectedEdge] 7, 7, 7 \[UndirectedEdge] 8, 8, 8 \[UndirectedEdge] 9, 9, 9 \[UndirectedEdge] 10, 10, 10 \[UndirectedEdge] 11, 11, 11 \[UndirectedEdge] 3}, PlotTheme -> "Detailed"]$

Out[14]=

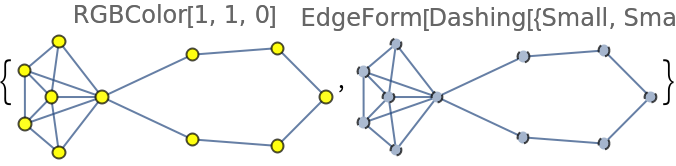

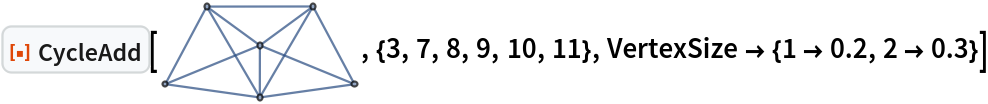

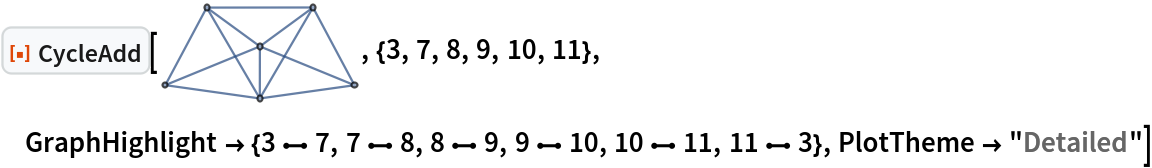

PlotTheme (2)

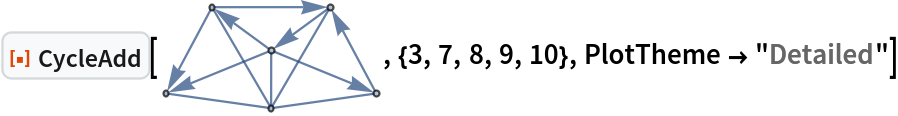

Use a common base theme:

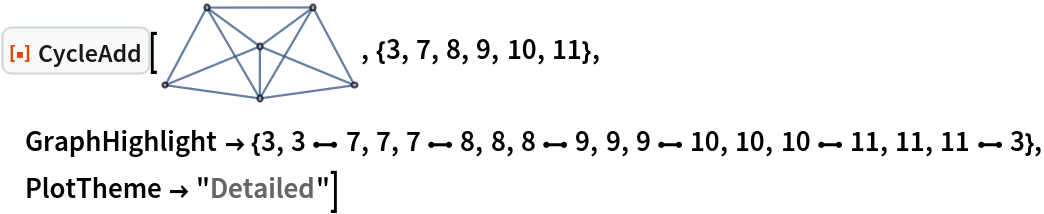

In[15]:=

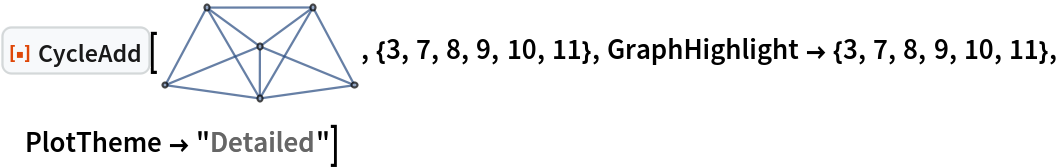

$ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6}, {Null, SparseArray[ Automatic, {6, 6}, 0, {1, {{0, 3, 7, 12, 17, 21, 24}, {{2}, {3}, {4}, {1}, { 3}, {4}, {5}, {1}, {2}, {4}, {5}, {6}, {1}, {2}, {3}, { 5}, {6}, {2}, {3}, {4}, {6}, {3}, {4}, {5}}}, Pattern}]}]]}, TagBox[GraphicsGroupBox[ GraphicsComplexBox[{{2.077635572424192, 0.14538312809263582`}, {1.622121700519018, 0.9989210826630444}, {1.0379005300359831`, 0.}, { 1.0388715748066573`, 0.5716078363709886}, {0.454770110930767, 0.9978125230323187}, {0., 0.14605821591057733`}}, { {Hue[0.6, 0.7, 0.5], Opacity[0.7], LineBox[{{1, 2}, {1, 3}, {1, 4}, {2, 3}, {2, 4}, {2, 5}, { 3, 4}, {3, 5}, {3, 6}, {4, 5}, {4, 6}, {5, 6}}]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], DiskBox[1, 0.023238294114515057], DiskBox[2, 0.023238294114515057], DiskBox[3, 0.023238294114515057], DiskBox[4, 0.023238294114515057], DiskBox[5, 0.023238294114515057], DiskBox[6, 0.023238294114515057]}}]], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), {3, 7, 8, 9, 10, 11}, PlotTheme -> "Business"]$

Out[15]=

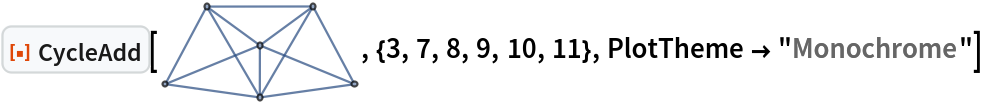

Use a monochrome theme:

In[16]:=

$ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6}, {Null, SparseArray[ Automatic, {6, 6}, 0, {1, {{0, 3, 7, 12, 17, 21, 24}, {{2}, {3}, {4}, {1}, { 3}, {4}, {5}, {1}, {2}, {4}, {5}, {6}, {1}, {2}, {3}, { 5}, {6}, {2}, {3}, {4}, {6}, {3}, {4}, {5}}}, Pattern}]}]]}, TagBox[GraphicsGroupBox[ GraphicsComplexBox[{{2.077635572424192, 0.14538312809263582`}, {1.622121700519018, 0.9989210826630444}, {1.0379005300359831`, 0.}, { 1.0388715748066573`, 0.5716078363709886}, {0.454770110930767, 0.9978125230323187}, {0., 0.14605821591057733`}}, { {Hue[0.6, 0.7, 0.5], Opacity[0.7], LineBox[{{1, 2}, {1, 3}, {1, 4}, {2, 3}, {2, 4}, {2, 5}, { 3, 4}, {3, 5}, {3, 6}, {4, 5}, {4, 6}, {5, 6}}]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], DiskBox[1, 0.023238294114515057], DiskBox[2, 0.023238294114515057], DiskBox[3, 0.023238294114515057], DiskBox[4, 0.023238294114515057], DiskBox[5, 0.023238294114515057], DiskBox[6, 0.023238294114515057]}}]], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), {3, 7, 8, 9, 10, 11}, PlotTheme -> "Monochrome"]$

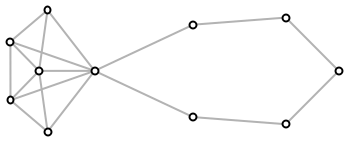

Out[16]=

VertexSize (3)

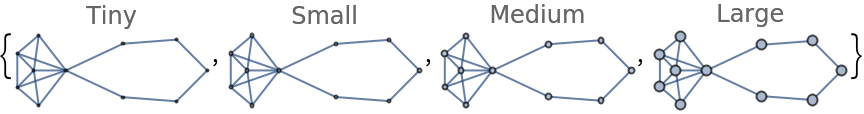

By default, the size of vertices is computed automatically:

In[17]:=

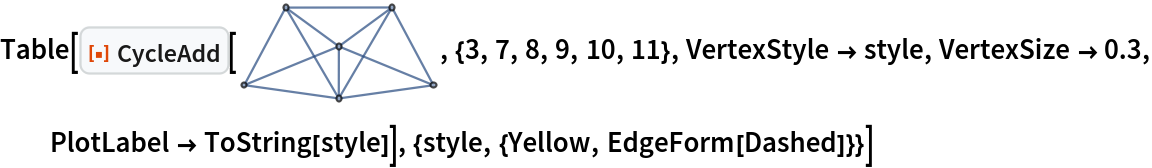

$ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6}, {Null, SparseArray[ Automatic, {6, 6}, 0, {1, {{0, 3, 7, 12, 17, 21, 24}, {{2}, {3}, {4}, {1}, { 3}, {4}, {5}, {1}, {2}, {4}, {5}, {6}, {1}, {2}, {3}, { 5}, {6}, {2}, {3}, {4}, {6}, {3}, {4}, {5}}}, Pattern}]}]]}, TagBox[GraphicsGroupBox[ GraphicsComplexBox[{{2.077635572424192, 0.14538312809263582`}, {1.622121700519018, 0.9989210826630444}, {1.0379005300359831`, 0.}, { 1.0388715748066573`, 0.5716078363709886}, {0.454770110930767, 0.9978125230323187}, {0., 0.14605821591057733`}}, { {Hue[0.6, 0.7, 0.5], Opacity[0.7], LineBox[{{1, 2}, {1, 3}, {1, 4}, {2, 3}, {2, 4}, {2, 5}, { 3, 4}, {3, 5}, {3, 6}, {4, 5}, {4, 6}, {5, 6}}]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], DiskBox[1, 0.023238294114515057], DiskBox[2, 0.023238294114515057], DiskBox[3, 0.023238294114515057], DiskBox[4, 0.023238294114515057], DiskBox[5, 0.023238294114515057], DiskBox[6, 0.023238294114515057]}}]], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), {3, 7, 8, 9, 10, 11}, VertexSize -> Automatic]$

Out[17]=

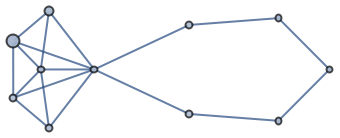

Specify the size of all vertices using symbolic vertex size:

In[18]:=

$Table[ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6}, {Null, SparseArray[ Automatic, {6, 6}, 0, {1, {{0, 3, 7, 12, 17, 21, 24}, {{2}, {3}, {4}, {1}, { 3}, {4}, {5}, {1}, {2}, {4}, {5}, {6}, {1}, {2}, {3}, { 5}, {6}, {2}, {3}, {4}, {6}, {3}, {4}, {5}}}, Pattern}]}]]}, TagBox[GraphicsGroupBox[ GraphicsComplexBox[{{2.077635572424192, 0.14538312809263582`}, {1.622121700519018, 0.9989210826630444}, {1.0379005300359831`, 0.}, { 1.0388715748066573`, 0.5716078363709886}, { 0.454770110930767, 0.9978125230323187}, {0., 0.14605821591057733`}}, { {Hue[0.6, 0.7, 0.5], Opacity[0.7], LineBox[{{1, 2}, {1, 3}, {1, 4}, {2, 3}, {2, 4}, {2, 5}, { 3, 4}, {3, 5}, {3, 6}, {4, 5}, {4, 6}, {5, 6}}]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], DiskBox[1, 0.023238294114515057], DiskBox[2, 0.023238294114515057], DiskBox[3, 0.023238294114515057], DiskBox[4, 0.023238294114515057], DiskBox[5, 0.023238294114515057], DiskBox[6, 0.023238294114515057]}}]], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), {3, 7, 8, 9, 10, 11}, VertexSize -> s, PlotLabel -> s], {s, {Tiny, Small, Medium, Large}}]$

Out[18]=

Specify the size for individual vertices:

In[19]:=

$ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6}, {Null, SparseArray[ Automatic, {6, 6}, 0, {1, {{0, 3, 7, 12, 17, 21, 24}, {{2}, {3}, {4}, {1}, { 3}, {4}, {5}, {1}, {2}, {4}, {5}, {6}, {1}, {2}, {3}, { 5}, {6}, {2}, {3}, {4}, {6}, {3}, {4}, {5}}}, Pattern}]}]]}, TagBox[GraphicsGroupBox[ GraphicsComplexBox[{{2.077635572424192, 0.14538312809263582`}, {1.622121700519018, 0.9989210826630444}, {1.0379005300359831`, 0.}, { 1.0388715748066573`, 0.5716078363709886}, {0.454770110930767, 0.9978125230323187}, {0., 0.14605821591057733`}}, { {Hue[0.6, 0.7, 0.5], Opacity[0.7], LineBox[{{1, 2}, {1, 3}, {1, 4}, {2, 3}, {2, 4}, {2, 5}, { 3, 4}, {3, 5}, {3, 6}, {4, 5}, {4, 6}, {5, 6}}]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], DiskBox[1, 0.023238294114515057], DiskBox[2, 0.023238294114515057], DiskBox[3, 0.023238294114515057], DiskBox[4, 0.023238294114515057], DiskBox[5, 0.023238294114515057], DiskBox[6, 0.023238294114515057]}}]], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), {3, 7, 8, 9, 10, 11}, VertexSize -> {1 -> 0.2, 2 -> 0.3}]$

Out[19]=

VertexStyle (2)

Style all vertices:

In[20]:=

$Table[ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6}, {Null, SparseArray[ Automatic, {6, 6}, 0, {1, {{0, 3, 7, 12, 17, 21, 24}, {{2}, {3}, {4}, {1}, { 3}, {4}, {5}, {1}, {2}, {4}, {5}, {6}, {1}, {2}, {3}, { 5}, {6}, {2}, {3}, {4}, {6}, {3}, {4}, {5}}}, Pattern}]}]]}, TagBox[GraphicsGroupBox[ GraphicsComplexBox[{{2.077635572424192, 0.14538312809263582`}, {1.622121700519018, 0.9989210826630444}, {1.0379005300359831`, 0.}, { 1.0388715748066573`, 0.5716078363709886}, { 0.454770110930767, 0.9978125230323187}, {0., 0.14605821591057733`}}, { {Hue[0.6, 0.7, 0.5], Opacity[0.7], LineBox[{{1, 2}, {1, 3}, {1, 4}, {2, 3}, {2, 4}, {2, 5}, { 3, 4}, {3, 5}, {3, 6}, {4, 5}, {4, 6}, {5, 6}}]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], DiskBox[1, 0.023238294114515057], DiskBox[2, 0.023238294114515057], DiskBox[3, 0.023238294114515057], DiskBox[4, 0.023238294114515057], DiskBox[5, 0.023238294114515057], DiskBox[6, 0.023238294114515057]}}]], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), {3, 7, 8, 9, 10, 11}, VertexStyle -> style, VertexSize -> 0.3, PlotLabel -> ToString[style]], {style, {Yellow, EdgeForm[Dashed]}}]$

Out[20]=

Style individual vertices:

In[21]:=

$ResourceFunction["CycleAdd"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6}, {Null, SparseArray[ Automatic, {6, 6}, 0, {1, {{0, 3, 7, 12, 17, 21, 24}, {{2}, {3}, {4}, {1}, { 3}, {4}, {5}, {1}, {2}, {4}, {5}, {6}, {1}, {2}, {3}, { 5}, {6}, {2}, {3}, {4}, {6}, {3}, {4}, {5}}}, Pattern}]}]]}, TagBox[GraphicsGroupBox[ GraphicsComplexBox[{{2.077635572424192, 0.14538312809263582`}, {1.622121700519018, 0.9989210826630444}, {1.0379005300359831`, 0.}, { 1.0388715748066573`, 0.5716078363709886}, {0.454770110930767, 0.9978125230323187}, {0., 0.14605821591057733`}}, { {Hue[0.6, 0.7, 0.5], Opacity[0.7], LineBox[{{1, 2}, {1, 3}, {1, 4}, {2, 3}, {2, 4}, {2, 5}, { 3, 4}, {3, 5}, {3, 6}, {4, 5}, {4, 6}, {5, 6}}]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[0.7]}], DiskBox[1, 0.023238294114515057], DiskBox[2, 0.023238294114515057], DiskBox[3, 0.023238294114515057], DiskBox[4, 0.023238294114515057], DiskBox[5, 0.023238294114515057], DiskBox[6, 0.023238294114515057]}}]], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), {3, 7, 8, 9, 10, 11}, VertexStyle -> {1 -> Blue, 2 -> Red}, VertexSize -> 0.2, PlotTheme -> "Detailed"]$

Out[21]=

Applications (3)

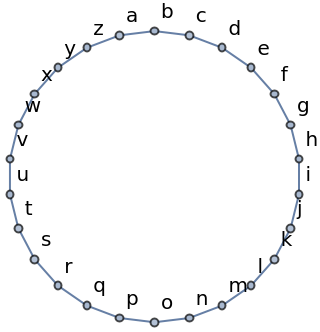

Generate the cycle graph of given list of vertex:

In[22]:=

Out[22]=

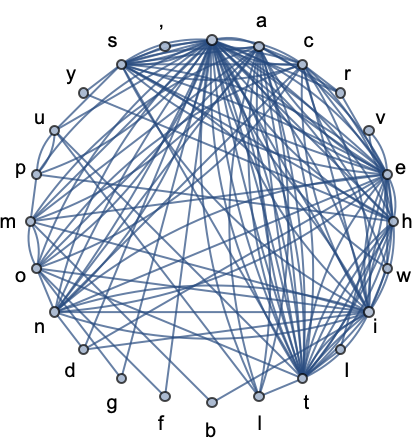

Find the circle graph of consecutive letters in a phrase:

In[23]:=

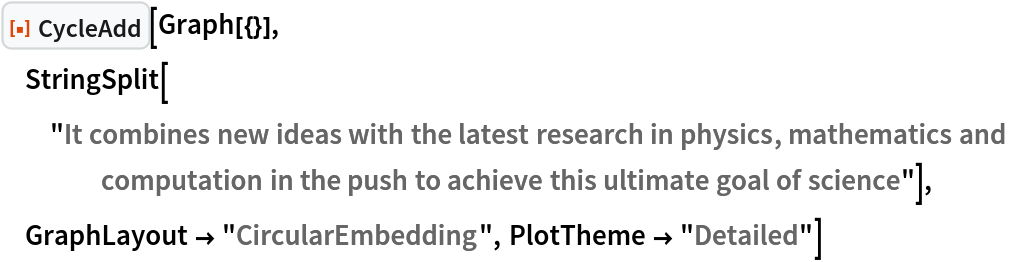

ResourceFunction["CycleAdd"][Graph[{}], Characters[
"It combines new ideas with the latest research in physics, mathematics and computation in the push to achieve this ultimate goal of science"], GraphLayout -> "CircularEmbedding", PlotTheme -> "Detailed"]

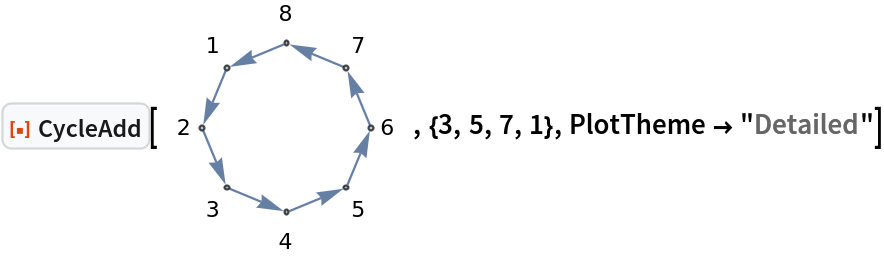

Out[23]=

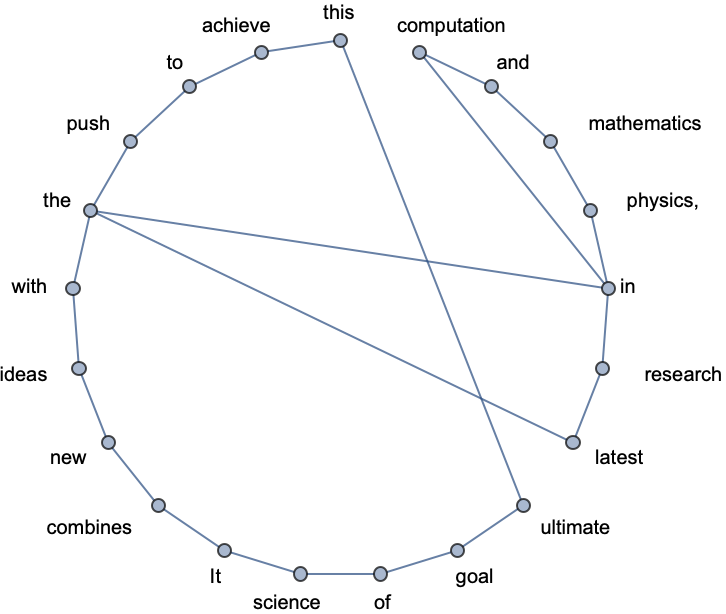

Find the circle graph of consecutive words in a phrase:

In[24]:=

ResourceFunction["CycleAdd"][Graph[{}], StringSplit[
"It combines new ideas with the latest research in physics, mathematics and computation in the push to achieve this ultimate goal of science"], GraphLayout -> "CircularEmbedding", PlotTheme -> "Detailed"]

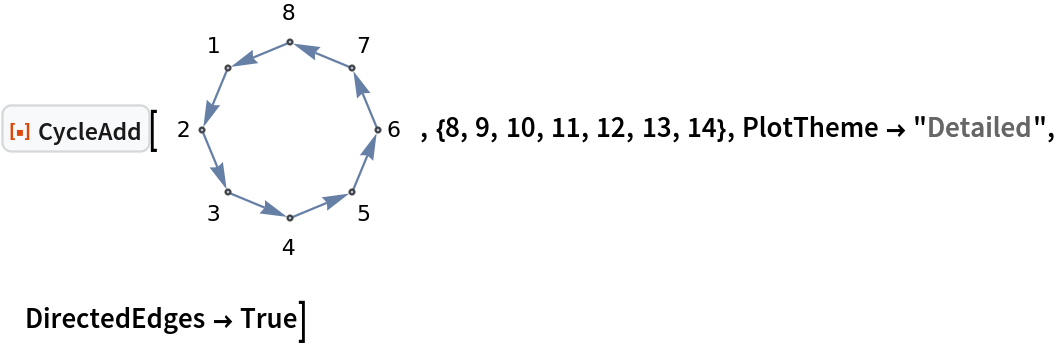

Out[24]=

Requirements

Wolfram Language 13.0 (December 2021) or above

Version History

1.0.0 – 04 November 2024

Related Resources

License Information

This work is licensed under a Creative Commons Attribution 4.0 International License

Wolfram Function Repository

CycleAdd

Details and Options
