Function Repository Resource:

 CombinatorEvolutionGraph

Source Notebook

Visualize the state transformations and causal structure of a combinator evolution

Contributed by: Wolfram Research

ResourceFunction["CombinatorEvolutionGraph"][cmb, t, prop]

displays the graph type specified by prop for a combinator expression cmb over t evolution steps.

Details and Options

The argument cmb should be given as a combinator expression in nested bracket form.
The argument t should be given as an integer number of time steps for the combinator evolution.
ResourceFunction["CombinatorEvolutionGraph"] supports the following properties for the prop argument:
"HaltedStatesGraph"displays the multiway states graph of cmb over t evolution steps, sizing nodes according to leaf count and highlighting nodes representing halted states
"PathHighlight"displays "HaltedStatesGraph" of cmb over t evolution steps, but also highlights one path in the graph according to the specified option value for "EvaluationScheme"
"CausalGraph"displays the causal structure of cmb over t evolution steps; takes the causal graph instance corresponding to the specified option value for "EvaluationScheme"
ResourceFunction["CombinatorEvolutionGraph"] accepts the same options as Graph, with the following additions:
"MinimalHaltedStatesGraph"Falsewhether to include the leaf count as a vertex label in "HaltedStatesGraph"
"NodeSizeMultiplier"0.75scalar factor for the node size in "HaltedStatesGraph"
"PathThickness"2.5edge thickness for the highlighted path in "PathHighlight"
"CombinatorRules"Automaticcombinator rules used to evolve cmb
"SKGlyphs"Automaticglyphs used for S and K combinators in cmb
"EvaluationScheme"{"Leftmost", "Outermost", 1}evaluation scheme used to evolve cmb
"RenderCausalEvents"Falsewhether to display causal events as vertices of "CausalGraph"

Examples

Basic Examples (3)

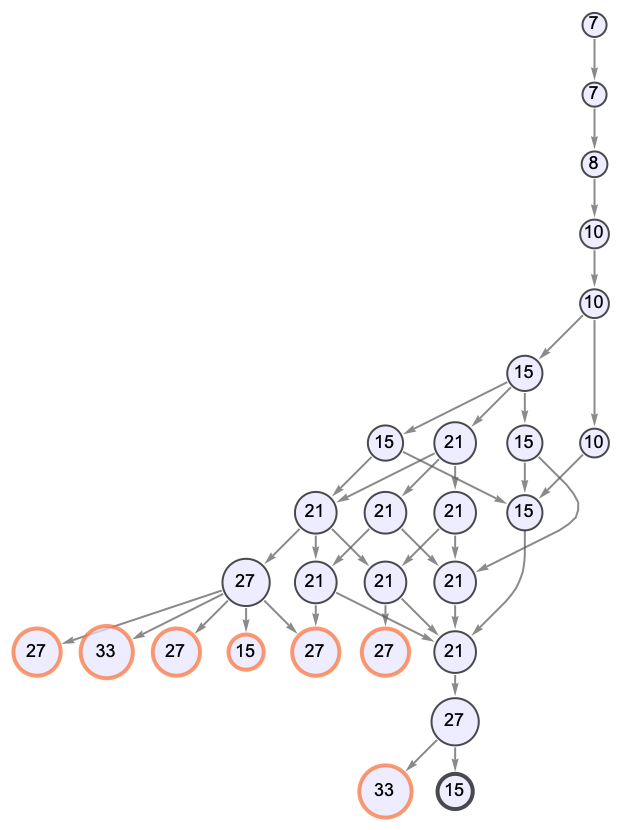

Show the states graph of a combinator evolution, with labeled vertices sized according to the leaf count of the state; terminal states indicated by a thick, dark border; and states that can be further evolved indicated by a thick, orange border:

In[1]:=
ResourceFunction["CombinatorEvolutionGraph"][ CombinatorS[CombinatorS[CombinatorS[CombinatorS]]][CombinatorS][ CombinatorS][CombinatorK], 9, "HaltedStatesGraph"]
Out[1]=

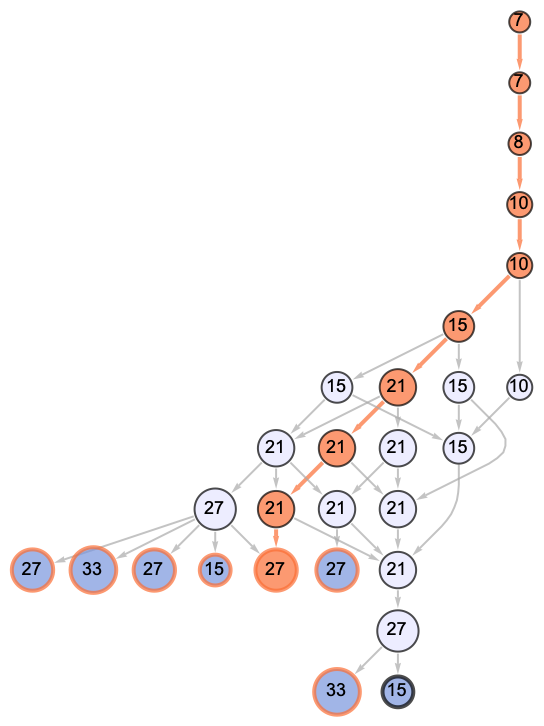

Highlight a path in the halted states graph of a combinator evolution according to the leftmost-outermost evaluation scheme; notice that other states attainable at the given time step are colored in a darker blue than the rest of the vertices:

In[2]:=
ResourceFunction["CombinatorEvolutionGraph"][ CombinatorS[CombinatorS[CombinatorS[CombinatorS]]][CombinatorS][ CombinatorS][CombinatorK], 9, "PathHighlight"]
Out[2]=

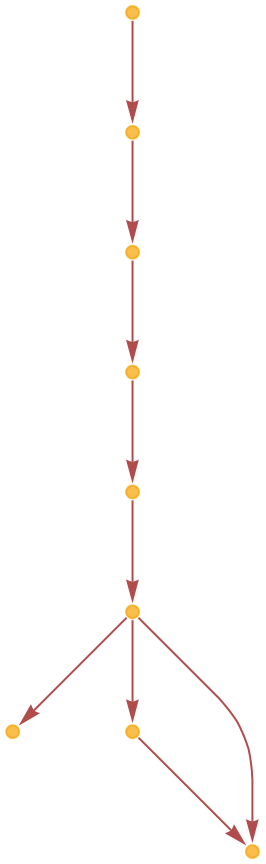

Show the causal structure of events in a combinator evolution according to the leftmost-outermost evaluation scheme:

In[3]:=
ResourceFunction["CombinatorEvolutionGraph"][ CombinatorS[CombinatorS[CombinatorS[CombinatorS]]][CombinatorS][ CombinatorS][CombinatorK], 9, "CausalGraph"]
Out[3]=

Options (5)

CombinatorRules (1)

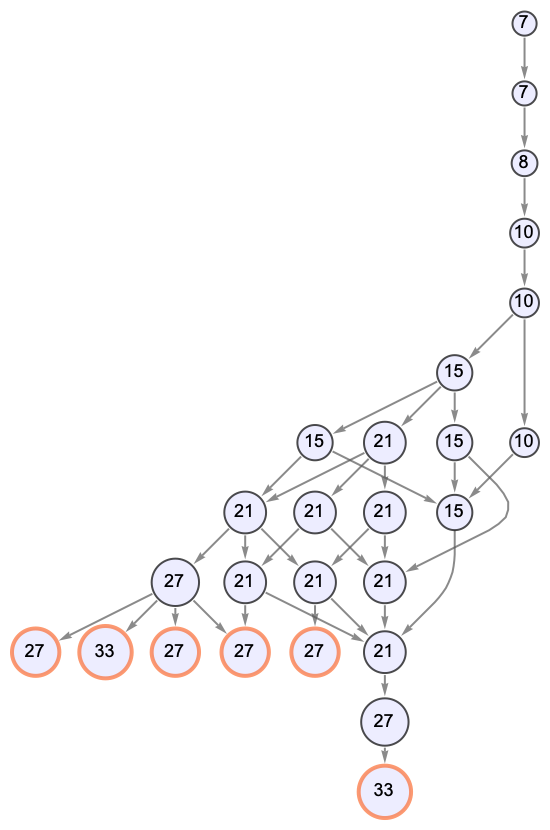

Specify the rules used to evolve a combinator expression and show a halted states graph:

In[4]:=
ResourceFunction["CombinatorEvolutionGraph"][ s[s[s[s]]][s][s][k], 9, "HaltedStatesGraph", "CombinatorRules" -> {s[x_][y_][z_] :> x[z][y[z]]}]
Out[4]=

EvaluationScheme (1)

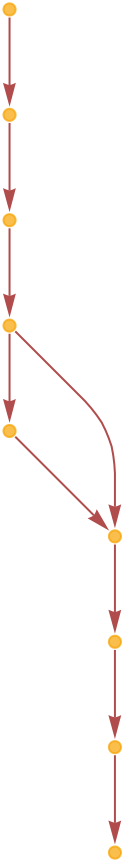

Show the causal structure of events in a combinator evolution according to the single-match rightmost-innermost evaluation scheme:

In[5]:=
ResourceFunction["CombinatorEvolutionGraph"][ CombinatorS[CombinatorS[CombinatorS[CombinatorS]]][CombinatorS][ CombinatorS][CombinatorK], 9, "CausalGraph", "EvaluationScheme" -> {"Rightmost", "Innermost", 1}]
Out[5]=

MinimalHaltedStatesGraph (1)

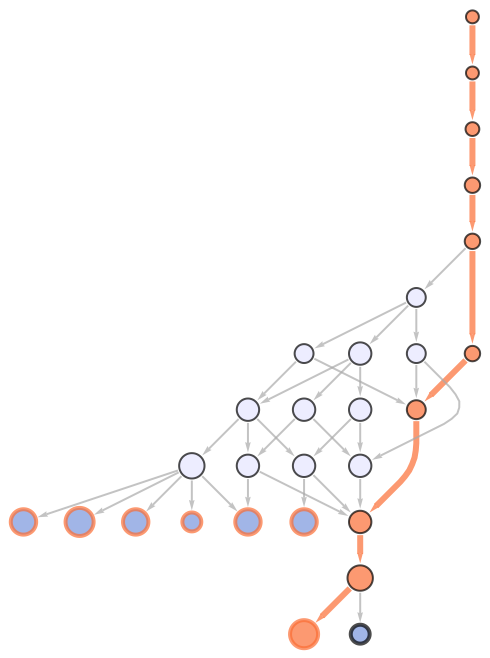

Highlight the state transformation path for a combinator expression evolved with a rightmost-innermost evaluation scheme, using options to omit vertex labels, make the nodes smaller and increase the thickness of edges along the path:

In[6]:=
ResourceFunction["CombinatorEvolutionGraph"][ CombinatorS[CombinatorS[CombinatorS[CombinatorS]]][CombinatorS][ CombinatorS][CombinatorK], 9, "PathHighlight", "MinimalHaltedStatesGraph" -> True, "NodeSizeMultiplier" -> 0.5, "PathThickness" -> 3, "EvaluationScheme" -> {"Rightmost", "Innermost", 1}]
Out[6]=

RenderCausalEvents (1)

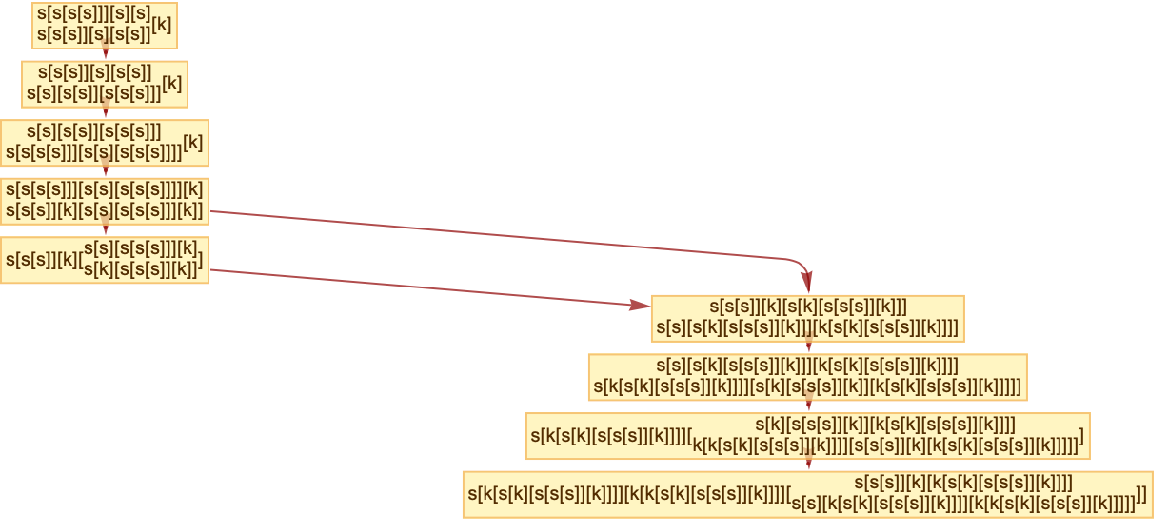

Show the causal structure of events in a combinator evolution according to the rightmost-innermost evaluation scheme, this time rendering vertices with the event information:

In[7]:=
ResourceFunction["CombinatorEvolutionGraph"][ s[s[s[s]]][s][s][k], 9, "CausalGraph", "SKGlyphs" -> {s, k}, "EvaluationScheme" -> {"Rightmost", "Innermost", 1}, "RenderCausalEvents" -> True, AspectRatio -> 1/1.5]
Out[7]=

SKGlyphs (1)

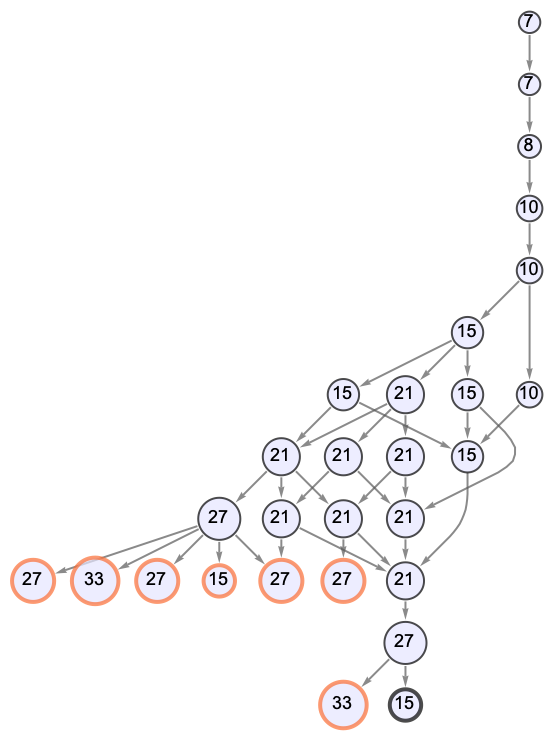

Specify the glyphs used for the S and K combinators in the argument cmb:

In[8]:=
ResourceFunction["CombinatorEvolutionGraph"][ s[s[s[s]]][s][s][k], 9, "HaltedStatesGraph", "SKGlyphs" -> {s, k}]
Out[8]=

Version History

  • 1.0.0 – 08 March 2021
