Basic Examples (6)

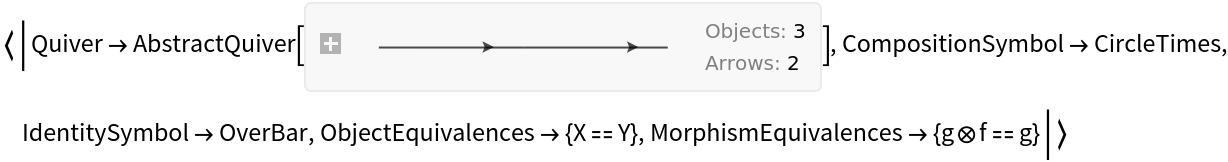

Construct a simple abstract category from an association of arrows/morphisms:

In[1]:=

Out[1]=

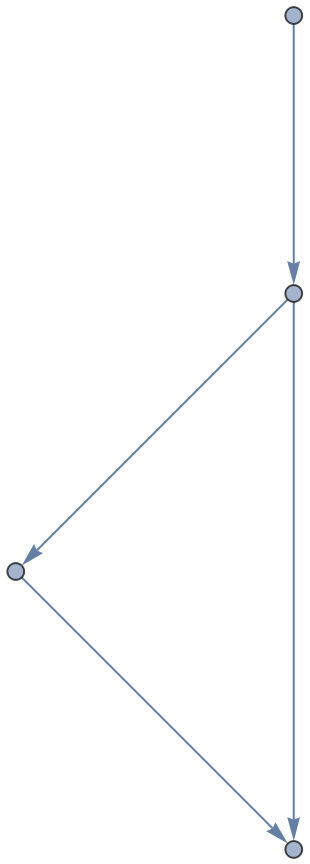

Show the full directed graph with labels on the morphisms:

In[2]:=

Out[2]=

Show the full directed graph without labels on the morphisms:

In[3]:=

Out[3]=

Show the association of morphisms:

In[4]:=

Out[4]=

Show the list of directed edges:

In[5]:=

Out[5]=

Construct the same abstract category, but with new composition and identity symbols ⊗ and ─, and with an equivalence imposed between objects X and Y and morphisms g⊗f and g:

In[6]:=

Out[6]=

Show the reduced directed graph, with all equivalences between objects and morphisms imposed and with labels on the morphisms:

In[7]:=

Out[7]=

Show the reduced directed graph without labels on the morphisms:

In[8]:=

Out[8]=

Show the association of morphisms, with all equivalences between objects and morphisms imposed:

In[9]:=

Out[9]=

Show the list of equivalences between objects:

In[10]:=

Out[10]=

Show the list of equivalences between morphisms:

In[11]:=

Out[11]=

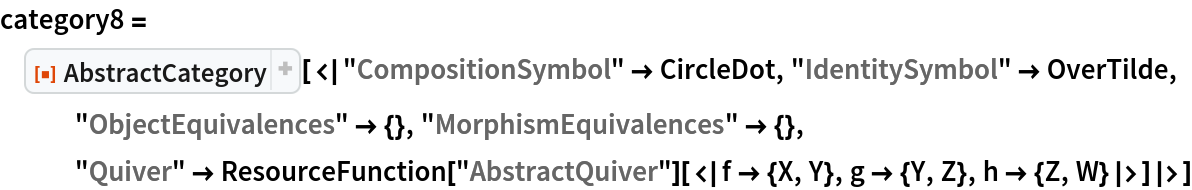

Show the association form of the abstract category:

In[12]:=

Out[12]=

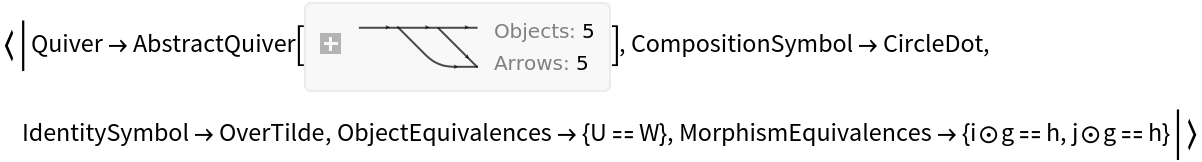

Construct an abstract category from a square-shaped quiver:

In[13]:=

Out[13]=

In[14]:=

Out[14]=

The corresponding abstract category:

In[15]:=

Out[15]=

In[16]:=

Out[16]=

Show that the resulting square is not commutative:

In[17]:=

Out[17]=

Compute the list of equations between morphisms that must hold for the square to be commutative:

In[18]:=

Out[18]=

Construct the same abstract category, but with the aforementioned equivalence between morphisms h⊙f and i⊙g imposed:

In[19]:=

Out[19]=

Show that the resulting square is now commutative:

In[20]:=

Out[20]=

Construct an abstract category from an oblong-shaped quiver:

In[21]:=

Out[21]=

In[22]:=

Out[22]=

The corresponding abstract category:

In[23]:=

Out[23]=

In[24]:=

Out[24]=

Compute the list of equations between morphisms that must hold for the oblong to be commutative:

In[25]:=

Out[25]=

Compute the list of equations between morphisms that must hold by virtue of morphism composition being associative:

In[26]:=

Out[26]=

Compute the list of equations between morphisms that must hold by virtue of all objects having an identity morphism:

In[27]:=

Out[27]=

Construct an abstract category consisting of a pair of parallel morphisms g₁ and g₂ and a third morphism f leading out from them, together with an equivalence between morphisms f⊙g₁ and f⊙g₂:

In[28]:=

Out[28]=

Show the full directed graph with labels on the morphisms:

In[29]:=

Out[29]=

Show the full directed graph without labels on the morphisms:

In[30]:=

Out[30]=

Show the reduced directed graph, with all equivalences between objects and morphisms imposed and with labels on the morphisms:

In[31]:=

Out[31]=

Show the reduced directed graph without labels on the morphisms:

In[32]:=

Out[32]=

Show the association of monomorphisms (i.e. left-cancellative/injective morphisms), illustrating that f is not a monomorphism:

In[33]:=

Out[33]=

Construct the same abstract category, but with an additional equivalence imposed between morphisms g₁ and g₂, thus forcing f to be a monomorphism:

In[34]:=

Out[34]=

Show the reduced directed graph, with all equivalences between objects and morphisms imposed and with labels on the morphisms:

In[35]:=

Out[35]=

Show the reduced directed graph without labels on the morphisms:

In[36]:=

Out[36]=

Show that f is now a monomorphism:

In[37]:=

Out[37]=

Show the association of monomorphisms modulo all equivalences between objects and morphisms:

In[38]:=

Out[38]=

Every monomorphism is an epimorphism (i.e. a right-cancellative/surjective morphism) in the dual category:

In[39]:=

Out[39]=

In[40]:=

Out[40]=

Show the full directed graph with labels on the morphisms:

In[41]:=

Out[41]=

Show the full directed graph without labels on the morphisms:

In[42]:=

Out[42]=

Show the association of bimorphisms (i.e. left- and right-cancellative/bijective morphisms) in the original category, illustrating that f is not a bimorphism:

In[43]:=

Out[43]=

Show the association of bimorphisms modulo all equivalences between objects and morphisms:

In[44]:=

Out[44]=

Construct an abstract category consisting of a pair of morphisms f and g leading between objects X and Y in opposite directions:

In[45]:=

Out[45]=

Show the full directed graph with labels on the morphisms:

In[46]:=

Out[46]=

Show the full directed graph without labels on the morphisms:

In[47]:=

Out[47]=

Show that neither f nor g is a retraction (i.e. a left inverse) nor a section (i.e. a right inverse), and therefore is also not an isomorphism (i.e. a left and right inverse):

In[48]:=

Out[48]=

In[49]:=

Out[49]=

In[50]:=

Out[50]=

Construct the same abstract category, but with an equivalence imposed between morphisms g⊙f and the identity on object X:

In[51]:=

Out[51]=

Show the reduced directed graph, with all equivalences between objects and morphisms imposed and with labels on the morphisms:

In[52]:=

Out[52]=

Show the reduced labeled graph without labels on the morphisms:

In[53]:=

Out[53]=

Show that g is now a retraction and f is now a section, though neither is an isomorphism:

In[54]:=

Out[54]=

In[55]:=

Out[55]=

In[56]:=

Out[56]=

Show, equivalently, that g is a left inverse of f and f is a right inverse of g, but neither is a full inverse of the other:

In[57]:=

Out[57]=

In[58]:=

Out[58]=

In[59]:=

Out[59]=

Construct the same abstract category, but with an additional equivalence imposed between morphisms f⊙g and the identity on object Y:

In[60]:=

Out[60]=

Show the reduced directed graph, with all equivalences between objects and morphisms imposed and with labels on the morphisms:

In[61]:=

Out[61]=

Show the reduced directed graph without labels on the morphisms:

In[62]:=

Out[62]=

Show that f is now a retraction and g is now a section, and both are now isomorphisms:

In[63]:=

Out[63]=

In[64]:=

Out[64]=

In[65]:=

Out[65]=

Show, equivalently, that f is now both a left and right inverse of g, and vice versa:

In[66]:=

Out[66]=

In[67]:=

Out[67]=

In[68]:=

Out[68]=

Show the associations of retractions, sections and isomorphisms modulo all equivalences between objects and morphisms:

In[69]:=

Out[69]=

In[70]:=

Out[70]=

In[71]:=

Out[71]=

Show the associations of left inverses, right inverses and "full" inverses modulo all equivalences between objects and morphisms:

In[72]:=

Out[72]=

In[73]:=

Out[73]=

In[74]:=

Out[74]=

Show that the category is therefore a groupoid (i.e. all morphisms are isomorphisms):

In[75]:=

Out[75]=

Show that the category is also balanced (i.e. all bimorphisms are also isomorphisms):

In[76]:=

Out[76]=

Construct a new abstract category with two-way arrows between objects X, Y and Z:

In[77]:=

Out[77]=

Show the full directed graph with labels on the morphisms:

In[78]:=

Out[78]=

Show the full directed graph without labels on the morphisms:

In[79]:=

Out[79]=

Show that the category is not a groupoid:

In[80]:=

Out[80]=

Compute the list of equations between morphisms that must hold for the category to be a groupoid:

In[81]:=

Out[81]=

Show the associations of endomorphisms (morphisms from an object to itself) and automorphisms (isomorphisms from an object to itself):

In[82]:=

Out[82]=

In[83]:=

Out[83]=

Construct an abstract category consisting of exactly one morphism from object X to every morphism in the category, together with a single morphism to X, modulo all equivalences between morphisms:

In[84]:=

Out[84]=

Show the full directed graph with labels on the morphisms:

In[85]:=

Out[85]=

Show the full directed graph without labels on the morphisms:

In[86]:=

Out[86]=

Show the reduced directed graph, with all equivalences between objects and morphisms imposed and with labels on the morphisms:

In[87]:=

Out[87]=

Show the reduced directed graph without labels on the morphisms:

In[88]:=

Out[88]=

Show the association of initial objects (i.e. objects with exactly one outgoing morphism to every object):

In[89]:=

Out[89]=

Show that X is an initial object, modulo all equivalences between morphisms:

In[90]:=

Out[90]=

Show that X is also a strict initial object (i.e. every incoming morphism to X is an isomorphism) when one mods out by all equivalences between morphisms:

In[91]:=

Out[91]=

In[92]:=

Out[92]=

Every initial object is a terminal object (i.e. an object with exactly one incoming morphism to every object) in the dual category:

In[93]:=

Out[93]=

In[94]:=

Out[94]=

In[95]:=

Out[95]=

Likewise with strictly initial objects being strictly terminal objects (i.e. terminal objects for which every outgoing morphism is an isomorphism) in the dual category:

In[96]:=

Out[96]=

In[97]:=

Out[97]=

Show the full directed graph with labels on the morphisms:

In[98]:=

Out[98]=

Show the full directed graph without labels on the morphisms:

In[99]:=

Out[99]=

In both cases, X is not a zero object (i.e. it is not both initial and terminal) nor a strict zero object (i.e. it is not both strictly initial and strictly terminal):

In[100]:=

Out[100]=

In[101]:=

Out[101]=

In[102]:=

Out[102]=

In[103]:=

Out[103]=

Show, therefore, that the category is not pointed (i.e. it does not contain a zero object):

In[104]:=

Out[104]=

Construct an abstract category consisting of a pair of parallel morphisms g₁ and g₂ and a third morphism f leading out from them:

In[105]:=

Out[105]=

Show the full directed graph with labels on the morphisms:

In[106]:=

Out[106]=

Show the full directed graph without labels on the morphisms:

In[107]:=

Out[107]=

Show that f is not a constant morphism (i.e. does not yield the same result when composed on the right by either member of a parallel pair of morphisms):

In[108]:=

Out[108]=

Construct the same abstract category, but with an additional equivalence imposed between morphisms f⊙g₁ and f⊙g₂, thus forcing f to be constant:

In[109]:=

Out[109]=

Show the reduced directed graph, with all equivalences between objects and morphisms imposed and with labels on the morphisms:

In[110]:=

Out[110]=

Show the reduced directed graph without labels on the morphisms:

In[111]:=

Out[111]=

Show that f is now a constant morphism:

In[112]:=

Out[112]=

Show the association of constant morphisms modulo all equivalences between objects and morphisms:

In[113]:=

Out[113]=

Every constant morphism is a coconstant morphism (i.e. a morphism that yields the same result when composed on the left by either member of a parallel pair of morphisms) in the dual category:

In[114]:=

Out[114]=

In[115]:=

Out[115]=

Show the full directed graph with labels on the morphisms:

In[116]:=

Out[116]=

Show the full directed graph without labels on the morphisms:

In[117]:=

Out[117]=

Show the association of zero morphisms (i.e. morphisms that are both constant and coconstant), illustrating that f is also zero:

In[118]:=

Out[118]=

Show the association of zero morphisms modulo all equivalences between objects and morphisms:

In[119]:=

Out[119]=

Scope (4)

Abstract categories can be constructed directly from abstract quiver objects (by enforcing the composition and identity axioms on the arrows and objects of the underlying quiver):

In[120]:=

Out[120]=

In[121]:=

Out[121]=

In[122]:=

Out[122]=

Additional arguments can be used to specify the composition and identity symbols:

In[123]:=

Out[123]=

In[124]:=

Out[124]=

Alternatively, additional arguments can be used to specify equivalences between objects and morphisms:

In[125]:=

Out[125]=

In[126]:=

Out[126]=

All four properties (composition symbol, identity symbol, object equivalences and morphism equivalences) may be specified simultaneously:

In[127]:=

Out[127]=

In[128]:=

Out[128]=

Abstract categories can also be constructed directly from directed graph objects (with automatically selected arrow/morphism names):

In[129]:=

Out[129]=

In[130]:=

Out[130]=

In[131]:=

Out[131]=

Similarly, additional arguments can be used to specify composition and identity symbols, as well as equivalences between the resulting objects and morphisms:

In[132]:=

Out[132]=

In[133]:=

Out[133]=

Abstract categories can be constructed from lists of arrows (with automatically selected arrow/morphism names):

In[134]:=

Out[134]=

In[135]:=

Out[135]=

From associations of arrows/morphisms (with explicitly provided arrow/morphism names):

In[136]:=

Out[136]=

In[137]:=

Out[137]=

With explicit lists of objects specified:

In[138]:=

Out[138]=

In[139]:=

Out[139]=

Composition and identity symbols can be specified for any abstract category:

In[140]:=

Out[140]=

In[141]:=

Out[141]=

Likewise, lists of object equivalences and arrow equivalences can be specified for any abstract category:

In[142]:=

Out[142]=

In[143]:=

Out[143]=

New composition and identity symbols can be specified for any existing abstract category:

In[144]:=

Out[144]=

In[145]:=

Out[145]=

Likewise for new object and morphism equivalences:

In[146]:=

Out[146]=

In[147]:=

Out[147]=

From an explicit association:

In[148]:=

Out[148]=

In[149]:=

Out[149]=

Construct an abstract category from an association of arrows/morphisms with additional object and morphism equivalences:

In[150]:=

Out[150]=

Show the list of properties:

In[151]:=

Out[151]=

Show the list of objects in the abstract category:

In[152]:=

Out[152]=

Show the number of objects in the abstract category:

In[153]:=

Out[153]=

Show the association of morphisms in the abstract category:

In[154]:=

Out[154]=

Show the list of names of morphisms in the abstract category:

In[155]:=

Out[155]=

Show the list of directed edges corresponding to morphisms in the abstract category:

In[156]:=

Out[156]=

Show the number of morphisms in the abstract category:

In[157]:=

Out[157]=

Show the list of equivalences between objects in the abstract category:

In[158]:=

Out[158]=

Show the number of equivalences between objects in the abstract category:

In[159]:=

Out[159]=

Show the list of equivalences between morphisms in the abstract category:

In[160]:=

Out[160]=

Show the number of equivalences between morphisms in the abstract category:

In[161]:=

Out[161]=

Show the list of reduced objects (modded out by all object equivalences) in the abstract category:

In[162]:=

Out[162]=

Show the number of reduced objects (modded out by all object equivalences) in the abstract category:

In[163]:=

Out[163]=

Show the association of reduced morphisms (modded out by all object and morphism equivalences) in the abstract category:

In[164]:=

Out[164]=

Show the list of names of reduced morphisms (modded out by all morphism equivalences) in the abstract category:

In[165]:=

Out[165]=

Show the list of directed edges corresponding to reduced morphisms (modded out by all object and morphism equivalences) in the abstract category:

In[166]:=

Out[166]=

Show the number of reduced morphisms (modded out by all object and morphism equivalences) in the abstract category:

In[167]:=

Out[167]=

Show the association of simple morphisms (with all self-loops and multiedges removed) in the abstract category:

In[168]:=

Out[168]=

Show the list of names of simple morphisms (with all self-loops and multiedges removed) in the abstract category:

In[169]:=

Out[169]=

Show the list of directed edges corresponding to simple morphisms (with all self-loops and multiedges removed) in the abstract category:

In[170]:=

Out[170]=

Show the number of simple morphisms (with all self-loops and multiedges removed) in the abstract category:

In[171]:=

Out[171]=

Show the association of reduced simple morphisms (with all self-loops and multiedges removed, plus all object and morphism equivalences modded out) in the abstract category:

In[172]:=

Out[172]=

Show the list of names of reduced simple morphisms (with all self-loops and multiedges removed, plus all object and morphism equivalences modded out) in the abstract category:

In[173]:=

Out[173]=

Show the list of directed edges corresponding to reduced simple morphisms (with all self-loops and multiedges removed, plus all object and morphism equivalences modded out) in the abstract category:

In[174]:=

Out[174]=

Show the number of reduced simple morphisms (with all self-loops and multiedges removed, plus all object and morphism equivalences modded out) in the abstract category:

In[175]:=

Out[175]=

Show the (binary) symbol used to denote morphism composition in the abstract category:

In[176]:=

Out[176]=

Show the (unary) symbol used to denote identity morphisms on objects in the abstract category:

In[177]:=

Out[177]=

Compute the dual category (obtained by swapping the source and target objects of each morphism and reversing the direction of morphism composition):

In[178]:=

Out[178]=

Show the abstract quiver forming the underlying structure of the abstract category:

In[179]:=

Out[179]=

Show the list of equations imposed implicitly by the axiom that morphism composition in the abstract category must be associative:

In[180]:=

Out[180]=

Show the list of equations imposed implicitly by the axiom that morphism composition in the abstract category must be associative, modulo all equivalences between objects and morphisms:

In[181]:=

Out[181]=

Show the list of equations imposed implicitly by the axiom that every object in the abstract category must have an identity morphism:

In[182]:=

Out[182]=

Show the list of equations imposed implicitly by the axiom that every object in the abstract category must have an identity morphism, modulo all equivalences between objects and morphisms:

In[183]:=

Out[183]=

Determine whether the abstract category is a commutative diagram (i.e. all directed paths through the graph with the same source and target object yield the same morphism):

In[184]:=

Out[184]=

Show the list of equations between morphisms required to force the abstract category to be a commutative diagram:

In[185]:=

Out[185]=

Show the list of equations between morphisms required to force the abstract category to be a commutative diagram, modulo all equivalences between objects and morphisms:

In[186]:=

Out[186]=

Show the association of monomorphisms (i.e. left-cancellative/injective morphisms) in the abstract category:

In[187]:=

Out[187]=

Show the association of monomorphisms (i.e. left-cancellative/injective morphisms) in the abstract category, modulo all equivalences between objects and morphisms:

In[188]:=

Out[188]=

Show the association of epimorphisms (i.e. right-cancellative/surjective morphisms) in the abstract category:

In[189]:=

Out[189]=

Show the association of epimorphisms (i.e. right-cancellative/surjective morphisms) in the abstract category, modulo all equivalences between objects and morphisms:

In[190]:=

Out[190]=

Show the association of bimorphisms (i.e. left- and right-cancellative/bijective morphisms) in the abstract category:

In[191]:=

Out[191]=

Show the association of bimorphisms (i.e. left- and right-cancellative/bijective morphisms) in the abstract category, modulo all equivalences between objects and morphisms:

In[192]:=

Out[192]=

Show the association of retractions (i.e. left inverse morphisms) in the abstract category:

In[193]:=

Out[193]=

Show the association of retractions (i.e. left inverse morphisms) in the abstract category, modulo all equivalences between objects and morphisms:

In[194]:=

Out[194]=

Show the association of left inverse morphisms (i.e. retractions) for each morphism in the abstract category:

In[195]:=

Out[195]=

Show the association of left inverse morphisms (i.e. retractions) for each morphism in the abstract category, modulo all equivalences between objects and morphisms:

In[196]:=

Out[196]=

Show the association of sections (i.e. right inverse morphisms) in the abstract category:

In[197]:=

Out[197]=

Show the association of sections (i.e. right inverse morphisms) in the abstract category, modulo all equivalences between objects and morphisms:

In[198]:=

Out[198]=

Show the association of right inverse morphisms (i.e. sections) for each morphism in the abstract category:

In[199]:=

Out[199]=

Show the association of right inverse morphisms (i.e. sections) for each morphism in the abstract category, modulo all equivalences between objects and morphisms:

In[200]:=

Out[200]=

Show the association of isomorphisms (i.e. left and right inverse morphisms) in the abstract category:

In[201]:=

Out[201]=

Show the association of isomorphisms (i.e. left and right inverse morphisms) in the abstract category, modulo all equivalences between objects and morphisms:

In[202]:=

Out[202]=

Show the association of inverse morphisms (i.e. isomorphisms) for each morphism in the abstract category:

In[203]:=

Out[203]=

Show the association of inverse morphisms (i.e. isomorphisms) for each morphism in the abstract category, modulo all equivalences between objects and morphisms:

In[204]:=

Out[204]=

Show the association of endomorphisms (i.e. morphisms from an object to itself) in the abstract category:

In[205]:=

Out[205]=

Show the association of endomorphisms (i.e. morphisms from an object to itself) in the abstract category, modulo all equivalences between objects and morphisms:

In[206]:=

Out[206]=

Show the association of automorphisms (i.e. isomorphisms from an object to itself) in the abstract category:

In[207]:=

Out[207]=

Show the association of automorphisms (i.e. isomorphisms from an object to itself) in the abstract category, modulo all equivalences between objects and morphisms:

In[208]:=

Out[208]=

Show the association of initial objects (i.e. objects with exactly one outgoing morphism to each object) in the abstract category:

In[209]:=

Out[209]=

Show the association of initial objects (i.e. objects with exactly one outgoing morphism to each object) in the abstract category, modulo all equivalences between objects and morphisms:

In[210]:=

Out[210]=

Show the association of strict initial objects (i.e. initial objects whose incoming morphisms are all isomorphisms) in the abstract category:

In[211]:=

Out[211]=

Show the association of strict initial objects (i.e. initial objects whose incoming morphisms are all isomorphisms) in the abstract category, modulo all equivalences between objects and morphisms:

In[212]:=

Out[212]=

Show the association of terminal objects (i.e. objects with exactly one incoming morphism from each object) in the abstract category:

In[213]:=

Out[213]=

Show the association of terminal objects (i.e. objects with exactly one incoming morphism from each object) in the abstract category, modulo all equivalences between objects and morphisms:

In[214]:=

Out[214]=

Show the association of strict terminal objects (i.e. terminal objects whose outgoing morphisms are all isomorphisms) in the abstract category:

In[215]:=

Out[215]=

Show the association of strict terminal objects (i.e. terminal objects whose outgoing morphisms are all isomorphisms) in the abstract category, modulo all equivalences between objects and morphisms:

In[216]:=

Out[216]=

Show the association of zero objects (i.e. objects with exactly one outgoing morphism and one incoming morphism to/from each object) in the abstract category:

In[217]:=

Out[217]=

Show the association of zero objects (i.e. objects with exactly one outgoing morphism and one incoming morphism to/from each object) in the abstract category, modulo all equivalences between objects and morphisms:

In[218]:=

Out[218]=

Show the association of strict zero objects (i.e. zero objects whose incoming and outgoing morphisms are all isomorphisms) in the abstract category:

In[219]:=

Out[219]=

Show the association of strict zero objects (i.e. zero objects whose incoming and outgoing morphisms are all isomorphisms) in the abstract category, modulo all equivalences between objects and morphisms:

In[220]:=

Out[220]=

Determine whether the abstract category is pointed (i.e. contains a zero object):

In[221]:=

Out[221]=

Show the association of constant morphisms (i.e. morphisms that yield the same result when composed on the right with either member of a parallel pair of morphisms) in the abstract category:

In[222]:=

Out[222]=

Show the association of constant morphisms (i.e. morphisms that yield the same result when composed on the right with either member of a parallel pair of morphisms) in the abstract category, modulo all equivalences between objects and morphisms:

In[223]:=

Out[223]=

Show the association of coconstant morphisms (i.e. morphisms that yield the same result when composed on the left with either member of a parallel pair of morphisms) in the abstract category:

In[224]:=

Out[224]=

Show the association of coconstant morphisms (i.e. morphisms that yield the same result when composed on the left with either member of a parallel pair of morphisms) in the abstract category, modulo all equivalences between objects and morphisms:

In[225]:=

Out[225]=

Show the association of zero morphisms (i.e. morphisms that yield the same result when composed on the left or right with either member of a parallel pair of morphisms) in the abstract category:

In[226]:=

Out[226]=

Show the association of zero morphisms (i.e. morphisms that yield the same result when composed on the left or right with either member of a parallel pair of morphisms) in the abstract category, modulo all equivalences between objects and morphisms:

In[227]:=

Out[227]=

Determine whether the abstract category is discrete (i.e. all morphisms are identity morphisms):

In[228]:=

Out[228]=

Determine whether the abstract category is indiscrete (i.e. there exists a unique morphism between every pair of objects):

In[229]:=

Out[229]=

Determine whether the abstract category is balanced (i.e. every bimorphism is also an isomorphism):

In[230]:=

Out[230]=

Determine whether the abstract category is a groupoid (i.e. all morphisms are isomorphisms):

In[231]:=

Out[231]=

Show the list of equations between morphisms required to force the abstract category to be a groupoid (may not necessarily exist):

In[232]:=

Out[232]=

Show the list of equations between morphisms required to force the abstract category to be a groupoid, modulo all equivalences between objects and morphisms (may not necessarily exist):

In[233]:=

Out[233]=

Show the full directed graph with labels on the morphisms of the abstract category:

In[234]:=

Out[234]=

Show the full directed graph without labels on the morphisms of the abstract category:

In[235]:=

Out[235]=

Show the reduced directed graph, with all equivalences between objects and morphisms imposed and with labels on the morphisms of the abstract category:

In[236]:=

Out[236]=

Show the reduced directed graph, with all equivalences between objects and morphisms imposed and without labels on the morphisms of the abstract category:

In[237]:=

Out[237]=

Show the simple directed graph, with all self-loops and multiedges removed and with labels on the morphisms of the abstract category:

In[238]:=

Out[238]=

Show the simple directed graph, with all self-loops and multiedges removed and without labels on the morphisms of the abstract category:

In[239]:=

Out[239]=

Show the reduced simple directed graph, with all self-loops and multiedges removed, plus all object and morphism equivalences modded out and with labels on the morphisms of the abstract category:

In[240]:=

Out[240]=

Show the reduced simple directed graph, with all self-loops and multiedges removed, plus all object and morphism equivalences modded out and without labels on the morphisms of the abstract category:

In[241]:=

Out[241]=

Show the explicit association form of the category:

In[242]:=

Out[242]=
