Wolfram/VirtualMachine

Run virtual machines in the Wolfram Language

Contributed By: Wolfram Research

The VirtualMachine package allows you to run virtual machines in the Wolfram Language. These include computer architectures of the past, such as the PDP-1 and the Intel 4004, as well as abstract machines such as register machines and deterministic finite automatons.

Installation Instructions

To install this paclet in your Wolfram Language environment, evaluate this code:
PacletInstall[ResourceObject["Wolfram/VirtualMachine"]]

Paclet Guide

Examples

Basic Examples (6)

Create an instance of the "PDP-8" virtual machine:

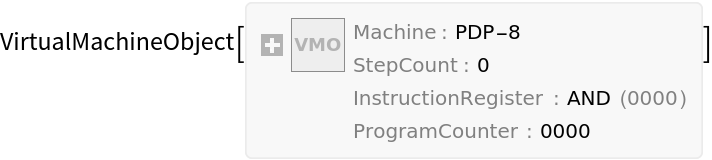

In[1]:=
pdp8 = InterpretationBox[FrameBox[TagBox[TooltipBox[PaneBox[GridBox[List[List[GraphicsBox[List[Thickness[0.006082377284997087`], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[2.78206`, 85.44900000000004`], List[79.17353999999999`, 41.67850000000004`], List[79.17353999999999`, 1.6779000000000508`], List[2.78206`, 45.44840000000002`]], List[List[127.7826`, 115.44898000000003`], List[127.7826`, 26.449000000000012`], List[161.7832`, 47.44780000000006`], List[161.7832`, 135.44923000000003`]], List[List[5.78267`, 141.44910000000004`], List[40.783`, 121.44819000000003`], List[117.7831`, 165.44919000000004`], List[81.37629999999999`, 187.24592000000004`]]]]], List[FaceForm[RGBColor[0.9843139999999999`, 0.662745`, 0.25098000000000004`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[79.20467000000001`, 90.91309000000003`], List[79.20546`, 48.911800000000056`], List[43.782610000000005`, 69.44830000000003`], List[43.782610000000005`, 111.44764000000002`]], List[List[82.77993`, 137.44809000000004`], List[48.77938`, 117.44782000000004`], List[82.77993`, 97.44923000000004`], List[117.7808`, 117.44782000000004`]], List[List[86.41823000000001`, 90.97696000000002`], List[86.45015000000001`, 48.71930000000003`], List[121.7829`, 70.44880000000003`], List[121.7829`, 112.44819000000003`]]]]], List[FaceForm[RGBColor[0.46274499999999996`, 0.066667`, 0.07451`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[158.7825`, 141.44910000000004`], List[123.7817`, 121.44886000000004`], List[89.78278999999999`, 141.44910000000004`], List[123.7817`, 161.44770000000003`]], List[List[2.7817600000000002`, 92.44794000000003`], List[37.782610000000005`, 72.44770000000003`], List[37.782610000000005`, 114.44870000000003`], List[2.7817600000000002`, 134.44898000000003`]], List[List[86.45015000000001`, 1.7736000000000445`], List[121.78269999999999`, 23.44920000000002`], List[121.78269999999999`, 63.33730000000003`], List[86.45015000000001`, 41.66350000000003`]]]]], List[FaceForm[RGBColor[1.`, 0.41568600000000006`, 0.054902000000000006`, 1.`]]], Rule[StripOnInput, False]]], List[Rule[BaselinePosition, Scaled[0.15`]], Rule[ImageSize, 10], Rule[ImageSize, List[30, Automatic]]]], StyleBox[RowBox[List["VirtualMachine", " "]], Rule[ShowAutoStyles, False], Rule[ShowStringCharacters, False], Rule[FontSize, Times[0.9`, Inherited]], Rule[FontColor, GrayLevel[0.1`]]]]], Rule[GridBoxSpacings, List[Rule["Columns", List[List[0.25`]]]]]], Rule[Alignment, List[Left, Baseline]], Rule[BaselinePosition, Baseline], Rule[FrameMargins, List[List[3, 0], List[0, 0]]], Rule[BaseStyle, List[Rule[LineSpacing, List[0, 0]], Rule[LineBreakWithin, False]]]], RowBox[List["PacletSymbol", "[", RowBox[List["\"Wolfram/VirtualMachine\"", ",", "\"VirtualMachine\""]], "]"]], Rule[TooltipStyle, List[Rule[ShowAutoStyles, True], Rule[ShowStringCharacters, True]]]], Function[Annotation[Slot[1], Style[Defer[PacletSymbol["Wolfram/VirtualMachine", "VirtualMachine"]], Rule[ShowStringCharacters, True]], "Tooltip"]]], Rule[Background, RGBColor[0.968`, 0.976`, 0.984`]], Rule[BaselinePosition, Baseline], Rule[DefaultBaseStyle, List[]], Rule[FrameMargins, List[List[0, 0], List[1, 1]]], Rule[FrameStyle, RGBColor[0.831`, 0.847`, 0.85`]], Rule[RoundingRadius, 4]], PacletSymbol["Wolfram/VirtualMachine", "VirtualMachine"], Rule[Selectable, False], Rule[SelectWithContents, True], Rule[BoxID, "PacletSymbolBox"]]["PDP-8"]
Out[1]=

Get information about the object:

In[2]:=

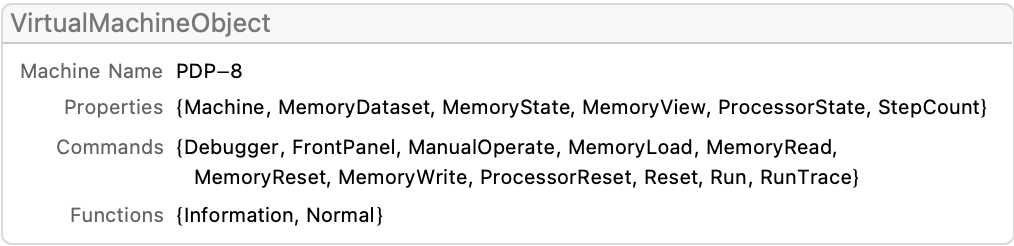

Information[pdp8]
Out[2]=

Load a program that fills the machine's memory with the value 8^^3333:

In[3]:=
InterpretationBox[FrameBox[TagBox[TooltipBox[PaneBox[GridBox[List[List[GraphicsBox[List[Thickness[0.006082377284997087`], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[2.78206`, 85.44900000000004`], List[79.17353999999999`, 41.67850000000004`], List[79.17353999999999`, 1.6779000000000508`], List[2.78206`, 45.44840000000002`]], List[List[127.7826`, 115.44898000000003`], List[127.7826`, 26.449000000000012`], List[161.7832`, 47.44780000000006`], List[161.7832`, 135.44923000000003`]], List[List[5.78267`, 141.44910000000004`], List[40.783`, 121.44819000000003`], List[117.7831`, 165.44919000000004`], List[81.37629999999999`, 187.24592000000004`]]]]], List[FaceForm[RGBColor[0.9843139999999999`, 0.662745`, 0.25098000000000004`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[79.20467000000001`, 90.91309000000003`], List[79.20546`, 48.911800000000056`], List[43.782610000000005`, 69.44830000000003`], List[43.782610000000005`, 111.44764000000002`]], List[List[82.77993`, 137.44809000000004`], List[48.77938`, 117.44782000000004`], List[82.77993`, 97.44923000000004`], List[117.7808`, 117.44782000000004`]], List[List[86.41823000000001`, 90.97696000000002`], List[86.45015000000001`, 48.71930000000003`], List[121.7829`, 70.44880000000003`], List[121.7829`, 112.44819000000003`]]]]], List[FaceForm[RGBColor[0.46274499999999996`, 0.066667`, 0.07451`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[158.7825`, 141.44910000000004`], List[123.7817`, 121.44886000000004`], List[89.78278999999999`, 141.44910000000004`], List[123.7817`, 161.44770000000003`]], List[List[2.7817600000000002`, 92.44794000000003`], List[37.782610000000005`, 72.44770000000003`], List[37.782610000000005`, 114.44870000000003`], List[2.7817600000000002`, 134.44898000000003`]], List[List[86.45015000000001`, 1.7736000000000445`], List[121.78269999999999`, 23.44920000000002`], List[121.78269999999999`, 63.33730000000003`], List[86.45015000000001`, 41.66350000000003`]]]]], List[FaceForm[RGBColor[1.`, 0.41568600000000006`, 0.054902000000000006`, 1.`]]], Rule[StripOnInput, False]]], List[Rule[BaselinePosition, Scaled[0.15`]], Rule[ImageSize, 10], Rule[ImageSize, List[30, Automatic]]]], StyleBox[RowBox[List["VirtualMachineExecute", " "]], Rule[ShowAutoStyles, False], Rule[ShowStringCharacters, False], Rule[FontSize, Times[0.9`, Inherited]], Rule[FontColor, GrayLevel[0.1`]]]]], Rule[GridBoxSpacings, List[Rule["Columns", List[List[0.25`]]]]]], Rule[Alignment, List[Left, Baseline]], Rule[BaselinePosition, Baseline], Rule[FrameMargins, List[List[3, 0], List[0, 0]]], Rule[BaseStyle, List[Rule[LineSpacing, List[0, 0]], Rule[LineBreakWithin, False]]]], RowBox[List["PacletSymbol", "[", RowBox[List["\"Wolfram/VirtualMachine\"", ",", "\"VirtualMachineExecute\""]], "]"]], Rule[TooltipStyle, List[Rule[ShowAutoStyles, True], Rule[ShowStringCharacters, True]]]], Function[Annotation[Slot[1], Style[Defer[PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"]], Rule[ShowStringCharacters, True]], "Tooltip"]]], Rule[Background, RGBColor[0.968`, 0.976`, 0.984`]], Rule[BaselinePosition, Baseline], Rule[DefaultBaseStyle, List[]], Rule[FrameMargins, List[List[0, 0], List[1, 1]]], Rule[FrameStyle, RGBColor[0.831`, 0.847`, 0.85`]], Rule[RoundingRadius, 4]], PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"], Rule[Selectable, False], Rule[SelectWithContents, True], Rule[BoxID, "PacletSymbolBox"]][pdp8, "MemoryLoad", {519, 1798, 1030, 2560, 3842, 0, 8, 8^^3333}]
Out[3]=

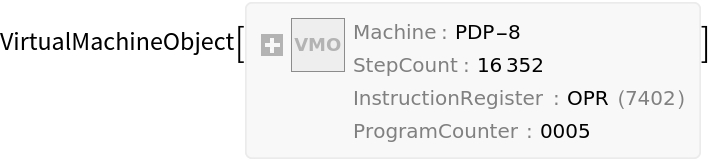

Run the machine until it executes the halt instruction:

In[4]:=
InterpretationBox[FrameBox[TagBox[TooltipBox[PaneBox[GridBox[List[List[GraphicsBox[List[Thickness[0.006082377284997087`], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[2.78206`, 85.44900000000004`], List[79.17353999999999`, 41.67850000000004`], List[79.17353999999999`, 1.6779000000000508`], List[2.78206`, 45.44840000000002`]], List[List[127.7826`, 115.44898000000003`], List[127.7826`, 26.449000000000012`], List[161.7832`, 47.44780000000006`], List[161.7832`, 135.44923000000003`]], List[List[5.78267`, 141.44910000000004`], List[40.783`, 121.44819000000003`], List[117.7831`, 165.44919000000004`], List[81.37629999999999`, 187.24592000000004`]]]]], List[FaceForm[RGBColor[0.9843139999999999`, 0.662745`, 0.25098000000000004`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[79.20467000000001`, 90.91309000000003`], List[79.20546`, 48.911800000000056`], List[43.782610000000005`, 69.44830000000003`], List[43.782610000000005`, 111.44764000000002`]], List[List[82.77993`, 137.44809000000004`], List[48.77938`, 117.44782000000004`], List[82.77993`, 97.44923000000004`], List[117.7808`, 117.44782000000004`]], List[List[86.41823000000001`, 90.97696000000002`], List[86.45015000000001`, 48.71930000000003`], List[121.7829`, 70.44880000000003`], List[121.7829`, 112.44819000000003`]]]]], List[FaceForm[RGBColor[0.46274499999999996`, 0.066667`, 0.07451`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[158.7825`, 141.44910000000004`], List[123.7817`, 121.44886000000004`], List[89.78278999999999`, 141.44910000000004`], List[123.7817`, 161.44770000000003`]], List[List[2.7817600000000002`, 92.44794000000003`], List[37.782610000000005`, 72.44770000000003`], List[37.782610000000005`, 114.44870000000003`], List[2.7817600000000002`, 134.44898000000003`]], List[List[86.45015000000001`, 1.7736000000000445`], List[121.78269999999999`, 23.44920000000002`], List[121.78269999999999`, 63.33730000000003`], List[86.45015000000001`, 41.66350000000003`]]]]], List[FaceForm[RGBColor[1.`, 0.41568600000000006`, 0.054902000000000006`, 1.`]]], Rule[StripOnInput, False]]], List[Rule[BaselinePosition, Scaled[0.15`]], Rule[ImageSize, 10], Rule[ImageSize, List[30, Automatic]]]], StyleBox[RowBox[List["VirtualMachineExecute", " "]], Rule[ShowAutoStyles, False], Rule[ShowStringCharacters, False], Rule[FontSize, Times[0.9`, Inherited]], Rule[FontColor, GrayLevel[0.1`]]]]], Rule[GridBoxSpacings, List[Rule["Columns", List[List[0.25`]]]]]], Rule[Alignment, List[Left, Baseline]], Rule[BaselinePosition, Baseline], Rule[FrameMargins, List[List[3, 0], List[0, 0]]], Rule[BaseStyle, List[Rule[LineSpacing, List[0, 0]], Rule[LineBreakWithin, False]]]], RowBox[List["PacletSymbol", "[", RowBox[List["\"Wolfram/VirtualMachine\"", ",", "\"VirtualMachineExecute\""]], "]"]], Rule[TooltipStyle, List[Rule[ShowAutoStyles, True], Rule[ShowStringCharacters, True]]]], Function[Annotation[Slot[1], Style[Defer[PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"]], Rule[ShowStringCharacters, True]], "Tooltip"]]], Rule[Background, RGBColor[0.968`, 0.976`, 0.984`]], Rule[BaselinePosition, Baseline], Rule[DefaultBaseStyle, List[]], Rule[FrameMargins, List[List[0, 0], List[1, 1]]], Rule[FrameStyle, RGBColor[0.831`, 0.847`, 0.85`]], Rule[RoundingRadius, 4]], PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"], Rule[Selectable, False], Rule[SelectWithContents, True], Rule[BoxID, "PacletSymbolBox"]][pdp8, "Run", Infinity]
Out[4]=

Obtain the state of the processor after the machine has halted:

In[5]:=

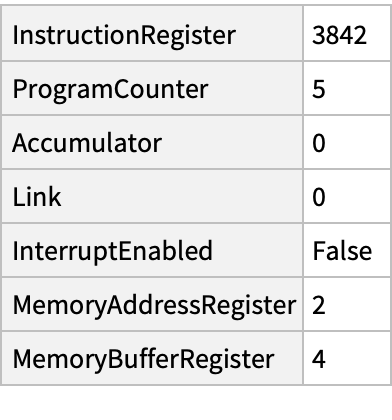

pdp8["ProcessorState"] // Dataset
Out[5]=

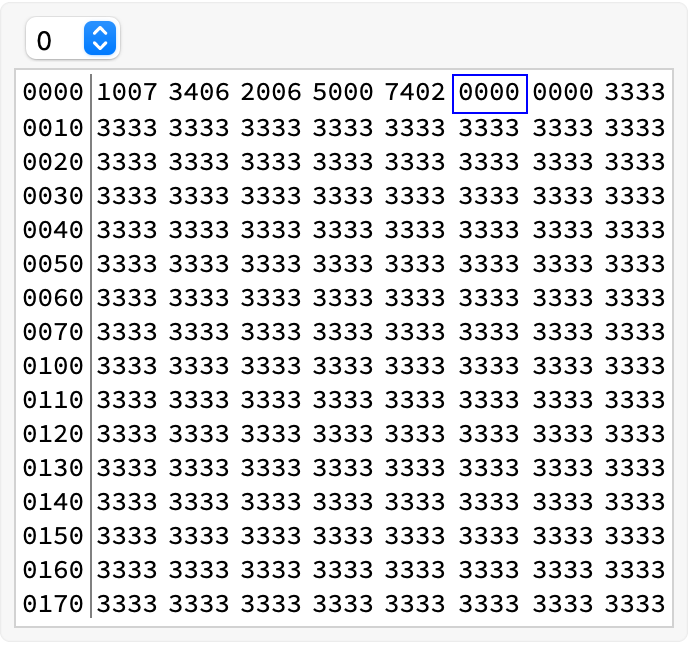

Verify the program has filled the entire memory:

In[6]:=
pdp8["MemoryView"]
Out[6]=

Scope (4)

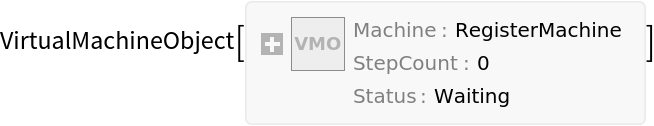

Use the Association in the second argument to create an instance of a "RegisterMachine" defined by a simple program:

In[7]:=
rm = InterpretationBox[FrameBox[TagBox[TooltipBox[PaneBox[GridBox[List[List[GraphicsBox[List[Thickness[0.006082377284997087`], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[2.78206`, 85.44900000000004`], List[79.17353999999999`, 41.67850000000004`], List[79.17353999999999`, 1.6779000000000508`], List[2.78206`, 45.44840000000002`]], List[List[127.7826`, 115.44898000000003`], List[127.7826`, 26.449000000000012`], List[161.7832`, 47.44780000000006`], List[161.7832`, 135.44923000000003`]], List[List[5.78267`, 141.44910000000004`], List[40.783`, 121.44819000000003`], List[117.7831`, 165.44919000000004`], List[81.37629999999999`, 187.24592000000004`]]]]], List[FaceForm[RGBColor[0.9843139999999999`, 0.662745`, 0.25098000000000004`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[79.20467000000001`, 90.91309000000003`], List[79.20546`, 48.911800000000056`], List[43.782610000000005`, 69.44830000000003`], List[43.782610000000005`, 111.44764000000002`]], List[List[82.77993`, 137.44809000000004`], List[48.77938`, 117.44782000000004`], List[82.77993`, 97.44923000000004`], List[117.7808`, 117.44782000000004`]], List[List[86.41823000000001`, 90.97696000000002`], List[86.45015000000001`, 48.71930000000003`], List[121.7829`, 70.44880000000003`], List[121.7829`, 112.44819000000003`]]]]], List[FaceForm[RGBColor[0.46274499999999996`, 0.066667`, 0.07451`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[158.7825`, 141.44910000000004`], List[123.7817`, 121.44886000000004`], List[89.78278999999999`, 141.44910000000004`], List[123.7817`, 161.44770000000003`]], List[List[2.7817600000000002`, 92.44794000000003`], List[37.782610000000005`, 72.44770000000003`], List[37.782610000000005`, 114.44870000000003`], List[2.7817600000000002`, 134.44898000000003`]], List[List[86.45015000000001`, 1.7736000000000445`], List[121.78269999999999`, 23.44920000000002`], List[121.78269999999999`, 63.33730000000003`], List[86.45015000000001`, 41.66350000000003`]]]]], List[FaceForm[RGBColor[1.`, 0.41568600000000006`, 0.054902000000000006`, 1.`]]], Rule[StripOnInput, False]]], List[Rule[BaselinePosition, Scaled[0.15`]], Rule[ImageSize, 10], Rule[ImageSize, List[30, Automatic]]]], StyleBox[RowBox[List["VirtualMachine", " "]], Rule[ShowAutoStyles, False], Rule[ShowStringCharacters, False], Rule[FontSize, Times[0.9`, Inherited]], Rule[FontColor, GrayLevel[0.1`]]]]], Rule[GridBoxSpacings, List[Rule["Columns", List[List[0.25`]]]]]], Rule[Alignment, List[Left, Baseline]], Rule[BaselinePosition, Baseline], Rule[FrameMargins, List[List[3, 0], List[0, 0]]], Rule[BaseStyle, List[Rule[LineSpacing, List[0, 0]], Rule[LineBreakWithin, False]]]], RowBox[List["PacletSymbol", "[", RowBox[List["\"Wolfram/VirtualMachine\"", ",", "\"VirtualMachine\""]], "]"]], Rule[TooltipStyle, List[Rule[ShowAutoStyles, True], Rule[ShowStringCharacters, True]]]], Function[Annotation[Slot[1], Style[Defer[PacletSymbol["Wolfram/VirtualMachine", "VirtualMachine"]], Rule[ShowStringCharacters, True]], "Tooltip"]]], Rule[Background, RGBColor[0.968`, 0.976`, 0.984`]], Rule[BaselinePosition, Baseline], Rule[DefaultBaseStyle, List[]], Rule[FrameMargins, List[List[0, 0], List[1, 1]]], Rule[FrameStyle, RGBColor[0.831`, 0.847`, 0.85`]], Rule[RoundingRadius, 4]], PacletSymbol["Wolfram/VirtualMachine", "VirtualMachine"], Rule[Selectable, False], Rule[SelectWithContents, True], Rule[BoxID, "PacletSymbolBox"]][
  "RegisterMachine", <|
   "Program" -> {"INC"[1], "INC"[2], "DECJ"[2, 1]}|>]
Out[7]=

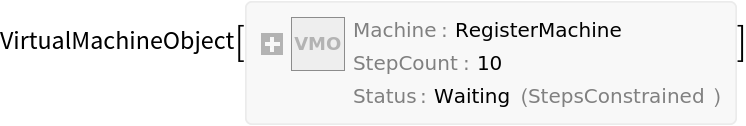

Run the register machine for 10 steps:

In[8]:=
InterpretationBox[FrameBox[TagBox[TooltipBox[PaneBox[GridBox[List[List[GraphicsBox[List[Thickness[0.006082377284997087`], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[2.78206`, 85.44900000000004`], List[79.17353999999999`, 41.67850000000004`], List[79.17353999999999`, 1.6779000000000508`], List[2.78206`, 45.44840000000002`]], List[List[127.7826`, 115.44898000000003`], List[127.7826`, 26.449000000000012`], List[161.7832`, 47.44780000000006`], List[161.7832`, 135.44923000000003`]], List[List[5.78267`, 141.44910000000004`], List[40.783`, 121.44819000000003`], List[117.7831`, 165.44919000000004`], List[81.37629999999999`, 187.24592000000004`]]]]], List[FaceForm[RGBColor[0.9843139999999999`, 0.662745`, 0.25098000000000004`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[79.20467000000001`, 90.91309000000003`], List[79.20546`, 48.911800000000056`], List[43.782610000000005`, 69.44830000000003`], List[43.782610000000005`, 111.44764000000002`]], List[List[82.77993`, 137.44809000000004`], List[48.77938`, 117.44782000000004`], List[82.77993`, 97.44923000000004`], List[117.7808`, 117.44782000000004`]], List[List[86.41823000000001`, 90.97696000000002`], List[86.45015000000001`, 48.71930000000003`], List[121.7829`, 70.44880000000003`], List[121.7829`, 112.44819000000003`]]]]], List[FaceForm[RGBColor[0.46274499999999996`, 0.066667`, 0.07451`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[158.7825`, 141.44910000000004`], List[123.7817`, 121.44886000000004`], List[89.78278999999999`, 141.44910000000004`], List[123.7817`, 161.44770000000003`]], List[List[2.7817600000000002`, 92.44794000000003`], List[37.782610000000005`, 72.44770000000003`], List[37.782610000000005`, 114.44870000000003`], List[2.7817600000000002`, 134.44898000000003`]], List[List[86.45015000000001`, 1.7736000000000445`], List[121.78269999999999`, 23.44920000000002`], List[121.78269999999999`, 63.33730000000003`], List[86.45015000000001`, 41.66350000000003`]]]]], List[FaceForm[RGBColor[1.`, 0.41568600000000006`, 0.054902000000000006`, 1.`]]], Rule[StripOnInput, False]]], List[Rule[BaselinePosition, Scaled[0.15`]], Rule[ImageSize, 10], Rule[ImageSize, List[30, Automatic]]]], StyleBox[RowBox[List["VirtualMachineExecute", " "]], Rule[ShowAutoStyles, False], Rule[ShowStringCharacters, False], Rule[FontSize, Times[0.9`, Inherited]], Rule[FontColor, GrayLevel[0.1`]]]]], Rule[GridBoxSpacings, List[Rule["Columns", List[List[0.25`]]]]]], Rule[Alignment, List[Left, Baseline]], Rule[BaselinePosition, Baseline], Rule[FrameMargins, List[List[3, 0], List[0, 0]]], Rule[BaseStyle, List[Rule[LineSpacing, List[0, 0]], Rule[LineBreakWithin, False]]]], RowBox[List["PacletSymbol", "[", RowBox[List["\"Wolfram/VirtualMachine\"", ",", "\"VirtualMachineExecute\""]], "]"]], Rule[TooltipStyle, List[Rule[ShowAutoStyles, True], Rule[ShowStringCharacters, True]]]], Function[Annotation[Slot[1], Style[Defer[PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"]], Rule[ShowStringCharacters, True]], "Tooltip"]]], Rule[Background, RGBColor[0.968`, 0.976`, 0.984`]], Rule[BaselinePosition, Baseline], Rule[DefaultBaseStyle, List[]], Rule[FrameMargins, List[List[0, 0], List[1, 1]]], Rule[FrameStyle, RGBColor[0.831`, 0.847`, 0.85`]], Rule[RoundingRadius, 4]], PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"], Rule[Selectable, False], Rule[SelectWithContents, True], Rule[BoxID, "PacletSymbolBox"]][rm, "Run", 10]
Out[8]=

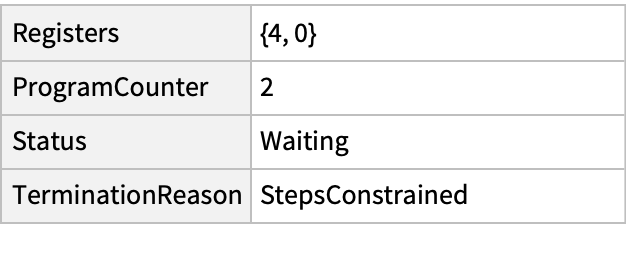

Get the state of the machine:

In[9]:=
rm["MachineState"] // Dataset
Out[9]=

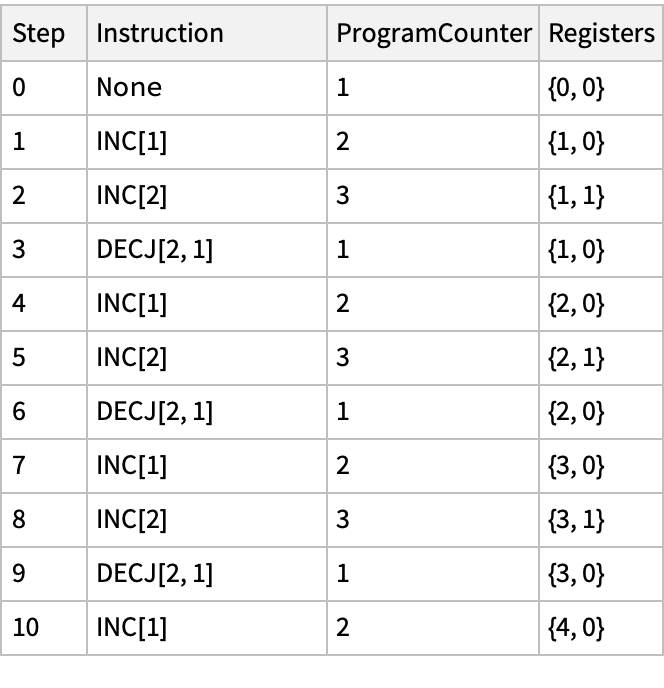

Get a Dataset representing the evolution of the register machine:

In[10]:=
rm["EvolutionDataset"]
Out[10]=

Interactive Examples (2)

Create a new instance of the "PDP-8" virtual machine:

In[11]:=
pdp8 = InterpretationBox[FrameBox[TagBox[TooltipBox[PaneBox[GridBox[List[List[GraphicsBox[List[Thickness[0.006082377284997087`], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[2.78206`, 85.44900000000004`], List[79.17353999999999`, 41.67850000000004`], List[79.17353999999999`, 1.6779000000000508`], List[2.78206`, 45.44840000000002`]], List[List[127.7826`, 115.44898000000003`], List[127.7826`, 26.449000000000012`], List[161.7832`, 47.44780000000006`], List[161.7832`, 135.44923000000003`]], List[List[5.78267`, 141.44910000000004`], List[40.783`, 121.44819000000003`], List[117.7831`, 165.44919000000004`], List[81.37629999999999`, 187.24592000000004`]]]]], List[FaceForm[RGBColor[0.9843139999999999`, 0.662745`, 0.25098000000000004`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[79.20467000000001`, 90.91309000000003`], List[79.20546`, 48.911800000000056`], List[43.782610000000005`, 69.44830000000003`], List[43.782610000000005`, 111.44764000000002`]], List[List[82.77993`, 137.44809000000004`], List[48.77938`, 117.44782000000004`], List[82.77993`, 97.44923000000004`], List[117.7808`, 117.44782000000004`]], List[List[86.41823000000001`, 90.97696000000002`], List[86.45015000000001`, 48.71930000000003`], List[121.7829`, 70.44880000000003`], List[121.7829`, 112.44819000000003`]]]]], List[FaceForm[RGBColor[0.46274499999999996`, 0.066667`, 0.07451`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[158.7825`, 141.44910000000004`], List[123.7817`, 121.44886000000004`], List[89.78278999999999`, 141.44910000000004`], List[123.7817`, 161.44770000000003`]], List[List[2.7817600000000002`, 92.44794000000003`], List[37.782610000000005`, 72.44770000000003`], List[37.782610000000005`, 114.44870000000003`], List[2.7817600000000002`, 134.44898000000003`]], List[List[86.45015000000001`, 1.7736000000000445`], List[121.78269999999999`, 23.44920000000002`], List[121.78269999999999`, 63.33730000000003`], List[86.45015000000001`, 41.66350000000003`]]]]], List[FaceForm[RGBColor[1.`, 0.41568600000000006`, 0.054902000000000006`, 1.`]]], Rule[StripOnInput, False]]], List[Rule[BaselinePosition, Scaled[0.15`]], Rule[ImageSize, 10], Rule[ImageSize, List[30, Automatic]]]], StyleBox[RowBox[List["VirtualMachine", " "]], Rule[ShowAutoStyles, False], Rule[ShowStringCharacters, False], Rule[FontSize, Times[0.9`, Inherited]], Rule[FontColor, GrayLevel[0.1`]]]]], Rule[GridBoxSpacings, List[Rule["Columns", List[List[0.25`]]]]]], Rule[Alignment, List[Left, Baseline]], Rule[BaselinePosition, Baseline], Rule[FrameMargins, List[List[3, 0], List[0, 0]]], Rule[BaseStyle, List[Rule[LineSpacing, List[0, 0]], Rule[LineBreakWithin, False]]]], RowBox[List["PacletSymbol", "[", RowBox[List["\"Wolfram/VirtualMachine\"", ",", "\"VirtualMachine\""]], "]"]], Rule[TooltipStyle, List[Rule[ShowAutoStyles, True], Rule[ShowStringCharacters, True]]]], Function[Annotation[Slot[1], Style[Defer[PacletSymbol["Wolfram/VirtualMachine", "VirtualMachine"]], Rule[ShowStringCharacters, True]], "Tooltip"]]], Rule[Background, RGBColor[0.968`, 0.976`, 0.984`]], Rule[BaselinePosition, Baseline], Rule[DefaultBaseStyle, List[]], Rule[FrameMargins, List[List[0, 0], List[1, 1]]], Rule[FrameStyle, RGBColor[0.831`, 0.847`, 0.85`]], Rule[RoundingRadius, 4]], PacletSymbol["Wolfram/VirtualMachine", "VirtualMachine"], Rule[Selectable, False], Rule[SelectWithContents, True], Rule[BoxID, "PacletSymbolBox"]]["PDP-8"]
Out[11]=

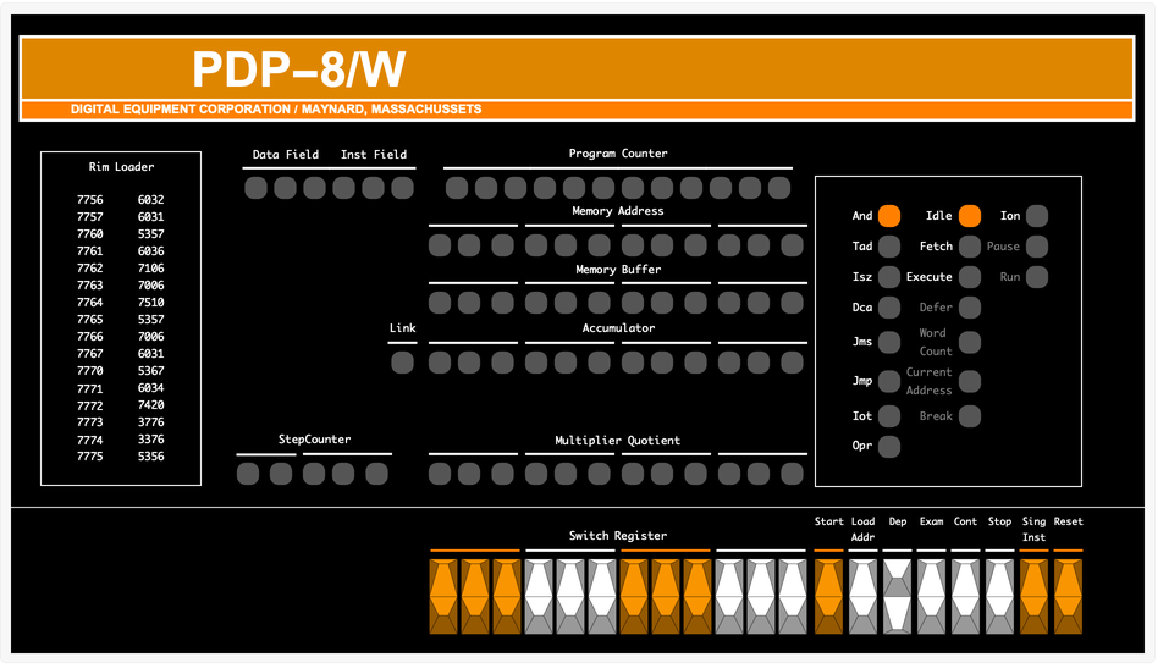

Use the PDP-8's front panel to interact with the computer:

In[12]:=
InterpretationBox[FrameBox[TagBox[TooltipBox[PaneBox[GridBox[List[List[GraphicsBox[List[Thickness[0.006082377284997087`], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[2.78206`, 85.44900000000004`], List[79.17353999999999`, 41.67850000000004`], List[79.17353999999999`, 1.6779000000000508`], List[2.78206`, 45.44840000000002`]], List[List[127.7826`, 115.44898000000003`], List[127.7826`, 26.449000000000012`], List[161.7832`, 47.44780000000006`], List[161.7832`, 135.44923000000003`]], List[List[5.78267`, 141.44910000000004`], List[40.783`, 121.44819000000003`], List[117.7831`, 165.44919000000004`], List[81.37629999999999`, 187.24592000000004`]]]]], List[FaceForm[RGBColor[0.9843139999999999`, 0.662745`, 0.25098000000000004`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[79.20467000000001`, 90.91309000000003`], List[79.20546`, 48.911800000000056`], List[43.782610000000005`, 69.44830000000003`], List[43.782610000000005`, 111.44764000000002`]], List[List[82.77993`, 137.44809000000004`], List[48.77938`, 117.44782000000004`], List[82.77993`, 97.44923000000004`], List[117.7808`, 117.44782000000004`]], List[List[86.41823000000001`, 90.97696000000002`], List[86.45015000000001`, 48.71930000000003`], List[121.7829`, 70.44880000000003`], List[121.7829`, 112.44819000000003`]]]]], List[FaceForm[RGBColor[0.46274499999999996`, 0.066667`, 0.07451`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[158.7825`, 141.44910000000004`], List[123.7817`, 121.44886000000004`], List[89.78278999999999`, 141.44910000000004`], List[123.7817`, 161.44770000000003`]], List[List[2.7817600000000002`, 92.44794000000003`], List[37.782610000000005`, 72.44770000000003`], List[37.782610000000005`, 114.44870000000003`], List[2.7817600000000002`, 134.44898000000003`]], List[List[86.45015000000001`, 1.7736000000000445`], List[121.78269999999999`, 23.44920000000002`], List[121.78269999999999`, 63.33730000000003`], List[86.45015000000001`, 41.66350000000003`]]]]], List[FaceForm[RGBColor[1.`, 0.41568600000000006`, 0.054902000000000006`, 1.`]]], Rule[StripOnInput, False]]], List[Rule[BaselinePosition, Scaled[0.15`]], Rule[ImageSize, 10], Rule[ImageSize, List[30, Automatic]]]], StyleBox[RowBox[List["VirtualMachineExecute", " "]], Rule[ShowAutoStyles, False], Rule[ShowStringCharacters, False], Rule[FontSize, Times[0.9`, Inherited]], Rule[FontColor, GrayLevel[0.1`]]]]], Rule[GridBoxSpacings, List[Rule["Columns", List[List[0.25`]]]]]], Rule[Alignment, List[Left, Baseline]], Rule[BaselinePosition, Baseline], Rule[FrameMargins, List[List[3, 0], List[0, 0]]], Rule[BaseStyle, List[Rule[LineSpacing, List[0, 0]], Rule[LineBreakWithin, False]]]], RowBox[List["PacletSymbol", "[", RowBox[List["\"Wolfram/VirtualMachine\"", ",", "\"VirtualMachineExecute\""]], "]"]], Rule[TooltipStyle, List[Rule[ShowAutoStyles, True], Rule[ShowStringCharacters, True]]]], Function[Annotation[Slot[1], Style[Defer[PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"]], Rule[ShowStringCharacters, True]], "Tooltip"]]], Rule[Background, RGBColor[0.968`, 0.976`, 0.984`]], Rule[BaselinePosition, Baseline], Rule[DefaultBaseStyle, List[]], Rule[FrameMargins, List[List[0, 0], List[1, 1]]], Rule[FrameStyle, RGBColor[0.831`, 0.847`, 0.85`]], Rule[RoundingRadius, 4]], PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"], Rule[Selectable, False], Rule[SelectWithContents, True], Rule[BoxID, "PacletSymbolBox"]][pdp8, "FrontPanel"]
Out[12]=

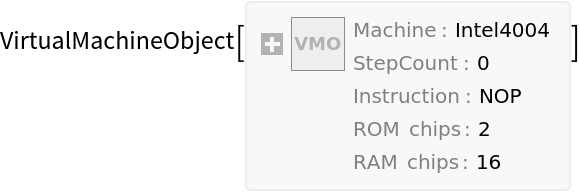

Create a customized instance of the "Intel4004" virtual machine by setting the number of ROM and RAM chips to use:

In[13]:=
intel4004 = InterpretationBox[FrameBox[TagBox[TooltipBox[PaneBox[GridBox[List[List[GraphicsBox[List[Thickness[0.006082377284997087`], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[2.78206`, 85.44900000000004`], List[79.17353999999999`, 41.67850000000004`], List[79.17353999999999`, 1.6779000000000508`], List[2.78206`, 45.44840000000002`]], List[List[127.7826`, 115.44898000000003`], List[127.7826`, 26.449000000000012`], List[161.7832`, 47.44780000000006`], List[161.7832`, 135.44923000000003`]], List[List[5.78267`, 141.44910000000004`], List[40.783`, 121.44819000000003`], List[117.7831`, 165.44919000000004`], List[81.37629999999999`, 187.24592000000004`]]]]], List[FaceForm[RGBColor[0.9843139999999999`, 0.662745`, 0.25098000000000004`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[79.20467000000001`, 90.91309000000003`], List[79.20546`, 48.911800000000056`], List[43.782610000000005`, 69.44830000000003`], List[43.782610000000005`, 111.44764000000002`]], List[List[82.77993`, 137.44809000000004`], List[48.77938`, 117.44782000000004`], List[82.77993`, 97.44923000000004`], List[117.7808`, 117.44782000000004`]], List[List[86.41823000000001`, 90.97696000000002`], List[86.45015000000001`, 48.71930000000003`], List[121.7829`, 70.44880000000003`], List[121.7829`, 112.44819000000003`]]]]], List[FaceForm[RGBColor[0.46274499999999996`, 0.066667`, 0.07451`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[158.7825`, 141.44910000000004`], List[123.7817`, 121.44886000000004`], List[89.78278999999999`, 141.44910000000004`], List[123.7817`, 161.44770000000003`]], List[List[2.7817600000000002`, 92.44794000000003`], List[37.782610000000005`, 72.44770000000003`], List[37.782610000000005`, 114.44870000000003`], List[2.7817600000000002`, 134.44898000000003`]], List[List[86.45015000000001`, 1.7736000000000445`], List[121.78269999999999`, 23.44920000000002`], List[121.78269999999999`, 63.33730000000003`], List[86.45015000000001`, 41.66350000000003`]]]]], List[FaceForm[RGBColor[1.`, 0.41568600000000006`, 0.054902000000000006`, 1.`]]], Rule[StripOnInput, False]]], List[Rule[BaselinePosition, Scaled[0.15`]], Rule[ImageSize, 10], Rule[ImageSize, List[30, Automatic]]]], StyleBox[RowBox[List["VirtualMachine", " "]], Rule[ShowAutoStyles, False], Rule[ShowStringCharacters, False], Rule[FontSize, Times[0.9`, Inherited]], Rule[FontColor, GrayLevel[0.1`]]]]], Rule[GridBoxSpacings, List[Rule["Columns", List[List[0.25`]]]]]], Rule[Alignment, List[Left, Baseline]], Rule[BaselinePosition, Baseline], Rule[FrameMargins, List[List[3, 0], List[0, 0]]], Rule[BaseStyle, List[Rule[LineSpacing, List[0, 0]], Rule[LineBreakWithin, False]]]], RowBox[List["PacletSymbol", "[", RowBox[List["\"Wolfram/VirtualMachine\"", ",", "\"VirtualMachine\""]], "]"]], Rule[TooltipStyle, List[Rule[ShowAutoStyles, True], Rule[ShowStringCharacters, True]]]], Function[Annotation[Slot[1], Style[Defer[PacletSymbol["Wolfram/VirtualMachine", "VirtualMachine"]], Rule[ShowStringCharacters, True]], "Tooltip"]]], Rule[Background, RGBColor[0.968`, 0.976`, 0.984`]], Rule[BaselinePosition, Baseline], Rule[DefaultBaseStyle, List[]], Rule[FrameMargins, List[List[0, 0], List[1, 1]]], Rule[FrameStyle, RGBColor[0.831`, 0.847`, 0.85`]], Rule[RoundingRadius, 4]], PacletSymbol["Wolfram/VirtualMachine", "VirtualMachine"], Rule[Selectable, False], Rule[SelectWithContents, True], Rule[BoxID, "PacletSymbolBox"]][
  "Intel4004", <|"ROMChipCount" -> 2, "RAMChipCount" -> 16|>]
Out[13]=

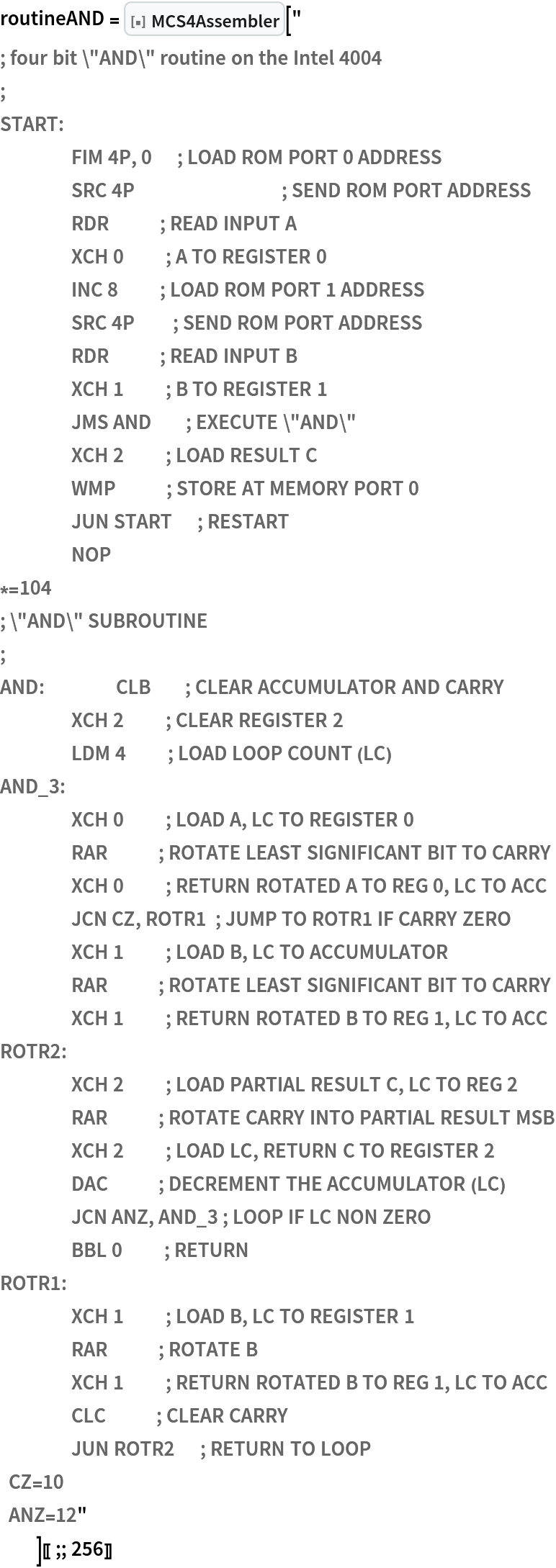

Use the following resource function to assemble a subroutine that computes the 4-bit AND of two numbers:

In[14]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/977f74e8-e770-4718-8e81-a81f935a659a"]
Out[14]=

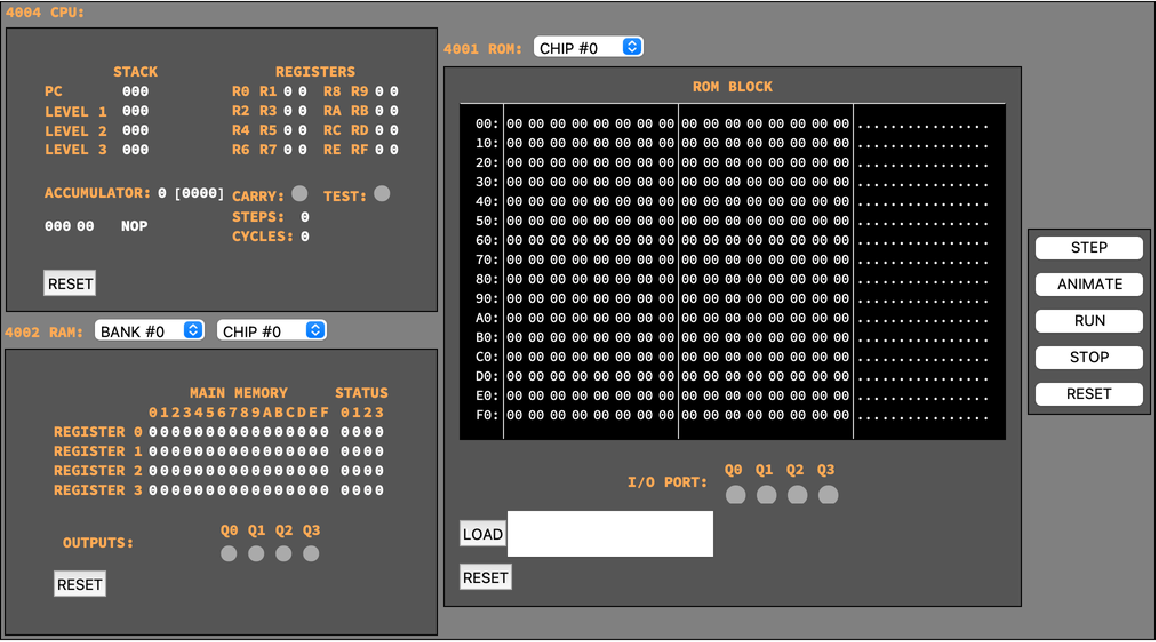

Use the debugger to load the subroutine into ROM memory and debug it:

In[15]:=
InterpretationBox[FrameBox[TagBox[TooltipBox[PaneBox[GridBox[List[List[GraphicsBox[List[Thickness[0.006082377284997087`], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[2.78206`, 85.44900000000004`], List[79.17353999999999`, 41.67850000000004`], List[79.17353999999999`, 1.6779000000000508`], List[2.78206`, 45.44840000000002`]], List[List[127.7826`, 115.44898000000003`], List[127.7826`, 26.449000000000012`], List[161.7832`, 47.44780000000006`], List[161.7832`, 135.44923000000003`]], List[List[5.78267`, 141.44910000000004`], List[40.783`, 121.44819000000003`], List[117.7831`, 165.44919000000004`], List[81.37629999999999`, 187.24592000000004`]]]]], List[FaceForm[RGBColor[0.9843139999999999`, 0.662745`, 0.25098000000000004`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[79.20467000000001`, 90.91309000000003`], List[79.20546`, 48.911800000000056`], List[43.782610000000005`, 69.44830000000003`], List[43.782610000000005`, 111.44764000000002`]], List[List[82.77993`, 137.44809000000004`], List[48.77938`, 117.44782000000004`], List[82.77993`, 97.44923000000004`], List[117.7808`, 117.44782000000004`]], List[List[86.41823000000001`, 90.97696000000002`], List[86.45015000000001`, 48.71930000000003`], List[121.7829`, 70.44880000000003`], List[121.7829`, 112.44819000000003`]]]]], List[FaceForm[RGBColor[0.46274499999999996`, 0.066667`, 0.07451`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[158.7825`, 141.44910000000004`], List[123.7817`, 121.44886000000004`], List[89.78278999999999`, 141.44910000000004`], List[123.7817`, 161.44770000000003`]], List[List[2.7817600000000002`, 92.44794000000003`], List[37.782610000000005`, 72.44770000000003`], List[37.782610000000005`, 114.44870000000003`], List[2.7817600000000002`, 134.44898000000003`]], List[List[86.45015000000001`, 1.7736000000000445`], List[121.78269999999999`, 23.44920000000002`], List[121.78269999999999`, 63.33730000000003`], List[86.45015000000001`, 41.66350000000003`]]]]], List[FaceForm[RGBColor[1.`, 0.41568600000000006`, 0.054902000000000006`, 1.`]]], Rule[StripOnInput, False]]], List[Rule[BaselinePosition, Scaled[0.15`]], Rule[ImageSize, 10], Rule[ImageSize, List[30, Automatic]]]], StyleBox[RowBox[List["VirtualMachineExecute", " "]], Rule[ShowAutoStyles, False], Rule[ShowStringCharacters, False], Rule[FontSize, Times[0.9`, Inherited]], Rule[FontColor, GrayLevel[0.1`]]]]], Rule[GridBoxSpacings, List[Rule["Columns", List[List[0.25`]]]]]], Rule[Alignment, List[Left, Baseline]], Rule[BaselinePosition, Baseline], Rule[FrameMargins, List[List[3, 0], List[0, 0]]], Rule[BaseStyle, List[Rule[LineSpacing, List[0, 0]], Rule[LineBreakWithin, False]]]], RowBox[List["PacletSymbol", "[", RowBox[List["\"Wolfram/VirtualMachine\"", ",", "\"VirtualMachineExecute\""]], "]"]], Rule[TooltipStyle, List[Rule[ShowAutoStyles, True], Rule[ShowStringCharacters, True]]]], Function[Annotation[Slot[1], Style[Defer[PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"]], Rule[ShowStringCharacters, True]], "Tooltip"]]], Rule[Background, RGBColor[0.968`, 0.976`, 0.984`]], Rule[BaselinePosition, Baseline], Rule[DefaultBaseStyle, List[]], Rule[FrameMargins, List[List[0, 0], List[1, 1]]], Rule[FrameStyle, RGBColor[0.831`, 0.847`, 0.85`]], Rule[RoundingRadius, 4]], PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"], Rule[Selectable, False], Rule[SelectWithContents, True], Rule[BoxID, "PacletSymbolBox"]][intel4004, "Debugger"]
Out[15]=

Neat Examples (8)

Create an instance of the "PDP-1" virtual machine:

In[16]:=
pdp1 = InterpretationBox[FrameBox[TagBox[TooltipBox[PaneBox[GridBox[List[List[GraphicsBox[List[Thickness[0.006082377284997087`], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[2.78206`, 85.44900000000004`], List[79.17353999999999`, 41.67850000000004`], List[79.17353999999999`, 1.6779000000000508`], List[2.78206`, 45.44840000000002`]], List[List[127.7826`, 115.44898000000003`], List[127.7826`, 26.449000000000012`], List[161.7832`, 47.44780000000006`], List[161.7832`, 135.44923000000003`]], List[List[5.78267`, 141.44910000000004`], List[40.783`, 121.44819000000003`], List[117.7831`, 165.44919000000004`], List[81.37629999999999`, 187.24592000000004`]]]]], List[FaceForm[RGBColor[0.9843139999999999`, 0.662745`, 0.25098000000000004`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[79.20467000000001`, 90.91309000000003`], List[79.20546`, 48.911800000000056`], List[43.782610000000005`, 69.44830000000003`], List[43.782610000000005`, 111.44764000000002`]], List[List[82.77993`, 137.44809000000004`], List[48.77938`, 117.44782000000004`], List[82.77993`, 97.44923000000004`], List[117.7808`, 117.44782000000004`]], List[List[86.41823000000001`, 90.97696000000002`], List[86.45015000000001`, 48.71930000000003`], List[121.7829`, 70.44880000000003`], List[121.7829`, 112.44819000000003`]]]]], List[FaceForm[RGBColor[0.46274499999999996`, 0.066667`, 0.07451`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[158.7825`, 141.44910000000004`], List[123.7817`, 121.44886000000004`], List[89.78278999999999`, 141.44910000000004`], List[123.7817`, 161.44770000000003`]], List[List[2.7817600000000002`, 92.44794000000003`], List[37.782610000000005`, 72.44770000000003`], List[37.782610000000005`, 114.44870000000003`], List[2.7817600000000002`, 134.44898000000003`]], List[List[86.45015000000001`, 1.7736000000000445`], List[121.78269999999999`, 23.44920000000002`], List[121.78269999999999`, 63.33730000000003`], List[86.45015000000001`, 41.66350000000003`]]]]], List[FaceForm[RGBColor[1.`, 0.41568600000000006`, 0.054902000000000006`, 1.`]]], Rule[StripOnInput, False]]], List[Rule[BaselinePosition, Scaled[0.15`]], Rule[ImageSize, 10], Rule[ImageSize, List[30, Automatic]]]], StyleBox[RowBox[List["VirtualMachine", " "]], Rule[ShowAutoStyles, False], Rule[ShowStringCharacters, False], Rule[FontSize, Times[0.9`, Inherited]], Rule[FontColor, GrayLevel[0.1`]]]]], Rule[GridBoxSpacings, List[Rule["Columns", List[List[0.25`]]]]]], Rule[Alignment, List[Left, Baseline]], Rule[BaselinePosition, Baseline], Rule[FrameMargins, List[List[3, 0], List[0, 0]]], Rule[BaseStyle, List[Rule[LineSpacing, List[0, 0]], Rule[LineBreakWithin, False]]]], RowBox[List["PacletSymbol", "[", RowBox[List["\"Wolfram/VirtualMachine\"", ",", "\"VirtualMachine\""]], "]"]], Rule[TooltipStyle, List[Rule[ShowAutoStyles, True], Rule[ShowStringCharacters, True]]]], Function[Annotation[Slot[1], Style[Defer[PacletSymbol["Wolfram/VirtualMachine", "VirtualMachine"]], Rule[ShowStringCharacters, True]], "Tooltip"]]], Rule[Background, RGBColor[0.968`, 0.976`, 0.984`]], Rule[BaselinePosition, Baseline], Rule[DefaultBaseStyle, List[]], Rule[FrameMargins, List[List[0, 0], List[1, 1]]], Rule[FrameStyle, RGBColor[0.831`, 0.847`, 0.85`]], Rule[RoundingRadius, 4]], PacletSymbol["Wolfram/VirtualMachine", "VirtualMachine"], Rule[Selectable, False], Rule[SelectWithContents, True], Rule[BoxID, "PacletSymbolBox"]]["PDP-1"]
Out[16]=

Load the Spacewar! binary (represented as a list of integers) into memory:

In[17]:=
InterpretationBox[FrameBox[TagBox[TooltipBox[PaneBox[GridBox[List[List[GraphicsBox[List[Thickness[0.006082377284997087`], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[2.78206`, 85.44900000000004`], List[79.17353999999999`, 41.67850000000004`], List[79.17353999999999`, 1.6779000000000508`], List[2.78206`, 45.44840000000002`]], List[List[127.7826`, 115.44898000000003`], List[127.7826`, 26.449000000000012`], List[161.7832`, 47.44780000000006`], List[161.7832`, 135.44923000000003`]], List[List[5.78267`, 141.44910000000004`], List[40.783`, 121.44819000000003`], List[117.7831`, 165.44919000000004`], List[81.37629999999999`, 187.24592000000004`]]]]], List[FaceForm[RGBColor[0.9843139999999999`, 0.662745`, 0.25098000000000004`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[79.20467000000001`, 90.91309000000003`], List[79.20546`, 48.911800000000056`], List[43.782610000000005`, 69.44830000000003`], List[43.782610000000005`, 111.44764000000002`]], List[List[82.77993`, 137.44809000000004`], List[48.77938`, 117.44782000000004`], List[82.77993`, 97.44923000000004`], List[117.7808`, 117.44782000000004`]], List[List[86.41823000000001`, 90.97696000000002`], List[86.45015000000001`, 48.71930000000003`], List[121.7829`, 70.44880000000003`], List[121.7829`, 112.44819000000003`]]]]], List[FaceForm[RGBColor[0.46274499999999996`, 0.066667`, 0.07451`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[158.7825`, 141.44910000000004`], List[123.7817`, 121.44886000000004`], List[89.78278999999999`, 141.44910000000004`], List[123.7817`, 161.44770000000003`]], List[List[2.7817600000000002`, 92.44794000000003`], List[37.782610000000005`, 72.44770000000003`], List[37.782610000000005`, 114.44870000000003`], List[2.7817600000000002`, 134.44898000000003`]], List[List[86.45015000000001`, 1.7736000000000445`], List[121.78269999999999`, 23.44920000000002`], List[121.78269999999999`, 63.33730000000003`], List[86.45015000000001`, 41.66350000000003`]]]]], List[FaceForm[RGBColor[1.`, 0.41568600000000006`, 0.054902000000000006`, 1.`]]], Rule[StripOnInput, False]]], List[Rule[BaselinePosition, Scaled[0.15`]], Rule[ImageSize, 10], Rule[ImageSize, List[30, Automatic]]]], StyleBox[RowBox[List["VirtualMachineExecute", " "]], Rule[ShowAutoStyles, False], Rule[ShowStringCharacters, False], Rule[FontSize, Times[0.9`, Inherited]], Rule[FontColor, GrayLevel[0.1`]]]]], Rule[GridBoxSpacings, List[Rule["Columns", List[List[0.25`]]]]]], Rule[Alignment, List[Left, Baseline]], Rule[BaselinePosition, Baseline], Rule[FrameMargins, List[List[3, 0], List[0, 0]]], Rule[BaseStyle, List[Rule[LineSpacing, List[0, 0]], Rule[LineBreakWithin, False]]]], RowBox[List["PacletSymbol", "[", RowBox[List["\"Wolfram/VirtualMachine\"", ",", "\"VirtualMachineExecute\""]], "]"]], Rule[TooltipStyle, List[Rule[ShowAutoStyles, True], Rule[ShowStringCharacters, True]]]], Function[Annotation[Slot[1], Style[Defer[PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"]], Rule[ShowStringCharacters, True]], "Tooltip"]]], Rule[Background, RGBColor[0.968`, 0.976`, 0.984`]], Rule[BaselinePosition, Baseline], Rule[DefaultBaseStyle, List[]], Rule[FrameMargins, List[List[0, 0], List[1, 1]]], Rule[FrameStyle, RGBColor[0.831`, 0.847`, 0.85`]], Rule[RoundingRadius, 4]], PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"], Rule[Selectable, False], Rule[SelectWithContents, True], Rule[BoxID, "PacletSymbolBox"]][pdp1, "MemoryLoad", CompressedData["
1:eJztm2l0lUW2ht+qysAUCCSEMJpAwAnFkVahNUxBGWSGMCkQwkwYr4iC5Coi
LaAtOLSiS0SJimKDrTiiIhq6VRoVFZEoKLZBu69Aq6Bom/u+X1XIMQv80/3n
3nW+tSpPzbWrateu/Z1zkj1mWv8iAz6p+MVzNhxmOIcihuzfO9S7xiGVHMVQ
scehBusoL2pbhyEJqKhg2bUsY50shlyGYtWfxvZFDsjFrz7Pc6x/90lY5WCz
JJVBW8ZNqu9zzCiDg4kG7WHRMdfgElTld2Td4lyHQ4kWB1tboJNDAcsPMu3G
OMw9CPyTbdVOcdVvH+LfMP9b1lO8PfO/i4kfDnHVT+b81abjKET9j2b/R9Sn
ZO1KWT5zGMM8tROV1viq2y3IIhmnKE4ZuwXmhnlM5zxQjGi8IvYxPdfCzOba
z/FhemrV2haz7twwZ41TWUftK/OupqzFe8lX7L8f1JdkC3N/kDJfLc2JHTsm
HtWn/KpTHOReT5nTqEuvsez1VwxKuG4l5GujLDawv9dZd32gmUSyXgnjbhz1
sK/DOpaVqG0o/57rWZLF9evkyyrnHdXh2OvwS13czvFL2bZiAWW8zmEb620P
dbaHta/so5Rl2zQ/9l0Gd8J5lmb5/f2ZdUr32v9MoH6XruLY+6n7V1HOGP2K
ZKac27gPlTJs51wVNLdj9dhmO9e95miDWhsYOtljrGn8nKewbEp9g2bkD9Tj
Wv18+VTlk0dj8n6MiSdRp5K4jz3y2Dbb61gy96hnicFPrQ3+xX1pxT5aaRyW
TSOvZ1jMcAvD7Qz3MPwc02cF2xSxTZGpykNSVdzExG1M3MXEE2LiiTHxpJh4
8gnq1IiJ14yJ14qJ146J14mJp8TE68bE68XEU2PiU2PmOIXrMJWhiKF+7Fyy
HRpUS6fFpNNj4j3bGPQYZ9GcfTRjugnZsFrbDKZnM79RtfzMkN+4Wn6TkN+0
Wn6zkJ/Ec7KarMv9bR5TpwXj16qc+SfF5GeF/E3c47PYdpPG1DmeybtpHNAy
yaIxdbtilkOrNv4cHikELqeOqV69Mb/M78P8lygP1vu++owxx++Pd9lJ11TZ
hmTajRyWbaMci3i+kh/hWWH7y5lXMd5FoU9MXP2rTrz8/3e59LmP9foc2ffK
8pi49GQE9SyLdUewbnaBjWhpC7O7GCSy7VJrsIR1ChmKFDrbyI9p1crfE3NZ
vzXHz+3ncC3jbdpQFuokaK+30tdJYR9qc/Iii4UsX3K9xTyyMPRVyPgpbD+J
TKQcy8ilzFc4tcRiBtNYqjwTxU/juYvtw7BMcqkfjSm/T3I/T7mfY/4KhnsV
qsn9cIzcj1aT+6Ygt9qcTrmfZPlzHHMtuSL0tSLI/Ycg9wvk88xXaEu572e6
wVLlmSh+BuWO7SONZZJrRZC7QZB7P+UuZ/5mhjcUqsn9fozcO6vJ3T3IrTZn
Uu69LC/nmB+Sm0Nfm4PcpUHuL8n9zFdoR7m3MZ2zVHkmip9FuWP7aM0yybU5
yJ0T5M5wBg0LDA6w7HuFanI7VyV3ovul3MlBbrU5m3LXZXnDG3jPkQdCXweC
3N8GuRuxLKOLjcI5lPtH5pcuVZ6J4udS7tg+trJMch0IcpdS7pZB3/UO0ZLt
DNnKeZ/2PI7VinkqP/bwfeR83k196Rd8t8hhC+fbnvX2BJYHHg1MGuvZL8+z
f+BO5v+G3Bc4IM9zYOBHBZ4LCj0HhfzBgUMC88k/L3T4jvdDrs4w5/oW04dj
0qaYvm2yn1N+SD+kdF9fXpO+l3zPoexrC9NDee+KNbkftRhi+zd7vd86LM/+
Yhwb8oczX/HZbP/SDeyffSqeVezjSxgfmeR90OsU51jiMOYN5x5eL/m4ByNZ
t/hzhwt4P6rf2yrrcO3xqasqyw1lpSwr9W0u4X15YSiTrVNf2qsVXFPQN19B
fbmIY61wYW4sj+ZCduAYKd2p4939e0Bdsg1DR+bfT264yWENmSo7M9BhLfuo
dQj4OBEoYb7iXzCexDV9kOmHlMcz8AC5Wn1ynEHkYIYGrPMY+ThDDvvZVOD9
45o8C5uYfrXAz6fSVr/KvC08Y1qPmglV+VdwzeUjuwS/t1uov2Vsq/gexveG
eDnj+0P8KOM/hnhSgsVhxj9i3/nUtzKNwTP6k1N7g72t7DFf40quUd3wfqDy
cpbvjymPLbuS+lkvJt2Fa7hlAPtnSErneyhliO6ia/x7z1GdW4a93J/9DD8y
HGYoY/gt96tM80/jncQzk5gjuXkOOUZfyrSHdcq7qA+eua46bzprPGeM72MY
laczpvPFs8U6C7rpTOk86SzpHFHnmX9xidd9jaN1bs01zeZ42RovvWq8/JYO
j9BX60v9PZl1tH/Dx/r3hn4ZHH8w3+UXAXvSaBsG+Pz+zO8f8suZX878EdSH
PmP9euAr3ttci9HsP7eNX7c+lP14PmAn6nfnPKBv1xP4iHofnM/2CxGdF41X
qS+SSffyaMqeS9mPzrIYTm7ZYSIavkcmM8yhXCobl1C1d/ILjpJzEtSP90Xr
U4+PN7fKsuOtR/m5/q5SP2vCOGsYL+F6aJxk6eXAX59bRnFVf5Vzqxz719o1
kryUp99GvodzPmOCP76P4+1L97bpUGt77LMX5Y/hWq2kfOlsq/lL1q1B7tcY
H5Th10fnW3IPvspiPfMHf8A7iG2GcLx81snke3D+4OPL15X7mZ/hx90as+Y1
wppX9q111/rJR1G9N3lmR7R3KOCd9HZMut5sn1dAm7lIPiBtRG2Ob8aGOM/m
Tp79neyzBsf8mG13vmewgO8llXXkOw5o722d3n/2Jdjjrk/Hg8BYruPltMF9
Sv37UGZilY446nUhy4tYr5DzGsd4+YnKuB4pWd5PeIt9pFBmlZewXPXnhnqO
OprKMyrmhvEKS/z6RJ93hHp6X788jFc9X+9cOpsD7vSfAWj/27N8fJ6XrQ73
LoljqI587OPp+dikqrrqv7K+/PPj6b7q6/1tAscYH+K98rzcE3juJ+Z5Tgoy
92I/k/M8p+SF8WLaV4T2ExifGuoVkdNCXi/2NT3Pz31GVG4wU/MO74r5if6d
4UTvmvo8VXuu9rPyvD456Qd1Yh7bnkieATwDM1k+gGdA9SYHWTSXiUmSzc91
chvv/83iGZuQ6O3RMyLt0YJEL3em1pQsoN1LHuPlUZ2BHGOJyDGU1j2/jPq/
LNHb7zuYt4y2vhvt+jLNk7ZwBZnH8ZcN4nmknVlGHV7JNpMox8o13j+7n+kp
TN8f0k8Vem4MfDxwfaHfj+Sw99rvx7v5dUgOdnE90zWC3ZCv9RTTqRxXfQ2h
/G9SniGUf3CGl1npgiQ/7wWDgO7Bl1G+7qVB1KdLg21IC/26YC9Vpx/76s9w
Ctt8mOg/z41sbrh3tU8TuNbvJ/o+q9sZ5Q1dDlwWwqyIBpe9BfRarg9q6X8T
PTOYfyfw5r3kk8DEz4CVK1jnK3Oszmz2vXgs3W22/4bz7lLGd4fVrP80fYO/
6LN5E31WL99fOiFdkB3PYaZ8/ASWRTrCcz2Ucuk9Y2ZYG+nw1KDzM8hpbbzO
z2DdIqanMy29Lyrxuibdq3w3nsn0VJ0ThhnMn8kwVeeE6WnkbLbrzXaSvzf7
Objb4FmGvbRFf5XAEozdNWhLefe56N0NjOe09e9Dyi9t698xlLe2HUM9RHnI
4ryPUKd9F0riJIYNW/33A6lcl5RkgzoM8gf08XSFior47iv7y1Yqv0Iy6DPr
KC/+xJ/4E3/iT/yJP/En/sSf+BN/4k/8iT/xJ/7En/gTf+JP/Pm/9VQ05p9Z
Bi3Ezg4X6YPzR4DMRuQiiy8bkvOBuxuQTQ0urEumOGSkIPq9xxp9EfEa8De1
uxV4SPzM4WbxHYfRYkuHP6i/CRY9xDkGC9IQfQc6XP+DkG/wqP65IMvgXX1Y
39vgzhZkbY4j9jd4ozm52GKF+FeDBHGDw7xmiP7HoL44EGjdlGzs8HYT8nWL
U8X1BqeIYw2e0DzvAW4XzwO6iYsdWotLLVLE0Q7lkrvUYZvY2uJF8YjDU5l+
HuvET7lU4hyHB8S9BmPFdRYtNM9TmM4g5xkME783aCduBiamezkuEH8PrNL6
/s4gX9xu8Hh9lVu0EvcYtBSnGHxej6xpsUWcZzFbvN3iLPErh73an2HAC2KS
gRX/5XCr9usJgwH6LmWlxUu1yXMcssS7gTRxnIETn3V4oxbpOE+xs8WcWn69
R4n3ODQSvzY4UpNMc+go3mvRTOxhsEr7udpitHgJl1DMdjiUTO6inoibHHYl
kc0sSsQLqE/iUoc7xOYW7cXOwMvSs38AV4lPG5wjfuHws76nedjiHrGrgX7y
hquchgI+ANKd1+OH9TXO/+j3j+T1QI74jcNufffzd2C5uMRiiHi5QYX0cDrX
QXzZeHa1eEI8lf2LxqGGuAo4ID3d5fCM+DBVStxhcLF4oUOZ9HUGVUp8nSoi
wmG1WMPhbvFxg7vE33JoMd1ifHOvp6eKLwMfS88/ttghbgSeb+b1ZHkzv8//
JT5GvYjqAdPEPha9xUzqiXg69118FfhE5+VZg7fEDww2i2c6rBe7AmvFGha3
iaXAwqZ+XaeLJxkUiQsdrhSzHIaKtS16ilzjdPFzi/06f087lIoZBs808fvw
pHjI4AZxpMM14jYuVRO/TkVib4dJTfy5GCZeYXCZeLNBZ3GxQUfxsEEHcYXB
+aHeuU28PkZ2gPrdvIk/Rw3EHxxqRf0bbwc/4xEVn6CeipkG/2js2/1dfNri
Y7GDxWuN/XlYK24FSsR53ApxgcNy8XOKKJ5lcK2Yw3UTP7GYKOY7jBPPtZ77
DUaIww0uEfV/SuL5DqeJX1uc3NifpxzxAy6w+I7FD7I7jS2OiN9SfrEPuxR7
OnwhngJ8lOnXO2I3LrG4iKolrjF4QRzi8ESm3+e14rXO27lbHR4U3wXuELc4
3C6OhOcwhyWRPTSYLlIBhmd6Pekh8tB1FrcZnCm+SHshPufQQCwDUsW6DrXF
N2hfGnl9/k7sa1AmTg/ked8qznB4RfyzxV3iJF5ZIu+JiLc7XC2Ochgr8n67
VOxp0UkcY9FBfJn2RtwHtBHbGaSIFwJfZvj0frG9xRfiQYsy8TcWH4nXWWwU
Vzs8Le40+KN4v8VCkfdHN7E/7yXxbZrEDH8eTIY/Z7sb+vM5XSywmCzSzo0T
OwKdxFcdOoh9eZ7FPRYZ4oe8gnSfrHO4T7wZuEvkvXi9SPtcnO73f744CJgr
FjjMSff7P0HcYTFKXEaVERvRPui+vphbIX5Peyq2YzvxDYfx4tcOXcTZwEXi
AYf24haL80Ta78O635612CrS/jwqfmpxr3iAV5NIm32zeMhiqLiV9l6kfW4q
/uRQV9wDzNS9ONligriD61Tfr/tg8U8UUUywSBN5ryWIL1gcld9xJ02/+BOP
qjjX4gGxrcMqkfZhljjJokh8gKoi7uI9Kp5PEyE+SD9K9+8OmvB6Xr6HxdUG
40XetxeLgxzaid/xXOpe5v27Tbzb4FZxmcMt4kqDUXX9vM6o6/WngTjPIVG8
kkcmxbdbJ9J/myieSdFF3penibTHmeJ/OySLu2gvxOvoZ8kP+MBhsbjAYJHY
2eA6kf7QNHGpweQ6fp49xRd5bsU1DnXq+HOxW/5CN4uRIv28weJGi0HiEU5R
7M551Pb7GPkZf+SWiA8Z/Cg/YiqXRPzc4Gvxdxa7RNrp98XNFhtE67BGbGex
WjzN4iaxh8WNtfx8e4i8K7uLzxl0ETtS/8Ru1CNxlMXpUdqhiXiz9f7MOTyK
YlOLOmItnl/5M7RHy0X6CfNF+i/9xNYG6TX9uYaYbVEhP4f3c1kNv5+7xVHA
feKl9IvF3TyHYhr1WXzMeRbQhIvzjWcXVhHpQ/yc7Nf7nyLv4S+SvR6+J55E
/0nsxa0RvzG4WzyXcif7dbpNpL92jfgk/RyR/n5D8R3eh+JtPFfJXv/K5HfR
rm8VBxq8LM51eFJMoV8i7tNvdslC63mrxdlJ/vwmJoVzIT9tE+24WEb/VLzD
YLdIf3ejuIp6LNI/vU/kGV0uvkAVFJdyCcQBBqmJfv3qBlbI7+M9+K5IO/6U
eJQumJjHdRA/4T0l0tm7JapnMFfsYzBOHG9QKLbg/SDSn7lUPI3nRjzH4mf5
kUVWPyHn+lr91I39An8Rd0cmWf+Eiwci/9PiPuf1b76YaOXC0ChadHd+3TuI
tDdnOH8+WojFRi5GdK9G/uoE7qdIeznR+na9xfccelmvnxeItNGnWq9nTaKf
Kzn/m6ZDTlsb9b/JBH0WX6J8Yh79YXETMELsGblKtOc09WJ9i2xxokNjMceh
vsh7IEWkk31Qw3HwPSL99V1iamQKgRuBt0TebxsjWr0iRvfDjeJIixvEZtG/
0kZ+fLbI9yGZdznz0c+w+L6l3yfGn//8878oKWk3
"]]
Out[17]=

Verify the memory has been loaded with the binary:

In[18]:=
pdp1["MemoryView"]
Out[18]=

Reset the processor and set the program counter to 4 (the start of the program):

In[19]:=
InterpretationBox[FrameBox[TagBox[TooltipBox[PaneBox[GridBox[List[List[GraphicsBox[List[Thickness[0.006082377284997087`], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[2.78206`, 85.44900000000004`], List[79.17353999999999`, 41.67850000000004`], List[79.17353999999999`, 1.6779000000000508`], List[2.78206`, 45.44840000000002`]], List[List[127.7826`, 115.44898000000003`], List[127.7826`, 26.449000000000012`], List[161.7832`, 47.44780000000006`], List[161.7832`, 135.44923000000003`]], List[List[5.78267`, 141.44910000000004`], List[40.783`, 121.44819000000003`], List[117.7831`, 165.44919000000004`], List[81.37629999999999`, 187.24592000000004`]]]]], List[FaceForm[RGBColor[0.9843139999999999`, 0.662745`, 0.25098000000000004`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[79.20467000000001`, 90.91309000000003`], List[79.20546`, 48.911800000000056`], List[43.782610000000005`, 69.44830000000003`], List[43.782610000000005`, 111.44764000000002`]], List[List[82.77993`, 137.44809000000004`], List[48.77938`, 117.44782000000004`], List[82.77993`, 97.44923000000004`], List[117.7808`, 117.44782000000004`]], List[List[86.41823000000001`, 90.97696000000002`], List[86.45015000000001`, 48.71930000000003`], List[121.7829`, 70.44880000000003`], List[121.7829`, 112.44819000000003`]]]]], List[FaceForm[RGBColor[0.46274499999999996`, 0.066667`, 0.07451`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[158.7825`, 141.44910000000004`], List[123.7817`, 121.44886000000004`], List[89.78278999999999`, 141.44910000000004`], List[123.7817`, 161.44770000000003`]], List[List[2.7817600000000002`, 92.44794000000003`], List[37.782610000000005`, 72.44770000000003`], List[37.782610000000005`, 114.44870000000003`], List[2.7817600000000002`, 134.44898000000003`]], List[List[86.45015000000001`, 1.7736000000000445`], List[121.78269999999999`, 23.44920000000002`], List[121.78269999999999`, 63.33730000000003`], List[86.45015000000001`, 41.66350000000003`]]]]], List[FaceForm[RGBColor[1.`, 0.41568600000000006`, 0.054902000000000006`, 1.`]]], Rule[StripOnInput, False]]], List[Rule[BaselinePosition, Scaled[0.15`]], Rule[ImageSize, 10], Rule[ImageSize, List[30, Automatic]]]], StyleBox[RowBox[List["VirtualMachineExecute", " "]], Rule[ShowAutoStyles, False], Rule[ShowStringCharacters, False], Rule[FontSize, Times[0.9`, Inherited]], Rule[FontColor, GrayLevel[0.1`]]]]], Rule[GridBoxSpacings, List[Rule["Columns", List[List[0.25`]]]]]], Rule[Alignment, List[Left, Baseline]], Rule[BaselinePosition, Baseline], Rule[FrameMargins, List[List[3, 0], List[0, 0]]], Rule[BaseStyle, List[Rule[LineSpacing, List[0, 0]], Rule[LineBreakWithin, False]]]], RowBox[List["PacletSymbol", "[", RowBox[List["\"Wolfram/VirtualMachine\"", ",", "\"VirtualMachineExecute\""]], "]"]], Rule[TooltipStyle, List[Rule[ShowAutoStyles, True], Rule[ShowStringCharacters, True]]]], Function[Annotation[Slot[1], Style[Defer[PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"]], Rule[ShowStringCharacters, True]], "Tooltip"]]], Rule[Background, RGBColor[0.968`, 0.976`, 0.984`]], Rule[BaselinePosition, Baseline], Rule[DefaultBaseStyle, List[]], Rule[FrameMargins, List[List[0, 0], List[1, 1]]], Rule[FrameStyle, RGBColor[0.831`, 0.847`, 0.85`]], Rule[RoundingRadius, 4]], PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"], Rule[Selectable, False], Rule[SelectWithContents, True], Rule[BoxID, "PacletSymbolBox"]][pdp1, "ProcessorReset", 4]
Out[19]=

Open a dynamic Image representing the screen:

In[20]:=
InterpretationBox[FrameBox[TagBox[TooltipBox[PaneBox[GridBox[List[List[GraphicsBox[List[Thickness[0.006082377284997087`], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[2.78206`, 85.44900000000004`], List[79.17353999999999`, 41.67850000000004`], List[79.17353999999999`, 1.6779000000000508`], List[2.78206`, 45.44840000000002`]], List[List[127.7826`, 115.44898000000003`], List[127.7826`, 26.449000000000012`], List[161.7832`, 47.44780000000006`], List[161.7832`, 135.44923000000003`]], List[List[5.78267`, 141.44910000000004`], List[40.783`, 121.44819000000003`], List[117.7831`, 165.44919000000004`], List[81.37629999999999`, 187.24592000000004`]]]]], List[FaceForm[RGBColor[0.9843139999999999`, 0.662745`, 0.25098000000000004`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[79.20467000000001`, 90.91309000000003`], List[79.20546`, 48.911800000000056`], List[43.782610000000005`, 69.44830000000003`], List[43.782610000000005`, 111.44764000000002`]], List[List[82.77993`, 137.44809000000004`], List[48.77938`, 117.44782000000004`], List[82.77993`, 97.44923000000004`], List[117.7808`, 117.44782000000004`]], List[List[86.41823000000001`, 90.97696000000002`], List[86.45015000000001`, 48.71930000000003`], List[121.7829`, 70.44880000000003`], List[121.7829`, 112.44819000000003`]]]]], List[FaceForm[RGBColor[0.46274499999999996`, 0.066667`, 0.07451`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[158.7825`, 141.44910000000004`], List[123.7817`, 121.44886000000004`], List[89.78278999999999`, 141.44910000000004`], List[123.7817`, 161.44770000000003`]], List[List[2.7817600000000002`, 92.44794000000003`], List[37.782610000000005`, 72.44770000000003`], List[37.782610000000005`, 114.44870000000003`], List[2.7817600000000002`, 134.44898000000003`]], List[List[86.45015000000001`, 1.7736000000000445`], List[121.78269999999999`, 23.44920000000002`], List[121.78269999999999`, 63.33730000000003`], List[86.45015000000001`, 41.66350000000003`]]]]], List[FaceForm[RGBColor[1.`, 0.41568600000000006`, 0.054902000000000006`, 1.`]]], Rule[StripOnInput, False]]], List[Rule[BaselinePosition, Scaled[0.15`]], Rule[ImageSize, 10], Rule[ImageSize, List[30, Automatic]]]], StyleBox[RowBox[List["VirtualMachineExecute", " "]], Rule[ShowAutoStyles, False], Rule[ShowStringCharacters, False], Rule[FontSize, Times[0.9`, Inherited]], Rule[FontColor, GrayLevel[0.1`]]]]], Rule[GridBoxSpacings, List[Rule["Columns", List[List[0.25`]]]]]], Rule[Alignment, List[Left, Baseline]], Rule[BaselinePosition, Baseline], Rule[FrameMargins, List[List[3, 0], List[0, 0]]], Rule[BaseStyle, List[Rule[LineSpacing, List[0, 0]], Rule[LineBreakWithin, False]]]], RowBox[List["PacletSymbol", "[", RowBox[List["\"Wolfram/VirtualMachine\"", ",", "\"VirtualMachineExecute\""]], "]"]], Rule[TooltipStyle, List[Rule[ShowAutoStyles, True], Rule[ShowStringCharacters, True]]]], Function[Annotation[Slot[1], Style[Defer[PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"]], Rule[ShowStringCharacters, True]], "Tooltip"]]], Rule[Background, RGBColor[0.968`, 0.976`, 0.984`]], Rule[BaselinePosition, Baseline], Rule[DefaultBaseStyle, List[]], Rule[FrameMargins, List[List[0, 0], List[1, 1]]], Rule[FrameStyle, RGBColor[0.831`, 0.847`, 0.85`]], Rule[RoundingRadius, 4]], PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"], Rule[Selectable, False], Rule[SelectWithContents, True], Rule[BoxID, "PacletSymbolBox"]][pdp1, "ScreenVisualization"]
Out[20]=

Run the object for 100 000 steps and see the spaceships move:

In[21]:=
InterpretationBox[FrameBox[TagBox[TooltipBox[PaneBox[GridBox[List[List[GraphicsBox[List[Thickness[0.006082377284997087`], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[2.78206`, 85.44900000000004`], List[79.17353999999999`, 41.67850000000004`], List[79.17353999999999`, 1.6779000000000508`], List[2.78206`, 45.44840000000002`]], List[List[127.7826`, 115.44898000000003`], List[127.7826`, 26.449000000000012`], List[161.7832`, 47.44780000000006`], List[161.7832`, 135.44923000000003`]], List[List[5.78267`, 141.44910000000004`], List[40.783`, 121.44819000000003`], List[117.7831`, 165.44919000000004`], List[81.37629999999999`, 187.24592000000004`]]]]], List[FaceForm[RGBColor[0.9843139999999999`, 0.662745`, 0.25098000000000004`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[79.20467000000001`, 90.91309000000003`], List[79.20546`, 48.911800000000056`], List[43.782610000000005`, 69.44830000000003`], List[43.782610000000005`, 111.44764000000002`]], List[List[82.77993`, 137.44809000000004`], List[48.77938`, 117.44782000000004`], List[82.77993`, 97.44923000000004`], List[117.7808`, 117.44782000000004`]], List[List[86.41823000000001`, 90.97696000000002`], List[86.45015000000001`, 48.71930000000003`], List[121.7829`, 70.44880000000003`], List[121.7829`, 112.44819000000003`]]]]], List[FaceForm[RGBColor[0.46274499999999996`, 0.066667`, 0.07451`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[158.7825`, 141.44910000000004`], List[123.7817`, 121.44886000000004`], List[89.78278999999999`, 141.44910000000004`], List[123.7817`, 161.44770000000003`]], List[List[2.7817600000000002`, 92.44794000000003`], List[37.782610000000005`, 72.44770000000003`], List[37.782610000000005`, 114.44870000000003`], List[2.7817600000000002`, 134.44898000000003`]], List[List[86.45015000000001`, 1.7736000000000445`], List[121.78269999999999`, 23.44920000000002`], List[121.78269999999999`, 63.33730000000003`], List[86.45015000000001`, 41.66350000000003`]]]]], List[FaceForm[RGBColor[1.`, 0.41568600000000006`, 0.054902000000000006`, 1.`]]], Rule[StripOnInput, False]]], List[Rule[BaselinePosition, Scaled[0.15`]], Rule[ImageSize, 10], Rule[ImageSize, List[30, Automatic]]]], StyleBox[RowBox[List["VirtualMachineExecute", " "]], Rule[ShowAutoStyles, False], Rule[ShowStringCharacters, False], Rule[FontSize, Times[0.9`, Inherited]], Rule[FontColor, GrayLevel[0.1`]]]]], Rule[GridBoxSpacings, List[Rule["Columns", List[List[0.25`]]]]]], Rule[Alignment, List[Left, Baseline]], Rule[BaselinePosition, Baseline], Rule[FrameMargins, List[List[3, 0], List[0, 0]]], Rule[BaseStyle, List[Rule[LineSpacing, List[0, 0]], Rule[LineBreakWithin, False]]]], RowBox[List["PacletSymbol", "[", RowBox[List["\"Wolfram/VirtualMachine\"", ",", "\"VirtualMachineExecute\""]], "]"]], Rule[TooltipStyle, List[Rule[ShowAutoStyles, True], Rule[ShowStringCharacters, True]]]], Function[Annotation[Slot[1], Style[Defer[PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"]], Rule[ShowStringCharacters, True]], "Tooltip"]]], Rule[Background, RGBColor[0.968`, 0.976`, 0.984`]], Rule[BaselinePosition, Baseline], Rule[DefaultBaseStyle, List[]], Rule[FrameMargins, List[List[0, 0], List[1, 1]]], Rule[FrameStyle, RGBColor[0.831`, 0.847`, 0.85`]], Rule[RoundingRadius, 4]], PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"], Rule[Selectable, False], Rule[SelectWithContents, True], Rule[BoxID, "PacletSymbolBox"]][pdp1, "Run", 100000]
Out[21]=

Get the current state of the processor:

In[22]:=
pdp1["ProcessorState"] // Dataset
Out[22]=

Get a trace of the execution of 100 additional steps:

In[23]:=
InterpretationBox[FrameBox[TagBox[TooltipBox[PaneBox[GridBox[List[List[GraphicsBox[List[Thickness[0.006082377284997087`], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[2.78206`, 85.44900000000004`], List[79.17353999999999`, 41.67850000000004`], List[79.17353999999999`, 1.6779000000000508`], List[2.78206`, 45.44840000000002`]], List[List[127.7826`, 115.44898000000003`], List[127.7826`, 26.449000000000012`], List[161.7832`, 47.44780000000006`], List[161.7832`, 135.44923000000003`]], List[List[5.78267`, 141.44910000000004`], List[40.783`, 121.44819000000003`], List[117.7831`, 165.44919000000004`], List[81.37629999999999`, 187.24592000000004`]]]]], List[FaceForm[RGBColor[0.9843139999999999`, 0.662745`, 0.25098000000000004`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[79.20467000000001`, 90.91309000000003`], List[79.20546`, 48.911800000000056`], List[43.782610000000005`, 69.44830000000003`], List[43.782610000000005`, 111.44764000000002`]], List[List[82.77993`, 137.44809000000004`], List[48.77938`, 117.44782000000004`], List[82.77993`, 97.44923000000004`], List[117.7808`, 117.44782000000004`]], List[List[86.41823000000001`, 90.97696000000002`], List[86.45015000000001`, 48.71930000000003`], List[121.7829`, 70.44880000000003`], List[121.7829`, 112.44819000000003`]]]]], List[FaceForm[RGBColor[0.46274499999999996`, 0.066667`, 0.07451`, 1.`]]], Rule[StripOnInput, False]], StyleBox[List[FilledCurveBox[List[List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]], List[List[0, 2, 0], List[0, 1, 0], List[0, 1, 0]]], List[List[List[158.7825`, 141.44910000000004`], List[123.7817`, 121.44886000000004`], List[89.78278999999999`, 141.44910000000004`], List[123.7817`, 161.44770000000003`]], List[List[2.7817600000000002`, 92.44794000000003`], List[37.782610000000005`, 72.44770000000003`], List[37.782610000000005`, 114.44870000000003`], List[2.7817600000000002`, 134.44898000000003`]], List[List[86.45015000000001`, 1.7736000000000445`], List[121.78269999999999`, 23.44920000000002`], List[121.78269999999999`, 63.33730000000003`], List[86.45015000000001`, 41.66350000000003`]]]]], List[FaceForm[RGBColor[1.`, 0.41568600000000006`, 0.054902000000000006`, 1.`]]], Rule[StripOnInput, False]]], List[Rule[BaselinePosition, Scaled[0.15`]], Rule[ImageSize, 10], Rule[ImageSize, List[30, Automatic]]]], StyleBox[RowBox[List["VirtualMachineExecute", " "]], Rule[ShowAutoStyles, False], Rule[ShowStringCharacters, False], Rule[FontSize, Times[0.9`, Inherited]], Rule[FontColor, GrayLevel[0.1`]]]]], Rule[GridBoxSpacings, List[Rule["Columns", List[List[0.25`]]]]]], Rule[Alignment, List[Left, Baseline]], Rule[BaselinePosition, Baseline], Rule[FrameMargins, List[List[3, 0], List[0, 0]]], Rule[BaseStyle, List[Rule[LineSpacing, List[0, 0]], Rule[LineBreakWithin, False]]]], RowBox[List["PacletSymbol", "[", RowBox[List["\"Wolfram/VirtualMachine\"", ",", "\"VirtualMachineExecute\""]], "]"]], Rule[TooltipStyle, List[Rule[ShowAutoStyles, True], Rule[ShowStringCharacters, True]]]], Function[Annotation[Slot[1], Style[Defer[PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"]], Rule[ShowStringCharacters, True]], "Tooltip"]]], Rule[Background, RGBColor[0.968`, 0.976`, 0.984`]], Rule[BaselinePosition, Baseline], Rule[DefaultBaseStyle, List[]], Rule[FrameMargins, List[List[0, 0], List[1, 1]]], Rule[FrameStyle, RGBColor[0.831`, 0.847`, 0.85`]], Rule[RoundingRadius, 4]], PacletSymbol["Wolfram/VirtualMachine", "VirtualMachineExecute"], Rule[Selectable, False], Rule[SelectWithContents, True], Rule[BoxID, "PacletSymbolBox"]][pdp1, "RunTrace", 100]
Out[23]=
