Tensor Networks Overview
The Wolfram tensor-networks paclet represents networks as bundles of tensors with a list of hyperedges and computes contractions through a layered pipeline: constructors build a network, inspectors expose its index structure, transforms restructure it, path finders order the pairwise contractions, and an execution layer carries them out. This overview walks one running example through each tier so that the function names you will reach for in later tutorials sit on a single mental map.
In[16]:=
Needs["Wolfram`TensorNetworks`"]
1. Constructing a Network
The fundamental object is [tensors, hyperedges], where tensors is a list of numeric arrays and hyperedges is a list of index lists, one per tensor. Each entry of a hyperedge is an integer label; labels that appear in two or more tensors are contracted indices, and labels that appear once are free. Here a rank-2, rank-3, and rank-2 tensor share four indices in a closed pattern with one free index:
In[17]:=
SeedRandom[42];t1=RandomReal[{-1,1},{2,3}];t2=RandomReal[{-1,1},{3,4,5}];t3=RandomReal[{-1,1},{4,5}];tn=
[{t1,t2,t3},{{1,2},{2,3,4},{3,4}}]
 | TensorNetwork |
Out[21]=
TensorNetwork
 |  |
|
Show corresponding hypergraph, with vertices as tensor indices and edges as tensors:
In[22]:=
tn["Hypergraph"]
Out[22]=
A second, idiomatic constructor builds families with known topology. Calling ["MPS"[L, D, d]] returns a length-L matrix product state with bond dimension D and physical dimension d. The result is still a TensorNetwork expression – no specialized MPS type – so every tier below applies uniformly:
In[23]:=
SeedRandom[7];mps=
["MPS"[6,4,2],Method"Complex"]
| RandomTensorNetwork |
Out[24]=
TensorNetwork
|  |
|

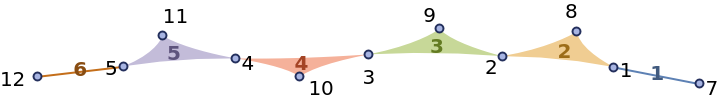

Show its hypergraph:
In[25]:=
mps["Hypergraph"]
Out[25]=
2. Inspecting Structure
Networks support both functional accessors and a property-dispatch syntax. The keys "FreeIndices", "Bonds", and "BinaryQ" answer the three questions you ask first about any network: which indices remain after contraction, which pairs are joined and at what bond dimension, and whether every shared index touches exactly two tensors (the binary case, where the network reduces to a graph rather than a hypergraph).
In[26]:=
mps["FreeIndices"]
Out[26]=
{7,8,9,10,11,12}
The six free indices are the dangling "physical" legs of the chain. The bond list spells out the contracted edges and their dimensions:
In[27]:=
mps["Bonds"]
Out[27]=
{{,}4,{,}4,{,}4,{,}4,{,}4}
1
1
1
2
2
2
2
3
3
3
3
4
4
4
4
5
5
5
5
6
Each key on the left is a pair of index slots written as Superscript[tensor, position]; the right side is the bond dimension. Five edges of dimension 4 – one between every adjacent pair – confirm the chain topology. Asking "BinaryQ" verifies that no index lives in three or more tensors:
In[28]:=
mps["BinaryQ"]
Out[28]=
True
For a single Association of every cached structural property, call with no second argument:
In[29]:=
Keys
[mps]
| TensorNetworkData |
Out[29]=
{Tensors,Dimensions,Hyperedges,Indices,Vertices,Bonds,Contractions,ContractionIndices,FreeIndices}
3. Finding a Contraction Path
The cost of contracting a network depends drastically on the order in which pairs are merged. A path is a list of pairs {i, j} using the convention: at each step the tensors in positions i and j are contracted, both are removed, and the result is appended to the end of the list. runs a full search; with Method "flops" it minimizes the total floating-point operation count rather than the default "size" objective:
In[30]:=
path=
[mps,Method"flops"]
| OptimalContractionPath |
Out[30]=
{{1,2},{1,5},{2,3},{1,3},{1,2}}
Exhaustive search becomes infeasible once the network grows beyond about a dozen tensors. For larger problems, reach for , which picks the locally cheapest pair at every step:
In[31]:=
 | GreedyContractionPath |
Out[31]=
{{4,5},{4,5},{2,3},{1,3},{1,2}}
If you do not supply a path explicitly, calls a planner of its own and uses the result. Passing an explicit path matters when you want reproducibility across runs, when the heuristic and the optimum diverge, or when you wish to time the search separately from the execution.
4. Contracting
Once a path is fixed, execution is one call. carries out every pairwise contraction in order and returns a numerical array whose free indices match those of the input network:
In[32]:=
result=
[mps]
| TensorNetworkContract |
Out[32]=
{{{{{{4.55591-18.5257,7.99487-0.297649},{14.6886-5.03248,2.44838+2.2747}},{{-3.87191-12.9775,-2.59666+3.22489},{11.2872-4.24666,0.649444+1.22257}}},{{{7.78517+4.32165,-8.27917+5.00402},{4.24872-3.5752,-6.72314-1.96116}},{{18.2256+11.5789,4.09162-9.84496},{-3.16169+6.50297,15.4283+3.83903}}}},{{{{10.9613-2.45208,-4.29662+8.0546},{0.50225+0.85937,-1.72126+4.44787}},{{9.09725-5.23713,1.51309-5.92087},{3.31533-0.401529,-0.262081-1.39826}}},{{{2.68908+8.68634,0.656972-1.07961},{3.16575+10.9046,-0.0467431-0.830992}},{{-1.9322+6.92455,1.27659+0.770643},{-4.92042+6.64175,-2.01244+6.28902}}}}},{{{{{-7.07082-16.5578,-0.0140703-3.61301},{7.24983-18.2099,-0.807046+2.3774}},{{-5.68173-6.67014,4.81536+0.452678},{5.6817-12.9272,4.87108-1.37887}}},{{{1.01012+1.63054,3.2111+7.29551},{-3.38341+2.89056,-4.56769+4.28183}},{{10.3183-6.56745,-5.88143-5.91186},{-4.16213+6.85001,6.53907-7.72636}}}},{{{{-7.68228+4.77842,4.93256-0.721014},{-7.74975+6.8201,4.70083-3.25747}},{{-8.17318+3.40668,-4.83171+1.79426},{-7.70483+1.43303,-4.93935+2.23986}}},{{{4.48074-12.366,5.01763+0.91158},{11.7559-2.75617,-7.29354+5.0219}},{{5.44825-16.1657,-0.576388+2.88667},{9.48945-1.40311,5.04281-6.3379}}}}}}
The shape is informative: six dangling indices, each of physical dimension 2, give a rank-6 array which is the unnormalized state vector of the spin chain encoded by the MPS:
ψ
s
1
s
2
s
3
s
4
s
5
s
6
In[33]:=
Dimensions[result]
Out[33]=
{2,2,2,2,2,2}
Two siblings of are worth knowing. returns an Inactive symbolic expression representing the planned contraction – handy for inspecting which sub-tensors will be built and in what order. then evaluates that expression. The available execution back-ends are listed in .
$TensorNetworkContractionMethods
5. Where to Go Next
Five sibling tutorials drill into the tiers sketched above. catalogs the constructors \[Dash] PEPS, MERA, tree tensor networks, transforms like and , and graph adapters via . surveys the planner objectives ("size", "flops", "max", "write", "combo", "limit"), the path utilities , , and , and the execution back-ends. treats the algorithmic toolkit attached to one-dimensional networks. The two subpackage tutorials cover the named-index layer \[Dash] \[Dash] and the representation theory of permutation symmetry of tensors via .
