Combinator primitives (4)

Every constructor returns a ParserCombinator; the wrapper carries the constructor's name, args, and an options Association. Parse interprets the tree, ParserCompile lowers it to a FunctionCompile / PEG-VM backend.

A bare-literal parser is the smallest non-trivial example - it matches its argument exactly and returns the matched string:

In[6]:=

Out[6]=

ParseCharacter matches one character against a pattern (a literal, an alternation, or a named character class):

In[7]:=

Out[7]=

ParseSequence runs combinators in order, returning the list of their results; ParseChoice returns the first one that succeeds (PEG-ordered):

In[8]:=

Out[8]=

ParseAction wraps a parser with a transformer; the transformer is splatted across the parser's result list, so ParseSome followed by StringJoin rejoins the matched chars:

In[9]:=

Out[9]=

Lookahead and backtracking (1)

ParseLookahead succeeds iff its argument would match - consuming nothing. ParseNotFollowedBy is its negation. Together they bound a body's content without committing to the delimiter:

In[10]:=

Out[10]=

Recursion (1)

ParseRecursive defers binding until parse time, so a parser may name itself or its peers without pre-declaration. A balanced-parentheses parser is one line:

In[11]:=

Out[11]=

Declarative grammars (1)

A GrammarRules expression lowers to a ParserCombinator and runs locally - no CloudDeploy. The pattern form mirrors what the cloud accepts; the slot-template form (<name:Type>) is the convenient surface for word / digit captures:

In[12]:=

Out[12]=

The pattern form accepts the same shapes CloudDeploy'd GrammarRules does - FixedOrder, AnyOrder, OptionalElement, DelimitedSequence, RegularExpression, Pattern, and GrammarToken. The Parsing GrammarRules Locally tech note walks through every pattern.

Compilation (1)

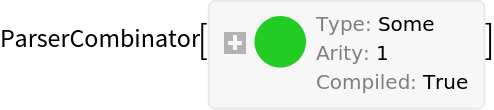

ParserCompile lowers a ParserCombinator to a FunctionCompile function for the small / non-recursive case, or to a PEG-VM instruction table for large / recursive grammars (LaTeX, TPTP). The choice is opt-in via Method → "PEGVM":

In[13]:=

Out[13]=

The compiled artifact can be Export'd to a WXF file and Import'd without recompiling - that is how LaTeXMathParse ships its compiled core (Assets/LaTeXMathParserCompiled.wxf).

LaTeX math (1)

LaTeXMathParse is the largest grammar in the paclet: a PEG over the full inline-math fragment of TeX. It handles \frac, \sqrt, sub/superscripts, \left/\right delimiters, \begin/end{matrix} environments, big operators with limits, and 40+ KaTeX macros. The build ships a WXF dump of the PEG-VM-compiled parser; first use auto-loads it if its grammar hash matches the source:

In[15]:=

Out[15]=

Markdown inline (1)

MarkdownInlineParse parses inline markdown - emphasis, code spans, math, links, sub/sup, escapes - to a tree of typed atoms (MdText, MdBold, MdMathInline, MdLink, …). The grammar is ~75 lines of ParseChoice over the primitives; see the Markdown inline parser tech note:

In[16]:=

Out[16]=

EBNF / BNF grammars (1)

EBNFParse reads a BNF source (::=/:==/::-/::: arrow forms; the TPTP project's SyntaxBNF shape) and returns an Association of rule names to ParserCombinator. The BNF parser is itself written in the ParserCombinator core - a literal demonstration that the combinators are enough to parse their own meta-grammar:

In[17]:=

Out[17]=

TPTP

TPTPImport parses a TPTP problem file (.p) from the library - first-order, equational, higher-order, and typed fragments - returning a list of formulas. The parser handles the full TPTP grammar (10k+ lines of BNF) by composing the EBNFParse output with a small post-processing pass.

Walking Wolfram ASTs

The combinators operate uniformly on strings, on lists of tokens, and on lists of Wolfram expressions, so the same primitives that lex a string can walk a CodeParser AST. The two domains share the implementation; only the leaf ParseCharacter / ParseLiteral definitions differ.

PEG ordering (1)

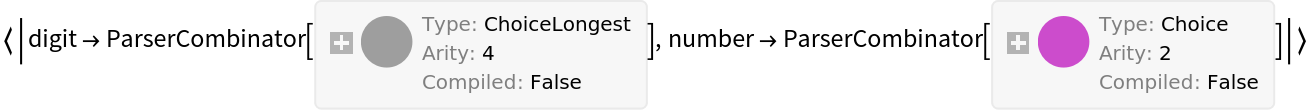

ParseChoice is PEG-ordered: alternatives are tried left-to-right, and the first match wins (no longest-match backtracking). "north" | "northwest" matches "north" on input "northwest" and leaves "west" unconsumed. Order alternatives longer-first, or use ParseChoiceLongest when POSIX longest-match is required:

In[18]:=

Out[18]=

Recursive grammars

FunctionCompile inlines combinator graphs, so a recursive grammar (LaTeX, TPTP) hits the inliner's size cap and either compiles slowly or aborts. Use Method → "PEGVM" for those: the PEG-VM lowers to an integer instruction table that is recursive at runtime, not at compile time.

Semantic-token network dependency

A GrammarToken whose type is not Number / Integer / Word / Automatic calls out to Interpreter at parse time. City, Country, Quantity, Date, … need the Wolfram knowledge engine reachable. Tests that depend on these are not offline-stable.

Strict-PEG full-input match

Parse requires the entire input to match the grammar. A prefix match returns a Failure with Expected → "<end of input>". Use ParsePartial to get {result, leftover} for prefix-matching grammars (REPL prompts, line-based protocols).

A self-parsing BNF

EBNFParse can parse the BNF that describes its own grammar. The library's EBNFParse definition (in Kernel/EBNF.wl) is built from <rule> ::= <name> ::= <body>-shaped patterns; running the parser on a BNF source that describes that very shape is the smallest non-trivial self-host.

Greek-letter LaTeX (1)

A one-character math source resolves to its Wolfram named character:

In[19]:=

Out[19]=

Each \command resolves to its Wolfram named character - the boxes hold "α", "β", "γ", so RawBoxes typesets them as the Greek letters. The command-to-glyph table covers the full Greek alphabet plus a long tail of math symbols.

Markdown link-with-code-label (1)

The recursive label parser in MarkdownInlineParse handles a code-styled label inside a link, producing one MdLink whose label is itself a parsed-list:

In[20]:=

Out[20]=

A grammar in one GrammarRules expression

The "appliance controller" grammar fits in one declarative expression with no helper definitions - the same shape that round-trips through CloudDeploy runs locally with Parse:

In[21]:=

Out[21]=
