SeepageWell

SeepageWell [spec,opts]
	solves axisymmetric unconfined flow to a pumped well, locating the phreatic surface and the seepage face on the well screen iteratively.

Details and Options

▪

spec keys: "WellRadius" -> rw, "OuterRadius" -> R (radius of influence), "FarWaterTable" -> H (above the base), "WellWaterLevel" -> hw, "kr" and "kz" (radial and vertical conductivity).

▪

Coordinates are (r, z) with the impermeable base at z == 0.

▪

The following options can be given:

"Name"	Automatic	Store the result under TerraPercolatio ["name"] as well as returning it.
"MeshSize"	Automatic	Maximum finite-element area; refined automatically near the well.
"Points"	30	Number of radial stations used to represent the phreatic surface (cone of depression).
"Relaxation"	0.65	Under-relaxation factor applied to the phreatic-surface update at each iteration.
"MaxIterations"	100	Maximum number of phreatic-surface iterations before giving up.
"Tolerance"	Automatic	Mean phreatic-surface movement below which the iteration is taken as converged; Automatic scales with the far-field water table H.
"Monitor"	False	True prints the iteration history (mean movement and exit-point elevation) as the free surface converges.

▪

Returns the same keys as

SeepageSolve

, with Q in m^3/s, plus "PhreaticSurface", "ExitPoint" (top of the seepage face on the well screen), "DupuitQ" (the Dupuit-Thiem estimate, for comparison), "Converged" and "Iterations".

Examples

(8)

Basic Examples

(1)

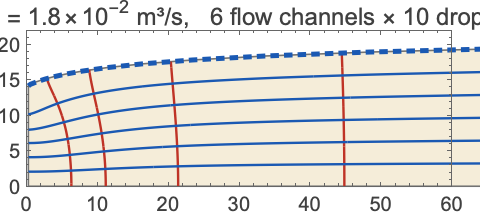

Solve for axisymmetric unconfined flow to a pumped well:

In[1]:=
