DanielS`Wireworld`
WireworldEvolve
​
WireworldEvolve
[init,t]
generates a list representing the evolution of a Wireworld state
init
for
t
steps.
​
​
WireworldEvolve
[init]
gives the result of evolving
init
for one step.
​
​
WireworldEvolve
[init,tspec]
gives only those parts of the evolution specified by
tspec
.
​
Details and Options

Examples
(17)
Basic Examples
(1)
Evolve a Wireworld state for a single step:
In[1]:=
WireworldEvolve
[{​​{0,0,0,0,3,3,0,0,0,0,0},​​{3,3,2,1,3,0,3,3,2,1,3},​​{0,0,0,0,3,3,0,0,0,0,0}}]
Out[1]=
{{{0,0,0,0,3,3,0,0,0,0,0},{3,3,2,1,3,0,3,3,2,1,3},{0,0,0,0,3,3,0,0,0,0,0}},{{0,0,0,0,1,3,0,0,0,0,0},{3,3,3,2,1,0,3,3,3,2,1},{0,0,0,0,1,3,0,0,0,0,0}}}

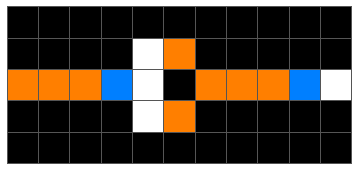

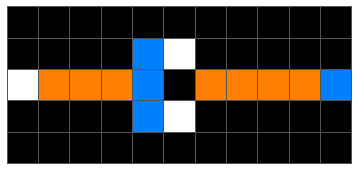

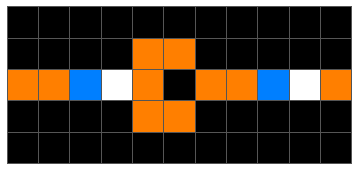

Evolve an initial state for 2 steps and plot the result:
In[2]:=
WireworldPlot
/@
WireworldEvolve
SparseArray
Specified elements: 14
Dimensions: {5,11}
,2
Out[2]=

,
,

Scope
(7)

Properties & Relations
(2)

Possible Issues
(3)

Neat Examples
(4)

SeeAlso
WireworldStateQ

▪
WireworldPlot

▪
$WireworldFunctionRule

▪
$WireworldNumberRule
RelatedGuides
▪
Wireworld
""
