Basic Examples (2)

Compare the uniform axial B_z field (encoded as the B_1,0 field harmonic) generated by a Helmholtz pair, and by three optimised pairs of loops covering the same axial extent:

In[1]:=

Out[1]=

In[2]:=

Out[3]=

Optimise a saddle coil and an ellipse coil to generate the uniform transverse B_x field (encoded as the B_1,1 field harmonic):

In[4]:=

Out[4]=

Visualise the coils as 2D schematics:

In[5]:=

Out[5]=

Visualise the coils as 3D plots. Colour each ellipse primitive differently to distinguish them more easily:

In[6]:=

Out[6]=

Plot the B_x field component generated by each coil in the xz-plane:

In[7]:=

Out[8]=

Scope (3)

The search domain can be constrained to account for physical constraints. Optimise a loop coil of three pairs to generate the B_2,0 field harmonic, with axial separations constrained between 0.5 and 1 times the coil radius:

In[9]:=

Out[9]=

In[10]:=

Out[10]=

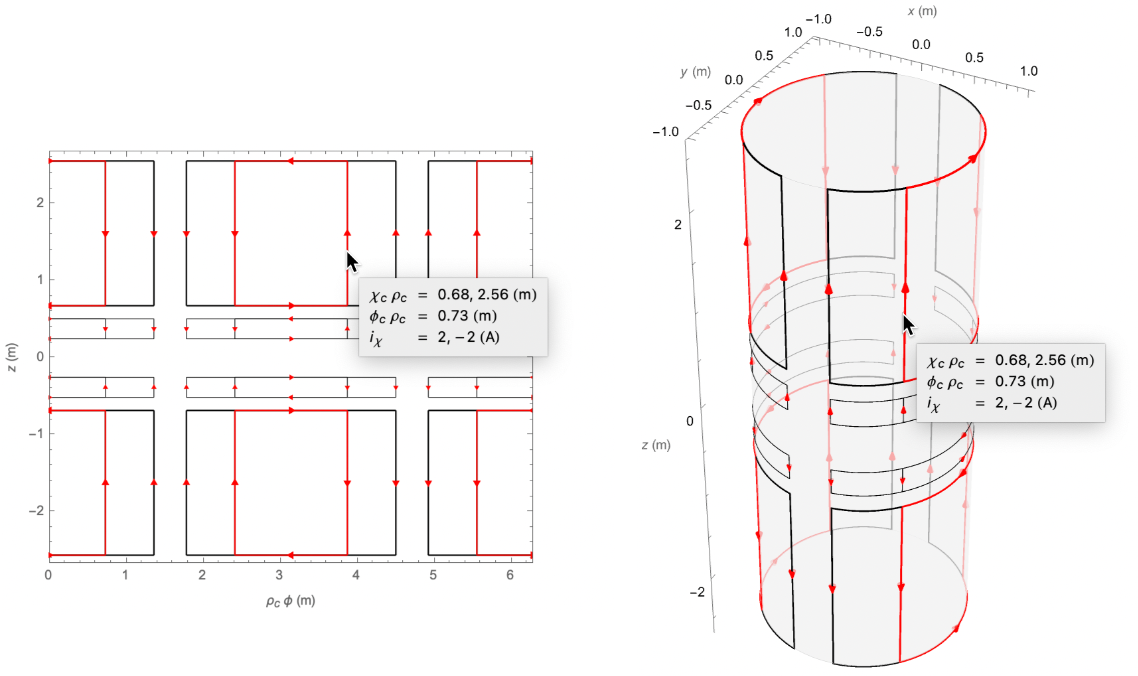

When the mouse hovers over a wire in a 2D or 3D coil plot, all other wires belonging to the same coil primitive are highlighted, and a tooltip shows the parameters describing that primitive:

By default, FindLoopCoil, FindSaddleCoil, and FindEllipseCoil null one fewer leading-order error field harmonics than there are coil parameters, meaning that solutions lie on a 1D contour embedded in a solution space whose dimensionality is equal to the number of coil parameters. Points are found on the solution contour by searching over a coarse mesh of search seeds. These points are interpolated to produce a fine mesh of search seeds, which yield the final set of solutions:

In[11]:=

In[12]:=

Out[12]=

The solutions are then ranked by the ratio of the desired-to-leading-order error field harmonic magnitudes.

Specifying fewer field harmonics to be nulled results in a solution contour of higher dimensionality. Use three saddle primitives to null only one field harmonic, and the solution contour is a 2D surface embedded in a 3D space:

In[13]:=

In[14]:=

Out[14]=

Although the interpolation algorithm works for arbitrary solution contour and search space dimensions, it is currently only optimised for a 1D solution contour (the default and most useful case).
