RetinaNet-101 Feature Pyramid Net Trained on MS-COCO Data

Contributed By: Julian W. Francis

Detect and localize objects in an image

RetinaNet is a single-stage object detection model that goes straight from image pixels to bounding box coordinates and class probabilities. It is able to exceed the accuracy of the best two-stage detectors while offering comparable speed performance to that of the single-stage detectors. The model architecture is based on a Feature Pyramid Network on top of a feedforward ResNet-101 backbone. The model has been trained using a new loss function, "Focal Loss," which addresses the imbalance between foreground and background classes that arises within single-stage detectors.

Trained size: 337 MB |

Training Set Information

Performance

Examples

Resource retrieval

Get the pre-trained net:

In[1]:=
NetModel["RetinaNet-101 Feature Pyramid Net Trained on MS-COCO Data"]

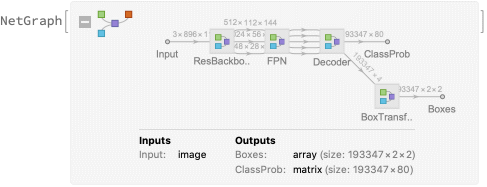

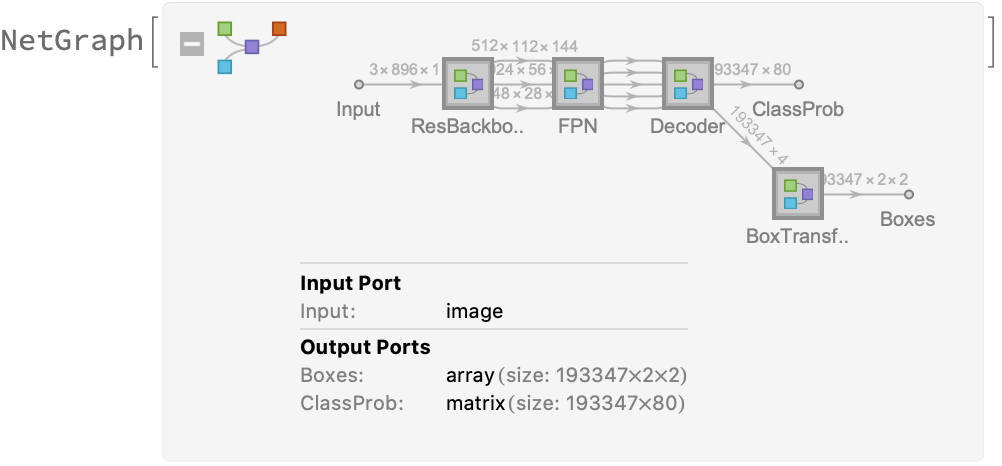

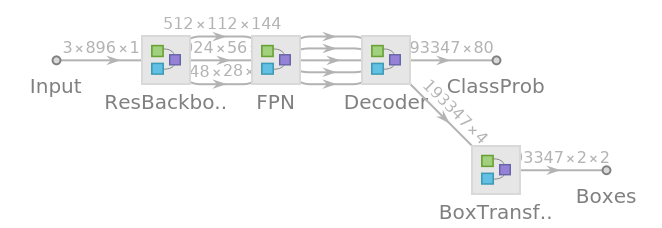

Out[1]=

Label list

Define the label list for this model. Integers in the model's output correspond to elements in the label list:

In[2]:=
labels = {
  "person", "bicycle", "car", "motorcycle", "airplane", "bus",
   "train", "truck", "boat", "traffic light", "fire hydrant",
   "stop sign", "parking meter", "bench", "bird", "cat", "dog",
   "horse", "sheep", "cow", "elephant", "bear", "zebra", "giraffe",
   "backpack", "umbrella", "handbag", "tie", "suitcase", "frisbee",
   "skis", "snowboard", "sports ball", "kite", "baseball bat",
   "baseball glove", "skateboard", "surfboard", "tennis racket",
   "bottle", "wine glass", "cup", "fork", "knife", "spoon", "bowl",
   "banana", "apple", "sandwich", "orange", "broccoli", "carrot",
   "hot dog", "pizza", "donut", "cake", "chair", "couch",
   "potted plant", "bed", "dining table", "toilet", "tv", "laptop",
   "mouse", "remote", "keyboard", "cell phone", "microwave", "oven",
   "toaster", "sink", "refrigerator", "book", "clock", "vase",
   "scissors", "teddy bear", "hair drier", "toothbrush"};

Evaluation function

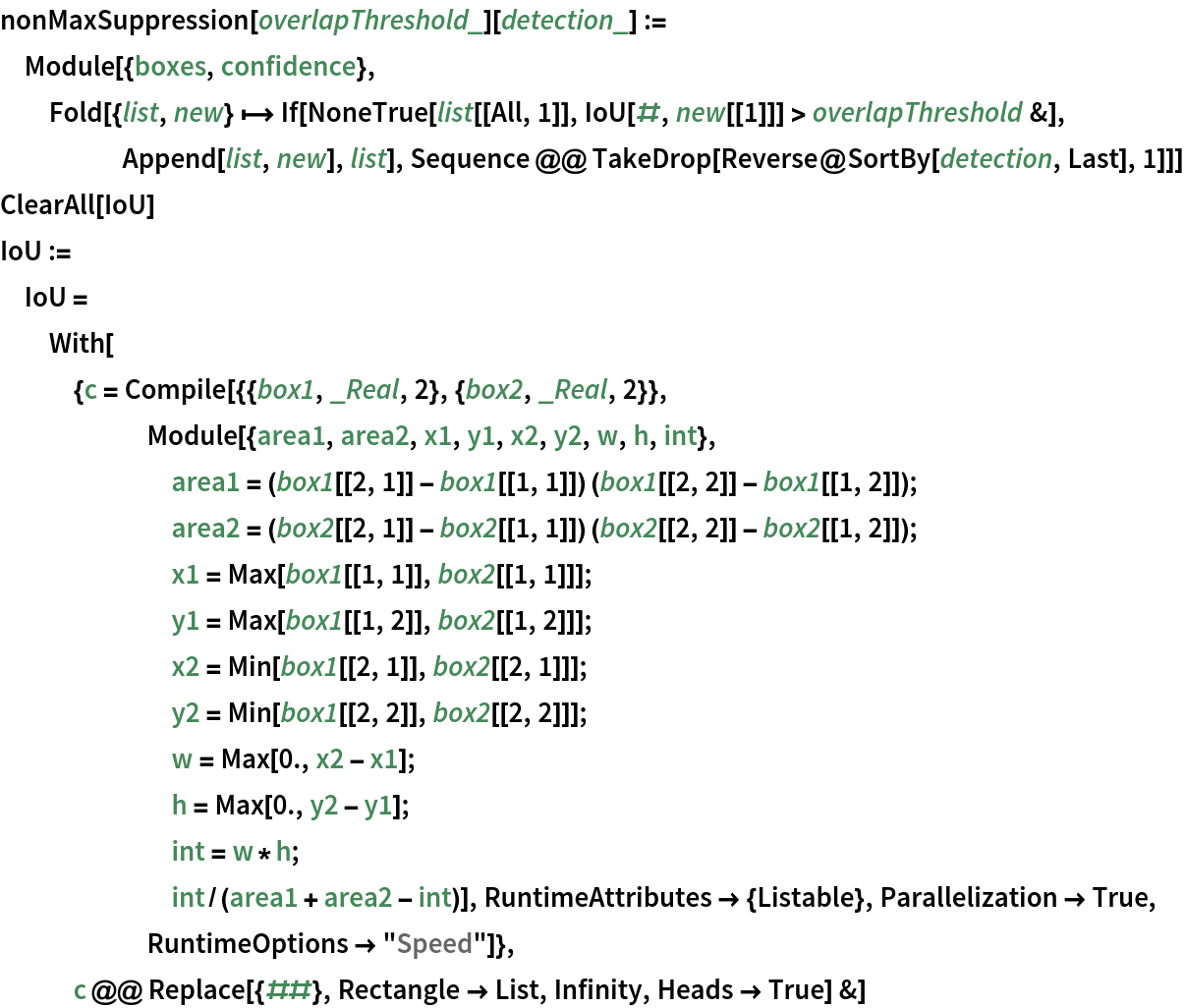

Write an evaluation function to scale the result to the input image size and suppress the least probable detections:

In[3]:=
nonMaxSuppression[overlapThreshold_][detection_] :=
 Module[{boxes, confidence},
  Fold[{list, new} \[Function]
    If[NoneTrue[list[[All, 1]],
      IoU[#, new[[1]]] > overlapThreshold &], Append[list, new],
     list], Sequence @@
    TakeDrop[Reverse@SortBy[detection, Last], 1]]]
ClearAll[IoU]
IoU := IoU =
  With[{c =
     Compile[{{box1, _Real, 2}, {box2, _Real, 2}},
      Module[{area1, area2, x1, y1, x2, y2, w, h, int},
       area1 = (box1[[2, 1]] - box1[[1, 1]]) (box1[[2, 2]] -
           box1[[1, 2]]);
       area2 = (box2[[2, 1]] - box2[[1, 1]]) (box2[[2, 2]] -
           box2[[1, 2]]);
       x1 = Max[box1[[1, 1]], box2[[1, 1]]];
       y1 = Max[box1[[1, 2]], box2[[1, 2]]];
       x2 = Min[box1[[2, 1]], box2[[2, 1]]];
       y2 = Min[box1[[2, 2]], box2[[2, 2]]];
       w = Max[0., x2 - x1];
       h = Max[0., y2 - y1];
       int = w*h;
       int/(area1 + area2 - int)], RuntimeAttributes -> {Listable},
      Parallelization -> True, RuntimeOptions -> "Speed"]},
   c @@ Replace[{##}, Rectangle -> List, Infinity, Heads -> True] &]
In[4]:=

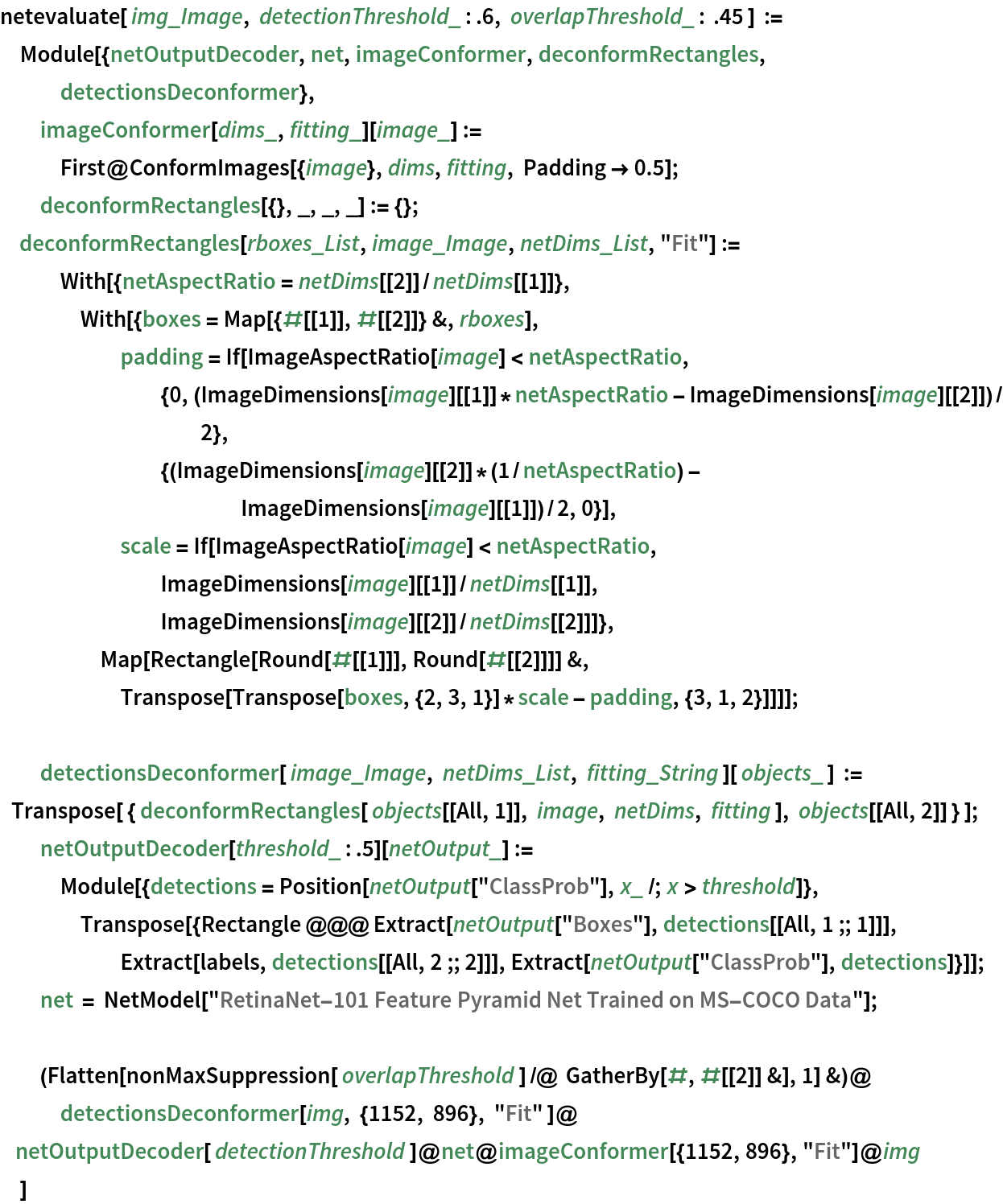

netevaluate[ img_Image, detectionThreshold_ : .6,
  overlapThreshold_ : .45 ] :=
 Module[{netOutputDecoder, net, imageConformer, deconformRectangles,
   detectionsDeconformer},
  imageConformer[dims_, fitting_][image_] :=
   First@ConformImages[{image}, dims, fitting, Padding -> 0.5];
  deconformRectangles[{}, _, _, _] := {};
       deconformRectangles[rboxes_List, image_Image, netDims_List,
    "Fit"] :=
   With[{netAspectRatio = netDims[[2]]/netDims[[1]]},
    With[{boxes = Map[{#[[1]], #[[2]]} &, rboxes],
      padding =
       If[ImageAspectRatio[image] <
         netAspectRatio, {0, (ImageDimensions[image][[1]]*
             netAspectRatio - ImageDimensions[image][[2]])/
          2}, {(ImageDimensions[image][[2]]*(1/netAspectRatio) -
            ImageDimensions[image][[1]])/2, 0}],
      scale = If[ImageAspectRatio[image] < netAspectRatio,
        ImageDimensions[image][[1]]/netDims[[1]],
        ImageDimensions[image][[2]]/netDims[[2]]]},
     Map[Rectangle[Round[#[[1]]], Round[#[[2]]]] &,
      Transpose[
       Transpose[boxes, {2, 3, 1}]*scale - padding, {3, 1, 2}]]]];

  detectionsDeconformer[ image_Image, netDims_List, fitting_String ][
    objects_ ] :=

   Transpose[ {
     deconformRectangles[ objects[[All, 1]], image, netDims,
      fitting ], objects[[All, 2]] } ];
  netOutputDecoder[threshold_ : .5][netOutput_] :=
   Module[{detections =
      Position[netOutput["ClassProb"], x_ /; x > threshold]},
    Transpose[{Rectangle @@@
       Extract[netOutput["Boxes"], detections[[All, 1 ;; 1]]],
      Extract[labels, detections[[All, 2 ;; 2]]],
      Extract[netOutput["ClassProb"], detections]}]];
  net = NetModel[
    "RetinaNet-101 Feature Pyramid Net Trained on MS-COCO Data"];

  (Flatten[
      nonMaxSuppression[ overlapThreshold ] /@ GatherBy[#, #[[2]] &],
      1] &)@detectionsDeconformer[img, {1152, 896}, "Fit" ]@
        netOutputDecoder[ detectionThreshold ]@
     net@imageConformer[{1152, 896}, "Fit"]@img
  ]

Basic usage

Obtain the detected bounding boxes with their corresponding classes and confidences for a given image:

In[5]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/95fb1263-ff24-4217-8b36-97c51347ad46"]
In[6]:=
detection = netevaluate[testImage]

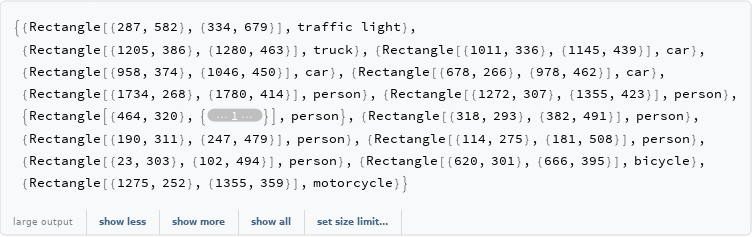

Out[6]=

Inspect which classes are detected:

In[7]:=
classes = DeleteDuplicates@detection[[All, 2]]

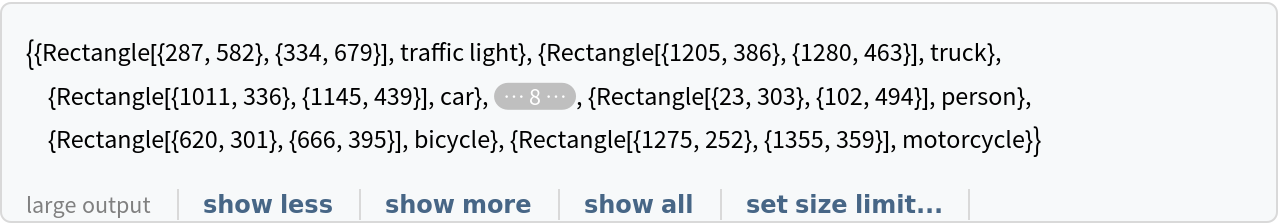

Out[7]=

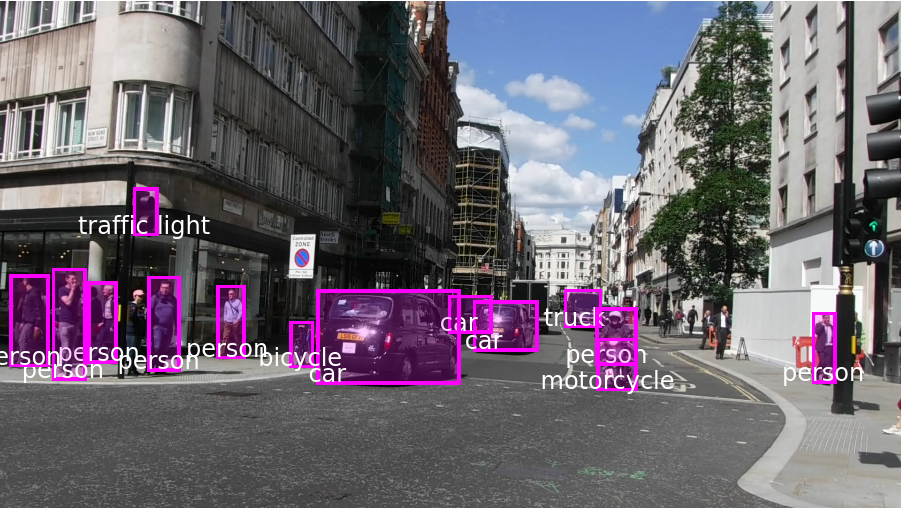

Visualize the detection:

In[8]:=

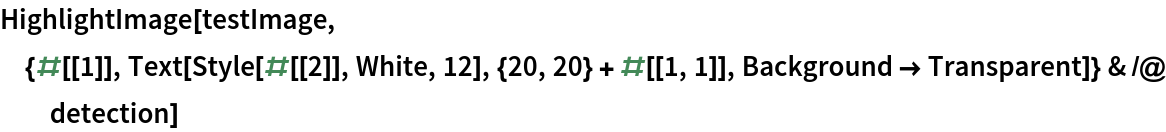

HighlightImage[testImage, {#[[1]],
    Text[Style[#[[2]], White, 12], {20, 20} + #[[1, 1]],
     Background -> Transparent]} & /@ detection]

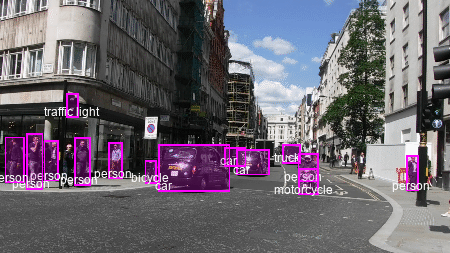

Out[8]=

Advanced visualization

Write a function to apply a custom styling to the result of the detection:

In[9]:=

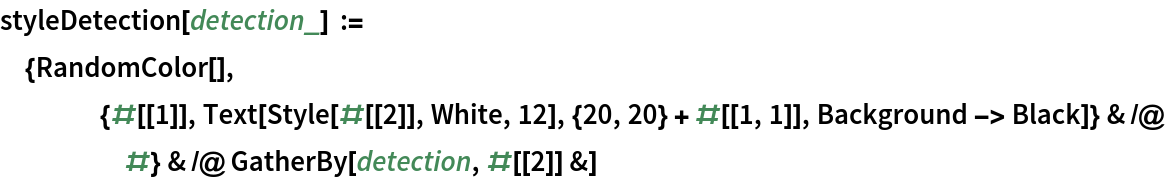

styleDetection[
  detection_] := {RandomColor[], {#[[1]],
       Text[Style[#[[2]], White, 12], {20, 20} + #[[1, 1]],
        Background -> Black]} & /@ #} & /@
  GatherBy[detection, #[[2]] &]
In[10]:=

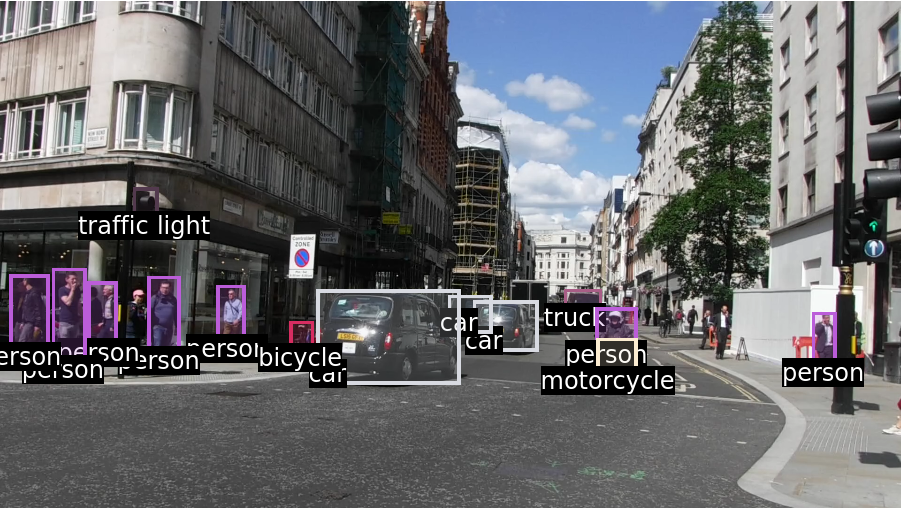

HighlightImage[testImage, styleDetection[netevaluate[testImage]]]

Net information

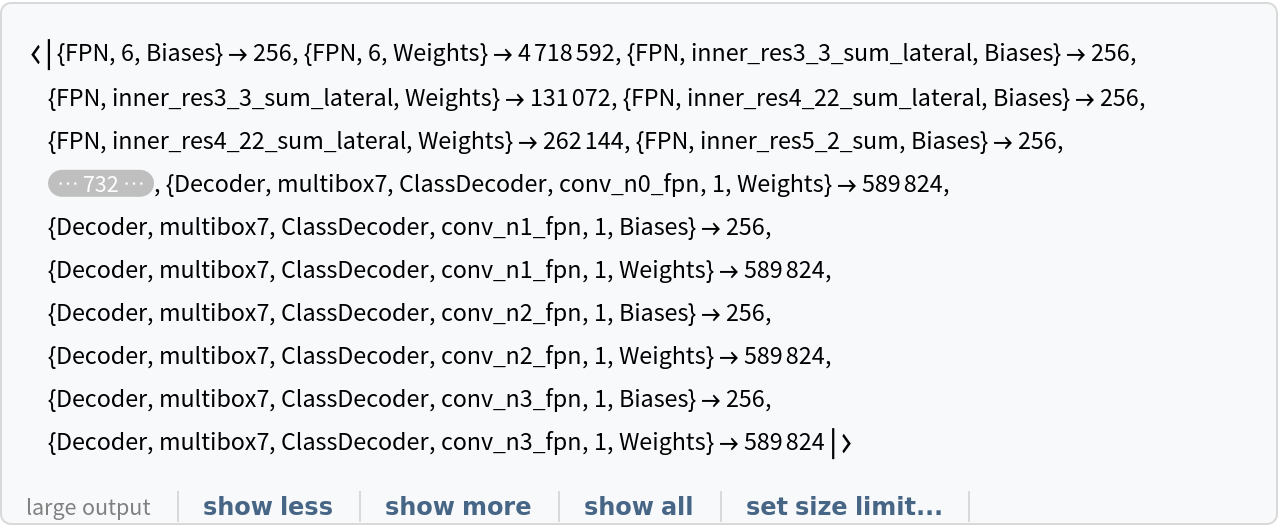

Inspect the number of parameters of all arrays in the net:

In[11]:=

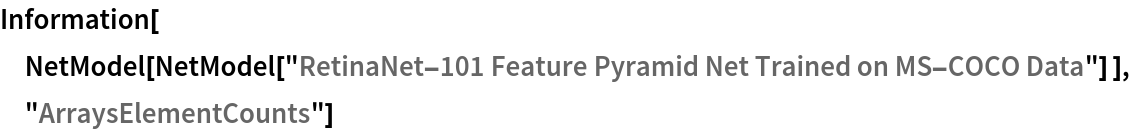

Information[
 NetModel[NetModel[
   "RetinaNet-101 Feature Pyramid Net Trained on MS-COCO Data"] ], \
"ArraysElementCounts"]

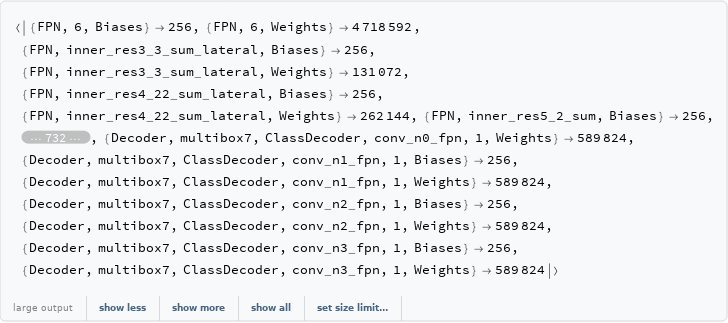

Out[20]=

Obtain the total number of parameters:

In[21]:=
Information[
 NetModel["RetinaNet-101 Feature Pyramid Net Trained on MS-COCO \
Data"], "ArraysTotalElementCount"]
Out[21]=

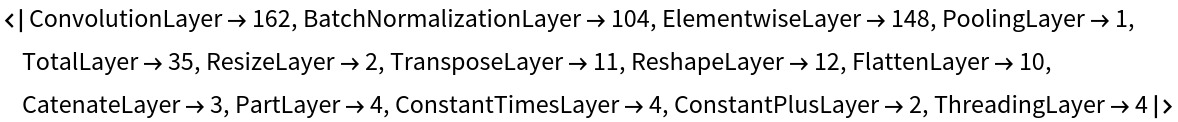

Obtain the layer type counts:

In[22]:=
Information[
 NetModel["RetinaNet-101 Feature Pyramid Net Trained on MS-COCO \
Data"], "LayerTypeCounts"]
Out[22]=

Display the summary graphic:

In[23]:=
Information[
 NetModel["RetinaNet-101 Feature Pyramid Net Trained on MS-COCO \
Data"], "SummaryGraphic"]
Out[23]=

Export to MXNet

Export the net into a format that can be opened in MXNet:

In[24]:=
jsonPath =
 Export[FileNameJoin[{$TemporaryDirectory, "net.json"}],
  NetModel["RetinaNet-101 Feature Pyramid Net Trained on MS-COCO \
Data"], "MXNet"]
Out[24]=

Export also creates a net.params file containing parameters:

In[25]:=
paramPath = FileNameJoin[{DirectoryName[jsonPath], "net.params"}]
Out[25]=

Get the size of the parameter file:

In[26]:=
FileByteCount[paramPath]
Out[26]=

The size is similar to the byte count of the resource object:

In[27]:=
ResourceObject[
  "RetinaNet-101 Feature Pyramid Net Trained on MS-COCO \
Data"]["ByteCount"]
Out[27]=

Requirements

Wolfram Language 12.1 (March 2020) or above
