CycleGAN Monet-to-Photo Translation

Turn a Monet-style painting into a photo

Released in 2017, this model exploits a novel technique for image translation, in which two models translating from A to B and vice versa are trained jointly with adversarial training. In addition to the adversarial loss, cycle consistency is also enforced in the loss function: when the output of the first translator is fed into the second, the final result is encouraged to match the input of the first translator. This allows successful training for image translation tasks in which only unpaired training data can be collected. This model was trained to translate Monet-style paintings into photos.

Number of layers: 94 | Parameter count: 2,855,811 | Trained size: 12 MB

Training Set Information

Examples

Resource retrieval

Retrieve the resource object:

In[1]:=
ResourceObject["CycleGAN Monet-to-Photo Translation"]
Out[1]=

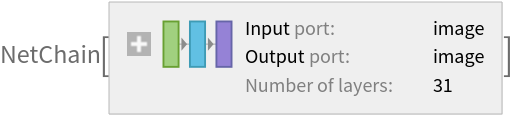

Get the pre-trained net:

In[2]:=
NetModel["CycleGAN Monet-to-Photo Translation"]
Out[2]=

Basic usage

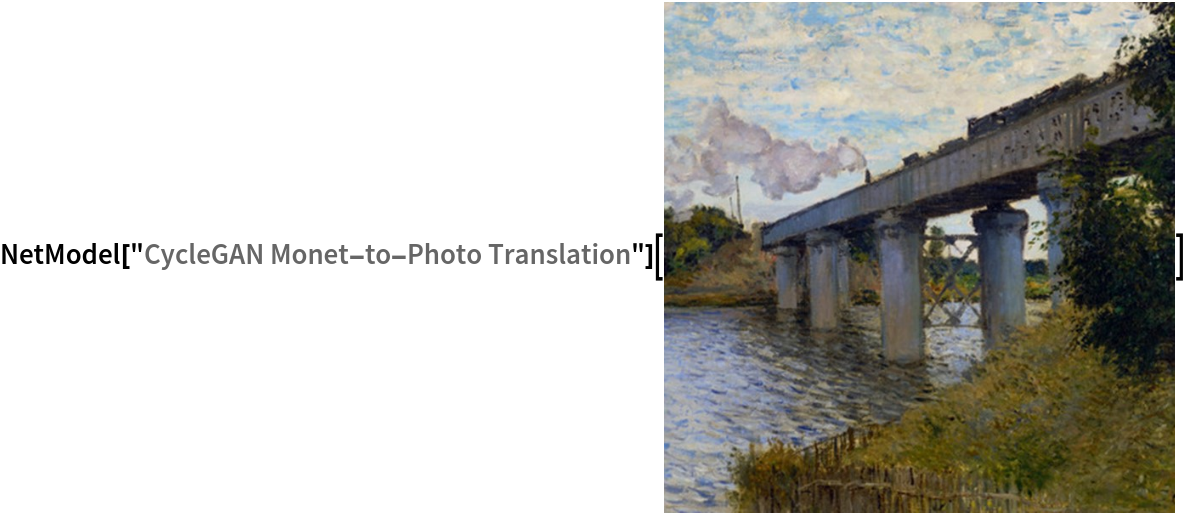

Run the net on an image of a Monet painting:

In[3]:=
CloudGet["https://www.wolframcloud.com/objects/66badea5-26c1-4c77-9d22-fb2191add23c"] (* Evaluate this cell to copy the example input from a cloud object *)
Out[3]=

Adapt to any size

Automatic image resizing can be avoided by replacing the net encoders. First get the net:

In[4]:=
net = NetModel["CycleGAN Monet-to-Photo Translation"]
Out[4]=

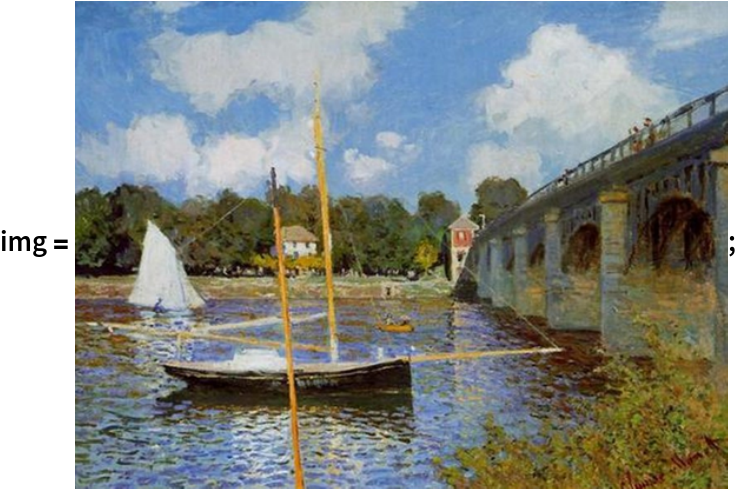

Get an image of a Monet painting:

In[5]:=
CloudGet["https://www.wolframcloud.com/objects/54be4196-15a1-45cc-839b-b0905ce70f23"] (* Evaluate this cell to copy the example input from a cloud object *)

Create a new encoder with the desired dimensions:

In[6]:=
netEnc = NetEncoder[{"Image", ImageDimensions[img]}]
Out[6]=

Attach the new net encoder and run the network:

In[7]:=
resizedNet =
 NetReplacePart[
  net, {"Input" -> netEnc, "Output" -> NetDecoder[{"Image"}]}]
Out[7]=

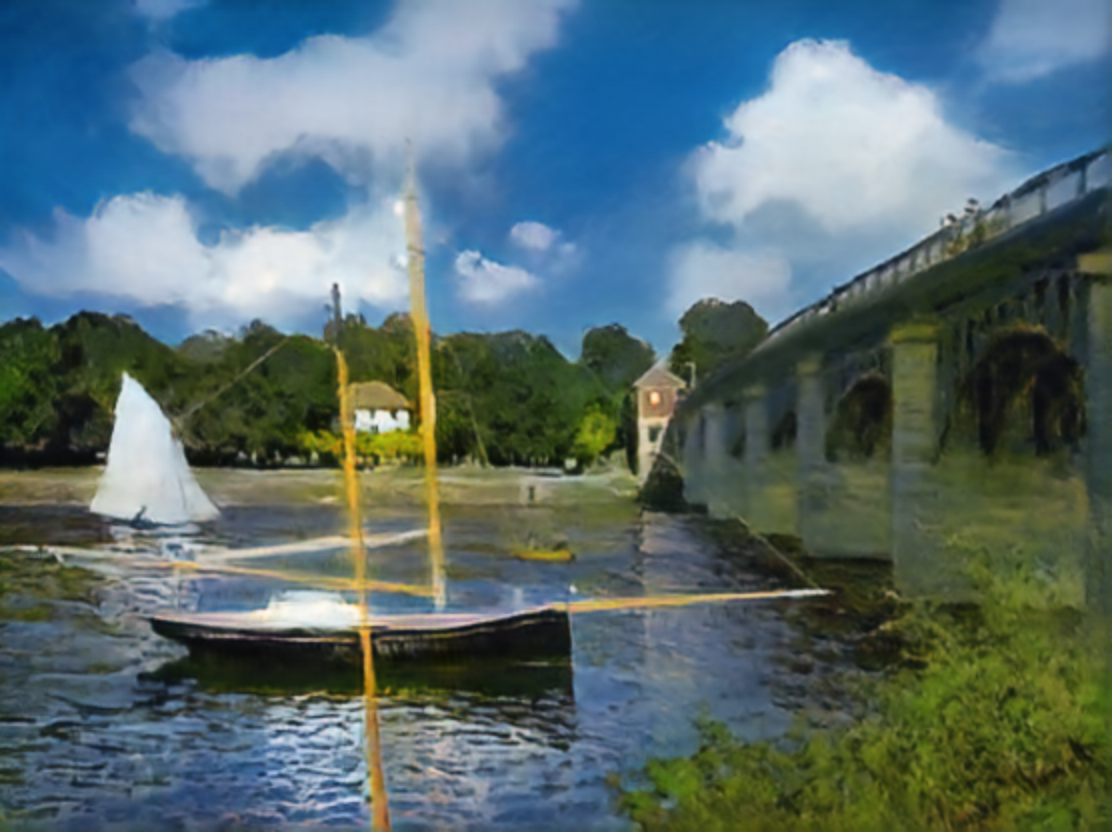

In[8]:=
resizedNet[img]
Out[8]=

Net information

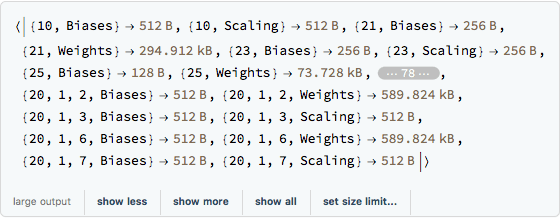

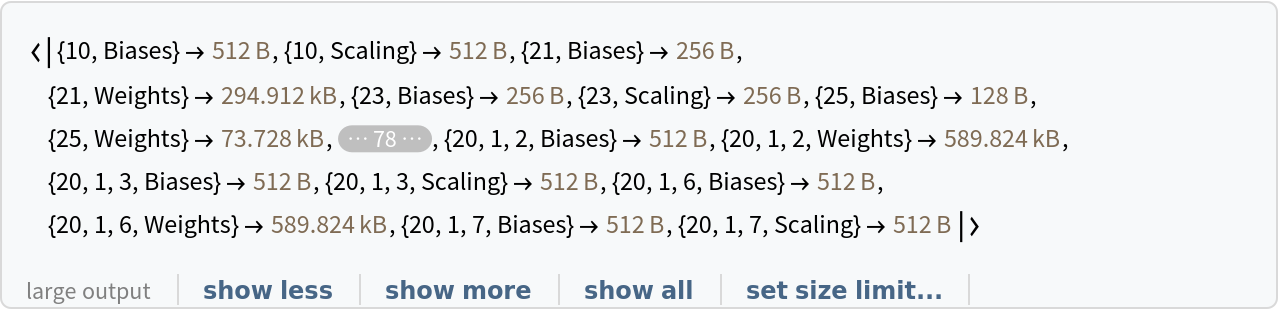

Inspect the sizes of all arrays in the net:

In[9]:=
NetInformation[
 NetModel["CycleGAN Monet-to-Photo Translation"], "ArraysSizes"]
Out[9]=

Obtain the total number of parameters:

In[10]:=
NetInformation[
 NetModel["CycleGAN Monet-to-Photo Translation"], \
"ArraysTotalElementCount"]
Out[10]=

Obtain the layer type counts:

In[11]:=
NetInformation[
 NetModel["CycleGAN Monet-to-Photo Translation"], "LayerTypeCounts"]
Out[11]=

Display the summary graphic:

In[12]:=
NetInformation[
 NetModel["CycleGAN Monet-to-Photo Translation"], "SummaryGraphic"]
Out[12]=

Export to MXNet

Export the net into a format that can be opened in MXNet:

In[13]:=
jsonPath =
 Export[FileNameJoin[{$TemporaryDirectory, "net.json"}],
  NetModel["CycleGAN Monet-to-Photo Translation"], "MXNet"]
Out[13]=

Export also creates a net.params file containing parameters:

In[14]:=
paramPath = FileNameJoin[{DirectoryName[jsonPath], "net.params"}]
Out[14]=

Get the size of the parameter file:

In[15]:=
FileByteCount[paramPath]
Out[15]=

The size is similar to the byte count of the resource object:

In[16]:=
ResourceObject["CycleGAN Monet-to-Photo Translation"]["ByteCount"]
Out[16]=

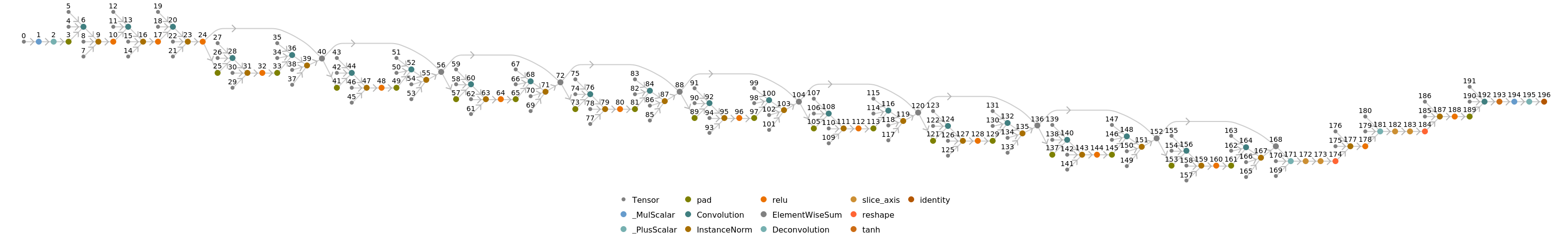

Represent the MXNet net as a graph:

In[17]:=
Import[jsonPath, {"MXNet", "NodeGraphPlot"}]
Out[17]=

Requirements

Wolfram Language 11.3 (March 2018) or above
