Age Estimation VGG-16 Trained on IMDB-WIKI Data

Predict a person's age from an image of their face

Released in 2015 as a pre-trained model for the launch of the IMDB-WIKI dataset by the Computer Vision Lab at ETH Zurich, this model is based on the VGG-16 architecture and is designed to run on cropped images of faces only.

Number of layers: 40 | Parameter count: 134,674,341 | Trained size: 540 MB

Training Set Information

Examples

Resource retrieval

Retrieve the resource object:

In[1]:=
ResourceObject["Age Estimation VGG-16 Trained on IMDB-WIKI Data"]
Out[1]=

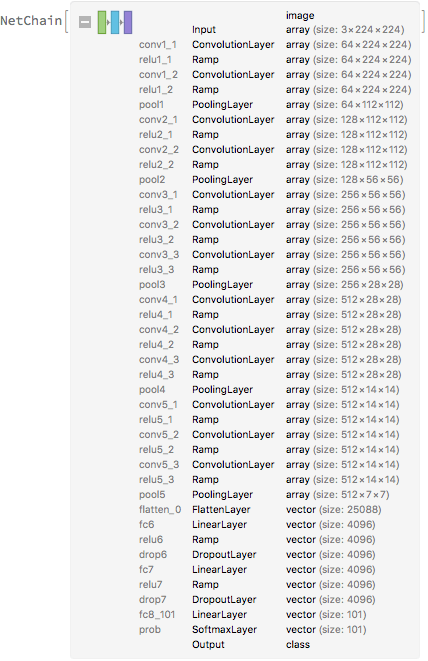

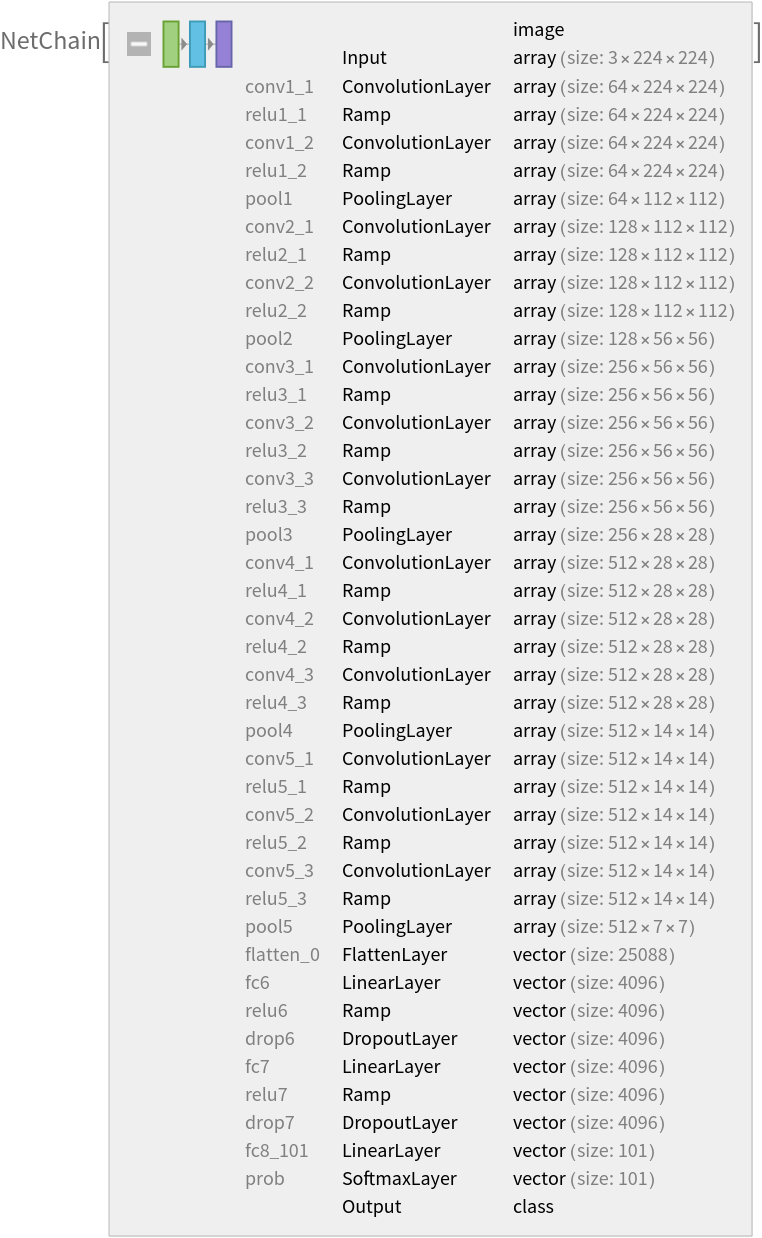

Get the pre-trained net:

In[2]:=
NetModel["Age Estimation VGG-16 Trained on IMDB-WIKI Data"]
Out[2]=

Basic usage

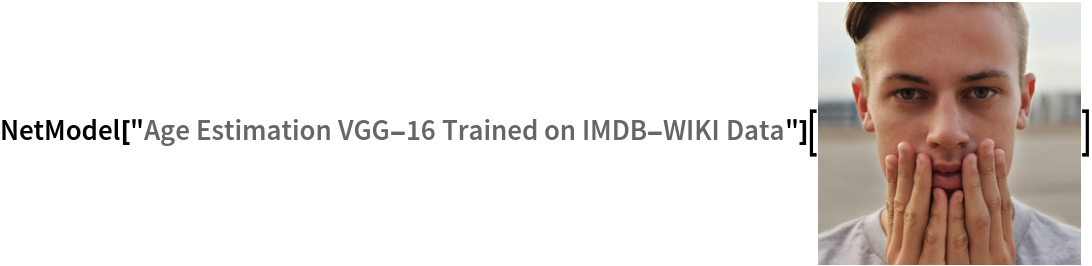

Guess the age of a person from a photograph:

In[3]:=
CloudGet["https://www.wolframcloud.com/objects/5fa133f8-d123-437d-86a5-8517edebdf7f"] (* Evaluate this cell to copy the example input from a cloud object *)
Out[3]=

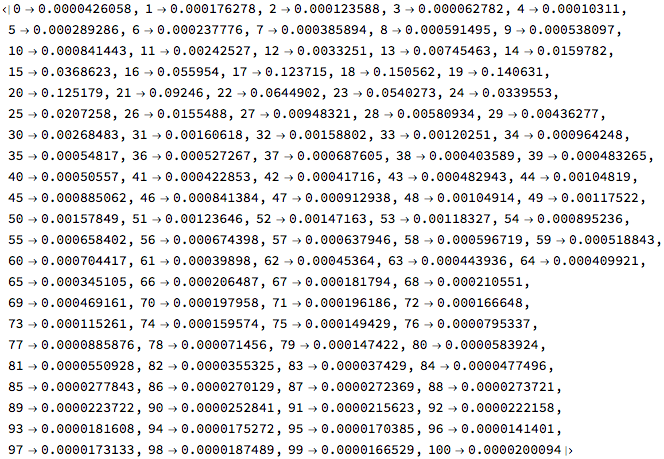

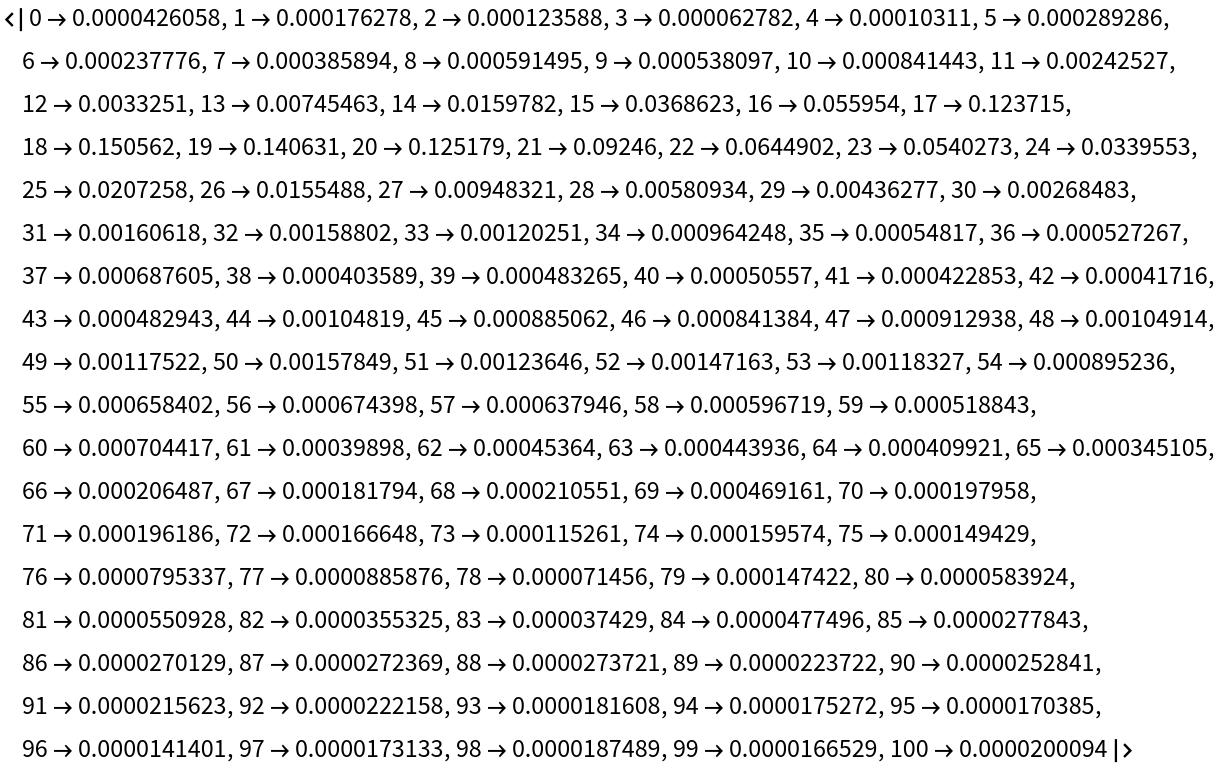

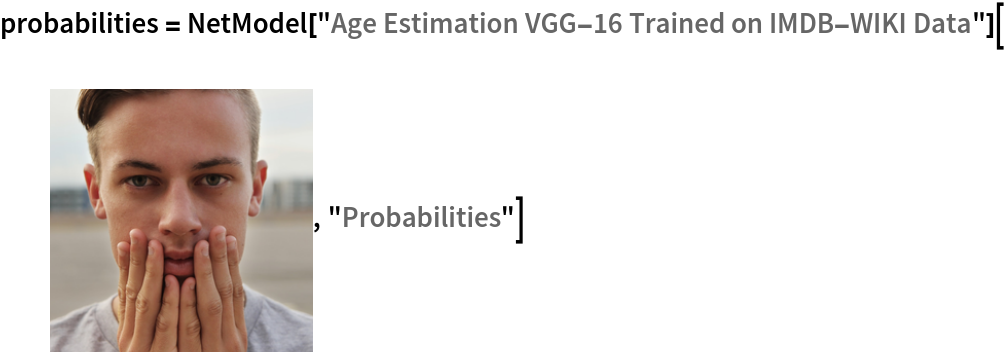

Obtain the probability distribution over all possible ages:

In[4]:=
CloudGet["https://www.wolframcloud.com/objects/dfbff122-760b-4221-af55-cfb2a0ba3446"] (* Evaluate this cell to copy the example input from a cloud object *)
Out[4]=

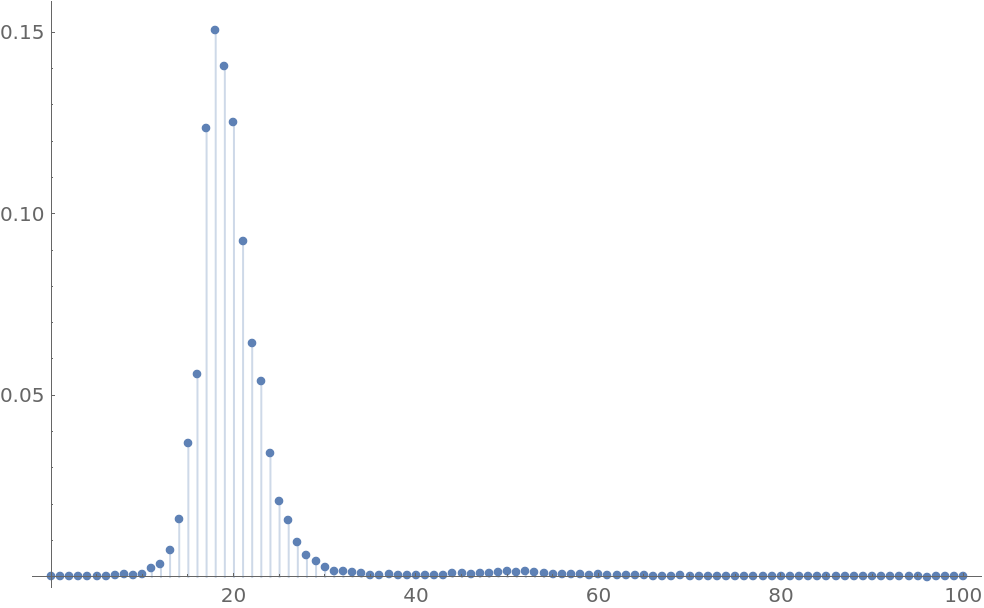

Plot the probability distribution over possible ages:

In[5]:=
ListPlot[probabilities, Filling -> Axis, PlotRange -> All]
Out[5]=

The recommended estimator of the age is the mean of the probability mass function:

In[6]:=
Mean@WeightedData[Range[0, 100], probabilities]
Out[6]=

By default, the mode is used as the estimator:

In[7]:=
MaximalBy[Value][probabilities]
Out[7]=

This net is designed to work with cropped images of faces only. If the photograph is not a facial image, the results may be unexpected:

In[8]:=
CloudGet["https://www.wolframcloud.com/objects/cd5db9ba-090d-4ac1-bdbd-212992ed2cfe"] (* Evaluate this cell to copy the example input from a cloud object *)
In[9]:=
NetModel["Age Estimation VGG-16 Trained on IMDB-WIKI Data"][img]
Out[9]=

Crop the photograph:

In[10]:=
crop = ImageTrim[img, #] & /@ FindFaces[img]
Out[10]=

Guess the age of a person from the cropped image:

In[11]:=
NetModel["Age Estimation VGG-16 Trained on IMDB-WIKI Data"][crop]
Out[11]=

Net information

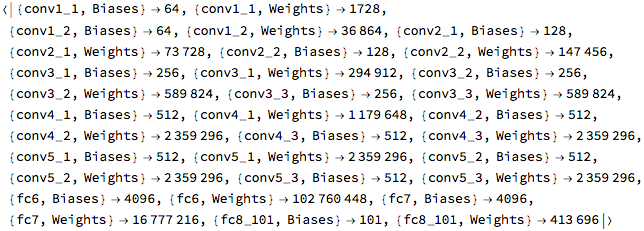

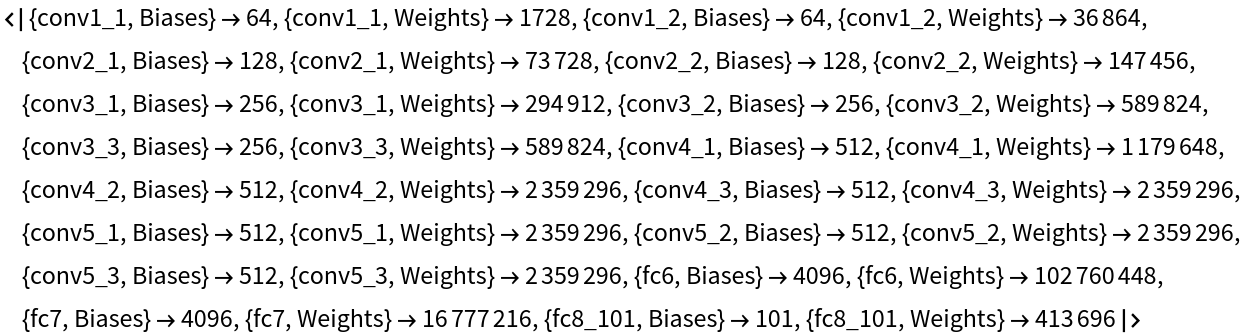

Inspect the number of parameters of all arrays in the net:

In[12]:=
NetInformation[
 NetModel["Age Estimation VGG-16 Trained on IMDB-WIKI Data"], \
"ArraysElementCounts"]
Out[12]=

Obtain the total number of parameters:

In[13]:=
NetInformation[
 NetModel["Age Estimation VGG-16 Trained on IMDB-WIKI Data"], \
"ArraysTotalElementCount"]
Out[13]=

Obtain the layer type counts:

In[14]:=
NetInformation[
 NetModel["Age Estimation VGG-16 Trained on IMDB-WIKI Data"], \
"LayerTypeCounts"]
Out[14]=

Display the summary graphic:

In[15]:=
NetInformation[
 NetModel["Age Estimation VGG-16 Trained on IMDB-WIKI Data"], \
"SummaryGraphic"]
Out[15]=

Export to MXNet

Export the net into a format that can be opened in MXNet:

In[16]:=
jsonPath =
 Export[FileNameJoin[{$TemporaryDirectory, "net.json"}],
  NetModel["Age Estimation VGG-16 Trained on IMDB-WIKI Data"],
  "MXNet"]
Out[16]=

Export also creates a net.params file containing parameters:

In[17]:=
paramPath = FileNameJoin[{DirectoryName[jsonPath], "net.params"}]
Out[17]=

Get the size of the parameter file:

In[18]:=
FileByteCount[paramPath]
Out[18]=

The size is similar to the byte count of the resource object:

In[19]:=
ResourceObject[
  "Age Estimation VGG-16 Trained on IMDB-WIKI Data"]["ByteCount"]
Out[19]=

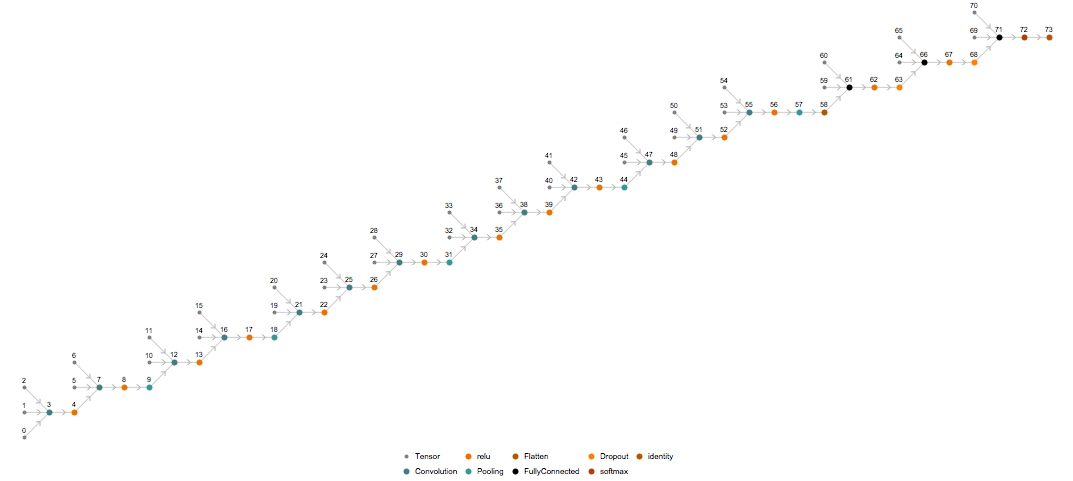

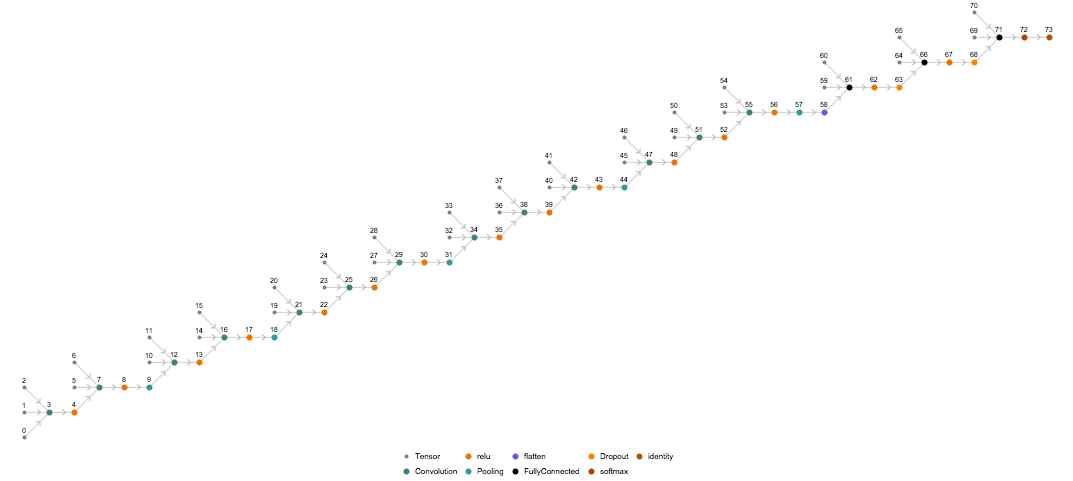

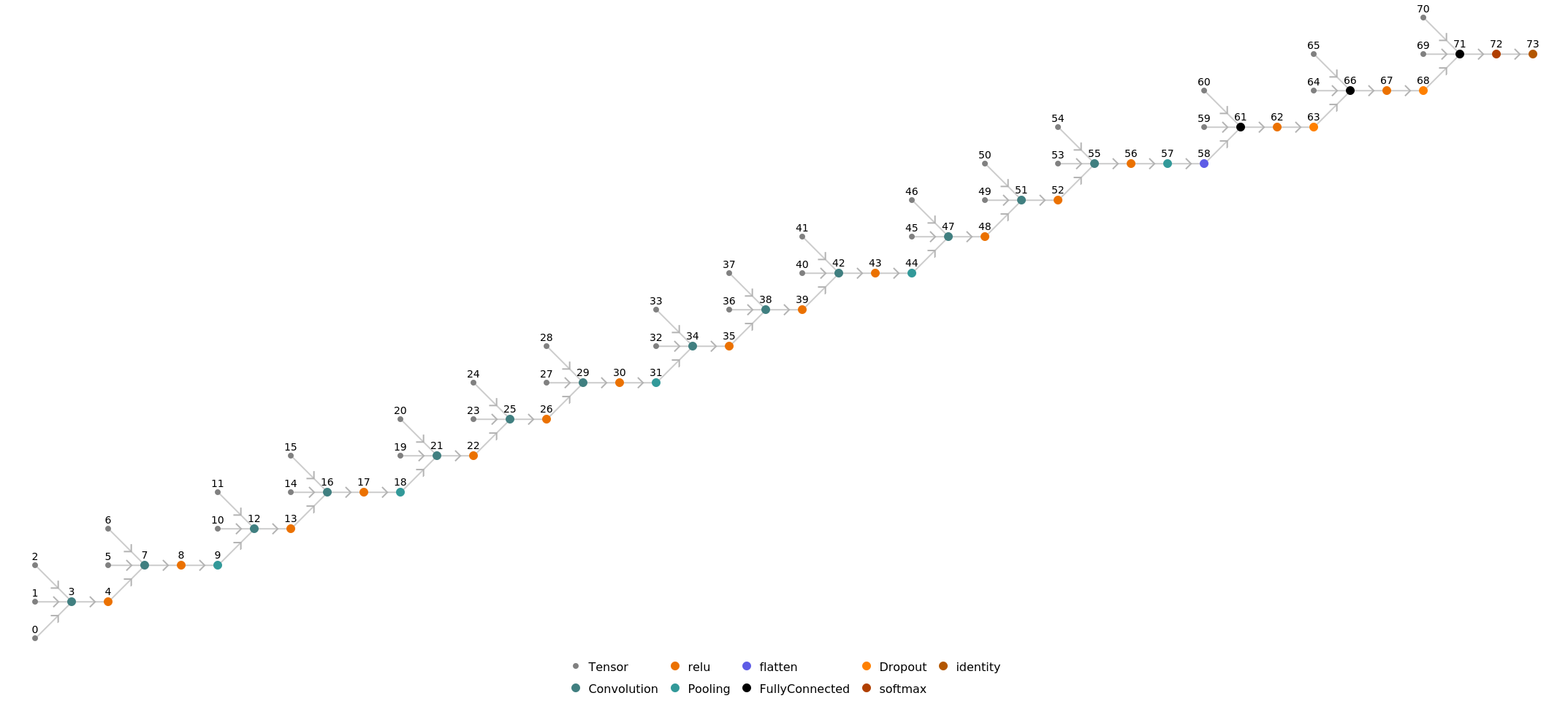

Represent the MXNet net as a graph:

In[20]:=
Import[jsonPath, {"MXNet", "NodeGraphPlot"}]
Out[20]=

Requirements

Wolfram Language 11.2 (September 2017) or above
