Function Repository Resource:

 SystemModelManipulate (1.0.0) current version: 1.1.0 »

Source Notebook

Manipulate parameters or initial values in plots of model simulation results

Contributed by: Wolfram MathCore

ResourceFunction["SystemModelManipulate"][model]

creates a Manipulate object from model showing the resulting default plots of a simulation with controllers for the top-level parameters and initial values.

ResourceFunction["SystemModelManipulate"][model,{u}]

creates a control only for the top-level parameter or variable u.

ResourceFunction["SystemModelManipulate"][model,{u,umin,umax}]

allows the value for u to vary between umin and umax.

ResourceFunction["SystemModelManipulate"][model,{{u,uinit},umin,umax,…}]

takes the initial value of u to be uinit.

ResourceFunction["SystemModelManipulate"][model,{u,{u1,u2,…}}]

allows u to take on discrete values u1,u2,….

ResourceFunction["SystemModelManipulate"][model,{u,func}]

creates a control from the function func.

ResourceFunction["SystemModelManipulate"][model,{u,…},{v,…},…]

provides controls to manipuate each u,v,….

Details and Options

The model can be a SystemModel object, a full model name string or a shortened model name accepted by SystemModel.
ResourceFunction["SystemModelManipulate"] provides controls for top-level parameters and initial values of top-level variables.
For a SystemModel model, model["TopParameterNames"] and model["TopSystemVariables"] provide names for top-level parameters and variables in model.
ResourceFunction["SystemModelManipulate"][model] picks a range for the controls depending on its type, initial value and min or max values, if given in the model.
ResourceFunction["SystemModelManipulate"][model] shows all the default plots specified in the model. "Plots" is accepted as a special value in ResourceFunction["SystemModelManipulate"][model,…,{"Plots",…},…] to include a controller for switching the plots.
ResourceFunction["SystemModelManipulate"][model, {u,umin,umax,du}] allows the value for u to vary between umin and umax in steps du.
ResourceFunction["SystemModelManipulate"][model, {{u,uinit,ulbl},…}] labels the controls for u with ulbl.
ResourceFunction["SystemModelManipulate"][model, {u,{u1→lbl1,u2→lbl2,…}}] labels the controls values u1,u2,… with labels lbl1,lbl2,…
If the parameters and variables have descriptions in the model, these are displayed with a Tooltip in their corresponding controllers.
ResourceFunction["SystemModelManipulate"] has the same options as SystemModelSimulate, SystemModelPlot and Manipulate, with the following additions and changes:
Appearance"Open"appearance of controls for real and integer values
ContinuousActionFalsewhether to update continuously when controls are changed
SynchronousInitializationFalsewhether to perform initialization synchronously
SynchronousUpdatingFalsewhether to update synchronously
Options such as ControlType and Appearance can be given separately for each variable, in the form {u,spec,opts}.
Available example models can be found using SystemModelExamples.

Examples

Basic Examples (3)

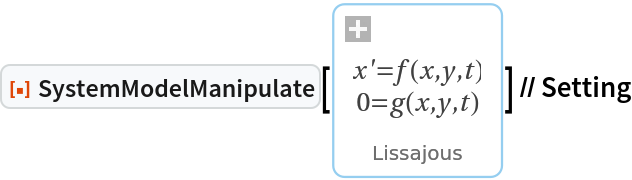

Create a dynamic interface for a model simulation:

In[1]:=

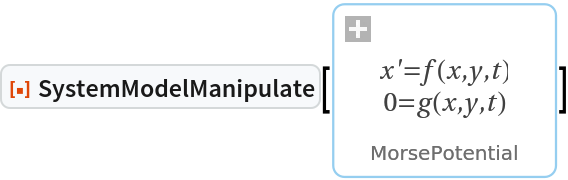

ResourceFunction["SystemModelManipulate"][\!\(\* GraphicsBox[ TagBox[ TooltipBox[ DynamicModuleBox[{WSM`Typeset`PackagePrivate`p$86383 = { InsetBox[ GraphicsBox[{ RGBColor[ 0.25098039215686274`, 0.25098039215686274`, 0.25098039215686274`], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"x'\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"f(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["``````", Style["x'", Italic, FontFamily -> "Times New Roman", FontSize -> 12], Style["=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["f(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[1, 10]}, {0, 0.1}]], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"0=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"g(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["````", Style["0=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["g(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[-1, 10]}, {0, -0.1}]]}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-2, 5], Rational[2, 5]}, { Rational[-1, 5], Rational[2, 5]}}, {{-0.4, 0.4}, {-0.2, 0.4}}], ImageSize -> NCache[{ UpTo[130], Rational[171, 4]}, { UpTo[130], 42.75}]], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {57., 42.75}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"MorsePotential\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -35.875}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-49.5, -46.375}, {49.5, 30.375}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}, WSM`Typeset`PackagePrivate`appearanceState$86383 = "Minimal", WSM`Typeset`PackagePrivate`expandedeval$86383 = False, WSM`Typeset`PackagePrivate`expandedprimitives$86383, WSM`Typeset`PackagePrivate`expandedopt$86383, WSM`Typeset`PackagePrivate`expandedsize$86383 = {101., 78.75}, WSM`Typeset`PackagePrivate`expandedrange$86383 = {{-50.5, 50.5}, {-47.375, 31.375}}}, DynamicWrapperBox[ DynamicBox[{WSM`Typeset`PackagePrivate`p$86383, Which[ And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$86383 === "Minimal"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquarePlusIconMedium"]], ButtonFunction :> ( If[WSM`Typeset`PackagePrivate`expandedeval$86383 === False, If[ TrueQ[WSMLink`Private`$WSMLinkIsLoaded], WSM`Typeset`PackagePrivate`appearanceState$86383 = "Eval"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "354659cc-746a-4aca-ba50-ff1fa45a2bf7"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedsize$86383, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$86383}]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedrange$86383, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$86383}]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null, WSM`Typeset`PackagePrivate`appearanceState$86383 = "Expanded"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "354659cc-746a-4aca-ba50-ff1fa45a2bf7"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = WSM`Typeset`PackagePrivate`expandedsize$86383; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = WSM`Typeset`PackagePrivate`expandedrange$86383; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{6, -6}, Scaled[{0, 1}]], Scaled[{0, 1}]], And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$86383 === "Expanded"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquareMinusIconMedium"]], ButtonFunction :> ( WSM`Typeset`PackagePrivate`appearanceState$86383 = "Minimal"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "354659cc-746a-4aca-ba50-ff1fa45a2bf7"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = {101., 78.75}; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = {{-50.5, 50.5}, {-47.375, 31.375}}; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{10, -10}, Scaled[{0, 1}]]], True, {}]}, ImageSizeCache->{{0.5, 100.5}, {-41.25, 36.5}}, TrackedSymbols:>{WSM`Typeset`PackagePrivate`p$86383}], Which[WSM`Typeset`PackagePrivate`appearanceState$86383 === "Minimal", WSM`Typeset`PackagePrivate`p$86383 = { InsetBox[ GraphicsBox[{ RGBColor[ 0.25098039215686274`, 0.25098039215686274`, 0.25098039215686274`], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"x'\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"f(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["``````", Style["x'", Italic, FontFamily -> "Times New Roman", FontSize -> 12], Style["=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["f(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[1, 10]}, {0, 0.1}]], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"0=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"g(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["````", Style["0=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["g(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[-1, 10]}, {0, -0.1}]]}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-2, 5], Rational[2, 5]}, { Rational[-1, 5], Rational[2, 5]}}, {{-0.4, 0.4}, {-0.2, 0.4}}], ImageSize -> NCache[{ UpTo[130], Rational[171, 4]}, { UpTo[130], 42.75}]], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {57., 42.75}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"MorsePotential\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -35.875}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-49.5, -46.375}, {49.5, 30.375}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}; Null, WSM`Typeset`PackagePrivate`appearanceState$86383 === "Eval", WSM`Typeset`PackagePrivate`p$86383 = {{ EdgeForm[ WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$86383, 1, 1], Part[WSM`Typeset`PackagePrivate`expandedrange$86383, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$86383, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$86383, 2, 2]}, RoundingRadius -> Offset[5]]}, InsetBox[ Evaluate[ ToBoxes[ ProgressIndicator[Appearance -> "Percolate"], StandardForm]]]}; Module[{WSM`Typeset`PackagePrivate`md$}, {WSM`Typeset`PackagePrivate`expandedsize$86383, WSM`Typeset`PackagePrivate`md$} = WSM`Typeset`PackagePrivate`getExpandedGraphic[ "DocumentationExamples.Simulation.MorsePotential", "354659cc-746a-4aca-ba50-ff1fa45a2bf7"]; {WSM`Typeset`PackagePrivate`expandedprimitives$86383, WSM`Typeset`PackagePrivate`expandedopt$86383} = WSM`Typeset`PackagePrivate`separateGraphics[ WSM`Typeset`PackagePrivate`md$]; WSM`Typeset`PackagePrivate`expandedrange$86383 = Replace[PlotRange, Flatten[WSM`Typeset`PackagePrivate`expandedopt$86383]]; WSM`Typeset`PackagePrivate`expandedeval$86383 = True; WSM`Typeset`PackagePrivate`expandedprimitives$86383 = Join[ WSM`Typeset`PackagePrivate`expandedprimitives$86383, {{ EdgeForm[WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$86383, 1, 1], Part[ WSM`Typeset`PackagePrivate`expandedrange$86383, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$86383, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$86383, 2, 2]}, RoundingRadius -> Offset[5]]}, With[{WSM`Typeset`PackagePrivate`leftmost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$86383, 1, 1], WSM`Typeset`PackagePrivate`bottommost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$86383, 2, 1]}, { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["MorsePotential", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], Offset[{12, 12}, {WSM`Typeset`PackagePrivate`leftmost$, WSM`Typeset`PackagePrivate`bottommost$}], {-1, 0}]}]}]; Null]; WSM`Typeset`PackagePrivate`appearanceState$86383 = "Expanded"; Null, WSM`Typeset`PackagePrivate`appearanceState$86383 === "Expanded", WSM`Typeset`PackagePrivate`p$86383 = WSM`Typeset`PackagePrivate`expandedprimitives$86383; Null]; Null, ImageSizeCache->{{0.5, 100.5}, {-41.25, 36.5}}, SynchronousUpdating->False, TrackedSymbols:>{WSM`Typeset`PackagePrivate`appearanceState$86383}], Initialization:>( WSM`Typeset`PackagePrivate`expandedeval$86383 = Not[ WSM`Typeset`PackagePrivate`expandedeval$86383]; WSM`Typeset`PackagePrivate`expandedeval$86383 = Not[ WSM`Typeset`PackagePrivate`expandedeval$86383]; Null)], "DocumentationExamples.Simulation.MorsePotential"], WSM`ModelTag["DocumentationExamples.Simulation.MorsePotential"]], SelectWithContents -> True, Editable -> False, BoxID -> "354659cc-746a-4aca-ba50-ff1fa45a2bf7", ContentSelectable->False, DefaultBaseStyle->{"Graphics", FrontEnd`GraphicsHighlightColor -> RGBColor[0, 0.46775, 1], ComponentwiseContextMenu -> {"GraphicsBox" -> { MenuItem[ "Copy Model", KernelExecute[ CopyToClipboard[ ReleaseHold[ MakeExpression[ MakeBoxes[ SystemModel["DocumentationExamples.Simulation.MorsePotential"]], StandardForm]]]], MenuEvaluator -> Automatic], MenuItem["Copy Model Name", KernelExecute[ CopyToClipboard[( "\"" <> "DocumentationExamples.Simulation.MorsePotential") <> "\""]], MenuEvaluator -> Automatic], Delimiter, MenuItem["Simulate Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelSimulate", "[", "\"DocumentationExamples.Simulation.MorsePotential\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Preferred Plots in Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelPlot", "[", "\"DocumentationExamples.Simulation.MorsePotential\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Model Information", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModel", "[", RowBox[{"\"DocumentationExamples.Simulation.MorsePotential\"", ",", "\"Summary\""}], "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], Delimiter, MenuItem["Open in System Modeler Model Center", KernelExecute[ WSMLink`WSMModelCenter[ "DocumentationExamples.Simulation.MorsePotential"]], MenuEvaluator -> Automatic], MenuItem["Open in System Modeler Simulation Center", KernelExecute[ WSMLink`WSMSimulationCenter[ "DocumentationExamples.Simulation.MorsePotential"]], MenuEvaluator -> Automatic]}}}, ImageSize->{101., 78.75}, PlotRange->{{-50.5, 50.5}, {-47.375, 31.375}}]\)]
Out[1]=

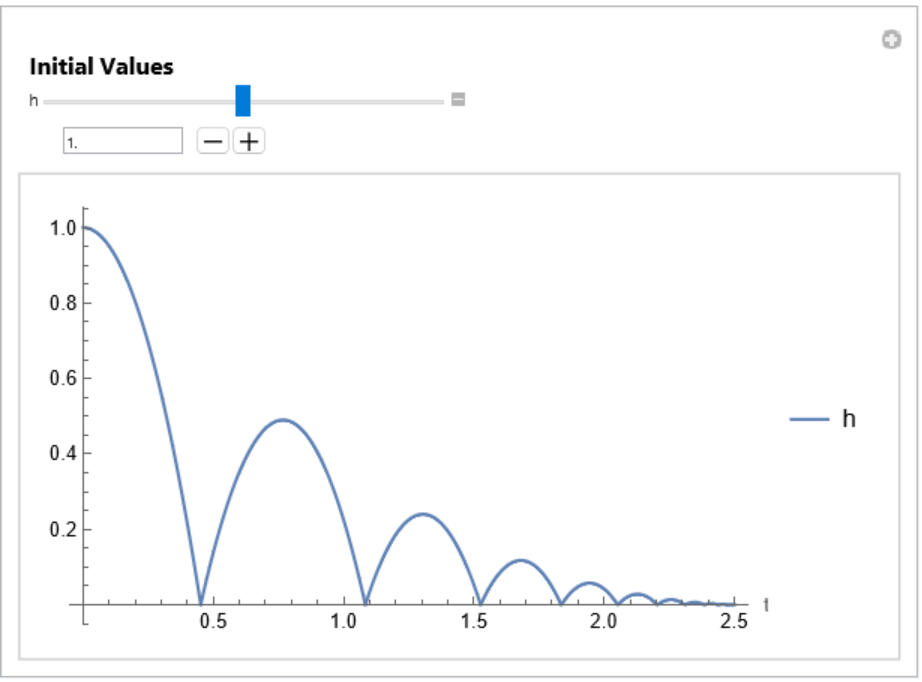

Manipulate an initial value in a simulation:

In[2]:=

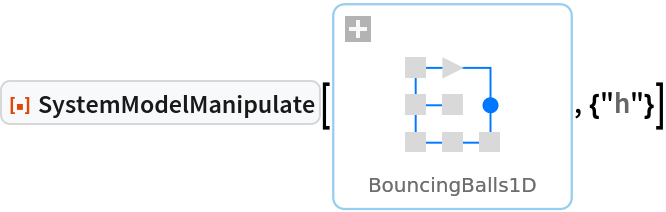

ResourceFunction["SystemModelManipulate"][\!\(\* GraphicsBox[ TagBox[ TooltipBox[ DynamicModuleBox[{WSM`Typeset`PackagePrivate`p$80332 = { InsetBox[ GraphicsBox[{{ RGBColor[0., 0.4666666666666667, 1.], Thickness[ NCache[ Rational[1, 50], 0.02]], LineBox[ NCache[{{ Rational[-7, 4], 0}, {0, 0}}, {{-1.75, 0}, {0, 0}}]], LineBox[ NCache[{{ Rational[-7, 4], Rational[7, 4]}, { Rational[7, 4], Rational[7, 4]}, { Rational[7, 4], Rational[-7, 4]}, { Rational[-7, 4], Rational[-7, 4]}, { Rational[-7, 4], Rational[7, 4]}}, {{-1.75, 1.75}, {1.75, 1.75}, { 1.75, -1.75}, {-1.75, -1.75}, {-1.75, 1.75}}]]}, { EdgeForm[None], RGBColor[0., 0.4666666666666667, 1.], DiskBox[ NCache[{ Rational[7, 4], 0}, {1.75, 0}], NCache[ Rational[3, 8], 0.375]]}, { EdgeForm[None], GrayLevel[0.85], RectangleBox[ NCache[{ Rational[-1, 2], Rational[-1, 2]}, {-0.5, -0.5}], NCache[{ Rational[1, 2], Rational[1, 2]}, {0.5, 0.5}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[-1, 2]}, {-2.25, -0.5}], NCache[{ Rational[-5, 4], Rational[1, 2]}, {-1.25, 0.5}]], RectangleBox[ NCache[{ Rational[-1, 2], Rational[-9, 4]}, {-0.5, -2.25}], NCache[{ Rational[1, 2], Rational[-5, 4]}, {0.5, -1.25}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[-9, 4]}, {-2.25, -2.25}], NCache[{ Rational[-5, 4], Rational[-5, 4]}, {-1.25, -1.25}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[5, 4]}, {-2.25, 1.25}], NCache[{ Rational[-5, 4], Rational[9, 4]}, {-1.25, 2.25}]], RectangleBox[ NCache[{ Rational[5, 4], Rational[-9, 4]}, {1.25, -2.25}], NCache[{ Rational[9, 4], Rational[-5, 4]}, {2.25, -1.25}]], TagBox[ PolygonBox[ NCache[{{ Rational[1, 2], Rational[7, 4]}, { Rational[-1, 2], Rational[9, 4]}, { Rational[-1, 2], Rational[5, 4]}}, {{0.5, 1.75}, {-0.5, 2.25}, {-0.5, 1.25}}]], "Triangle"]}}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-9, 4], Rational[9, 4]}, { Rational[-9, 4], Rational[15, 4]}}, {{-2.25, 2.25}, {-2.25, 3.75}}], ImageSize -> { UpTo[130], 57}], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {42.75, 57.}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"BouncingBalls1D\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -43.}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-53., -53.5}, {53., 37.5}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}, WSM`Typeset`PackagePrivate`appearanceState$80332 = "Minimal", WSM`Typeset`PackagePrivate`expandedeval$80332 = False, WSM`Typeset`PackagePrivate`expandedprimitives$80332, WSM`Typeset`PackagePrivate`expandedopt$80332, WSM`Typeset`PackagePrivate`expandedsize$80332 = {108., 93.}, WSM`Typeset`PackagePrivate`expandedrange$80332 = {{-54., 54.}, {-54.5, 38.5}}}, DynamicWrapperBox[ DynamicBox[{WSM`Typeset`PackagePrivate`p$80332, Which[ And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$80332 === "Minimal"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquarePlusIconMedium"]], ButtonFunction :> ( If[WSM`Typeset`PackagePrivate`expandedeval$80332 === False, If[ TrueQ[WSMLink`Private`$WSMLinkIsLoaded], WSM`Typeset`PackagePrivate`appearanceState$80332 = "Eval"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "5303544f-de9c-4aef-a785-01d778c774be"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedsize$80332, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$80332}]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedrange$80332, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$80332}]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null, WSM`Typeset`PackagePrivate`appearanceState$80332 = "Expanded"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "5303544f-de9c-4aef-a785-01d778c774be"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = WSM`Typeset`PackagePrivate`expandedsize$80332; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = WSM`Typeset`PackagePrivate`expandedrange$80332; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{6, -6}, Scaled[{0, 1}]], Scaled[{0, 1}]], And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$80332 === "Expanded"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquareMinusIconMedium"]], ButtonFunction :> ( WSM`Typeset`PackagePrivate`appearanceState$80332 = "Minimal"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "5303544f-de9c-4aef-a785-01d778c774be"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = {108., 93.}; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = {{-54., 54.}, {-54.5, 38.5}}; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{10, -10}, Scaled[{0, 1}]]], True, {}]}, ImageSizeCache->{{0.5, 107.5}, {-48.5, 43.5}}, TrackedSymbols:>{WSM`Typeset`PackagePrivate`p$80332}], Which[WSM`Typeset`PackagePrivate`appearanceState$80332 === "Minimal", WSM`Typeset`PackagePrivate`p$80332 = { InsetBox[ GraphicsBox[{{ RGBColor[0., 0.4666666666666667, 1.], Thickness[ NCache[ Rational[1, 50], 0.02]], LineBox[ NCache[{{ Rational[-7, 4], 0}, {0, 0}}, {{-1.75, 0}, {0, 0}}]], LineBox[ NCache[{{ Rational[-7, 4], Rational[7, 4]}, { Rational[7, 4], Rational[7, 4]}, { Rational[7, 4], Rational[-7, 4]}, { Rational[-7, 4], Rational[-7, 4]}, { Rational[-7, 4], Rational[7, 4]}}, {{-1.75, 1.75}, {1.75, 1.75}, { 1.75, -1.75}, {-1.75, -1.75}, {-1.75, 1.75}}]]}, { EdgeForm[None], RGBColor[0., 0.4666666666666667, 1.], DiskBox[ NCache[{ Rational[7, 4], 0}, {1.75, 0}], NCache[ Rational[3, 8], 0.375]]}, { EdgeForm[None], GrayLevel[0.85], RectangleBox[ NCache[{ Rational[-1, 2], Rational[-1, 2]}, {-0.5, -0.5}], NCache[{ Rational[1, 2], Rational[1, 2]}, {0.5, 0.5}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[-1, 2]}, {-2.25, -0.5}], NCache[{ Rational[-5, 4], Rational[1, 2]}, {-1.25, 0.5}]], RectangleBox[ NCache[{ Rational[-1, 2], Rational[-9, 4]}, {-0.5, -2.25}], NCache[{ Rational[1, 2], Rational[-5, 4]}, {0.5, -1.25}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[-9, 4]}, {-2.25, -2.25}], NCache[{ Rational[-5, 4], Rational[-5, 4]}, {-1.25, -1.25}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[5, 4]}, {-2.25, 1.25}], NCache[{ Rational[-5, 4], Rational[9, 4]}, {-1.25, 2.25}]], RectangleBox[ NCache[{ Rational[5, 4], Rational[-9, 4]}, {1.25, -2.25}], NCache[{ Rational[9, 4], Rational[-5, 4]}, {2.25, -1.25}]], TagBox[ PolygonBox[ NCache[{{ Rational[1, 2], Rational[7, 4]}, { Rational[-1, 2], Rational[9, 4]}, { Rational[-1, 2], Rational[5, 4]}}, {{0.5, 1.75}, {-0.5, 2.25}, {-0.5, 1.25}}]], "Triangle"]}}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-9, 4], Rational[9, 4]}, { Rational[-9, 4], Rational[15, 4]}}, {{-2.25, 2.25}, {-2.25, 3.75}}], ImageSize -> { UpTo[130], 57}], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {42.75, 57.}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"BouncingBalls1D\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -43.}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-53., -53.5}, {53., 37.5}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}; Null, WSM`Typeset`PackagePrivate`appearanceState$80332 === "Eval", WSM`Typeset`PackagePrivate`p$80332 = {{ EdgeForm[ WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$80332, 1, 1], Part[WSM`Typeset`PackagePrivate`expandedrange$80332, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$80332, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$80332, 2, 2]}, RoundingRadius -> Offset[5]]}, InsetBox[ Evaluate[ ToBoxes[ ProgressIndicator[Appearance -> "Percolate"], StandardForm]]]}; Module[{WSM`Typeset`PackagePrivate`md$}, {WSM`Typeset`PackagePrivate`expandedsize$80332, WSM`Typeset`PackagePrivate`md$} = WSM`Typeset`PackagePrivate`getExpandedGraphic[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D", "5303544f-de9c-4aef-a785-01d778c774be"]; {WSM`Typeset`PackagePrivate`expandedprimitives$80332, WSM`Typeset`PackagePrivate`expandedopt$80332} = WSM`Typeset`PackagePrivate`separateGraphics[ WSM`Typeset`PackagePrivate`md$]; WSM`Typeset`PackagePrivate`expandedrange$80332 = Replace[PlotRange, Flatten[WSM`Typeset`PackagePrivate`expandedopt$80332]]; WSM`Typeset`PackagePrivate`expandedeval$80332 = True; WSM`Typeset`PackagePrivate`expandedprimitives$80332 = Join[ WSM`Typeset`PackagePrivate`expandedprimitives$80332, {{ EdgeForm[WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$80332, 1, 1], Part[ WSM`Typeset`PackagePrivate`expandedrange$80332, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$80332, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$80332, 2, 2]}, RoundingRadius -> Offset[5]]}, With[{WSM`Typeset`PackagePrivate`leftmost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$80332, 1, 1], WSM`Typeset`PackagePrivate`bottommost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$80332, 2, 1]}, { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["BouncingBalls1D", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], Offset[{12, 12}, {WSM`Typeset`PackagePrivate`leftmost$, WSM`Typeset`PackagePrivate`bottommost$}], {-1, 0}]}]}]; Null]; WSM`Typeset`PackagePrivate`appearanceState$80332 = "Expanded"; Null, WSM`Typeset`PackagePrivate`appearanceState$80332 === "Expanded", WSM`Typeset`PackagePrivate`p$80332 = WSM`Typeset`PackagePrivate`expandedprimitives$80332; Null]; Null, ImageSizeCache->{{0.5, 107.5}, {-48.5, 43.5}}, SynchronousUpdating->False, TrackedSymbols:>{WSM`Typeset`PackagePrivate`appearanceState$80332}], Initialization:>( WSM`Typeset`PackagePrivate`expandedeval$80332 = Not[ WSM`Typeset`PackagePrivate`expandedeval$80332]; WSM`Typeset`PackagePrivate`expandedeval$80332 = Not[ WSM`Typeset`PackagePrivate`expandedeval$80332]; Null)], "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"], WSM`ModelTag[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"]], SelectWithContents -> True, Editable -> False, BoxID -> "5303544f-de9c-4aef-a785-01d778c774be", ContentSelectable->False, DefaultBaseStyle->{"Graphics", FrontEnd`GraphicsHighlightColor -> RGBColor[0, 0.46775, 1], ComponentwiseContextMenu -> {"GraphicsBox" -> { MenuItem[ "Copy Model", KernelExecute[ CopyToClipboard[ ReleaseHold[ MakeExpression[ MakeBoxes[ SystemModel[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"]], StandardForm]]]], MenuEvaluator -> Automatic], MenuItem["Copy Model Name", KernelExecute[ CopyToClipboard[( "\"" <> "EducationExamples.Physics.BouncingBalls.BouncingBalls1D") <> "\""]], MenuEvaluator -> Automatic], Delimiter, MenuItem["Simulate Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelSimulate", "[", "\"EducationExamples.Physics.BouncingBalls.BouncingBalls1D\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Preferred Plots in Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelPlot", "[", "\"EducationExamples.Physics.BouncingBalls.BouncingBalls1D\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Model Information", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModel", "[", RowBox[{"\"EducationExamples.Physics.BouncingBalls.BouncingBalls1D\"", ",", "\"Summary\""}], "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], Delimiter, MenuItem["Open in System Modeler Model Center", KernelExecute[ WSMLink`WSMModelCenter[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"]], MenuEvaluator -> Automatic], MenuItem["Open in System Modeler Simulation Center", KernelExecute[ WSMLink`WSMSimulationCenter[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"]], MenuEvaluator -> Automatic]}}}, ImageSize->{108., 93.}, PlotRange->{{-54., 54.}, {-54.5, 38.5}}]\), {"h"}]
Out[2]=

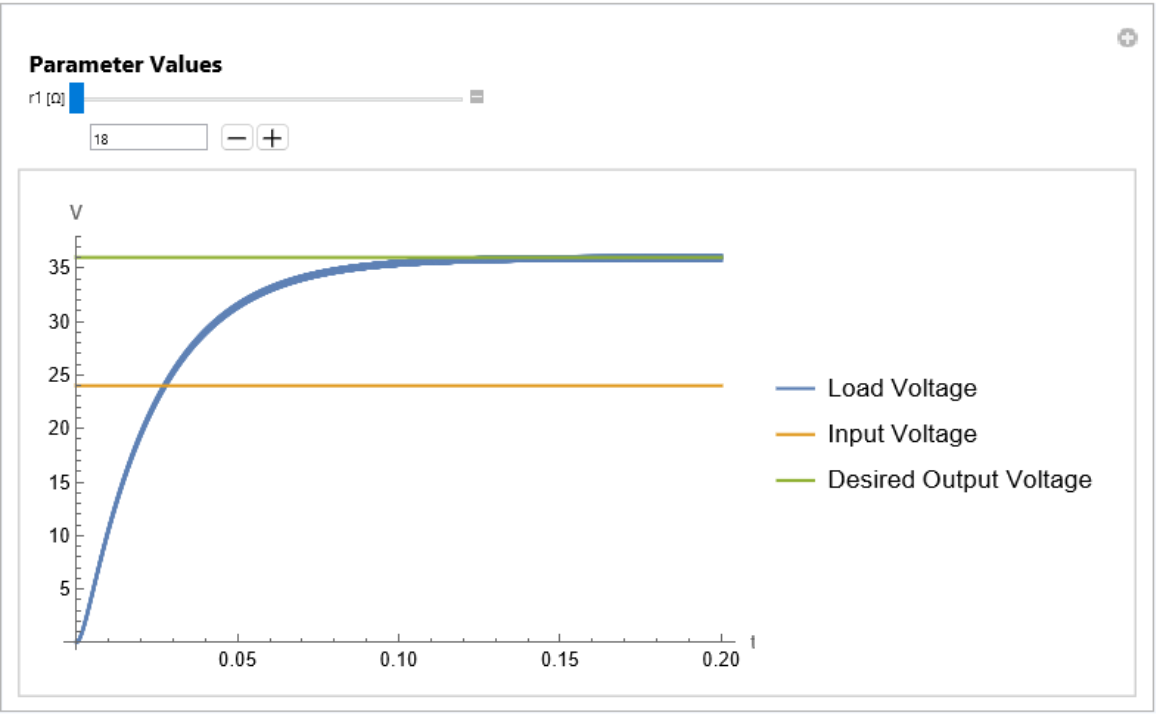

Specify the model by name and manipulate a specific parameter value in a simulation:

In[3]:=
ResourceFunction["SystemModelManipulate", ResourceVersion->"1.0.0"]["IndustryExamples.Other.BoostConverter", {"r1", 18, 24}]
Out[3]=

Scope (12)

Content (3)

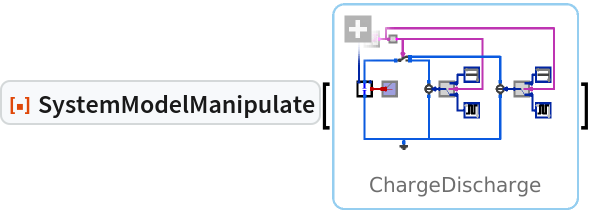

All default plots are shown by default:

In[4]:=
ResourceFunction["SystemModelManipulate"][\!\(\* GraphicsBox[ TagBox[ TooltipBox[ DynamicModuleBox[{WSM`Typeset`PackagePrivate`p$89335 = { InsetBox[ GraphicsBox[{{ RGBColor[0., 0.4666666666666667, 1.], Thickness[ NCache[ Rational[1, 50], 0.02]], LineBox[ NCache[{{ Rational[-7, 4], 0}, {0, 0}}, {{-1.75, 0}, {0, 0}}]], LineBox[ NCache[{{ Rational[-7, 4], Rational[7, 4]}, { Rational[7, 4], Rational[7, 4]}, { Rational[7, 4], Rational[-7, 4]}, { Rational[-7, 4], Rational[-7, 4]}, { Rational[-7, 4], Rational[7, 4]}}, {{-1.75, 1.75}, {1.75, 1.75}, { 1.75, -1.75}, {-1.75, -1.75}, {-1.75, 1.75}}]]}, { EdgeForm[None], RGBColor[0., 0.4666666666666667, 1.], DiskBox[ NCache[{ Rational[7, 4], 0}, {1.75, 0}], NCache[ Rational[3, 8], 0.375]]}, { EdgeForm[None], GrayLevel[0.85], RectangleBox[ NCache[{ Rational[-1, 2], Rational[-1, 2]}, {-0.5, -0.5}], NCache[{ Rational[1, 2], Rational[1, 2]}, {0.5, 0.5}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[-1, 2]}, {-2.25, -0.5}], NCache[{ Rational[-5, 4], Rational[1, 2]}, {-1.25, 0.5}]], RectangleBox[ NCache[{ Rational[-1, 2], Rational[-9, 4]}, {-0.5, -2.25}], NCache[{ Rational[1, 2], Rational[-5, 4]}, {0.5, -1.25}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[-9, 4]}, {-2.25, -2.25}], NCache[{ Rational[-5, 4], Rational[-5, 4]}, {-1.25, -1.25}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[5, 4]}, {-2.25, 1.25}], NCache[{ Rational[-5, 4], Rational[9, 4]}, {-1.25, 2.25}]], RectangleBox[ NCache[{ Rational[5, 4], Rational[-9, 4]}, {1.25, -2.25}], NCache[{ Rational[9, 4], Rational[-5, 4]}, {2.25, -1.25}]], TagBox[ PolygonBox[ NCache[{{ Rational[1, 2], Rational[7, 4]}, { Rational[-1, 2], Rational[9, 4]}, { Rational[-1, 2], Rational[5, 4]}}, {{0.5, 1.75}, {-0.5, 2.25}, {-0.5, 1.25}}]], "Triangle"]}}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-9, 4], Rational[9, 4]}, { Rational[-9, 4], Rational[15, 4]}}, {{-2.25, 2.25}, {-2.25, 3.75}}], ImageSize -> { UpTo[130], 57}], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {42.75, 57.}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"BouncingBalls1D\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -43.}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-53., -53.5}, {53., 37.5}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}, WSM`Typeset`PackagePrivate`appearanceState$89335 = "Minimal", WSM`Typeset`PackagePrivate`expandedeval$89335 = False, WSM`Typeset`PackagePrivate`expandedprimitives$89335, WSM`Typeset`PackagePrivate`expandedopt$89335, WSM`Typeset`PackagePrivate`expandedsize$89335 = {108., 93.}, WSM`Typeset`PackagePrivate`expandedrange$89335 = {{-54., 54.}, {-54.5, 38.5}}}, DynamicWrapperBox[ DynamicBox[{WSM`Typeset`PackagePrivate`p$89335, Which[ And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$89335 === "Minimal"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquarePlusIconMedium"]], ButtonFunction :> ( If[WSM`Typeset`PackagePrivate`expandedeval$89335 === False, If[ TrueQ[WSMLink`Private`$WSMLinkIsLoaded], WSM`Typeset`PackagePrivate`appearanceState$89335 = "Eval"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "5dc53b21-299a-48e9-b672-b1f8219ff30c"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedsize$89335, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$89335}]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedrange$89335, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$89335}]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null, WSM`Typeset`PackagePrivate`appearanceState$89335 = "Expanded"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "5dc53b21-299a-48e9-b672-b1f8219ff30c"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = WSM`Typeset`PackagePrivate`expandedsize$89335; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = WSM`Typeset`PackagePrivate`expandedrange$89335; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{6, -6}, Scaled[{0, 1}]], Scaled[{0, 1}]], And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$89335 === "Expanded"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquareMinusIconMedium"]], ButtonFunction :> ( WSM`Typeset`PackagePrivate`appearanceState$89335 = "Minimal"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "5dc53b21-299a-48e9-b672-b1f8219ff30c"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = {108., 93.}; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = {{-54., 54.}, {-54.5, 38.5}}; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{10, -10}, Scaled[{0, 1}]]], True, {}]}, ImageSizeCache->{{0.5, 107.5}, {-48.5, 43.5}}, TrackedSymbols:>{WSM`Typeset`PackagePrivate`p$89335}], Which[WSM`Typeset`PackagePrivate`appearanceState$89335 === "Minimal", WSM`Typeset`PackagePrivate`p$89335 = { InsetBox[ GraphicsBox[{{ RGBColor[0., 0.4666666666666667, 1.], Thickness[ NCache[ Rational[1, 50], 0.02]], LineBox[ NCache[{{ Rational[-7, 4], 0}, {0, 0}}, {{-1.75, 0}, {0, 0}}]], LineBox[ NCache[{{ Rational[-7, 4], Rational[7, 4]}, { Rational[7, 4], Rational[7, 4]}, { Rational[7, 4], Rational[-7, 4]}, { Rational[-7, 4], Rational[-7, 4]}, { Rational[-7, 4], Rational[7, 4]}}, {{-1.75, 1.75}, {1.75, 1.75}, { 1.75, -1.75}, {-1.75, -1.75}, {-1.75, 1.75}}]]}, { EdgeForm[None], RGBColor[0., 0.4666666666666667, 1.], DiskBox[ NCache[{ Rational[7, 4], 0}, {1.75, 0}], NCache[ Rational[3, 8], 0.375]]}, { EdgeForm[None], GrayLevel[0.85], RectangleBox[ NCache[{ Rational[-1, 2], Rational[-1, 2]}, {-0.5, -0.5}], NCache[{ Rational[1, 2], Rational[1, 2]}, {0.5, 0.5}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[-1, 2]}, {-2.25, -0.5}], NCache[{ Rational[-5, 4], Rational[1, 2]}, {-1.25, 0.5}]], RectangleBox[ NCache[{ Rational[-1, 2], Rational[-9, 4]}, {-0.5, -2.25}], NCache[{ Rational[1, 2], Rational[-5, 4]}, {0.5, -1.25}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[-9, 4]}, {-2.25, -2.25}], NCache[{ Rational[-5, 4], Rational[-5, 4]}, {-1.25, -1.25}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[5, 4]}, {-2.25, 1.25}], NCache[{ Rational[-5, 4], Rational[9, 4]}, {-1.25, 2.25}]], RectangleBox[ NCache[{ Rational[5, 4], Rational[-9, 4]}, {1.25, -2.25}], NCache[{ Rational[9, 4], Rational[-5, 4]}, {2.25, -1.25}]], TagBox[ PolygonBox[ NCache[{{ Rational[1, 2], Rational[7, 4]}, { Rational[-1, 2], Rational[9, 4]}, { Rational[-1, 2], Rational[5, 4]}}, {{0.5, 1.75}, {-0.5, 2.25}, {-0.5, 1.25}}]], "Triangle"]}}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-9, 4], Rational[9, 4]}, { Rational[-9, 4], Rational[15, 4]}}, {{-2.25, 2.25}, {-2.25, 3.75}}], ImageSize -> { UpTo[130], 57}], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {42.75, 57.}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"BouncingBalls1D\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -43.}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-53., -53.5}, {53., 37.5}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}; Null, WSM`Typeset`PackagePrivate`appearanceState$89335 === "Eval", WSM`Typeset`PackagePrivate`p$89335 = {{ EdgeForm[ WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 1, 1], Part[WSM`Typeset`PackagePrivate`expandedrange$89335, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$89335, 2, 2]}, RoundingRadius -> Offset[5]]}, InsetBox[ Evaluate[ ToBoxes[ ProgressIndicator[Appearance -> "Percolate"], StandardForm]]]}; Module[{WSM`Typeset`PackagePrivate`md$}, {WSM`Typeset`PackagePrivate`expandedsize$89335, WSM`Typeset`PackagePrivate`md$} = WSM`Typeset`PackagePrivate`getExpandedGraphic[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D", "5dc53b21-299a-48e9-b672-b1f8219ff30c"]; {WSM`Typeset`PackagePrivate`expandedprimitives$89335, WSM`Typeset`PackagePrivate`expandedopt$89335} = WSM`Typeset`PackagePrivate`separateGraphics[ WSM`Typeset`PackagePrivate`md$]; WSM`Typeset`PackagePrivate`expandedrange$89335 = Replace[PlotRange, Flatten[WSM`Typeset`PackagePrivate`expandedopt$89335]]; WSM`Typeset`PackagePrivate`expandedeval$89335 = True; WSM`Typeset`PackagePrivate`expandedprimitives$89335 = Join[ WSM`Typeset`PackagePrivate`expandedprimitives$89335, {{ EdgeForm[WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 1, 1], Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$89335, 2, 2]}, RoundingRadius -> Offset[5]]}, With[{WSM`Typeset`PackagePrivate`leftmost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 1, 1], WSM`Typeset`PackagePrivate`bottommost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 2, 1]}, { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["BouncingBalls1D", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], Offset[{12, 12}, {WSM`Typeset`PackagePrivate`leftmost$, WSM`Typeset`PackagePrivate`bottommost$}], {-1, 0}]}]}]; Null]; WSM`Typeset`PackagePrivate`appearanceState$89335 = "Expanded"; Null, WSM`Typeset`PackagePrivate`appearanceState$89335 === "Expanded", WSM`Typeset`PackagePrivate`p$89335 = WSM`Typeset`PackagePrivate`expandedprimitives$89335; Null]; Null, ImageSizeCache->{{0.5, 107.5}, {-48.5, 43.5}}, SynchronousUpdating->False, TrackedSymbols:>{WSM`Typeset`PackagePrivate`appearanceState$89335}], Initialization:>( WSM`Typeset`PackagePrivate`expandedeval$89335 = Not[ WSM`Typeset`PackagePrivate`expandedeval$89335]; WSM`Typeset`PackagePrivate`expandedeval$89335 = Not[ WSM`Typeset`PackagePrivate`expandedeval$89335]; Null)], "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"], WSM`ModelTag[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"]], SelectWithContents -> True, Editable -> False, BoxID -> "5dc53b21-299a-48e9-b672-b1f8219ff30c", ContentSelectable->False, DefaultBaseStyle->{"Graphics", FrontEnd`GraphicsHighlightColor -> RGBColor[0, 0.46775, 1], ComponentwiseContextMenu -> {"GraphicsBox" -> { MenuItem[ "Copy Model", KernelExecute[ CopyToClipboard[ ReleaseHold[ MakeExpression[ MakeBoxes[ SystemModel[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"]], StandardForm]]]], MenuEvaluator -> Automatic], MenuItem["Copy Model Name", KernelExecute[ CopyToClipboard[( "\"" <> "EducationExamples.Physics.BouncingBalls.BouncingBalls1D") <> "\""]], MenuEvaluator -> Automatic], Delimiter, MenuItem["Simulate Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelSimulate", "[", "\"EducationExamples.Physics.BouncingBalls.BouncingBalls1D\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Preferred Plots in Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelPlot", "[", "\"EducationExamples.Physics.BouncingBalls.BouncingBalls1D\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Model Information", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModel", "[", RowBox[{"\"EducationExamples.Physics.BouncingBalls.BouncingBalls1D\"", ",", "\"Summary\""}], "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], Delimiter, MenuItem["Open in System Modeler Model Center", KernelExecute[ WSMLink`WSMModelCenter[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"]], MenuEvaluator -> Automatic], MenuItem["Open in System Modeler Simulation Center", KernelExecute[ WSMLink`WSMSimulationCenter[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"]], MenuEvaluator -> Automatic]}}}, ImageSize->{108., 93.}, PlotRange->{{-54., 54.}, {-54.5, 38.5}}]\), {"h"}]
Out[4]=

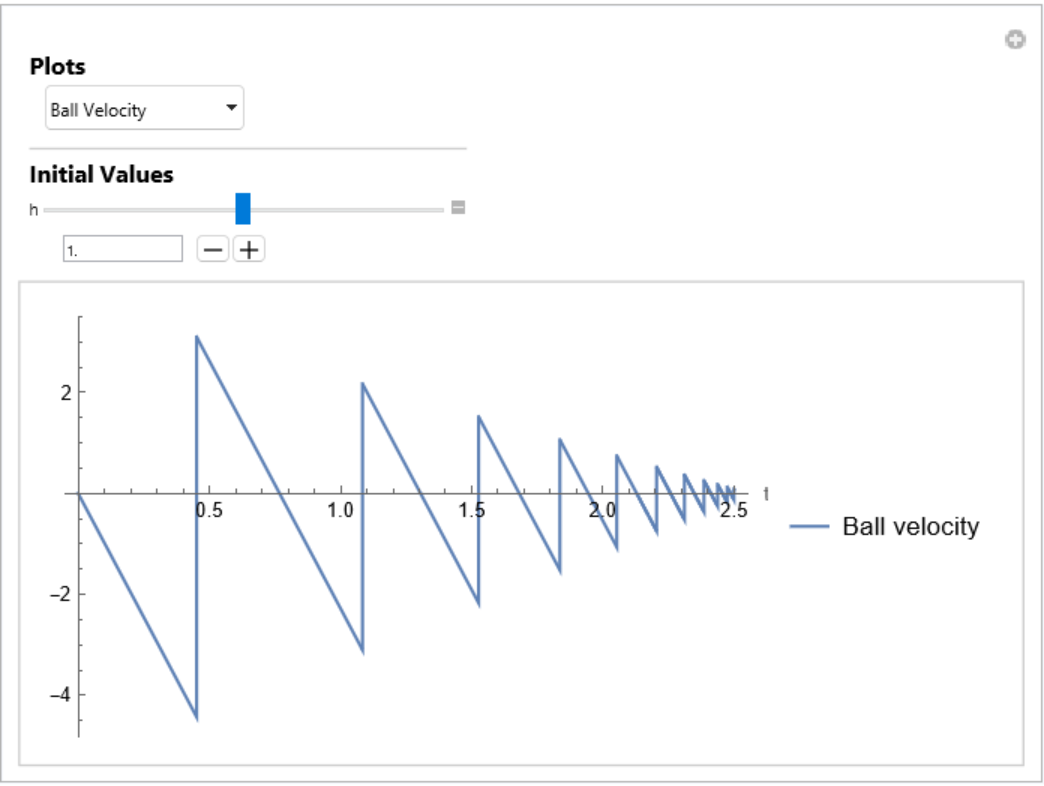

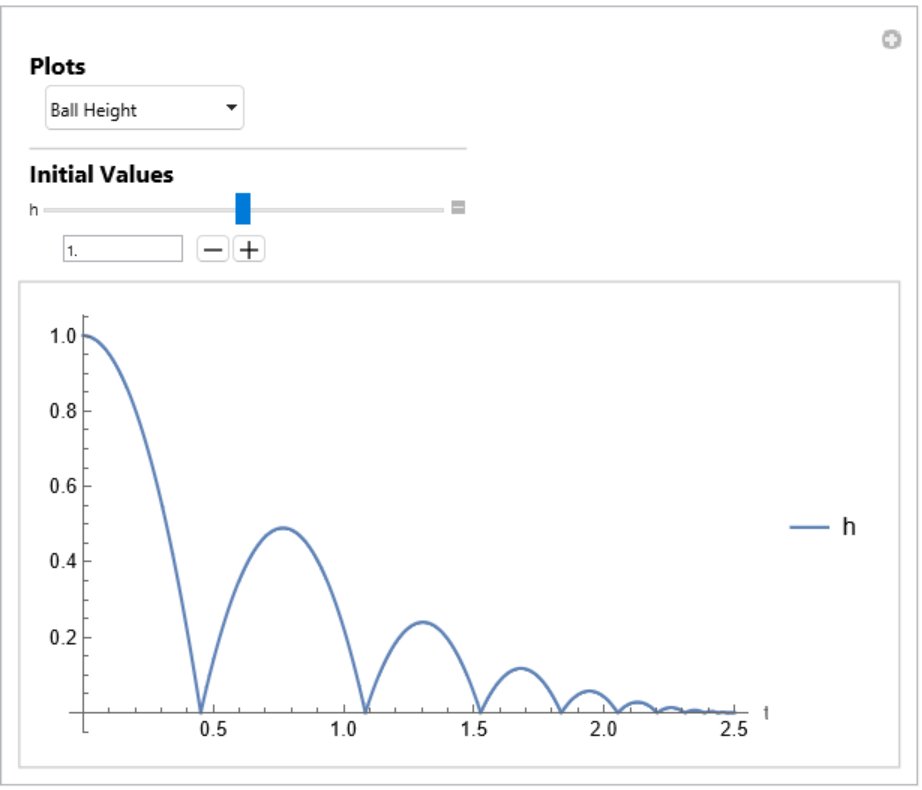

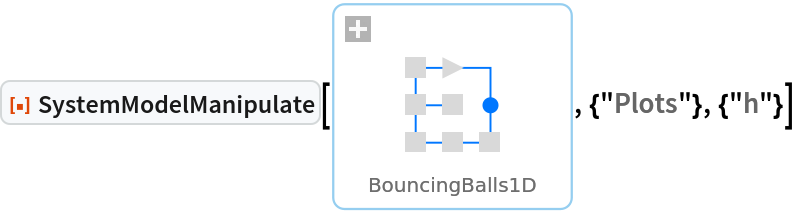

Manipulate all plots individually with a "Plots" control:

In[5]:=
ResourceFunction["SystemModelManipulate"][\!\(\* GraphicsBox[ TagBox[ TooltipBox[ DynamicModuleBox[{WSM`Typeset`PackagePrivate`p$89335 = { InsetBox[ GraphicsBox[{{ RGBColor[0., 0.4666666666666667, 1.], Thickness[ NCache[ Rational[1, 50], 0.02]], LineBox[ NCache[{{ Rational[-7, 4], 0}, {0, 0}}, {{-1.75, 0}, {0, 0}}]], LineBox[ NCache[{{ Rational[-7, 4], Rational[7, 4]}, { Rational[7, 4], Rational[7, 4]}, { Rational[7, 4], Rational[-7, 4]}, { Rational[-7, 4], Rational[-7, 4]}, { Rational[-7, 4], Rational[7, 4]}}, {{-1.75, 1.75}, {1.75, 1.75}, { 1.75, -1.75}, {-1.75, -1.75}, {-1.75, 1.75}}]]}, { EdgeForm[None], RGBColor[0., 0.4666666666666667, 1.], DiskBox[ NCache[{ Rational[7, 4], 0}, {1.75, 0}], NCache[ Rational[3, 8], 0.375]]}, { EdgeForm[None], GrayLevel[0.85], RectangleBox[ NCache[{ Rational[-1, 2], Rational[-1, 2]}, {-0.5, -0.5}], NCache[{ Rational[1, 2], Rational[1, 2]}, {0.5, 0.5}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[-1, 2]}, {-2.25, -0.5}], NCache[{ Rational[-5, 4], Rational[1, 2]}, {-1.25, 0.5}]], RectangleBox[ NCache[{ Rational[-1, 2], Rational[-9, 4]}, {-0.5, -2.25}], NCache[{ Rational[1, 2], Rational[-5, 4]}, {0.5, -1.25}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[-9, 4]}, {-2.25, -2.25}], NCache[{ Rational[-5, 4], Rational[-5, 4]}, {-1.25, -1.25}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[5, 4]}, {-2.25, 1.25}], NCache[{ Rational[-5, 4], Rational[9, 4]}, {-1.25, 2.25}]], RectangleBox[ NCache[{ Rational[5, 4], Rational[-9, 4]}, {1.25, -2.25}], NCache[{ Rational[9, 4], Rational[-5, 4]}, {2.25, -1.25}]], TagBox[ PolygonBox[ NCache[{{ Rational[1, 2], Rational[7, 4]}, { Rational[-1, 2], Rational[9, 4]}, { Rational[-1, 2], Rational[5, 4]}}, {{0.5, 1.75}, {-0.5, 2.25}, {-0.5, 1.25}}]], "Triangle"]}}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-9, 4], Rational[9, 4]}, { Rational[-9, 4], Rational[15, 4]}}, {{-2.25, 2.25}, {-2.25, 3.75}}], ImageSize -> { UpTo[130], 57}], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {42.75, 57.}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"BouncingBalls1D\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -43.}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-53., -53.5}, {53., 37.5}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}, WSM`Typeset`PackagePrivate`appearanceState$89335 = "Minimal", WSM`Typeset`PackagePrivate`expandedeval$89335 = False, WSM`Typeset`PackagePrivate`expandedprimitives$89335, WSM`Typeset`PackagePrivate`expandedopt$89335, WSM`Typeset`PackagePrivate`expandedsize$89335 = {108., 93.}, WSM`Typeset`PackagePrivate`expandedrange$89335 = {{-54., 54.}, {-54.5, 38.5}}}, DynamicWrapperBox[ DynamicBox[{WSM`Typeset`PackagePrivate`p$89335, Which[ And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$89335 === "Minimal"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquarePlusIconMedium"]], ButtonFunction :> ( If[WSM`Typeset`PackagePrivate`expandedeval$89335 === False, If[ TrueQ[WSMLink`Private`$WSMLinkIsLoaded], WSM`Typeset`PackagePrivate`appearanceState$89335 = "Eval"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "5dc53b21-299a-48e9-b672-b1f8219ff30c"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedsize$89335, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$89335}]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedrange$89335, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$89335}]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null, WSM`Typeset`PackagePrivate`appearanceState$89335 = "Expanded"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "5dc53b21-299a-48e9-b672-b1f8219ff30c"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = WSM`Typeset`PackagePrivate`expandedsize$89335; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = WSM`Typeset`PackagePrivate`expandedrange$89335; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{6, -6}, Scaled[{0, 1}]], Scaled[{0, 1}]], And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$89335 === "Expanded"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquareMinusIconMedium"]], ButtonFunction :> ( WSM`Typeset`PackagePrivate`appearanceState$89335 = "Minimal"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "5dc53b21-299a-48e9-b672-b1f8219ff30c"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = {108., 93.}; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = {{-54., 54.}, {-54.5, 38.5}}; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{10, -10}, Scaled[{0, 1}]]], True, {}]}, ImageSizeCache->{{0.5, 107.5}, {-48.5, 43.5}}, TrackedSymbols:>{WSM`Typeset`PackagePrivate`p$89335}], Which[WSM`Typeset`PackagePrivate`appearanceState$89335 === "Minimal", WSM`Typeset`PackagePrivate`p$89335 = { InsetBox[ GraphicsBox[{{ RGBColor[0., 0.4666666666666667, 1.], Thickness[ NCache[ Rational[1, 50], 0.02]], LineBox[ NCache[{{ Rational[-7, 4], 0}, {0, 0}}, {{-1.75, 0}, {0, 0}}]], LineBox[ NCache[{{ Rational[-7, 4], Rational[7, 4]}, { Rational[7, 4], Rational[7, 4]}, { Rational[7, 4], Rational[-7, 4]}, { Rational[-7, 4], Rational[-7, 4]}, { Rational[-7, 4], Rational[7, 4]}}, {{-1.75, 1.75}, {1.75, 1.75}, { 1.75, -1.75}, {-1.75, -1.75}, {-1.75, 1.75}}]]}, { EdgeForm[None], RGBColor[0., 0.4666666666666667, 1.], DiskBox[ NCache[{ Rational[7, 4], 0}, {1.75, 0}], NCache[ Rational[3, 8], 0.375]]}, { EdgeForm[None], GrayLevel[0.85], RectangleBox[ NCache[{ Rational[-1, 2], Rational[-1, 2]}, {-0.5, -0.5}], NCache[{ Rational[1, 2], Rational[1, 2]}, {0.5, 0.5}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[-1, 2]}, {-2.25, -0.5}], NCache[{ Rational[-5, 4], Rational[1, 2]}, {-1.25, 0.5}]], RectangleBox[ NCache[{ Rational[-1, 2], Rational[-9, 4]}, {-0.5, -2.25}], NCache[{ Rational[1, 2], Rational[-5, 4]}, {0.5, -1.25}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[-9, 4]}, {-2.25, -2.25}], NCache[{ Rational[-5, 4], Rational[-5, 4]}, {-1.25, -1.25}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[5, 4]}, {-2.25, 1.25}], NCache[{ Rational[-5, 4], Rational[9, 4]}, {-1.25, 2.25}]], RectangleBox[ NCache[{ Rational[5, 4], Rational[-9, 4]}, {1.25, -2.25}], NCache[{ Rational[9, 4], Rational[-5, 4]}, {2.25, -1.25}]], TagBox[ PolygonBox[ NCache[{{ Rational[1, 2], Rational[7, 4]}, { Rational[-1, 2], Rational[9, 4]}, { Rational[-1, 2], Rational[5, 4]}}, {{0.5, 1.75}, {-0.5, 2.25}, {-0.5, 1.25}}]], "Triangle"]}}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-9, 4], Rational[9, 4]}, { Rational[-9, 4], Rational[15, 4]}}, {{-2.25, 2.25}, {-2.25, 3.75}}], ImageSize -> { UpTo[130], 57}], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {42.75, 57.}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"BouncingBalls1D\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -43.}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-53., -53.5}, {53., 37.5}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}; Null, WSM`Typeset`PackagePrivate`appearanceState$89335 === "Eval", WSM`Typeset`PackagePrivate`p$89335 = {{ EdgeForm[ WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 1, 1], Part[WSM`Typeset`PackagePrivate`expandedrange$89335, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$89335, 2, 2]}, RoundingRadius -> Offset[5]]}, InsetBox[ Evaluate[ ToBoxes[ ProgressIndicator[Appearance -> "Percolate"], StandardForm]]]}; Module[{WSM`Typeset`PackagePrivate`md$}, {WSM`Typeset`PackagePrivate`expandedsize$89335, WSM`Typeset`PackagePrivate`md$} = WSM`Typeset`PackagePrivate`getExpandedGraphic[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D", "5dc53b21-299a-48e9-b672-b1f8219ff30c"]; {WSM`Typeset`PackagePrivate`expandedprimitives$89335, WSM`Typeset`PackagePrivate`expandedopt$89335} = WSM`Typeset`PackagePrivate`separateGraphics[ WSM`Typeset`PackagePrivate`md$]; WSM`Typeset`PackagePrivate`expandedrange$89335 = Replace[PlotRange, Flatten[WSM`Typeset`PackagePrivate`expandedopt$89335]]; WSM`Typeset`PackagePrivate`expandedeval$89335 = True; WSM`Typeset`PackagePrivate`expandedprimitives$89335 = Join[ WSM`Typeset`PackagePrivate`expandedprimitives$89335, {{ EdgeForm[WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 1, 1], Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$89335, 2, 2]}, RoundingRadius -> Offset[5]]}, With[{WSM`Typeset`PackagePrivate`leftmost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 1, 1], WSM`Typeset`PackagePrivate`bottommost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 2, 1]}, { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["BouncingBalls1D", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], Offset[{12, 12}, {WSM`Typeset`PackagePrivate`leftmost$, WSM`Typeset`PackagePrivate`bottommost$}], {-1, 0}]}]}]; Null]; WSM`Typeset`PackagePrivate`appearanceState$89335 = "Expanded"; Null, WSM`Typeset`PackagePrivate`appearanceState$89335 === "Expanded", WSM`Typeset`PackagePrivate`p$89335 = WSM`Typeset`PackagePrivate`expandedprimitives$89335; Null]; Null, ImageSizeCache->{{0.5, 107.5}, {-48.5, 43.5}}, SynchronousUpdating->False, TrackedSymbols:>{WSM`Typeset`PackagePrivate`appearanceState$89335}], Initialization:>( WSM`Typeset`PackagePrivate`expandedeval$89335 = Not[ WSM`Typeset`PackagePrivate`expandedeval$89335]; WSM`Typeset`PackagePrivate`expandedeval$89335 = Not[ WSM`Typeset`PackagePrivate`expandedeval$89335]; Null)], "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"], WSM`ModelTag[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"]], SelectWithContents -> True, Editable -> False, BoxID -> "5dc53b21-299a-48e9-b672-b1f8219ff30c", ContentSelectable->False, DefaultBaseStyle->{"Graphics", FrontEnd`GraphicsHighlightColor -> RGBColor[0, 0.46775, 1], ComponentwiseContextMenu -> {"GraphicsBox" -> { MenuItem[ "Copy Model", KernelExecute[ CopyToClipboard[ ReleaseHold[ MakeExpression[ MakeBoxes[ SystemModel[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"]], StandardForm]]]], MenuEvaluator -> Automatic], MenuItem["Copy Model Name", KernelExecute[ CopyToClipboard[( "\"" <> "EducationExamples.Physics.BouncingBalls.BouncingBalls1D") <> "\""]], MenuEvaluator -> Automatic], Delimiter, MenuItem["Simulate Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelSimulate", "[", "\"EducationExamples.Physics.BouncingBalls.BouncingBalls1D\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Preferred Plots in Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelPlot", "[", "\"EducationExamples.Physics.BouncingBalls.BouncingBalls1D\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Model Information", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModel", "[", RowBox[{"\"EducationExamples.Physics.BouncingBalls.BouncingBalls1D\"", ",", "\"Summary\""}], "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], Delimiter, MenuItem["Open in System Modeler Model Center", KernelExecute[ WSMLink`WSMModelCenter[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"]], MenuEvaluator -> Automatic], MenuItem["Open in System Modeler Simulation Center", KernelExecute[ WSMLink`WSMSimulationCenter[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"]], MenuEvaluator -> Automatic]}}}, ImageSize->{108., 93.}, PlotRange->{{-54., 54.}, {-54.5, 38.5}}]\), {"Plots"}, {"h"}]
Out[5]=

Select which plots to make available:

In[6]:=

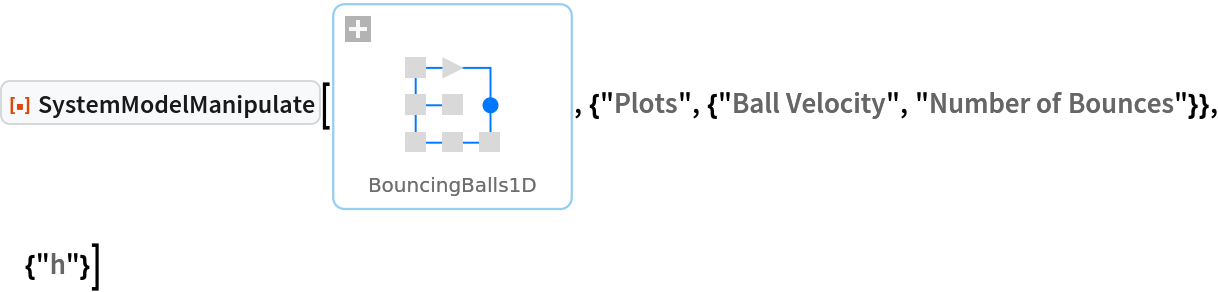

ResourceFunction["SystemModelManipulate"][\!\(\* GraphicsBox[ TagBox[ TooltipBox[ DynamicModuleBox[{WSM`Typeset`PackagePrivate`p$89335 = { InsetBox[ GraphicsBox[{{ RGBColor[0., 0.4666666666666667, 1.], Thickness[ NCache[ Rational[1, 50], 0.02]], LineBox[ NCache[{{ Rational[-7, 4], 0}, {0, 0}}, {{-1.75, 0}, {0, 0}}]], LineBox[ NCache[{{ Rational[-7, 4], Rational[7, 4]}, { Rational[7, 4], Rational[7, 4]}, { Rational[7, 4], Rational[-7, 4]}, { Rational[-7, 4], Rational[-7, 4]}, { Rational[-7, 4], Rational[7, 4]}}, {{-1.75, 1.75}, {1.75, 1.75}, { 1.75, -1.75}, {-1.75, -1.75}, {-1.75, 1.75}}]]}, { EdgeForm[None], RGBColor[0., 0.4666666666666667, 1.], DiskBox[ NCache[{ Rational[7, 4], 0}, {1.75, 0}], NCache[ Rational[3, 8], 0.375]]}, { EdgeForm[None], GrayLevel[0.85], RectangleBox[ NCache[{ Rational[-1, 2], Rational[-1, 2]}, {-0.5, -0.5}], NCache[{ Rational[1, 2], Rational[1, 2]}, {0.5, 0.5}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[-1, 2]}, {-2.25, -0.5}], NCache[{ Rational[-5, 4], Rational[1, 2]}, {-1.25, 0.5}]], RectangleBox[ NCache[{ Rational[-1, 2], Rational[-9, 4]}, {-0.5, -2.25}], NCache[{ Rational[1, 2], Rational[-5, 4]}, {0.5, -1.25}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[-9, 4]}, {-2.25, -2.25}], NCache[{ Rational[-5, 4], Rational[-5, 4]}, {-1.25, -1.25}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[5, 4]}, {-2.25, 1.25}], NCache[{ Rational[-5, 4], Rational[9, 4]}, {-1.25, 2.25}]], RectangleBox[ NCache[{ Rational[5, 4], Rational[-9, 4]}, {1.25, -2.25}], NCache[{ Rational[9, 4], Rational[-5, 4]}, {2.25, -1.25}]], TagBox[ PolygonBox[ NCache[{{ Rational[1, 2], Rational[7, 4]}, { Rational[-1, 2], Rational[9, 4]}, { Rational[-1, 2], Rational[5, 4]}}, {{0.5, 1.75}, {-0.5, 2.25}, {-0.5, 1.25}}]], "Triangle"]}}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-9, 4], Rational[9, 4]}, { Rational[-9, 4], Rational[15, 4]}}, {{-2.25, 2.25}, {-2.25, 3.75}}], ImageSize -> { UpTo[130], 57}], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {42.75, 57.}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"BouncingBalls1D\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -43.}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-53., -53.5}, {53., 37.5}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}, WSM`Typeset`PackagePrivate`appearanceState$89335 = "Minimal", WSM`Typeset`PackagePrivate`expandedeval$89335 = False, WSM`Typeset`PackagePrivate`expandedprimitives$89335, WSM`Typeset`PackagePrivate`expandedopt$89335, WSM`Typeset`PackagePrivate`expandedsize$89335 = {108., 93.}, WSM`Typeset`PackagePrivate`expandedrange$89335 = {{-54., 54.}, {-54.5, 38.5}}}, DynamicWrapperBox[ DynamicBox[{WSM`Typeset`PackagePrivate`p$89335, Which[ And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$89335 === "Minimal"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquarePlusIconMedium"]], ButtonFunction :> ( If[WSM`Typeset`PackagePrivate`expandedeval$89335 === False, If[ TrueQ[WSMLink`Private`$WSMLinkIsLoaded], WSM`Typeset`PackagePrivate`appearanceState$89335 = "Eval"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "5dc53b21-299a-48e9-b672-b1f8219ff30c"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedsize$89335, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$89335}]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedrange$89335, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$89335}]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null, WSM`Typeset`PackagePrivate`appearanceState$89335 = "Expanded"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "5dc53b21-299a-48e9-b672-b1f8219ff30c"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = WSM`Typeset`PackagePrivate`expandedsize$89335; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = WSM`Typeset`PackagePrivate`expandedrange$89335; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{6, -6}, Scaled[{0, 1}]], Scaled[{0, 1}]], And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$89335 === "Expanded"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquareMinusIconMedium"]], ButtonFunction :> ( WSM`Typeset`PackagePrivate`appearanceState$89335 = "Minimal"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "5dc53b21-299a-48e9-b672-b1f8219ff30c"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = {108., 93.}; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = {{-54., 54.}, {-54.5, 38.5}}; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{10, -10}, Scaled[{0, 1}]]], True, {}]}, ImageSizeCache->{{0.5, 107.5}, {-48.5, 43.5}}, TrackedSymbols:>{WSM`Typeset`PackagePrivate`p$89335}], Which[WSM`Typeset`PackagePrivate`appearanceState$89335 === "Minimal", WSM`Typeset`PackagePrivate`p$89335 = { InsetBox[ GraphicsBox[{{ RGBColor[0., 0.4666666666666667, 1.], Thickness[ NCache[ Rational[1, 50], 0.02]], LineBox[ NCache[{{ Rational[-7, 4], 0}, {0, 0}}, {{-1.75, 0}, {0, 0}}]], LineBox[ NCache[{{ Rational[-7, 4], Rational[7, 4]}, { Rational[7, 4], Rational[7, 4]}, { Rational[7, 4], Rational[-7, 4]}, { Rational[-7, 4], Rational[-7, 4]}, { Rational[-7, 4], Rational[7, 4]}}, {{-1.75, 1.75}, {1.75, 1.75}, { 1.75, -1.75}, {-1.75, -1.75}, {-1.75, 1.75}}]]}, { EdgeForm[None], RGBColor[0., 0.4666666666666667, 1.], DiskBox[ NCache[{ Rational[7, 4], 0}, {1.75, 0}], NCache[ Rational[3, 8], 0.375]]}, { EdgeForm[None], GrayLevel[0.85], RectangleBox[ NCache[{ Rational[-1, 2], Rational[-1, 2]}, {-0.5, -0.5}], NCache[{ Rational[1, 2], Rational[1, 2]}, {0.5, 0.5}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[-1, 2]}, {-2.25, -0.5}], NCache[{ Rational[-5, 4], Rational[1, 2]}, {-1.25, 0.5}]], RectangleBox[ NCache[{ Rational[-1, 2], Rational[-9, 4]}, {-0.5, -2.25}], NCache[{ Rational[1, 2], Rational[-5, 4]}, {0.5, -1.25}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[-9, 4]}, {-2.25, -2.25}], NCache[{ Rational[-5, 4], Rational[-5, 4]}, {-1.25, -1.25}]], RectangleBox[ NCache[{ Rational[-9, 4], Rational[5, 4]}, {-2.25, 1.25}], NCache[{ Rational[-5, 4], Rational[9, 4]}, {-1.25, 2.25}]], RectangleBox[ NCache[{ Rational[5, 4], Rational[-9, 4]}, {1.25, -2.25}], NCache[{ Rational[9, 4], Rational[-5, 4]}, {2.25, -1.25}]], TagBox[ PolygonBox[ NCache[{{ Rational[1, 2], Rational[7, 4]}, { Rational[-1, 2], Rational[9, 4]}, { Rational[-1, 2], Rational[5, 4]}}, {{0.5, 1.75}, {-0.5, 2.25}, {-0.5, 1.25}}]], "Triangle"]}}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-9, 4], Rational[9, 4]}, { Rational[-9, 4], Rational[15, 4]}}, {{-2.25, 2.25}, {-2.25, 3.75}}], ImageSize -> { UpTo[130], 57}], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {42.75, 57.}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"BouncingBalls1D\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -43.}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-53., -53.5}, {53., 37.5}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}; Null, WSM`Typeset`PackagePrivate`appearanceState$89335 === "Eval", WSM`Typeset`PackagePrivate`p$89335 = {{ EdgeForm[ WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 1, 1], Part[WSM`Typeset`PackagePrivate`expandedrange$89335, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$89335, 2, 2]}, RoundingRadius -> Offset[5]]}, InsetBox[ Evaluate[ ToBoxes[ ProgressIndicator[Appearance -> "Percolate"], StandardForm]]]}; Module[{WSM`Typeset`PackagePrivate`md$}, {WSM`Typeset`PackagePrivate`expandedsize$89335, WSM`Typeset`PackagePrivate`md$} = WSM`Typeset`PackagePrivate`getExpandedGraphic[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D", "5dc53b21-299a-48e9-b672-b1f8219ff30c"]; {WSM`Typeset`PackagePrivate`expandedprimitives$89335, WSM`Typeset`PackagePrivate`expandedopt$89335} = WSM`Typeset`PackagePrivate`separateGraphics[ WSM`Typeset`PackagePrivate`md$]; WSM`Typeset`PackagePrivate`expandedrange$89335 = Replace[PlotRange, Flatten[WSM`Typeset`PackagePrivate`expandedopt$89335]]; WSM`Typeset`PackagePrivate`expandedeval$89335 = True; WSM`Typeset`PackagePrivate`expandedprimitives$89335 = Join[ WSM`Typeset`PackagePrivate`expandedprimitives$89335, {{ EdgeForm[WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 1, 1], Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$89335, 2, 2]}, RoundingRadius -> Offset[5]]}, With[{WSM`Typeset`PackagePrivate`leftmost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 1, 1], WSM`Typeset`PackagePrivate`bottommost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$89335, 2, 1]}, { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["BouncingBalls1D", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], Offset[{12, 12}, {WSM`Typeset`PackagePrivate`leftmost$, WSM`Typeset`PackagePrivate`bottommost$}], {-1, 0}]}]}]; Null]; WSM`Typeset`PackagePrivate`appearanceState$89335 = "Expanded"; Null, WSM`Typeset`PackagePrivate`appearanceState$89335 === "Expanded", WSM`Typeset`PackagePrivate`p$89335 = WSM`Typeset`PackagePrivate`expandedprimitives$89335; Null]; Null, ImageSizeCache->{{0.5, 107.5}, {-48.5, 43.5}}, SynchronousUpdating->False, TrackedSymbols:>{WSM`Typeset`PackagePrivate`appearanceState$89335}], Initialization:>( WSM`Typeset`PackagePrivate`expandedeval$89335 = Not[ WSM`Typeset`PackagePrivate`expandedeval$89335]; WSM`Typeset`PackagePrivate`expandedeval$89335 = Not[ WSM`Typeset`PackagePrivate`expandedeval$89335]; Null)], "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"], WSM`ModelTag[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"]], SelectWithContents -> True, Editable -> False, BoxID -> "5dc53b21-299a-48e9-b672-b1f8219ff30c", ContentSelectable->False, DefaultBaseStyle->{"Graphics", FrontEnd`GraphicsHighlightColor -> RGBColor[0, 0.46775, 1], ComponentwiseContextMenu -> {"GraphicsBox" -> { MenuItem[ "Copy Model", KernelExecute[ CopyToClipboard[ ReleaseHold[ MakeExpression[ MakeBoxes[ SystemModel[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"]], StandardForm]]]], MenuEvaluator -> Automatic], MenuItem["Copy Model Name", KernelExecute[ CopyToClipboard[( "\"" <> "EducationExamples.Physics.BouncingBalls.BouncingBalls1D") <> "\""]], MenuEvaluator -> Automatic], Delimiter, MenuItem["Simulate Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelSimulate", "[", "\"EducationExamples.Physics.BouncingBalls.BouncingBalls1D\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Preferred Plots in Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelPlot", "[", "\"EducationExamples.Physics.BouncingBalls.BouncingBalls1D\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Model Information", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModel", "[", RowBox[{"\"EducationExamples.Physics.BouncingBalls.BouncingBalls1D\"", ",", "\"Summary\""}], "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], Delimiter, MenuItem["Open in System Modeler Model Center", KernelExecute[ WSMLink`WSMModelCenter[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"]], MenuEvaluator -> Automatic], MenuItem["Open in System Modeler Simulation Center", KernelExecute[ WSMLink`WSMSimulationCenter[ "EducationExamples.Physics.BouncingBalls.BouncingBalls1D"]], MenuEvaluator -> Automatic]}}}, ImageSize->{108., 93.}, PlotRange->{{-54., 54.}, {-54.5, 38.5}}]\), {"Plots", {"Ball Velocity", "Number of Bounces"}}, {"h"}]
Out[6]=

Controls (5)

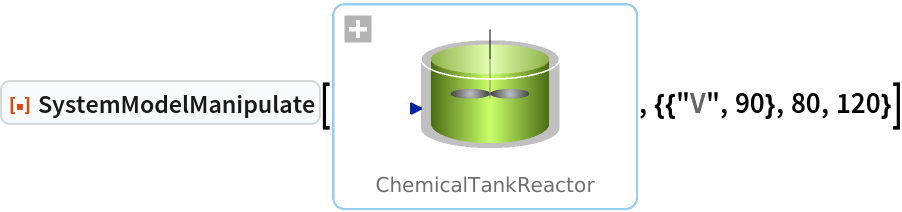

Pick minimum and maximum values for the control of a parameter value:

In[7]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/a7ba9bd8-2c24-4ffa-b34c-58308409a376"]
Out[7]=

Pick minimum, maximum and jump values for the control of a parameter value:

In[8]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/6fe56169-fe45-47dd-8022-0cace4a84b57"]
Out[8]=

Pick an initial value for the control of a parameter value:

In[9]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/e8907ce4-5898-4fe5-9b9f-96353bd130a8"]
Out[9]=

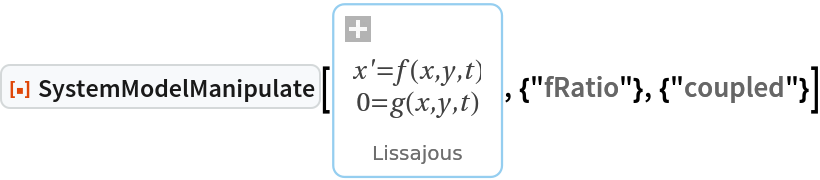

Pick a list of discrete values for the control of a parameter:

In[10]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/90a8142c-c9bf-4743-8b56-6fb0935af490"]
Out[10]=

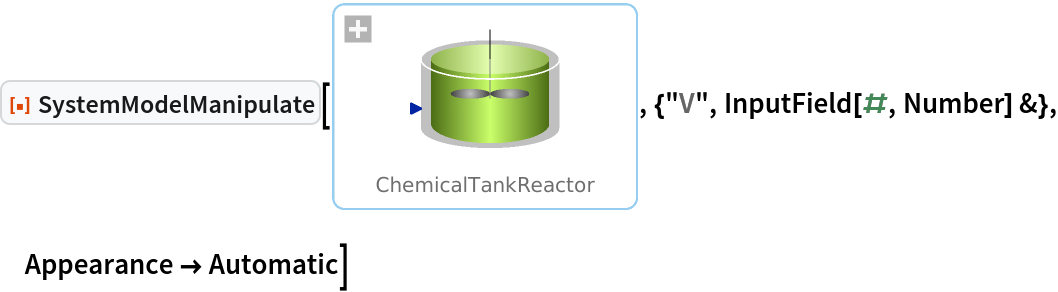

Pick a function for the control of a parameter:

In[11]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/b7c43163-07ab-49da-af8d-21b1da335d4f"]
Out[11]=

Presentation (4)

Pick a label for the control of a parameter value:

In[12]:=

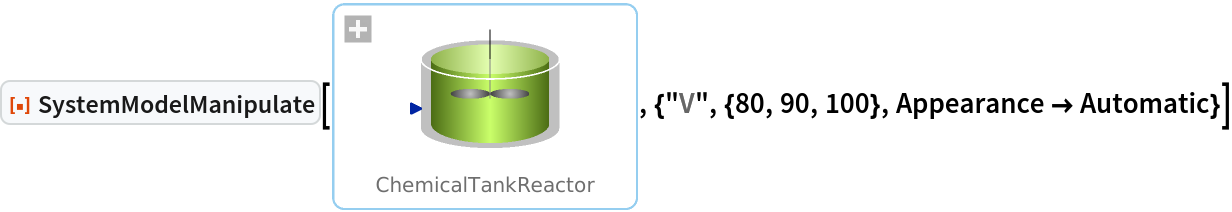

(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/00925835-4c55-4f2d-ab2f-ecbf73f12dd4"]

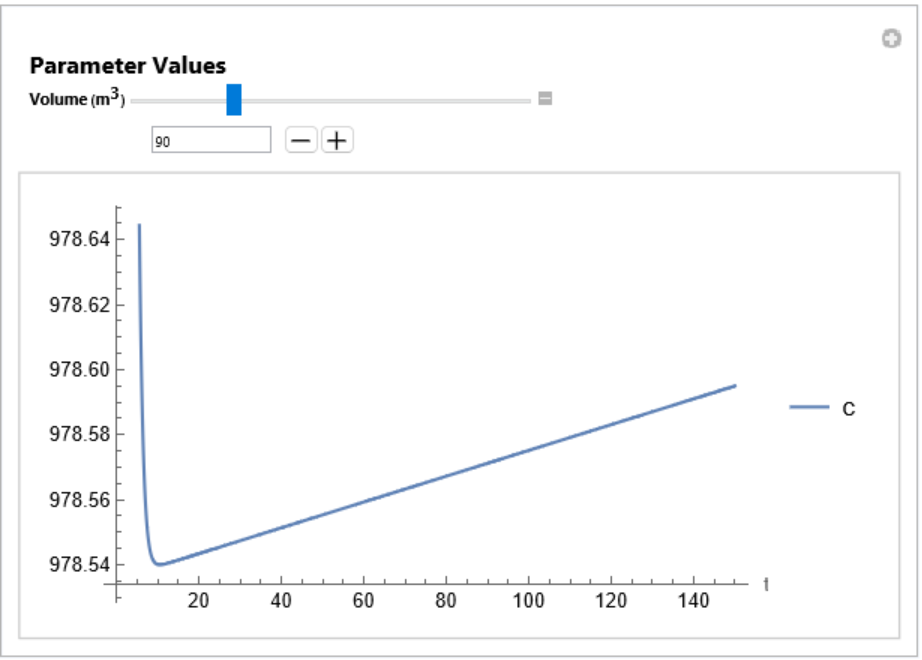

Out[12]=

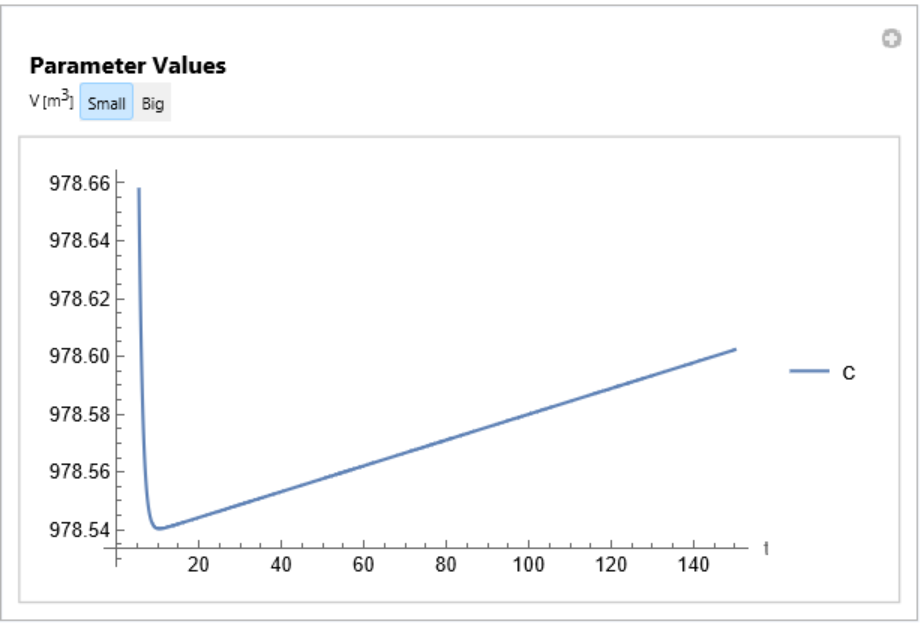

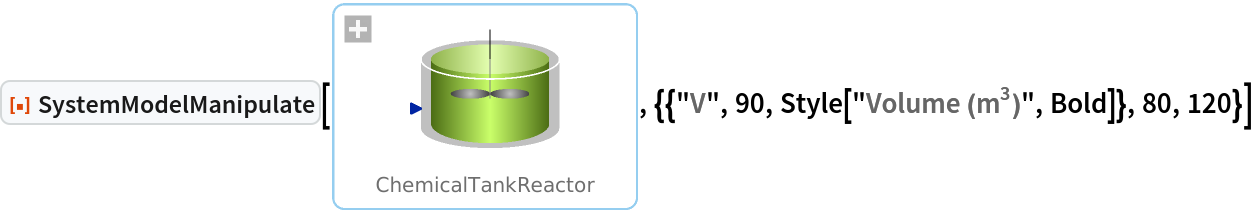

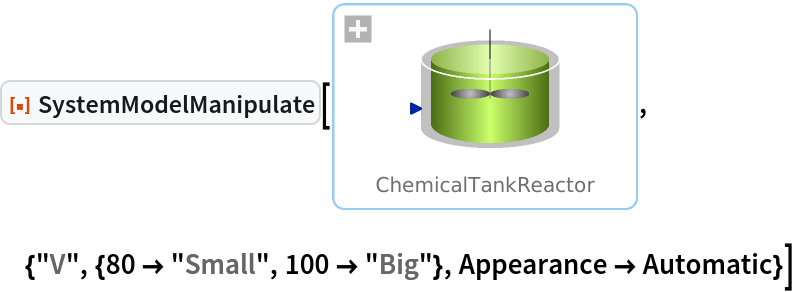

Pick a list of discrete values and their labels for the control of a parameter:

In[13]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/771848da-4347-4631-80d3-c2fe011a0393"]
Out[13]=

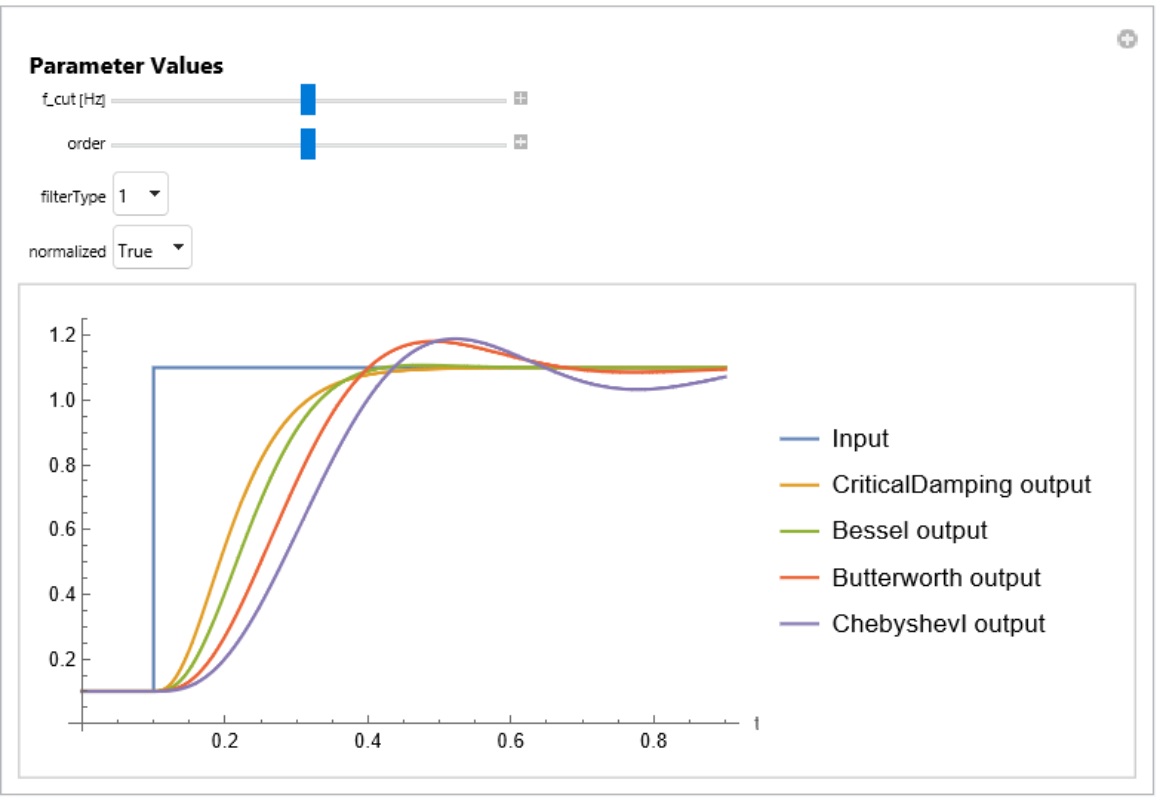

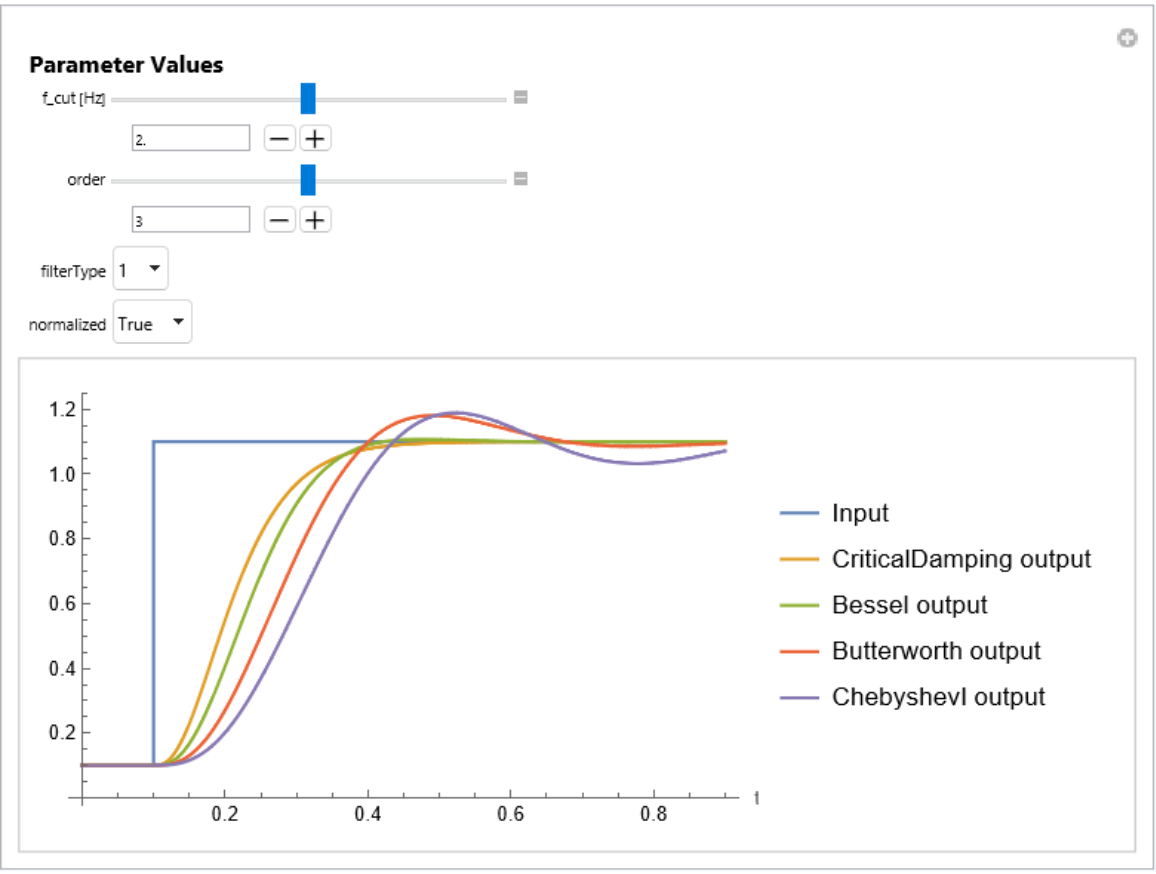

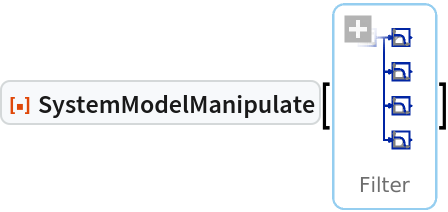

Controls for booleans and enumerations use PopupMenu as ControlType if they are not specified:

In[14]:=
ResourceFunction["SystemModelManipulate"][\!\(\* GraphicsBox[ TagBox[ TooltipBox[ DynamicModuleBox[{WSM`Typeset`PackagePrivate`p$310946 = { InsetBox[ GraphicsBox[{ RGBColor[ 0.25098039215686274`, 0.25098039215686274`, 0.25098039215686274`], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"x'\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"f(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["``````", Style["x'", Italic, FontFamily -> "Times New Roman", FontSize -> 12], Style["=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["f(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[1, 10]}, {0, 0.1}]], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"0=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"g(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["````", Style["0=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["g(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[-1, 10]}, {0, -0.1}]]}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-2, 5], Rational[2, 5]}, { Rational[-1, 5], Rational[2, 5]}}, {{-0.4, 0.4}, {-0.2, 0.4}}], ImageSize -> NCache[{ UpTo[130], Rational[171, 4]}, { UpTo[130], 42.75}]], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {57., 42.75}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"Lissajous\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -35.875}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-37.5, -46.375}, {37.5, 30.375}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}, WSM`Typeset`PackagePrivate`appearanceState$310946 = "Minimal", WSM`Typeset`PackagePrivate`expandedeval$310946 = False, WSM`Typeset`PackagePrivate`expandedprimitives$310946, WSM`Typeset`PackagePrivate`expandedopt$310946, WSM`Typeset`PackagePrivate`expandedsize$310946 = {77., 78.75}, WSM`Typeset`PackagePrivate`expandedrange$310946 = {{-38.5, 38.5}, {-47.375, 31.375}}}, DynamicWrapperBox[ DynamicBox[{WSM`Typeset`PackagePrivate`p$310946, Which[ And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$310946 === "Minimal"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquarePlusIconMedium"]], ButtonFunction :> ( If[WSM`Typeset`PackagePrivate`expandedeval$310946 === False, If[ TrueQ[WSMLink`Private`$WSMLinkIsLoaded], WSM`Typeset`PackagePrivate`appearanceState$310946 = "Eval"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "7173edec-db7d-4e98-b119-64ef81c38c26"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedsize$310946, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$310946}]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedrange$310946, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$310946}]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null, WSM`Typeset`PackagePrivate`appearanceState$310946 = "Expanded"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "7173edec-db7d-4e98-b119-64ef81c38c26"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = WSM`Typeset`PackagePrivate`expandedsize$310946; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = WSM`Typeset`PackagePrivate`expandedrange$310946; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{6, -6}, Scaled[{0, 1}]], Scaled[{0, 1}]], And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$310946 === "Expanded"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquareMinusIconMedium"]], ButtonFunction :> ( WSM`Typeset`PackagePrivate`appearanceState$310946 = "Minimal"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "7173edec-db7d-4e98-b119-64ef81c38c26"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = {77., 78.75}; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = {{-38.5, 38.5}, {-47.375, 31.375}}; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{10, -10}, Scaled[{0, 1}]]], True, {}]}, ImageSizeCache->{{0.5, 76.5}, {-41.25, 36.5}}, TrackedSymbols:>{WSM`Typeset`PackagePrivate`p$310946}], Which[WSM`Typeset`PackagePrivate`appearanceState$310946 === "Minimal", WSM`Typeset`PackagePrivate`p$310946 = { InsetBox[ GraphicsBox[{ RGBColor[ 0.25098039215686274`, 0.25098039215686274`, 0.25098039215686274`], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"x'\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"f(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["``````", Style["x'", Italic, FontFamily -> "Times New Roman", FontSize -> 12], Style["=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["f(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[1, 10]}, {0, 0.1}]], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"0=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"g(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["````", Style["0=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["g(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[-1, 10]}, {0, -0.1}]]}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-2, 5], Rational[2, 5]}, { Rational[-1, 5], Rational[2, 5]}}, {{-0.4, 0.4}, {-0.2, 0.4}}], ImageSize -> NCache[{ UpTo[130], Rational[171, 4]}, { UpTo[130], 42.75}]], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {57., 42.75}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"Lissajous\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -35.875}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-37.5, -46.375}, {37.5, 30.375}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}; Null, WSM`Typeset`PackagePrivate`appearanceState$310946 === "Eval", WSM`Typeset`PackagePrivate`p$310946 = {{ EdgeForm[ WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$310946, 1, 1], Part[ WSM`Typeset`PackagePrivate`expandedrange$310946, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$310946, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$310946, 2, 2]}, RoundingRadius -> Offset[5]]}, InsetBox[ Evaluate[ ToBoxes[ ProgressIndicator[Appearance -> "Percolate"], StandardForm]]]}; Module[{WSM`Typeset`PackagePrivate`md$}, {WSM`Typeset`PackagePrivate`expandedsize$310946, WSM`Typeset`PackagePrivate`md$} = WSM`Typeset`PackagePrivate`getExpandedGraphic[ "DocumentationExamples.Simulation.Lissajous", "7173edec-db7d-4e98-b119-64ef81c38c26"]; {WSM`Typeset`PackagePrivate`expandedprimitives$310946, WSM`Typeset`PackagePrivate`expandedopt$310946} = WSM`Typeset`PackagePrivate`separateGraphics[ WSM`Typeset`PackagePrivate`md$]; WSM`Typeset`PackagePrivate`expandedrange$310946 = Replace[PlotRange, Flatten[WSM`Typeset`PackagePrivate`expandedopt$310946]]; WSM`Typeset`PackagePrivate`expandedeval$310946 = True; WSM`Typeset`PackagePrivate`expandedprimitives$310946 = Join[ WSM`Typeset`PackagePrivate`expandedprimitives$310946, {{ EdgeForm[WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$310946, 1, 1], Part[ WSM`Typeset`PackagePrivate`expandedrange$310946, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$310946, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$310946, 2, 2]}, RoundingRadius -> Offset[5]]}, With[{WSM`Typeset`PackagePrivate`leftmost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$310946, 1, 1], WSM`Typeset`PackagePrivate`bottommost$ = Part[WSM`Typeset`PackagePrivate`expandedrange$310946, 2, 1]}, { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["Lissajous", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], Offset[{12, 12}, {WSM`Typeset`PackagePrivate`leftmost$, WSM`Typeset`PackagePrivate`bottommost$}], {-1, 0}]}]}]; Null]; WSM`Typeset`PackagePrivate`appearanceState$310946 = "Expanded"; Null, WSM`Typeset`PackagePrivate`appearanceState$310946 === "Expanded", WSM`Typeset`PackagePrivate`p$310946 = WSM`Typeset`PackagePrivate`expandedprimitives$310946; Null]; Null, ImageSizeCache->{{0.5, 76.5}, {-41.25, 36.5}}, SynchronousUpdating->False, TrackedSymbols:>{WSM`Typeset`PackagePrivate`appearanceState$310946}], Initialization:>( WSM`Typeset`PackagePrivate`expandedeval$310946 = Not[ WSM`Typeset`PackagePrivate`expandedeval$310946]; WSM`Typeset`PackagePrivate`expandedeval$310946 = Not[ WSM`Typeset`PackagePrivate`expandedeval$310946]; Null)], "DocumentationExamples.Simulation.Lissajous"], WSM`ModelTag["DocumentationExamples.Simulation.Lissajous"]], SelectWithContents -> True, Editable -> False, BoxID -> "7173edec-db7d-4e98-b119-64ef81c38c26", ContentSelectable->False, DefaultBaseStyle->{"Graphics", FrontEnd`GraphicsHighlightColor -> RGBColor[0, 0.46775, 1], ComponentwiseContextMenu -> {"GraphicsBox" -> { MenuItem[ "Copy Model", KernelExecute[ CopyToClipboard[ ReleaseHold[ MakeExpression[ MakeBoxes[ SystemModel["DocumentationExamples.Simulation.Lissajous"]], StandardForm]]]], MenuEvaluator -> Automatic], MenuItem["Copy Model Name", KernelExecute[ CopyToClipboard[( "\"" <> "DocumentationExamples.Simulation.Lissajous") <> "\""]], MenuEvaluator -> Automatic], Delimiter, MenuItem["Simulate Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelSimulate", "[", "\"DocumentationExamples.Simulation.Lissajous\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Preferred Plots in Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelPlot", "[", "\"DocumentationExamples.Simulation.Lissajous\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Model Information", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModel", "[", RowBox[{"\"DocumentationExamples.Simulation.Lissajous\"", ",", "\"Summary\""}], "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], Delimiter, MenuItem["Open in System Modeler Model Center", KernelExecute[ WSMLink`WSMModelCenter["DocumentationExamples.Simulation.Lissajous"]], MenuEvaluator -> Automatic], MenuItem["Open in System Modeler Simulation Center", KernelExecute[ WSMLink`WSMSimulationCenter[ "DocumentationExamples.Simulation.Lissajous"]], MenuEvaluator -> Automatic]}}}, ImageSize->{77., 78.75}, PlotRange->{{-38.5, 38.5}, {-47.375, 31.375}}]\), {"fRatio"}, {"coupled"}]

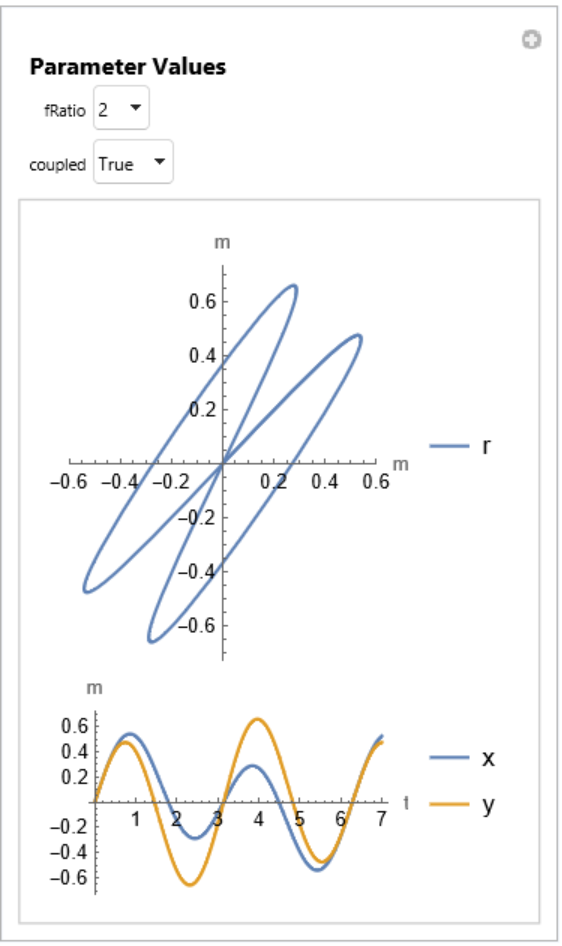

Out[14]=

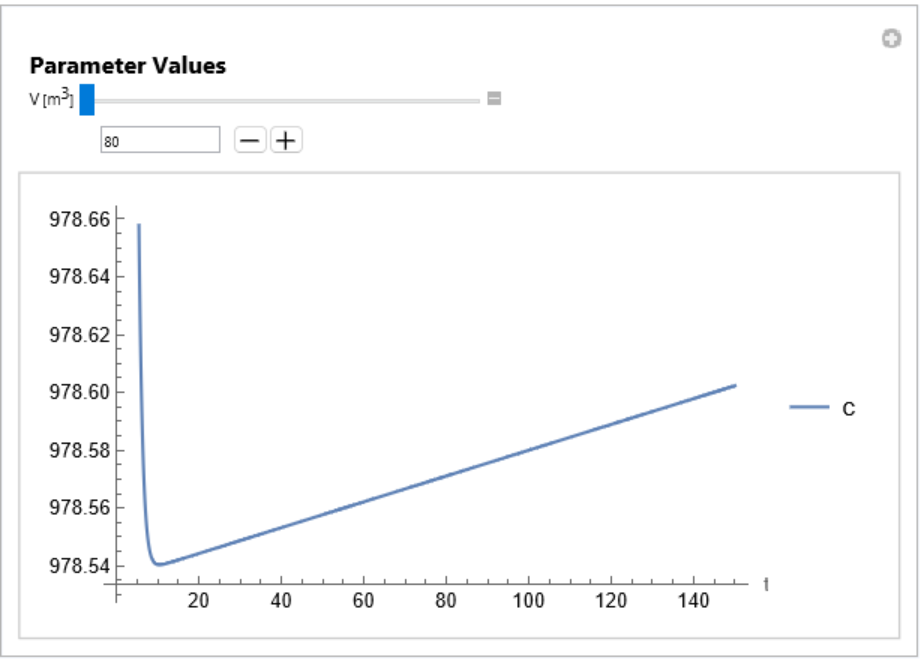

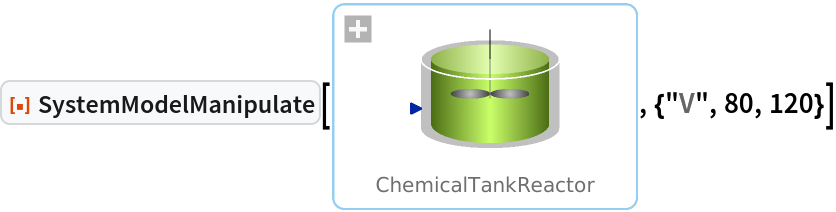

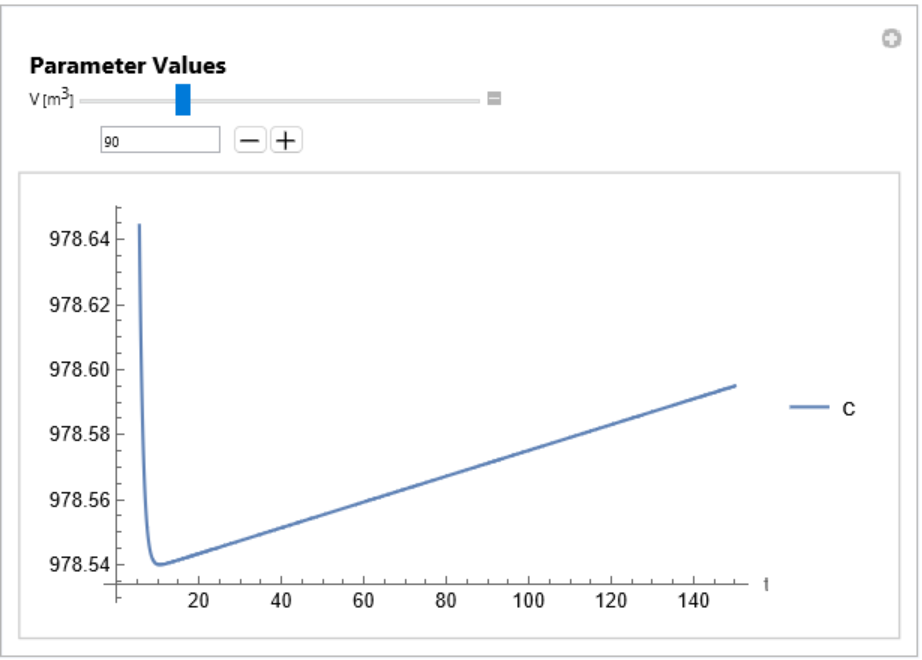

If provided in the model, the base unit is displayed next to the name of the variable or parameter and the description is shown with Tooltip:

In[15]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/1df9b2f9-d66a-4662-8dfb-18a51e7a4417"]

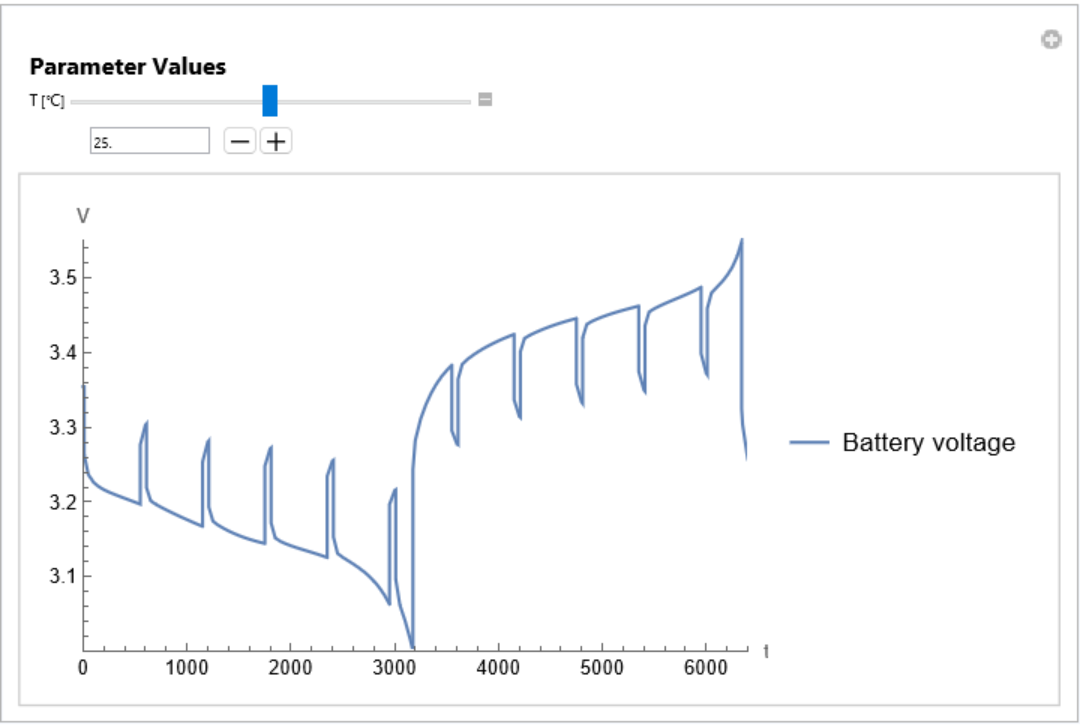

Out[15]=

Options (2)

Appearance (2)

Real and integer values are displayed by default:

In[16]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/8f9195f4-40ff-4724-9b40-c0ffbafb9015"]

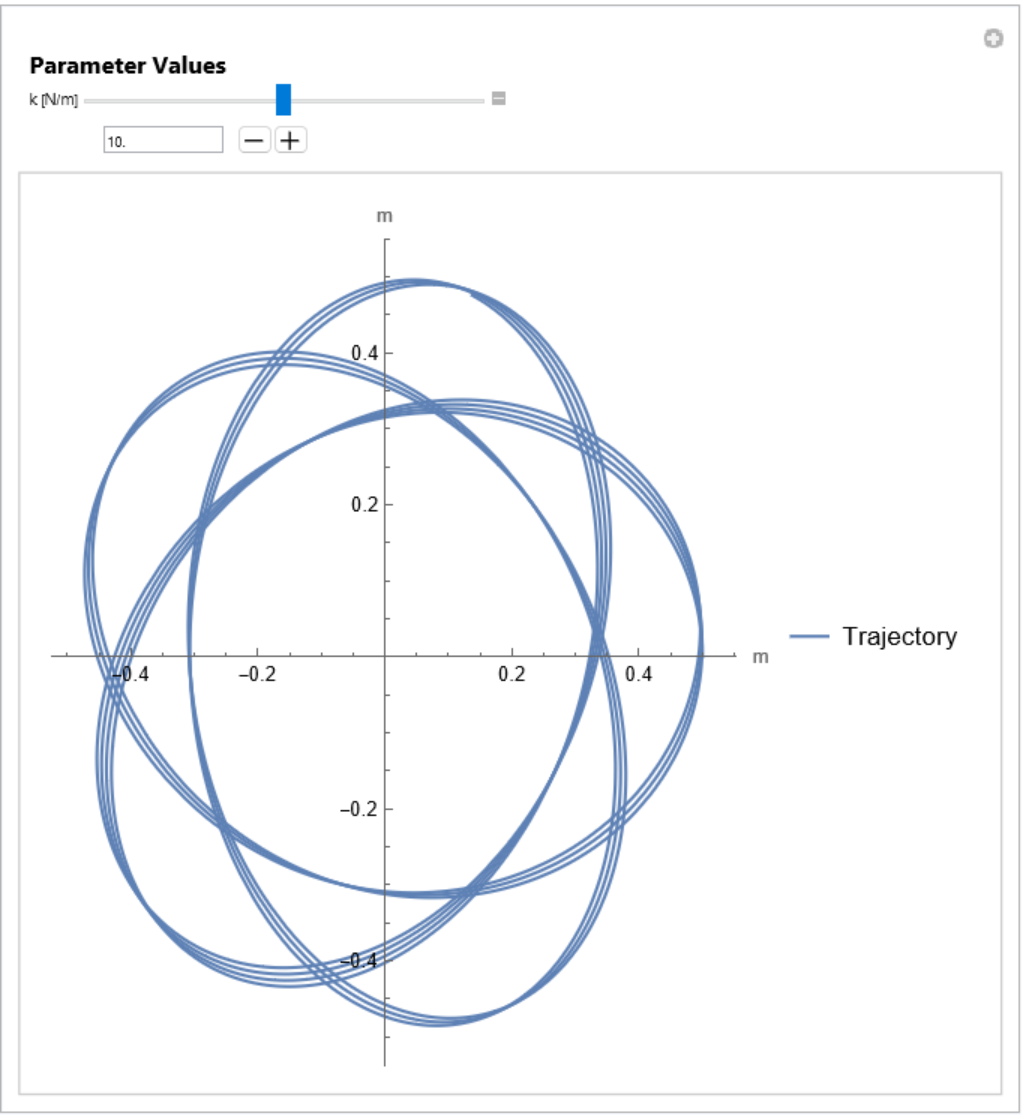

Out[16]=

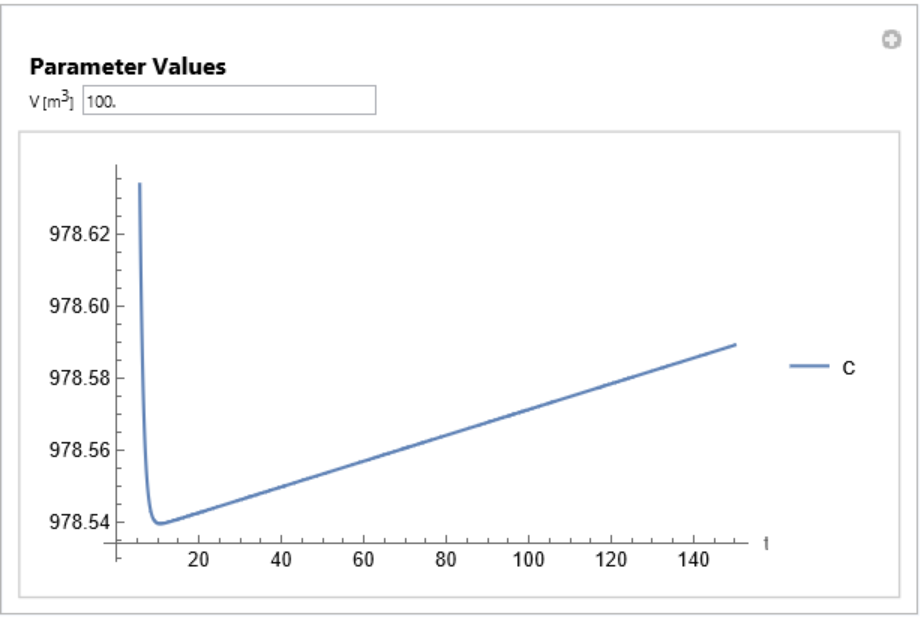

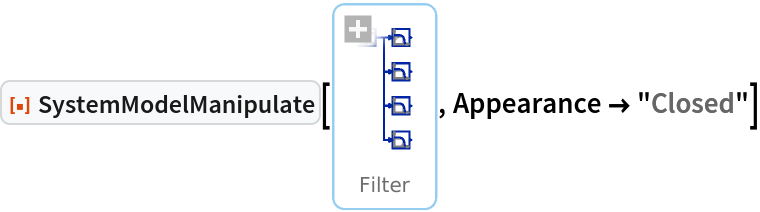

Remove displayed values:

In[17]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/bf148543-56ba-4d4c-883e-f3ad050ed53c"]
Out[17]=

Applications (4)

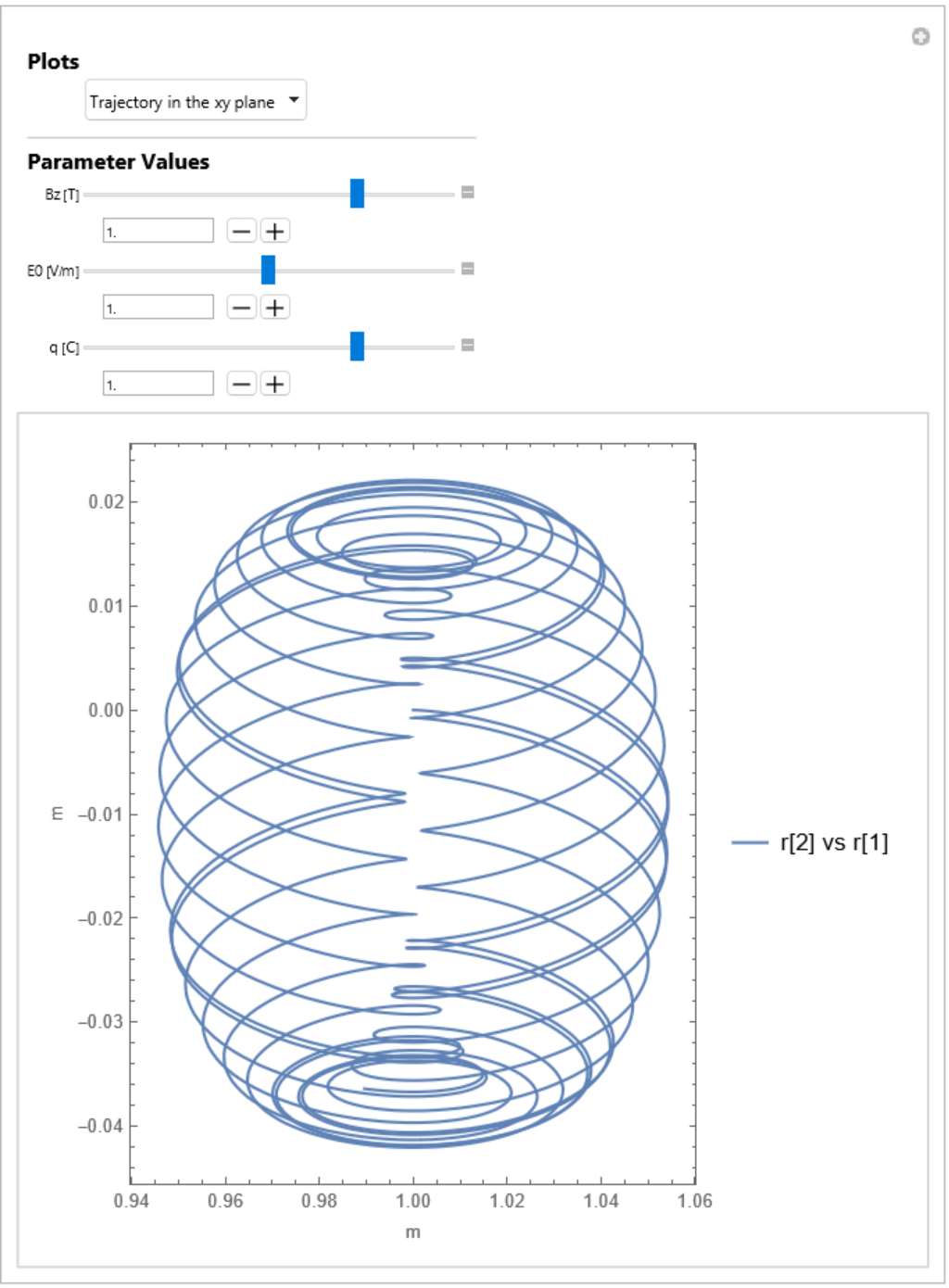

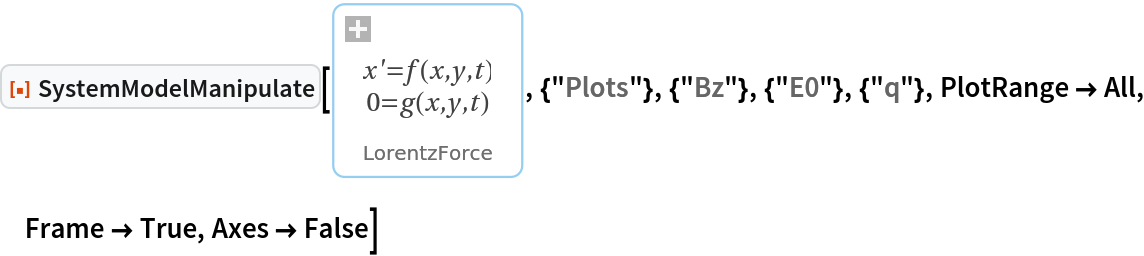

Study the trajectory of a classical charged particle under the effect of the Lorentz force:

In[18]:=
ResourceFunction["SystemModelManipulate"][\!\(\* GraphicsBox[ TagBox[ TooltipBox[ DynamicModuleBox[{WSM`Typeset`PackagePrivate`p$463055 = { InsetBox[ GraphicsBox[{ RGBColor[ 0.25098039215686274`, 0.25098039215686274`, 0.25098039215686274`], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"x'\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"f(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["``````", Style["x'", Italic, FontFamily -> "Times New Roman", FontSize -> 12], Style["=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["f(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[1, 10]}, {0, 0.1}]], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"0=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"g(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["````", Style["0=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["g(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[-1, 10]}, {0, -0.1}]]}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-2, 5], Rational[2, 5]}, { Rational[-1, 5], Rational[2, 5]}}, {{-0.4, 0.4}, {-0.2, 0.4}}], ImageSize -> NCache[{ UpTo[130], Rational[171, 4]}, { UpTo[130], 42.75}]], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {57., 42.75}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"LorentzForce\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -35.875}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-42., -46.375}, {42., 30.375}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}, WSM`Typeset`PackagePrivate`appearanceState$463055 = "Minimal", WSM`Typeset`PackagePrivate`expandedeval$463055 = False, WSM`Typeset`PackagePrivate`expandedprimitives$463055, WSM`Typeset`PackagePrivate`expandedopt$463055, WSM`Typeset`PackagePrivate`expandedsize$463055 = {86., 78.75}, WSM`Typeset`PackagePrivate`expandedrange$463055 = {{-43., 43.}, {-47.375, 31.375}}}, DynamicWrapperBox[ DynamicBox[{WSM`Typeset`PackagePrivate`p$463055, Which[ And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$463055 === "Minimal"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquarePlusIconMedium"]], ButtonFunction :> ( If[WSM`Typeset`PackagePrivate`expandedeval$463055 === False, If[ TrueQ[WSMLink`Private`$WSMLinkIsLoaded], WSM`Typeset`PackagePrivate`appearanceState$463055 = "Eval"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "e323bc36-a002-4637-a02c-9468ab477ee1"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedsize$463055, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$463055}]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedrange$463055, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$463055}]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null, WSM`Typeset`PackagePrivate`appearanceState$463055 = "Expanded"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "e323bc36-a002-4637-a02c-9468ab477ee1"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = WSM`Typeset`PackagePrivate`expandedsize$463055; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = WSM`Typeset`PackagePrivate`expandedrange$463055; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{6, -6}, Scaled[{0, 1}]], Scaled[{0, 1}]], And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$463055 === "Expanded"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquareMinusIconMedium"]], ButtonFunction :> ( WSM`Typeset`PackagePrivate`appearanceState$463055 = "Minimal"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "e323bc36-a002-4637-a02c-9468ab477ee1"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = {86., 78.75}; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = {{-43., 43.}, {-47.375, 31.375}}; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{10, -10}, Scaled[{0, 1}]]], True, {}]}, ImageSizeCache->{{0.5, 85.5}, {-41.25, 36.5}}, TrackedSymbols:>{WSM`Typeset`PackagePrivate`p$463055}], Which[WSM`Typeset`PackagePrivate`appearanceState$463055 === "Minimal", WSM`Typeset`PackagePrivate`p$463055 = { InsetBox[ GraphicsBox[{ RGBColor[ 0.25098039215686274`, 0.25098039215686274`, 0.25098039215686274`], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"x'\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"f(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["``````", Style["x'", Italic, FontFamily -> "Times New Roman", FontSize -> 12], Style["=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["f(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[1, 10]}, {0, 0.1}]], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"0=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"g(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["````", Style["0=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["g(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[-1, 10]}, {0, -0.1}]]}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-2, 5], Rational[2, 5]}, { Rational[-1, 5], Rational[2, 5]}}, {{-0.4, 0.4}, {-0.2, 0.4}}], ImageSize -> NCache[{ UpTo[130], Rational[171, 4]}, { UpTo[130], 42.75}]], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {57., 42.75}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"LorentzForce\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -35.875}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-42., -46.375}, {42., 30.375}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}; Null, WSM`Typeset`PackagePrivate`appearanceState$463055 === "Eval", WSM`Typeset`PackagePrivate`p$463055 = {{ EdgeForm[ WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$463055, 1, 1], Part[ WSM`Typeset`PackagePrivate`expandedrange$463055, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$463055, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$463055, 2, 2]}, RoundingRadius -> Offset[5]]}, InsetBox[ Evaluate[ ToBoxes[ ProgressIndicator[Appearance -> "Percolate"], StandardForm]]]}; Module[{WSM`Typeset`PackagePrivate`md$}, {WSM`Typeset`PackagePrivate`expandedsize$463055, WSM`Typeset`PackagePrivate`md$} = WSM`Typeset`PackagePrivate`getExpandedGraphic[ "DocumentationExamples.Simulation.LorentzForce", "e323bc36-a002-4637-a02c-9468ab477ee1"]; {WSM`Typeset`PackagePrivate`expandedprimitives$463055, WSM`Typeset`PackagePrivate`expandedopt$463055} = WSM`Typeset`PackagePrivate`separateGraphics[ WSM`Typeset`PackagePrivate`md$]; WSM`Typeset`PackagePrivate`expandedrange$463055 = Replace[PlotRange, Flatten[WSM`Typeset`PackagePrivate`expandedopt$463055]]; WSM`Typeset`PackagePrivate`expandedeval$463055 = True; WSM`Typeset`PackagePrivate`expandedprimitives$463055 = Join[ WSM`Typeset`PackagePrivate`expandedprimitives$463055, {{ EdgeForm[WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$463055, 1, 1], Part[ WSM`Typeset`PackagePrivate`expandedrange$463055, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$463055, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$463055, 2, 2]}, RoundingRadius -> Offset[5]]}, With[{WSM`Typeset`PackagePrivate`leftmost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$463055, 1, 1], WSM`Typeset`PackagePrivate`bottommost$ = Part[WSM`Typeset`PackagePrivate`expandedrange$463055, 2, 1]}, { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["LorentzForce", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], Offset[{12, 12}, {WSM`Typeset`PackagePrivate`leftmost$, WSM`Typeset`PackagePrivate`bottommost$}], {-1, 0}]}]}]; Null]; WSM`Typeset`PackagePrivate`appearanceState$463055 = "Expanded"; Null, WSM`Typeset`PackagePrivate`appearanceState$463055 === "Expanded", WSM`Typeset`PackagePrivate`p$463055 = WSM`Typeset`PackagePrivate`expandedprimitives$463055; Null]; Null, ImageSizeCache->{{0.5, 85.5}, {-41.25, 36.5}}, SynchronousUpdating->False, TrackedSymbols:>{WSM`Typeset`PackagePrivate`appearanceState$463055}], Initialization:>( WSM`Typeset`PackagePrivate`expandedeval$463055 = Not[ WSM`Typeset`PackagePrivate`expandedeval$463055]; WSM`Typeset`PackagePrivate`expandedeval$463055 = Not[ WSM`Typeset`PackagePrivate`expandedeval$463055]; Null)], "DocumentationExamples.Simulation.LorentzForce"], WSM`ModelTag["DocumentationExamples.Simulation.LorentzForce"]], SelectWithContents -> True, Editable -> False, BoxID -> "e323bc36-a002-4637-a02c-9468ab477ee1", ContentSelectable->False, DefaultBaseStyle->{"Graphics", FrontEnd`GraphicsHighlightColor -> RGBColor[0, 0.46775, 1], ComponentwiseContextMenu -> {"GraphicsBox" -> { MenuItem[ "Copy Model", KernelExecute[ CopyToClipboard[ ReleaseHold[ MakeExpression[ MakeBoxes[ SystemModel["DocumentationExamples.Simulation.LorentzForce"]], StandardForm]]]], MenuEvaluator -> Automatic], MenuItem["Copy Model Name", KernelExecute[ CopyToClipboard[( "\"" <> "DocumentationExamples.Simulation.LorentzForce") <> "\""]], MenuEvaluator -> Automatic], Delimiter, MenuItem["Simulate Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelSimulate", "[", "\"DocumentationExamples.Simulation.LorentzForce\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Preferred Plots in Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelPlot", "[", "\"DocumentationExamples.Simulation.LorentzForce\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Model Information", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModel", "[", RowBox[{"\"DocumentationExamples.Simulation.LorentzForce\"", ",", "\"Summary\""}], "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], Delimiter, MenuItem["Open in System Modeler Model Center", KernelExecute[ WSMLink`WSMModelCenter[ "DocumentationExamples.Simulation.LorentzForce"]], MenuEvaluator -> Automatic], MenuItem["Open in System Modeler Simulation Center", KernelExecute[ WSMLink`WSMSimulationCenter[ "DocumentationExamples.Simulation.LorentzForce"]], MenuEvaluator -> Automatic]}}}, ImageSize->{86., 78.75}, PlotRange->{{-43., 43.}, {-47.375, 31.375}}]\), {"Plots"}, {"Bz"}, {"E0"}, {"q"}, PlotRange -> All, Frame -> True, Axes -> False]
Out[18]=

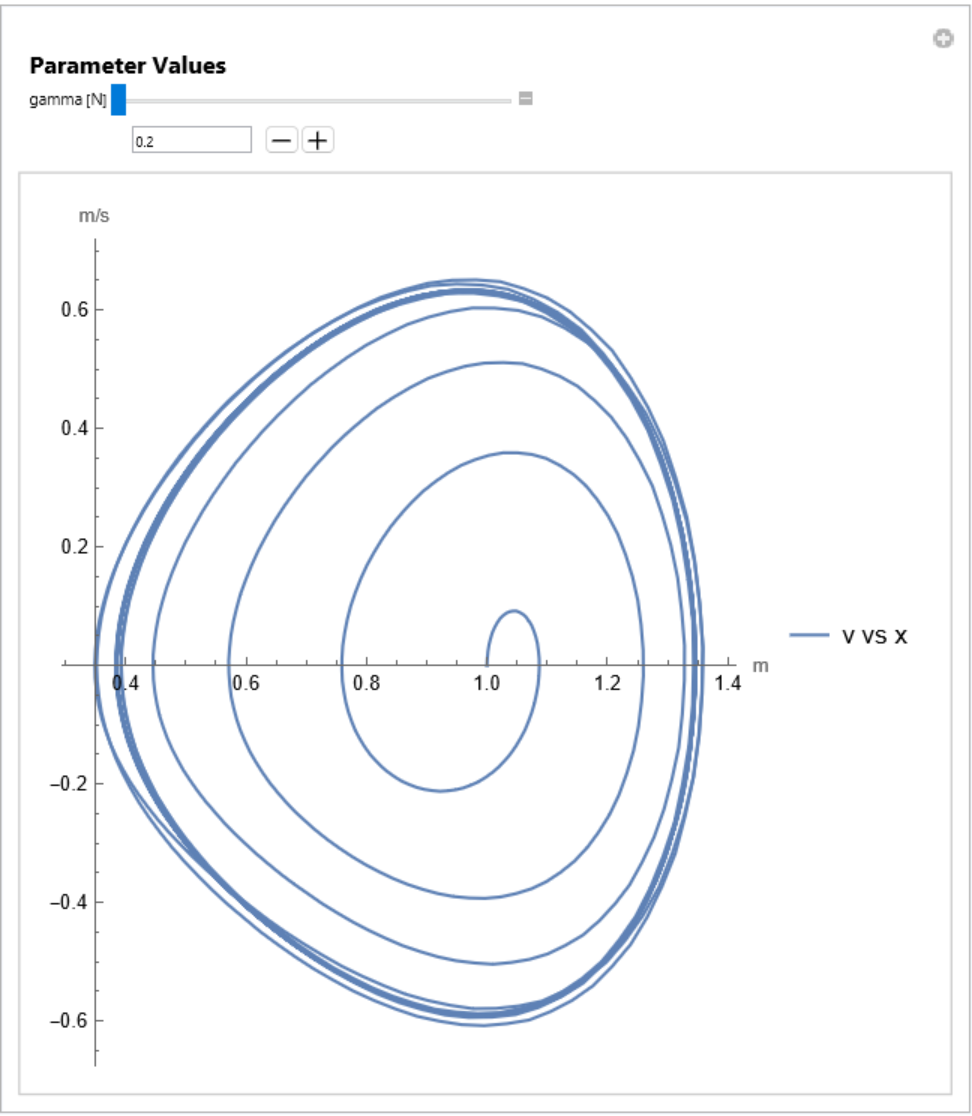

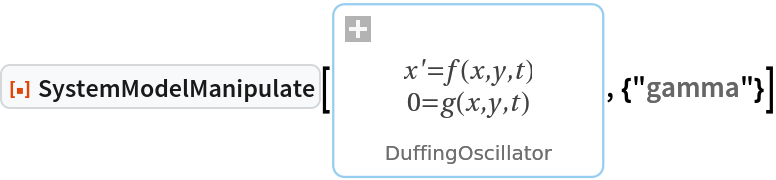

Visualize trajectories in the configuration space of a Duffing oscillator:

In[19]:=
ResourceFunction["SystemModelManipulate"][\!\(\* GraphicsBox[ TagBox[ TooltipBox[ DynamicModuleBox[{WSM`Typeset`PackagePrivate`p$525892 = { InsetBox[ GraphicsBox[{ RGBColor[ 0.25098039215686274`, 0.25098039215686274`, 0.25098039215686274`], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"x'\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"f(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["``````", Style["x'", Italic, FontFamily -> "Times New Roman", FontSize -> 12], Style["=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["f(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[1, 10]}, {0, 0.1}]], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"0=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"g(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["````", Style["0=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["g(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[-1, 10]}, {0, -0.1}]]}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-2, 5], Rational[2, 5]}, { Rational[-1, 5], Rational[2, 5]}}, {{-0.4, 0.4}, {-0.2, 0.4}}], ImageSize -> NCache[{ UpTo[130], Rational[171, 4]}, { UpTo[130], 42.75}]], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {57., 42.75}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"DuffingOscillator\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -35.875}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-60., -46.375}, {60., 30.375}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}, WSM`Typeset`PackagePrivate`appearanceState$525892 = "Minimal", WSM`Typeset`PackagePrivate`expandedeval$525892 = False, WSM`Typeset`PackagePrivate`expandedprimitives$525892, WSM`Typeset`PackagePrivate`expandedopt$525892, WSM`Typeset`PackagePrivate`expandedsize$525892 = {122., 78.75}, WSM`Typeset`PackagePrivate`expandedrange$525892 = {{-61., 61.}, {-47.375, 31.375}}}, DynamicWrapperBox[ DynamicBox[{WSM`Typeset`PackagePrivate`p$525892, Which[ And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$525892 === "Minimal"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquarePlusIconMedium"]], ButtonFunction :> ( If[WSM`Typeset`PackagePrivate`expandedeval$525892 === False, If[ TrueQ[WSMLink`Private`$WSMLinkIsLoaded], WSM`Typeset`PackagePrivate`appearanceState$525892 = "Eval"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "4bd178b9-c7b1-4616-b89d-7d22d192325e"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedsize$525892, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$525892}]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedrange$525892, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$525892}]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null, WSM`Typeset`PackagePrivate`appearanceState$525892 = "Expanded"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "4bd178b9-c7b1-4616-b89d-7d22d192325e"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = WSM`Typeset`PackagePrivate`expandedsize$525892; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = WSM`Typeset`PackagePrivate`expandedrange$525892; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{6, -6}, Scaled[{0, 1}]], Scaled[{0, 1}]], And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$525892 === "Expanded"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquareMinusIconMedium"]], ButtonFunction :> ( WSM`Typeset`PackagePrivate`appearanceState$525892 = "Minimal"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "4bd178b9-c7b1-4616-b89d-7d22d192325e"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = {122., 78.75}; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = {{-61., 61.}, {-47.375, 31.375}}; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{10, -10}, Scaled[{0, 1}]]], True, {}]}, ImageSizeCache->{{0.5, 121.5}, {-41.25, 36.5}}, TrackedSymbols:>{WSM`Typeset`PackagePrivate`p$525892}], Which[WSM`Typeset`PackagePrivate`appearanceState$525892 === "Minimal", WSM`Typeset`PackagePrivate`p$525892 = { InsetBox[ GraphicsBox[{ RGBColor[ 0.25098039215686274`, 0.25098039215686274`, 0.25098039215686274`], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"x'\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"f(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["``````", Style["x'", Italic, FontFamily -> "Times New Roman", FontSize -> 12], Style["=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["f(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[1, 10]}, {0, 0.1}]], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"0=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"g(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["````", Style["0=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["g(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[-1, 10]}, {0, -0.1}]]}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-2, 5], Rational[2, 5]}, { Rational[-1, 5], Rational[2, 5]}}, {{-0.4, 0.4}, {-0.2, 0.4}}], ImageSize -> NCache[{ UpTo[130], Rational[171, 4]}, { UpTo[130], 42.75}]], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {57., 42.75}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"DuffingOscillator\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -35.875}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-60., -46.375}, {60., 30.375}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}; Null, WSM`Typeset`PackagePrivate`appearanceState$525892 === "Eval", WSM`Typeset`PackagePrivate`p$525892 = {{ EdgeForm[ WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$525892, 1, 1], Part[ WSM`Typeset`PackagePrivate`expandedrange$525892, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$525892, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$525892, 2, 2]}, RoundingRadius -> Offset[5]]}, InsetBox[ Evaluate[ ToBoxes[ ProgressIndicator[Appearance -> "Percolate"], StandardForm]]]}; Module[{WSM`Typeset`PackagePrivate`md$}, {WSM`Typeset`PackagePrivate`expandedsize$525892, WSM`Typeset`PackagePrivate`md$} = WSM`Typeset`PackagePrivate`getExpandedGraphic[ "DocumentationExamples.Simulation.DuffingOscillator", "4bd178b9-c7b1-4616-b89d-7d22d192325e"]; {WSM`Typeset`PackagePrivate`expandedprimitives$525892, WSM`Typeset`PackagePrivate`expandedopt$525892} = WSM`Typeset`PackagePrivate`separateGraphics[ WSM`Typeset`PackagePrivate`md$]; WSM`Typeset`PackagePrivate`expandedrange$525892 = Replace[PlotRange, Flatten[WSM`Typeset`PackagePrivate`expandedopt$525892]]; WSM`Typeset`PackagePrivate`expandedeval$525892 = True; WSM`Typeset`PackagePrivate`expandedprimitives$525892 = Join[ WSM`Typeset`PackagePrivate`expandedprimitives$525892, {{ EdgeForm[WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$525892, 1, 1], Part[ WSM`Typeset`PackagePrivate`expandedrange$525892, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$525892, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$525892, 2, 2]}, RoundingRadius -> Offset[5]]}, With[{WSM`Typeset`PackagePrivate`leftmost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$525892, 1, 1], WSM`Typeset`PackagePrivate`bottommost$ = Part[WSM`Typeset`PackagePrivate`expandedrange$525892, 2, 1]}, { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["DuffingOscillator", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], Offset[{12, 12}, {WSM`Typeset`PackagePrivate`leftmost$, WSM`Typeset`PackagePrivate`bottommost$}], {-1, 0}]}]}]; Null]; WSM`Typeset`PackagePrivate`appearanceState$525892 = "Expanded"; Null, WSM`Typeset`PackagePrivate`appearanceState$525892 === "Expanded", WSM`Typeset`PackagePrivate`p$525892 = WSM`Typeset`PackagePrivate`expandedprimitives$525892; Null]; Null, ImageSizeCache->{{0.5, 121.5}, {-41.25, 36.5}}, SynchronousUpdating->False, TrackedSymbols:>{WSM`Typeset`PackagePrivate`appearanceState$525892}], Initialization:>( WSM`Typeset`PackagePrivate`expandedeval$525892 = Not[ WSM`Typeset`PackagePrivate`expandedeval$525892]; WSM`Typeset`PackagePrivate`expandedeval$525892 = Not[ WSM`Typeset`PackagePrivate`expandedeval$525892]; Null)], "DocumentationExamples.Simulation.DuffingOscillator"], WSM`ModelTag["DocumentationExamples.Simulation.DuffingOscillator"]], SelectWithContents -> True, Editable -> False, BoxID -> "4bd178b9-c7b1-4616-b89d-7d22d192325e", ContentSelectable->False, DefaultBaseStyle->{"Graphics", FrontEnd`GraphicsHighlightColor -> RGBColor[0, 0.46775, 1], ComponentwiseContextMenu -> {"GraphicsBox" -> { MenuItem[ "Copy Model", KernelExecute[ CopyToClipboard[ ReleaseHold[ MakeExpression[ MakeBoxes[ SystemModel["DocumentationExamples.Simulation.DuffingOscillator"]], StandardForm]]]], MenuEvaluator -> Automatic], MenuItem["Copy Model Name", KernelExecute[ CopyToClipboard[( "\"" <> "DocumentationExamples.Simulation.DuffingOscillator") <> "\""]], MenuEvaluator -> Automatic], Delimiter, MenuItem["Simulate Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelSimulate", "[", "\"DocumentationExamples.Simulation.DuffingOscillator\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Preferred Plots in Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelPlot", "[", "\"DocumentationExamples.Simulation.DuffingOscillator\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Model Information", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModel", "[", RowBox[{"\"DocumentationExamples.Simulation.DuffingOscillator\"", ",", "\"Summary\""}], "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], Delimiter, MenuItem["Open in System Modeler Model Center", KernelExecute[ WSMLink`WSMModelCenter[ "DocumentationExamples.Simulation.DuffingOscillator"]], MenuEvaluator -> Automatic], MenuItem["Open in System Modeler Simulation Center", KernelExecute[ WSMLink`WSMSimulationCenter[ "DocumentationExamples.Simulation.DuffingOscillator"]], MenuEvaluator -> Automatic]}}}, ImageSize->{122., 78.75}, PlotRange->{{-61., 61.}, {-47.375, 31.375}}]\), {"gamma"}]
Out[19]=

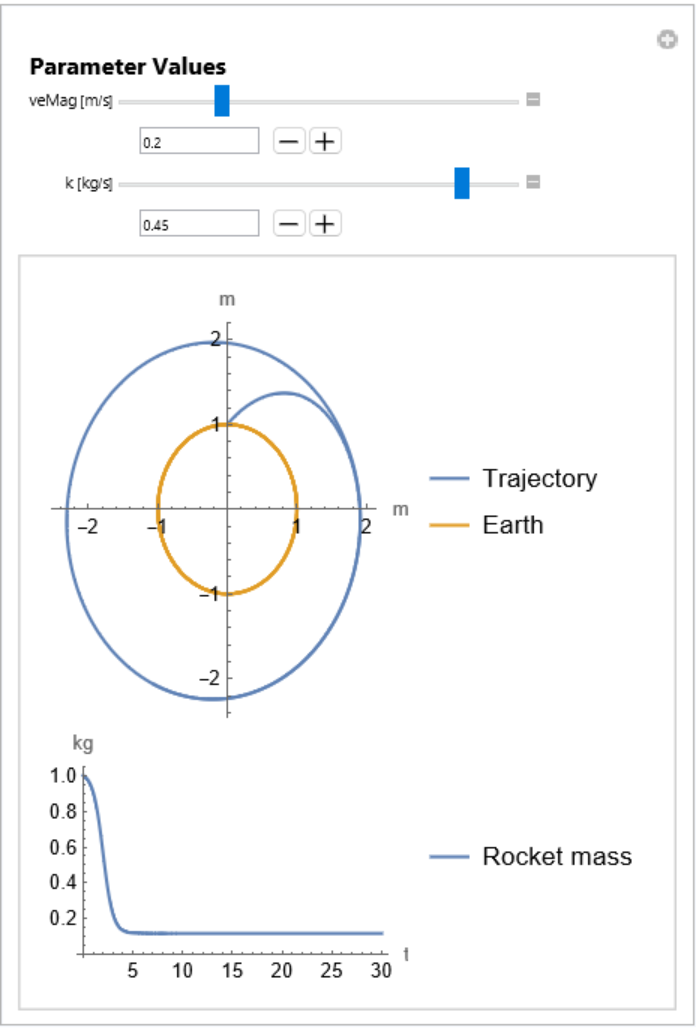

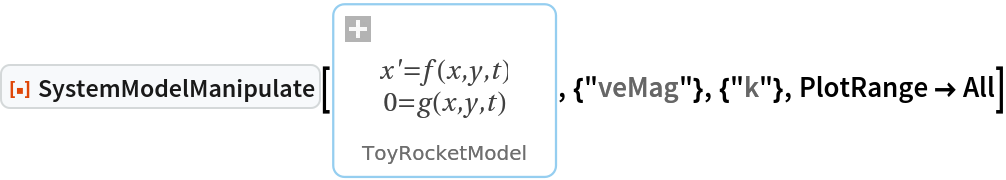

Visualize trajectories and mass loss of a rocket with exhaust velocity of constant magnitude:

In[20]:=
ResourceFunction["SystemModelManipulate"][\!\(\* GraphicsBox[ TagBox[ TooltipBox[ DynamicModuleBox[{WSM`Typeset`PackagePrivate`p$527668 = { InsetBox[ GraphicsBox[{ RGBColor[ 0.25098039215686274`, 0.25098039215686274`, 0.25098039215686274`], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"x'\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"f(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["``````", Style["x'", Italic, FontFamily -> "Times New Roman", FontSize -> 12], Style["=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["f(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[1, 10]}, {0, 0.1}]], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"0=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"g(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["````", Style["0=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["g(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[-1, 10]}, {0, -0.1}]]}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-2, 5], Rational[2, 5]}, { Rational[-1, 5], Rational[2, 5]}}, {{-0.4, 0.4}, {-0.2, 0.4}}], ImageSize -> NCache[{ UpTo[130], Rational[171, 4]}, { UpTo[130], 42.75}]], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {57., 42.75}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"ToyRocketModel\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -35.875}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-49.5, -46.375}, {49.5, 30.375}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}, WSM`Typeset`PackagePrivate`appearanceState$527668 = "Minimal", WSM`Typeset`PackagePrivate`expandedeval$527668 = False, WSM`Typeset`PackagePrivate`expandedprimitives$527668, WSM`Typeset`PackagePrivate`expandedopt$527668, WSM`Typeset`PackagePrivate`expandedsize$527668 = {101., 78.75}, WSM`Typeset`PackagePrivate`expandedrange$527668 = {{-50.5, 50.5}, {-47.375, 31.375}}}, DynamicWrapperBox[ DynamicBox[{WSM`Typeset`PackagePrivate`p$527668, Which[ And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$527668 === "Minimal"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquarePlusIconMedium"]], ButtonFunction :> ( If[WSM`Typeset`PackagePrivate`expandedeval$527668 === False, If[ TrueQ[WSMLink`Private`$WSMLinkIsLoaded], WSM`Typeset`PackagePrivate`appearanceState$527668 = "Eval"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "3a5a2fc4-9f09-4f19-a83b-649ddae806dc"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedsize$527668, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$527668}]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedrange$527668, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$527668}]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null, WSM`Typeset`PackagePrivate`appearanceState$527668 = "Expanded"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "3a5a2fc4-9f09-4f19-a83b-649ddae806dc"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = WSM`Typeset`PackagePrivate`expandedsize$527668; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = WSM`Typeset`PackagePrivate`expandedrange$527668; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{6, -6}, Scaled[{0, 1}]], Scaled[{0, 1}]], And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$527668 === "Expanded"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquareMinusIconMedium"]], ButtonFunction :> ( WSM`Typeset`PackagePrivate`appearanceState$527668 = "Minimal"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "3a5a2fc4-9f09-4f19-a83b-649ddae806dc"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = {101., 78.75}; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = {{-50.5, 50.5}, {-47.375, 31.375}}; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{10, -10}, Scaled[{0, 1}]]], True, {}]}, ImageSizeCache->{{0.5, 100.5}, {-41.25, 36.5}}, TrackedSymbols:>{WSM`Typeset`PackagePrivate`p$527668}], Which[WSM`Typeset`PackagePrivate`appearanceState$527668 === "Minimal", WSM`Typeset`PackagePrivate`p$527668 = { InsetBox[ GraphicsBox[{ RGBColor[ 0.25098039215686274`, 0.25098039215686274`, 0.25098039215686274`], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"x'\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"f(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["``````", Style["x'", Italic, FontFamily -> "Times New Roman", FontSize -> 12], Style["=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["f(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[1, 10]}, {0, 0.1}]], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"0=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"g(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["````", Style["0=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["g(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[-1, 10]}, {0, -0.1}]]}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-2, 5], Rational[2, 5]}, { Rational[-1, 5], Rational[2, 5]}}, {{-0.4, 0.4}, {-0.2, 0.4}}], ImageSize -> NCache[{ UpTo[130], Rational[171, 4]}, { UpTo[130], 42.75}]], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {57., 42.75}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"ToyRocketModel\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -35.875}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-49.5, -46.375}, {49.5, 30.375}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}; Null, WSM`Typeset`PackagePrivate`appearanceState$527668 === "Eval", WSM`Typeset`PackagePrivate`p$527668 = {{ EdgeForm[ WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$527668, 1, 1], Part[ WSM`Typeset`PackagePrivate`expandedrange$527668, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$527668, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$527668, 2, 2]}, RoundingRadius -> Offset[5]]}, InsetBox[ Evaluate[ ToBoxes[ ProgressIndicator[Appearance -> "Percolate"], StandardForm]]]}; Module[{WSM`Typeset`PackagePrivate`md$}, {WSM`Typeset`PackagePrivate`expandedsize$527668, WSM`Typeset`PackagePrivate`md$} = WSM`Typeset`PackagePrivate`getExpandedGraphic[ "DocumentationExamples.Simulation.ToyRocketModel", "3a5a2fc4-9f09-4f19-a83b-649ddae806dc"]; {WSM`Typeset`PackagePrivate`expandedprimitives$527668, WSM`Typeset`PackagePrivate`expandedopt$527668} = WSM`Typeset`PackagePrivate`separateGraphics[ WSM`Typeset`PackagePrivate`md$]; WSM`Typeset`PackagePrivate`expandedrange$527668 = Replace[PlotRange, Flatten[WSM`Typeset`PackagePrivate`expandedopt$527668]]; WSM`Typeset`PackagePrivate`expandedeval$527668 = True; WSM`Typeset`PackagePrivate`expandedprimitives$527668 = Join[ WSM`Typeset`PackagePrivate`expandedprimitives$527668, {{ EdgeForm[WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$527668, 1, 1], Part[ WSM`Typeset`PackagePrivate`expandedrange$527668, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$527668, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$527668, 2, 2]}, RoundingRadius -> Offset[5]]}, With[{WSM`Typeset`PackagePrivate`leftmost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$527668, 1, 1], WSM`Typeset`PackagePrivate`bottommost$ = Part[WSM`Typeset`PackagePrivate`expandedrange$527668, 2, 1]}, { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["ToyRocketModel", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], Offset[{12, 12}, {WSM`Typeset`PackagePrivate`leftmost$, WSM`Typeset`PackagePrivate`bottommost$}], {-1, 0}]}]}]; Null]; WSM`Typeset`PackagePrivate`appearanceState$527668 = "Expanded"; Null, WSM`Typeset`PackagePrivate`appearanceState$527668 === "Expanded", WSM`Typeset`PackagePrivate`p$527668 = WSM`Typeset`PackagePrivate`expandedprimitives$527668; Null]; Null, ImageSizeCache->{{0.5, 100.5}, {-41.25, 36.5}}, SynchronousUpdating->False, TrackedSymbols:>{WSM`Typeset`PackagePrivate`appearanceState$527668}], Initialization:>( WSM`Typeset`PackagePrivate`expandedeval$527668 = Not[ WSM`Typeset`PackagePrivate`expandedeval$527668]; WSM`Typeset`PackagePrivate`expandedeval$527668 = Not[ WSM`Typeset`PackagePrivate`expandedeval$527668]; Null)], "DocumentationExamples.Simulation.ToyRocketModel"], WSM`ModelTag["DocumentationExamples.Simulation.ToyRocketModel"]], SelectWithContents -> True, Editable -> False, BoxID -> "3a5a2fc4-9f09-4f19-a83b-649ddae806dc", ContentSelectable->False, DefaultBaseStyle->{"Graphics", FrontEnd`GraphicsHighlightColor -> RGBColor[0, 0.46775, 1], ComponentwiseContextMenu -> {"GraphicsBox" -> { MenuItem[ "Copy Model", KernelExecute[ CopyToClipboard[ ReleaseHold[ MakeExpression[ MakeBoxes[ SystemModel["DocumentationExamples.Simulation.ToyRocketModel"]], StandardForm]]]], MenuEvaluator -> Automatic], MenuItem["Copy Model Name", KernelExecute[ CopyToClipboard[( "\"" <> "DocumentationExamples.Simulation.ToyRocketModel") <> "\""]], MenuEvaluator -> Automatic], Delimiter, MenuItem["Simulate Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelSimulate", "[", "\"DocumentationExamples.Simulation.ToyRocketModel\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Preferred Plots in Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelPlot", "[", "\"DocumentationExamples.Simulation.ToyRocketModel\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Model Information", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModel", "[", RowBox[{"\"DocumentationExamples.Simulation.ToyRocketModel\"", ",", "\"Summary\""}], "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], Delimiter, MenuItem["Open in System Modeler Model Center", KernelExecute[ WSMLink`WSMModelCenter[ "DocumentationExamples.Simulation.ToyRocketModel"]], MenuEvaluator -> Automatic], MenuItem["Open in System Modeler Simulation Center", KernelExecute[ WSMLink`WSMSimulationCenter[ "DocumentationExamples.Simulation.ToyRocketModel"]], MenuEvaluator -> Automatic]}}}, ImageSize->{101., 78.75}, PlotRange->{{-50.5, 50.5}, {-47.375, 31.375}}]\), {"veMag"}, {"k"}, PlotRange -> All]
Out[20]=

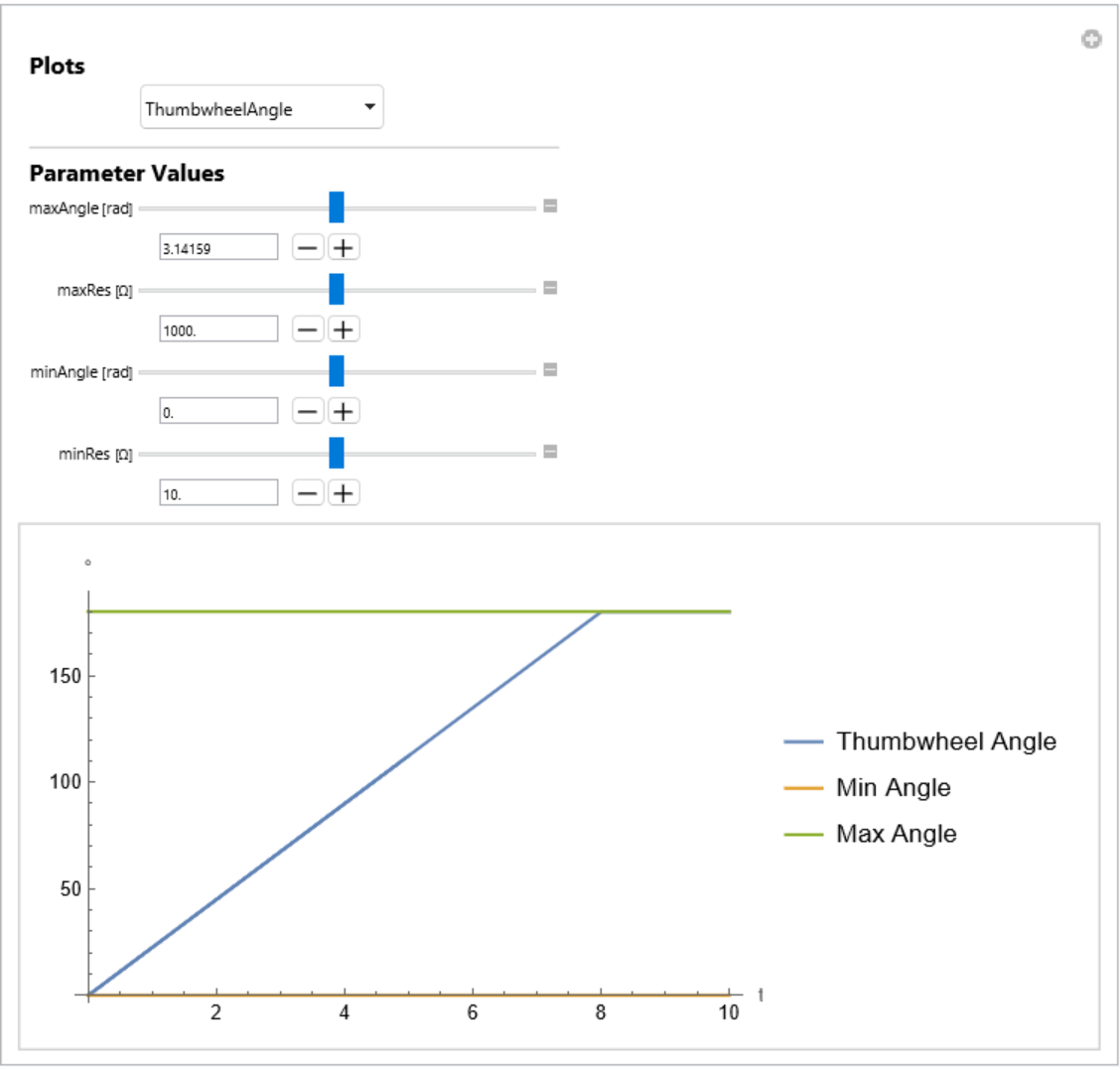

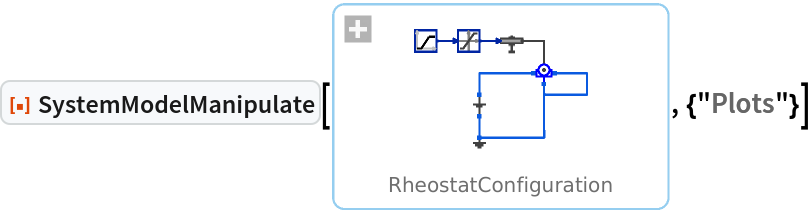

Study the model of a thumb-wheel potentiometer connected in a rheostat configuration:

In[21]:=
(* Evaluate this cell to get the example input *) CloudGet["https://www.wolframcloud.com/obj/af1d479d-614f-4889-82fd-d180be5b220a"]
Out[21]=

Properties and Relations (1)

Use Setting on the output to access the displayed plots:

In[22]:=
ResourceFunction["SystemModelManipulate"][\!\(\* GraphicsBox[ TagBox[ TooltipBox[ DynamicModuleBox[{WSM`Typeset`PackagePrivate`p$553791 = { InsetBox[ GraphicsBox[{ RGBColor[ 0.25098039215686274`, 0.25098039215686274`, 0.25098039215686274`], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"x'\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"f(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["``````", Style["x'", Italic, FontFamily -> "Times New Roman", FontSize -> 12], Style["=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["f(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[1, 10]}, {0, 0.1}]], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"0=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"g(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["````", Style["0=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["g(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[-1, 10]}, {0, -0.1}]]}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-2, 5], Rational[2, 5]}, { Rational[-1, 5], Rational[2, 5]}}, {{-0.4, 0.4}, {-0.2, 0.4}}], ImageSize -> NCache[{ UpTo[130], Rational[171, 4]}, { UpTo[130], 42.75}]], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {57., 42.75}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"Lissajous\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -35.875}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-37.5, -46.375}, {37.5, 30.375}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}, WSM`Typeset`PackagePrivate`appearanceState$553791 = "Minimal", WSM`Typeset`PackagePrivate`expandedeval$553791 = False, WSM`Typeset`PackagePrivate`expandedprimitives$553791, WSM`Typeset`PackagePrivate`expandedopt$553791, WSM`Typeset`PackagePrivate`expandedsize$553791 = {77., 78.75}, WSM`Typeset`PackagePrivate`expandedrange$553791 = {{-38.5, 38.5}, {-47.375, 31.375}}}, DynamicWrapperBox[ DynamicBox[{WSM`Typeset`PackagePrivate`p$553791, Which[ And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$553791 === "Minimal"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquarePlusIconMedium"]], ButtonFunction :> ( If[WSM`Typeset`PackagePrivate`expandedeval$553791 === False, If[ TrueQ[WSMLink`Private`$WSMLinkIsLoaded], WSM`Typeset`PackagePrivate`appearanceState$553791 = "Eval"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "a728a951-84aa-4613-bfb5-a0a6ca79e142"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedsize$553791, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$553791}]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedrange$553791, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$553791}]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null, WSM`Typeset`PackagePrivate`appearanceState$553791 = "Expanded"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "a728a951-84aa-4613-bfb5-a0a6ca79e142"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = WSM`Typeset`PackagePrivate`expandedsize$553791; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = WSM`Typeset`PackagePrivate`expandedrange$553791; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{6, -6}, Scaled[{0, 1}]], Scaled[{0, 1}]], And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$553791 === "Expanded"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquareMinusIconMedium"]], ButtonFunction :> ( WSM`Typeset`PackagePrivate`appearanceState$553791 = "Minimal"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "a728a951-84aa-4613-bfb5-a0a6ca79e142"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = {77., 78.75}; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = {{-38.5, 38.5}, {-47.375, 31.375}}; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{10, -10}, Scaled[{0, 1}]]], True, {}]}, ImageSizeCache->{{0.5, 76.5}, {-41.25, 36.5}}, TrackedSymbols:>{WSM`Typeset`PackagePrivate`p$553791}], Which[WSM`Typeset`PackagePrivate`appearanceState$553791 === "Minimal", WSM`Typeset`PackagePrivate`p$553791 = { InsetBox[ GraphicsBox[{ RGBColor[ 0.25098039215686274`, 0.25098039215686274`, 0.25098039215686274`], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"x'\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"f(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["``````", Style["x'", Italic, FontFamily -> "Times New Roman", FontSize -> 12], Style["=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["f(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[1, 10]}, {0, 0.1}]], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"0=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"g(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["````", Style["0=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["g(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[-1, 10]}, {0, -0.1}]]}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-2, 5], Rational[2, 5]}, { Rational[-1, 5], Rational[2, 5]}}, {{-0.4, 0.4}, {-0.2, 0.4}}], ImageSize -> NCache[{ UpTo[130], Rational[171, 4]}, { UpTo[130], 42.75}]], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {57., 42.75}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"Lissajous\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -35.875}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-37.5, -46.375}, {37.5, 30.375}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}; Null, WSM`Typeset`PackagePrivate`appearanceState$553791 === "Eval", WSM`Typeset`PackagePrivate`p$553791 = {{ EdgeForm[ WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$553791, 1, 1], Part[ WSM`Typeset`PackagePrivate`expandedrange$553791, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$553791, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$553791, 2, 2]}, RoundingRadius -> Offset[5]]}, InsetBox[ Evaluate[ ToBoxes[ ProgressIndicator[Appearance -> "Percolate"], StandardForm]]]}; Module[{WSM`Typeset`PackagePrivate`md$}, {WSM`Typeset`PackagePrivate`expandedsize$553791, WSM`Typeset`PackagePrivate`md$} = WSM`Typeset`PackagePrivate`getExpandedGraphic[ "DocumentationExamples.Simulation.Lissajous", "a728a951-84aa-4613-bfb5-a0a6ca79e142"]; {WSM`Typeset`PackagePrivate`expandedprimitives$553791, WSM`Typeset`PackagePrivate`expandedopt$553791} = WSM`Typeset`PackagePrivate`separateGraphics[ WSM`Typeset`PackagePrivate`md$]; WSM`Typeset`PackagePrivate`expandedrange$553791 = Replace[PlotRange, Flatten[WSM`Typeset`PackagePrivate`expandedopt$553791]]; WSM`Typeset`PackagePrivate`expandedeval$553791 = True; WSM`Typeset`PackagePrivate`expandedprimitives$553791 = Join[ WSM`Typeset`PackagePrivate`expandedprimitives$553791, {{ EdgeForm[WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$553791, 1, 1], Part[WSM`Typeset`PackagePrivate`expandedrange$553791, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$553791, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$553791, 2, 2]}, RoundingRadius -> Offset[5]]}, With[{WSM`Typeset`PackagePrivate`leftmost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$553791, 1, 1], WSM`Typeset`PackagePrivate`bottommost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$553791, 2, 1]}, { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["Lissajous", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], Offset[{12, 12}, {WSM`Typeset`PackagePrivate`leftmost$, WSM`Typeset`PackagePrivate`bottommost$}], {-1, 0}]}]}]; Null]; WSM`Typeset`PackagePrivate`appearanceState$553791 = "Expanded"; Null, WSM`Typeset`PackagePrivate`appearanceState$553791 === "Expanded", WSM`Typeset`PackagePrivate`p$553791 = WSM`Typeset`PackagePrivate`expandedprimitives$553791; Null]; Null, ImageSizeCache->{{0.5, 76.5}, {-41.25, 36.5}}, SynchronousUpdating->False, TrackedSymbols:>{WSM`Typeset`PackagePrivate`appearanceState$553791}], Initialization:>( WSM`Typeset`PackagePrivate`expandedeval$553791 = Not[ WSM`Typeset`PackagePrivate`expandedeval$553791]; WSM`Typeset`PackagePrivate`expandedeval$553791 = Not[ WSM`Typeset`PackagePrivate`expandedeval$553791]; Null)], "DocumentationExamples.Simulation.Lissajous"], WSM`ModelTag["DocumentationExamples.Simulation.Lissajous"]], SelectWithContents -> True, Editable -> False, BoxID -> "a728a951-84aa-4613-bfb5-a0a6ca79e142", ContentSelectable->False, DefaultBaseStyle->{"Graphics", FrontEnd`GraphicsHighlightColor -> RGBColor[0, 0.46775, 1], ComponentwiseContextMenu -> {"GraphicsBox" -> { MenuItem[ "Copy Model", KernelExecute[ CopyToClipboard[ ReleaseHold[ MakeExpression[ MakeBoxes[ SystemModel["DocumentationExamples.Simulation.Lissajous"]], StandardForm]]]], MenuEvaluator -> Automatic], MenuItem["Copy Model Name", KernelExecute[ CopyToClipboard[( "\"" <> "DocumentationExamples.Simulation.Lissajous") <> "\""]], MenuEvaluator -> Automatic], Delimiter, MenuItem["Simulate Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelSimulate", "[", "\"DocumentationExamples.Simulation.Lissajous\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Preferred Plots in Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelPlot", "[", "\"DocumentationExamples.Simulation.Lissajous\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Model Information", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModel", "[", RowBox[{"\"DocumentationExamples.Simulation.Lissajous\"", ",", "\"Summary\""}], "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], Delimiter, MenuItem["Open in System Modeler Model Center", KernelExecute[ WSMLink`WSMModelCenter["DocumentationExamples.Simulation.Lissajous"]], MenuEvaluator -> Automatic], MenuItem["Open in System Modeler Simulation Center", KernelExecute[ WSMLink`WSMSimulationCenter[ "DocumentationExamples.Simulation.Lissajous"]], MenuEvaluator -> Automatic]}}}, ImageSize->{77., 78.75}, PlotRange->{{-38.5, 38.5}, {-47.375, 31.375}}]\)] // Setting
Out[22]=

Neat Examples (1)

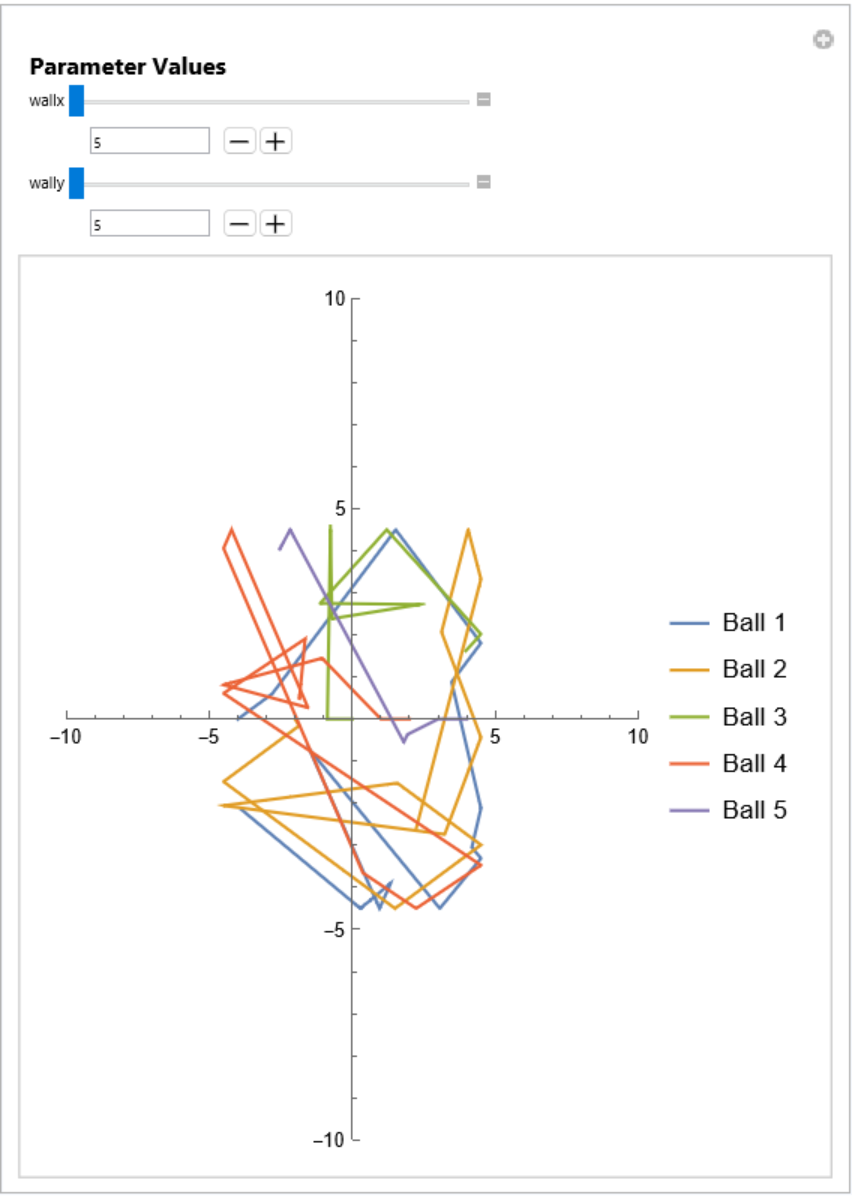

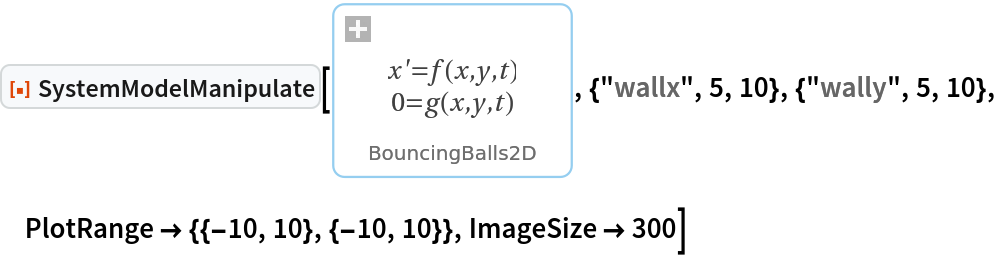

Observe the trajectories of 5 balls released inside a room, varying the size of the room using parameters:

In[23]:=
ResourceFunction["SystemModelManipulate"][\!\(\* GraphicsBox[ TagBox[ TooltipBox[ DynamicModuleBox[{WSM`Typeset`PackagePrivate`p$4138800 = { InsetBox[ GraphicsBox[{ RGBColor[ 0.25098039215686274`, 0.25098039215686274`, 0.25098039215686274`], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"x'\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"f(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["``````", Style["x'", Italic, FontFamily -> "Times New Roman", FontSize -> 12], Style["=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["f(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[1, 10]}, {0, 0.1}]], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"0=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"g(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["````", Style["0=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["g(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[-1, 10]}, {0, -0.1}]]}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-2, 5], Rational[2, 5]}, { Rational[-1, 5], Rational[2, 5]}}, {{-0.4, 0.4}, {-0.2, 0.4}}], ImageSize -> NCache[{ UpTo[130], Rational[171, 4]}, { UpTo[130], 42.75}]], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {57., 42.75}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"BouncingBalls2D\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -35.875}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-53., -46.375}, {53., 30.375}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}, WSM`Typeset`PackagePrivate`appearanceState$4138800 = "Minimal", WSM`Typeset`PackagePrivate`expandedeval$4138800 = False, WSM`Typeset`PackagePrivate`expandedprimitives$4138800, WSM`Typeset`PackagePrivate`expandedopt$4138800, WSM`Typeset`PackagePrivate`expandedsize$4138800 = {108., 78.75}, WSM`Typeset`PackagePrivate`expandedrange$4138800 = {{-54., 54.}, {-47.375, 31.375}}}, DynamicWrapperBox[ DynamicBox[{WSM`Typeset`PackagePrivate`p$4138800, Which[ And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$4138800 === "Minimal"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquarePlusIconMedium"]], ButtonFunction :> ( If[WSM`Typeset`PackagePrivate`expandedeval$4138800 === False, If[ TrueQ[WSMLink`Private`$WSMLinkIsLoaded], WSM`Typeset`PackagePrivate`appearanceState$4138800 = "Eval"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "5bad8104-e857-4a38-89d1-d042f94cc5bd"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedsize$4138800, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$4138800}]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = Dynamic[ WSM`Typeset`PackagePrivate`expandedrange$4138800, TrackedSymbols :> {WSM`Typeset`PackagePrivate`expandedeval$4138800}]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null, WSM`Typeset`PackagePrivate`appearanceState$4138800 = "Expanded"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "5bad8104-e857-4a38-89d1-d042f94cc5bd"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = WSM`Typeset`PackagePrivate`expandedsize$4138800; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = WSM`Typeset`PackagePrivate`expandedrange$4138800; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{6, -6}, Scaled[{0, 1}]], Scaled[{0, 1}]], And["normal" === "normal", WSM`Typeset`PackagePrivate`appearanceState$4138800 === "Expanded"], InsetBox[ BoxData[ FormBox[ ButtonBox[ DynamicBox[ FEPrivate`FrontEndResource["FEBitmaps", "SquareMinusIconMedium"]], ButtonFunction :> ( WSM`Typeset`PackagePrivate`appearanceState$4138800 = "Minimal"; Module[{WSM`Typeset`PackagePrivate`cellobj$, WSM`Typeset`PackagePrivate`cellEditDup$}, If[ MathLink`CallFrontEnd[ FrontEnd`BoxReferenceFind[ FE`BoxReference[ EvaluationBox[], { FE`Parent[ "5bad8104-e857-4a38-89d1-d042f94cc5bd"]}]]], WSM`Typeset`PackagePrivate`cellobj$ = EvaluationCell[]; WSM`Typeset`PackagePrivate`cellEditDup$ = CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate]; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = False]; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, ImageSize}] = {108., 78.75}; CurrentValue[ FrontEnd`SelectionObject, {GraphicsBoxOptions, PlotRange}] = {{-54., 54.}, {-47.375, 31.375}}; If[ WSM`Typeset`PackagePrivate`cellEditDup$, CurrentValue[ WSM`Typeset`PackagePrivate`cellobj$, CellEditDuplicate] = True]; Null]]; Null), Appearance -> None, ContentPadding -> False, ImageSize -> {Automatic, Automatic}, Evaluator -> Automatic, Method -> "Preemptive"], TraditionalForm]], Offset[{10, -10}, Scaled[{0, 1}]]], True, {}]}, ImageSizeCache->{{0.5, 107.5}, {-41.25, 36.5}}, TrackedSymbols:>{WSM`Typeset`PackagePrivate`p$4138800}], Which[WSM`Typeset`PackagePrivate`appearanceState$4138800 === "Minimal", WSM`Typeset`PackagePrivate`p$4138800 = { InsetBox[ GraphicsBox[{ RGBColor[ 0.25098039215686274`, 0.25098039215686274`, 0.25098039215686274`], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"x'\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"f(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["``````", Style["x'", Italic, FontFamily -> "Times New Roman", FontSize -> 12], Style["=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["f(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[1, 10]}, {0, 0.1}]], InsetBox[ FormBox[ InterpretationBox[ "\"\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"0=\\\\\\\"\\\", Plain, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\\!\\(\\*FormBox[StyleBox[\\\"\\\\\\\"g(x,y,t)\\\\\\\"\\\", Italic, Rule[FontFamily, \\\"Times New Roman\\\"], Rule[FontSize, 12], Rule[StripOnInput, False]], TraditionalForm]\\)\"", StringForm["````", Style["0=", Plain, FontFamily -> "Times New Roman", FontSize -> 12], Style["g(x,y,t)", Italic, FontFamily -> "Times New Roman", FontSize -> 12]], Editable -> False], TraditionalForm], NCache[{0, Rational[-1, 10]}, {0, -0.1}]]}, PlotRangePadding -> None, ContentSelectable -> False, PlotRange -> NCache[{{ Rational[-2, 5], Rational[2, 5]}, { Rational[-1, 5], Rational[2, 5]}}, {{-0.4, 0.4}, {-0.2, 0.4}}], ImageSize -> NCache[{ UpTo[130], Rational[171, 4]}, { UpTo[130], 42.75}]], {0, 0}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}], {57., 42.75}], { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["\"BouncingBalls2D\"", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], {0, -35.875}, ImageScaled[{ Rational[1, 2], Rational[1, 2]}]]}, { EdgeForm[ RGBColor[0.5843137254901961, 0.807843137254902, 0.9411764705882353]], FaceForm[None], RectangleBox[{-53., -46.375}, {53., 30.375}, RoundingRadius -> Offset[5]]}, InsetBox[ BoxData[ FormBox[ GraphicsBox[ TagBox[ RasterBox[CompressedData[" 1:eJzN1VlI1FEUx/FJzT3TxkooKitaaHkoIYOKjAha6MESErJwyMSgkUahlRZ6 CqJoh6CihbaHiuihoH2lImgvMtozjTKzUtP09L3c86c/k+NGD/3hM/7nD/Ob M+eee031FWbOD/N4PEXRvGTmLs4IBHKXzkjkTZa/qCDfnzdvsr84Lz8vkO4L 52GKioC0fDWqX/iJH6jAG9zFaWxFAcajB2I8erUi3/mOBtShGl/wHg9xFjtR iEnohbh25tejBpUoxWNcxC4swlT0Rfw/yP+AJziP3Qhofn8ktCHf6b+TX635 pj+PcE5sf0z9U5CKTu3IN+tr+u+s71vcF7u+27FQ/vS/Lf1xanfm5zs+4SXu 4CQ2Ih/j0FNav77BtZvefxXb+xLcwBGsxVyMQndEt5DfKH/3vVZr/yx29h+I 7b2ZnSWYieHogo6u/MYQnJ7Ua1+cdS3T2m/iONZjASaKXdvOCHPlN4TgZNdq tunLR7wSu2/NvjJzuQLZSEMKYj2uSzOC1WnNNdqTSs1+LXbPXsZhrNPazdwM RJK7N5pfozW6mWdmDqvEzmKZ1m2yr+IYNqEYWRiptcd7gi793Sbnm/6t0nor tOZ3eI57uKI934ZlyMEY9EEiIprIN7NWrlnlqlRn5IXYM+a22HPgKLZgOXzI wAB4xXVmBuU/1Xko0TqfaabZm7dwCaewDxvEzuIczR6CrohDhxD55vPXxO6V 69rfCziDE9iPzVgDP2aJPecHo5vpubjmsYn8vTiIQ+oA9mCH2NleJfbsysU0 pKOfq+7wUNmab9Zppda3Wu/NsyKx/5NmYzrGYpjY88Xs0djm6nblm32drbOQ o/fmmTnLJ2A0hoo9F5ORgKiWcl355swYIXb/pem9eTYIvcXOtVdzY1pTc1B+ kv7eZOXV90maafoQ2dZcV364fj5KRapm1+1/uX4DOnc/KA== "], {{0, 24.}, {24., 0}}, {0, 255}, ColorFunction -> RGBColor, ImageResolution -> {72, 72}], BoxForm`ImageTag["Byte", ColorSpace -> "RGB", Interleaving -> True], Selectable -> False], DefaultBaseStyle -> "ImageGraphics", ImageSizeRaw -> {24., 24.}, PlotRange -> {{0, 24.}, {0, 24.}}], TraditionalForm]], Offset[{6, -6}, ImageScaled[{0, 1}]], ImageScaled[{0, 1}], {24, 24}]}; Null, WSM`Typeset`PackagePrivate`appearanceState$4138800 === "Eval", WSM`Typeset`PackagePrivate`p$4138800 = {{ EdgeForm[ WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$4138800, 1, 1], Part[ WSM`Typeset`PackagePrivate`expandedrange$4138800, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$4138800, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$4138800, 2, 2]}, RoundingRadius -> Offset[5]]}, InsetBox[ Evaluate[ ToBoxes[ ProgressIndicator[Appearance -> "Percolate"], StandardForm]]]}; Module[{WSM`Typeset`PackagePrivate`md$}, {WSM`Typeset`PackagePrivate`expandedsize$4138800, WSM`Typeset`PackagePrivate`md$} = WSM`Typeset`PackagePrivate`getExpandedGraphic[ "EducationExamples.Physics.BouncingBalls.BouncingBalls2D", "5bad8104-e857-4a38-89d1-d042f94cc5bd"]; {WSM`Typeset`PackagePrivate`expandedprimitives$4138800, WSM`Typeset`PackagePrivate`expandedopt$4138800} = WSM`Typeset`PackagePrivate`separateGraphics[ WSM`Typeset`PackagePrivate`md$]; WSM`Typeset`PackagePrivate`expandedrange$4138800 = Replace[PlotRange, Flatten[WSM`Typeset`PackagePrivate`expandedopt$4138800]]; WSM`Typeset`PackagePrivate`expandedeval$4138800 = True; WSM`Typeset`PackagePrivate`expandedprimitives$4138800 = Join[ WSM`Typeset`PackagePrivate`expandedprimitives$4138800, {{ EdgeForm[WSM`Typeset`PackagePrivate`$bordercolor], FaceForm[None], RectangleBox[{ Part[ WSM`Typeset`PackagePrivate`expandedrange$4138800, 1, 1], Part[WSM`Typeset`PackagePrivate`expandedrange$4138800, 2, 1] + 1}, {Part[ WSM`Typeset`PackagePrivate`expandedrange$4138800, 1, 2] - 1, Part[WSM`Typeset`PackagePrivate`expandedrange$4138800, 2, 2]}, RoundingRadius -> Offset[5]]}, With[{WSM`Typeset`PackagePrivate`leftmost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$4138800, 1, 1], WSM`Typeset`PackagePrivate`bottommost$ = Part[ WSM`Typeset`PackagePrivate`expandedrange$4138800, 2, 1]}, { RGBColor[ 0.43137254901960786`, 0.43137254901960786`, 0.43137254901960786`], InsetBox[ FormBox[ StyleBox["BouncingBalls2D", FontSize -> 9, FontFamily -> "Helvetica", StripOnInput -> False], TraditionalForm], Offset[{12, 12}, {WSM`Typeset`PackagePrivate`leftmost$, WSM`Typeset`PackagePrivate`bottommost$}], {-1, 0}]}]}]; Null]; WSM`Typeset`PackagePrivate`appearanceState$4138800 = "Expanded"; Null, WSM`Typeset`PackagePrivate`appearanceState$4138800 === "Expanded", WSM`Typeset`PackagePrivate`p$4138800 = WSM`Typeset`PackagePrivate`expandedprimitives$4138800; Null]; Null, ImageSizeCache->{{0.5, 107.5}, {-41.25, 36.5}}, SynchronousUpdating->False, TrackedSymbols:>{WSM`Typeset`PackagePrivate`appearanceState$4138800}], Initialization:>( WSM`Typeset`PackagePrivate`expandedeval$4138800 = Not[ WSM`Typeset`PackagePrivate`expandedeval$4138800]; WSM`Typeset`PackagePrivate`expandedeval$4138800 = Not[ WSM`Typeset`PackagePrivate`expandedeval$4138800]; Null)], "EducationExamples.Physics.BouncingBalls.BouncingBalls2D"], WSM`ModelTag[ "EducationExamples.Physics.BouncingBalls.BouncingBalls2D"]], Editable -> False, SelectWithContents -> True, BoxID -> "5bad8104-e857-4a38-89d1-d042f94cc5bd", ContentSelectable->False, DefaultBaseStyle->{"Graphics", FrontEnd`GraphicsHighlightColor -> RGBColor[0, 0.46775, 1], ComponentwiseContextMenu -> {"GraphicsBox" -> { MenuItem[ "Copy Model", KernelExecute[ CopyToClipboard[ ReleaseHold[ MakeExpression[ MakeBoxes[ SystemModel[ "EducationExamples.Physics.BouncingBalls.BouncingBalls2D"]], StandardForm]]]], MenuEvaluator -> Automatic], MenuItem["Copy Model Name", KernelExecute[ CopyToClipboard[( "\"" <> "EducationExamples.Physics.BouncingBalls.BouncingBalls2D") <> "\""]], MenuEvaluator -> Automatic], Delimiter, MenuItem["Simulate Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelSimulate", "[", "\"EducationExamples.Physics.BouncingBalls.BouncingBalls2D\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Preferred Plots in Model", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModelPlot", "[", "\"EducationExamples.Physics.BouncingBalls.BouncingBalls2D\"", "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], MenuItem["Show Model Information", FrontEndExecute[{ FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], After, Cell], FrontEnd`NotebookWrite[ FrontEnd`InputNotebook[], Cell[ BoxData[ RowBox[{"SystemModel", "[", RowBox[{"\"EducationExamples.Physics.BouncingBalls.BouncingBalls2D\"", ",", "\"Summary\""}], "]"}]], "PastedInput"]], FrontEnd`SelectionMove[ FrontEnd`InputNotebook[], Previous, Cell], FrontEnd`SelectionEvaluateCreateCell[ FrontEnd`InputNotebook[]]}]], Delimiter, MenuItem["Open in System Modeler Model Center", KernelExecute[ WSMLink`WSMModelCenter[ "EducationExamples.Physics.BouncingBalls.BouncingBalls2D"]], MenuEvaluator -> Automatic], MenuItem["Open in System Modeler Simulation Center", KernelExecute[ WSMLink`WSMSimulationCenter[ "EducationExamples.Physics.BouncingBalls.BouncingBalls2D"]], MenuEvaluator -> Automatic]}}}, ImageSize->{108., 78.75}, PlotRange->{{-54., 54.}, {-47.375, 31.375}}]\), {"wallx", 5, 10}, {"wally", 5, 10}, PlotRange -> {{-10, 10}, {-10, 10}}, ImageSize -> 300]
Out[23]=
