Enumerate possible foliations of a directed acyclic graph

Contributed by: Nikolay Murzin

ResourceFunction["GraphFoliations"][g]

returns foliations of a graph g.

Details and Options

ResourceFunction["GraphFoliations"] recursively generates foliations by popping sources off the given graph and reattaching them back in all possible ways.
ResourceFunction["GraphFoliations"] takes the following options:
"IncludePermutations"Falsewhether to include all permutations of slices for disconnected vertices
"BundleFoliations"Falsewhether to bundle all newly added vertices into one foliation or try all combinations
"Direction"Bottomthe direction to start building foliations (Top or Bottom)
MaxItems∞set the upper limit of returned foliations

Examples

Basic Examples (1)

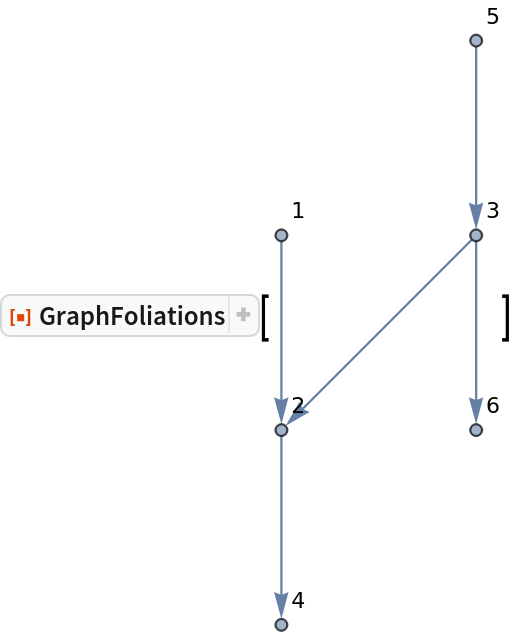

Enumerate foliations of a graph:

In[1]:=
ResourceFunction["GraphFoliations"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{5, 3, 2, 6, 1, 4}, {{{1, 2}, {2, 3}, {2, 4}, {5, 3}, {3, 6}}, Null}, {VertexLabels -> {Automatic}}]]}, TagBox[GraphicsGroupBox[{ {Hue[0.6, 0.7, 0.5], Opacity[0.7], Arrowheads[Medium], ArrowBox[{{0., 3.}, {0., 2.}}, 0.030239520958083826`], ArrowBox[{{0., 2.}, {-1., 1.}}, 0.030239520958083826`], ArrowBox[{{0., 2.}, {0., 1.}}, 0.030239520958083826`], ArrowBox[{{-1., 1.}, {-1., 0.}}, 0.030239520958083826`], ArrowBox[{{-1., 2.}, {-1., 1.}}, 0.030239520958083826`]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[ 0.7]}], {DiskBox[{0., 3.}, 0.030239520958083826], InsetBox["5", Offset[{2, 2}, {0.030239520958083826, 3.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 2.}, 0.030239520958083826], InsetBox["3", Offset[{2, 2}, {0.030239520958083826, 2.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{-1., 1.}, 0.030239520958083826], InsetBox["2", Offset[{2, 2}, {-0.9697604790419162, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 1.}, 0.030239520958083826], InsetBox["6", Offset[{2, 2}, {0.030239520958083826, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{-1., 2.}, 0.030239520958083826], InsetBox["1", Offset[{2, 2}, {-0.9697604790419162, 2.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{-1., 0.}, 0.030239520958083826], InsetBox["4", Offset[{2, 2}, {-0.9697604790419162, 0.030239520958083826}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}}}], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None, ImageSize->{102.56495164862986`, Automatic}]\)]
Out[1]=

Options (4)

IncludePermutations (1)

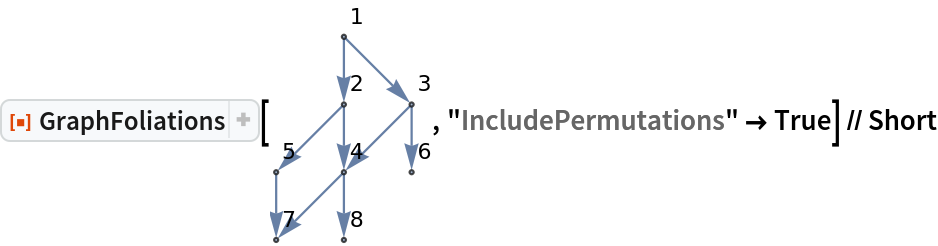

This will return foliations with all possible slice permutations:

In[2]:=
ResourceFunction["GraphFoliations"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6, 7, 8}, {{{1, 2}, {1, 3}, {2, 4}, {3, 4}, {2, 5}, {3, 6}, {4, 7}, {5, 7}, {4, 8}}, Null}, {FormatType -> TraditionalForm, GraphLayout -> {"Dimension" -> 2}, VertexLabels -> {Automatic}}]]}, TagBox[GraphicsGroupBox[{ {Hue[0.6, 0.7, 0.5], Opacity[0.7], Arrowheads[Medium], ArrowBox[{{0., 3.}, {0., 2.}}, 0.030239520958083826`], ArrowBox[{{0., 3.}, {1., 2.}}, 0.030239520958083826`], ArrowBox[{{0., 2.}, {0., 1.}}, 0.030239520958083826`], ArrowBox[{{0., 2.}, {-1., 1.}}, 0.030239520958083826`], ArrowBox[{{1., 2.}, {0., 1.}}, 0.030239520958083826`], ArrowBox[{{1., 2.}, {1., 1.}}, 0.030239520958083826`], ArrowBox[{{0., 1.}, {-1., 0.}}, 0.030239520958083826`], ArrowBox[{{0., 1.}, {0., 0.}}, 0.030239520958083826`], ArrowBox[{{-1., 1.}, {-1., 0.}}, 0.030239520958083826`]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[ 0.7]}], {DiskBox[{0., 3.}, 0.030239520958083826], InsetBox["1", Offset[{2, 2}, {0.030239520958083826, 3.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 2.}, 0.030239520958083826], InsetBox["2", Offset[{2, 2}, {0.030239520958083826, 2.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{1., 2.}, 0.030239520958083826], InsetBox["3", Offset[{2, 2}, {1.030239520958084, 2.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 1.}, 0.030239520958083826], InsetBox["4", Offset[{2, 2}, {0.030239520958083826, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{-1., 1.}, 0.030239520958083826], InsetBox["5", Offset[{2, 2}, {-0.9697604790419162, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{1., 1.}, 0.030239520958083826], InsetBox["6", Offset[{2, 2}, {1.030239520958084, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{-1., 0.}, 0.030239520958083826], InsetBox["7", Offset[{2, 2}, {-0.9697604790419162, 0.030239520958083826}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 0.}, 0.030239520958083826], InsetBox["8", Offset[{2, 2}, {0.030239520958083826, 0.030239520958083826}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}}}], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), "IncludePermutations" -> True] // Short
Out[2]=

BundleFoliations (1)

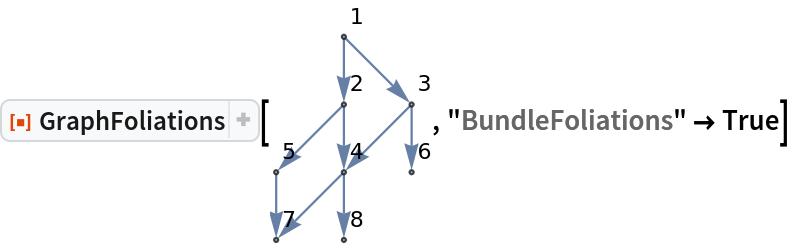

Bundling of foliations will always try to combine vertices into one slice if possible:

In[3]:=
ResourceFunction["GraphFoliations"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6, 7, 8}, {{{1, 2}, {1, 3}, {2, 4}, {3, 4}, {2, 5}, {3, 6}, {4, 7}, {5, 7}, {4, 8}}, Null}, {FormatType -> TraditionalForm, GraphLayout -> {"Dimension" -> 2}, VertexLabels -> {Automatic}}]]}, TagBox[GraphicsGroupBox[{ {Hue[0.6, 0.7, 0.5], Opacity[0.7], Arrowheads[Medium], ArrowBox[{{0., 3.}, {0., 2.}}, 0.030239520958083826`], ArrowBox[{{0., 3.}, {1., 2.}}, 0.030239520958083826`], ArrowBox[{{0., 2.}, {0., 1.}}, 0.030239520958083826`], ArrowBox[{{0., 2.}, {-1., 1.}}, 0.030239520958083826`], ArrowBox[{{1., 2.}, {0., 1.}}, 0.030239520958083826`], ArrowBox[{{1., 2.}, {1., 1.}}, 0.030239520958083826`], ArrowBox[{{0., 1.}, {-1., 0.}}, 0.030239520958083826`], ArrowBox[{{0., 1.}, {0., 0.}}, 0.030239520958083826`], ArrowBox[{{-1., 1.}, {-1., 0.}}, 0.030239520958083826`]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[ 0.7]}], {DiskBox[{0., 3.}, 0.030239520958083826], InsetBox["1", Offset[{2, 2}, {0.030239520958083826, 3.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 2.}, 0.030239520958083826], InsetBox["2", Offset[{2, 2}, {0.030239520958083826, 2.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{1., 2.}, 0.030239520958083826], InsetBox["3", Offset[{2, 2}, {1.030239520958084, 2.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 1.}, 0.030239520958083826], InsetBox["4", Offset[{2, 2}, {0.030239520958083826, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{-1., 1.}, 0.030239520958083826], InsetBox["5", Offset[{2, 2}, {-0.9697604790419162, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{1., 1.}, 0.030239520958083826], InsetBox["6", Offset[{2, 2}, {1.030239520958084, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{-1., 0.}, 0.030239520958083826], InsetBox["7", Offset[{2, 2}, {-0.9697604790419162, 0.030239520958083826}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 0.}, 0.030239520958083826], InsetBox["8", Offset[{2, 2}, {0.030239520958083826, 0.030239520958083826}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}}}], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), "BundleFoliations" -> True]
Out[3]=

Direction (1)

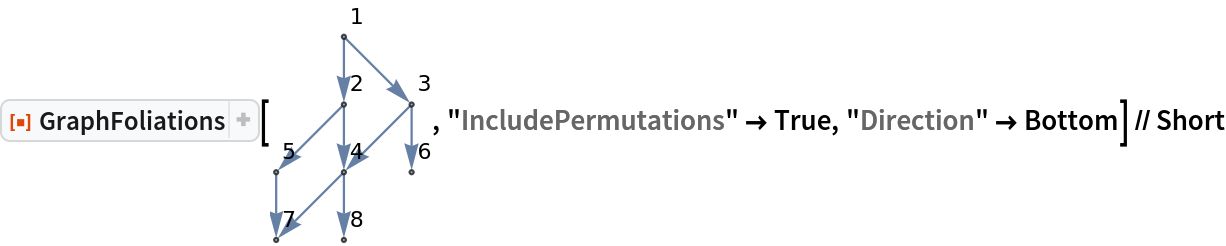

Building foliations from bottom to top may result in different unbundled foliations:

In[4]:=
ResourceFunction["GraphFoliations"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6, 7, 8}, {{{1, 2}, {1, 3}, {2, 4}, {3, 4}, {2, 5}, {3, 6}, {4, 7}, {5, 7}, {4, 8}}, Null}, {FormatType -> TraditionalForm, GraphLayout -> {"Dimension" -> 2}, VertexLabels -> {Automatic}}]]}, TagBox[GraphicsGroupBox[{ {Hue[0.6, 0.7, 0.5], Opacity[0.7], Arrowheads[Medium], ArrowBox[{{0., 3.}, {0., 2.}}, 0.030239520958083826`], ArrowBox[{{0., 3.}, {1., 2.}}, 0.030239520958083826`], ArrowBox[{{0., 2.}, {0., 1.}}, 0.030239520958083826`], ArrowBox[{{0., 2.}, {-1., 1.}}, 0.030239520958083826`], ArrowBox[{{1., 2.}, {0., 1.}}, 0.030239520958083826`], ArrowBox[{{1., 2.}, {1., 1.}}, 0.030239520958083826`], ArrowBox[{{0., 1.}, {-1., 0.}}, 0.030239520958083826`], ArrowBox[{{0., 1.}, {0., 0.}}, 0.030239520958083826`], ArrowBox[{{-1., 1.}, {-1., 0.}}, 0.030239520958083826`]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[ 0.7]}], {DiskBox[{0., 3.}, 0.030239520958083826], InsetBox["1", Offset[{2, 2}, {0.030239520958083826, 3.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 2.}, 0.030239520958083826], InsetBox["2", Offset[{2, 2}, {0.030239520958083826, 2.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{1., 2.}, 0.030239520958083826], InsetBox["3", Offset[{2, 2}, {1.030239520958084, 2.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 1.}, 0.030239520958083826], InsetBox["4", Offset[{2, 2}, {0.030239520958083826, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{-1., 1.}, 0.030239520958083826], InsetBox["5", Offset[{2, 2}, {-0.9697604790419162, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{1., 1.}, 0.030239520958083826], InsetBox["6", Offset[{2, 2}, {1.030239520958084, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{-1., 0.}, 0.030239520958083826], InsetBox["7", Offset[{2, 2}, {-0.9697604790419162, 0.030239520958083826}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 0.}, 0.030239520958083826], InsetBox["8", Offset[{2, 2}, {0.030239520958083826, 0.030239520958083826}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}}}], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), "IncludePermutations" -> True, "Direction" -> Bottom] // Short
Out[4]=
In[5]:=
ResourceFunction["GraphFoliations"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6, 7, 8}, {{{1, 2}, {1, 3}, {2, 4}, {3, 4}, {2, 5}, {3, 6}, {4, 7}, {5, 7}, {4, 8}}, Null}, {FormatType -> TraditionalForm, GraphLayout -> {"Dimension" -> 2}, VertexLabels -> {Automatic}}]]}, TagBox[GraphicsGroupBox[{ {Hue[0.6, 0.7, 0.5], Opacity[0.7], Arrowheads[Medium], ArrowBox[{{0., 3.}, {0., 2.}}, 0.030239520958083826`], ArrowBox[{{0., 3.}, {1., 2.}}, 0.030239520958083826`], ArrowBox[{{0., 2.}, {0., 1.}}, 0.030239520958083826`], ArrowBox[{{0., 2.}, {-1., 1.}}, 0.030239520958083826`], ArrowBox[{{1., 2.}, {0., 1.}}, 0.030239520958083826`], ArrowBox[{{1., 2.}, {1., 1.}}, 0.030239520958083826`], ArrowBox[{{0., 1.}, {-1., 0.}}, 0.030239520958083826`], ArrowBox[{{0., 1.}, {0., 0.}}, 0.030239520958083826`], ArrowBox[{{-1., 1.}, {-1., 0.}}, 0.030239520958083826`]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[ 0.7]}], {DiskBox[{0., 3.}, 0.030239520958083826], InsetBox["1", Offset[{2, 2}, {0.030239520958083826, 3.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 2.}, 0.030239520958083826], InsetBox["2", Offset[{2, 2}, {0.030239520958083826, 2.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{1., 2.}, 0.030239520958083826], InsetBox["3", Offset[{2, 2}, {1.030239520958084, 2.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 1.}, 0.030239520958083826], InsetBox["4", Offset[{2, 2}, {0.030239520958083826, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{-1., 1.}, 0.030239520958083826], InsetBox["5", Offset[{2, 2}, {-0.9697604790419162, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{1., 1.}, 0.030239520958083826], InsetBox["6", Offset[{2, 2}, {1.030239520958084, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{-1., 0.}, 0.030239520958083826], InsetBox["7", Offset[{2, 2}, {-0.9697604790419162, 0.030239520958083826}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 0.}, 0.030239520958083826], InsetBox["8", Offset[{2, 2}, {0.030239520958083826, 0.030239520958083826}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}}}], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), "IncludePermutations" -> True, "Direction" -> Top] // Short
Out[5]=

MaxItems (1)

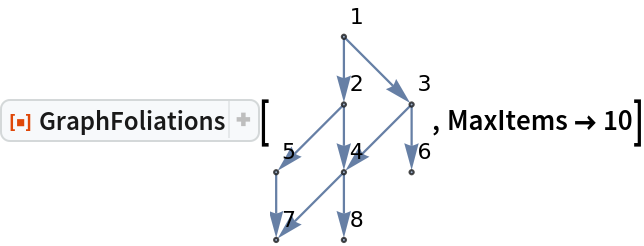

Limit enumeration with an upper bound for returned results:

In[6]:=
ResourceFunction["GraphFoliations"][\!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6, 7, 8}, {{{1, 2}, {1, 3}, {2, 4}, {3, 4}, {2, 5}, {3, 6}, {4, 7}, {5, 7}, {4, 8}}, Null}, {FormatType -> TraditionalForm, GraphLayout -> {"Dimension" -> 2}, VertexLabels -> {Automatic}}]]}, TagBox[GraphicsGroupBox[{ {Hue[0.6, 0.7, 0.5], Opacity[0.7], Arrowheads[Medium], ArrowBox[{{0., 3.}, {0., 2.}}, 0.030239520958083826`], ArrowBox[{{0., 3.}, {1., 2.}}, 0.030239520958083826`], ArrowBox[{{0., 2.}, {0., 1.}}, 0.030239520958083826`], ArrowBox[{{0., 2.}, {-1., 1.}}, 0.030239520958083826`], ArrowBox[{{1., 2.}, {0., 1.}}, 0.030239520958083826`], ArrowBox[{{1., 2.}, {1., 1.}}, 0.030239520958083826`], ArrowBox[{{0., 1.}, {-1., 0.}}, 0.030239520958083826`], ArrowBox[{{0., 1.}, {0., 0.}}, 0.030239520958083826`], ArrowBox[{{-1., 1.}, {-1., 0.}}, 0.030239520958083826`]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[ 0.7]}], {DiskBox[{0., 3.}, 0.030239520958083826], InsetBox["1", Offset[{2, 2}, {0.030239520958083826, 3.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 2.}, 0.030239520958083826], InsetBox["2", Offset[{2, 2}, {0.030239520958083826, 2.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{1., 2.}, 0.030239520958083826], InsetBox["3", Offset[{2, 2}, {1.030239520958084, 2.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 1.}, 0.030239520958083826], InsetBox["4", Offset[{2, 2}, {0.030239520958083826, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{-1., 1.}, 0.030239520958083826], InsetBox["5", Offset[{2, 2}, {-0.9697604790419162, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{1., 1.}, 0.030239520958083826], InsetBox["6", Offset[{2, 2}, {1.030239520958084, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{-1., 0.}, 0.030239520958083826], InsetBox["7", Offset[{2, 2}, {-0.9697604790419162, 0.030239520958083826}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 0.}, 0.030239520958083826], InsetBox["8", Offset[{2, 2}, {0.030239520958083826, 0.030239520958083826}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}}}], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\), MaxItems -> 10]
Out[6]=

Applications (1)

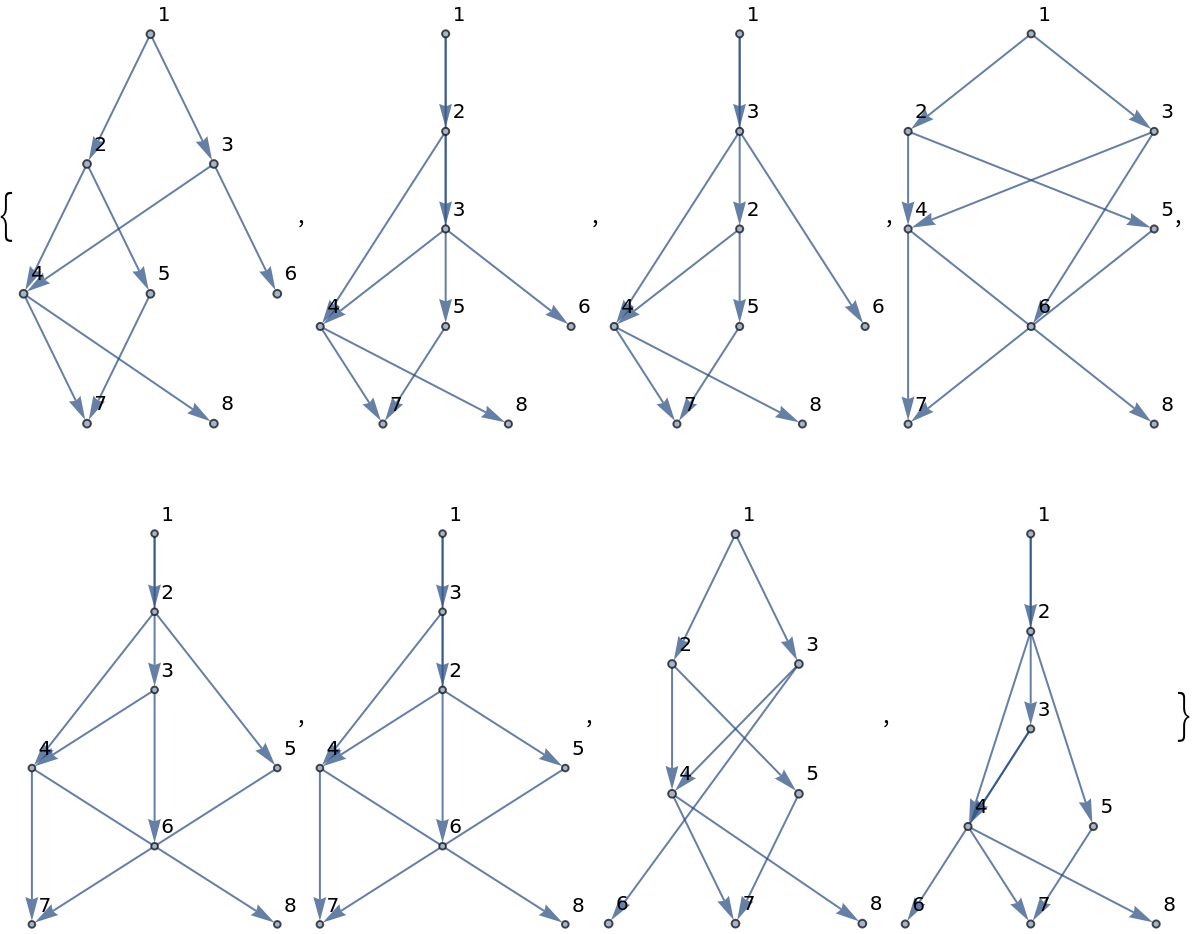

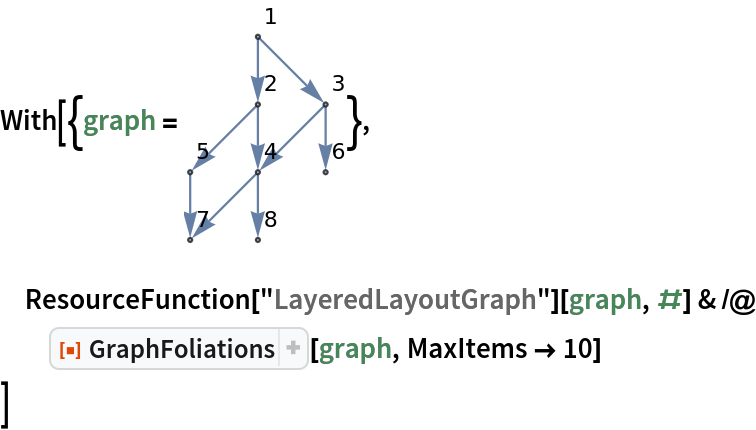

Use foliations for LayeredLayoutGraph layers of a graph:

In[7]:=
With[{graph = \!\(\* GraphicsBox[ NamespaceBox["NetworkGraphics", DynamicModuleBox[{Typeset`graph = HoldComplete[ Graph[{1, 2, 3, 4, 5, 6, 7, 8}, {{{1, 2}, {1, 3}, {2, 4}, {3, 4}, {2, 5}, {3, 6}, {4, 7}, {5, 7}, {4, 8}}, Null}, {FormatType -> TraditionalForm, GraphLayout -> {"Dimension" -> 2}, VertexLabels -> {Automatic}}]]}, TagBox[GraphicsGroupBox[{ {Hue[0.6, 0.7, 0.5], Opacity[0.7], Arrowheads[Medium], ArrowBox[{{0., 3.}, {0., 2.}}, 0.030239520958083826`], ArrowBox[{{0., 3.}, {1., 2.}}, 0.030239520958083826`], ArrowBox[{{0., 2.}, {0., 1.}}, 0.030239520958083826`], ArrowBox[{{0., 2.}, {-1., 1.}}, 0.030239520958083826`], ArrowBox[{{1., 2.}, {0., 1.}}, 0.030239520958083826`], ArrowBox[{{1., 2.}, {1., 1.}}, 0.030239520958083826`], ArrowBox[{{0., 1.}, {-1., 0.}}, 0.030239520958083826`], ArrowBox[{{0., 1.}, {0., 0.}}, 0.030239520958083826`], ArrowBox[{{-1., 1.}, {-1., 0.}}, 0.030239520958083826`]}, {Hue[0.6, 0.2, 0.8], EdgeForm[{GrayLevel[0], Opacity[ 0.7]}], {DiskBox[{0., 3.}, 0.030239520958083826], InsetBox["1", Offset[{2, 2}, {0.030239520958083826, 3.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 2.}, 0.030239520958083826], InsetBox["2", Offset[{2, 2}, {0.030239520958083826, 2.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{1., 2.}, 0.030239520958083826], InsetBox["3", Offset[{2, 2}, {1.030239520958084, 2.0302395209580837}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 1.}, 0.030239520958083826], InsetBox["4", Offset[{2, 2}, {0.030239520958083826, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{-1., 1.}, 0.030239520958083826], InsetBox["5", Offset[{2, 2}, {-0.9697604790419162, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{1., 1.}, 0.030239520958083826], InsetBox["6", Offset[{2, 2}, {1.030239520958084, 1.030239520958084}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{-1., 0.}, 0.030239520958083826], InsetBox["7", Offset[{2, 2}, {-0.9697604790419162, 0.030239520958083826}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}, {DiskBox[{0., 0.}, 0.030239520958083826], InsetBox["8", Offset[{2, 2}, {0.030239520958083826, 0.030239520958083826}], ImageScaled[{0, 0}], BaseStyle->"Graphics"]}}}], MouseAppearanceTag["NetworkGraphics"]], AllowKernelInitialization->False]], DefaultBaseStyle->{"NetworkGraphics", FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]}, FormatType->TraditionalForm, FrameTicks->None]\)}, ResourceFunction["LayeredLayoutGraph"][graph, #] & /@ ResourceFunction["GraphFoliations"][graph, MaxItems -> 10] ]
Out[7]=
