Use Coupled Dynamic Image Objects To Compare Images

Open in Cloud
Download Notebook

Compare two satellite images of Venice, Italy, using an interactive graphical user interface

Consider two satellite images. The first image is a radar image taken by the ESA satellite Sentinel-1 on Sep 09 2017; the second image is an optical photograph taken by Sentinel-2 on Sep 21 2017:

In[1]:=

{img1,img2}=Import

url1

,Import

url2

;

Use

DynamicImage

on one of the images to display a dynamic version of the image, specifying the center of the image and zoom factor. Use click+drag on the image to pan, and Shift+click+drag vertically to zoom in or out. Move the scrollbar ends to change the cropping:

In[2]:=

DynamicImageimg2,ZoomCenter{1850,800},ZoomFactor0.5,

...



Out[2]=

Use

DynamicModule

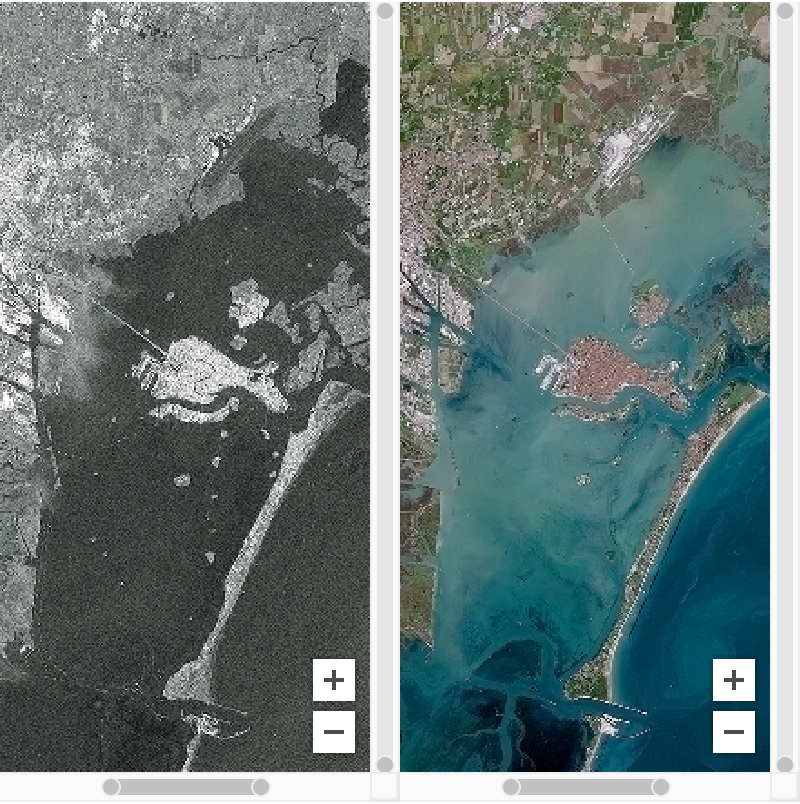

to draw interactive graphics primitives on top of the two images displayed together. Try zooming and panning one of the images:

In[3]:=

DynamicModule{x,y,s},RowDynamicImageimg1,ZoomCenterDynamic[Scaled[{x,y}]],ZoomFactorDynamic[s],AppearanceElements{"Pan","Scrollbars","ZoomButtons","Zoom"},

...

,DynamicImageimg2,ZoomCenterDynamic[Scaled[{x,y}]],ZoomFactorDynamic[s],AppearanceElements{"Pan","Scrollbars","ZoomButtons","Zoom"},

...



Out[3]=
