Compute and Visualize Retrograde Motion

Explore the apparent backwards motion of the outer planets in the sky

Open in Cloud
Download Notebook

Retrograde motion of the outer planets starts and ends near the time of opposition, when a planet is opposite from the Sun in the sky.

Set up a utility function to get the time of the next opposition of a planet:

In[1]:=

getNextOpposition[entity_Entity]:=entity[Dated["OppositionTimeNext",DateObject[{2022,7,1}]]]

Define a function to construct a list of positions of a planet in a range of dates surrounding its next opposition:

In[2]:=

planetPositionNearOpposition[entity_Entity,offset_Quantity,step_Quantity]:=Module[{opposition,daterange},opposition=getNextOpposition[entity];If[MissingQ[opposition],Return[Missing["NotApplicable"]]];daterange=DateRange[opposition-offset,opposition+offset,step];AstroPosition[entity,{"Equatorial",#}]&/@daterange]

Compute the position of Mars every 3 days, from 5 months before to 5 months after opposition:

In[3]:=

mars=planetPositionNearOpposition

Mars

PLANET

,Quantity[5,"Months"],Quantity[3,"Days"];

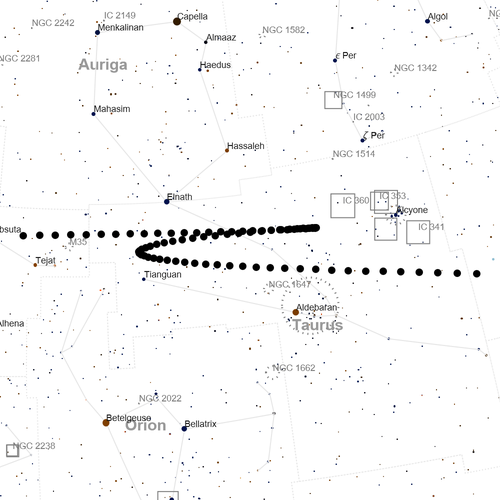

Visualize Mars moving from west to east (right to left) near and along the ecliptic plane, but then appearing to move backwards before resuming its typical westward motion:

In[4]:=

AstroGraphics[{White,Point[mars]},AstroReferenceFrame"Ecliptic"]

Out[4]=

All of the outer planets can exhibit retrograde motion, for example Neptune:

In[5]:=

neptune=planetPositionNearOpposition

Neptune

PLANET

,Quantity[8,"Months"],Quantity[3,"Days"];

In[6]:=

AstroGraphics[{White,Point[neptune]},AstroReferenceFrame"Ecliptic"]

Out[6]=

Planets inside the orbit of Earth, like Venus and Mercury, do not exhibit retrograde motion:

In[7]:=

planetPositionNearOpposition

Venus

PLANET

,Quantity[8,"Months"],Quantity[3,"Days"]

Out[7]=

Missing[NotApplicable]

Related Symbols

AstroGraphics
AstroPosition

Publisher Information

Contributed by: Jeff Bryant
