Clean and Enhance a Scanned 3D Mesh

Simplify, re-mesh, smooth, repair and restore visual attributes on a scanned 3D mesh

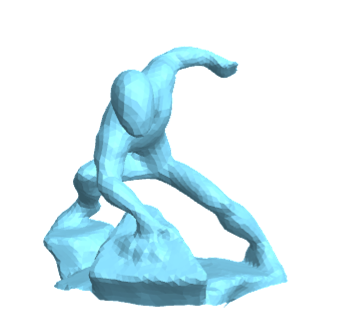

Scanned 3D models often contain dense geometry, uneven triangles, surface noise and small defects that make them harder to render or process. This example starts from a scanned mesh and applies a compact cleanup pipeline: mesh-size inspection, simplification, re-meshing, smoothing, hole repair, and restoration of vertex colors and normals from the original model. The result is a lighter and cleaner mesh that preserves the visual appearance of the scan.

Start with an imported scanned mesh that preserves the object's geometry, vertex colors and surface normals:

In[1]:=

model=

;

Measure the number of vertices, edges and faces in the original mesh:

In[2]:=

Dataset[Transpose@{{"vertex","edge","face"},MeshCellCount[model]}]

Out[2]=

vertex	37253
edge	110948
face	73692

Simplify the mesh to reduce the number of cells while preserving the overall shape of the scanned object:

In[3]:=

newmodel=SimplifyMesh[model]

Out[3]=

Compare the simplified mesh size with the original mesh:

In[4]:=

Dataset[Transpose@{{"vertex","edge","face"},MeshCellCount[newmodel]}]

Out[4]=

vertex	3726
edge	11074
face	7345

Remesh the simplified model to improve triangle quality and produce a more uniform surface for later processing:

In[5]:=

newmodel=Remesh[newmodel]

Out[5]=

Smooth the remeshed surface to reduce scan noise:

In[6]:=

newmodel=SmoothMesh[newmodel]

Out[6]=

Repair hole edges in the processed mesh to close small surface gaps and improve mesh integrity:

In[7]:=

newmodel=RepairMesh[newmodel,"HoleEdges"]

Out[7]=

Create a nearest-neighbor mapping from the original mesh coordinates to their vertex colors:

In[8]:=

cfunc=Nearest[MeshCoordinates[model]Options[model,VertexColors]〚1,2〛];

Create a nearest-neighbor mapping from the original mesh coordinates to their vertex normals:

In[9]:=

nfunc=Nearest[MeshCoordinates[model]Options[model,VertexNormals]〚1,2〛];

Transfer the original colors and normals onto the cleaned mesh:

In[10]:=

coords=MeshCoordinates[newmodel];newmodel=MeshRegion[newmodel,VertexColorscfunc[coords]〚All,1〛,VertexNormalsnfunc[coords]〚All,1〛]

Out[10]=
