Bacteriophage Head-Tail Connector Protein

Visualize and analyze a bacteriophage protein structure

Open in Cloud
Download Notebook

Install the ProteinVisualization paclet and load the package:

In[1]:=

PacletInstall["WolframChemistry/ProteinVisualization"];Needs["WolframChemistry`ProteinVisualization`"]

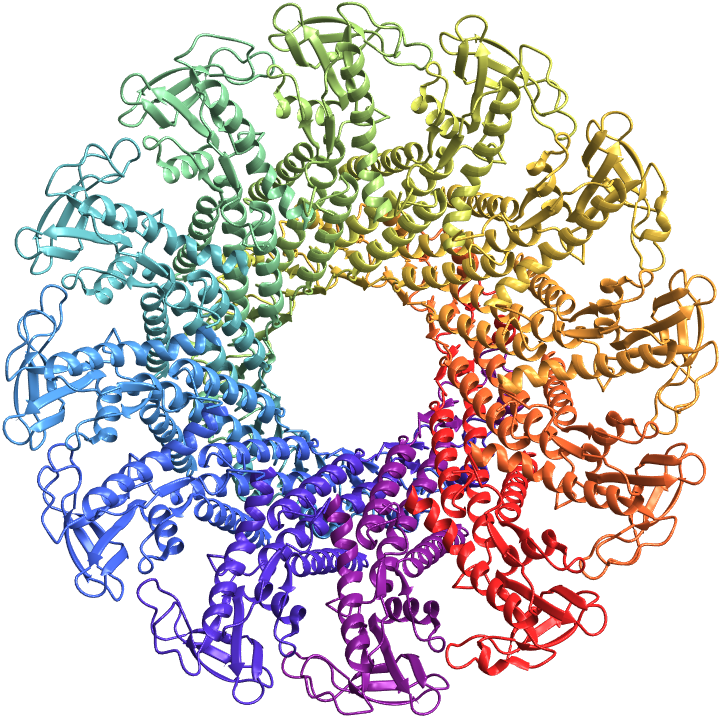

Visualize the structure of the bacteriophage head-tail connector protein as a ribbon diagram:

In[2]:=

BiomoleculePlot3D["1IJG",ViewPointAbove]

Out[2]=

Generate a 3D plot of the backbone atoms and bonds of the protein, and color code the atoms by amino acid residues:

In[3]:=

ProteinBackboneAtomPlot["1IJG",PlotTheme"SpaceFilling","ShowSideChains"False,ViewPointAbove]

Out[3]=

Show the α-carbon trace of the protein, color coded by chains:

In[4]:=

AlphaCarbonPathPlot3D["1IJG","BackboneColorRules"{"Chains",Automatic},ViewPointAbove]

Out[4]=

To highlight the planar geometry of peptide bonds, show the amide planes along with the backbone atoms and bonds of the protein:

In[5]:=

AmidePlanePlot["1IJG",PlotTheme"Tubes",ViewPointAbove]

Out[5]=

Highlight the planes that form dihedral angles ϕ and ψ to get residue information and dihedral angle values upon mouse hover:

In[6]:=

DihedralAnglePlot["1IJG",ViewPointAbove]

Out[6]=

Plot the dihedral angles ϕ and ψ on a Ramachandran plot:

In[7]:=

RamachandranPlot["1IJG","ResidueColors"True,ImageSize500,PlotStylePointSize[0.01]]

Out[7]=

Create a contact map displaying residue-residue distances:

In[8]:=

ProteinContactMap["1IJG","ShowResidues"True,ImageSize450]

Out[8]=

Visualize the residue-residue interactions within 8 Angstroms:

In[9]:=

ProteinContactGraphPlot["1IJG","CutOff"Quantity[8,"Angstroms"],"ScaledVertexSize"True,"EdgeColorFunction"True,ImageSize500,VertexSize30]

Out[9]=

External Links

Ramachandran Plot
1IJG

Source Metadata

Citation:
- Simpson, Alan A., et al. "Structure determination of the head–tail connector of bacteriophage ϕ29." Acta Crystallographica Section D: Biological Crystallography 57.9 (2001): 1260-1269.
